2BDU6-X7-DRobot Vacuum Cleaner

Robot Vacuum Cleaner Instruction Manual Before using this product, please carefully read this manual and keep it properly X7-D Contents 19 21 09 05 20 18 15 11 About Robot Vacuum Cleaner Installation APP Connection Use Instructions Routine Maintenance Basic Parameters Common Problems Troubleshooting Safety Information 01 About Robot Vacuum Cleaner Installation --------- -------- Basic Parameters About Robot Vacuum Cleaner What's in the box FilterSide brush Dust collection station Cleaning brush Dust bag Robot Vacuum Cleaner2 IN 1 dust box and water tank Mop holderMop 1 Cleaning button · Press to start/stop cleaning · Press and hold for more than 3 seconds to power on/off Recharge button · Press to start/stop charging System reset button · Press the button with a needle to reset the device About Robot Vacuum Cleaner Main unit 2 reset About Robot Vacuum Cleaner Sensor and Structure 3 Button Bumper Infrared receiver sensor Laser radar Cliff sensor Side brush 2 IN 1 dust box and water tank sensor Mop sensor Battery cover Charging contact Charging contact Rolling brush Wheel Dust collection station About Robot Vacuum Cleaner 2 IN 1 dust box and water tank 4 Primary filter Power status indicator Upper cover Dust collecting port Charging conductive sheet Power cord Sponge filter High efficiency filter Dust box cover Water tank silicone plug Charging contact Dust box assembly removal button Infrared signal emitter In areas prone to falling or where cleaning is prohibited, use the App to set up a virtual wall after the auxiliary machine has completed mapping to avoid accidental falling or pushing other objects to fall, otherwise it may cause personal or property losses. Installation Precautions Before starting the machine, clear away wires and debris scattered on the floor, and remove items that are prone to falling, fragile, valuable and potentially dangerous. Avoid being entangled, stuck, dragged or knocked down by the machine, otherwise it may cause personal injury or property damage. Don’t use the machine to clean liquid. 5 2.Install side brushes Align the side brush with the side brush hole on the bottom and press down. You will hear a "click", which means the side brush is installed in place. Installation 6 1.Remove protective materials from both sides of the robot vacuum cleaner. 3.After connecting the power cord to the power source, tidy up any excess wires. 4.Place the dust collection station on a flat surface against a wall and connect it to a power source. 5.Do not move the dust collection station arbitrarily and avoid direct sunlight. 6.Power on and charge Press the cleaning button Press the cleaning button to turn on the machine. When the indicator light is always on, place the machine on the dust collection station to charge. When you hear the "Start Charging" sound, it means the machine is charging successfully. Notice: Sunlight may interfere with the charging signal, preventing the machine from returning to the dust collection station. Notice: The indicator light stays on when the dust collection station is powered on, and goes off when the machine is being charged. Illustrate : If the machine is low battery, it will not turn on. Please place the machine on the dust collection station and the device will automatically power on. Installation 0.5m 7 1.5m 0.5m Press the cleaning button to turn on the machine. When the indicator light is always on, place the machine on the charging station to charge. When you hear the "Start Charging" sound, it means the machine is charging successfully. 1.Open the water filling cap, add an appropriate amount of water, and then close it tightly. Do not add any detergent. 3.Install the mop on the mop holder. 2.Install the 2 in 1 dust box and water tank onto the machine 4.Install the mop holder. Installation(Moping function) 8 1. Register and log in to the APP. 2.Turn on mobile phone positioning, WiFi and Bluetooth, and authorize the APP to access WiFi and Bluetooth. 3.First start the machine, press and hold the recharge button for more than 3 seconds until the voice prompt/ indicator light flashes quickly, indicating that the machine enters the network mode. APP Connection Preparation before connection Download APP Scan the QR code to download the App or search for "Smart Life" or "Tuya Smart" in major App markets and download it. The router supports wireless signals in the 2.4GHz band. Download and install the App, open the App and create an account. 9 4.Click“Add a device”or“+” in the top right corner 6. Select 2.4GHz WiFi network and enter the password 5.Add already searched machine7.Complete connection APP Connection 10 X7D X7D Recharge/Stop Press the recharge button on the machine, the recharge button on the remote control, or the recharge button on the mobile phone APP. The machine will start charging when it is in standby state, and it will stop when it is not in standby state. Note: If the robot vacuum cleaner cannot find the dust collection station, it will automatically return to the starting position. Please manually place the main unit on the dust collection station for charging. Use Instructions(Machine button) Power on/off Press and hold the cleaning button on the machine for more than 3 seconds. In the shutdown state, if there is an indicator light on or a voice announcement, it means that the machine has been successfully turned on. In standby mode, the indicator light turns off or a voice announcement indicates that the machine is shut down successfully. C lean/Pause Press the cleaning button on the machine or the cleaning button on the remote control or the cleaning button on the mobile APP. The machine will start cleaning in the standby state and stop in the non-standby state. 11 Reset button Press the reset button with a needle to reset the machine. Press the recharge button on the machine, or the recharge button on the mobile phone APP. The machine will start charging when it is in standby state, and it will stop when it is not in …

Text truncated - open the document above for the full version.

FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD. No.20, Hengchang Street, Bogong Community, Dongfeng Town, Zhongshan City GD Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/11/26 U.S. Agent Designation ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD.acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDU6-X7-D): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: 1942 Broadway St. STE 314C Boulder, Co 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7) ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD.with the FRN [0034553362] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. . An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC w The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. ithin 30 days via the granting TCB. Sincerely, Signature Lin Wang Manager ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD. Signature Ben Xu Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

ZHONGSHANJEXYELECTRICAPPLIANCECO.,LTD. 11/30/2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2BBR3-XZX-9001) [XZXVideoTechnologyshenzhenCo.,LTD](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)LinWang ZHONGSHANJEXYELECTRICAPPLIANCECO.,LTD. 11/30/2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2BBR3-XZX-9001) [XZXVideoTechnologyshenzhenCo.,LTD](“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListas anentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)LinWang

ZHONGSHANJEXYELECTRICAPPLIANCECO.,LTD. ModelDifference Model:X7-D,X6-D,X8-D,X9-D,X6,X7,X8,X9 AllthemodelsarethesamecircuitandRFmodule,exceptthemodelsnames. Regards Sincerely, Client’ssignature Client’ssignature: Client’sname/title:LinWang/Manager Contactinformation/address:No.20,HengchangStreet,BogongCommunity, DongfengTown,ZhongshanCityGDProvince,China

ZHONGSHANJEXYELECTRICAPPLIANCECO.,LTD. 11/30/2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(RobotVacuumCleaner/ #ANDFCCID:2BDU6-X7-D ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe -BlockDiagram -Schematics -OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetintothe possessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Client’ssignature: Client’sname/title:LinWang/Manager Contactinformation/address:No.20,HengchangStreet,BogongCommunity,Dongfeng Town,ZhongshanCityGDProvince,China

ZHONGSHANJEXYELECTRICAPPLIANCECO.,LTD. 11/30/2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenCTATestingTechnologyCo.,Ltd.)toacton ourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigning ofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Client’ssignature: Client’sname/title:LinWang/Manager Contactinformation/address:No.20,HengchangStreet,BogongCommunity,Dongfeng Town,ZhongshanCityGDProvince,China

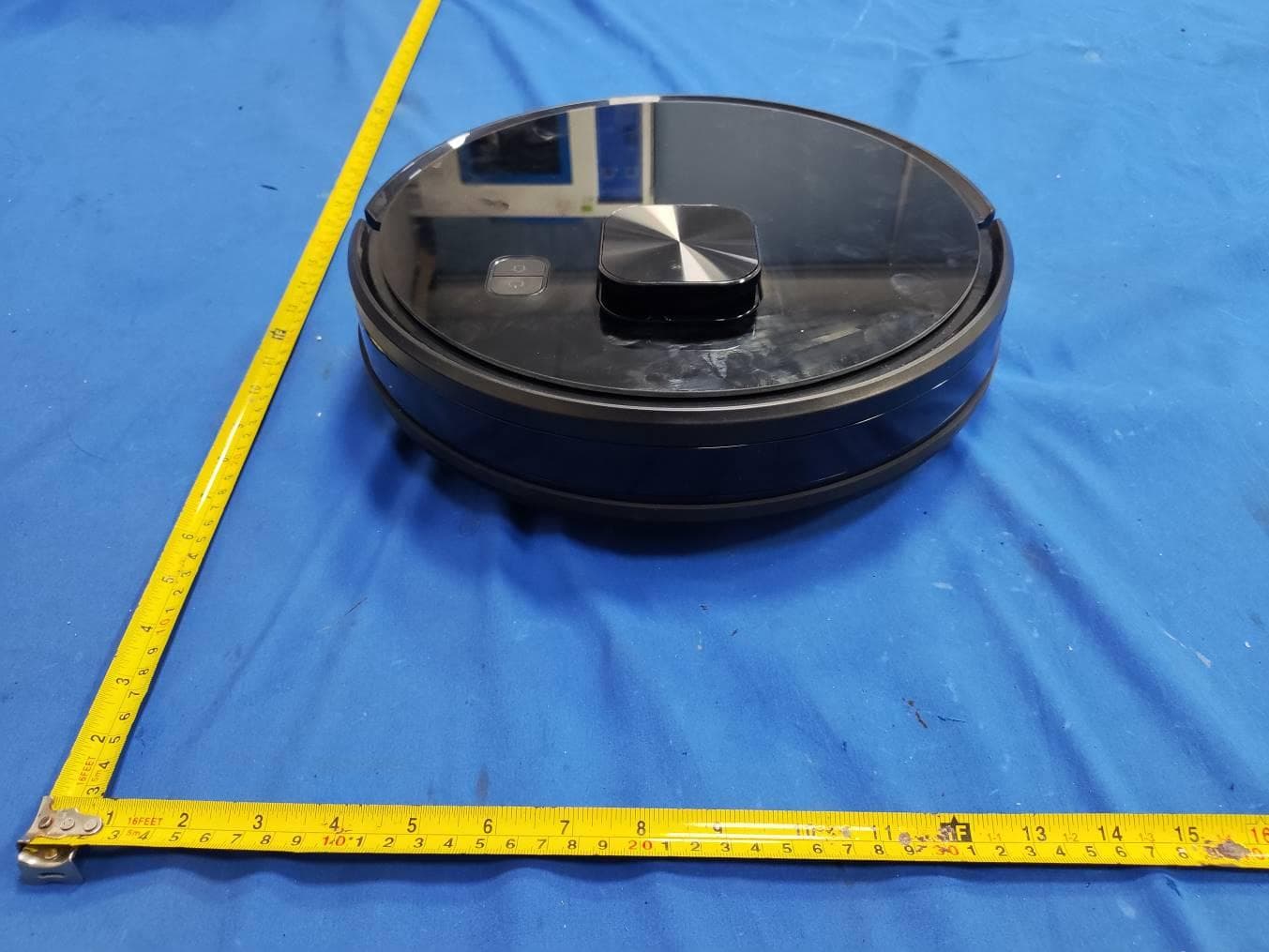

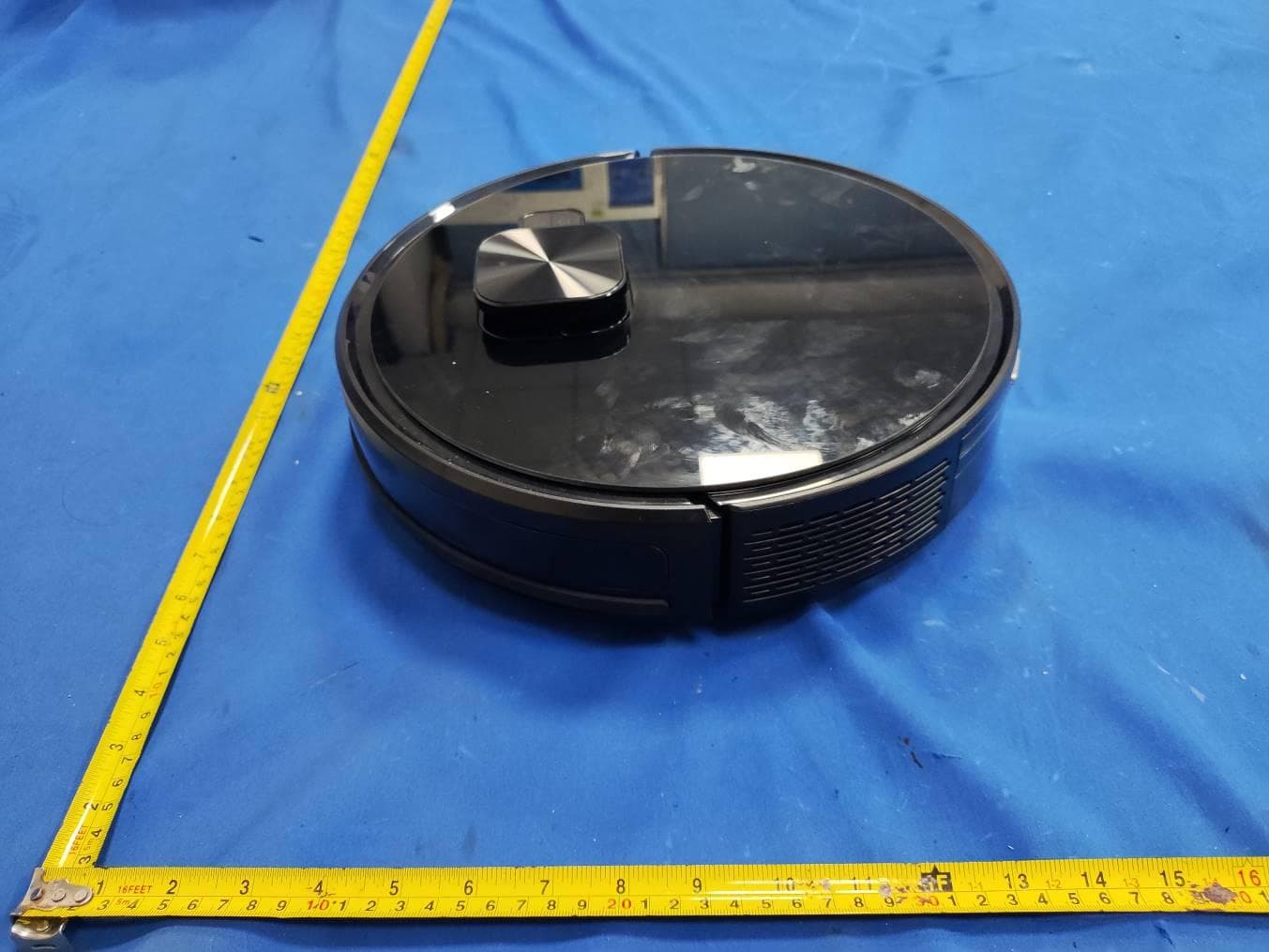

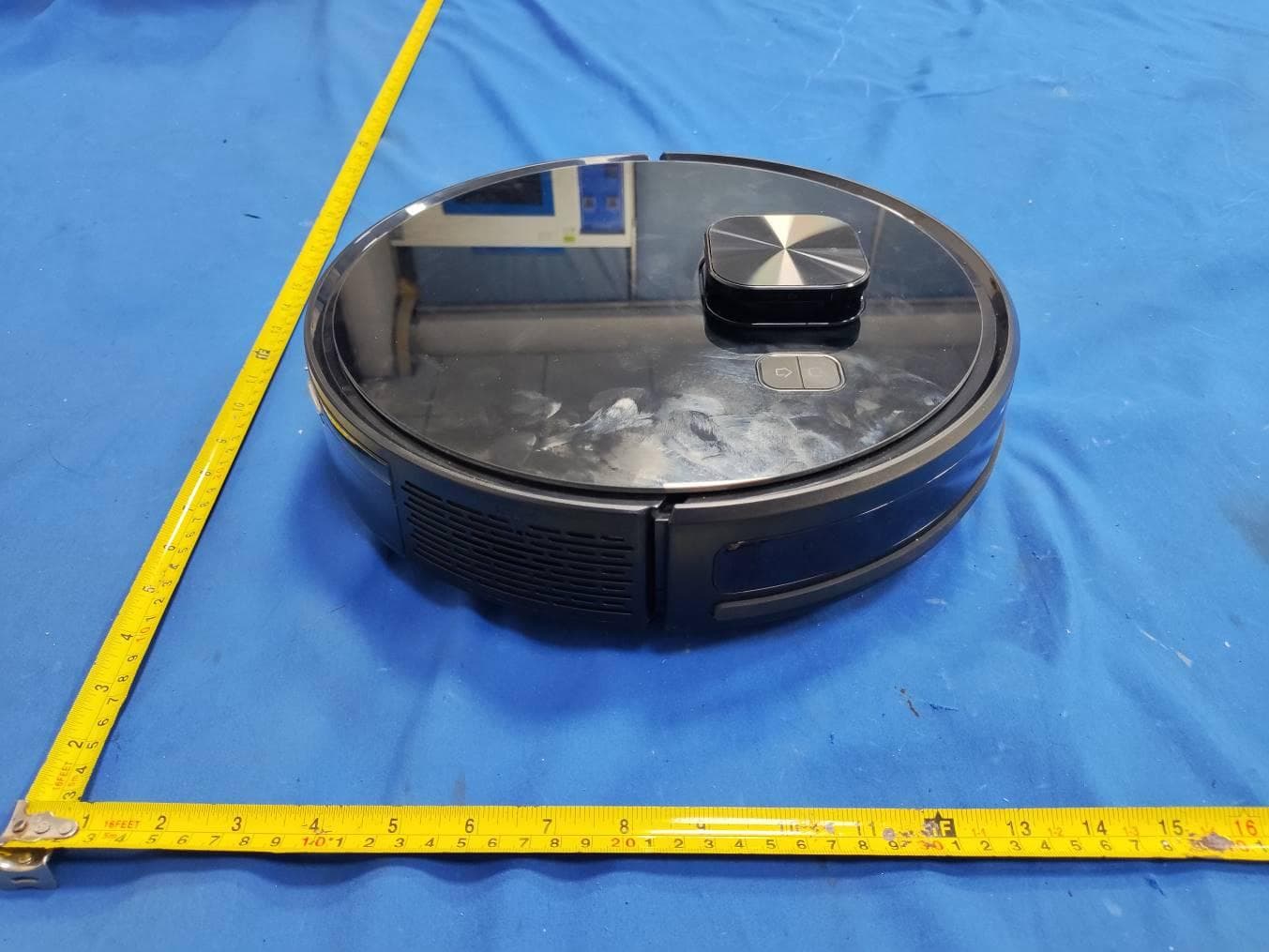

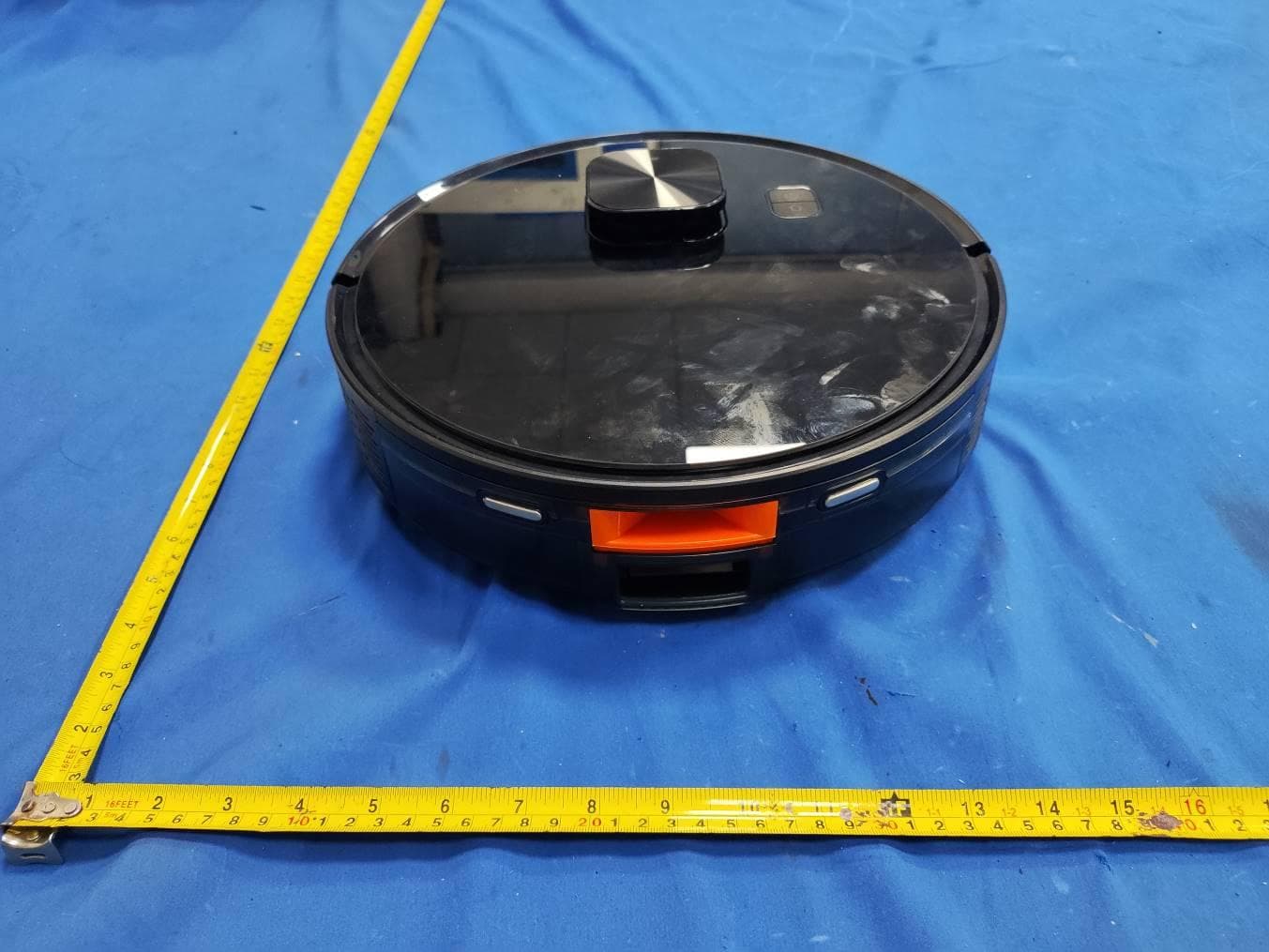

FCCID:2BDU6-X7-D ExternalPhotosoftheEUT FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D

1.5*3.2cm

FCCID:2BDU6-X7-D InternalPhotosoftheEUT FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D ANT FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D FCCID:2BDU6-X7-D

RFExposureevaluation FCCID:2BDU6-X7-D Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation Brillercanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: 2.4GWIFI/PCBANT2.94dBifor2400-2500MHz 2.4GBT/PCBANT2.94dBifor2400-2500MHz 5.ManufacturingTolerance [2.4GHzWLAN] IEEE802.11b(Average) Frequency(MHz)241224372462 Target(dBm)14.014.013.0 Tolerance±(dB)1.01.01.0 IEEE802.11g(Average) Frequency(MHz)241224372462 Target(dBm)14.013.012.0 Tolerance±(dB)1.01.01.0 IEEE802.11nHT20(Average) Frequency(MHz)241224372462 Target(dBm)13.013.012.0 Tolerance±(dB)1.01.01.0 GFSK Frequency(MHz)240224412480 Target(dBm)01.01.0 Tolerance±(dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais 2.94dBi,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW 2.4GWIFI15.031.622.941.970.0121.0000 2.4GBT2.01.582.941.970.00061.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

1. Antenna Description: Antenna type PCB antenna Model X7-D Frequency range 2400-2500MHz Manufacturer ZHONGSHAN JEXY ELECTRIC APPLIANCE CO.,LTD. ANT Peak Gain 2.94 dB 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern
