2BDV9VSM-1VSM-1

Introduction Thank you for choosing a CRANNS disc-lock alarm: the world’s strongest, smartest, loudest motorcycle security solution. Please read this booklet carefully. For more information about this and other CRANNS locks, accessories and product news, please visit www.cranns.com Questions or comments about your CRANNS product? Email us at [email protected] Quick start guide Your CRANNS disc-lock alarm comes with a CR2 long-life lithium battery included. Please install battery before use. Locking your motorcycle • Insert key in lock and rotate clockwise. Lock barrel will spring open. • Locate hole in front brake-disc sufficient to allow locking pin to pass through. • Slide lock on to disc and depress key barrel to insert locking pin. • Double-locking VD10 and VD14: turn key counter-clockwise to lock. • Pushdown VP6: depress barrel until it clicks into place. Fitting your CRANNS to your motorcycle’s brake disc 1. Brake disc thickness: less than 7mm (1/4”) 2. Locking pin size: VP6 6mm (1/4”) VD10 10mm (3/8”) VD14 14mm (1/2”) 3. Distance from locking pin to back of disc slot*: VP6 46mm (1 4/5”) VD10 48mm (1 8/9”) VD14 46mm (1 4/5”) Important: the locking pin can pass through ANY hole on disc (dark areas on diagram). Arming the alarm Your CRANNS Lock is Bluetooth enabled so that connect to your Smartphone and adjust the alarm settings using the CRANNS BLE Lock app available for both Android and IOS. If you do not wish to use the app simply insert the battery as normal and use can use lock as a conventional CRANNS alarmed lock. Using the App 1) Download and install the “CRANNS” App. 2) Insert battery into the alarm module. You will hear a confirmation “beep” once battery is correctly inserted. Replace the battery door. 3) Insert module into the lock and fit base plate. 4) Open the CRANNS App and follow the instructions on the App. Once you have named your device and set a password you can adjust the settings and check your battery status. You can choose the user language in the settings menu. 5) After initial setup up, the Bluetooth connection will only be active once the lock is placed on a disc. If your app is closed or interrupted after setup you will need to place you lock on a disc to reconnect the App. 6) Your CRANNS alarm will be paired to your Smartphone so there will be no need to enter your password once the device is set up. 7) When you remove the battery the password and device will be reset. 8) If you use another device to connect to your lock you will need to enter the password again. 9) You can select the user language in the settings menu. WARNING: CRANNS 120dB alarms are extremely loud! Avoid close proximity to unprotected ears. Battery life • Batteries should last 6 to 8 months with normal use. Frequent triggering or extreme temperatures can shorten battery life. Keys • Each CRANNS lock comes with three keys and a flat plate with a unique code number (ie, CMAA12345678). (ie, 1234567890) for ordering replacement keys. Make a note of your key code and store safely. We encourage you to register your lock at www.cranns.com Register your CRANNS lock On the Flat plate provided, you'll find your lock' unique ID numbers: 1. Key code. You'll need to input both when registering at www.cranns.com Caring for your lock • Use a dry cloth to keep the reflector plate inside the disc-slot clean and free of dirt, dust and grease. An obstructed reflector plate can affect performance and may cause the lock to arm when not on the brake disc. • We recommend applying a lock lubricant to the lock barrel every six months. If alarm is damaged • The alarm module is removable. Replacement modules are available from authorised CRANNS dealers or by emailing us directly at [email protected] NOTE: the lock remains effective with or without the alarm system. Transporting your disc-lock • Ideally you should carry your CRANNS underneath the seat of your bike. • CAUTION: Do not carry your CRANNS in or attach it to your clothing, as this may contribute to injury in the event of an accident. Customer care Email us at: [email protected] Don’t forget to register your CRANNS lock at www.cranns.com Disclaimer: Our products are sold as security enhancements, and are not a substitute for the end-user's duties of normal care and attention. As such, CRANNS accepts no responsibility or liability for any direct or consequential loss, damage or injury arising or resulting from the use or misuse of our products howsoever arising, save that we will always replace any product found to be defective within the warranty period. D isclaimer: Our products are sold as security enhancements, and are not a s ubstitute for the end-user's duties of normal care and attention. As such, CRANNS accepts no responsibility or liability for any direct o r consequential loss, damage or injury aris ing or resulting from the use or misuse of our products howsoever arising, sav e that we will always replace any product found to be defective within the warranty period. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to …

Text truncated - open the document above for the full version.

(Cranns Limited) (December 4, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BDV9VSM-1) [Cranns Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) German Choy (Cranns Limited) (December 4, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BDV9VSM-1) [Cranns Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) German Choy

Cranns Limited Model Difference Data：December 12, 2023 Product description: VSM-1 Model name: VSM-1, VD10, VD14, VP6 Trade Name: N/A FCC ID: 2BDV9VSM-1 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : German Choy（Director） Contact information / address：Flat H, 11/F, Tower 4, Tivoli Garden, Tsing Yi, N.T., Hong Kong, China

Cranns Limited (December 12, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (VSM-1 / VSM-1, VD10, VD14, VP6/ FCC ID: 2BDV9VSM-1) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: German Choy Title: Director

Cranns Limited (December 4, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: German Choy Title: Director

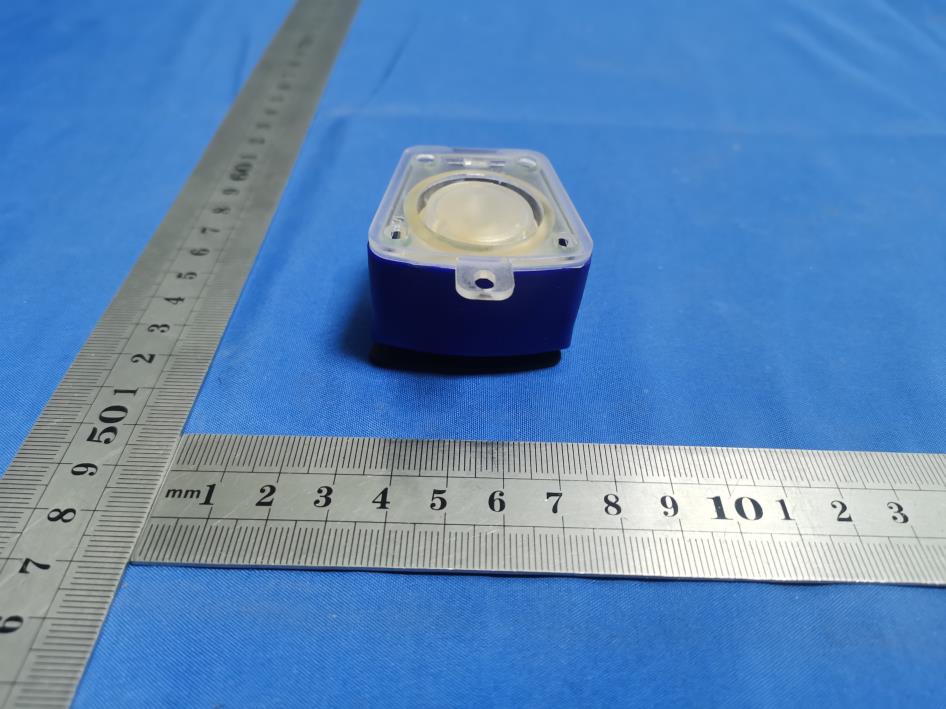

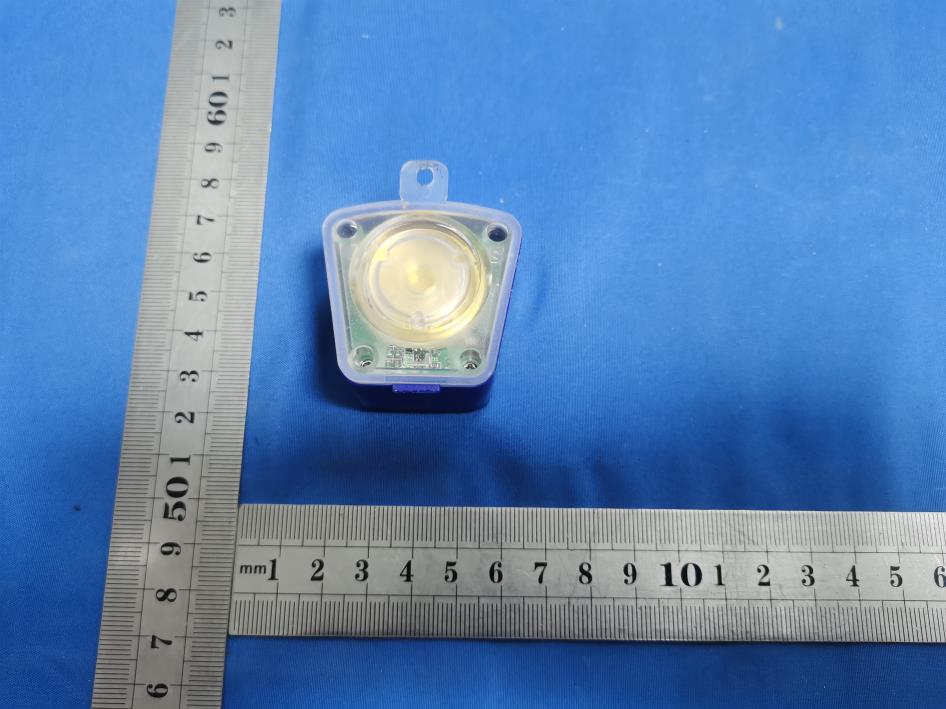

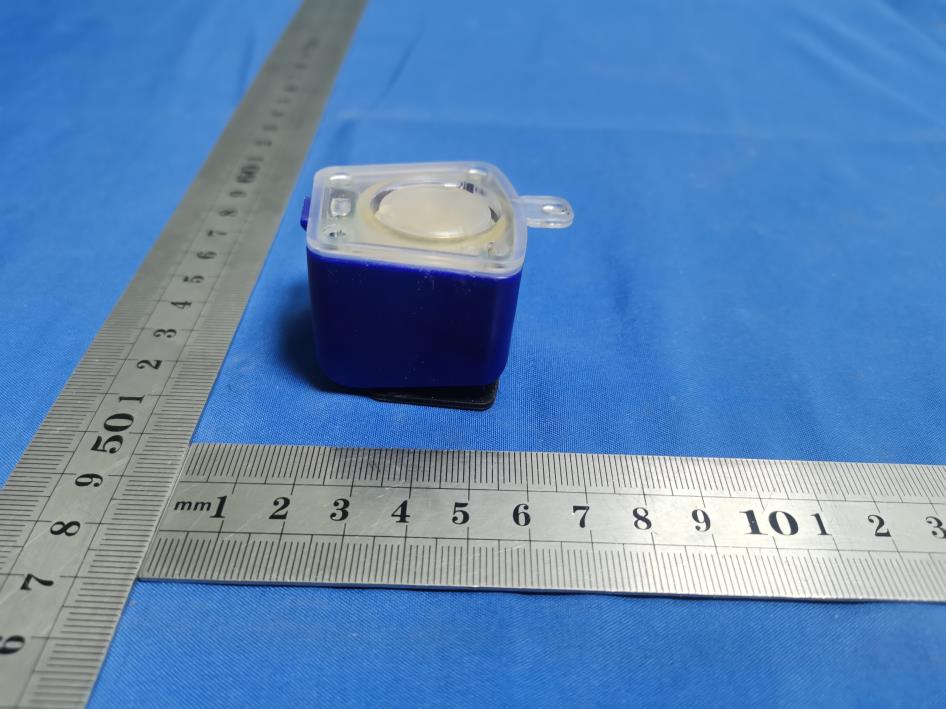

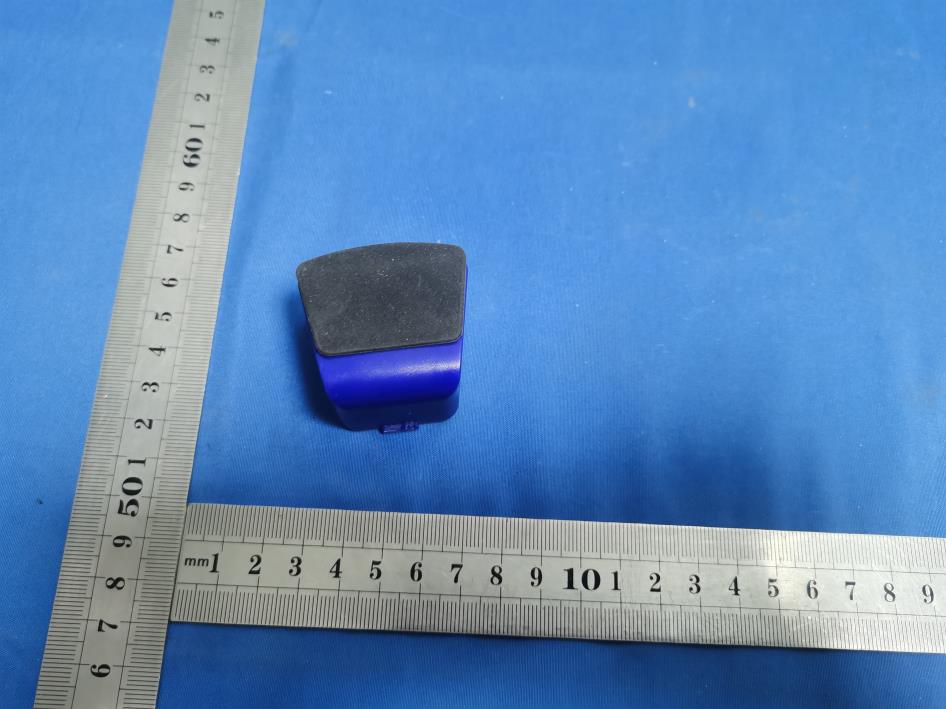

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 5 Model: VSM-1 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 5

FCC ID LABEL: Label Location: FCC ID: 2BDV9VSM-1 Model No.: VSM-1

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 3 Model: VSM-1 Internal Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 3 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 3 ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BDV9VSM-1 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK&HC H 0±1 1 1.2589 0.875 (-0.58dBi) 0.0002 1 Pass

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: VSM-1 FCC ID: 2BDV9VSM-1 Trademark: N/A Model Number: VSM-1, VD10, VD14, VP6 Prepared For: Cranns Limited Address: Flat H, 11/F, Tower 4, Tivoli Garden, Tsing Yi, N.T., Hong Kong, China Manufacturer: Dong Guan City Shang Jiao Fu Chuen Electronics Limited Address: No. 55, ZhenXing Road, ShangJiao District, ChangAn Town, DongGuan City, Guangdong Province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Nov. 21, 2023 Sample tested Date: Nov. 21, 2023 to Nov. 30, 2023 Issue Date: Nov. 30, 2023 Report No.: CTB231128052RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231128052RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 33 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 13 7.1 Block Diagram Of Test Setup ......................................................................................................... 13 7.2 Limit ................................................................................................................................................ 13 7.3 Test procedure ............................................................................................................................... 14 7.4 Test Result ..................................................................................................................................... 15 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 22 8.1 Block Diagram Of Test Setup ......................................................................................................... 22 8.2 Limit ................................................................................................................................................ 22 8.3 Test procedure ............................................................................................................................... 22 8.4 Test Result ..................................................................................................................................... 23 9. COUDUCTED OUTPUT POWER ................................................................................................. 25 9.1 Block Diagram Of Test Setup ......................................................................................................... 25 9.2 Limit …

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: VSM-1 Radiated Emission Below 1G Above 1G
