2BDVS-ZWBLE1USSmart Door Lock

DEN Smart Home
Smart Door Lock - FCC ID 2BDVS-ZWBLE1US - DEN Smart Home
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 12, 2024
Application Purpose
Original Equipment
Date of Application
Feb 12, 2024
Equipment Note
Smart Door Lock
Frequency Range
912.00000000 - 920.00000000
Company
DEN Smart Home
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Page 1 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 DEN SmartStrike™ User Guide Page 2 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 First Time Configuration In order to control your new SmartStrike™ lock the DEN Smart Home app will need to be installed on your mobile device and an account created in order to secure the lock. Before You Begin Before proceeding with using the app, ensure the following items are on hand. • DEN SmartStrike™ Door Lock. • Android or iOS Mobile Device. • DEN SmartStrike™ app installed on mobile device. Steps for First Time Configuration 1. Install the DEN SmartStrike™ APP 2. Create a User Account 3. Register the Door Lock Install the DEN SmartStrike™ APP The app is available for both Android and iOS and can be located in their respective app stores. Page 3 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Creating a User Account To use the app a user account is required. Once the account is created your door lock can be added. 1. Open the app and select Register at the bottom of the screen. 2. Enter your Name and select Next. 3. Enter your Email and Password and select Next. Note the password requirements. 4. Add a profile image by selecting the over the image. Images can be added using the camera or selected within your gallery. After adding the image select Sign Up. 5. A message will appear indicating that the account was created, however it cannot be used until your email has been verified. 5a. Check your email for a confirmation message from DEN Smart Home, click on Confirm Email Address to complete the registration process. 5b. You may now return to the app and log in with your credentials and continue to Registering Your SmartStrike™ Lock. Page 4 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Registering Your SmartStrike™ Lock Once the account is created your new door lock needs to be added to the app. When you log in for the first time you will be presented with screens for added security, this can be skipped and added later by following the steps in the Configuring Added Security section. 1. Open the App and log in with your credentials. 2. A screen will appear to setup Two-factor authentication, this can be skipped at this time. 2a. Select Skip to proceed to registering your SmartStrike™ lock. 2b. Select Setup two-factor and refer to Configuring Two-Factor Security for details. 3. Scan the QR code on the rear of the lock or on the carton label. 3a. If the Device Located message appears, select Add to Location. 3b. If the Device Out of Range message appears, move closer to the device and try again. 3c. If the Device Already Registered message appears, contact the device owner to deregister the device. Page 5 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 4. Add a Location for the lock. 4a. Enter a name that best describes where the lock is located. Example: My Home. 4b. Add an image for the location. This can be from your gallery or via the camera. Select Next to add the image. 4c. Edit the image to best display on the screen and Select Next. 5. Enter a name for the lock and select Next. 5a. A message will appear that the lock has been added to the location and will perform a test to verify communication with the lock. 5b. If the unlocked message appears, the communication test was successful and the lock can now be controlled. 5c. If the Device Out of Range screen appears, move closer to the lock and test manually. Page 6 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Using the SmartStrike™ Lock Configuring Device Hold Time Hold time is the amount of time the device remains unlocked. The default time is 6 seconds and can be adjusted from 2 ~ 20 seconds. 1. Navigate to the settings menu by selecting the setting icon at the bottom of the screen. Select Locations and Locks. 2. Select the lock. 3. Select Hold Time. 4. Move the slider to adjust hold time. Page 7 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Controlling the Door Lock 1. Navigate to the Device Control home screen. 2. Slide the slider up to unlock. Lock will lock after the set hold time. Refer to Configuring Device Hold Time to change the amount of time the lock will remain unlocked. 3. An message will appear during the unlocking process and when the lock has been unlocked. Door can be opened once the unlocked message appears. 4. A message will appear that the door can be closed once the lock has returned to the locked position. Page 8 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Switching SmartStrike Locks 1. Navigate to the Device Control home screen. 2. Select the lock name to open the list of locks. NOTE: Only one lock has been added to the location if there is no arrow to the right of the lock name. 3. Select the lock name from the list. 4. The selected lock is now ready to control. Page 9 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Switching Locations 1. Navigate to the Device Control home screen. NOTE: If there is no white box around the location name then only one location exits. 2. Select the location name a the top of the screen. 3. Swipe left or right to review locations and select. 4. The home screen is now on the selected device. Page 10 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.1 - 231808 Lock Control Options The lock can be controlled via various methods and devices. Syncing an Apple Watch 1. Install the DEN app on your Apple Watch via the Apple app Store. 2. Navigate to the settings menu by selecting the setting icon at the bottom of the screen. 3. Select Account. 4. Select Apple Watch. 5. Select Sync Watch. 6. A checkmark will appear when the watch is synced. Page 11 of 21 © 2023 DEN Smart Home | First Time App Configuration - V1.3 - 240702 Connecting to a Z Wave Hub 1. Navigate to the settings menu b…

Text truncated - open the document above for the full version.

Users Manual

Overview This Quick Start Guide (QSG) provides the basics to set up the DEN Smart Home app and configure a SmartStrike. Refer to the complete Installation Guide and User Guide located at densmarthome.com for more information on installing the SmartStrike and using the app. Before you begin In order to setup and use the DEN Smart Home app there are items required such as the SmartStrike and access to the QR for the SmartStrike. Ensure that the SmartStrike is close by and the battery door is removed and available. Important! Always use 2 AA Lithium batteries. Install the DEN SmartStrike™ app The app is available for download in the Google Play store and the iOS App Store. © 2023 DEN Smart Home Quick Start Guide 1.0.2023 www.densmarthome.com DEN SMARTSTRIKE™ Quick Start Guide FCC ID: 2BDVS-ZWBLE1US IC ID: 31766-ZWBLE1US

Attestation Statements

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 www.ustech-lab.com SDoC Attestation Letter Date: December 15th, 2023 Subject: SDoC Attestation Letter: FCC ID: 2BDVS-ZWBLE1US The following equipment meets FCC Part 15 SDoC Requirements for digital device: Responsible Party: Den Smart Home 228 E. 45 th St. #9e New York, NY Lewis Brown Operations Equipment: Smart Appliance for residential and commercial applications. Wireless enabled door locking assembly. Model Name: DEN SmartStrike (ZW-BLE-1-US) Sincerely, By: __________________________ _____George Yang __- Agent (Signature/Title) (Print name)

Attestation Statements

Lewis Brown, President Lewis Brown, President

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia MD 21046 USA Date: 2-08-2024 REF: Attestation Statement Part 2.911(d)(7) Filing FCC ID or Grantee Gode: 2BDVS-ZWBLE1US DEN Smart Home ("the applicant") certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for the service of process. Designated U.S. Agent Information: FRN: 0034370155 Name: DEN Smart Home Address: 228 E 45th St #9e, New York, NY 10017 Contact Person: Lewis Brown Tel.: 415-686-5865 Email: [email protected] Sincerely, Lewis Brown President DEN Smart Home

Cover Letter(s)

Request for Confidentiality Date: ___December 15, 2023____ Subject: Confidentiality Request for: FCC ID: 2BDVS-ZWBLE1US and IC: 31766-ZWBLE1US Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual DEN Smart Home has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___George Yang __- Agent (Signature/Title) (Print name)

External Photos

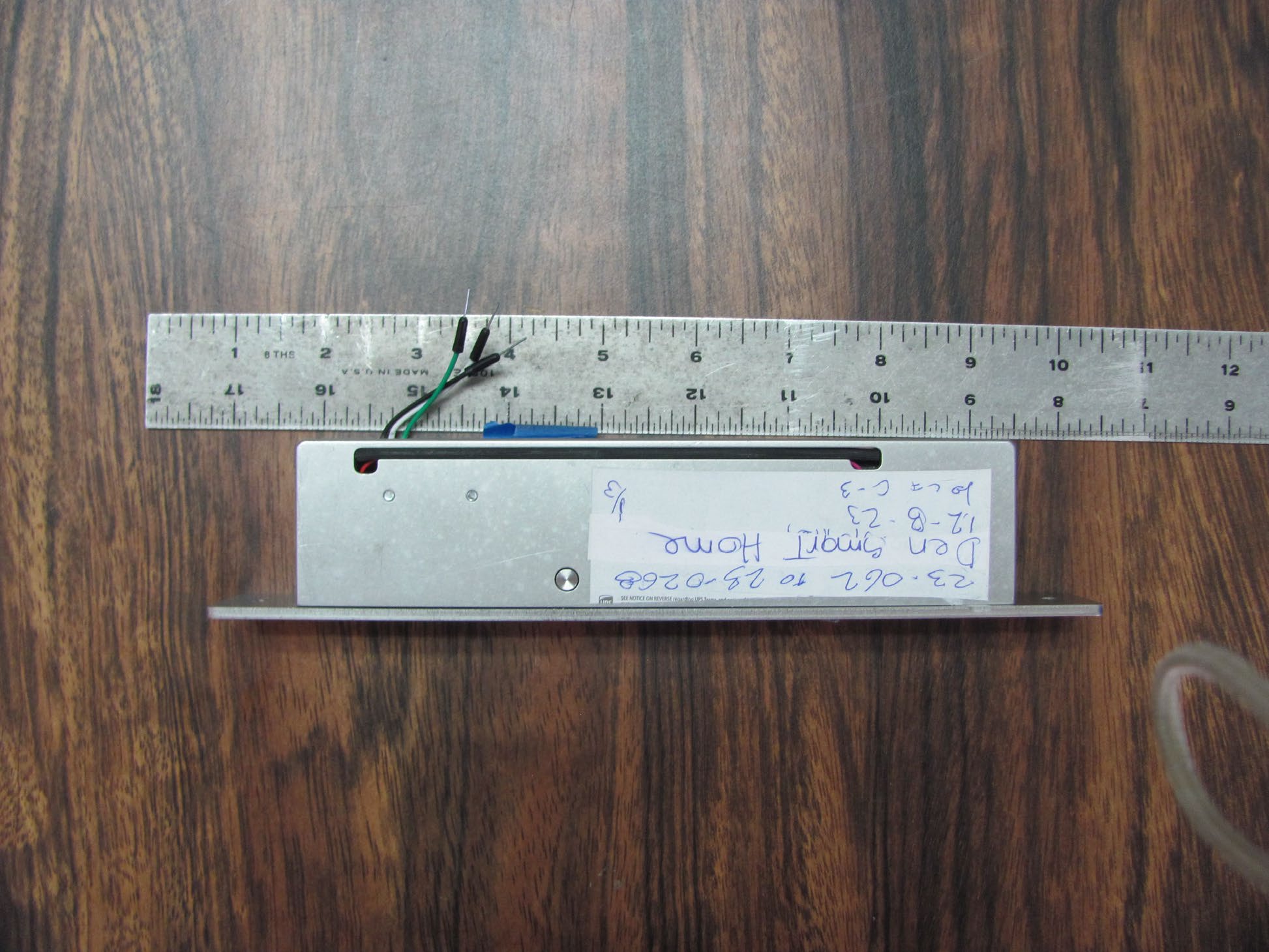

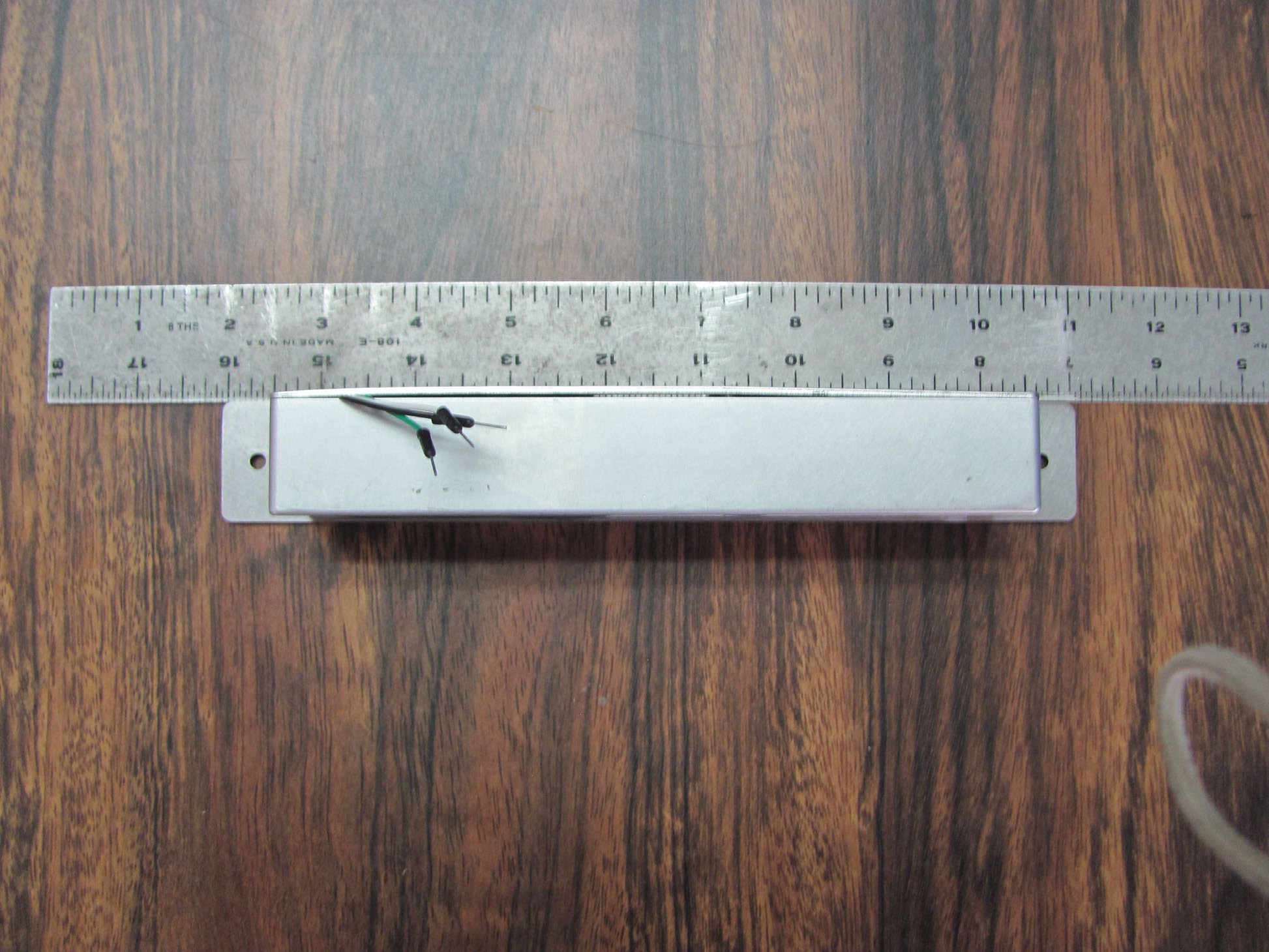

US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 1 of 6 EXTERNAL PHOTOGRAPHS Figure 1. Front of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 2 of 6 Figure 2. Right of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 3 of 6 Figure 3. Left Side of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 4 of 6 Figure 4. Back Side of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 5 of 6 Figure 5. Top of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 6 of 6 Figure 6. Bottom of EUT

ID Label/Location Info

US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 1 of 3 Sample Label and Label Location Figure 1. EUT Sample Label on device Figure 2. EUT Label location on device LABEL GO HERE US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 2 of 3 Figure 3. Label on product packaging Back Figure 4. Product Package Front US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 3 of 3 Figure 5. Product Package with outer sleeve removed displaying the model’s name and number.

Internal Photos

US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 1 of 9 INTERNAL PHOTOGRAPHS Figure 1. Side View of Internals US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 2 of 9 Figure 2. Front View of Internals US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 3 of 9 Figure 3. PCBA removed US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 4 of 9 Figure 4. Motor assembly US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 5 of 9 Figure 5. Component View of PCBA US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 6 of 9 Figure 6. BLE SIP module. Internal antenna used. US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 7 of 9 Figure 7. Secondary PCBA US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 8 of 9 Figure 8. Antenna US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: December 15, 2023 Customer: DEN Smart Home Model: DEN SmartStrike Page 9 of 9 Figure 9. Back of main PCBA

RF Exposure Info

US Tech Test Report: RF Exposure FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SmartStrike Page 1 of 4 Maximum Permissible Exposure to RF (MPE), CFR 1.1310 (e) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S as per the respective limits in Table 1 below, at a distance, d, of 20 cm (Mobile condition) from the EUT. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Therefore, for: MPE for 912 MHz – 920 MHz for DEN SmartStrike: Limit: f/1500 = 0.61 mW/cm 2 Peak Power (dBm) = +11.76 dBm Peak Power (Watts) = 0.015 W Gain of Transmit Antenna = +3.0 dB i = 1.99 numeric d = Distance = 20 cm = 0.2 m S = (PG/ 4πd 2 ) = EIRP/4A = 0.015 (1.99)/4*π*0.2*0.2 = 0.0299/0.5030 = 0.05944 W/m 2 = (0.05944 W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.005944 mW/cm 2 which is << less than S = 0.61 mW/cm 2 US Tech Test Report: RF Exposure FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SmartStrike Page 2 of 4 MPE for 2400 MHz – 2483.5 MHz radio module: See attached RF Exposure Report for the radio module bearing FCC ID: QOQ- BGM220S2 and IC: 5123A-BGM220S2. Bureau Veritas, Test Report Number: SA200602C21, Issue Date: Aug 24, 2020. Reported Maximum Power Density (mW/cm 2 ) = 0.002 mW/cm 2 US Tech Test Report: RF Exposure FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SmartStrike Page 3 of 4 RSS-102, 2.5.2 compliance for 433.164 MHz – 435.324 MHz: At or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; for 912 MHz – 920 MHz: Limit= 1.31 x 10 -2 x 916 0.6834 = 1.38 Watts Max EIRP for DEN SmartStrike radio = 11.76 dBm + 3.0 dBi = 14.76 dBm = 30.0 mW << 1380 mW All calculations performed by: Date: February 2, 2024 Test Engineer: George Yang Signature:____________________ US Tech Test Report: RF Exposure FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0267 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SmartStrike Page 4 of 4 Simultaneous Transmission Collocation considerations: Please either confirm that the transmitters operate standalone per KDB 447498 D01 v06 section 7.1 or, if the transmitters can transmit simultaneously, include the necessary calculations for simultaneous transmission per KDB 447498 D01 v06 section 7.2. Please either confirm that the transmitters operate standalone or, if the transmitters can transmit simultaneously, include the necessary calculations for simultaneous transmission per ISED RSS-102 issue 5 section 3.1.2. The device has two radios on board, a Z-wave and BLE. The radio can occasionally simultaneously broadcast however the fundamental signals are on different frequencies, 900 MHz ISM band and 2.4 GHz ISM band. The radios do not share a common antenna. Each radio has its own antenna. The BLE is pre-certified module bearing its own FCC and IC identification numbers and is being used with approved antennas. Calculations for simultaneous transmission per KDB 447498 D01 v06 section 7.2 is provided here to show that Simultaneous transmission MPE test exclusion applies since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0. Per ISED RSS-102 (I5) section 3.1.2 other recognized methods can be used to show compliance; therefore, this method is used to show compliance to RSS-102. Total Sum of MPE: Sum of the total MPE for both frequency bands = 0.0002/1 mW/cm 2 + 0.005944/1 mW/cm 2 = 0.006 which is << less than 1.0 The EUT was tested with all radios ON and active during collocation testing. The emissions generated with a single radio ON and active versus all radios ON and active did not produce additional unwanted spurious emissions or intermodulation that would require additional testing. The radios can be collocated as designed.

RF Exposure Info

Report No.: SA200602C21 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report (Mobile mode) Report No.: SA200602C21 FCC ID: QOQ-BGM220S2 Test Model: BGM220S22A Series Model: BGX220S22A Received Date: Jun. 02, 2020 Test Date: Jun. 09 ~ Jul. 07, 2020 Issued Date: Aug. 24, 2020 Applicant: Silicon Laboratories Finland Oy Address: Alberga Business Park - Bldg D/Floor 5, Bertel Jungin aukio 3, 02600 ESPOO, FINLAND Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA200602C21 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SA200602C21 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA200602C21 Original release Aug. 24, 2020 Report No.: SA200602C21 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Bluetooth Low Energy wireless radio module Brand: Silicon Labs Test Model: BGM220S22A Series Model: BGX220S22A Sample Status: Engineering sample fully representing the production model Applicant: Silicon Laboratories Finland Oy Test Date: Jun. 09 ~ Jul. 07, 2020 Standards: FCC Part 2 (Section 2.1091) References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.3 -2002 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date:Aug. 24, 2020 Polly Chien / Specialist Approved by : , Date:Aug. 24, 2020 Bruce Chen / Senior Project Engineer Report No.: SA200602C21 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA200602C21 Page No. 6 / 6 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power Mode Frequency Band (MHz) Max. AV Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Dipole antenna BT LE LE 1M 2402~2480 7.56 2.8 20 0.002 1 LE 2M 7.60 2.8 20 0.002 1 SRD - 2401 & 2481 7.61 2.8 20 0.002 1 Note: 1. Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 2. The EUT is capable of running the Bluetooth Low Energy protocols, and an additional custom protocol. However, in no circumstance the module will transmit using two or more protocols at the same time. 3. The abo…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 39 Application For Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 15, Subpart C Intentional Radiator, paragraphs 15.207, 15.209 and 15.247 Operation within the bands 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz. And ISED Radio Standards Specification: RSS-Gen Issue 5 and RSS-247 Issue 3 For the DEN Smart Home Model: DEN SMARTSTRIKE FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US UST Project: 23-0265 Issue Date: February 2, 2024 Total Pages in This Report: 42 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 39 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Compliance Engineer – President Date February 2, 2024 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0265 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SMARTSTRIKE Page 3 of 39 MEASUREMENT TECHNICAL REPORT Company Name: Den Smart Home Address: 228 E 45th St #9E New York, New York Model: DEN SMARTSTRIKE (ZW-BLE-1-US) FCC ID: 2BDVS-ZWBLE1US IC ID: 31766-ZWBLE1US Date: February 2, 2024 This report concerns (check one): Original grant X Class II change Equipment type: 912-920MHz DTS Transmitter device FCC Rule Description of Test Result 15.247(b)(3) Peak Output Power PASS 15.247(a)(2) 6 dB Bandwidth PASS 15.247(d) Conducted & Radiated Spurious Emissions PASS 15.247 (e) Power Spectral Density PASS 15.247(b) Output power PASS 15.209 Spurious Radiated Emissions PASS 15.207 Power line Conducted Emissions PASS US Tech Test Report: FCC Part 15 Certification/ RSS 247 FCC ID: 2BDVS-ZWBLE1US IC: 31766-ZWBLE1US Test Report Number: 23-0265 Issue Date: February 2, 2024 Customer: DEN Smart Home Model: DEN SMARTSTRIKE Page 4 of 39 Table of Contents Paragraph Title Page 1 General Information .............................................................................................. 7 1.1 Purpose of this Report ...................................................................................... 7 1.2 Characterization of Test Sample ...................................................................... 7 1.3 Product Description .......................................................................................... 7 1.4 Configuration of Tested System ....................................................................... 8 1.5 Test Facility ...................................................................................................... 8 1.6 Related Submittals ........................................................................................... 8 1.6.1 The EUT is subject to the following FCC authorizations: ........................... 8 1.6.2 Verification of the Digital apparatus ........................................................... 8 2 Tests and Measurements ................................................................................... 10 2.1 Test Equipment .............................................................................................. 10 2.2 Modifications to EUT Hardware ...................................................................... 10 2.3 Number of Measurements for Intentional Radiators (15.31(m)) ..................... 11 2.4 Frequency Range of Radiated Measurements (Part 15.33) ........................... 11 2.4.1 Intentional Radiator .................................................................................. 11 2.4.2 Unintentional Radiator ............................................................................. 11 2.5 Measurement Detector Function and Bandwidth (CFR 15.35) ....................... 11 2.5.1 Detector Function and Associated Bandwidth ......................................... 12 2.5.2 Corresponding Peak and Average Requirements .................................... 12 2.5.3 Pulsed Transmitter Averaging .................................................................. 12 2.6 Transmitter Duty Cycle (CFR 15.35 (c)) ......................................................... 12 2.7 EUT Antenna Requirements (CFR 15.203) .................................................... 13 2.9 Power Line Conducted Emissions (CFR 15.207) ........................................... 14 2.10 Intentional Radiator, Radiated Emissions (CFR 15.209, 15.247(d)) (IC RSS 247 5.1 & 5.2) ....................................................................................................... 14 2.11 Band Edge Measurements – (CFR 15.247 (d)) ............................................ 20 2.12 DTS Bandwidth (IC RSS 247 5.2,CFR 15.247 (a) (2)) ...................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Lew Brown(President)
[email protected]415-686-5865Fax: 414-716-0202

Test Firm

US TechGeorge Yang
[email protected]770-740-0717Fax: 770-740-1508

Technical Specifications

#Rule PartsFrequency RangePower Output
115C912 MHz - 920 MHz15.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This equipment must be installed and operated to provide a separation distance of at least 20cm between the radiator and any part of the human body. Users and installers must be provided with operating conditions for satisfying RF exposure compliance.
