2BDXQ-T40061Walkie Talkies

0034579391

0034579391

Aurora World, Inc Agent Authorization Company: Aurora World, Inc Address: 8820 Mercury Lane, Pico Rivera, CA 90660 Product Name: Walkie Talkies Model Number(s): T40061 Product Description: Walkie Talkies We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024.01.03 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

2023.12.29 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO.,LTD./ A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China/Jiankuai Li(Name of Agent company name and address, Name of Agent) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Name: Jiankuai Li Title: PM E-mail:[email protected] This appointment is valid until further until Dec 28, 2024 Sincerely, Gabe Higa Name: Gabe Higa Title: Managing Director – Toy Division E-mail: [email protected] Company: Aurora World, Inc Signature:

Aurora World, Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024.01.03 FCC ID: 2BDXQ-T40061 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiankuai Li Title:PM

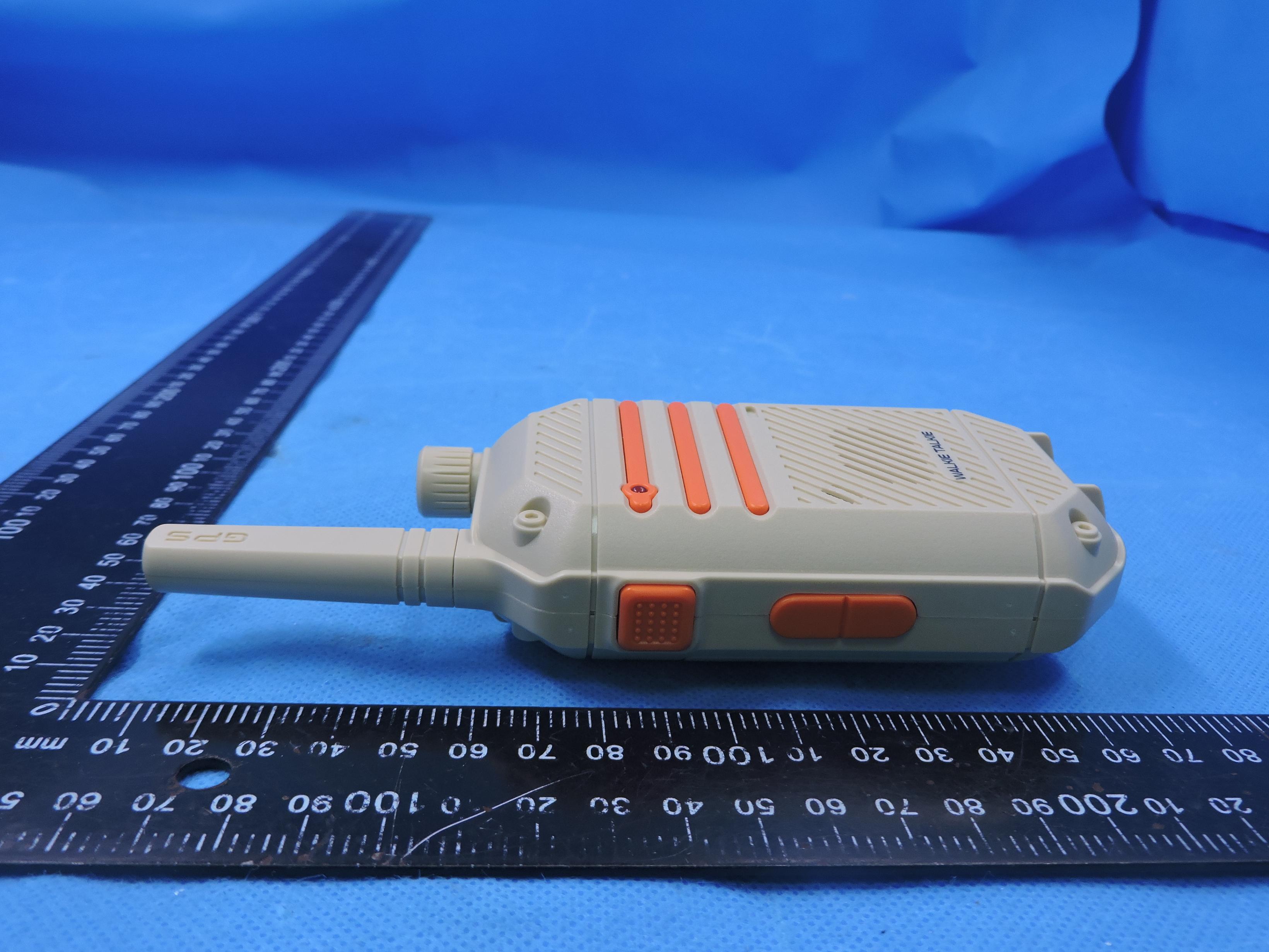

Page 1 of 3 ReportNo.:STS2312048 APPENDIX-PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS Model:T40061 Photo1 Photo2 Page 2 of 3 ReportNo.:STS2312048 Photo3 Photo4 Page 3 of 3 ReportNo.:STS2312048 Photo5 Photo6

Page 1 of 3 Report No.: STS2312048 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: T40061 Photo 1 Photo 2 ANT Page 2 of 3 Report No.: STS2312048 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2312048 Photo 5

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2312048H01 Issued for Aurora World, Inc 8820 Mercury Lane, Pico Rivera, CA 90660 Product Name: Walkie Talkies Brand Name: N/A Model Name: T40061 Series Model(s): N/A FCC ID: 2BDXQ-T40061 Test Standards: FCC 47CFR §2.1093 Page 2 of 10 Report No.: STS2312048H01 TEST REPORT Applicant’s Name ................. : Aurora World, Inc Address ................................. : 8820 Mercury Lane, Pico Rivera, CA 90660 Manufacturer's Name ........... : Aurora World, Inc Address ................................. : 8820 Mercury Lane, Pico Rivera, CA 90660 Product Description Product Name ........................ : Walkie Talkies Brand Name .......................... : N/A Model Name .......................... : T40061 Series Model(s) ...................... : N/A Test Standards ..................... : FCC 47CFR §2.1093 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 07 Dec. 2023 Date (s) of performance of tests ............. : 07 Dec. 2023 ~ 14 Dec. 2023 Date of Issue .......................................... : 14 Dec. 2023 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 10 Report No.: STS2312048H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1093 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 10 Page 4 of 10 Report No.: STS2312048H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 14 Dec. 2023 STS2312048H01 ALL Initial Issue Page 5 of 10 Report No.: STS2312048H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Walkie Talkies Brand Name N/A Model Name T40061 Series Model(s) N/A Model Difference N/A Product Description The EUT is Walkie Talkies Operation Frequency: 462.5625 MHz Modulation Type: FM Antenna gain: 0dBi Antenna Designation: Monopole Antenna Rating Input: DC 3*1.5V AA Hardware Version V1.0 Software Version V1.0 Page 6 of 10 Report No.: STS2312048H01 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 10 Report No.: STS2312048H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 8 of 10 Report No.: STS2312048H01 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 9 of 10 Report No.: STS2312048H01 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). This exemption may not be used in conjunction with other exemption criteria other than those is paragraph (b)(3)(i)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(i)(A). (B) in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2312048W01 Issued for Aurora World, Inc 8820 Mercury Lane, Pico Rivera, CA 90660 Product Name: Walkie Talkies Brand Name: N/A Model Name: T40061 Series Model(s): N/A FCC ID: 2BDXQ-T40061 Test Standard: FCC Part 95 Subpart B Page 2 of 32 Report No.: STS2312048W01 TEST REPORT Applicant’s Name ....................... : Aurora World, Inc Address ...................................... : 8820 Mercury Lane, Pico Rivera, CA 90660 Manufacturer's Name ................. : Aurora World, Inc Address ...................................... : 8820 Mercury Lane, Pico Rivera, CA 90660 Product Description Product Name ............................ : Walkie Talkies Brand Name ............................. : N/A Model Name ............................... : T40061 Series Model(s) .......................... : N/A Test Standards .......................... : FCC Part 95 Subpart B Test Procedure ........................... : TIA 603-E This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test .......................................... : Date of receipt of test item .................... : 07 Dec. 2023 Date of performance of tests ................ : 07 Dec. 2023 ~ 14 Dec. 2023 Date of Issue ........................................ : 14 Dec. 2023 Test Result ........................................... : Pass Testing Engineer : (Lenon Hou) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 32 Report No.: STS2312048W01 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. FIELD STRENGTHS AND RADIATED SPURIOUS EMISSION 12 3.1 RADIATED EMISSION LIMITS 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULT 15 4. SPURIOUS EMISSION ON ANTENNA PORT 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 17 4.4 EUT OPERATION CONDITIONS 17 4.5 TEST RESULT 17 5. BANDWIDTH TEST 18 5.1 LIMIT 18 5.2 TEST PROCEDURE 18 5.3 TEST SETUP 18 5.4 EUT OPERATION CONDITIONS 18 5.5 TEST RESULTS 19 6. TRANSMITTER OUTPUT POWER AND EFFECTIVE RADIATED POWER (E.R.P) 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 TEST SETUP 21 6.4 TEST RESULTS 21 7. EMISSION MASK 22 7.1 LIMIT 22 Page 4 of 32 Report No.: STS2312048W01 Table of Contents 7.2 TEST PROCEDURE 22 7.3 TEST SETUP 22 7.4 EUT OPERATION CONDITIONS 22 7.5 TEST RESULT 23 8. FREQUENCY STABILITY 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 TEST SETUP 24 8.4 EUT OPERATION CONDITIONS 24 8.5 TEST RESULT 25 9. MODULATION LIMIT 26 9.1 LIMIT 26 9.2 TEST PROCEDURE 26 9.3 TEST SETUP 26 9.4 TEST RESULT 27 10. AUDIO LOW PASS FILTER RESPONSE 28 10.1 LIMIT 28 10.2 TEST PROCEDURE 28 10.3 TEST SETUP 28 10.4 TEST RESULT 29 11. AUDIO FREQUENCY RESPONSE 30 11.1 LIMIT 30 11.2 TEST PROCEDURE 30 11.3 TEST SETUP 30 11.4 TEST RESULT 31 APPENDIX 1- PHOTOS OF TEST SETUP 32 Revision History Rev. Issue Date Report No. Effect Page Contents 00 14 Dec. 2023 STS2312048W01 ALL Initial Issue Page 5 of 32 Report No.: STS2312048W01 Page 6 of 32 Report No.: STS2312048W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 95 Subpart B Standard Section Test Item Judgment Remark FCC Part 95.567 Transmitter Output Power and Effective Radiated Power (e.r.p) PASS -- FCC Part 95.573 Authorized Bandwidth PASS -- FCC Part 95.579 Emission Mask PASS -- FCC Part 95.579 Transmitter Radiated Spurious Emission PASS -- FCC Part 95.579 Spurious Emission On Antenna Port PASS -- FCC Part 95.565 Frequency Stability PASS -- FCC Part 95.575 Audio Low Pass Filter Response PASS -- FCC Part 95.575 Audio Frequency Response PASS -- FCC Part 95.575 Modulation Requirements PASS -- NOTE: (1) “N/A” denotes test is not applicable in this Test Report. (2) All tests are according to TIA 603-E. Page 7 of 32 Report No.: STS2312048W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. :101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB Page 8 of 32 Report No.: STS2312048W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Walkie Talkies Brand Name N/A Model Name T40061 Series Model(s) N/A Model Difference N/A Operation Frequency Range: 462.5625 Channel Separation 12.5KHz Modulation Type FM Emission types FRS 8K40F2D Rating Input: DC 3*1.5V AA Hardware version number V1.0 Software version number V1.0 Connecting I/O Port(s) Please refer to the note 1 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2BDXQ-T40061 FRF Setup photo Model Number: T40061 FRF radiation L FRF radiation H
