2BDXV-CATBOXAutomatic Cat Litter Box

INSTRUCTIONS OF SMART CAT LITTER BOX HVIN: CATBOX-NEO-A , CATBOX-NEO-B Please read the instruction manual carefully and keep it safe before using the product Instructions of Smart cat litter box 1 Statement ●Dear user, thank you for choosing our smart cat litter box. ●Before using the product, please read this instruction manual carefully. ●The company assumes no responsibility for any damage, personal injury, or property loss caused by improper use. ●To ensure the best experience with our product, it will continuously undergo upgrades and iterations. Thespecific appearance and materials are subject to the actual product, and the images and text are for reference only. ●Documents, accessories, and consumables related to this product may vary with product upgrades and optimizations, but this will not affect usage. The actual product will prevail. Updates will not be separately notified. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Instructions of Smart cat litter box 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This Equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordancewith the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a Particular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the Instructions of Smart cat litter box 3 party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator&your body. Instructions of Smart cat litter box 4 Safety Instructions (Important) ●Please carefully follow the instructions for operation. ●Do not soak or wash the base in water. ●Do not rinse the electrical parts. ●Turn off the power before cleaning and disassembling. ●Use indoors only. ●Not recommended for pets under three months old. ●Use the original power cord and adapter to avoid damage and safety hazards. ●Guide pets correctly to use, and ensure they do not bite the cords. ●Place the product on a stable and flat surface. ●Do not place in high areas to avoid falling risks. ●The smart cat litter box is only suitable for cats weighing 1KG or more, with a recommended maximum weight of 15KG. Instructions of Smart cat litter box 5 1.Product Introduction This is a fully automatic smart cat litter box that can clean cat litter automatically after your cat uses it. You can download the “Tuya Smart” APP to set the device to automatic or manual mode. You can also view the cat’s bathroom usage records, device status, current mode, and device notifications. If you do not wish to connect to the APP, you can perform basic settings through the device’s interface. The device has multiple safety features during operation, such as anti-pinch and automatic stop when the cat enters during operation. It automatically stops and protects in case of anomalies to ensure no harm to you and your pet. Product ModelCATBOX-NEO-A Operating ModesAutomatic/Manual Applicable toCats MaterialABS+PP+POM Size550* 500*665 mm Product Net Weight11 kg Power SupplyDC 12V/1A Wi-Fi Support Frequency Range 2.400~2.4835GHz Wi-Fi Standard: IEEE 802.11b/g/n (Channels 1- 14) Rated Power12W Operating Temperature0to+50°C Storage Temperature-10to+60°C Instructions of Smart cat litter box 6 2.List of Accessories Please carefully check if all accessories are included. The following are standard accessories provided by the factory; for complimentary accessories, please refer to the dealer. Instruction Manual Power Adapter Main Unit *1 Instructions of Smart cat litter box 7 3. Component Introduction Lid Latch Support Legs Interactive Panel Waste Collection Bin Drum Handling Handle Lid Support Legs Adapter Socket Power Button Waste Collection Bin Support Legs Garbage Bag *1 Instructions of Smart cat litter box 8 4. Quick Connection You can quickly connect and use this product by following the instructions on this page. Instructions of Smart cat litter box 9 ①First, you need to download the "Tuya Smart" APP. You can search for "Tuya Smart" in your phone's app store, or scan the QR code on the right to download and install. ②After installation, open the APP, register an account and log in, click on "Add Device" on the homepage, and follow the instructions to complete the binding process. ③Once the device is bound, pour cat litter into the drum compartment of the device(upto6Lmaximum),andthenreboot the device (unplug the power for 15 seconds and then reconnect). ④After completing the above steps, Instructions of Smart cat litter box 10 5. Operation Introduction 5.1 User Instructions 5.1.1 Unboxing and Assembly Open the package and take out the drum's internal drawer, four support you can enter the device con…

Text truncated - open the document above for the full version.

Hangzhou Huanyu Technology Co,Ltd. 12‐20‐2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BDXV‐CATBOX) [Hangzhou Huanyu Technology Co,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Aaron wang Hangzhou Huanyu Technology Co,Ltd. 12‐20‐2023 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BDXV‐CATBOX) [Hangzhou Huanyu Technology Co,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Aaron wang

Hangzhou Huanyu Technology Co,Ltd. Agent Authorization Letter 2023-12-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Aaron wang Position: Manager Company Name: Hangzhou Huanyu Technology Co,Ltd. Address: Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City, China Tel / Fax 13989463089/13989463089 E-Mail: [email protected]

Hangzhou Huanyu Technology Co,Ltd. Long Term Confidentiality Request Letter 2023-12-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2BDXV-CATBOX) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Aaron wang Position: Manager Company Name: Hangzhou Huanyu Technology Co,Ltd. Address: Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City, China Tel / Fax 13989463089/13989463089 E-Mail: [email protected]

Model difference letter 2023.12.20 Dear MET Reviewer, This is a new Application from Hangzhou Huanyu Technology Co,Ltd. Model No.: CATBOX-NEO-A, CATBOX-NEO-B Use CATBOX-NEO-A for all tests. Only difference in Appearance, Some colors in the appearance are different, and the capacity inside the product is also different. Thank you for your cooperation! Yours sincerely, Signatory: Name: Aaron wang Position: Manager Company Name: Hangzhou Huanyu Technology Co,Ltd. Address: Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City, China Tel / Fax 13989463089/13989463089 E-Mail: [email protected]

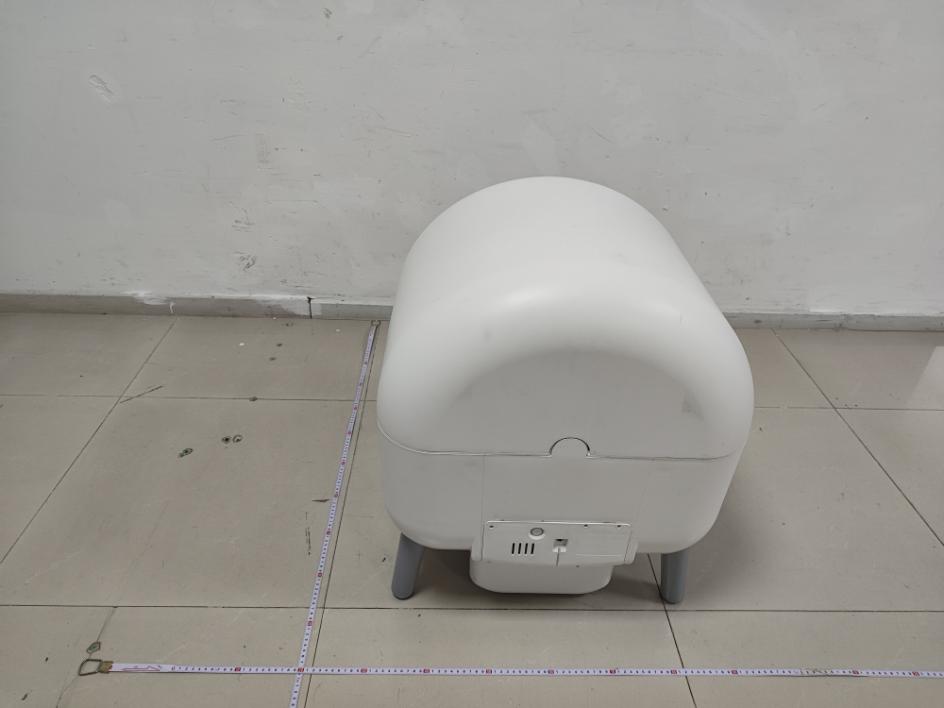

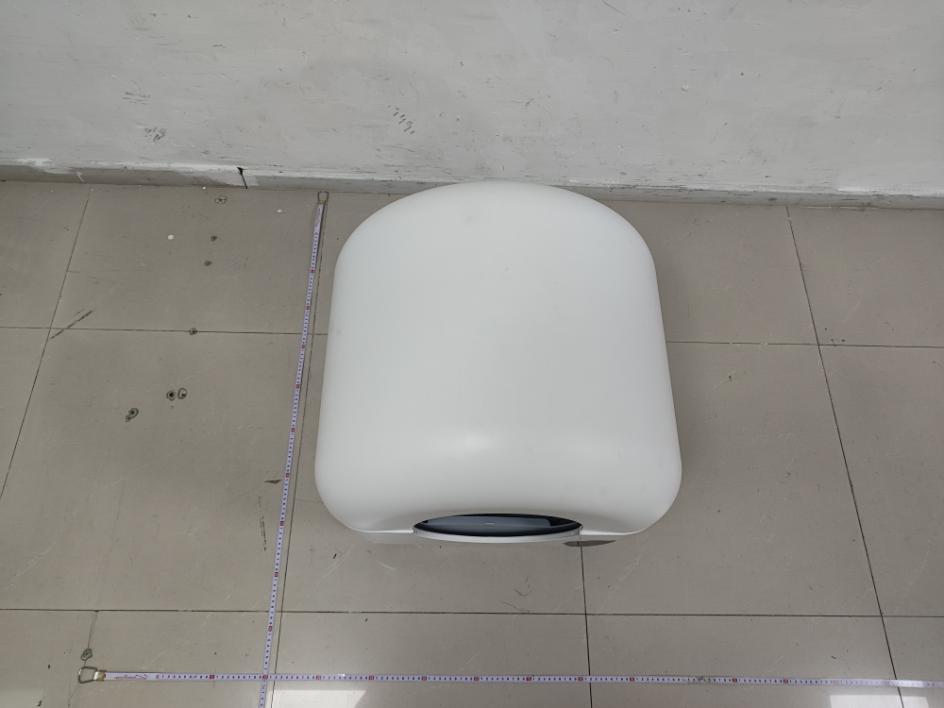

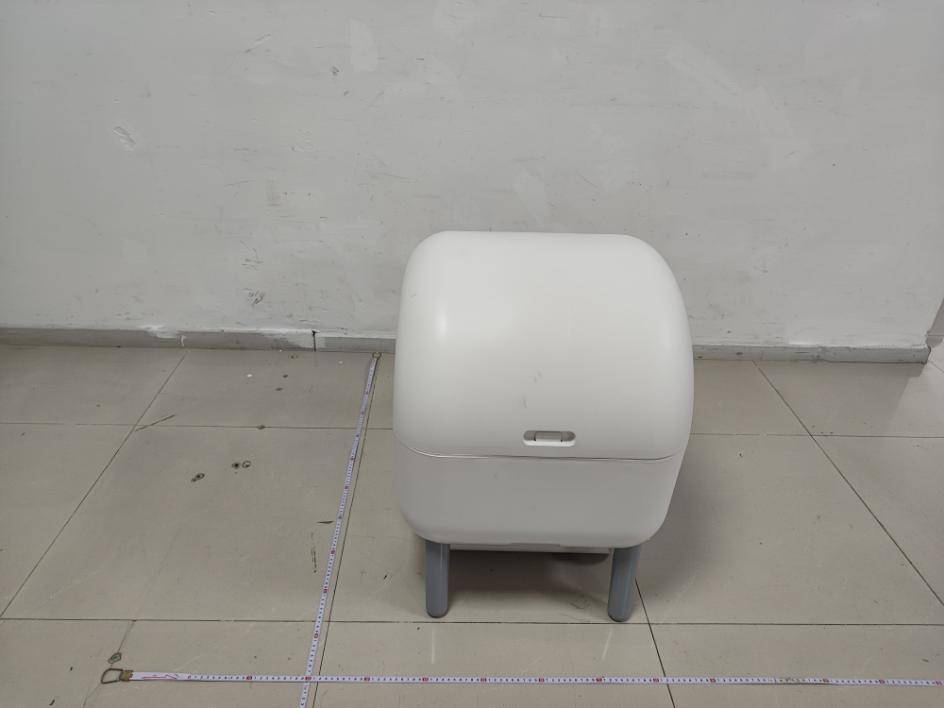

Model No.: CATBOX-NEO-A FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: CATBOX-NEO-A LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: CATBOX-NEO-A TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: CATBOX-NEO-A

Label: 50*40mm Product name: Automatic Cat Litter Box Power: DC 12V-1A Rated power: 12W Model: CATBOX-NEO-A Wireless communication: WIFI 2.4G/BLE FCC ID: 2BDXV-CATBOX IC: 31718-CATBOX Label location

ModelNo.:CATBOX-NEO-A Page1of7 INTERNALPHOTOOFSAMPLE INTERNALPHOTOOFSAMPLE ModelNo.:CATBOX-NEO-A Page2of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:CATBOX-NEO-A Page3of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:CATBOX-NEO-A Page4of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:CATBOX-NEO-A Page5of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ANT Location ModelNo.:CATBOX-NEO-A Page6of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:CATBOX-NEO-A Page7of7 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB

Shenzhen Most Technology Service Co., Ltd. East A, 1 floor of New Aolin Factory buiding, Langshan Erlu, North District, Hi-tech Industry Park, Nanshan,Shenzhen,Guangdong,China RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. .......................................... : MTEB23120036-H 2BDXV-CATBOX Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : December 06,2023 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Hangzhou Huanyu Technology Co,Ltd. Address ............................................ : Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City Test specification/ Standard ..........: 47 CFR Part 1.1307;47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Automatic Cat Litter Box Trade Mark ....................................... : N/A Model/Type reference....................... : CATBOX-NEO-A Listed Models .................................. : CATBOX-NEO-B Modulation Type ............................... : b: DSSS ,CCK ; g/n: BPSK,QPSK,QAM GFSK Operation Frequency ........................ : From 2412MHz~2462MHz 2402MHz to 2480MHz Hardware Version .............................. V3.0 Software Version ............................... V3.8 Rating ............................................... : DC 12V by Adapter Result................................................ : PASS Report No.: MTEB23120036-H Page 2 of 6 T E S T R E P O R T Equipment under Test : Automatic Cat Litter Box Model /Type : CATBOX-NEO-A Listed Models CATBOX-NEO-B Remark Only difference in Appearance, Some colors in the appearance are different, and the capacity inside the product is also different. Applicant : Hangzhou Huanyu Technology Co,Ltd. Address : Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City Manufacturer(1) : Hangzhou Huanyu Technology Co,Ltd. Address : Room 204, 2nd Floor, Building 5, No. 12 Binwen Road, Binjiang District, Hangzhou City Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23120036-H Page 3 of 6 1. Revision History Revision Issue Date Revisions Revised By 00 2023-12-06 Initial Issue Alisa Luo Report No.: MTEB23120036-H Page 4 of 6 2. SAR Evaluation 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2.1.2 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: MTEB23120036-H Page 5 of 6 2.1.3 EUT RF Exposure BLE GFSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2402MHz) 2.758 2.758±1 3.758 Middle(2440MHz) 0.215 0.215±1 1.215 Highest(2480MHz) -0.349 -0.349±1 0.651 BLE Worst case: GFSK Channel Maximum tune-up Power (dBm) Maximum tune-up Power (MW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result Lowest(2402MHz) 3.758 2.38 2 0.0008 1.0 Pass Note: 1) Refer to report MTEB23120036-R for EUT test Max Conducted average Output Power value. Note: 2) Pd = (Pout*G)/(4* Pi * R2)=(2.38*1.58)/(4*3.1416*20 2 )=0.0008 WIFI 2.4G 802.11b Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 11.73 11.73±1 12.73 Middle(2437MHz) 11.34 11.34±1 12.34 Highest(2462MHz) 11.54 11.54±1 12.54 Report No.: MTEB23120036-H Page 6 of 6 802.11g Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 13.36 13.36±1 14.36 Middle(2437MHz) 13.49 13.49±1 14.49 Highest(2462MHz) 13.44 13.44±1 14.44 802.11n(H20) Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 12.86 12.86±1 13.86 Middle(2437MHz) 12.82 12.82±1 13.82 Highest(2462MHz) 12.96 12.96±1 13.96 WIFI 2.4G Worst case: 802.11g Channel Maximum tu…

Text truncated - open the document above for the full version.

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. TESTREPORT FCCRulesPart15.247 ReportReferenceNo........................: FCCID................................................: MTEB23120036-R 2BDXV-CATBOX Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature)..: ManagerYvetteZhou Dateofissue.........................................:December06,2023 RepresentativeLaboratoryName.:ShenzhenMostTechnologyServiceCo.,Ltd. Address ................................................. : No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................:HangzhouHuanyuTechnologyCo,Ltd. Address.................................................: Room204,2ndFloor,Building5,No.12BinwenRoad,Binjiang District,HangzhouCity Testspecification/Standard ............ : FCCRulesPart15.247 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription........................: AutomaticCatLitterBox TradeMark...........................: N/A Model/Typereference.........................: CATBOX-NEO-A ListedModels ..................................... :CATBOX-NEO-B ModulationType .................................. :GFSK OperationFrequency..........................:From2402MHzto2480MHz HardwareVersion.................................V3.0 SoftwareVersion...................................V3.8 Rating.....................................................:DC12VbyAdapter Result ..................................................... :PASS ReportNo.:MTEB23120036-RPage 2 of 41 TESTREPORT EquipmentunderTest: AutomaticCatLitterBox Model/Type: CATBOX-NEO-A ListedModels CATBOX-NEO-B RemarkOnlydifferenceinAppearance,Somecolorsintheappearance aredifferent,andthecapacityinsidetheproductisalsodifferent. Applicant: HangzhouHuanyuTechnologyCo,Ltd. Address: Room204,2ndFloor,Building5,No.12BinwenRoad,Binjiang District,HangzhouCity Manufacturer(1): HangzhouHuanyuTechnologyCo,Ltd. Address: Room204,2ndFloor,Building5,No.12BinwenRoad,Binjiang District,HangzhouCity TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB23120036-RPage 3 of 41 Contents 1.REVISIONHISTORY.........................................................................................................................4 2.TESTSTANDARDS............................................................................................................................5 3.SUMMARY...............................................................................................................................................6 3.1.GeneralRemarks.........................................................................................................................................6 3.2.ProductDescription....................................................................................................................................6 3.3.EquipmentUnderTest................................................................................................................................6 3.4.ShortdescriptionoftheEquipmentunderTest(EUT)............................................................................6 3.5.EUToperationmode....................................................................................................................................7 3.6.BlockDiagramofTestSetup......................................................................................................................7 3.7.TestItem(EquipmentUnderTest)Description........................................................................................7 3.8.AuxiliaryEquipment(AE)Description.......................................................................................................7 3.9.AntennaInformation....................................................................................................................................8 3.10.EUTconfiguration......................................................................................................................................8 3.11.Modifications..............................................................................................................................................8 4.TESTENVIRONMENT.......................................................................................................................9 4.1.Addressofthetestlaboratory...................................................................................................................9 4.2.Environmentalconditions...........................................................................................................................9 4.3.TestDescription.........................................................................................................................................10 4.4.Statementofthemeasurementuncertainty...........................................................................................10 4.5.EquipmentsUsedduringtheTest...........................................................................................................11 5.TESTCONDITIONSANDRESULTS.....................................................................................12 5.1.ACPowerConductedEmission....................…

Text truncated - open the document above for the full version.

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID................................................: MTEB23120036-R1 2BDXV-CATBOX Compiledby (position+printedname+signature) .. :FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :December06,2023 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................:HangzhouHuanyuTechnologyCo,Ltd. Address ................................................. : Room204,2ndFloor,Building5,No.12BinwenRoad,Binjiang District,HangzhouCity Testspecification..............................: Standard................................................:FCCPart15.247 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen MostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen MostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................: AutomaticCatLitterBox TradeMark............................................: N/A Model/Typereference.........................: CATBOX-NEO-A ListedModels.....................................: CATBOX-NEO-B ModulationType..................................:b:DSSS,CCK g/n:BPSK,QPSK,QAM OperationFrequency .......................... :2412MHz~2462MHz Rating.....................................................:DC12VbyAdapter Hardwareversion.................................: V3.0 Softwareversion................................: V3.8 Result.....................................................:PASS ReportNo.:MTEB23120036-R1 Page2of57 TESTREPORT EquipmentunderTest: AutomaticCatLitterBox Model/Type:CATBOX-NEO-A ListedModels CATBOX-NEO-B RemarkOnlydifferenceinAppearance,Somecolorsintheappearance aredifferent,andthecapacityinsidetheproductisalso different. Applicant: HangzhouHuanyuTechnologyCo,Ltd. Address: Room204,2ndFloor,Building5,No.12BinwenRoad, BinjiangDistrict,HangzhouCity Manufacturer(1): HangzhouHuanyuTechnologyCo,Ltd. Address: Room204,2ndFloor,Building5,No.12BinwenRoad, BinjiangDistrict,HangzhouCity TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB23120036-R1 Page3of57 Contents 1REVISIONHISTORY...........................................................................................................................4 2TESTSTANDARDS..............................................................................................................................5 3SUMMARY.................................................................................................................................................6 3.1GeneralRemarks..........................................................................................................................................6 3.2ProductDescription.....................................................................................................................................6 3.3EquipmentUnderTest.................................................................................................................................6 3.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 3.5EUToperationmode.....................................................................................................................................6 3.6BlockDiagramofTestSetup.......................................................................................................................7 3.7TestItem(EquipmentUnderTest)Description*........................................................................................7 3.8AuxiliaryEquipment(AE)Description........................................................................................................7 3.9AntennaInformation*...................................................................................................................................7 3.10RelatedSubmittal(s)/Grant(s).................................................................................................................7 3.11Modifications...............................................................................................................................................7 3.12EUTconfiguration.......................................................................................................................................8 4TESTENVIRONMENT........................................................................................................................9 4.1Addressofthetestlaboratory....................................................................................................................9 4.2TestFacility...................................................................................................................................................9 4.3Environmentalconditions............................................................................................................................9 4.4TestDescription..........................................................................................................................................10 4.5Statemen…

Text truncated - open the document above for the full version.

ReportNo.:MTEB23120036-R1 Page46of57 6 4874.93-51.714-23.63-28.084PASS 7315.18-52.264-23.63-28.634PASS 9757.93-50.410-23.63-26.780PASS 24968.8-34.589-23.63-10.959PASS 11 2483.50-40.609-23.53-17.079PASS 4927.99-51.269-23.53-27.739PASS 7394.46-52.131-23.53-28.601PASS 9836.59-50.744-23.53-27.214PASS 24973.2-34.803-23.53-11.273PASS TestGraphs In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna0 SpuriousEmission IEEE802.11b_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna0 ReportNo.:MTEB23120036-R1 Page47of57 SpuriousEmissions IEEE802.11b_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna0 SpuriousEmission IEEE802.11b_Channel11_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna0 ReportNo.:MTEB23120036-R1 Page48of57 SpuriousEmission IEEE802.11g_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna0 SpuriousEmissions IEEE802.11g_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna0 SpuriousEmission IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB23120036-R1 Page49of57 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel1_20MHz_…
