2BE3S313Wireless Router

Infinite 313 Wireless Router User Manual Infinite Clouds 1 Table of Contents Table of Contents ...........................................................................................................................1 Introduction ....................................................................................................................................2 Document Purpose .........................................................................................................................2 Connect to Access Point Web UI .....................................................................................................3 Features of Access Point Web UI .................................................................................................5 Status ...............................................................................................................................................6 Overview ....................................................................................................................................6 Routes ........................................................................................................................................9 Real-Time Graphs ....................................................................................................................11 System ...........................................................................................................................................12 System ......................................................................................................................................13 Administration .........................................................................................................................15 Backup/Flash Firmware ...........................................................................................................17 Reboot ......................................................................................................................................19 Network .........................................................................................................................................19 Interfaces ..................................................................................................................................20 Wifi ..........................................................................................................................................21 DHCP and DNS .......................................................................................................................22 Hostnames ................................................................................................................................24 Static Routes ............................................................................................................................25 Firewall ....................................................................................................................................26 Diagnostics ...............................................................................................................................28 Smart Queue Management .......................................................................................................29 SNMPD ....................................................................................................................................32 Infinite Clouds 2 Introduction Welcome to the user manual for the Infinite 313 Access Point Local UI. This user interface provides a local access point for configuring and managing the settings of your Infinite cloud controller. It allows you to make specific configurations directly on the access point itself, ensuring that the applied changes are only relevant to the access point being configured. With the Infinite 313 Local UI, you can access a range of configuration options that are specific to the access point. This includes network settings, security configurations, wireless settings, and various other parameters that enable you to tailor the functionality of the access point to your specific requirements. It's important to note that the configurations made within the Local UI will only affect the access point being configured. This means that any changes you make will not impact other access points or the overall cloud controller system. In this user manual, we will guide you through the various features and settings available within the Infinite 313 Local UI. You will learn how to navigate the interface, configure network settings, manage wireless networks, and perform advanced tasks such as creating VLANs and implementing security measures. Here are a few typical elements you might see on the user interface of a specific WiFi access point: ● Status/Dashboard: Displays fundamental data such as uptime, clients connected, bandwidth usage, RF levels, etc. ● Configuration: Network settings like SSID, security, VLANs, bandwidth limits, and fundamental RF tuning comprise configuration. ● Administration: Information about the device, the software version, and system logs for troubleshooting. ● Management: Integration of a cloud-based or on-premises controller for centralized management. ● Connected Devices: Lists every client that is connected, with the option to block or isolate devices. ● Advanced Settings: Extensive RF options, including transmit settings and channel/power selection. ● Upgrade: The capacity to search for and set up local or remote sources of firmware updates. We hope this user manual will provide you with the necessary knowledge and instructions to effectively use the Infinite 313 Local UI and optimize the performance of your access points. Let's get started! Infinite Clouds 3 Document Purpose This comprehensive guide is designed to provide you with detailed instructions and insights on effectively utilising the local (UI) of your access points. Within this user manual…

Text truncated - open the document above for the full version.

Company: Infinite Clouds Add: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain Tel: +97333398884 Fax: N/A E-mail: [email protected] Date: 2024/8/20 Attestation Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product Wireless Router (model name: Infinite 313,FCC ID: 2BE3S313), for this product, it only activates 2.4G Wi-Fi: 2412~2462 MHz(802.11b/g/n20), 2422~2452MHz(802.11n40) 5G Wi-Fi B1: 5180-5240 MHz, B4: 5745-5825 MHz （802.11a/ac20/n20/ac40/n40/ac80) functions, the other bands are disabled by using the software,the end user can't activate it. Please contact me if there is need for any additional clarification or information. Sincerely, Signature: Printed Name: Kamel Hubail Title: Founder & CEO

Company: Infinite Clouds Add: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain Tel: +97333398884 Fax: N/A E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter QA-FR-1006-A RC 02-08-2023 Attestation Letter Date: 2024/02/28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2BE3S313 Infinite Clouds (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Print Name: Kamel Hubail Title: Founder & CEO

Company: Infinite Clouds Add: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain Tel: +97333398884 Fax: N/A E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007 -A RC 02-08-2023 Attestation Letter Date: 2024/02/28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2BE3S313 Infinite Clouds (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Print Name: Kamel Hubail Title: Founder & CEO

U.S. AGENT LETTER OF ATTESTATION Date: 2024/03/13 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BE3S313 Infinite Clouds certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. Infinite Clouds accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Infinite Clouds Address: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain FRN: 0034955625 Tel: +97333398884 Email: [email protected] Signed by (printed name): Kamel Hubail Signature:

QA-FR-170-B Company: Infinite Clouds Add: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain Tel: +97333398884 Fax: N/A E-mail: [email protected] FCC Authorization Date: 2024/02/28 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Infinite Clouds, Hereby authorizes Bay Area Compliance Laboratories Corp. (Kunshan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp. (Kunshan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: Kamel Hubail Title: Founder & CEO

QA-FR-171-A Company: Infinite Clouds Add: Office 406, Road 3307, Block 333, Um Al Hassam, Manama, Bahrain Tel: +97333398884 Fax: N/A E-mail: [email protected] FCC Confidential Authorization Date: 2024/02/28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BE3S313 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Infinite Clouds hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description •U-NII Device Security Declaration The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Print Name: Kamel Hubail Title: Founder & CEO

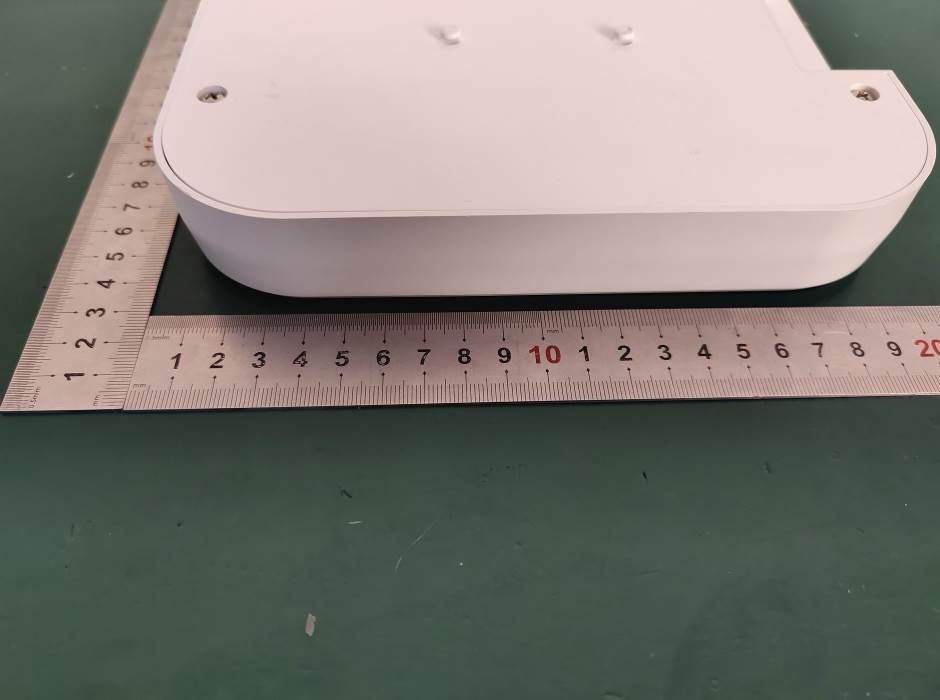

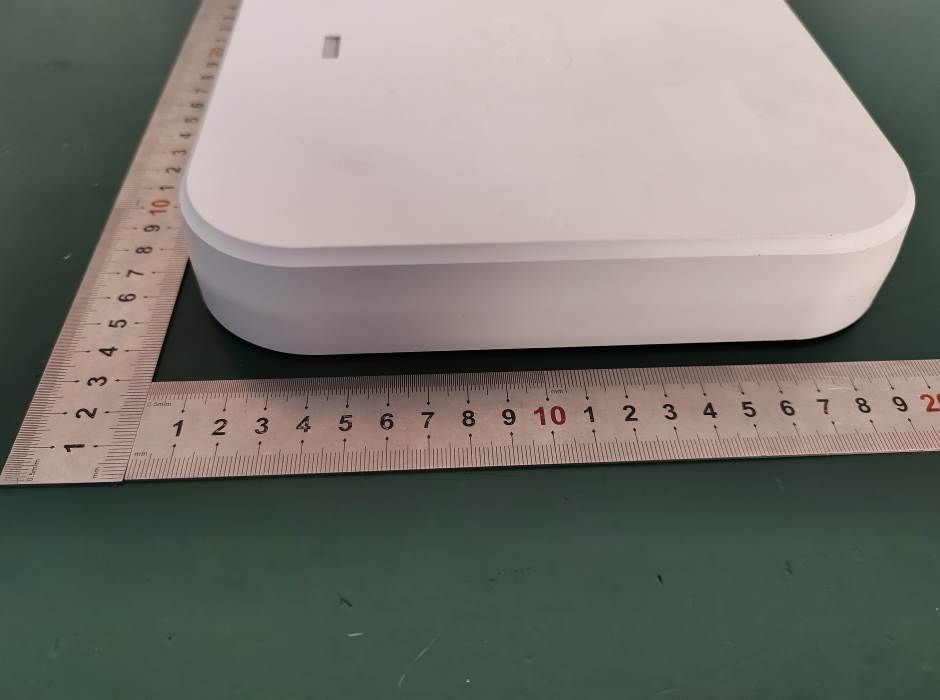

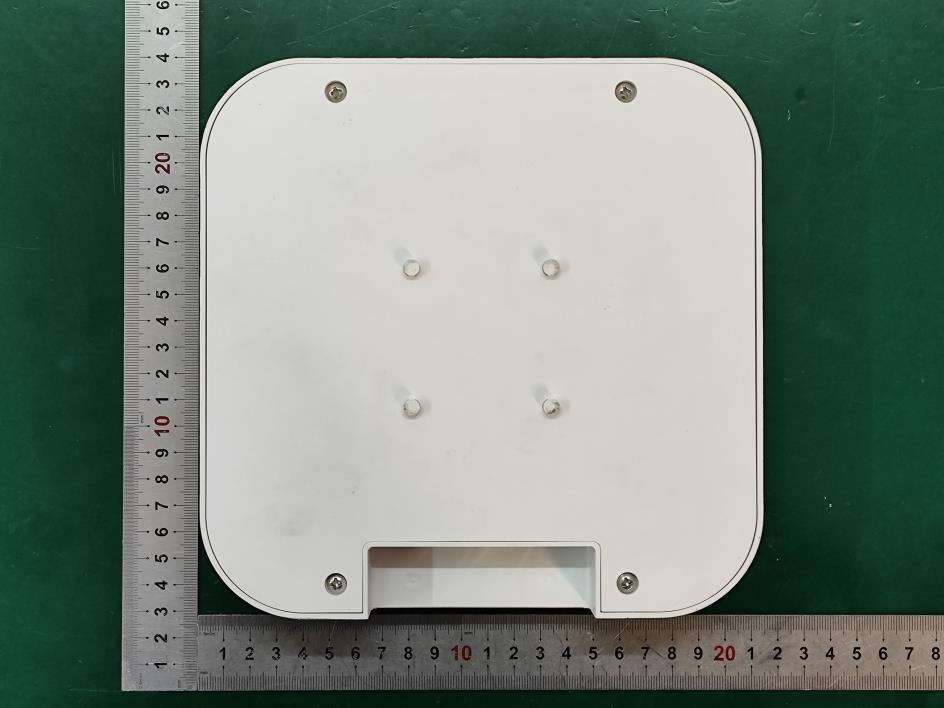

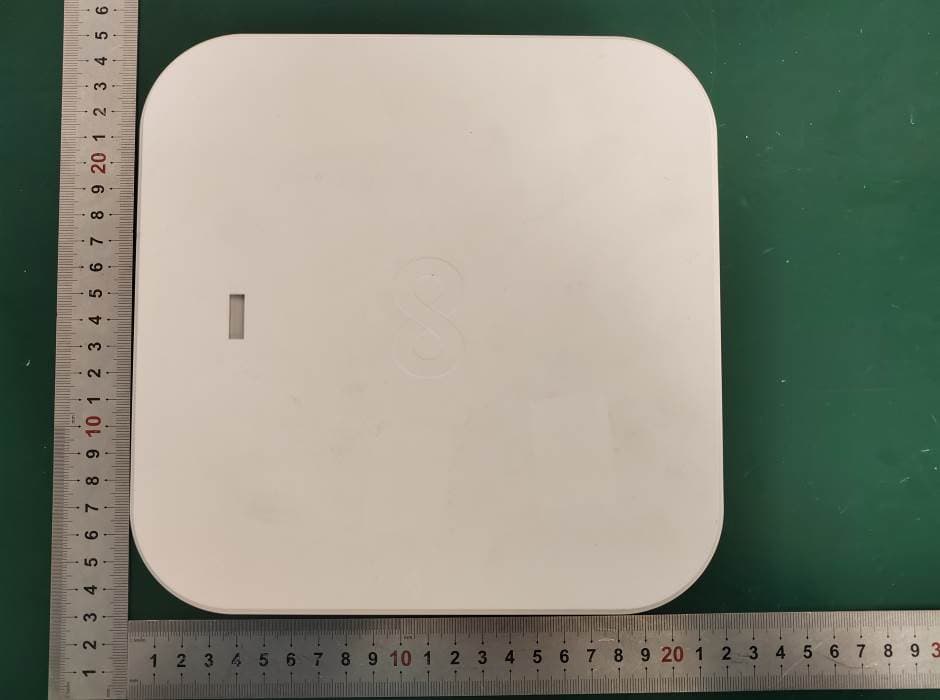

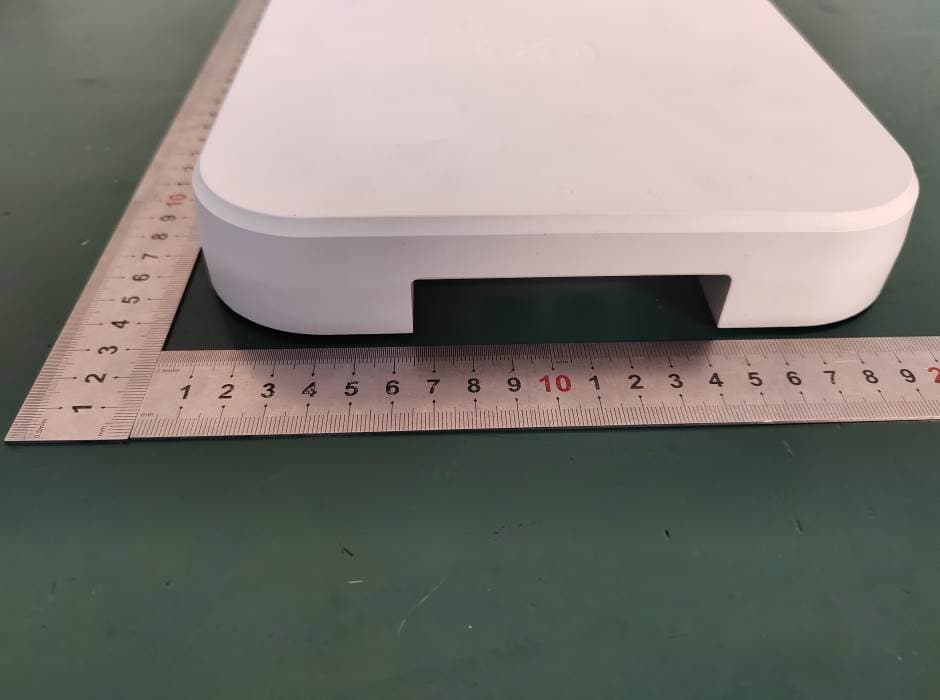

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 1 / 4 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 2 / 4 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 3 / 4 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 4 / 4

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 1 / 6 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 2 / 6 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 3 / 6 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 4 / 6 5G WIFI Antenna Chain 1 2.4G WIFI Antenna Chain 3 5G WIFI Antenna Chain 2 2.4G WIFI Antenna Chain 2 5G WIFI Antenna Chain 3 2.4G WIFI Antenna Chain 1 5G WIFI Antenna Chain 4 2.4G WIFI Antenna Chain 4 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 5 / 6 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA240228003 6 / 6

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 34 of 163 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 35 of 163 Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power★ Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2.4G Wi-Fi 2412~2462 6 3.98 28.00 630.96 30 0.2220 1.0 5G Wi-Fi 5150~5250 6 3.98 29.50 891.25 30 0.3136 1.0 5725-5850 6 3.98 30.00 1000.00 30 0.3520 1.0 Note: 1. For the above tune up power were declared by the manufacturer. 2. 2.4G Wi-Fi and 5G Wi-Fi can transmit simultaneously. =0.2220/1.00+0.3520/1=0.2220+0.3520=0.5740 < 1.0 Result: The device meet FCC MPE at 30 cm distance.

1 InfiniteCloudsWLL Features 2.4G4x4+5G4x4Omniantenna Applications SecuritySurveillance Commercialradiocoverage HotelWirelessapplication Countrycoverage Forestfireprotectionengineering Somespecialsceneapplication DR2G5G-4TestReport 4x42.4G+4x45GOmniAntenna Manufacture InfiniteCloudsWLL Office406,Road3307,Block333,Manama,KingdomofBahrain AbsoluteMaximumRating ParameterRatingUnit OperatingTemperatureRange-20to70ºC StorageTemperatureRange-40to90ºC OperatingHumidityRange5to+95(non-condensing)% StorageHumidityRange0to+90(non-condensing)% 2 Infinite Clouds WLL General Specifications Symbol2.4G5G Product Name Part No. Frequency 2.412GHz-2.482GHz5.180GHz-5.825GHz V. S.W.R <2.0<2.0 Polarization VerticalVertical Isolation >40dbi>40dbi Antenna Type PCB antennaPCB antenna Dimension 180mm*180mm Weight 3 InfiniteCloudsWLL TestResult 2.4GAntenna1 Frequency (MHz) Gain(dB)Efficiency(%) 24105.090472.0631 24205.285273.4396 24305.402874.6403 24405.204372.2224 24505.204472.5336 24605.072772.1089 24704.812370.3976 24804.589468.1676 24904.495267.706 2.4GAntenna2 Frequency (MHz) Gain(dB)Efficiency(%) 24005.062372.4284 24205.02575.9648 24404.899978.0125 24604.98679.9971 24804.676777.2162 25004.547175.0864 2.4GAntenna3 Frequency (MHz) Gain(dB)Efficiency(%) 24006.009281.8744 24205.80180.5692 24405.660177.6754 24605.713279.6874 24805.28875.0285 25005.091973.5813 2.4GAntenna4 Frequency (MHz) Gain(dB)Efficiency(%) 24005.259470.3775 24205.28473.8383 24405.379276.4287 24605.444880.9041 24804.999378.0757 25005.118578.6984 4 InfiniteCloudsWLL 5GAntenna1 Frequency (MHz) Gain(dB)Efficiency(%) 49006.252173.0792 5000 6.5064 77.0504 5100 6.0416 80.1852 5200 6.0256 79.2934 5300 6.3046 77.7015 5400 6.0455 73.1771 5500 6.0445 73.7873 5600 6.2118 75.2244 5700 6.0177 78.6635 5800 6.0097 77.4273 5900 6.3878 73.6929 6000 6.7322 75.1593 5GAntenna2 Frequency (MHz) Gain(dB)Efficiency(%) 4900 6.4436 76.0018 5000 6.3689 77.5792 5100 6.0481 75.0696 5200 6.0305 76.8995 5300 6.2696 74.7173 5400 6.5598 65.5 5500 6.1403 69.2493 5600 6.2965 71.8703 5700 6.0258 74.5398 5800 6.0393 70.4369 5900 6.2006 66.3617 6000 6.5218 69.5416 5GAntenna3 Frequency (MHz) Gain(dB)Efficiency(%) 4900 6.3876 75.7943 5000 6.5727 77.9374 5100 6.0429 77.9259 5200 6.0456 76.3877 5300 6.3352 73.9828 54005.985467.1809 5500 6.2361 70.0104 5600 6.1572 72.8183 5700 6.0335 75.9798 5800 6.0437 72.4135 5900 6.2145 68.7097 6000 6.2954 73.2089 5 InfiniteCloudsWLL 5GAntenna4 Frequency (MHz) Gain(dB)Efficiency(%) 4900 6.1245 73.8569 5000 6.5953 78.4875 5100 6.0446 79.3051 5200 6.0073 79.3142 5300 6.1524 78.3364 5400 6.2866 72.4461 5500 6.1961 75.0095 5600 6.7628 75.1475 5700 6.1412 77.5778 5800 6.0317 76.7976 5900 6.5479 73.3961 6000 6.0253 73.3286 6 InfiniteCloudsWLL 2Dpolar 7 InfiniteCloudsWLL Size

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Govemment. FCC PART 15.247 TEST REPORT For Infinite Clouds Office 406, Road 3307, Block 333, Um Al Hassam Manama Bahrain FCC ID: 2BE3S313 R e p o r t T y p e : O r i g i n a l R e p o r t P r o d u c t N a m e: W i r e l e s s R o u t e r Report Number: RKSA240228003-00B Report Date: 2024-09-10 Reviewed By: Bard Liu Approved By: Kyle Xu Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 2 of 163 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 17 EXTERNAL I/O CABLE ................................................................................................................................................ 17 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 18 SUMMARY OF TEST RESULTS ............................................................................................................................. 21 TEST EQUIPMENT LIST ......................................................................................................................................... 22 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 24 APPLICABLE STANDARD ............................................................................................................................................ 24 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 24 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 25 APPLICABLE STANDARD ............................................................................................................................................ 25 TEST SYSTEM SETUP .................................................................................................................................................. 25 EMI TEST RECEIVER SETUP ....................................................................................................................................... 25 TEST PROCEDURE ...................................................................................................................................................... 26 TEST RESULTS SUMMARY .......................................................................................................................................... 26 TEST DATA: SEE APPENDIX ....................................................................................................................................... 26 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 27 APPLICABLE STANDARD ............................................................................................................................................ 27 TEST SYSTEM SETUP .................................................................................................................................................. 27 EMI TEST RECEIVER SETUP ....................................................................................................................................... 29 TEST PROCEDURE ...................................................................................................................................................... 29 TEST RESULTS SUMMARY .................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 101 of 163 Chain 2: 802.11b Mode Low Channel 802.11b Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 102 of 163 802.11b Mode High Channel 802.11g Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 103 of 163 802.11g Mode Middle Channel 802.11g Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 104 of 163 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 105 of 163 802.11n-HT20 Mode High Channel 802.11n-HT40 Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 106 of 163 802.11n-HT40 Mode Middle Channel 802.11n-HT40 Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 107 of 163 Chain 3: 802.11b Mode Low Channel 802.11b Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 108 of 163 802.11b Mode High Channel 802.11g Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 109 of 163 802.11g Mode Middle Channel 802.11g Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 110 of 163 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 111 of 163 802.11n-HT20 Mode High Channel 802.11n-HT40 Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 112 of 163 802.11n-HT40 Mode Middle Channel 802.11n-HT40 Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 113 of 163 Chain 4: 802.11b Mode Low Channel 802.11b Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 114 of 163 802.11b Mode High Channel 802.11g Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 115 of 163 802.11g Mode Middle Channel 802.11g Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 116 of 163 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 117 of 163 802.11n-HT20 Mode High Channel 802.11n-HT40 Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 118 of 163 802.11n-HT40 Mode Middle Channel 802.11n-HT40 Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 119 of 163 POWER SPECTRAL DENSITY Test Result: Compliant. EUT operation mode: Transmitting Channel Frequency (MHz) PSD (dBm/3kHz) Limit (dBm/3kHz) Chain 1 Chain 2 Chain3 Chain4 Total 802.11b Mode Low 2412 0.12 -0.03 0.09 0.51 / ≤8 Middle 2437 -0.15 -0.12 0.49 0.59 / ≤8 High 2462 0.48 0.64 0.52 1.36 / ≤8 802.11g Mode Low 2412 -2.54 -3.26 -3.75 -2.77 / ≤8 Middle 2437 -2.81 -2.76 -3.80 -3.57 / ≤8 High 2462 -3.28 -3.11 -2.63 -3.18 / ≤8 802.11n-HT20 mode Low 2412 -19.08 -19.2 -19.69 -17.37 -12.72 ≤2 Middle 2437 -19.35 -19.12 -18.97 -17.91 -12.78 ≤2 High 2462 -19.42 -19.3 -18.79 -17.97 -12.81 ≤2 802.11n-HT40 mode Low 2422 -23.54 -23.85 -23.79 -21.38 -16.99 ≤2 Middle 2437 -23.57 -23.71 -23.69 -22.42 -17.29 ≤2 High 2452 -23.63 -23.08 -22.87 -21.73 -16.75 ≤2 Note: The maximum antenna gain is 6 dBi. The device employed Cyclic Delay Diversity (CDD) for 802.11MIMO transmitting, per KDB 662911 D01 Multiple Transmitter Output v02r01, for power spectral density (PSD) measurements on the devices: Array Gain = 10* log (NANT/NSS) dB. So: Directional gain = GANT + Array Gain = 6 +10*log (4/1) =12dBi ＞6dBi, so power spectral density limit was reduced 6dB Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 120 of 163 Chain 1: 802.11b Mode Low Channel 802.11b Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 121 of 163 802.11b Mode High Channel 802.11g Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 122 of 163 802.11g Mode Middle Channel 802.11g Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 123 of 163 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 124 of 163 802.11n-HT20 Mode High Channel 802.11n-HT40 Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 125 of 163 802.11n-HT40 Mode Middle Channel 802.11n-HT40 Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 126 of 163 Chain 2: 802.11b Mode Low Channel 802.11b Mode Middle Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 127 of 163 802.11b Mode High Channel 802.11g Mode Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 128 of 163 802.11g Mode Middle Channel 802.11g Mode High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 129 of 163 802.11n-HT20 Mode Low Channel 802.11n-HT20 Mode Midd…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 152 of 163 802.11n-HT40 Mode Right Side 802.11n-HT40 Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 153 of 163 Chain 3: 802.11b Mode Left Side 802.11b Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA240228003-00B FCC Part 15.247 Page 154 of 163 802.11g Mode Left Side 802.11g Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Repor…
