2BE6U-LP-U6308Wi-Fi 6 High Performance Wireless USB Adapter

Shenzhen City Lingpao Technology Co.,LTD. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Mar. 06, 2024 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen City Lingpao Technology Co.,LTD. Grantee Code: 2BE6U FCC ID: 2BE6U-LP-U6308 FRN: 0035013861 Contact Name: Ben Lin Street Address: Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Telephone No: 15989386687 Email: [email protected] Applicant Signature: Date: 2024.03.06 Signed by (Printed Name/Title): Ben Lin / Vice President, Product Mar 2024

2.4G antenna, feedline length 27mm, stripped wire exposed size 5.3mm (2.4+1.4+1.5), Color: Black Dec. 12, 2023 Shenzhen City Lingpao Technology Co.,LTD. Antenna type External Antenna Frequency Standing wave Note: Standard value of VSWR Note: Standard value of return loss Serial No. Black Case Test Frequency Tinned 2.4G antenna,feedline length 27mm,stripped wire exposed size 5.3mm (2.4+1.4+1.5),Color:Black Black Line h Technical grade 9 Corrosion <0.4mm The above data indicates that the parameters of this 2.4G antenna have reached the standard. Performance is subject to actual use after installation. No. of samples Testing time Test results Note Benchmarks Spray a solution of 5% salt concentration for 24HR Pilot project Test method Salt spray test No discoloration, distortion, peeling, etc. Corrosion area should not be too large.

Shenzhen City Lingpao Technology Co.,LTD. Address: Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Date: 2024-03-06 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2BE6U-LP-U6308 To Whom It May Concern: Shenzhen City Lingpao Technology Co.,LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Date: 2024-03-06

Shenzhen City Lingpao Technology Co.,LTD. Address: Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Date: 2024-03-06 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2BE6U-LP-U6308 To Whom It May Concern: Shenzhen City Lingpao Technology Co.,LTD. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Date: 2024-03-06

Shenzhen City Lingpao Technology Co.,LTD. Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 6, 2024 Subject; Request for Confidentiality FCC ID: 2BE6U-LP-U6308 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ben Lin Title: Vice President, Product

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen City Lingpao Technology Co.,LTD. Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Date：2024/03/06 Product Model Number: LP-U6308, LP-U150, LP-U151, LP-U157, LP-U158, LP-U300, LP-U600, LP-U1300, LP-U6300, LP-U6301, LP-U6307,LP-U6900, LP-U6908, LP-U1800, LP-U1808 FCC ID：2BE6U-LP-U6308 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that Shenzhen City Lingpao Technology Co.,LTD. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by Shenzhen City Lingpao Technology Co.,LTD. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Vice President, Product Email: [email protected] Telephone: 15989386687 On behalf of: Shenzhen City Lingpao Technology Co.,LTD.

Shenzhen City Lingpao Technology Co.,LTD. Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Series Models Description To whom it may concern: The device (Product Name: Wi-Fi 6 High Performance Wireless USB Adapter) Models Name: LP-U6308, LP-U150, LP-U151, LP-U157, LP-U158, LP-U300, LP-U600, LP-U1300, LP-U6300, LP-U6301, LP-U6307, LP-U6900, LP-U6908, LP-U1800, LP-U1808 have same electrical, PCB and BOM, only the model’ s name and colour are different for marketing requirements. Sincerely, Ben Lin Phone: 15989386687 e-mail: [email protected] Dated: 03/06/2024

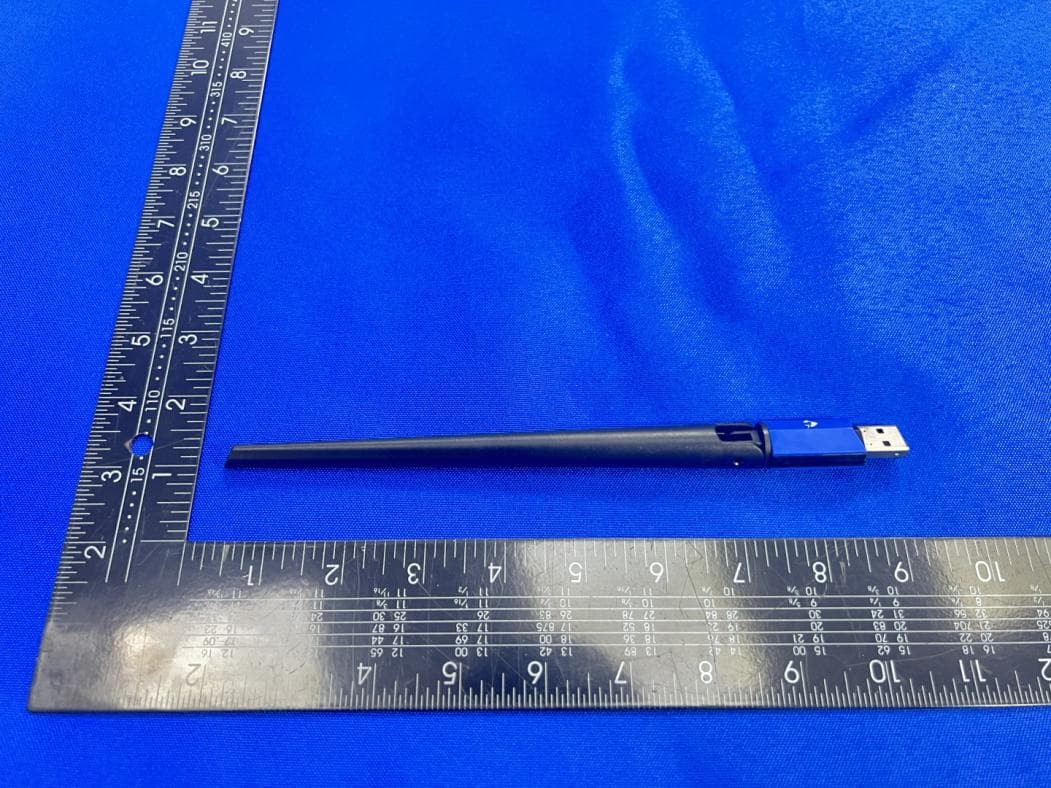

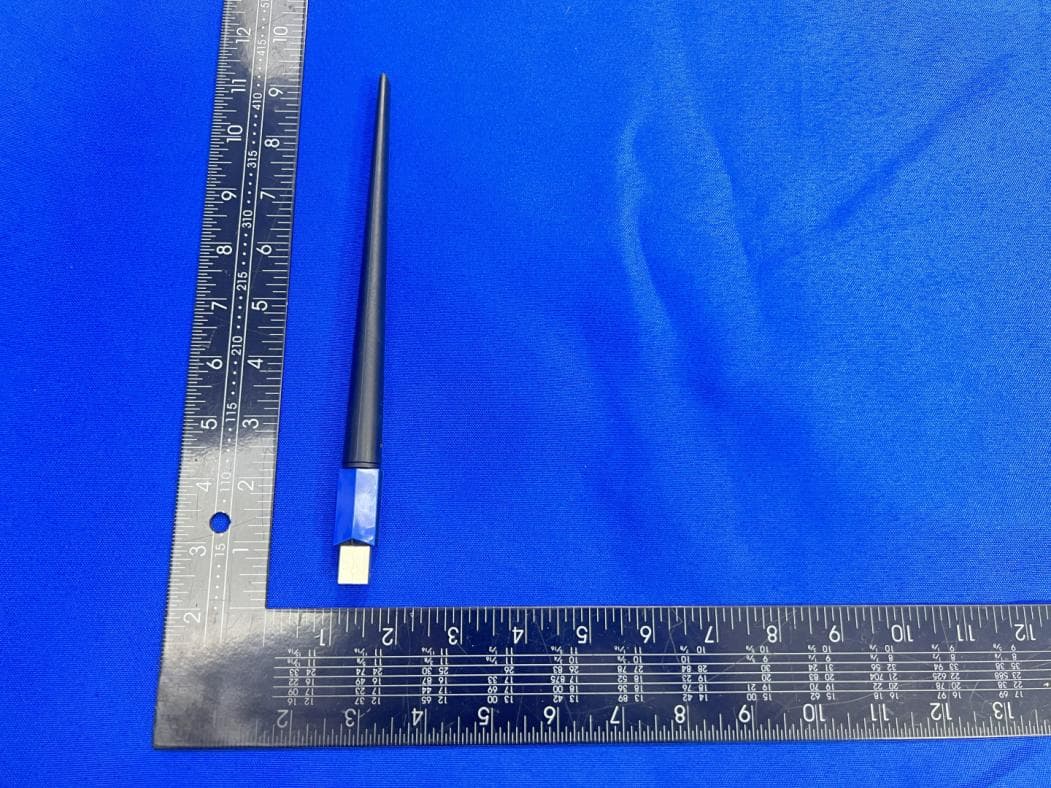

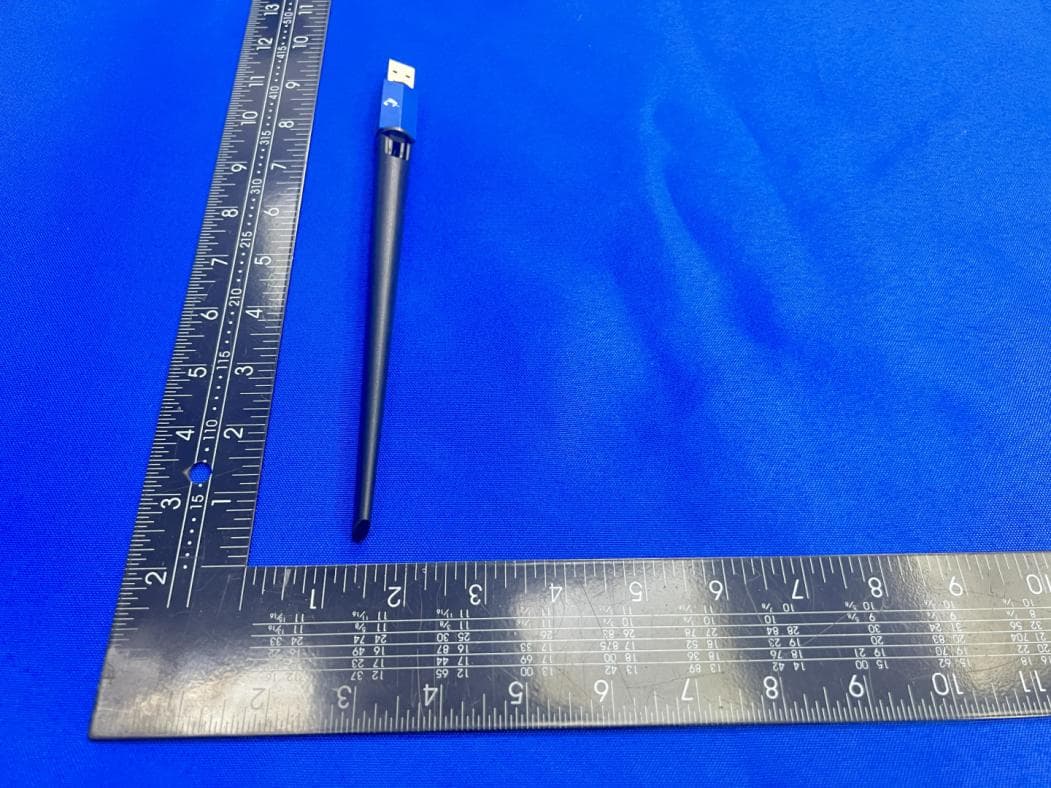

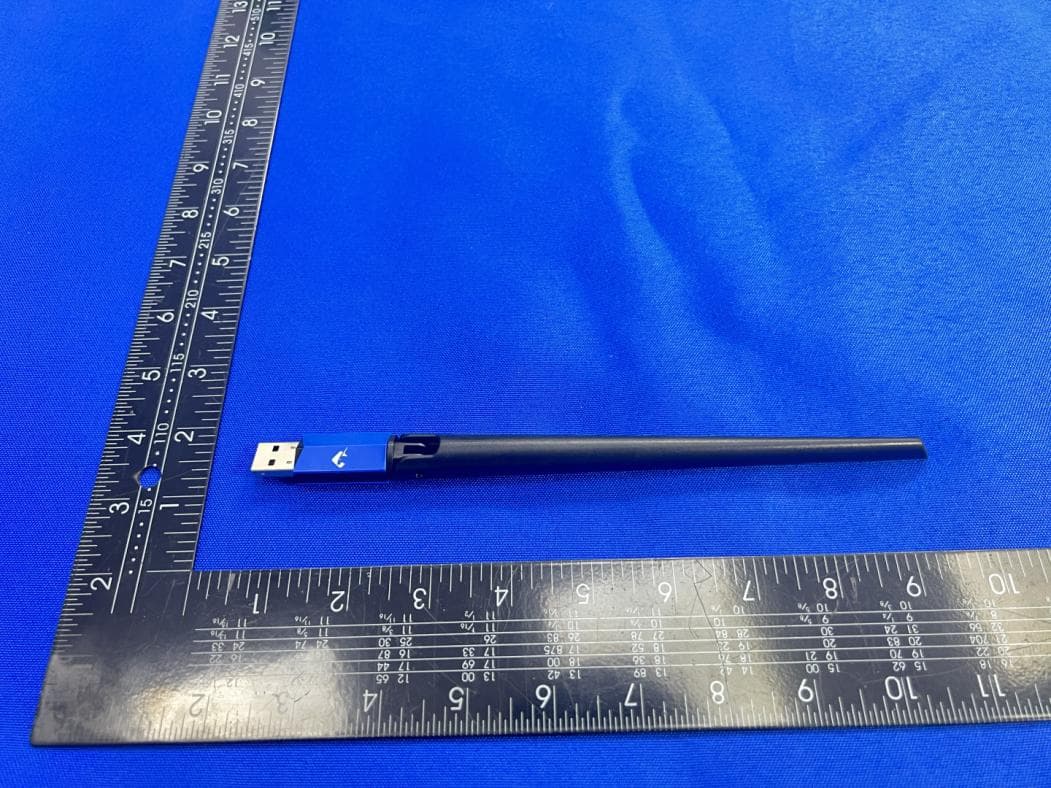

FCC ID: 2BE6U-LP-U6308 Page 1 of 3 Report No.: CTL2401252051-WF External Photos of EUT FCC ID: 2BE6U-LP-U6308 Page 2 of 3 Report No.: CTL2401252051-WF FCC ID: 2BE6U-LP-U6308 Page 3 of 3 Report No.: CTL2401252051-WF

FCC ID: 2BE6U-LP-U6308 Page 1 of 1 Report No.: CTL2401252051-WF FCC-ID Label Information 1. Label location: Size: L1.0cm*W0.5cm Wi-Fi 6 High Performance Wireless USB Adapter Model: LP-U6308 FCC ID: 2BE6U-LP-U6308

FCC ID: 2BE6U-LP-U6308 Page 1 of 3 Report No.: CTL2401252051-WF Internal Photos of EUT Antenna FCC ID: 2BE6U-LP-U6308 Page 2 of 3 Report No.: CTL2401252051-WF FCC ID: 2BE6U-LP-U6308 Page 3 of 3 Report No.: CTL2401252051-WF

FCC ID: 2BE6U-LP-U6308 Page 1 of 1 Report No.: CTL2401252051-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10 ‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison WIFI 2.4GHz: pt= 9.64dBm=9.2045mW at 2412MHz So (9.2045mW/5mm)x √2.412GHz =2.8590<3

FCC ID: 2BE6U-LP-U6308 Page 1 of 66 Report No.: CTL2401252051-WF 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 / / 1 10.640 / Pass 2437 / / 1 10.724 / Pass 2462 / / 1 10.572 / Pass 802.11g SISO 2412 / / 1 18.588 / Pass 2437 / / 1 18.931 / Pass 2462 / / 1 18.614 / Pass 802.11n (HT20) SISO 2412 / / 1 19.741 / Pass 2437 / / 1 19.897 / Pass 2462 / / 1 19.545 / Pass 802.11n (HT40) SISO 2422 / / 1 38.096 / Pass 2437 / / 1 38.664 / Pass 2452 / / 1 38.417 / Pass 802.11ax (HEW20) SISO 2412 RU242 Left 1 20.000 / Pass 2437 RU242 Left 1 20.118 / Pass 2462 RU242 Left 1 19.887 / Pass 802.11ax (HEW40) SISO 2422 RU484 Left 1 38.692 / Pass 2437 RU484 Left 1 38.957 / Pass 2452 RU484 Left 1 38.940 / Pass FCC ID: 2BE6U-LP-U6308 Page 2 of 66 Report No.: CTL2401252051-WF 1.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 3 of 66 Report No.: CTL2401252051-WF 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 4 of 66 Report No.: CTL2401252051-WF 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 5 of 66 Report No.: CTL2401252051-WF 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 6 of 66 Report No.: CTL2401252051-WF 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 7 of 66 Report No.: CTL2401252051-WF 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 8 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW20)_LCH_2412MHz_RU242_Left_Ant1 (SISO)_NTNV 802.11ax(HEW20)_MCH_2437MHz_RU242_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 9 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW20)_HCH_2462MHz_RU242_Left_Ant1 (SISO)_NTNV 802.11ax(HEW40)_LCH_2422MHz_RU484_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 10 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW40)_MCH_2437MHz_RU484_Left_Ant1 (SISO)_NTNV 802.11ax(HEW40)_HCH_2452MHz_RU484_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 11 of 66 Report No.: CTL2401252051-WF 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 / / 1 7.103 >=0.5 Pass 2437 / / 1 7.088 >=0.5 Pass 2462 / / 1 7.544 >=0.5 Pass 802.11g SISO 2412 / / 1 15.151 >=0.5 Pass 2437 / / 1 15.399 >=0.5 Pass 2462 / / 1 15.168 >=0.5 Pass 802.11n (HT20) SISO 2412 / / 1 15.160 >=0.5 Pass 2437 / / 1 15.437 >=0.5 Pass 2462 / / 1 15.166 >=0.5 Pass 802.11n (HT40) SISO 2422 / / 1 35.159 >=0.5 Pass 2437 / / 1 35.205 >=0.5 Pass 2452 / / 1 35.170 >=0.5 Pass 802.11ax (HEW20) SISO 2412 RU242 Left 1 17.060 >=0.5 Pass 2437 RU242 Left 1 16.530 >=0.5 Pass 2462 RU242 Left 1 15.815 >=0.5 Pass 802.11ax (HEW40) SISO 2422 RU484 Left 1 35.184 >=0.5 Pass 2437 RU484 Left 1 37.001 >=0.5 Pass 2452 RU484 Left 1 35.180 >=0.5 Pass FCC ID: 2BE6U-LP-U6308 Page 12 of 66 Report No.: CTL2401252051-WF 1.2.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 13 of 66 Report No.: CTL2401252051-WF 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 14 of 66 Report No.: CTL2401252051-WF 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 15 of 66 Report No.: CTL2401252051-WF 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 16 of 66 Report No.: CTL2401252051-WF 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 17 of 66 Report No.: CTL2401252051-WF 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 18 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW20)_LCH_2412MHz_RU242_Left_Ant1 (SISO)_NTNV 802.11ax(HEW20)_MCH_2437MHz_RU242_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 19 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW20)_HCH_2462MHz_RU242_Left_Ant1 (SISO)_NTNV 802.11ax(HEW40)_LCH_2422MHz_RU484_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 20 of 66 Report No.: CTL2401252051-WF 802.11ax(HEW40)_MCH_2437MHz_RU484_Left_Ant1 (SISO)_NTNV 802.11ax(HEW40)_HCH_2452MHz_RU484_Left_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 21 of 66 Report No.: CTL2401252051-WF 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 / / 8.05 <=30 Pass 2437 / / 8.07 <=30 Pass 2462 / / 8.65 <=30 Pass 802.11g SISO 2412 / / 8.59 <=30 Pass 2437 / / 8.18 <=30 Pass 2462 / / 7.98 <=30 Pass 802.11n (HT20) SISO 2412 / / 9.64 <=30 Pass 2437 / / 9.28 <=30 Pass 2462 / / 9.10 <=30 Pass 802.11n (HT40) SISO 2422 / / 9.39 <=30 Pass 2437 / / 9.13 <=30 Pass 2452 / / 8.72 <=30 Pass 802.11ax (HEW20) SISO 2412 RU242 Left 6.85 <=30 Pass 2437 RU242 Left 8.01 <=30 Pass 2462 RU242 Left 7.83 <=30 Pass 802.11ax (HEW40) SISO 2422 RU484 Left 8.54 <=30 Pass 2437 RU484 Left 8.26 <=30 Pass 2452 RU484 Left 7.89 <=30 Pass Note1: Antenna Gain: Ant1: 3.50dBi; FCC ID: 2BE6U-LP-U6308 Page 22 of 66 Report No.: CTL2401252051-WF 2.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 23 of 66 Report No.: CTL2401252051-WF 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 24 of 66 Report No.: CTL2401252051-WF 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 25 of 66 Report No.: CTL2401252051-WF 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV FCC ID: 2BE6U-LP-U6308 Page 26 of 66 Report No.: CTL2401252051-WF…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2401252051-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Snow Tang (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Wi-Fi 6 High Performance Wireless USB Adapter Model/Type reference ................ : LP-U6308 List Model(s) ............................... : LP-U150, LP-U151, LP-U157, LP-U158, LP-U300, LP-U600, LP-U1300, LP-U6300, LP-U6301, LP-U6307, LP-U6900, LP-U6908, LP-U1800, LP-U1808 Trade Mark .................................. : N/A FCC ID ......................................... : 2BE6U-LP-U6308 Applicant’s name ....................... : Shenzhen City Lingpao Technology Co.,LTD. Address of applicant ................. : Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Zone A, 1st Floor, Warehouse 2, Baisha Logistics Company, No. 3011 Shahe West Road, Nanshan District, Shenzhen Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jan. 29, 2024 Date of Test Date ........................ : Jan. 29, 2024-Feb. 28, 2024 Date of Issue .............................. : Feb. 29, 2024 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 34 Report No.: CTL2401252051-WF TEST REPORT Test Report No. : CTL2401252051-WF Feb. 29, 2024 Date of issue Equipment under Test : Wi-Fi 6 High Performance Wireless USB Adapter Sample No : CTL2401252051 Model /Type : LP-U6308 Listed Models : LP-U150, LP-U151, LP-U157, LP-U158, LP-U300, LP-U600, LP-U1300, LP-U6300, LP-U6301, LP-U6307, LP-U6900, LP-U6908, LP-U1800, LP-U1808 Applicant : Shenzhen City Lingpao Technology Co.,LTD. Address : Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Manufacturer : Shenzhen City Lingpao Technology Co.,LTD. Address : Building2,Majialong culture and sports center,Nanshan district,Shenzhen city, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 34 Report No.: CTL2401252051-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2024-02-29 CTL2401252051-WF Tracy Qi V1.0 Page 4 of 34 Report No.: CTL2401252051-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 1.5. EUT CONFIGURATION ................................................................................................................................................... 7 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ...…

Text truncated - open the document above for the full version.

FCC ID: 2BE6U-LP-U6308 Page 1 of 2 Report No.: CTL2401252051-WF Test Setup Photos of the EUT FCC ID: 2BE6U-LP-U6308 Page 2 of 2 Report No.: CTL2401252051-WF
