2BE9K-KLJ965BTBluetooth Speaker

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter DongGuang Qualitronic Technolgoy Co., Ltd. Add: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China Tel: (86) 18825757048 Email: [email protected] Attestation Letter Date: 2024-03-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2BE9K-KLJ965BT DongGuang Qualitronic Technolgoy Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. DongGuang Qualitronic Technolgoy Co., Ltd. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person: jie liu Title: Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-03-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID:2BE9K-KLJ965BT DongGuang Qualitronic Technolgoy Co., Ltd. certifies that, as of the date of the filing of the application, USA MEIHUA TRADING INC is our designated U.S. agent for service of process for the above referenced FCC ID. DongGuang Qualitronic Technolgoy Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. USA MEIHUA TRADING INC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: USA MEIHUA TRADING INC Address: 5379 Pine Valley Ct Boulder CO 80301 United State FRN: 0033406166 Tel.: 312-363-9424 Email: [email protected] Signed by (printed name): Harley Quinn Signature: Applicant: DongGuang Qualitronic Technolgoy Co., Ltd. Address: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China FRN: 0035058650 Tel: (86) 18825757048 Email: [email protected] Signed by (printed name): jie liu Signature:

DongGuang Qualitronic Technolgoy Co., Ltd. Add: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China Tel: (86) 18825757048 Email: [email protected] Attestation Letter Date: 2024-03-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product Bluetooth Speaker, model: KLJ-9516BT, EE7508, FCC ID:2BE9K-KLJ965BT, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK, 8DPSK), BLE 1M. The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Printed name: jie liu Title: Manager

DongGuang Qualitronic Technolgoy Co., Ltd. Add: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China Tel: (86) 18825757048 Email: [email protected] DECLARATION OF SIMILARITY Date: 2024-03-20 To whom it may concern Dear Sir or Madam: We, DongGuang Qualitronic Technolgoy Co., Ltd., hereby declare that the product: Bluetooth Speaker, FCC ID:2BE9K-KLJ965BT, model: EE7508 is electrically identical with the model: KLJ-9516BT which was tested by China Certification ICT Co., Ltd (Dongguan). A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. The detail information, please check the reports. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: jie liu Title: Manager

QA-FR-170-B DongGuang Qualitronic Technolgoy Co., Ltd. Add: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China Tel: (86) 18825757048 Email: [email protected] FCC Authorization Date: 2024-03-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , DongGuang Qualitronic Technolgoy Co., Ltd., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature: Printed Name: jie liu Title: Manager

DongGuang Qualitronic Technolgoy Co., Ltd. Add: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China Tel: (86) 18825757048 Email: [email protected] FCC Confidential Authorization Date: 2024-03-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2BE9K-KLJ965BT In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, DongGuang Qualitronic Technolgoy Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name: jie liu Title: Manager

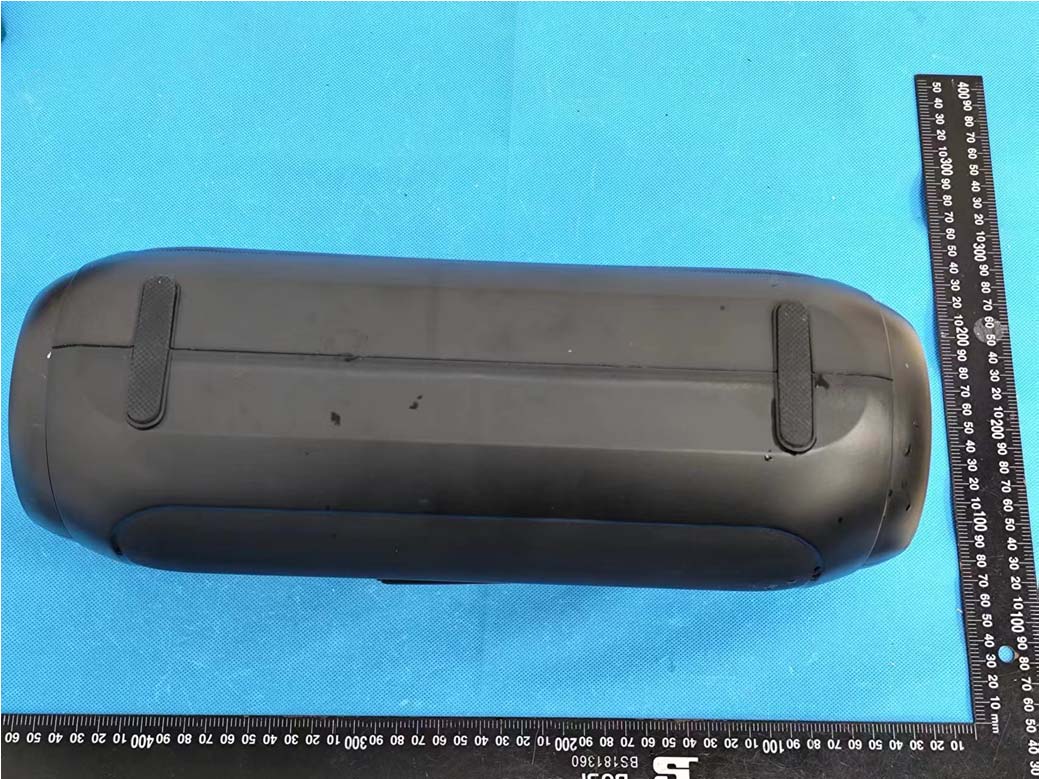

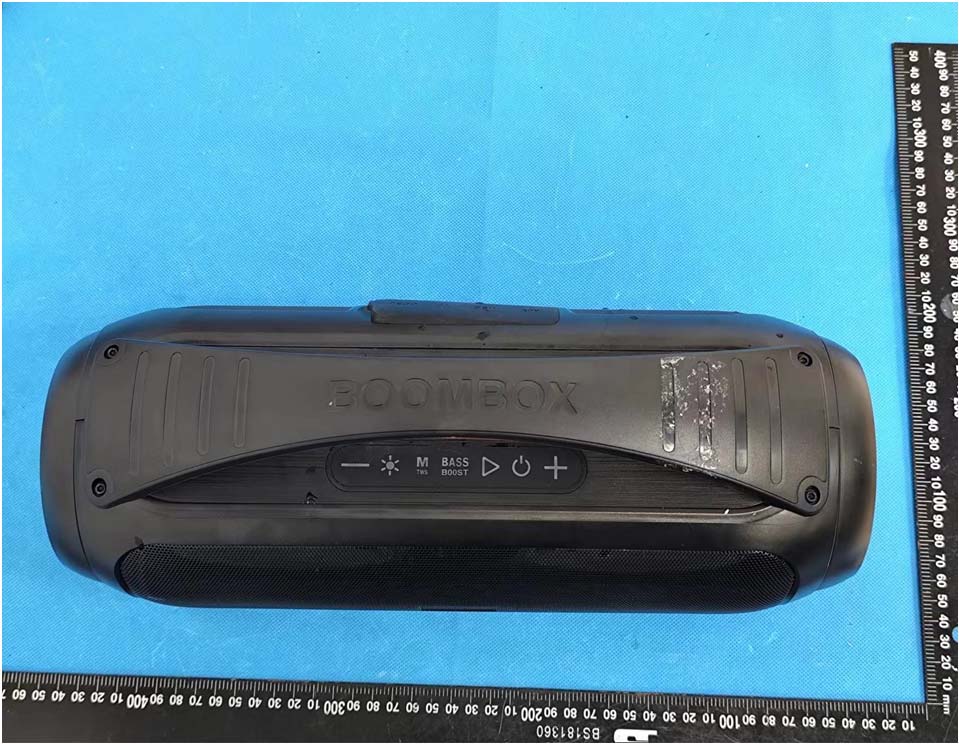

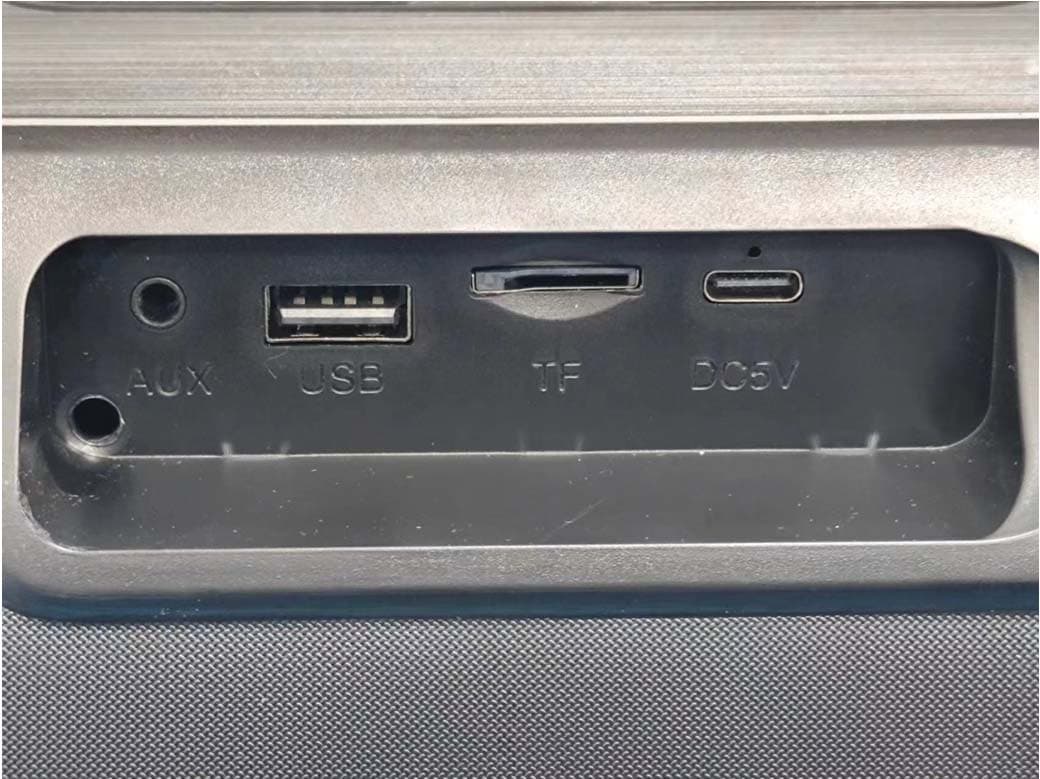

China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-EXP Page 2 of 4 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-EXP Page 3 of 4 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-EXP Page 4 of 4 Ports

KLJ-9516BT FCC ID:2BE9K-KLJ965BT KLJ-9516BT FCC ID:2BE9K-KLJ965BT

China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 1 of 7 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 2 of 7 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 3 of 7 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 4 of 7 Antenna RF Chip China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 5 of 7 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 6 of 7 China Certification ICT Co., Ltd (DongGuan) No.:CR240311076-INP Page 7 of 7 Battery

China Certification ICT Co., Ltd (Dongguan) Report No.:CR240311076-00A Page 52 of 54 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is -0.5 dBm (0.83mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =0.83/5*(√2.480) = 0.3 < 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(d Bm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.68 (Peak Gain XZ-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.35 -0.48 1.68 -3.8 3 1.11 -2.99 6 0.2 % Shenzhen Helixun Technology Co., Ltd 1905, Building 2, Jiufang Square, Tiezi Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

TEST REPORT Applicant: DongGuang Qualitronic Technolgoy Co., Ltd. Address: #2 building, PengTai Industrial Park, No.49 LuDong Road, Humen Town, Dongguan, China FCC ID: 2BE9K-KLJ965BT Product Name: Bluetooth Speaker Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR240311076-00A Date Of Issue: 2024/3/20 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.:CR240311076-00A Page 2 of 54 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.:CR240311076-00A Page 3 of 54 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION ................................................................................................. 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................. 6 1.2 DESCRIPTION OF TEST CONFIGURATION ..................................................................................... 7 1.2.1 EUT Operation Condition .......................................................................................................................... 7 1.2.2 Support Equipment List and Details .......................................................................................................... 7 1.2.3 Support Cable List and Details .................................................................................................................. 7 1.2.4 Block Diagram of Test Setup ..................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................... 9 3. REQUIREMENTS AND TEST PROCEDURES ............................................................... 10 3.1 AC LINE CONDUCTED EMISSIONS .............................................................................................. 10 3.1.1 Applicable Standard ................................................................................................................................. 10 3.1.2 EUT Setup ............................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ......................................................................................................................... 11 3.1.4 Test Procedure ......................................................................................................................................... 12 3.1.5 Corrected Amplitude & Margin Calculation ........................................................................................... 12 3.2 RADIATION SPURIOUS EMISSIONS .............................................................................................. 13 3.2.1 Applicable Standard ................................................................................................................................. 13 3.2.2 EUT Setup ............................................................................................................................................... 13 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ..................................................................................... 14 3.2.4 Test Procedure ......................................................................................................................................... 15 3.2.5 Corrected Amplitude & Margin Calculation ........................................................................................... 15 3.3 MINIMUM 6 DB BANDWIDTH ....................................................................................................... 16 3.3.1 Applicable Standard ................................................................................................................................. 16 3.3.2 EUT Setup ............................................................................................................................................... 16 3.3.3 Test Procedure ......................................................................................................................................... 16 3.4 MAXIMUM CONDUCTED OUTPUT POWER…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (DongGuan) Report No.:CR240311076‐00A Page 1 of 4 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (DongGuan) Report No.:CR240311076‐00A Page 2 of 4 Radiated Emission 9 kHz-30 MHz Parallel View Radiated Emission 9 kHz-30 MHz Perpendicular View China Certification ICT Co., Ltd (DongGuan) Report No.:CR240311076‐00A Page 3 of 4 Radiated Emission 9 kHz-30 MHz Ground-parallel View China Certification ICT Co., Ltd (DongGuan) Report No.:CR240311076‐00A Page 4 of 4 Radiated Emission 30 MHz-1 GHz View Radiated Emission Above 1GHz View
