2BEAP-V620Dashcam

Dongguan Lingdu Electronic Technology Co.,Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/2/2024 U.S. Agent Designation Don gguan Lingdu Electronic Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BEAP-V620): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Dongguan Lingdu Electronic Technology Co.,Ltd. Dongguan Lingdu Electronic Technology Co.,Ltd with the FRN 0034661033 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Jack bu Dongguan Lingdu Electronic Technology Co.,Ltd Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-02 Signature Date Name / Title: Jack Bu / Manager Company: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 Fax: +86-18906679427 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BEAP-V620 V620, V630, V820, V650, V670, V690, V600, V520, V530, M660, M17, M17 Pro, V620A, V630A, V620 Pro, V630 Pro, V620 Lite, V630 Lite, V820 Lite We, applicant Company Name: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-02 Signature Date Name / Title: Jack Bu / Manager Company: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 Fax: +86-18906679427 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BEAP-V620 V620, V630, V820, V650, V670, V690, V600, V520, V530, M660, M17, M17 Pro, V620A, V630A, V620 Pro, V630 Pro, V620 Lite, V630 Lite, V820 Lite For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-02 Signature Date Name / Title: Jack Bu / Manager Company: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 Fax: +86-18906679427 E-Mail: [email protected]

Dongguan Lingdu Electronic Technology Co., Ltd No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Date: September 02, 2024 FCC ID: 2BEAP-V620 Model Number: V620, V630, V820, V650, V670, V690, V600, V520, V530, M660, M17, M17 Pro, V620A, V630A, V620 Pro, V630 Pro, V620 Lite, V630 Lite, V820 Lite To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Dongguan Lingdu Electronic Technology Co., Ltd hereby declare that our product (Dashcam) Model Number: V620, V630, V820, V650, V670, V690, V600, V520, V530, M660, M17, M17 Pro, V620A, V630A, V620 Pro, V630 Pro, V620 Lite, V630 Lite, V820 Lite board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Jack Bu / Manager Company: Dongguan Lingdu Electronic Technology Co., Ltd Address: No.1, Longcheng Street, Qingxi Town, Dongguan City, Guangdong Province, China Phone: +86-18906679427 Fax: +86-18906679427 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Dongguan Lingdu Electronic Technology Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BEAP-V620 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Jack Bu / Manager Signature: Phone: +86-18906679427 Email: [email protected] Date: 2024-09-02

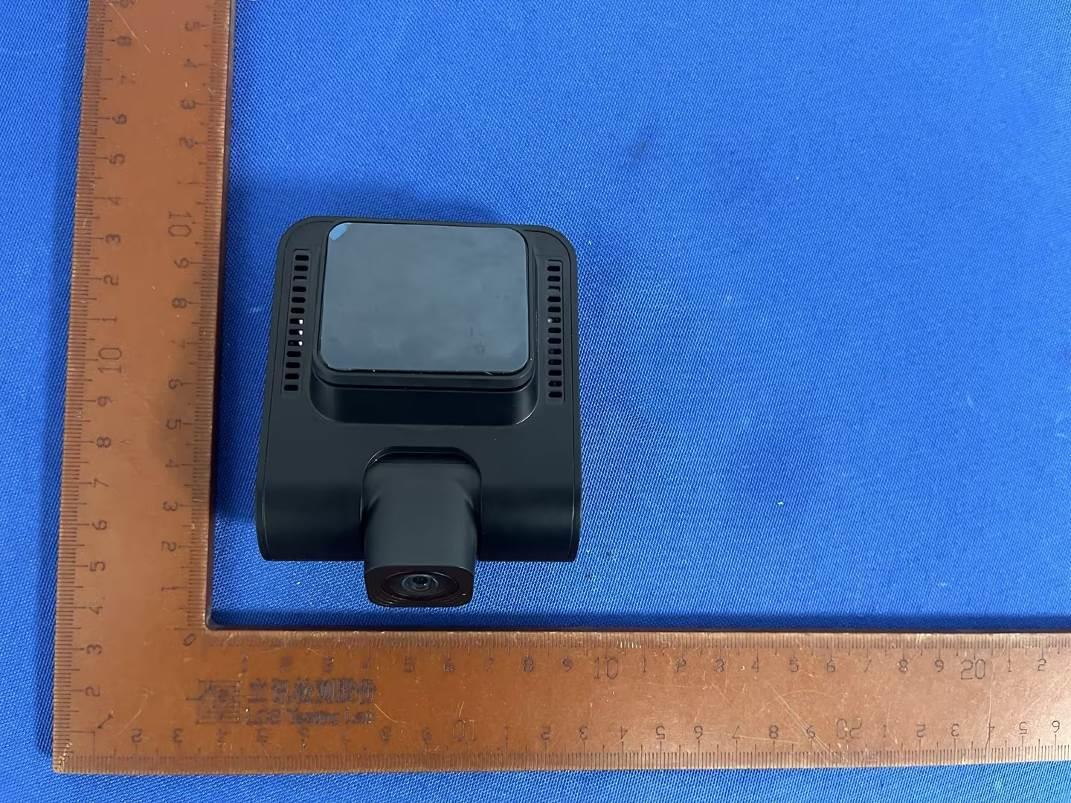

Page 1 of 4 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L 2.5cm x W 1.5cm) Dashcam Test Model: V620 FCC ID: 2BEAP-V620 Label Location

Page 1 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 BLE/2.4GWIFI Antenna Page 2 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10

Page 1 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Maximum Permissible Exposure Report 1. Product Information FCC ID : 2BEAP-V620 EUT : Dashcam Test Model : V620 Additional Model No. : V630, V820, V650, V670, V690, V600, V520, V530, M660, M17, M17 Pro, V620A, V630A, V620 Pro, V630 Pro, V620 Lite, V630 Lite, V820 Lite Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: DC 5V/12V Hardware Version : V1.1 Software Version : / Bluetooth : Frequency Range : 2402MHz~2480MHz Channel Number : 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 2MHz for Bluetooth V5.0 (DTS) Modulation Type : GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Description : FPC Antenna, 2.17dBi(Max.) WIFI(2.4G Band) : Frequency Range : 2412MHz-2462MHz Channel Spacing : 5MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ax: OFDMA (1024QAM, 256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description : FPC Antenna, 2.17dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the Page 2 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna Page 3 of 5 FCC ID: 2BEAP-V620 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 5. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Internal/External Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna FPC Antenna 2400-2500 MHz 2.17dBi BT/ WIFI Antenna 6. Conducted Power [BT LE 1M] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.41 19 2440 0.16 39 2480 -0.98 [2.4G WLAN] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 15.32 6 2437 15.39…

Text truncated - open the document above for the full version.

深圳市广源发电子有限公司 Document number: Sample acceptance letter Specification For Approval Customer name: customer: Dongguan lingdu electronic technology co., ltd Name of supplier: Customer: Shenzhen Guangyuanfa Electronics Co., Ltd. Customer Item: Supplier Item: V630-WIFI-V1.0 GYF 2024-07-12 Product description: WIFI antenna (V630) coaxial line length: 2nd generation terminal L=65mm, line diameter: 0.81mm,； silk Seal: V630-WIFI-V1.0 GYF 2024-07-12 Matching model: V630 Supplier acknowledges (seals): Customer acknowledges (seals): Production: Guo Shaosen Structure: Ma Shuaixi Audit: Zhou Xuefeng Date: July 12, 2024 Address: 10th Floor, D2 Building, Songhu Zhigu Innovation Center, Liaobu Town, Dongguan, Dongguan Guangyuanfa Electronics Co., Ltd. 深圳市广源发电子有限公司 Tel: 0755-26702159 Fax: 0755-26702585 Website: http://www.gyfgpsbd.com/ 深圳市广源发电子有限公司 2 / 13 catal ogue 1. specifications 1.1 Electrical specification 1.2 Antenna frequency range 2. Matching circuit diagram 3. structural style 3.1 Antenna composition 4. testing equipment 5. VSWR test connection 5.1 test connection 6. test 6.1 Test site 6.2 Tested instrument 6.3 Test data 7. Drawing specification 7.1 blueprint 7.2 Sample size detection 7.3 Bill Of Material 8. reliability testing 8.1 Reliability test report 8.2 Product storage instructions 9. Working temperature 10. Antenna picture 深圳市广源发电子有限公司 3 / 13 WIFI v630 1. specificati ons 1.1 Electrical specificat ion V630 antenna This report mainly provides the test status of various electrical and structural performance parameters of the V630 antenna. specifications and models Guang yuan fa Liao Hao WIFI antenna V630-WIFI-V1.0 GYF 2024-07-12 1.2 Antenna frequency range The following table is the electrical performance index of Guangyuanfa design and mass production antenna. 2. Matching circuit diagram 深圳市广源发电子有限公司 4 / 13 3. structural style 3.1 Antenna composition The antenna is mainly composed of flexible printed circuit board and coaxial line. 4. testing equipment 5 . VSWR test connection 5.1 Test connection: VSWR test device is connected in sequence as: R&SZVL network analyzer → test line → test fixture. 6. test 6.1 Test site: Guangyuan microwave darkroom. The test frequency range is 400 MHz-6 GHz, the dead zone range is 50cm Ruta, and the reflectivity is less than -50 dB. 6.2 Tested instruments: Agilent5071B, CMW500, Agilent8960 E5515C, standard horn antenna, 24-probe OTA microwave darkroom test system, printer, etc. 深圳市广源发电子有限公司 5 / 13 6.3 Test data: 深圳市广源发电子有限公司 6 / 13 深圳市广源发电子有限公司 7 / 13 7. Drawing specification 7.1 blueprint 深圳市广源发电子有限公司 8 / 13 7.2 Sample size detection Project name V63 0 Finished item number V630-WIFI-V1.0 GYF 2024-07-12 date 2024.07.04 Item order specific ations Measure d data decide remark s one 2 three four five one 21.88 21.86 21.85 21.87 21.87 13.88 OK 2 30.75 30.74 30.77 30.75 30.76 30.77 OK three 65.00 65..46 65.56 65.62 65.57 65.61 OK four 0.81 0.80 0.81 0.79 0.82 0.78 OK five six seven eight nine 10 11 twelve 13 14 15 16 17 18 19 twenty 21 22 23 深圳市广源发电子有限公司 9 / 13 7.3 Bill Of Material Bill Of Material Project name V630 Finished item number V630-WIFI-V1.0 GYF 2024-07-12 date 2024.07.04 Bill Of Material category texture of wood speci ficati ons dosage one Fpc antenna One and a half. 30.75*21.88mm one three coaxial- line copper 0.81 black 65mm second- generation terminal one four five six seven eight nine 10 11 twelve 13 14 15 16 17 18 19 twenty 深圳市广源发电子有限公司 10 / 13 8. reliability testing 8.1 Reliability test report Project name V630 Finished item number V630-WIFI-V1.0 GYF 2024-07-12 date 2024.07.04 Test quantity 15pcs start time June 11th, 09:15 finish time June 13th at 11:25. test item testing nominati ve Test qua ntity test result rem arks Salt spray corrosi on test (1) Test temperature: salt water test 35°C 2°C; Pressure barrel 47°C 1°C （2） Test conditions/methods: salt water concentration is above 5%, solution PH is 6.5~7.2, air pressure is 1.0 ~ 1.2 kg/cm ㎡, and test time is set according to product requirements. （3） Test finished: after 2 hours, observe the product surface. Surface oxidation discoloration, coating shedding phenomenon 5pcs OK Test time 48H Low tempe rature test (1) Temperature:-30°C (-25°C-pilot stage) （2） Test time: 20 hours/packing condition: no packing. （3） The product to be tested is placed in a high and low temperature test box without turning on the machine, and the temperature in the box is adjusted to be 25°C and the humidity to be 65% for 1 hour, and then the temperature is reduced to -30°C and the humidity within 1 hour. Closing, keeping the temperature for 20 hours, raising the temperature for 1 hour, then cooling to normal temperature, and performing performance test after 2 hours. Appearance and structure: the appearance and surface of the antenna shall be free from defects, and the antenna shall be free from deformation, warping and damage, and its performance shall be normal, and the standing wave ratio shall not exceed the product standard. 10% 5pcs OK Test time is 20H. 深圳市广源发电子有限公司 11 / 13 High tempe rature test ( 1 ) T e m p e r a t u r e : + 7 0°C ( + 6 5°C-p i l o t s t a g e ) a n d h u m i d i t y 8 5 % ( 8 0 %-p i l o t s t a g e ) （2） Test time: 20 hours/packing condition: no packing. （3） The product to be tested is placed in the high and low temperature test box without turning on the machine, and the temperature in the box is adjusted to be 25°C and the humidity to be 65% for 1 hour, and then the temperature is raised to +70°C and humidity within 1 hour. After 85% heat preservation for 20 hours, the temperature is cooled for 1 hour and then cooled to normal temperature, and the performance is tested after 2 hours. Appearance and structure: the appearance and surface of the antenna shall be free from defects, and the antenna shall be free from deformation, warping and damage, and its performance shall be normal, and the standing wave ratio shall not exceed the product standard. 10% 5pcs OK 深圳市广源发电子有限公司 12 / 13 8.2 Product st…

Text truncated - open the document above for the full version.

Page 1 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: Dashcam Test Model: V620 Environmental Conditions Temperature: 23.8C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.648 >=0.5 Pass NVNT BLE 1M 2440 Ant1 0.662 >=0.5 Pass NVNT BLE 1M 2480 Ant1 0.662 >=0.5 Pass Page 3 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 Page 4 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 Page 5 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.41 30 Pass NVNT BLE 1M 2440 Ant1 0.16 30 Pass NVNT BLE 1M 2480 Ant1 -0.98 30 Pass Page 6 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 Page 7 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT BLE 1M 2480MHz Ant1 Page 8 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -17.1 8 Pass NVNT BLE 1M 2440 Ant1 -16.79 8 Pass NVNT BLE 1M 2480 Ant1 -17.68 8 Pass Page 9 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 Page 10 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity PSD NVNT BLE 1M 2480MHz Ant1 Page 11 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.4 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -55.57 -20 Pass NVNT BLE 1M 2480 Ant1 -55.25 -20 Pass Page 12 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission Page 13 of 23 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: we…

Text truncated - open the document above for the full version.

Page 1 of 78 FCC ID: 2BEAP-V620 Report No.: LCSA07224150EB …
