2BEAY-T81Wireless HD Transmitter& Receiver kit

ShenzhenTinghaoTechnologyCo.,Ltd. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenTinghaoTechnologyCo.,Ltd. Address:14A,Building6,Phase3,HaiyueGarden,No.8,Industrial7thRoad,HaiyueCommunity, ZhaoshangStreet,NanshanDistrict,ShenzhenCity,China ProductName:WirelessHDTransmitter&Receiverkit FCCID:2BEAY-T81 Model(s):T81A,T81B,T81C,T81D,T81E 2.911(d)(5)(i)EquipmentType We,[ShenzhenTinghaoTechnologyCo.,Ltd.](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:LucyxuDate:2024.9.11 TitleandCompanyname:Manager/ShenzhenTinghaoTechnologyCo.,Ltd. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenTinghaoTechnologyCo.,Ltd. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenTinghaoTechnologyCo.,Ltd. Address:14A,Building6,Phase3,HaiyueGarden,No.8,Industrial7thRoad,HaiyueCommunity, ZhaoshangStreet,NanshanDistrict,ShenzhenCity,China ProductName:WirelessHDTransmitter&Receiverkit FCCID:2BEAY-T81 Model(s):T81A,T81B,T81C,T81D,T81E 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenTinghaoTechnologyCo.,Ltd.](“theapplicant”)certifythat,asofthedateofthefiling oftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:LucyxuDate:2024.9.11 TitleandCompanyname:Manager/ShenzhenTinghaoTechnologyCo.,Ltd. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Tinghao Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Tinghao Technology Co., Ltd. Address: 14A, Building 6, Phase 3, Haiyue Garden, No.8, Industrial 7th Road, Haiyue Community, Zhaoshang Street, Nanshan District, Shenzhen City, Guangdong Province, China. Product Name: Wireless HD Transmitter& Receiver kit FCC ID:2BEAY-T81 Model(s): T81A, T81B, T81C, T81D, T81E 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Tinghao Technology Co., Ltd.] (“the applicant”) designate [USA MEIHUA TRADING INC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: USA MEIHUA TRADING INC USA Address: 5379 Pine Valley Ct Boulder CO 80301 United States FRN Number: 0033406166 Contact Name: Harley Quinn Telephone No: 1-312-363-9424 Email: [email protected] Applicant Company name: Shenzhen Tinghao Technology Co., Ltd. Address: 14A, Building 6, Phase 3, Haiyue Garden, No.8, Industrial 7th Road, Haiyue Community, Zhaoshang Street, Nanshan District, Shenzhen City, Guangdong Province, China. Grantee FRN Number: 0034660852 FCC Grantee Code: 2BEAY Contact Name: Lucy xu Telephone No: 13692264256 Shenzhen Tinghao Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.5 Email: [email protected] Signature: Title: Manager Signature: Title: Manager Date: 2024-09-11 Date: 2024-09-11 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ShenzhenTinghaoTechnologyCo.,Ltd. AgentAuthorization Company:ShenzhenTinghaoTechnologyCo.,Ltd. Address:14A,Building6,Phase3,HaiyueGarden,No.8,Industrial7thRoad,Haiyue Community,ZhaoshangStreet,NanshanDistrict,ShenzhenCity,China ProductName:WirelessHDTransmitter&Receiverkit ModelNumber(s):T81A,T81B,T81C,T81D,T81E ProductDescription:WirelessHDTransmitter&Receiverkit WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.9.11 Name:Lucyxu Title:Manager Company:ShenzhenTinghaoTechnologyCo.,Ltd.

Shenzhen Tinghao Technology Co., Ltd. Model Difference Product description: Wireless HD Transmitter& Receiver kit Model name: T81A , T81B, T81C, T81D, T81E Trade Name: ALLANDWELL FCC ID:2BEAY-T81 Only the model name is different. Regards Sincerely Client’s signature: Client’s name / title: Lucy xu / Manager Contact information / address: 14A, Building 6, Phase 3, Haiyue Garden, No.8, Industrial 7th Road, Haiyue Community, Zhaoshang Street, Nanshan District, Shenzhen City, Guangdong Province, China.

ShenzhenTinghaoTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.9.11 Subject;RequestforConfidentiality FCCID:2BEAY-T81 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SOFTWARESECURITYREQUIREMENTSFORU-NIIDEVICES Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:Lucyxu Title:Manager

FCCSoftwareConfigurationControlDeclarationRev1.1 ShenzhenTinghaoTechnologyCo.,Ltd. FCCSoftwareConfigurationControlDeclaration Date:September11,2024 FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Attn:OETDept. Product/ModelNumber:WirelessHDTransmitter&Receiverkit/T81A,T81B,T81C,T81D, T81E RegardingFCCCountryCodeSelectionguidelinesidentifiedinKDB594280. “Allapplicationsforequipmentauthorizationfortransmittersthatcanhaveradio parameters,orothertechnicalparameters,reportedtotheCommissionsetbysoftware musthaveanattestationindicatingthatnothirdpartywillhavesoftware,orconfiguration control,toprogramthedeviceoutofcomplianceofthetechnicalrulesunderwhichithas beencertified.” Wedeclarethatnothirdpartywillhavesoftware,orconfigurationcontrol,toprogramthedevice outofcomplianceofthetechnicalrulesunderwhichithasbeencertified. Name:LucyxuDate:2024.9.11 Title:Manager Signatureofapplicant

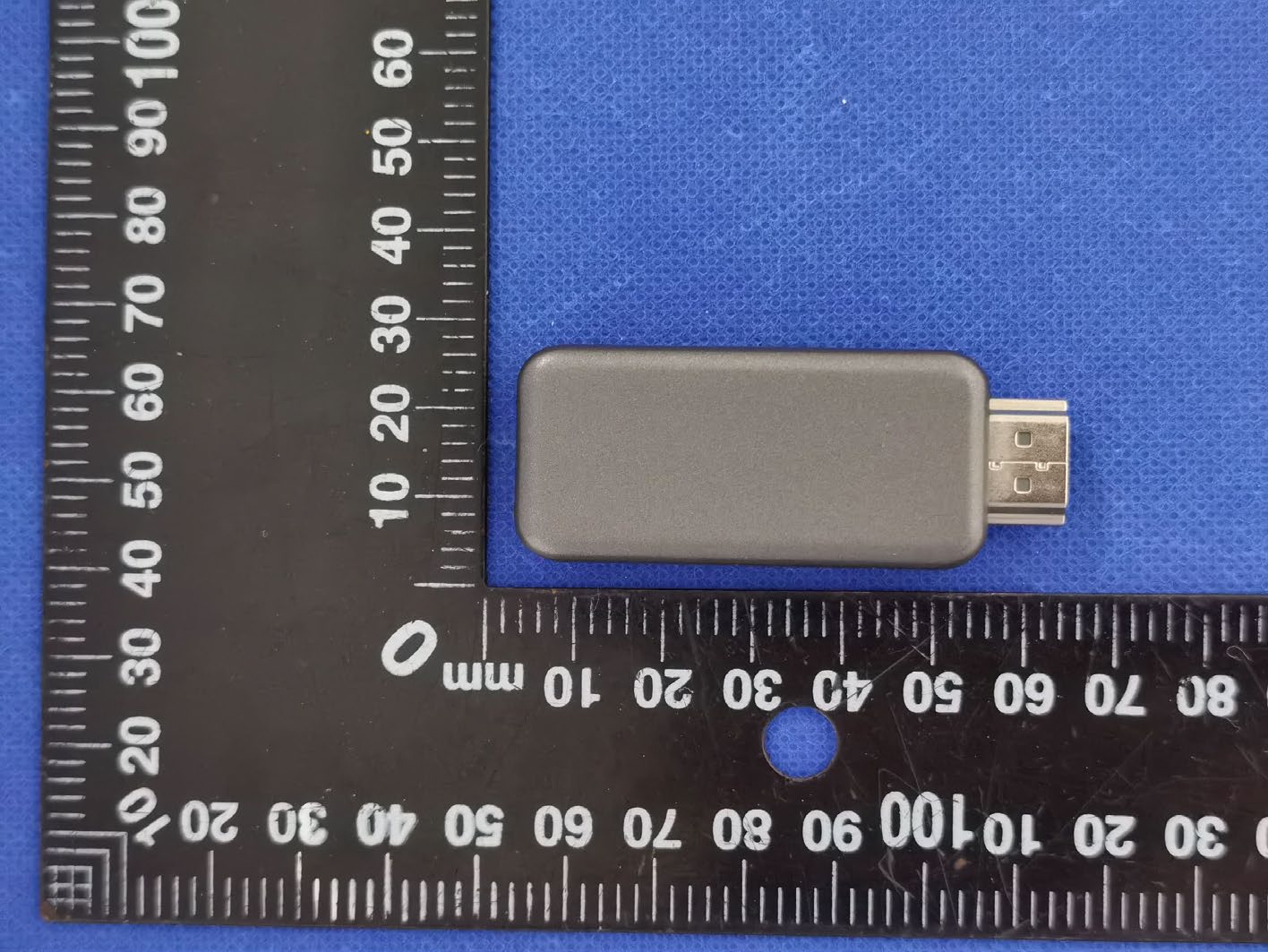

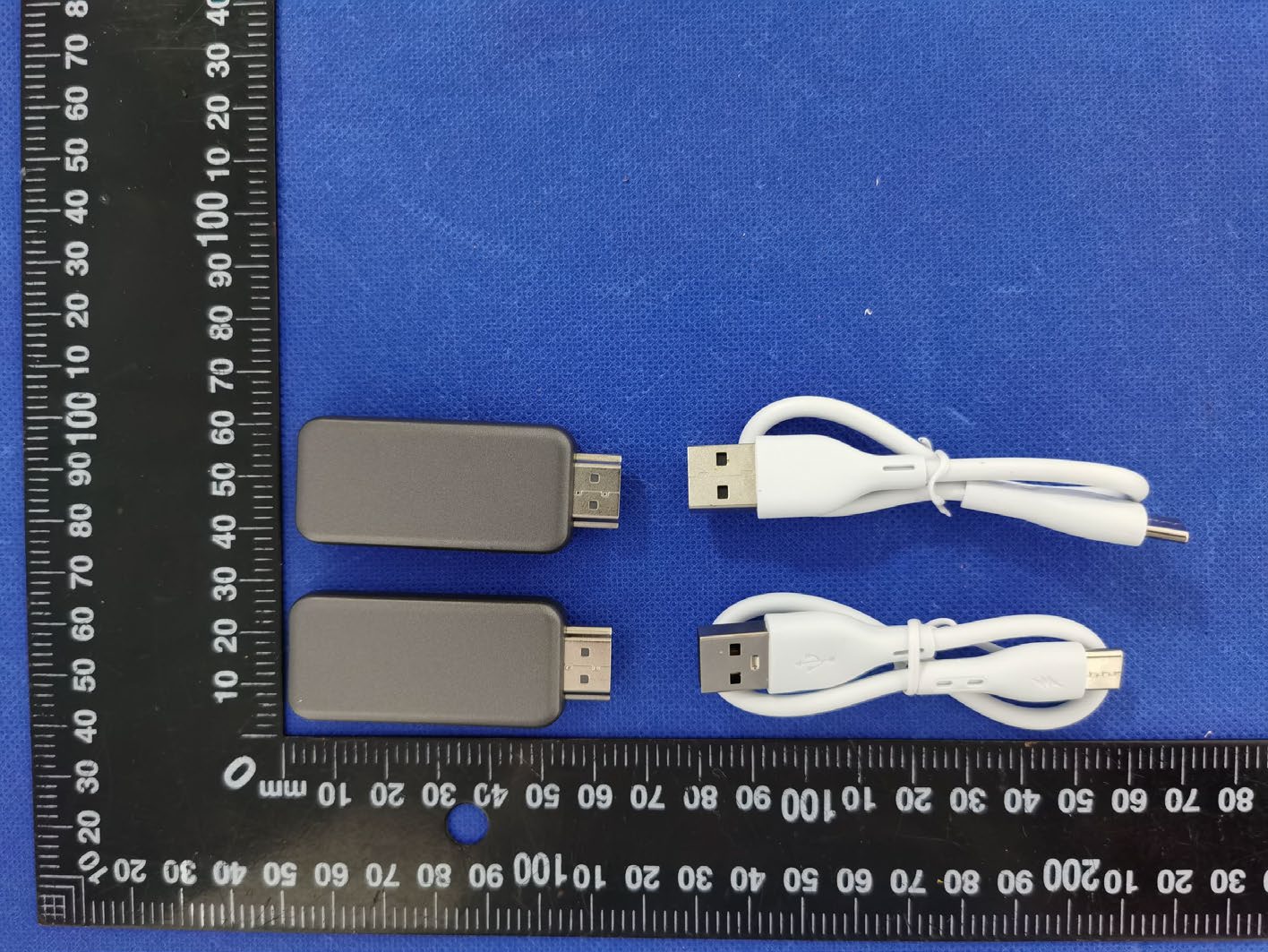

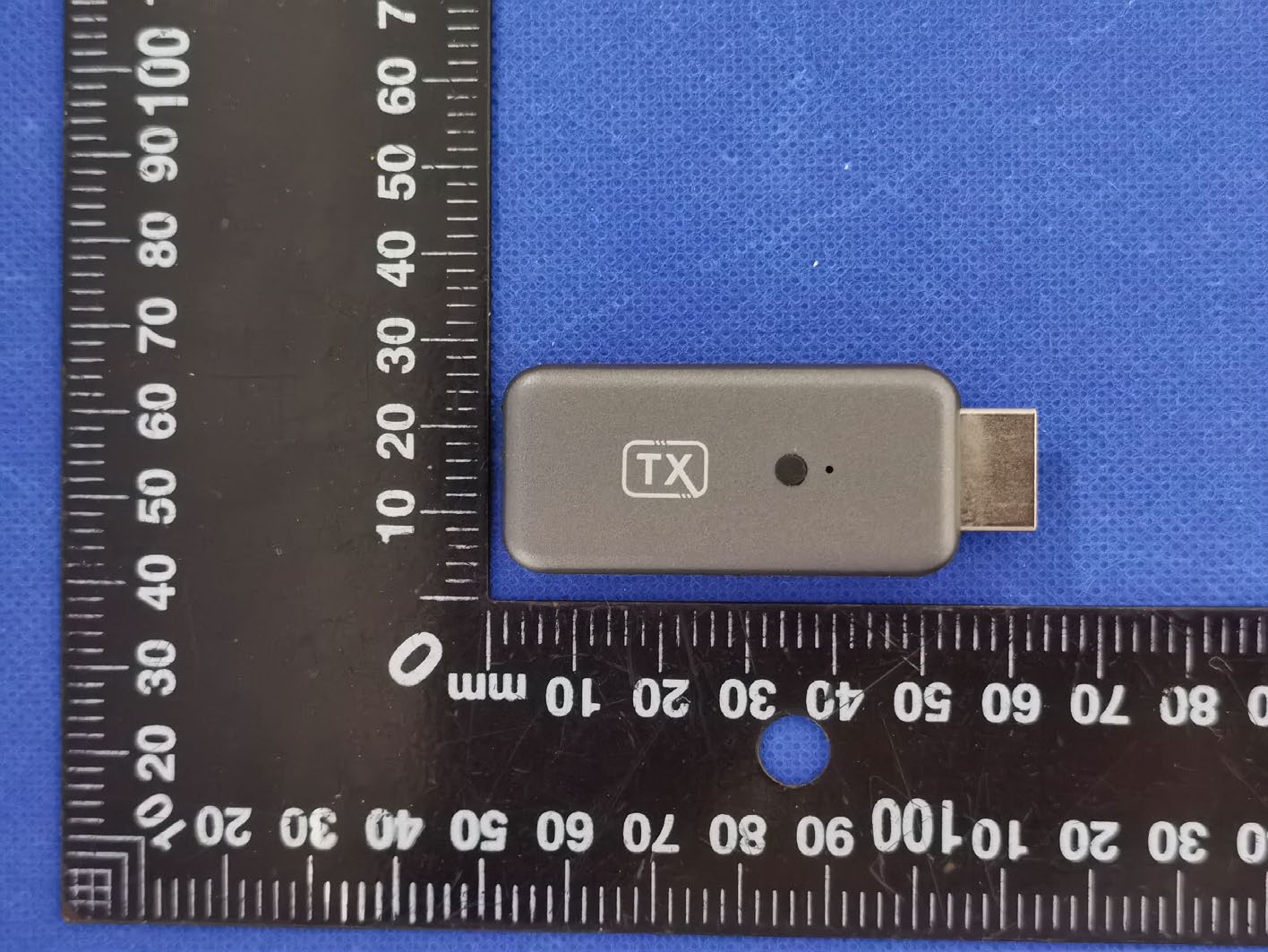

EUT PHOTO(External Photos)

Label & label location 20mm*10mm FCC ID:2BEAY-T81 Label location

EUT PHOTO(Internal Photos) ANT

FCC ID:2BEAY-T81 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093， Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For 5.2G WIFI Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 802.11 a 8.151 6.53 5240 5 2.99 3.0 802.11 n20 7.969 6.26 5240 5 2.87 3.0 802.11 n40 7.386 5.48 5230 5 2.51 3.0 802.11 ac20 7.877 6.13 5240 5 2.81 3.0 802.11 ac40 7.333 5.41 5230 5 2.48 3.0 802.11 ac80 4.045 2.54 5210 5 1.16 3.0 For5.8G WIFI Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 802.11 a 7.857 6.11 5825 5 2.95 3.0 802.11 n20 6.698 4.68 5825 5 2.26 3.0 802.11 n40 6.716 4.69 5795 5 2.26 3.0 802.11 ac20 6.653 4.63 5825 5 2.23 3.0 802.11 ac40 6.620 4.59 5795 5 2.21 3.0 802.11 ac80 3.996 2.51 5775 5 1.21 3.0 So a SAR test is not required

产品规格书 PRODUCT SPECIFICATION part number: ANT000030 Product description: 5G Frequency Antenna Manufacturer： Shenzhen Laiyu Technology Co., Ltd. 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electrical Specifications 频率范围Frequency Range (MHz) 5150-5850 频带宽度Bandwidth (MHz) 5G：700 输入阻抗Input Impendence (Ω) 50 电压驻波比V.S.W.R ≤2.0 增益Gain (dBi) 2.03dBi 极化形式Polarization Type 垂直Vertical 机械指标Mechanical Specifications 天线长度Antenna Length (mm) 6.6*3.0*0.2mm 辐射体Radiator Copper 连接器型号Connect Type NC 外壳颜色Radome Color Silver 重量Weight (g) 0.02 产品简介Product introduction: 该天线是专为无线内置天线设备设计生产的，天线具有外形美观，结 构小巧，一致性高，成本低廉。 The antenna is specially designed and produced for wireless built-in antenna equipment. The antenna has beautiful appearance, small structure, high consistency and low cost. 2、产品图片（PRODUCT PICTURE） 3、产品规格图(PRODUCT SPECIFICATION CHART) 4、驻波图（STATIONARY WAVE PATTERN） 5.增益效率值Gain and Efficiency： 6.场型图Field Pattern： F=5250MHz 3D H E1 E2 F=5800MHZ 3D H E1 E2

Project No.: ZKT-240820040E Page 1 of 95 FCC TEST REPORT FCC ID:2BEAY-T81 Report Number. .............................. : ZKT-240820040E Date of Test ................................................. : Aug. 22, 2024 to Sep. 09, 2024 Date of issue .................................... : Sep. 09, 2024 Total number of pages ...................... 95 Test Result ..................................... : PASS Testing Laboratory. ........................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ............................ : Shenzhen Tinghao Technology Co., Ltd. Address .......................................... : 14A, Building 6, Phase 3, Haiyue Garden, No.8, Industrial 7th Road, Haiyue Community, Zhaoshang Street, Nanshan District, Shenzhen City, Guangdong Province, China. Manufacturer's name ..................... : Shenzhen Tinghao Technology Co., Ltd. Address .......................................... : 14A, Building 6, Phase 3, Haiyue Garden, No.8, Industrial 7th Road, Haiyue Community, Zhaoshang Street, Nanshan District, Shenzhen City, Guangdong Province, China. Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart E Section 15.407 ANSI C63.10:2013 KDB 789033 D02 v02r01 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : / Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................... : Wireless HD Transmitter& Receiver kit Trademark ...................................... : ALLANDWELL Model/Type reference ...................... : T81A T81B, T81C, T81D, T81E Ratings ............................................. : Input: 5V 1A Project No.: ZKT-240820040E Page 2 of 95 Testing procedure and testing location: Testing Laboratory ..................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jeff Fu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-240820040E Page 3 of 95 Table of Contents Page 1. VERSION ................................................................................................................... 5 2.SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 TEST FACILITY ............................................................................................................. 7 2.2 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL INFORMATION ........................................................................................ 8 3.1 GENERAL DESCRIPTION OF EUT .............................................................................. 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED............ 11 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) .................................... 11 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................... 12 4.EMC EMISSION TEST .............................................................................................. 14 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................... 14 4.1.1 POWER LINE CONDUCTED EMISSION Limits ................................................. 14 4.1.2 TEST PROCEDURE ............................................................................................ 14 4.1.3 DEVIATION FROM TEST STANDARD ............................................................... 14 4.1.4 TEST SETUP ...................................................................................................... 15 4.1.5 EUT OPERATING CONDITIONS ........................................................................ 15 4.1.6 TEST RESULT .................................................................................................... 16 4.2 RADIATED EMISSION MEASUREMENT .................................................................... 20 4.2.1 APPLICABLE STANDARD ................................................................................. 20 4.2.2 CONFORMANCE LIMIT ...................................................................................... 20 4.2.3 MEASURING INSTRUMENTS ............................................................................ 20 4.2.4 TEST CONFIGURATION ..................................................................................... 21 4.2.5 TEST PROCEDURE ............................................................................................ 22 4.2.6 TEST RESULT .................................................................................................... 23 5.POWER SPECTRAL DENSITY TEST ...................................................................... 39 5.1 APPLIED PROCEDURES / LIMIT .......................................................................... 39 5.2 TEST PROCEDURE............................................................................................... 4…

Text truncated - open the document above for the full version.

Project No.: ZKT-240820040E Page 55 of 95 5.8G Test plot (802.11a) 6dB Bandwidth plot on channel 149 (802.11a) 6dB Bandwidth plot on channel 157 (802.11a) 6dB Bandwidth plot on channel 165 Project No.: ZKT-240820040E Page 56 of 95 5.8G Test plot (802.11n20) 6dB Bandwidth plot on channel 149 (802.11n40) 6dB Bandwidth plot on channel 151 (802.11n20) 6dB Bandwidth plot on channel 157 (802.11n40) 6dB Bandwidth plot on channel 159 (802.11n20) 6dB Bandwidth plot on channel 165 Project No.: ZKT-240820040E Page 57 of 95 5.8G Test plot (802.11ac20) 6dB Bandwidth plot on channel 149 (802.11ac40) PSD plot on channel 151 (802.11ac20) 6dB Bandwidth plot on channel 157 (802.11ac40) PSD plot on channel 159 (802.11ac20) 6dB Bandwidth plot on channel 165 (802.11ac80) PSD plot on channel 155 Project No.: ZKT-240820040E Page 58 of 95 7.MAXIMUM CONDUCTED OUTPUT POWER 7.1 PPLIED PROCEDURES / LIMIT According to FCC §15.407 The maximum conduced output power should not exceed: Frequency Band(MHz) Limit 5150~5250 250mW 5725~5850 1W 7.2 TEST PROCEDURE The EUT was directly connected to the Power meter 1. Device Configuration If possible, configure or modify the operation of the EUT so that it transmits continuously at its maximum power control level (see section II.B.). a) The intent is to test at 100 percent duty cycle; however a small reduction in duty cycle (to no lower than 98 percent) is permitted if required by the EUT for amplitude control purposes. Manufacturers are expected to provide software to the test lab to permit such continuous operation. b) If continuous transmission (or at least 98 percent duty cycle) cannot be achieved due to hardware limitations (e.g., overheating), the EUT shall be operated at its maximum power control level with the transmit duration as long as possible and the duty cycle as high as possible. 2. Measurement using a Spectrum Analyzer or EMI Receiver (SA) Measurement of maximum conducted output power using a spectrum analyzer requires integrating the spectrum across a frequency span that encompasses, at a minimum, either the EBW or the 99-percent occupied bandwidth of the signal.1 However, the EBW must be used to determine bandwidth dependent limits on maximum conducted output power in accordance with § 15.407(a). a) The test method shall be selected as follows: (i) Method SA-1 or SA-1 Alternative (averaging with the EUT transmitting at full power throughout each sweep) shall be applied if either of the following conditions can be satisfied: • The EUT transmits continuously (or with a duty cycle ≥ 98 percent). • Sweep triggering or gating can be implemented in a way that the device transmits at the maximum power control level throughout the duration of each of the instrument sweeps to be averaged. This condition can generally be achieved by triggering the instrument’s sweep if the duration of the sweep (with the analyzer configured as in Method SA-1, below) is equal to or shorter than the duration T of each transmission from the EUT and if those transmissions exhibit full power throughout their durations. (ii) Method SA-2 or SA-2 Alternative (averaging across on and off times of the EUT transmissions, followed by duty cycle correction) shall be applied if the conditions of (i) cannot be achieved and the transmissions exhibit a constant duty cycle during the measurement duration. Duty cycle will be considered to be constant if variations are less than ± 2 percent. (iii) Method SA-3 (RMS detection with max hold) or SA-3 Alternative (reduced VBW with max hold) shall be applied if the conditions of (i) and (ii) cannot be achieved. b) Method SA-1 (trace averaging with the EUT transmitting at full power throughout each sweep): (i) Set span to encompass the entire emission bandwidth (EBW) (or, alternatively, the entire 99% occupied bandwidth) of the signal. (ii) Set RBW = 1 MHz. (iii) Set VBW ≥ 3 MHz. (iv) Number of points in sweep ≥ 2 Span / RBW. (This ensures that bin-to-bin spacing is ≤ RBW/2, so that narrowband signals are not lost between frequency bins.) (v) Sweep time = auto. (vi) Detector = RMS (i.e., power averaging), if available. Otherwise, use sample detector mode. (vii) If transmit duty cycle < 98 percent, use a video trigger with the trigger level set to enable triggering only on full power pulses. Transmitter must operate at maximum power control level for the entire duration of every sweep. If the EUT transmits continuously (i.e., with no off intervals) or at duty cycle ≥ 98 percent, and if each transmission is entirely at the maximum power control level, then the trigger shall be set to “free run”. (viii) Trace average at least 100 traces in power averaging (i.e., RMS) mode. Project No.: ZKT-240820040E Page 59 of 95 (ix) Compute power by integrating the spectrum across the EBW (or, alternatively, the entire 99% occupied bandwidth) of the signal using the instrument’s band power measurement function with band limits set equal to the EBW (or occupied bandwidth) band edges. If the instrument does not have a band power function, sum the spectrum 7.3 DEVIATION FROM STANDARD No deviation. 7.4 TEST SETUP 7.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.4 Unless otherwise a special operating condition is specified in the follows during the testing. Project No.: ZKT-240820040E Page 60 of 95 7.6 TEST RESULTS Temperature： 26 °C Relative Humidity： 54% Pressure： 1012 hPa Test Voltage ： DC 5V Test Band ： 5.2G 802.11 a Mode Test Channel Frequency (MHz) Output power (dBm) duty cycle Factor (dB) Total power (dBm) Limit (dBm) Result CH36 5180 7.978 0 7.978 23.98 Pass CH40 5200 7.671 0 7.671 23.98 Pass CH48 5240 8.151 0 8.151 23.98 Pass 802.11 n20 Mode Test Channel Frequency (MHz) Output power (dBm) duty cycle Factor (dB) Total power (dBm) Limit (dBm) Result CH36 5180 7.363 0 7.363 23.98 Pass CH40 5200 7.625 0 7.625 23.98 Pass CH48 5240 7.969 0 7.969 23.98 Pass 802.11 n40 Mode Test Channel Frequency (MHz) Output power (dBm) duty cycle Factor (dB) …

Text truncated - open the document above for the full version.

EUT TEST PHOTO
