2BEE4-F160CCompound Electric Energy Acquisition Equipment

1 User Manual REV 1.1 Shanghai Orange Box Digital Technology Co., Ltd. TEL: +86-021-60403356 E-mail: [email protected] Composite Energy Data Collection Equipment F160C 2 Table of contents 1 Product Overview ..................................................................................................... 3 1.1 Product features ............................................................................................ 3 1.2 Product characteristics ................................................................................. 3 1) Collect the voltage and current of single-phase or three-phase electricity, and calculate the power, energy consumption and harmonics; ............ 3 2) WIFI supports IEEE802.11b/g/n/ax on the 2.4GHz frequency band, with data rates up to 150Mbps; .................................................................................... 4 3) Power failure reporting status function; ...................................................... 4 4) Monitor the power-on and power-off times of factory equipment, analyze the equipment OEE, operating efficiency, and remotely start and stop equipment; ....................................................................................................................... 4 5) It has 1 TTL and 1 485 communication interface, and the communication protocol adopts standard Modbus-RTU and DLT645-2007 protocols; .......................................................................................................................... 4 6) It has the function of remotely collecting the start and stop status of the equipment (through 2-way DI) and the remote control function of starting and stopping the equipment (through 3-way DO); .................................................... 4 7) Comply with the requirements of the revised directive (EU) 2015/863 of the EU RoHS directive 2011/65EU appendix .......................................................... 4 8) Support MQTT data transmission protocol ................................................. 4 9) The equipment can realize OTA online remote upgrade .......................... 4 1.3 Technical indicators ...................................................................................... 4 1.4 Electromagnetic compatibility (EMC) performance .................................. 6 1.4.1 High-Frequency Interference Test (GB/T15153.1 classIII) ......... 6 1.4.2 Fast Transient Burst Test (GB/T17626.4 classIII) ......................... 6 1.4.3 Electrostatic Discharge Interference (GB/T 17626.2 classIII) .... 6 1.4.4 Radiated Electromagnetic Field (GB/T 17626.3 classIII) ............ 6 2 Quick Application Guide .......................................................................................... 7 2.1Connect the power supply ............................................................................ 7 2.2 Connect three-phase electricity .................................................................. 7 2.3 Connect WIFI antenna ................................................................................. 8 2.4 Configure WIFI parameters: SSID, Password, connect to the cloud .... 8 2.4.1 Process of automatic distribution network ............................................ 8 2.4.2 SmartConfig distribution network ........................................................... 8 2.4.3 Network distribution failure handling ................................................... 12 3 Hardware Description ............................................................................................ 13 3.1 Product appearance .................................................................................... 13 4 Installation ............................................................................................................... 14 4.1 Mechanical dimensions .............................................................................. 14 4.2 How to install ............................................................................................... 14 5 Operation, maintenance and precautions .......................................................... 16 6 Copyright Information ........................................................................................... 17 7 Related Products .................................................................................................... 18 3 1 Product Overview 1.1 Product features F160C is a composite energy data acquisition device. This product collects the power parameters and energy consumption of field equipment for users and uploads it to servers or various cloud platforms through the E150 (Industrial Data Gateway) MQTT protocol. In addition, F160C also supports 2 digital inputs, 3 digital outputs, 1 RS485 interface, 1 RS232 interface and 1 CAN bus interface. 1.2 Product characteristics 1) Collect the voltage and current of single-phase or three-phase electricity, and calculate the power, energy consumption and harmonics; ◼ Provide three-phase full-wave voltage, current, power, power factor, power and total power and other power parameters; ◼ Provides full-wave active, reactive, RMS or PQS apparent power; ◼ Provide active, reactive and apparent electric energy; ◼ Provides data on the 41st harmonic, 21st interharmonic, flicker, real-time sampling waveform and other data of three-phase voltage and current; ◼ Provide interrupt signal output to detect sag, overvoltage and overcurrent based on waveform data; ◼ Provide A-type residual current detection and alarm function; ◼ Provides event detection for three-phase voltage loss, overload, overcurrent, current loss, overvoltage, undervoltage, voltage loss, voltage and current reverse phase sequence, unbalance and other events; ◼ With PF (active power) and QF (reactive power) output, it is convenient for quality verification; ◼ With alarm output, output events can be customized. Such as overvoltage, overcurrent, voltage loss, current loss, phase sequence error, undervoltage, etc.; ◼ T…

Text truncated - open the document above for the full version.

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shanghai Orange Box Digital Technology Co., Ltd. Address: Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Phone: +86-13818475936 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2BEE4-F160C If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-01-12 Name / Title: Zhang Xu / R&D Hardware manager Company: Shanghai Orange Box Digital Technology Co., Ltd. Address: Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Phone: +86-13818475936 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BEE4-F160C F160C We, applicant Company Name: Shanghai Orange Box Digital Technology Co., Ltd. Address: Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Phone: +86-13818475936 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-01-12 Name / Title: Zhang Xu / R&D Hardware manager Company: Shanghai Orange Box Digital Technology Co., Ltd. Address: Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Phone: +86-13818475936 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BEE4-F160C F160C For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-01-12 Name / Title: Zhang Xu / R&D Hardware manager Company: Shanghai Orange Box Digital Technology Co., Ltd. Address: Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Phone: +86-13818475936 Fax: N/A E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Shanghai Orange Box Digital Technology Co., Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BEE4-F160C Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Zhang Xu / R&D Hardware manager Signature: Phone: +86-13818475936 Email: [email protected] Date: 2024-01-12

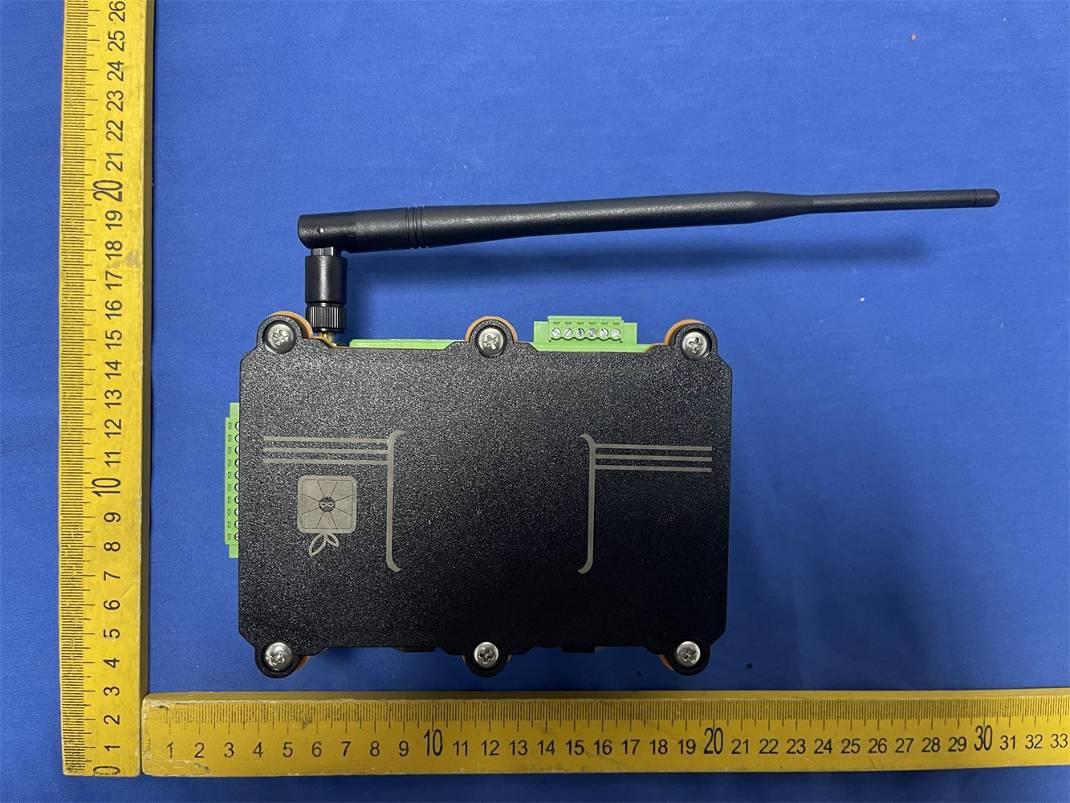

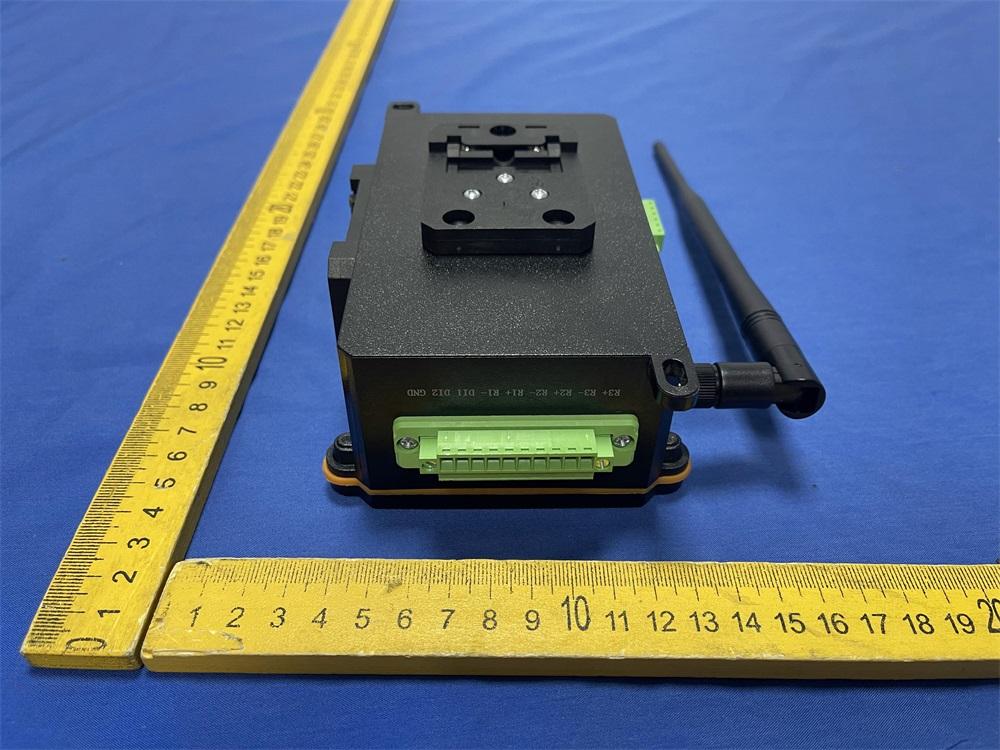

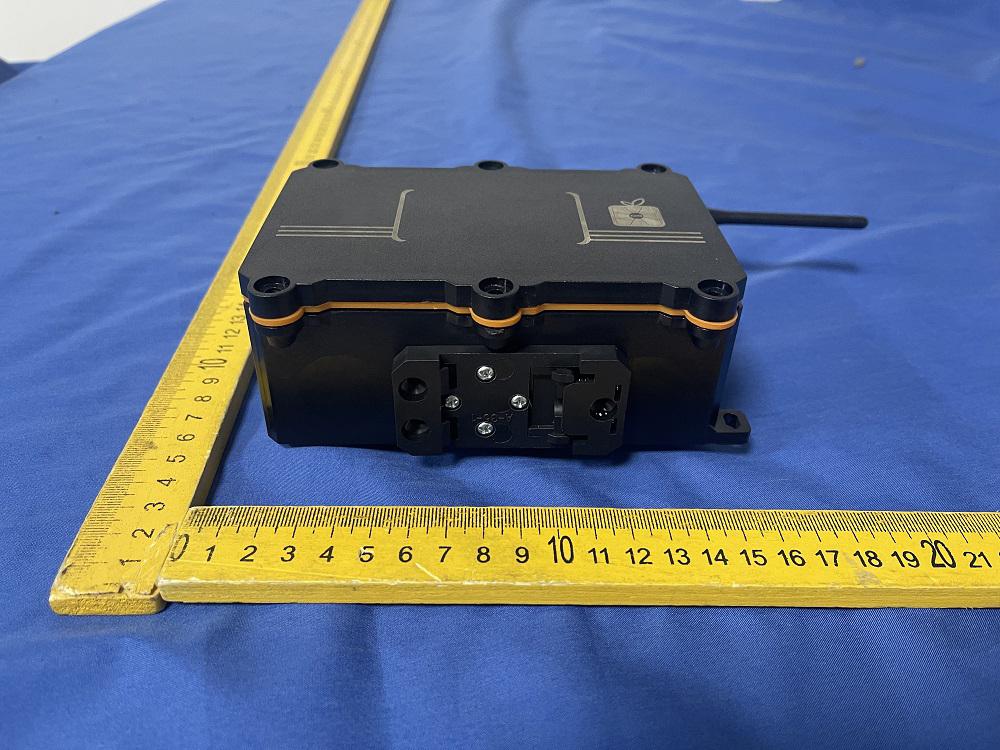

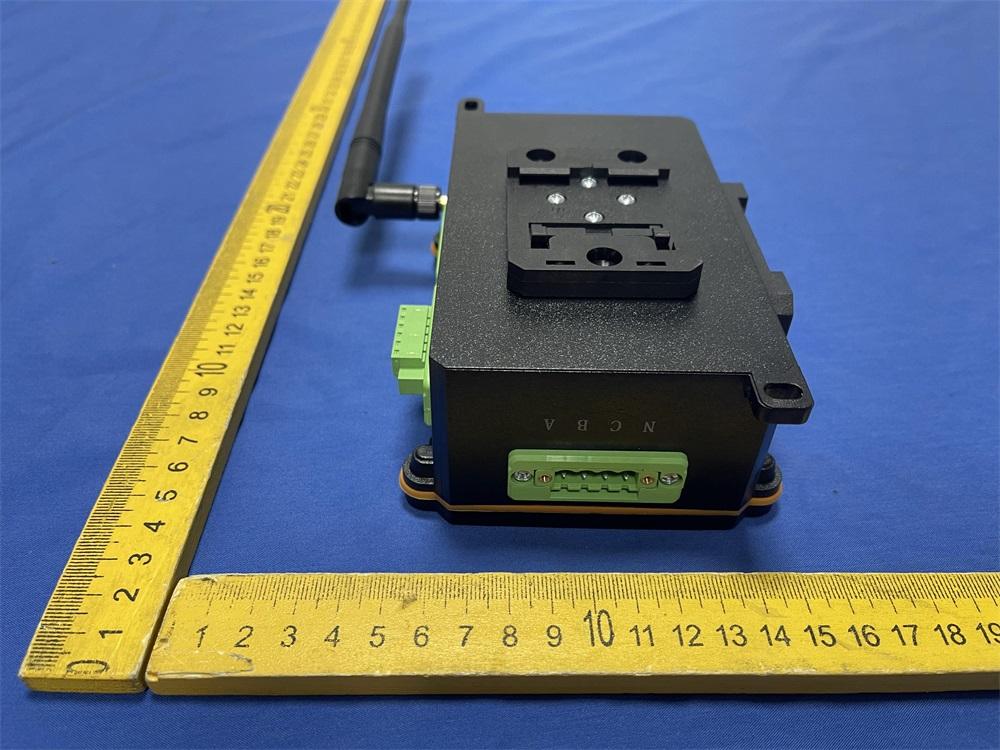

FCC ID: 2BEE4-F160C Fig. 1 Fig. 2 Antenna FCC ID: 2BEE4-F160C Fig. 3 Fig. 4 FCC ID: 2BEE4-F160C Fig. 5 Fig. 6 FCC ID: 2BEE4-F160C Fig. 7

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L8.0cm x 7.0cm) Label Location

FCC ID: 2BEE4-F160C Fig. 1 Fig. 2 FCC ID: 2BEE4-F160C Fig. 3 Fig. 4 FCC ID: 2BEE4-F160C Fig. 5 Fig. 6 FCC ID: 2BEE4-F160C Fig. 7 Fig. 8 FCC ID: 2BEE4-F160C Fig. 9 Fig. 10 FCC ID: 2BEE4-F160C Fig. 11 Fig. 12 FCC ID: 2BEE4-F160C Fig. 13 Fig. 14

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20231219004-1-2 2BEE4-F160C Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jan. 05, 2024 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shanghai Orange Box Digital Technology Co., Ltd. Address ............................................ : Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Compound Electric Energy Acquisition Equipment Trade Mark ....................................... : orangeBOX Manufacturer .................................... : Shanghai Orange Box Digital Technology Co., Ltd. Model/Type reference ...................... : F160C Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11b/802.11g/802.11n/802.11ax GFSK, π/4-DQPSK, 8-DPSK Operation Frequency........................ : From 2412MHz to 2462MHz Hardware Version ............................ : V2.1 Software Version .............................. : V26 Rating ............................................... : DC 24V Result ............................................... : PASS Report No.: GTS20231219004-1-2 Page 2 of 10 T E S T R E P O R T Test Report No. : GTS20231219004-1-2 Jan. 05, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : Compound Electric Energy Acquisition Equipment Model /Type : F160C Listed model : N/A Applicant : Shanghai Orange Box Digital Technology Co., Ltd. Address : Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Manufacturer : Shanghai Orange Box Digital Technology Co., Ltd. Address : Room 3As126, 4th Floor, No. 1155, Fangdian Road, Pudong District, Shanghai, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20231219004-1-2 Page 3 of 10 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTEN…

Text truncated - open the document above for the full version.

Manufacturer Dongguan Chuangjie Electronics Co., LTD Address No.6, Qilin East Road, Daning, Humen Town, Dongguan City Model F160C Antenna type External antenna Antenna Gain 2.00dBi for 2.4G 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit 2.Test Data: 2.1. Standing wave ratio 2.2.Efficiency 2.4G Fred (MHz) Effi (%) Effi (%) Gain (dBi) Gain (dBd) UHIS (%) DHIS (%) Max (dB) Min (dB) Attenut (Hor) Attenut (Ver) 2400 44.38 -2.79 1.26 -0.88 40.28 13.32 2.29 -23.79 48.26 49.33 2410 44.63 -2.46 1.66 -0.48 42.42 13.54 2.46 -21.29 48.66 49.58 2420 44.94 -2.12 1.82 -0.32 40.96 14.77 2.68 -20.97 48.71 49.88 2430 44.27 -2.70 1.40 -0.74 43.24 15.23 2.29 -22.77 48.21 49.35 2440 44.75 -2.39 2.00 -0.14 40.71 15.79 2.53 -25.39 48.58 49.56 2450 44.82 -1.83 1.50 -0.64 41.19 16.18 3.15 -21.98 49.11 49.99 2460 44.28 -2.63 1.23 -0.91 42.39 18.25 2.31 -25.62 48.37 49.22 2470 44.49 -2.34 1.44 -0.70 41.78 18.80 2.50 -24.31 48.50 49.54 2480 45.08 -2.23 1.00 -1.14 40.89 19.05 3.14 -23.23 48.98 49.99 2490 44.21 -2.68 1.25 -0.89 43.21 19.23 2.35 -21.77 48.24 49.20 2500 44.46 -2.32 1.61 -0.53 40.44 19.62 2.48 -20.30 48.48 49.61 2.3.Directivity diagram 3.Antenna drawing(mm):

FCCID: 2BEE4-F160C 1 Case No. : GTS20231219004-1-1 Ambient Condition: 23 °C, 48 %RH, Atmos100.1Kpa, Test Date: 2023.12.28 Test Engineer: Evan ouyang Appendix A.1: DTS Bandwidth Test Result Test Mode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.000 2407.520 2416.520 0.5 PASS 2437 9.080 2432.440 2441.520 0.5 PASS 2462 9.520 2457.000 2466.520 0.5 PASS 11G Ant1 2412 16.360 2403.800 2420.160 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.080 2453.840 2469.920 0.5 PASS 11N20SISO Ant1 2412 17.040 2403.440 2420.480 0.5 PASS 2437 16.760 2428.640 2445.400 0.5 PASS 2462 16.120 2453.640 2469.760 0.5 PASS 11N40SISO Ant1 2422 26.880 2408.000 2434.880 0.5 PASS 2437 28.960 2423.000 2451.960 0.5 PASS 2452 26.560 2438.480 2465.040 0.5 PASS 11AX20SISO Ant1 2412 17.040 2403.280 2420.320 0.5 PASS 2437 16.640 2428.600 2445.240 0.5 PASS 2462 16.880 2453.560 2470.440 0.5 PASS FCCID: 2BEE4-F160C 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2BEE4-F160C 3 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2BEE4-F160C 4 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2BEE4-F160C 5 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID: 2BEE4-F160C 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID: 2BEE4-F160C 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2BEE4-F160C 8 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 FCCID: 2BEE4-F160C 9 11AX20SISO_Ant1_2462 FCCID: 2BEE4-F160C 10 Appendix A.2: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.864 2405.502 2418.366 --- --- 2437 12.919 2430.507 2443.426 --- --- 2462 12.833 2455.527 2468.360 --- --- 11G Ant1 2412 16.638 2403.662 2420.300 --- --- 2437 16.592 2428.683 2445.275 --- --- 2462 16.595 2453.669 2470.264 --- --- 11N20SISO Ant1 2412 17.526 2403.209 2420.735 --- --- 2437 17.562 2428.217 2445.779 --- --- 2462 17.529 2453.220 2470.749 --- --- 11N40SISO Ant1 2422 33.099 2405.465 2438.564 --- --- 2437 33.134 2420.477 2453.611 --- --- 2452 32.944 2435.557 2468.501 --- --- 11AX20SISO Ant1 2412 18.417 2402.789 2421.206 --- --- 2437 18.471 2427.787 2446.258 --- --- 2462 18.403 2452.731 2471.134 --- --- FCCID: 2BEE4-F160C 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2BEE4-F160C 12 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2BEE4-F160C 13 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2BEE4-F160C 14 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID: 2BEE4-F160C 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID: 2BEE4-F160C 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2BEE4-F160C 17 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 FCCID: 2BEE4-F160C 18 11AX20SISO_Ant1_2462 FCCID: 2BEE4-F160C 19 Appendix A.3: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 22.05 ≤30.00 PASS 2437 21.20 ≤30.00 PASS 2462 21.40 ≤30.00 PASS 11G Ant1 2412 20.59 ≤30.00 PASS 2437 20.67 ≤30.00 PASS 2462 20.99 ≤30.00 PASS 11N20SISO Ant1 2412 19.46 ≤30.00 PASS 2437 19.56 ≤30.00 PASS 2462 19.90 ≤30.00 PASS 11N40SISO Ant1 2422 21.59 ≤30.00 PASS 2437 21.53 ≤30.00 PASS 2452 22.47 ≤30.00 PASS 11AX20SISO Ant1 2412 20.05 ≤30.00 PASS 2437 20.00 ≤30.00 PASS 2462 20.32 ≤30.00 PASS FCCID: 2BEE4-F160C 20 Appendix A.4: Maximum power spectral density Test Result Test Mode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -8.27 ≤8.00 PASS 2437 -8.26 ≤8.00 PASS 2462 -7.04 ≤8.00 PASS 11G Ant1 2412 -11.96 ≤8.00 PASS 2437 -11.73 ≤8.00 PASS 2462 -11.72 ≤8.00 PASS 11N20SISO Ant1 2412 -12.48 ≤8.00 PASS 2437 -12.53 ≤8.00 PASS 2462 -12.82 ≤8.00 PASS 11N40SISO Ant1 2422 -12.83 ≤8.00 PASS 2437 -12.62 ≤8.00 PASS 2452 -11.67 ≤8.00 PASS 11AX20SISO Ant1 2412 -9.79 ≤8.00 PASS 2437 -10.13 ≤8.00 PASS 2462 -10.18 ≤8.00 PASS FCCID: 2BEE4-F160C 21 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 FCCID: 2BEE4-F160C 22 11B_Ant1_2462 11G_Ant1_2412 FCCID: 2BEE4-F160C 23 11G_Ant1_2437 11G_Ant1_2462 FCCID: 2BEE4-F160C 24 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCCID: 2BEE4-F160C 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCCID: 2BEE4-F160C 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCCID: 2BEE4-F160C 27 11AX20SISO_Ant1_2412 11AX20SISO_Ant1_2437 FCCID: 2BEE4-F160C 28 11AX20SISO_Ant1_2462 FCCID: 2BEE4-F160C 29 Appendix A.5: Band edge measurements Test Result Test Mode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 6.79 -41.35 ≤-13.21 PASS High 2462 6.28 -47.73 ≤-13.72 PASS 11G Ant1 Low 2412 1.38 -43.16 ≤-18.62 PASS High 2462 2.66 -47.6 ≤-17.34 PASS 11N20SISO Ant1 Low 2412 0.81 -43.5 ≤-19.19 PASS High 2462 1.69 -47.49 ≤-18.31 PASS 11N40SISO Ant1 Low 2422 1.04 -42.42 ≤-18.96 PASS High 2452 2.35 -42.61 ≤-17.65 PASS 11AX20SISO Ant1 Low 2412 1.26 -45.81 ≤-18.74 PASS High 2462 1.09 -46.3 ≤-18.91 PASS FCCID: 2BEE4-F160C 30 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 FCCID: 2BEE4-F160C 31 11G_Ant1_Low_2412 11G_Ant1_High_2462 FCCID: 2BEE4-F160C 32 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 FCCID: 2BEE4-F160C 33 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCCID: 2BEE4-F160C 34 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462

FCCID: 2BEE4-F160C 35 Appendix A.6: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 5.55 5.55 --- PASS 30~1000 5.55 -60.41 ≤-14.45 PASS 1000~26500 5.55 -47.01 ≤-14.45 PASS 2437 Reference 5.38 5.38 --- PASS 30~1000 5.38 -59.76 ≤-14.62 PASS 1000~26500 5.38 -47.61 ≤-14.62 PASS 2462 Reference 5.66 5.66 --- PASS 30~1000 5.66 -60.27 ≤-14.34 PASS 1000~26500 5.66 -47.93 ≤-14.34 PASS 11G Ant1 2412 Reference -1.03 -1.03 --- PASS 30~1000 -1.03 -60.66 ≤-21.03 PASS 1000~26500 -1.03 -47.44 ≤-21.03 PASS 2437 Reference -0.96 -0.96 --- PASS 30~1000 -0.96 -59.65 ≤-20.96 PASS 1000~26500 -0.96 -47.12 ≤-20.96 PASS 2462 Reference 0.07 0.07 --- PASS 30~1000 0.07 -60.39 ≤-19.93 PASS 1000~26500 0.07 -46.75 ≤-19.93 PASS 11N20SISO Ant1 2412 Reference -2.24 -2.24 --- PASS 30~1000 -2.24 -60.09 ≤-22.24 PASS 1000~26500 -2.24 -47.51 ≤-22.24 PASS 2437 Reference -0.86 -0.86 --- PASS 30~1000 -0.86 -60.21 ≤-20.86 PASS 1000~26500 -0.86 -47.59 ≤-20.86 PASS 2462 Reference -1.11 -1.11 --- PASS 30~1000 -1.11 -60.5 ≤-21.11 PASS 1000~26500 -1.11 -47.92 ≤-21.11 PASS 11N40SISO Ant1 2422 Reference -0.46 -0.46 --- PASS 30~1000 -0.46 -60.5 ≤-20.46 PASS 1000~26500 -0.46 -41.9 ≤-20.46 PASS 2437 Reference -0.01 -0.01 --- PASS 30~1000 -0.01 -60.08 ≤-20.01 PASS 1000~26500 -0.01 -47.81 ≤-20.01 PASS 2452 Reference -4.21 -4.21 --- PASS 30~1000 -4.21 -60.32 ≤-24.21 PASS 1000~26500 -4.21 -47.54 ≤-24.21 PASS FCCID: 2BEE4-F160C 36 11AX20SISO Ant1 2412 Reference -0.85 -0.85 --- PASS 30~1000 -0.85 -60.62 ≤-20.85 PASS 1000~26500 -0.85 -47.55 ≤-20.85 PASS 2437 Reference -1.97 -1.97 --- PASS 30~1000 -1.97 -60.02 ≤-21.97 PASS 1000~26500 -1.97 -47.61 ≤-21.97 PASS 2462 Reference -1.08 -1.08 --- PASS 30~1000 -1.08 -60.34 ≤-21.08 PASS 1000~26500 -1.08 -47.46 ≤-21.08 PASS FCCID: 2BEE4-F160C 37 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 FCCID: 2BEE4-F160C 38 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference FCCID: 2BEE4-F160C 39 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 FCCID: 2BEE4-F160C 40 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCCID: 2BEE4-F160C 41 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCCID: 2BEE4-F160C 42 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 FCCID: 2BEE4-F160C 43 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 FCCID: 2BEE4-F160C 44 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference FCCID: 2BEE4-F160C 45 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCCID: 2BEE4-F160C 46 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCCID: 2BEE4-F160C 47 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference FCCID: 2BEE4-F160C 48 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 FCCID: 2BEE4-F160C 49 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 FCCID: 2BEE4-F160C 50 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCCID: 2BEE4-F160C 51 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCCID: 2BEE4-F160C 52 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 FCCID: 2BEE4-F160C 53 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference FCCID: 2BEE4-F160C 54 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 FCCID: 2BEE4-F160C 55 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 FCCID: 2BEE4-F160C 56 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference FCCID: 2BEE4-F160C 57 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 FCCID: 2BEE4-F160C 58 11AX20SISO_Ant1_2462_0~Reference 11AX20SISO_Ant1_2462_30~1000 FCCID: 2BEE4-F160C 59 11AX20SISO_Ant1_2462_1000~26500 FCCID: 2BEE4-F160C 60 Appendix A.7: Emissions in Restricted Bands Test Result Test Mode Antenna ChName Frequency [MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -48.08 ≤-41.20 47.12 ≤54 PASS AV 2389.960 -46.71 ≤-41.20 48.49 ≤54 PASS AV 2390.000 -46.71 ≤-41.20 48.49 ≤54 PASS Peak 2310.000 -47.26 ≤-21.20 47.94 ≤74 PASS Peak 2385.670 -39.04 ≤-21.20 56.16 ≤74 PASS Peak 2390.000 -44.96 ≤-21.20 50.24 ≤74 PASS High 2462 AV 2483.500 -46.69 ≤-41.20 48.51 ≤54 PASS AV 2483.560 -46.73 ≤-41.20 48.47 ≤54 PASS AV 2500.000 -47.62 ≤-41.20 47.58 ≤54 PASS Peak 2483.500 -46.94 ≤-21.20 48.26 ≤74 PASS Peak 2484.880 -38.97 ≤-21.20 56.23 ≤74 PASS Peak 2500.000 -50.51 ≤-21.20 44.69 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -48.75 ≤-41.20 46.45 ≤54 PASS AV 2389.960 -46.22 ≤-41.20 48.98 ≤54 PASS AV 2390.000 -46.22 ≤-41.20 48.98 ≤54 PASS Peak 2310.000 -49.85 ≤-21.20 45.35 ≤74 PASS Peak 2388.140 -38.28 ≤-21.20 56.92 ≤74 PASS Peak 2390.000 -44.18 ≤-21.20 51.02 ≤74 PASS High 2462 AV 2483.500 -45.62 ≤-41.20 49.58 ≤54 PASS AV 2483.560 -45.7 ≤-41.20 49.50 ≤54 PASS AV 2500.000 -47.86 ≤-41.20 47.34 ≤54 PASS Peak 2483.500 -44 ≤-21.20 51.20 ≤74 PASS Peak 2488.840 -39.26 ≤-21.20 55.94 ≤74 PASS Peak 2500.000 -43.57 ≤-21.20 51.63 ≤74 PASS 11N20SIS O Ant1 Low 2412 AV 2310.000 -48.75 ≤-41.20 46.45 ≤54 PASS AV 2389.960 -46.98 ≤-41.20 48.22 ≤54 PASS AV 2390.000 -46.98 ≤-41.20 48.22 ≤54 PASS Peak 2310.000 -43.74 ≤-21.20 51.46 ≤74 PASS Peak 2333.150 -39.17 ≤-21.20 56.03 ≤74 PASS Peak 2390.000 -43.71 ≤-21.20 51.49 ≤74 PASS High 2462 AV 2483.500 -46.33 ≤-41.20 48.87 ≤54 PASS AV 2483.560 -46.36 ≤-41.20 48.84 ≤54 PASS AV 2500.000 -47.89 ≤-41.20 47.31 ≤54 PASS Peak 2483.500 -42.03 ≤-21.20 53.17 ≤74 PASS Peak 2492.030 -39.79 ≤-21.20 55.41 ≤74 PASS FCCID: 2BEE4-F160C 61 Peak 2500.000 -45.21 ≤-21.20 49.99 ≤74 PASS 11N40SIS O Ant1 Low 2422 AV 2310.000 -48.78 ≤-41.20 46.42 ≤54 PASS AV 2389.960 -44.22 ≤-41.20 50.98 ≤54 PASS AV 2390.000 -44.22 ≤-41.20 50.98 ≤54 PASS Peak 2310.000 -45.35 ≤-21.20 49.85 ≤74 PASS Peak 2389.830 -38.37 ≤-21.20 56.83 ≤74 PASS Peak 2390.000 -38.61 ≤-21.20 56.59 ≤74 PASS High 2452 AV 2483.500 -46.48 ≤-41.20 48.72 ≤54 PASS AV 2483.560 -46.5 ≤-41.20 48.70 ≤54 PASS AV 2500.000 -47.96 ≤-41.20 47.24 ≤54 PASS Peak 2483.500 -37.55 ≤-21.20 57.65 ≤74 PASS Peak 2484.110 -34.3 ≤-21.20 60.90 …
