2BEHEQ95KRSSatellite Speaker

TCL OVERSEAS MARKETING LTD

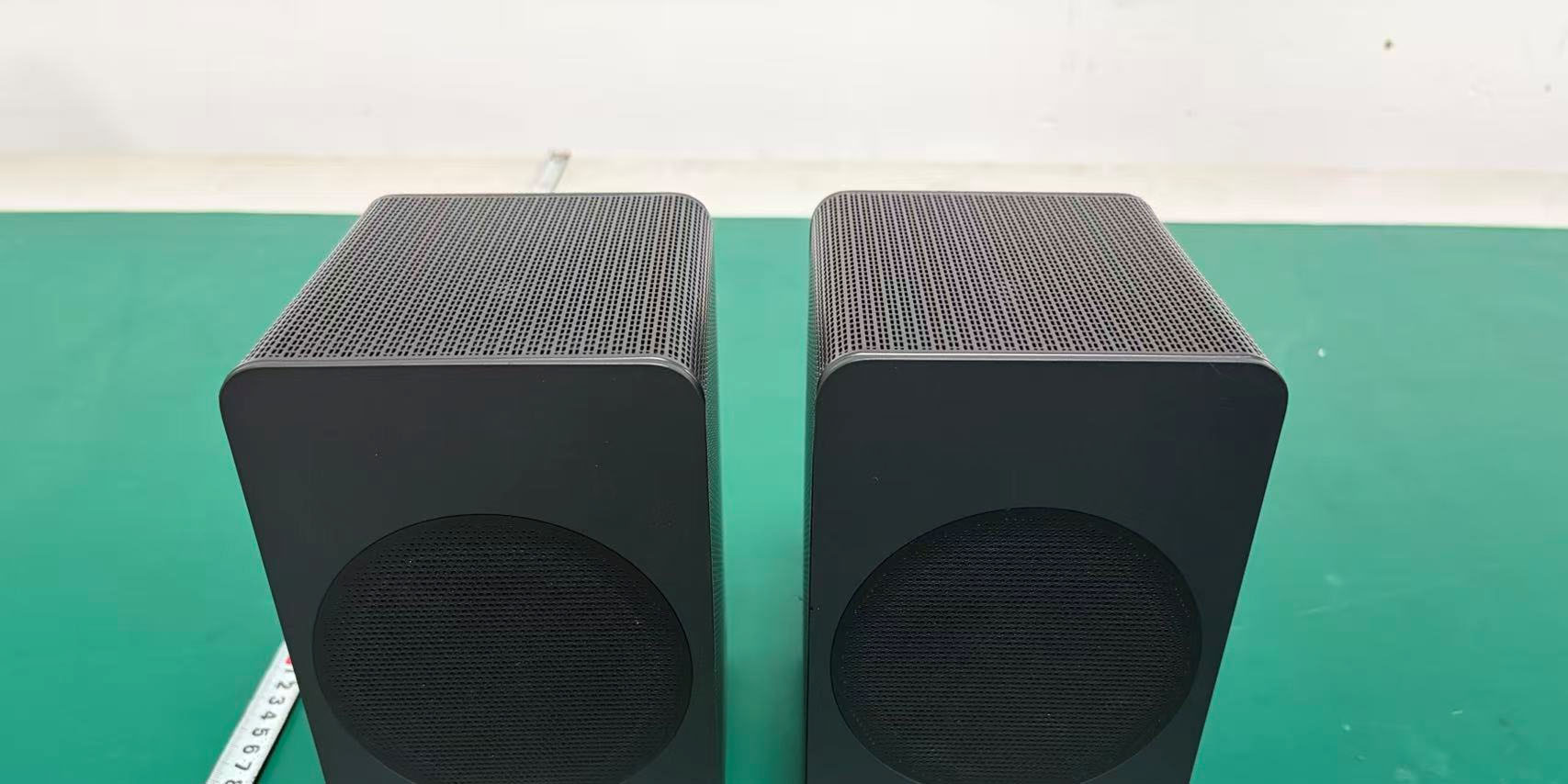

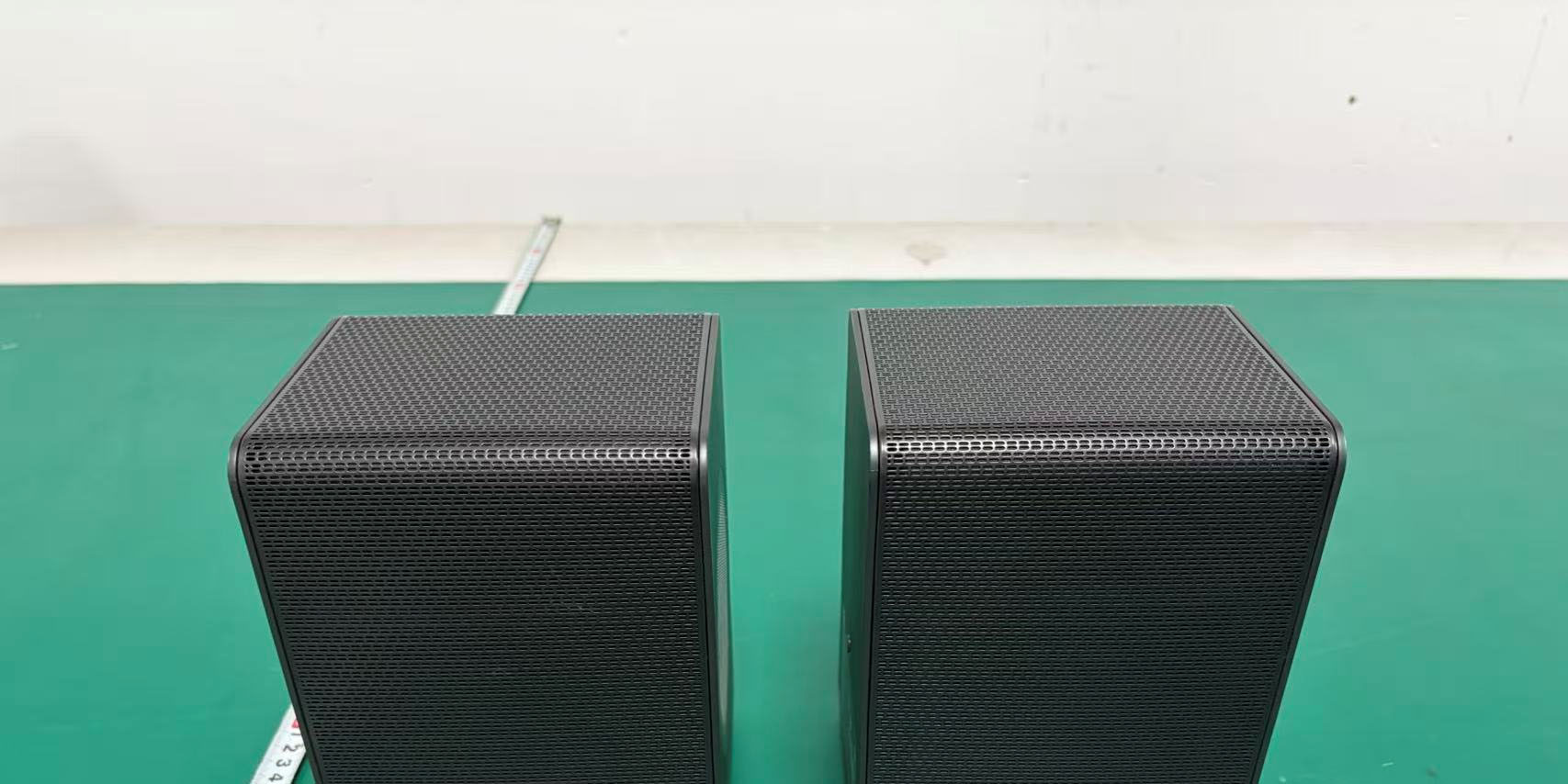

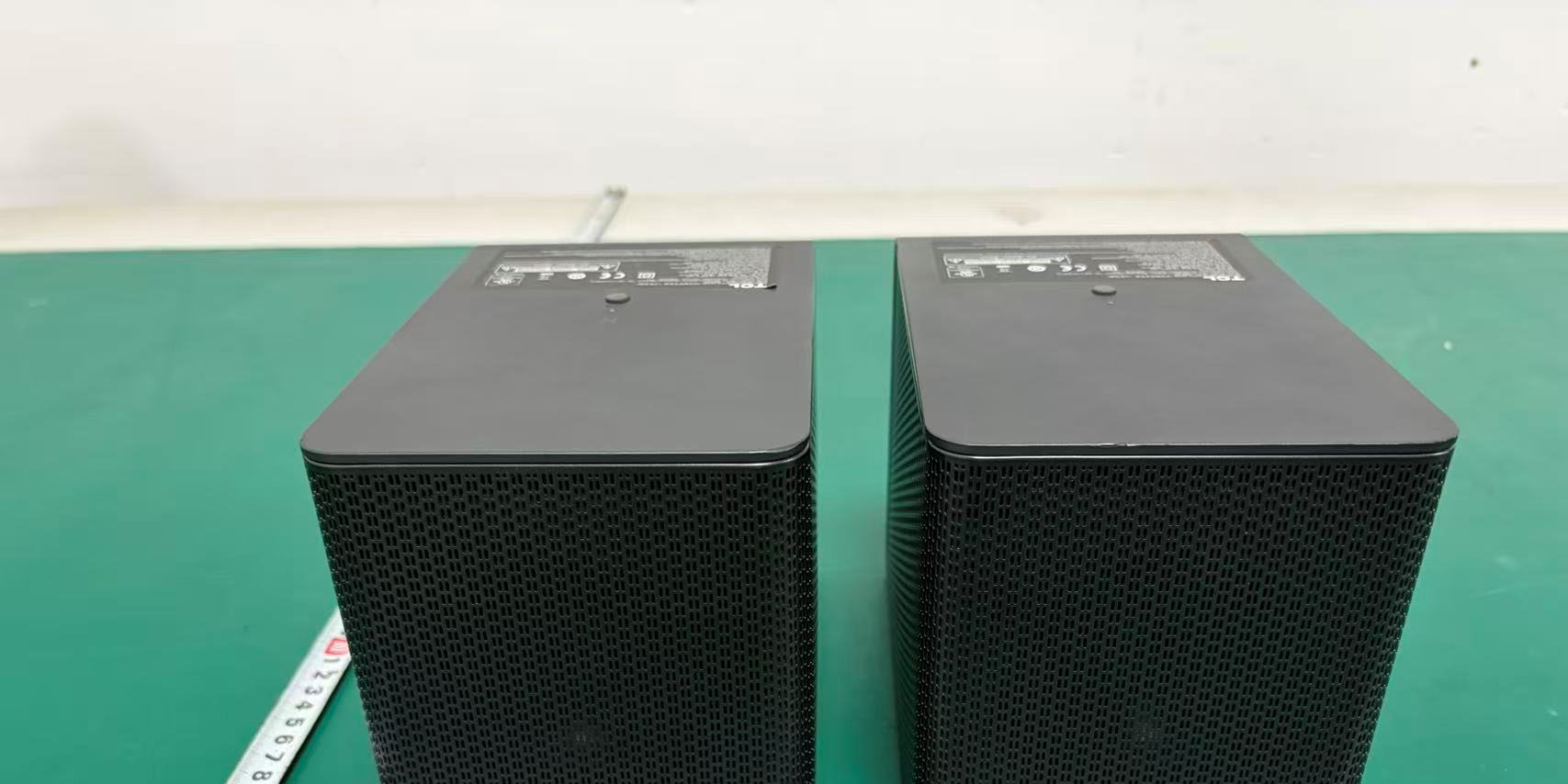

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jul 07, 2026
Application Purpose: Original Equipment
Equipment Note: Satellite Speaker
Frequency Range: 5180.00000000 - 5240.00000000
Company: TCL OVERSEAS MARKETING LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TCL / NA 1:1 210*140 mm 白底黑字 Q95K 2026-06-26 QSG V0.2 11.1.4 Channel Dolby Atmos Sound Bar with Wireless Subwoofer and Satellite Speakers Quick Star t Guide Q95K 1 Register Your Product Register your TCL Sound Bar to receive the latest news on product releases, promotional offers, and more!* Enjoy exclusive benefits with registration: Expedited support and serviceInsider tips on your Sound Bar Exclusive offers and promotionsVerification of ownership *Only Available to North America Customers 1 Or register online at register.tcl.com Need help? Visit photoregister.com/help or text HELP to 71403 TEXT TO REGISTER TCLSBQS Text a photo of the camera icon to 71403 2 What’s in the box 2 Make sure you read all the safety information before you use this product. User Manual can be found at www.tcl.com on the specific product page in the “Download” section. Warning: To avoid the danger of suffocation, keep plastic packaging away from pets, babies, and children. Do not use packaging bags in cribs, beds, carriages, or playpens. Note: Figures and illustrations in this QSG are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Warranty card Warranty CardWall Mount Template QSG Quick Start Guide Remote Control Power Cord x 4HDMI Cable (For reference only) SubwooferSatellite Speaker x 2Sound Bar Wall Mounting Screw x 2 M5*40 mm Wall Anchor x 2 Wall Mount Bracket x 2 Spacer Pads 3a Overview 3 1 Volume buttons: Press to increase or decrease the volume level 3 Source button: Short press: Switch input sources (HDMI eARC/OPT/USB/Bluetooth/HDMI IN 1/ HDMI IN 2) Long press: Press and hold for 10 seconds to enter pairing mode for the subwoofer or satellite speakers (if disconnected). 4 Bluetooth button: Short press: Switch to Bluetooth mode. Long press: Enter Bluetooth pairing mode. 2 Power button: Short press: power on/power off Long press: power off 5 LED display: Displays the Sound Bar source or control status Receive signal from the remote control 6 AC input power connector 7 HDMl eARC connector 8 HDMl IN 1 connector 9 HDMl IN 2 connector 10 Optical input connector 11 USB Type A connector Sound Bar 23 5 41 OPTICAL USB AC~IN 6 HDMI (eARC) HDMI IN 1 7 8 HDMI IN 2 9 10 11 The subwoofer powers on automatically when connected to power. When the Sound Bar enters standby mode, the subwoofer will enter standby mode immediately. The subwoofer automatically pairs with the Sound Bar upon first use. If connection issues occur, follow these steps to pair manually: 1. Press and hold the "PAIR" button on the subwoofer for 3 seconds until the indicator light next to the "PAIR" button starts flashing quickly to enter pairing mode. 2. At this time, press and hold the button on the Sound Bar panel for 10 seconds until the Sound Bar LED display shows "SETUP PAIRING". 3. When paired successfully, the indicator light on the subwoofer will stay solid, and the Sound Bar LED display will show "SUB CONNECTED". Wireless Subwoofer 3b Overview 4 3 s 10 s The satellite speakers power on automatically when connected to power. When the Sound Bar enters standby mode, the satellite speakers will enter standby mode immediately. The satellite speakers automatically pair with the Sound Bar upon first use. If connection issues occur, follow these steps to pair manually: 1. Press and hold the "PAIR" button on the satellite speaker for 3 seconds until the indicator light above the "PAIR" button flashes quickly, entering pairing mode. 2. At this time, press and hold the button on the Sound Bar panel for 10 seconds until the Sound Bar LED display shows "SETUP PAIRING". 3. When paired successfully, the indicator light on the satellite speaker will stay solid, and the Sound Bar LED display will show "SURR CONNECTED". Satellite Speaker 3c Overview 5 3 s 10 s 4 Sound Bar LED Display The Sound Bar LED display indicates various Sound Bar functions. 6 LED Display Status Sound Bar Status HELLO PowerPower on STDBY / sleep Power off BT BluetoothBluetooth mode PAIRING Pairing mode BT Bluetooth HDMI IN 1HDMI IN 2 HDMI IN OPT OPT HDMI EARC SourceHDMI eARC (TV Disconnected) HDMI EARC HDMI eARC (TV Connected) USB USB V30 Volume controlVolume level MUTE Mute Casting AIRPLAY Airplay GOOGLE CAST Google Cast SPOTIFY Spotify Connect Audio setting BAS-6+6 Bass (+/-) TRE-6+6 Treble (+/-) POSITION 1 / POSITION 2 / POSITION 3 / OFF AI SONIC SURR OFF / SURR LOW / SURR MEDIUM / SURR HIGH Surround Enhance VOICE OFF / VOICE LOW / VOICE MEDIUM / VOICE HIGH Voice Enhance standard / MOVIE / MUSIC / VOICE / GAME / NIGHT / SPORTS / CUSTOM Sound modes Standard/Movie/Music/Voice/ Game/Night/Sports/Custom Note: • Factory reset: Press and hold , , and on the Sound Bar panel simultaneously for 10 seconds until the LED display shows "FACTORY RESET", then the device will automatically restart. • View version: While the device is powered on or in standby mode, press and hold and on the Sound Bar panel for 10 seconds, or press , , and on the remote control (please follow the sequence and keep the interval within 2 seconds). • Automatic standby switch: In the powered-on state, press and hold the and on the remote control simultaneously for 10 seconds. If this function is enabled, the Sound Bar will enter an automatic standby state after 20 minutes without signal input. • WIFI Factory Reset and Network Configuration: While the device is powered on, press and hold the and buttons on the Sound Bar panel for 10 seconds. The Sound Bar’s WIFI will be restored to factory settings and enter network configuration pairing mode. 5a Speaker Placement The ideal location for the Sound Bar is centered beneath the TV. The ideal location for the Subwoofer is on the floor, adjacent to the TV. Note: Do not place your Sound Bar in a location exposed to direct sunlight, heat, fire, or moisture. 7 Top View Under 10 feet (3 m) 6.5 feet – 10 feet (2 m – 3 m) 2.5 feet – 3.5 feet (0.7 m – 1 m) 2.5 feet – 3.5 feet (0.7 m – 1 m) So…
