INDUSTRIAL NETWORK SOLUTION SPECIALIST WWW.GPSENKE.COM Industrial AP/Client 733Mbps Dual-Band Introduction GP-AG500 Series is a high-performance wireless client designed for industrial WLAN applications. It utilized IEEE 802.11a/b/g/n/ac standard, support 2.4GHz &5GHz Dual-band with data rates up to 733Mbps. It designed with industrial- grade chipset, support surge, ESD and vibration resistance protection. GP-AG500 Series can be installed on any device that requires wireless connectivity under “Client Mode”. It supports millisecond-level GP Roaming,offers seamless and rapid wireless roaming with none-package loss. Meanwhile, it ensures quick handoffs between 2.4GHz and 5GHz based on specific scenario needs. GP-AG500 is particularly designed robot control system, intellegent Warehousing, AGVs system, power plant inspections. Main Feature WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST lSupport 802.11 b / g / n / ac Standard lSupport 802.11 Wave1 (2-Stream), speed up to 733Mbps lSupport MAC Address Clone lSupport Millisecond Switching & GP Roaming lSupport IPv4/IPv6 lSupport Dual Gigabit-RJ45 Ethernet lSupport RS232/485 Serial Port lSupport MU-MIMO lSupport Open System, Shared Key, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK lSupport DC9-48V Power Supply lSupport IP40 Protection-Level lSupport -40°C～ 80°C Working Temperature WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST Software Parameter WLAN Frequency Band2.4GHz5GHz Channel Bonding40MHz(Not Recommed)80MHz MU-MIMOSupportSupport OFDMASupportSupport TWTSupportSupport 433Mbps(PHY)NASupport 300Mbps(PHY)SupportNA A-MPDUSupportSupport MLDSupportSupport MRCSupportSupport STBCSupportSupport LDPCSupportSupport MAX Virtual APSingle Band-- Support 16 Virtual AP Max Access Users128 ( Influenced by Environment Fators ) Max Access Spend 2.4GHz: 300Mbps 5GHz: 433Mbps RTS/CTSSupport CTS-to-selfSupport Hidden SSIDSupport Terminal Aging/Heartbeat DetectionSupport Working Mode AP Mode Brigde Mode(LAY2) Router Mode(LAY3) Client Mode Support Client Mode Support MAC Address Clone RoamingRoaming Switch Support 802.11k, 802.11v, 802.11r LAY2/LAY3 Roaming RF Load Balancing Load balancing is supported based on the number of users and user traffic 5G PrioritySupport Automatic Channel SelectionSupport Automatic Power RegulationSupport Intelligent Speed SelectSupport Time Fair SchedulingSupport WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST Security Encryption Support 64/128 bit WEP、Dynamic WEP、 TKIP、CCMP encryption Authentication Method Cooperate With AC Support WPA、WPA-PSK、WPA2- Enterprise、 WPA2-PSK、WPA3、MAC address Verify、Web Verify、 PPPoE Verification and etc Methods LAY2 Isolation of Wireless UsersSupport wIDSSupport AAA RadiusClientSupport Authentication Server Multi- domain configuration Support Authentication Server BackupSupport LAY2/LAY3 IP AddressStatic IP and DHCP dynamically obtain addresses IPv6Support ACLSupport DHCP serverSupport (Router Mode) NATSupport (Router Mode) Service Quality WMM(802.11e)Support Priority MappingSupport QoS Policy MappingSupport Bandwidth Managed Support Bandwidth Speed Limitation based on SSID and Users Call Admission Control（CAC）Support MaintenanceNetwork ManagementSNMPV1/V2c/V3、Trap、Telnet、FTP/TFTP、WEB Hardware Parameter Size81mm × 35mm× 100mm Port Ethernet2× 10/100/1000Base-T RJ45 Port Antenna2 × RPSMA-K Antenna Port (External Antenna--Optional) Serial1×RS232/485 Working Band 2.4G802.11 n/g/b: 2.4GHz-2.483GHz ( CHINA ) 5G 802.11 ac/n/a: 5.150GHz-5.250GHz 5.725GHz-5.850GHz ( CHINA ) WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST Modulation Technology OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、 64-QAM@48/54Mbps DSSS : DBPSK@1Mbps、 DQPSK@2Mbps、[email protected]/11Mbps MIMO-OFDM （11n）: MCS 0-15 MIMO-OFDM （11ac）: MCS 0-9 Modulation Method 11b：DSS:[email protected]/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps 11a/g OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps,BPSK@6/9Mbps 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac/ac wave2：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM MAX Transmit Power16.16dBm Adjustable Granularity1dBm Operating Temperature-40ºC ～ 75ºC Storage Temperature-40ºC ～ 85 ºC Operating Humidity0%~95%( Non-condensing) IP Protection LevelIP40 Power SupplyDC9V-48V Power Supply Consumption(Client5.8G)≤12W MTBF>250000H CE IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF Size Design WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST Appearance & Accessories Packing*1Device*1 Rubber Duck Antenna*2 Manual*1 Model Selection ModelGP-AG500-3D-232GP-AG500-5D-232GP-AG500-3D-485GP-AG500-5D-485 Speed733M GP-Q8203-RPS-J 3dbi ● ⭕ ● ⭕ GP-Q8205-S-J 5dbi ⭕ ● ⭕ ● RS232 ● ⭕ RS485 ⭕ ● SYS 5.8G 2.4G COM LAN1 LAN2 SYS RS232/48 5 WAN/LAN1 LAN2 ANT1 ANT2 DIN Installation DC9V~DC48V WWW.GPSENKE.COM INDUSTRIAL NETWORK SOLUTION SPECIALIST FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV te…

Text truncated - open the document above for the full version.

BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-24 To whom it may concern: We, BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BEHT-GP-20240808) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Jonas Guo Manager BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

BEIJINGGUANGPUSENKETECHNOLOGYCO.,LTD FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 9/24/24 U.S.AgentDesignation BEIJINGGUANGPUSENKETECHNOLOGYCO.,LTDacknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorization issought(FCCID:2BEHT-GP-20240808): NameandcompanyofU.S.agent:AngelCRInc PhysicalU.S.addressofagent:380AvenueU,Apt2J,Brooklyn,NY11223,UnitedStates FRNofU.S.agent:0034729368 EmailaddressofU.S.agent:[email protected] AngelCRIncacknowledgestheirobligationtoacceptserviceofprocessonbehalfofBEIJING GUANGPUSENKETECHNOLOGYCO.,LTD. BEIJINGGUANGPUSENKETECHNOLOGYCO.,LTDwiththeFRN0034729194acceptsitsobligationto maintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature Owner,CEO JonasGuo BEIJINGGUANGPUSENKETECHNOLOGY CO.,LTD Signature RamalHUSEYNOV Owner,CEO AngelCRInc 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Add: 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Date: 2024-9-24 FCC ID: 2BEHT-GP-20240808 Dear Sir/Madam, We, BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: WiFi Product Model no.: GP-AG500, GP-AG900, GP-AG1000, GP-AG3000, GP-ME3000AX, GP-AP1200,GP- AP3000AX, GP-AP5400AX, GP-XD3000AX, GP-AC300 Sincerely, Name/Title： Jonas Guo/Manager Company: BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Address: 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Phone: +8613301158011 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-24> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BEHT-GP-20240808 GP-AG500 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jonas Guo/Manager Company: BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Address: 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Phone: +8613301158011 Fax: N/A E-Mail: [email protected]

BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-24 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BEHT-GP-20240808 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jonas Guo/Manager Company: BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Address: 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Phone: +8613301158011 Fax: N/A E-Mail: [email protected]

BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2BEHT-GP-20240808 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： Jonas Guo/Manager Company: BEIJING GUANGPUSENKE TECHNOLOGY CO.,LTD Address: 6th Floor,Building 3,Yard 20 Guogongzhuang Middle street,Fengtai district Beijing 100070 China Phone: +8613301158011 Fax: N/A E-Mail: [email protected]

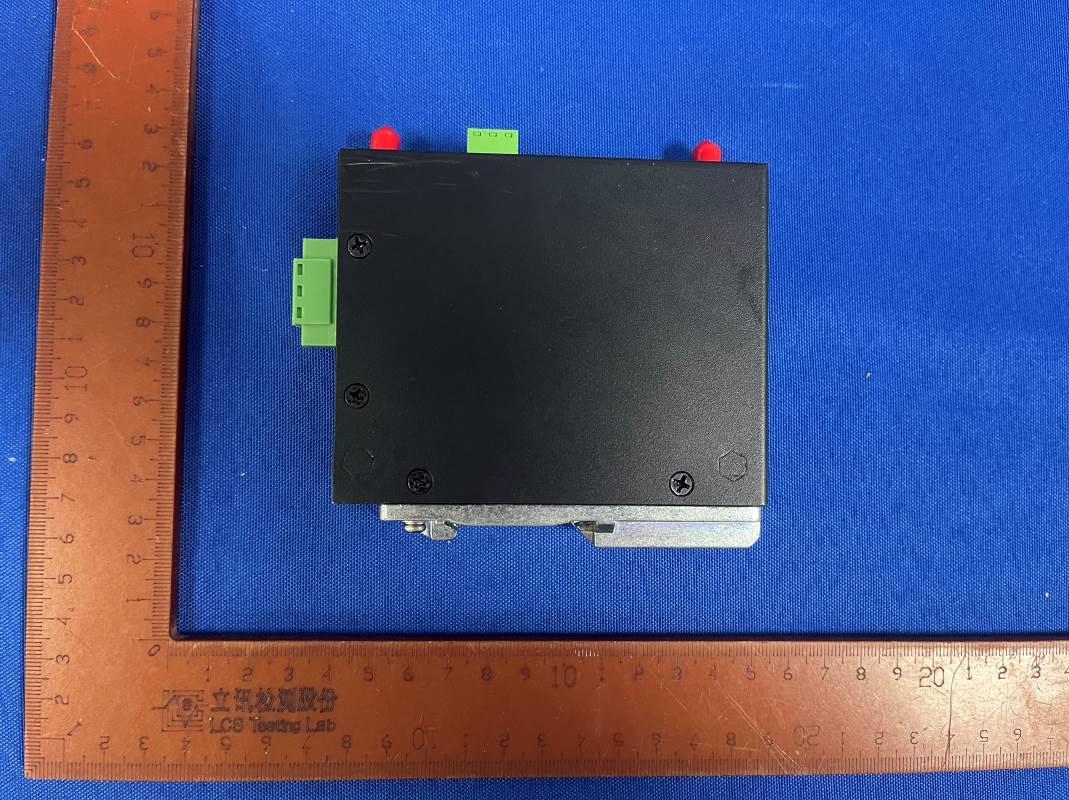

Page1of5FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 WIFI1Antenna WIFI2Antenna Page2of5FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10

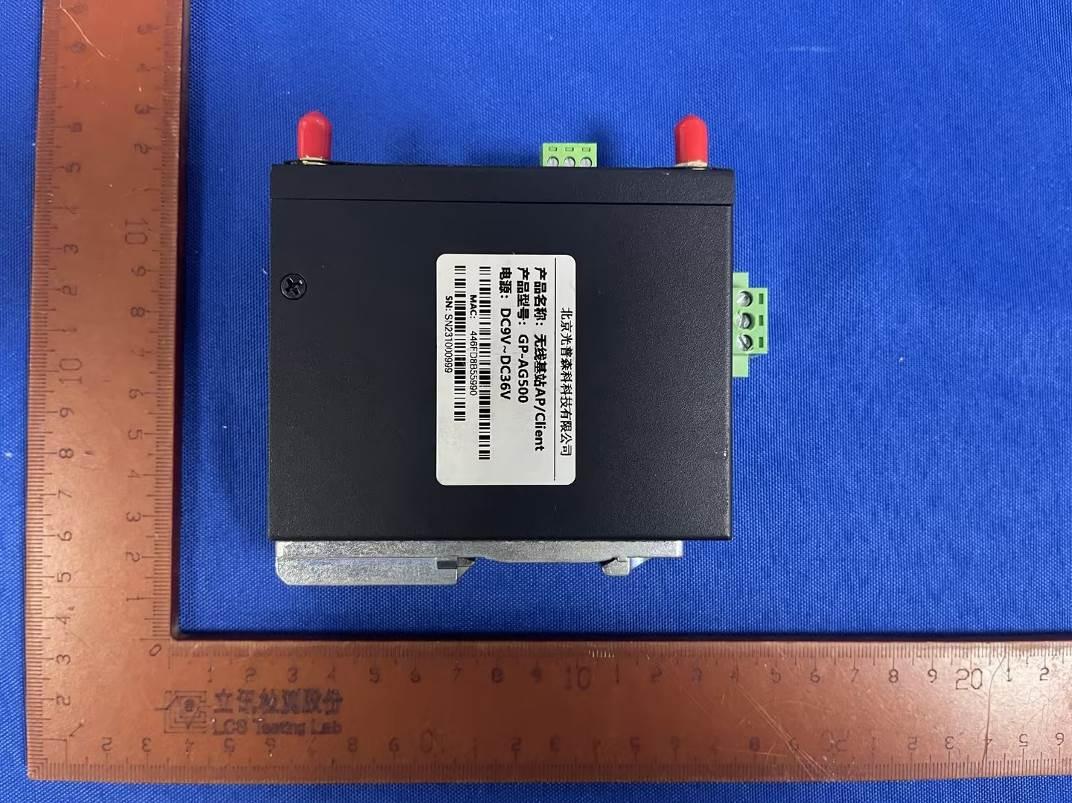

Page1of1FCCID:2BEHT-GP-20240808 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LabelandLocation Size:L:44.70mm*W:29.70mm (Size:L6cmxW3.5cm) LabelLocation WiFiProduct TestModel:GP-AG500 FCCID:2BEHT-GP-20240808
