2BEJA-EUM-100Health Hub

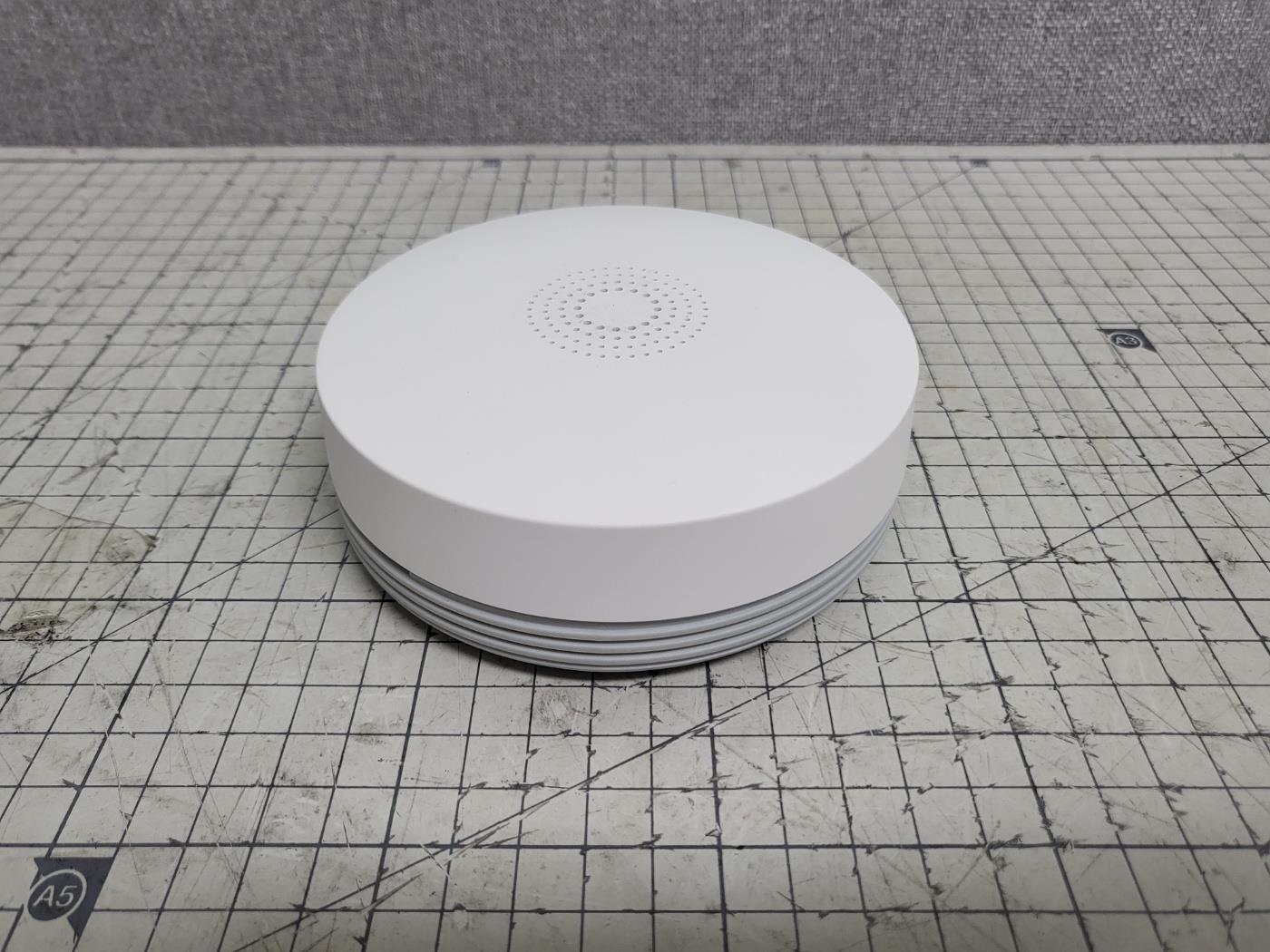

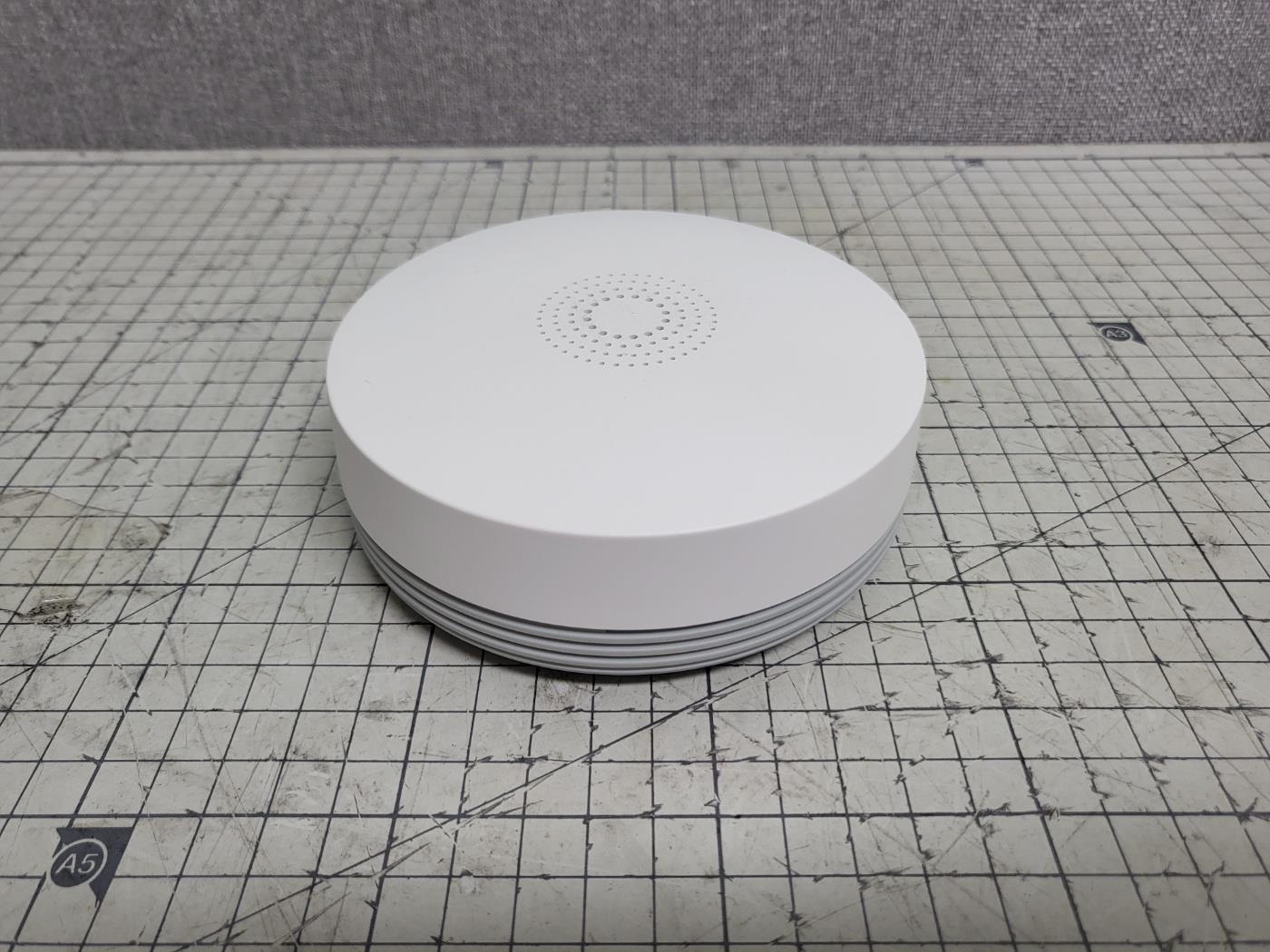

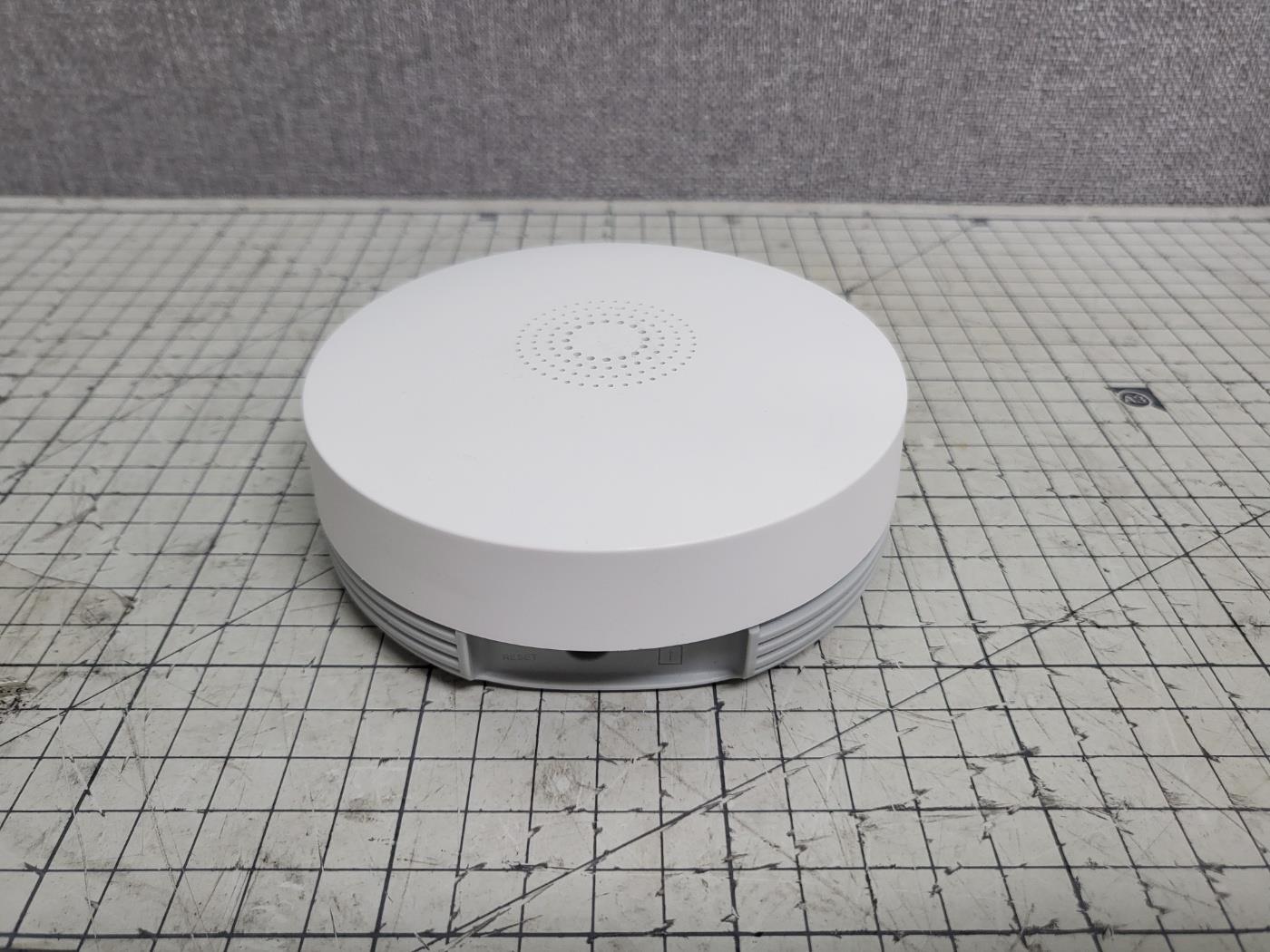

User Manual EUM-100 I. SPEC II. Device Appearance III. Installation Where IoT meets Innovation Where IoT meets Innovation I. Device Spec ITEM Contents OS Micrium OS Dimensions φ114 X t 42.5 mm Processor EFR32BG13P632F512GM48 , BLE 5.0 SoC LED Power(G), LTE(B), GPS(G), BLE(R) Memory 512kB Flash & 64kB SRAM + 2MB Serial Flash(for device data) Bluetooth BLE 5.0 LTE LTE Cat.M1, GPS support I/F Power Jack Button 1 Button weight TBD Power 5V 1A Adapter power Where IoT meets Innovation II. Device Appearance -Status LED Wide Green LED : Power LED Blue LED : LTE status Green LED : GPS Status Red LED : BLE Status -Connector & Switch Reset hole : reset button hole DC Jack : 5V/1A adapter Usim Connector : for Micro size Usim Where IoT meets Innovation III. Installation 1. Insert the provided USIM into the Usim connector in the correct direction. 2. Supply power using the adapter provided in the power jack. 3. Check if all LEDs are operating normally. 4. When measuring with a health care device (scale, etc.) provided together, Measured values are automatically transmitted to the server through the hub. Where IoT meets Innovation This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure statement: The device has been evaluated to meet general RF exposure requirement.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. ENPLUG CO.,LTD U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“t he Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: January 25, 2024 Signed by (Printed Name/Title): Nathan Grinager / Co-President *This letter is valid indefinitely for all applications submitted within the period of 01/25/2024 – 01/25/2025. The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: ENPLUG CO.,LTD Grantee FRN: 0034739557 Grantee Code: 2BEJA FCC ID: 2BEJA-EUM-100 Contact Name: : Jongsung Lee Street Address: A-704. 705, 46, Dallaenae-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Telephone No: 82-10-3453-4387 Email: [email protected] Applicant Signature: Date: Jan. 25, 2024 Signed by (Printed Name/Title): Jongsung Lee / Principal Research Engineer

ENPLUG CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-25-2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BEJA-EUM-100 ENPLUG CO.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name: Jongsung Lee Title: Principal Research Engineer Company: ENPLUG CO.,LTD Tel # 82-10-3453-4387 ENPLUG CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-25-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BEJA-EUM-100 ENPLUG CO.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Name: Jongsung Lee Title: Principal Research Engineer Company: ENPLUG CO.,LTD Tel # 82-10-3453-4387

ENPLUG CO.,LTD Jan 25, 2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Kenneth Kim of NCT Co.,Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2BEJA-EUM-100 including signing of all documents relating to these matters. Any and all acts carried out by Kenneth Kim of NCT Co.,Ltd. on our behalf shall have the same affect as acts of our own. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Name: Jongsung Lee Title: Principal Research Engineer Company: ENPLUG CO.,LTD Tel # 82-10-3453-4387

ENPLUG CO.,LTD A-704. 705, 46, Dallaenae-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BEJA-EUM-100 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [EUM-100] BLK [EUM-100] SCH [EUM-100] OPDES [EUM-100] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name Internal Photos Test Setup Photos Manual [EUM-100] INT Photo [EUM-100] Test Setup Photo [EUM-100] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Jongsung Lee / Principal Research Engineer

ENPLUG CO.,LTD Jan 30, 2024 Applicant: ENPLUG CO.,LTD FCC ID: 2BEJA-EUM-100 To. Whom it may concern: This product is only operate Bluetooth LE1M and LTE Cat M1(B2) LTE Cat M1 module is certificated and only operate B2 Sincerely, Name: Jongsung Lee Title: Principal Research Engineer Company: ENPLUG CO.,LTD Tel # 82-10-3453-4387


       ­­­ €
  Product : Health Hub Model : EUM-100 FCC ID : 2BEJA-EUM-100 Contains FCC ID : XMR2020BG95M1 Manufacturer : ENPLUG CO.,LTD Made in Korea

Antenna Inside shieldcan
