2BEJF-T05Find My

Shenzhen Zhitong Technology Co., Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 08, 2026
Application Purpose: Original Equipment
Equipment Note: Find My
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shenzhen Zhitong Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Please use the camera on your iPhone to scan this QR code and subsequently open the "FindMy" app to complete the link binding process. Fast Pairing and binding way Loshall Anti-lost Device User Manual Index 1. Befor You Start 2. Getting started. 3. Adding this device. 4. Locating this device. 5. Notifications. 6. When this device is lost. 7. Resetting this device. 8. Extras. 9. About Apple ’s Find My. 10. The Fine Print. 01 Before you start 02 Getting started This device is a smart finder that uses Apple’s Find My™ service, paired with the “Findmy”app on yourApple™ devices,to quickly and securely locate your personal items on Apple™ Map.All location information remains private,and even Apple™ cannot access it. 1.1 This device only supports Apple’s devices.It is compatible only with Apple’s devices running iOS 14.5 or higher. 1.2 To use the Apple’s “Findmy” app to locate this device,the latest version of iOS,iPad OS, or Mac OS is recommended. The “Find items”app on Apple watch requires the latest verison of Watch OS. 1.3 Please check your Apple device and ensure the Bluetooth function,Wifi function and location function of it have been enabled and working in normal states. 2.1 Power on Press and hold the power button for 3s to turn on this device. 2.2 Power off Press the power button twice rapidly ,and on the third press ,hold it down continuously until you hear the power off sound. 2.3 Check the device’s working states Double-click the power button of this device. When you hear a confirmation sound, this indicates that the device has been successfully activated and is now in its normal operating state. 2.4 Factory resetting Press the power button four times rapidly, and on the fifth press, hold it down continuously until you hear the reset sound. 03 Adding this device 3.1 Press the power button for about 3s to activate this device. 3.2 Launch the “Findmy”app or “Find itmes”app on your supported Apple device. 3.3 Tap on the “+”,and then tap on “Add other item” on your screen. 3.4 Once this device is located,tap on the “connect”. 3.5 Enter a name and select an emoj icon for this device ,and then tap on the “Continue”. 3.6 Find My will ask for confirmation to add this device to your Apple ID,tap on the “Agree”. 3.7 Tap on the “Finish”and this device will be set up and ready to be applied. 04 Locating this device 05 Notifications 4.1 Launch the “Findmy”app or “Find itmes”app on your supported Apple device,select the “items” tab: when it is nearby: Tap on this device from the list. Tap on “play sound” to make this device beep. Tap on “stop sound” to stop the beeps once you find this device. when it is far away: Tap on this device from the list. The location of this device will appear on the map with a time stamp of when this device was located. To navigate to the location of it ,tap on the “Directions” to open Apple Map. 5.1 Enabling “Notify When Left Behind”: Launch the “Findmy”app or “Find itmes”app on your supported Apple device,select the “items” tab: Tap on this device from the list. Under “Notifications”,enable the “Notify When Left Behind” toggle. You will receive a notification when you leave this device behind and it’s no longer in range of your Apple device. 5.2 Enabling “Notify When Found”: Under “Notifications”,enable the “Notify When Found” toggle. When this device is seen by another Find My network device.You will receive a notification of its location. Note: “Notify When Found” can only be activated when this device is out of range. 06 When This Device Is Lost 07 Resetting This Device 6.1 Enabling “Lost mode”: Launch “Find My” app and select the “items” tab or open the “Find My Items”app on your Apple watch. Tap on this device from the list . Under“Lost Mode” ,tap on the “Enable”. A screen detailing lost mode will pop up.Tap on “Conti -nue”,enter your phone number or email address,and then tap on the “Next”. You may enter a message that will be shared with the person that finds this device or your item with it. Tap on the “Activate” to enable “Lost mode”. Note: When “Lost mode” is enabled,“Notify When Found” is automatically enabled. When “Lost mode” is enabled,this device is locked and cannot be paired to a new device. 7.1 Remove this device from “Find My” app Launch “Find My” app and select the “items” tab or open the “Find My Items”app on your Apple watch. Tap on this device from the list . Please ensure“Lost Mode” is disabled. Scroll to the bottom of the screen and tap on the “Remove item”. A summary will appear,and then tap “Remove” to confirm. 7.2 Factory Reset this device. After successfully removing this device from “Find My ”app,press the power button four times rapidly, and on the fifth press, hold it down continuously until you hear a ringing chime. The Apple’s Find My network provides an easy,secure way to locate compatible personal items on a map using the Find My app on your iPhone,iPad,or Mac.Simply pair your compatible product with the Apple Find My app to view it right alongside your Apple devices.If your item ever goes missing,you can put it in Lost Mode to display a message and contact information to anyone who might find it .The Find My network is encrypted and anonymous.So,no one else,not even Apple or the maker of your personal item,can view its location. Use of the Works with Apple badge means that a product has been designed to work specifically with the technology identified in the badge and has been certified by the product manufacturer to meet Apple Find My network product specifications and requirements. Apple is not responsible for the operation of this device or use of this product or its compliance with safety and regulatory standards. Apple,Apple Find My,Apple Watch,Find My,iPhone,iPad, iPad OS,Mac,Mac OS and watch OS are the trademarks of Apple Inc.iOS is a trademark or registered trademark of Cisco in the U.S and other countries and is used under license. Warning: Don’t ingest battery; Chemical burn hazard. Choking hazard This loshall anti-lost…

Text truncated - open the document above for the full version.

Attestation Statements

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2BEJF-T05T05 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementwithoutexpirationdate US-AmericanPointofContactApplicant/ApprovalHolder SignatureSignature CompanyName:FCCUSAgent,LLCShenzhenZhitongTechnology Co.,Ltd FRN:00334028840034739763 ContactName:TimPayneXiuchengxiao Address:3722IllinoisAvenue,SaintCharles, IL,60174,USA 301,Building1,No.34XinheRoad ShangmuguCommunity, LonggangDistrict, Shenzhen,China Phone:708-571-31480755-26966362 Email:[email protected]@gmail.com

Attestation Statements

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BEJF-T05 T05 We, Applicant Company Name: Shenzhen Zhitong Technology Co., Ltd Address: 301, Building 1, No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen, China Phone: +86-755-26966362 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-04 Signature Date Name / Title: Xiucheng Xiao / Manager Company: Shenzhen Zhitong Technology Co., Ltd Address: 301, Building 1, No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen, China Phone: +86-755-26966362 Fax: +86-755-84745360 E-Mail: [email protected]

Attestation Statements

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BEJF-T05 T05 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Global Test Service Co., Ltd. Contact Name: Peter Xiao Address: No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China Phone: +86-755-28717088 Email: [email protected] Date: 2026-05-13 Signature:

Cover Letter(s)

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BEJF-T05 T05 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are:  the Operational Description  the Block Diagram  the Schematics  the Part List  the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-04 Signature Date Name / Title: Xiucheng Xiao / Manager Company: Shenzhen Zhitong Technology Co., Ltd Address: 301, Building 1, No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen, China Phone: +86-755-26966362 Fax: +86-755-84745360 E-Mail: [email protected]

External Photos

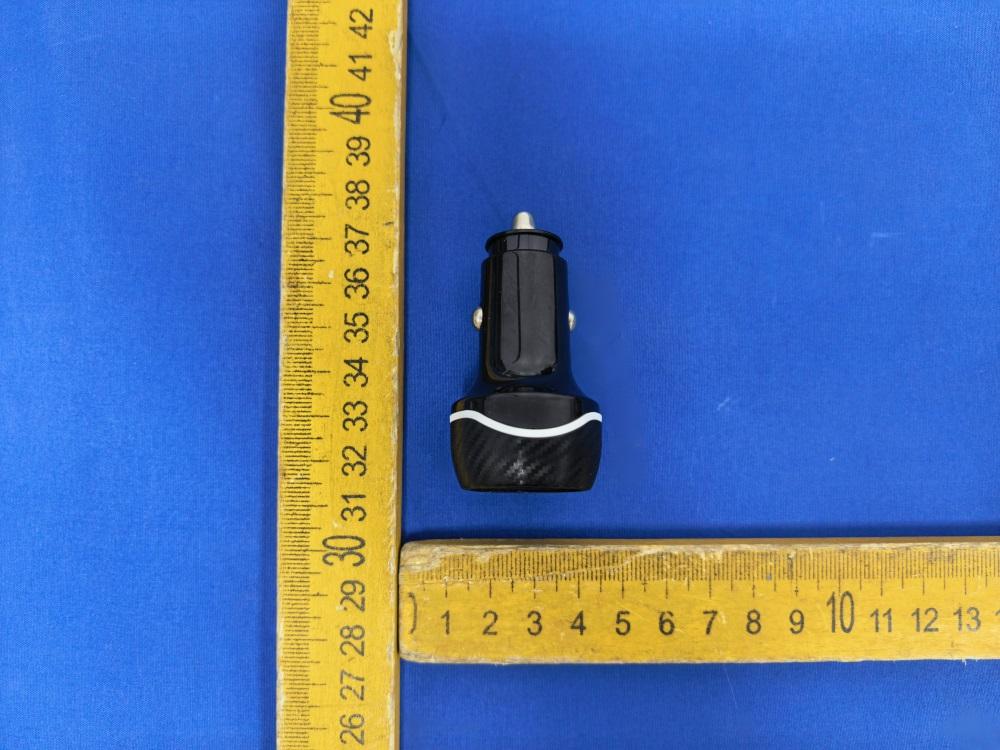

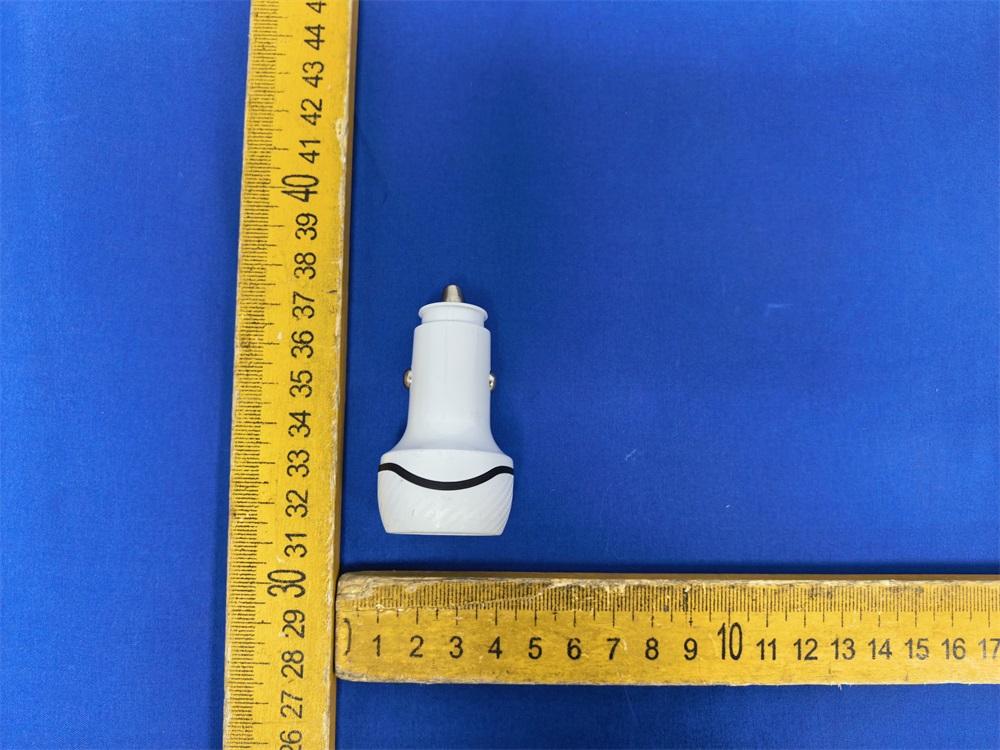

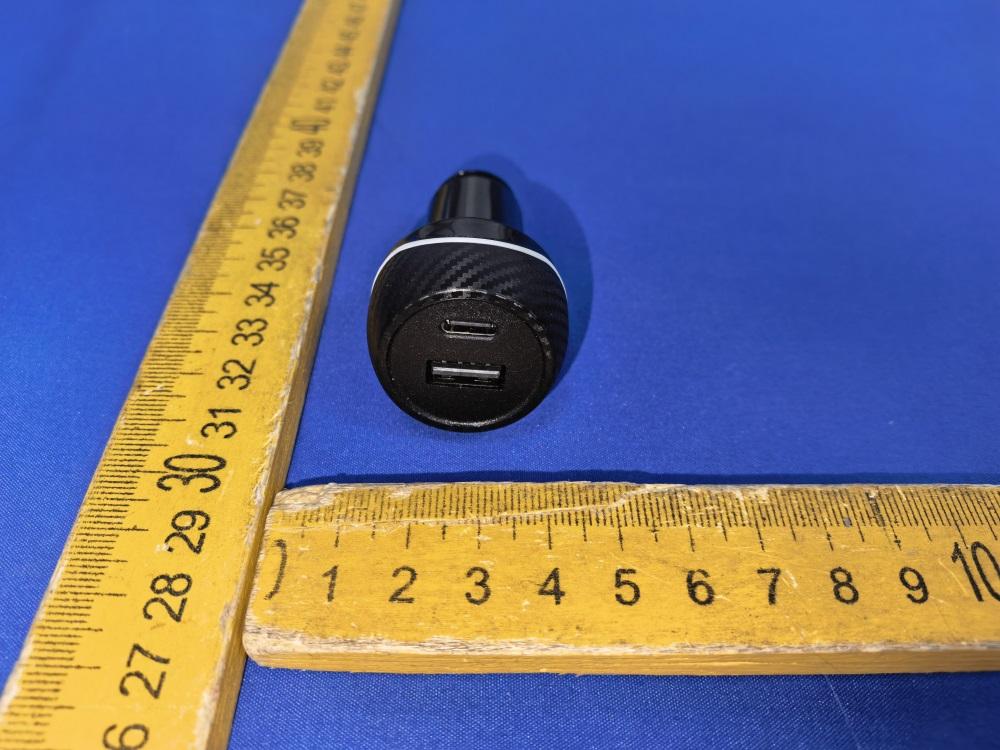

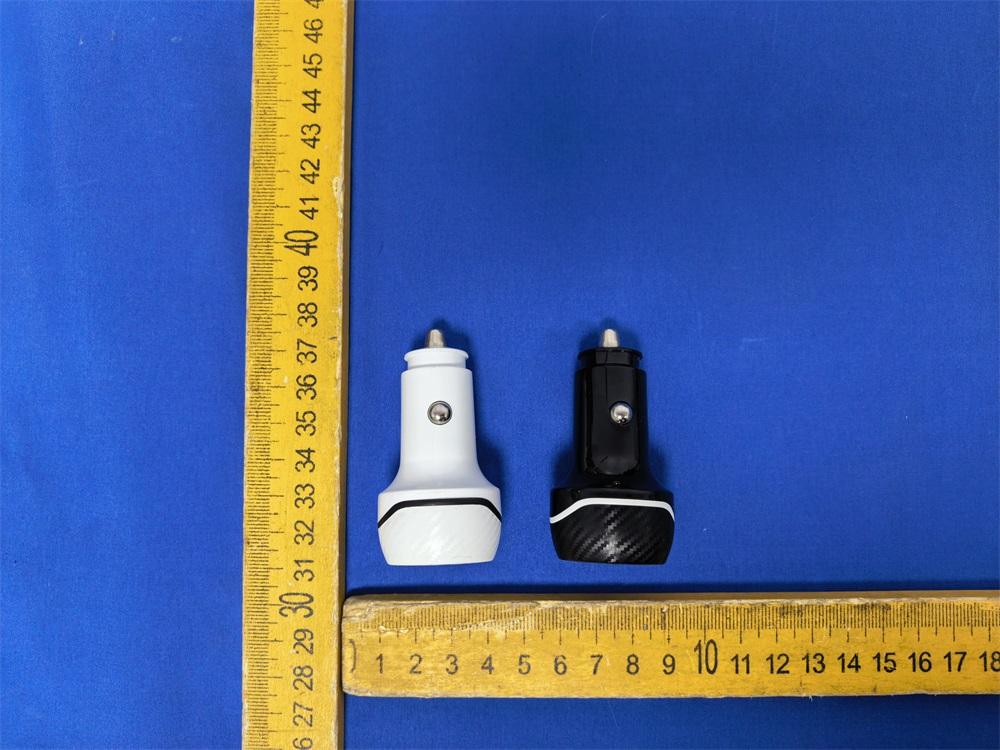

FCC ID: 2BEJF-T05 Fig. 1 Fig. 2 FCC ID: 2BEJF-T05 Fig. 3 Fig. 4 FCC ID: 2BEJF-T05 Fig. 5 Fig. 6 FCC ID: 2BEJF-T05 Fig. 7 Fig. 8 FCC ID: 2BEJF-T05 Fig. 9 Fig. 10 FCC ID: 2BEJF-T05 Fig. 11 Fig. 12 FCC ID: 2BEJF-T05 Fig. 13 Fig. 14 FCC ID: 2BEJF-T05 Fig. 15

ID Label/Location Info

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.0cm x 1.5cm) Label Location Find My Smart Tag Model: T05 Intput: DC 12V FCC ID: 2BEJF-T05

Internal Photos

FCC ID: 2BEJF-T05 Fig. 1 Fig. 2 FCC ID: 2BEJF-T05 Fig. 3 Fig. 4 FCC ID: 2BEJF-T05 Fig. 5 Fig. 6 Antenna FCC ID: 2BEJF-T05 Fig. 7 Fig. 8

RF Exposure Info

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong ,China RF Exposure evaluation Report Reference No. .................... : FCC ID. ............................................ : GTS20251222010-1-05 2BEJF-T05 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : May.13, 2026 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................. : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong ,China,China Applicant’s name ............................ : Shenzhen Zhitong Technology Co., Ltd Address ............................................. : 301, Building 1,No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen,China Test specification .......................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Find My Trade Mark ....................................... : N/A Manufacturer ..................................... : Shenzhen Zhitong Technology Co., Ltd Model/Type reference ....................... : T05 Listed Models ................................... : N/A Exposure category ............................ : GFSK EUT Type .......................................... : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.7V by battery Recharged by DC 12.0V Result ................................................ : PASS Report No.: GTS20251222010-1-05 Page 2 of 8 T E S T R E P O R T Test Report No. : GTS20251222010-1-05 May.13, 2026 ______________________________________________________________________________________________ Date of issue Equipment under Test : Find My Model /Type : T05 Listed model : N/A Applicant : Shenzhen Zhitong Technology Co., Ltd Address : 301, Building 1,No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen,China Manufacturer : Shenzhen Zhitong Technology Co., Ltd Address : 301, Building 1,No.34 Xinhe Road Shangmugu Community, Longgang District, Shenzhen,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20251222010-1-05 Page 3 of 8 Contents 1. S U M M A R Y .................................................................................. 4 1.1. Product Description .................................................................................................................................... 4 2. T E S T E N V I R O N M E N T ................................................................... 5 2.1. Address of the test laboratory ................................................................................................................... 5 2.2. Test Facility .................................................................................................................................................. 5 2.3. Environmental conditions .......................................................................................................................... 5 2.4. Statement of the measurement uncertainty ............................................................................................. 5 3 . M E T H O D O F M E A S U R EM E N T ......................................................... 6 3.1. Applicable Standard .................................................................................................................................... 6 3.2. Evaluation Method and Limit...................................................................................................................... 6 4. C O N D U C T E D P O W E R R E S U L T S ...................................................... 7 5. M A N U F A C T U R I N G T O L E R ANCE ...................................................... 7 6 . E V A L U A T I O N R E S U L TS ................................................................ 7 6.1. Standalone Evaluation ................................................................................................................................ 7 7. C O N C L U S I O N ............................................................................. 8 Report No.: GTS20251222010-1-05 Page 4 of 8 1. S U M M A R Y 1.1. Product Description Product Name: Find My Trade Mark: N/A Model/Type reference: T05 List Model: N/A Model Declaration N/A Power supply: DC 3.7V by battery Recharged by DC 12.0V Hardware Version N/A Software Version N/A Sample ID GTS20251222010-1-S001-1# & GTS20251222010-1-S001-2# Bluetooth Frequency Range 2402MHz ~ 2480MHz Channel Number 40 channels for Bluetooth (DTS) Channel Spacing 2MHz for Bluetooth (DTS) Modulation Type GFSK for Bluetoo…

Text truncated - open the document above for the full version.

Test Report

2.4GHz 2012 Chip Antenna: RANT0805F245S6 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT0805F245S (A)(B)(C)(D)(E) ElectricalSpecificatio 6 (F) n DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=6 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 2.00±0.10 W 1.20±0.10 T 0.45±0.10 咏成國際科技有限公司電話 : 1 35305 7 6606 RAINIn t e rn a t i o n a lT ec hn o l o gy C o . , L t d . TEL : 1 35305 7 6606 Address: Room 709, Building F, Yuxing Technology Industrial Park, Nanchang Third Industrial Zone, Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, China 2.4GHz 2012 Chip Antenna: RANT0805F245S6 _ 1 EvaluationBoardReference PCBDimensionUnit:mm ReturnLoss&Radiation 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 0805footprint (ANT) 2.4GHz 2012 Chip Antenna: RANT0805F245S6 _ 2.4GHz 2012 Chip Antenna: RANT0805F245S6 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 _ 2.4GHz 2012 Chip Antenna: RANT0805F245S6 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Chip Antenna: RANT0805F245S6 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

Test Report

FCCID:2BEJF-T05 1 Case No. : GTS20251222010-1-04 Ambient Condition: 24 °C, 59 %RH According Standard: ■Part15C Test Date:2026.1.08-2026.5.12Test Engineer: Evan ouyang AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.648 2401.744 2402.392 0.5 PASS 2440 0.628 2439.756 2440.384 0.5 PASS 2480 0.676 2479.712 2480.388 0.5 PASS FCCID:2BEJF-T05 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BEJF-T05 3 FCCID:2BEJF-T05 4 AppendixA.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0403 2401.5426 2402.5829 --- --- 2440 1.0505 2439.5384 2440.5889 --- --- 2480 1.0565 2479.5370 2480.5935 --- --- FCCID:2BEJF-T05 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BEJF-T05 6 FCCID:2BEJF-T05 7 AppendixA.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 0.88 ≤30 PASS 2440 0.57 ≤30 PASS 2480 0.63 ≤30 PASS FCCID:2BEJF-T05 8 AppendixA.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -16.09 ≤8.00 PASS 2440 -16.47 ≤8.00 PASS 2480 -16.40 ≤8.00 PASS FCCID:2BEJF-T05 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BEJF-T05 10 FCCID:2BEJF-T05 11 AppendixA.5:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 -0.35 -36.82 ≤-20.35 PASS High 2480 -0.53 -43.8 ≤-20.53 PASS FCCID:2BEJF-T05 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCCID:2BEJF-T05 13 AppendixA.6:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference -0.45 -0.45 --- PASS 30~1000 -0.45 -60.32 ≤-20.45 PASS 1000~26500 -0.45 -47.65 ≤-20.45 PASS 2440 Reference -0.76 -0.76 --- PASS 30~1000 -0.76 -60.49 ≤-20.76 PASS 1000~26500 -0.76 -47.73 ≤-20.76 PASS 2480 Reference -0.70 -0.70 --- PASS 30~1000 -0.70 -60.5 ≤-20.7 PASS 1000~26500 -0.70 -47.18 ≤-20.7 PASS FCCID:2BEJF-T05 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCCID:2BEJF-T05 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCCID:2BEJF-T05 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCCID:2BEJF-T05 17 BLE_Ant1_2480_1000~26500 FCCID:2BEJF-T05 18 AppendixA.7: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] Duty Cycle Factor[dB] 1/T Factor[KHz] BLE Ant1 2402 0.42 0.63 0.6667 66.67 1.76 2.38 2440 0.42 0.63 0.6667 66.67 1.76 2.38 2480 0.42 0.63 0.6667 66.67 1.76 2.38 FCCID:2BEJF-T05 19 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCCID:2BEJF-T05 20 FCCID:2BEJF-T05 21 AppendixA.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq (MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.48 ≤-41.20 45.72 ≤54 PASS AV 2388.410 -43.53 ≤-41.20 51.67 ≤54 PASS AV 2390.000 -45.91 ≤-41.20 49.29 ≤54 PASS Peak 2310.000 -43.74 ≤-21.20 51.46 ≤74 PASS Peak 2385.050 -36.91 ≤-21.20 58.29 ≤74 PASS Peak 2390.000 -41.02 ≤-21.20 54.18 ≤74 PASS High 2480 AV 2483.500 -47.02 ≤-41.20 48.18 ≤54 PASS AV 2496.160 -46.85 ≤-41.20 48.35 ≤54 PASS AV 2500.000 -48.41 ≤-41.20 46.79 ≤54 PASS Peak 2483.500 -41.83 ≤-21.20 53.37 ≤74 PASS Peak 2484.320 -31.42 ≤-21.20 63.78 ≤74 PASS Peak 2500.000 -40.98 ≤-21.20 54.22 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCCID:2BEJF-T05 22 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCCID:2BEJF-T05 23 BLE_Ant1_High_2480_Peak

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Xiucheng Xiao

[email protected]Fax: +86-755-84745360

Technical Contact

FCC US Agent, LLCTim Rayne

[email protected]

3722 Illinois Avenue, Saint Charles, · Illinois, 60174 · United States

Test Firm

SHENZHEN GLOBAL TEST SERVICE CO LTDOlive Nie

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.20 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum peak conducted output power. This filing meets the SAR threshold exclusion set forth in KDB 447498 and therefore can be used in mobile/portable configurations. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
