2BEL5-S1APower Bank
Shenzhen Sodi Innovation Technology Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Feb 19, 2024
- Application Purpose
- Original Equipment
- Date of Application
- Feb 19, 2024
- Equipment Note
- Power Bank
- Frequency Range
- 0.11000000 - 0.20500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

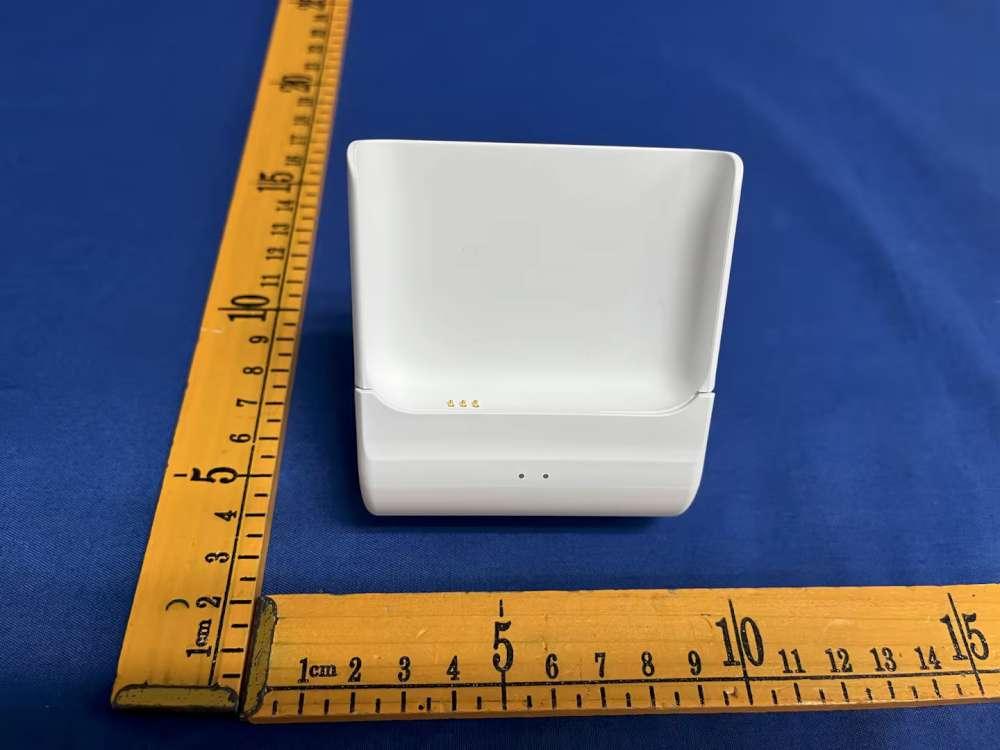

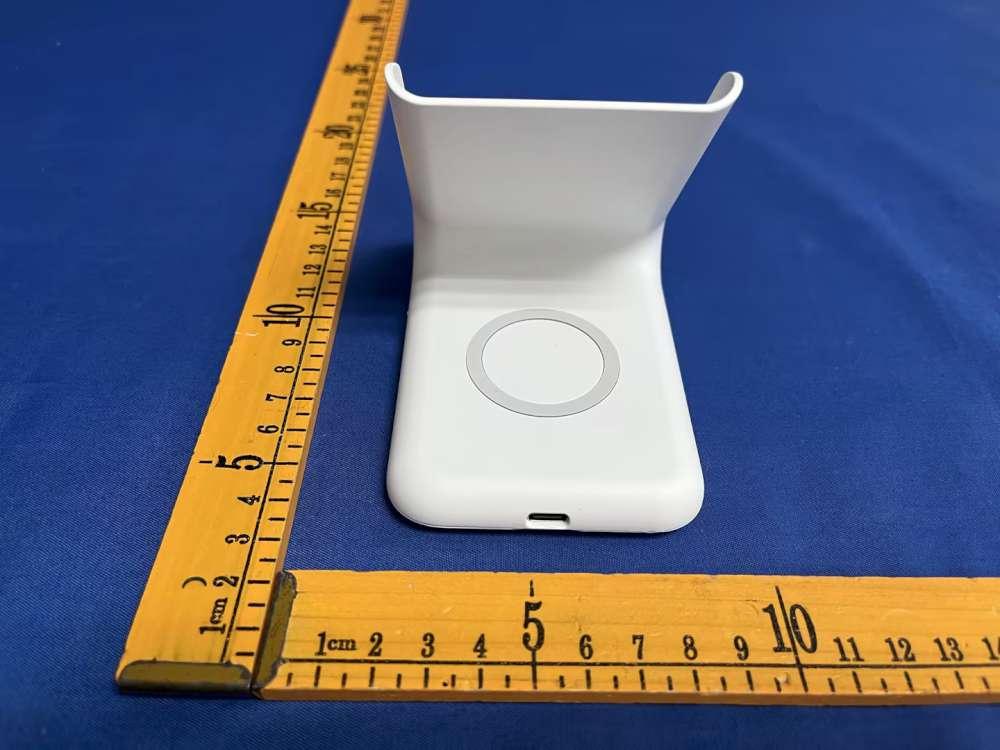

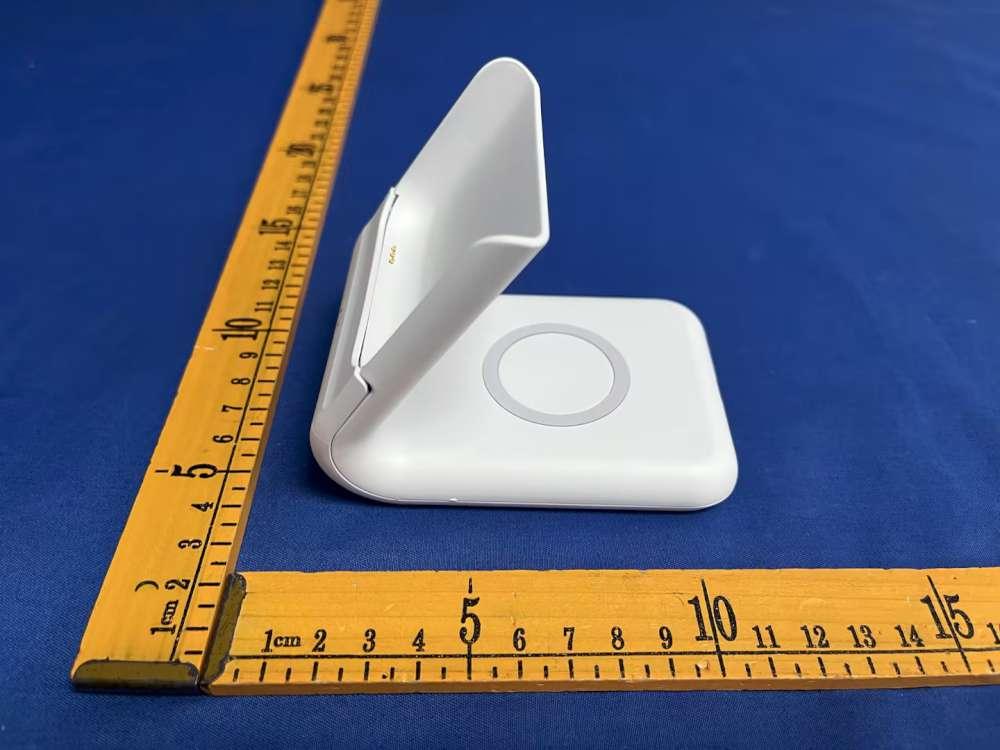

External Photos
FCCID:2BEL5-S1A FCCID:2BEL5-S1A FCCID:2BEL5-S1A
Internal Photos
FCCID:2BEL5-S1A FCCID:2BEL5-S1A FCCID:2BEL5-S1A coilAntenna FCCID:2BEL5-S1A
RF Exposure Info
MPEREPORT PowerBank MODELNo.:S1 FCCID:2BEL5-S1A REPORTNO.:NCT24003227E-2 ISSUEDATE:Jan.24,2024 Preparedfor ShenzhenSodiInnovationTechnologyCo.,Ltd. 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China Preparedby ShenzhenNCTTestingTechnologyCo.,Ltd. A101&2FB2,Fuqiao6thArea,XintianCommunity,FuhaiStreet,BaoanDistrict, Shenzhen,People’sRepublicofChina TEL:400-8868-419 FAX:86-755-27790922 ReportNo.:NCT24003227E-2 Page 2 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn TABLEOFCONTENT TestReportDescriptionPage 1.SUMMARYOFTESTRESULT.....................................................................................................4 2.GENERALINFORMATION............................................................................................................5 2.1.DESCRIPTIONOFDEVICE(EUT).................................................................................................................................5 2.2.TESTSETUP.................................................................................................................................................................6 2.3.DESCRIPTIONOFTESTFACILITY.................................................................................................................................7 2.4.MEASUREMENTUNCERTAINTY....................................................................................................................................7 3.MEASURINGDEVICEANDTESTEQUIPMENT......................................................................8 3.1.FORMPEMEASUREMENT..........................................................................................................................................8 4.RFEXPOSURE................................................................................................................................9 4.1.MEASURINGSTANDARD...............................................................................................................................................9 4.2.REQUIMENTS................................................................................................................................................................9 4.3.TESTCONFIGURATION................................................................................................................................................10 4.4.EQUIPMENTAPPROVALCONSIDERATIONS................................................................................................................11 4.5.LIMITS.........................................................................................................................................................................12 4.6.MEASURINGRESULTS................................................................................................................................................13 5.PHOTOGRAPHSOFTESTSETUP...........................................................................................15 ReportNo.:NCT24003227E-2 Page 3 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn TESTREPORTDESCRIPTION Applicant:ShenzhenSodiInnovationTechnologyCo.,Ltd. Address: 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China Manufacturer:ShenzhenSodiInnovationTechnologyCo.,Ltd. Address: 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China EUT:PowerBank ModelName:S1 Trademark:SODI MeasurementProcedureUsed: FCCPart1(1.1310)andPart2(2.1091) 680106D01RFExposureWirelessChargingAppsv03r01 ThedevicedescribedaboveistestedbyShenzhenNCTTestingTechnologyCo.,Ltd.todetermine themaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevicecan endureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenNCTTestingTechnologyCo.,Ltd.isassumedfullofresponsibilityfortheaccuracyand completenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnderTest) istechnicallycompliantwiththeFCCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenNCTTestingTechnologyCo.,Ltd. TestEngineer: KevenWu/Engineer TechnicalManager: HenryWang/Manager ReportNo.:NCT24003227E-2 Page 4 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 1.SUMMARYOFTESTRESULT EMISSION DescriptionofTestItemStandard&LimitsResults MPE FCCPart1(1.1310)andPart2(2.1091) 680106D01RFExposureWireless ChargingAppv03r01 Pass Note:N/AisanabbreviationforNotApplicable. ReportNo.:NCT24003227E-2 Page 5 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 2.GENERALINFORMATION 2.1.DescriptionofDevice(EUT) EUT:PowerBank ModelNumber:S1 PowerRating:BatteryCapacity:3.7V/10000mAh37Wh 1.ChargingMode Type-CInput:DC5V/3A WirelessChargingOutput:5WMax Operation FrequencyforWPT :110-205KHz Modulation:FSK AntennaType:: CoilAntenna DateofReceived:Jan.11,2024 DateofTest:Jan.11,2024toJan.23,2024 ReportNo.:NCT24003227E-2 Page 6 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 2.2.TestSetup ForMobileexposureconditions ReportNo.:NCT24003227E-2 Page 7 of 17 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 2.3.DescriptionofTestFacility 2.4.MeasurementUncertainty ParameterUncertainty RFoutputpower,conducted±1.0dB PowerSpectralDensity,conducted±2.2dB RadioFrequency±1x10 -6 Bandwidth±1.5x10 -6 Time±2% DutyCycle±2% Temperature ±1°C Humidity±5% DCandlowfrequencyvoltages±3% ConductedEmissions(150kHz~30MHz) 3.64dB RadiatedEmission(30MHz~1GHz) 5.03dB RadiatedEmission(1GHz~25GHz)4.74dB SiteDescription EMCLab.:AccreditedbyCNAS,2022-09-27 Thecertificateisvaliduntil2028.01.07 TheLaboratoryhasbeenassessedandprovedtobeincompliancewith CNAS-CL01:2006(identicaltoISO/IEC17025:2017) TheCertificateRegistrationNumberisL8251 DesignationNumber:CN1347 TestFirmRegistrationNumber:894804 AccreditedbyA2LA,June14,2023 TheCertificateRegistrationNumberis6837.01 AccreditedbyIndustryCanada,No…
Text truncated - open the document above for the full version.
Test Report
深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 1 页 产品规格书 PRODUCTSPECIFICATIONFORAPPROVAL 客户名称： CUSTOMER 三顺金能 产品名称： PRODUCTNAME A11 发射线圈 物料编码： PARTNo. 产品规格： PRODUCTSPEC 感量：6.5uH±10% 磁片规格：43.5*5.3*0.5双槽 线材规格：0.08*24*2*10Ts/出线45mm/单槽出线 3mm高温胶带/普通双面胶 日期： DATE 2024年1月25日 版本型号： VERSION REV1.0 版本 Revision 变更内容 ModifiedContent 责任人 Principle 日期 Date 备注 Note REV1.0首次发布薛磊2024-01-25 制定/PREPAREDBY审核/CHECKEDBY核准/APPROVEDBY 客户认可签名及盖章 Authorizedsignature& companychop 附上的是产品规格书，有任何疑问，请及时反馈给我们，谢谢 ! 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 2 页 产品规格 SPECIFICATION 一、产品尺寸 二、原理图 磁片直径A43.5±0.5mm 线圈外径B38.5±0.5mm 线圈内径C20.5±0.5mm 产品厚度D<1.5mm 出线长度E 45mm ± 3mm 焊锡长度F3±2mm 磁片开孔直径G5±0.3mm 磁片厚度0.5±0.1mm 磁片形状圆形双槽 背胶厚度普通双面胶 高位胶带规格 3mm 胶带 深圳市宸兴电子技术有限公司 公司名称：深圳市宸兴电子技术有限公司 工厂地址：深圳市宝安区新安街道大宝路51号新柯城科技工业园1栋5楼 第 3 页 三、绕线参数 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection SF 漆包线 0.08*24P （双股并绕） 10TsCCW 四、电气特性： 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS IND.S-F L ： 6.5uH±10% 100KHz/1.0VLCZMETER1062B 五、产品图片
Test Report
FCCPART15SUBPARTC PowerBank MODELNo.:S1 FCCID:2BEL5-S1A REPORTNO.:NCT24003227E-1 ISSUEDATE:Jan.24,2024 Preparedfor ShenzhenSodiInnovationTechnologyCo.,Ltd. 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China Preparedby ShenzhenNCTTestingTechnologyCo.,Ltd. A101&2FB2,Fuqiao6thArea,XintianCommunity,FuhaiStreet,BaoanDistrict, Shenzhen,People’sRepublicofChina TEL:400-8868-419 FAX:86-755-27790922 ReportNo.:NCT24003227E-1 Page 2 of 22 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn TABLEOFCONTENT TestReportDescriptionPage 1.SUMMARYOFTESTRESULTS..............................................................................................................................5 2.GENERALINFORMATION......................................................................................................................................6 2.1.DescriptionofDevice(EUT)...............................................................................................................................6 2.2.DescriptionofSupportUnits..............................................................................................................................6 2.3.IndependentOperationModes...........................................................................................................................7 2.4.TestMode...........................................................................................................................................................7 2.5.DescriptionofTestFacility.................................................................................................................................7 2.6.MeasurementUncertainty..................................................................................................................................8 3.MEASURINGDEVICEANDTESTEQUIPMENT....................................................................................................9 4.20DBBANDWIDTH................................................................................................................................................11 4.1.TestProcedure..................................................................................................................................................11 4.2.TestResults......................................................................................................................................................11 5.POWERLINECONDUCTEDEMISSIONMEASUREMENT.................................................................................12 5.1.BlockDiagramofTestSetup............................................................................................................................12 5.2.Limits................................................................................................................................................................12 5.3.TestProcedure.................................................................................................................................................12 5.4.MeasuringResults............................................................................................................................................13 6.RADIATEDEMISSIONTEST.................................................................................................................................16 6.1.MeasurementProcedure..................................................................................................................................16 6.2.TestSET-UP(BlockDiagramofConfiguration)...............................................................................................16 6.3.RadiatedEmissionLimit...................................................................................................................................17 6.4.MeasurementResult........................................................................................................................................19 7.TESTPHOTOGRAPHSANDEUTPHOTOGRAPHS...........................................................................................22 ReportNo.:NCT24003227E-1 Page 3 of 22 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn TESTREPORTDESCRIPTION Applicant:ShenzhenSodiInnovationTechnologyCo.,Ltd. Address: 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China Manufacturer:ShenzhenSodiInnovationTechnologyCo.,Ltd. Address: 21/F,DaoxingGlobalCenter,HonglangNorth2ndRoad,Xin'anStreet,Bao'an District,Shenzhen,China EUT:PowerBank ModelName:S1 Trademark:SODI MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart15,SubpartC PASS TheaboveequipmentwastestedbyShenzhenNCTTestingTechnologyCo.,Ltd.Thetestdata,data evaluation,testprocedures,andequipmentconfigurationsshowninthisreportweremadeinaccordance withtheproceduresgiveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedas describedinthisreportisincompliancewithconductedandradiatedemissionlimitsofFCCRulesPart15C Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport. TestEngineer: KevenWu/Engineer TechnicalManager: HenryWang/Manager ReportNo.:NCT24003227E-1 Page 4 of 22 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn ModifiedInformation VersionReportNo.RevisionDataSummary Ver.1.0NCT24003227E-1Jan.24,2024OriginalVersion ReportNo.:NCT24003227E-1 Page 5 of 22 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 1.SUMMARYOFTESTRESULTS TestItemSectioninCFR47Result Antennarequirement15.203Pass ACPowerLineConducted Emission 15.207Pass SpuriousEmission15.209(a)(f)Pass 20dBBandwidth15.215Pass ReportNo.:NCT24003227E-1 Page 6 of 22 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 2.GENERALINFORMATION 2.1.DescriptionofDevice(EUT) EUT:PowerBank ModelNumber:S1 PowerRating: ChargingMode Type-CInput:DC5V/3A WirelessChargingOutput:5WMax Operation FrequencyforWPT :110-205KHz Modulation:FSK AntennaTy…
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2BEL5-S1A RadiatedEmission (Below30MHz) RadiatedEmission (Below1G) ConductedEmission
Contact Information
Applicant
Ye Yinsheng
Technical Contact
Test Firm
SHENZHEN NCT TESTING TECHNOLOGY CO., LTD.Henry Wang
[email protected]0755-27790922
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.11 MHz - 0.205 MHz | - |
