2BEM6-BM10mobile phone

Mobile Phone Model: BM10 目录 1. 1.Basic Informati ................................................................................................................. 3 1.1. Brief Introduction ....................................................................................................... 3 1.2. Safety Notice .............................................................................................................. 3 2. 2.Function Menu ................................................................................................................. 4 2.1 Contacts ...................................................................................................................... 4 2.2 Messaging .................................................................................................................. 4 2.3 Phone book ................................................................................................................. 4 2.3.1 Browse contacts ................................................................................................. 5 2.3.2 Quick search ....................................................................................................... 5 2.4 Call center .................................................................................................................. 5 2.5 Settings ....................................................................................................................... 5 2.5.1. Profiles ................................................................................................................ 5 2.5.2. Phone settings .................................................................................................... 6 2.5.3. Security Settings ................................................................................................. 6 2.6 Multimedia ................................................................................................................. 6 2.6.2 7 2.6.3 7 ◼ Vrecorder : This function enables you to record dynamic pictures. Adapt the VCR to the scene or the figure, the press “5” to start or pause recording. .......................................... 7 ◼ Videos：This phone supports the video format of 3pg and mp4. ............................ 7 2.6.5 8 ◼ Music： This mobile phone provides MP3 player,user can play MP3 you want; .... 8 2.6.6 8 2.7 Extras.......................................................................................................................... 9 2.7.1 Torch light ...................................................................................................................... 9 2.7.2 Magic voice .................................................................................................................... 9 2.7.3 Calendar ........................................................................................................................ 9 2.7.4 Alarm 9 2.7.5 Services ........................................................................................................................ 9 2.8 BT Dialer .................................................................................................................... 9 3. 3Care and Maintenance .................................................................................................... 10 4. 4.Additional Safety Information ....................................................................................... 11 1.Basic Informati 1.1. Brief Introduction Thanks for selecting M2A color screen GSM/GPRS digital mobile phone. Through reading the manual, you can fully know how to use M2A mobile phone, appreciate its complete function and simple operating method. M2A color screen mobile phone is designed aiming at GSM/GPRS network environment; the phone is Two Card Two Standby, but you can not call another SIM card when one SIM card is under phone call. Besides basic call functions, M2A also provides many kinds of practical functions, such as name card holder, scene mode, message, audio, radio, camera and game, alarm clock, calculator, STK, time and date and etc. so that convenient for your work and leisure activities. In addition, M2A adopts personalized human-computer interface design, its complete function can meet your different requirements. M2A color screen mobile phone accords with GSM/GPRS criterion, has obtained the certification of competent authority. The company reserves the rights to revise the contents of the manual without prior notice. 1.2. Safety Notice If your phone is lost or stolen, please immediately inform the telecom department or commission agents of forbidding the use of SIM card, so that avoid the economic loss caused by false calling of others. ◼ When you contact with telecom department or commission agents, they need to know your phone IMEI number (printed on the label on the back of the phone and can be found after taking down the battery). Please copy the number and keep it safe for future use. In order to use the phone more safely, please adopt preventive measures, for example: set up the PIN code of SIM card, PIN code can prevent your SIM card from being used by others without permission. When leaving the car, please don’t place the phone in a place easy to be seen, you had better to carry with you or lock in the suitcase. 2.Function Menu 2.1 Contacts This function could help you browse the name card holder, store, edit and delete the names and phone numbers in the phone and SIM card. To facilitate the management of the records, this phone sets the group function, collecting the similar items into a group. The storage capacity of the SIM card varies and the maximum storage capacity of this phone is 300. 2.2 Messaging ◼ Write Message You could write new message by using this function. When you input the message to be sent, press left soft key to send, to add contact person information, and to save, etc. ◼ Inbox Store the SMS you’ve received. Press OK key direct…

Text truncated - open the document above for the full version.

Shenzhen Saiyo Electronics Industry Co., Ltd. 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-1 To whom it may concern: We, Shenzhen Saiyo Electronics Industry Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BEM6-BM10) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Biyuan Chen Manager Shenzhen Saiyo Electronics Industry Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Saiyo Electronics Industry Co., Ltd. Add: 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Date: 2024-4-1 FCC ID: 2BEM6-BM10 Dear Sir/Madam, We, Shenzhen Saiyo Electronics Industry Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: mobile phone Model no.: BM10, B25, BM10pro, BM35, BM30, BM70, BM200, BM222, BM310, BM5310, Q3308, MINIPhone, M23, S6, S7, S5, T360, T380, T350, K16 Sincerely, Name/Title： Biyuan Chen/Manager Company: Shenzhen Saiyo Electronics Industry Co., Ltd. Address: 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Phone: 86 13902313899 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-4-1> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BEM6-BM10 BM10 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Biyuan Chen/Manager Company: Shenzhen Saiyo Electronics Industry Co., Ltd. Address: 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Phone: 86 13902313899 Fax: N/A E-Mail: [email protected]

Shenzhen Saiyo Electronics Industry Co., Ltd. 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-1 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BEM6-BM10 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Biyuan Chen/Manager Company: Shenzhen Saiyo Electronics Industry Co., Ltd. Address: 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen China Phone: 86 13902313899 Fax: N/A E-Mail: [email protected]

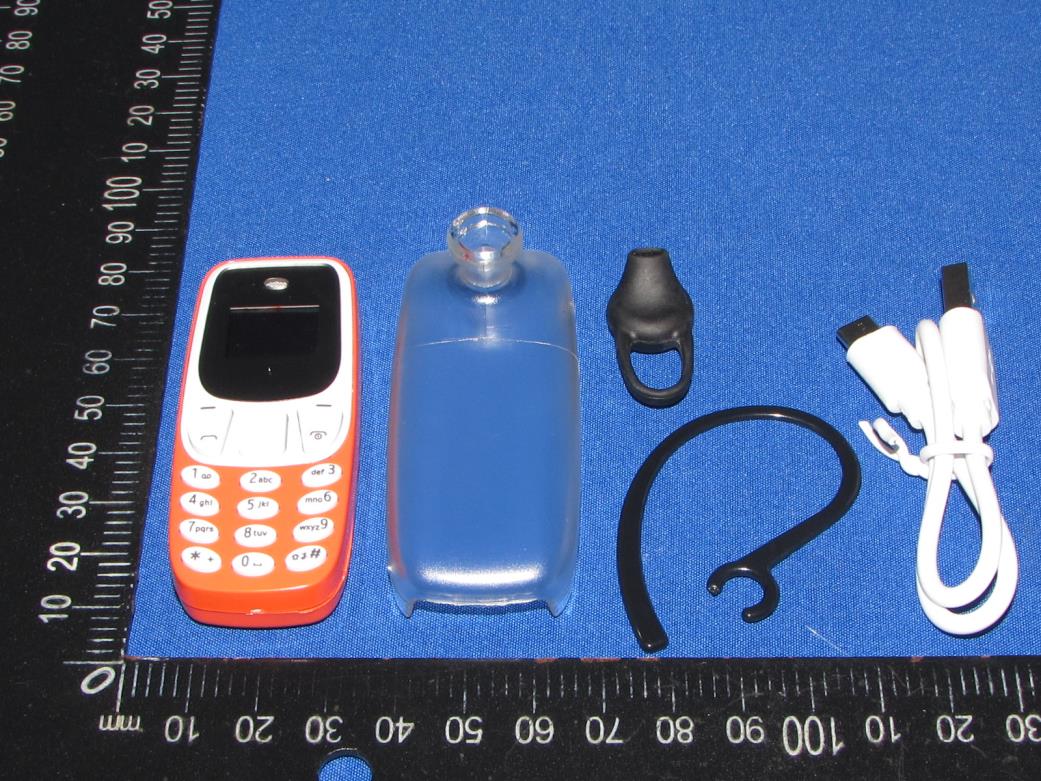

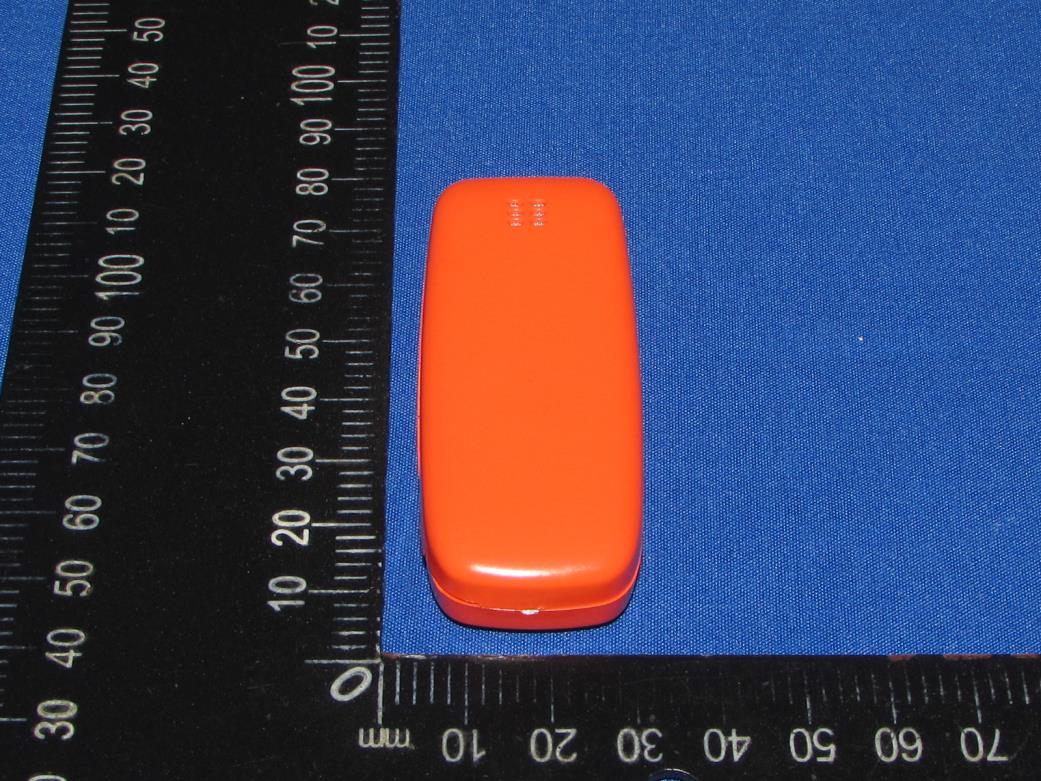

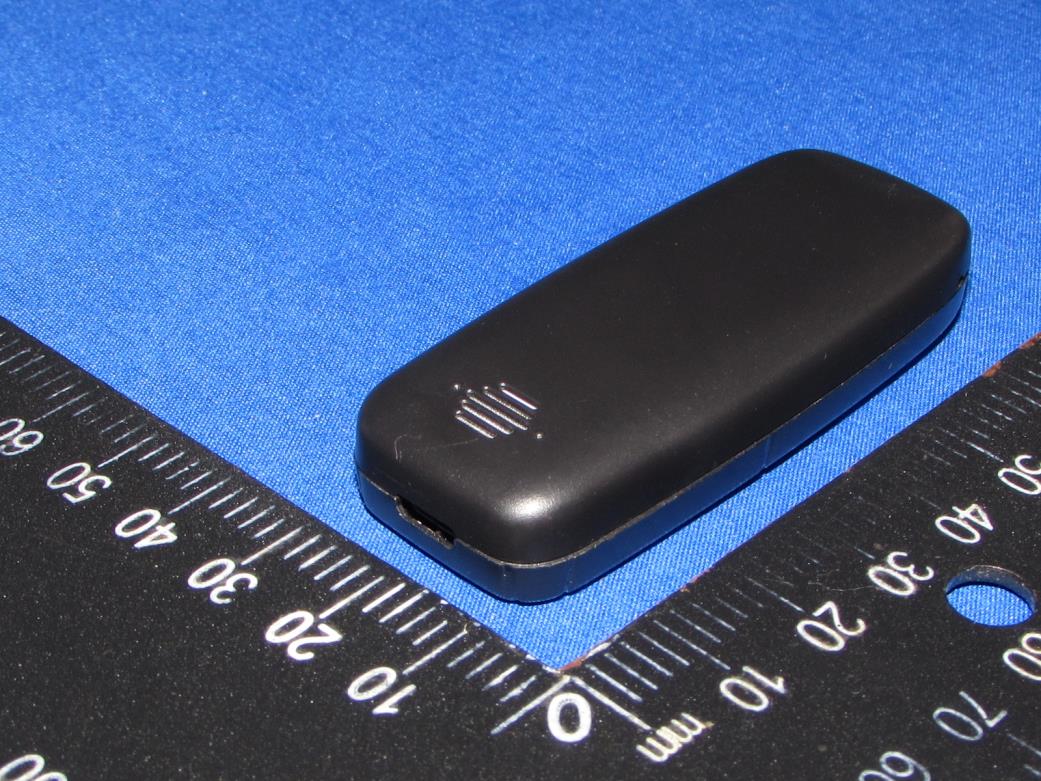

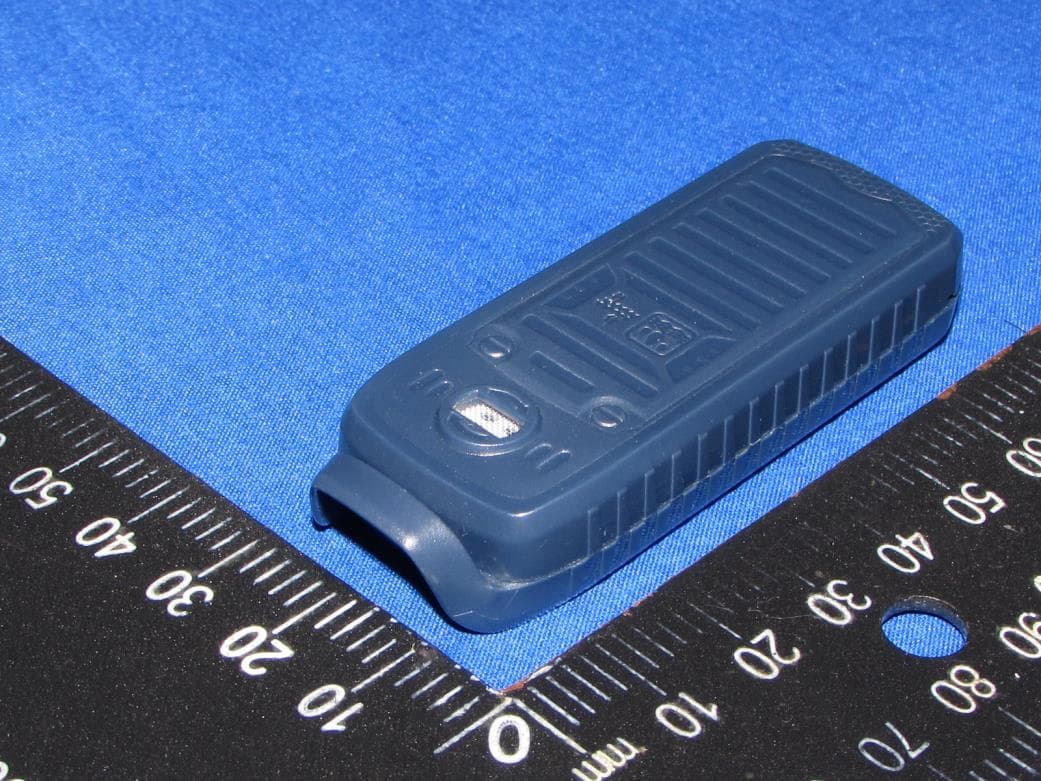

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 9 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 9 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 9 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 9 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 9 Fig.9 Fig.10 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 6 of 9 Fig.11 Fig.12 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 7 of 9 Fig.13 Fig.14 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 8 of 9 Fig.15 Fig.16 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 9 of 9 Fig.17

Label Location: FCC ID: 2BEM6-BM10

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 6 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 6 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 6 Fig.5 Fig.6 GSM Main antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 6 Fig.7 Fig.8 Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 6 Fig.9 Fig.10 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 6 of 6 Fig.11 Fig.12

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT Report Reference No. ..................... : FCC ID ........................................... : CTA24032500914 2BEM6-BM10 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Mar. 28, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Saiyang Electronics Industry Co., Ltd Address ............................................. : 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen, China Test specification ........................... : Standard ........................................... : IEC 62209-2:2010; IEEE 1528:2013; FCC 47 CFR Part 2.1093; ANSI/IEEE C95.1:2005; Reference FCC KDB 447498; KDB 865664; KDB 648474 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mobile phone Trade Mark........................................ : N/A Manufacturer ..................................... : Dongguan Saiyang Electronics Industry Co., Ltd Model/Type reference ....................... : BM10 Listed Models .................................. : B25, BM10pro, BM35, BM30, BM70, BM200, BM222, BM310, BM5310, Q3308, MINIPhone, M23, S6, S7, S5, T360, T380, T350, K16 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA24032500914 Page 2 of 67 T E S T R E P O R T Equipment under Test : Mobile phone Model /Type : BM10 Listed Models : B25, BM10pro, BM35, BM30, BM70, BM200, BM222, BM310, BM5310, Q3308, MINIPhone, M23, S6, S7, S5, T360, T380, T350, K16 Applicant : Shenzhen Saiyang Electronics Industry Co., Ltd Address : 4A12, Longsheng Accessories City, Huafa North Road, Futian District, Shenzhen, China Manufacturer : Dongguan Saiyang Electronics Industry Co., Ltd Address : No. 67 Yongwei Road, Baizhou Bian, Dongcheng Street, Dongguan City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24032500914 Page 3 of 67 Contents 1 Statement of Compliance ............................................................................................................................. 6 2 General Information ..................................................................................................................................... 7 2.1 General Remarks ............................................................................................................................................. 7 2.2 Description of Equipment Under Test (EUT) ..................................................................................................... 7 2.3 Device Category and SAR Limits ..................................................................................................................... 7 2.4 Applied Standard .............................................................................................................................................. 7 2.5 Test Facility ....................................................................................................................................................... 9 2.6 Environment of Test Site ................................................................................................................................... 9 2.7 Test Configuration ............................................................................................................................................. 9 3 Specific Absorption Rate (SAR) ................................................................................................................. 10 3.1 Introduction ..................................................................................................................................................... 10 3.2 SAR Definition ................................................................................................................................................ 10 4 SAR Measurement System ........................................................................................................................ 11 4.1 E-Field Probe ................................................................................................................................................... 11 4.2 Data Acquisition Electronics (DAE) ................................................................................................................. 12 4.3 Robot .............................................................................................................................................................. 13 4.4 Measurement Server ...................................................................................................................................... 13 4.5 Phantom ....................................................…

Text truncated - open the document above for the full version.

Shenzhen Saiwei Communication Technology Co., Ltd Antenna Gain： Standard Band Frequency Gain(dBi) GSM GSM850 850 2.2 GSM PCS1900 1880 0.57 Standard Band Frequency Gain(dBi) BT / 2400-2500 0.0 Apple Chart

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 1 of 43 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: mobile phone Trade Mark: N/A Test Model: BM10 FCC ID: 2BEM6-BM10 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.029 2401.481 2402.510 --- --- DH5 Ant1 2441 0.963 2440.547 2441.510 --- --- DH5 Ant1 2480 0.954 2479.550 2480.504 --- --- 2DH5 Ant1 2402 1.293 2401.379 2402.672 --- --- 2DH5 Ant1 2441 1.314 2440.355 2441.669 --- --- 2DH5 Ant1 2480 1.314 2479.355 2480.669 --- --- 3DH5 Ant1 2402 1.302 2401.367 2402.669 --- --- 3DH5 Ant1 2441 1.326 2440.355 2441.681 --- --- 3DH5 Ant1 2480 1.305 2479.367 2480.672 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 2 of 43 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 3 of 43 2DH5-Ant1-2402 2DH5-Ant1-2441 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 4 of 43 3DH5-Ant1-2402 3DH5-Ant1-2441 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 5 of 43 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.89346 2401.5729 2402.4664 --- --- DH5 Ant1 2441 0.88609 2440.5754 2441.4615 --- --- DH5 Ant1 2480 0.86977 2479.5783 2480.4480 --- --- 2DH5 Ant1 2402 1.1987 2401.4156 2402.6143 --- --- 2DH5 Ant1 2441 1.1809 2440.4231 2441.6040 --- --- 2DH5 Ant1 2480 1.1732 2479.4260 2480.5992 --- --- 3DH5 Ant1 2402 1.1828 2401.4246 2402.6074 --- --- 3DH5 Ant1 2441 1.1808 2440.4256 2441.6064 --- --- 3DH5 Ant1 2480 1.1941 2479.4172 2480.6113 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 6 of 43 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 7 of 43 2DH5-Ant1-2402 2DH5-Ant1-2441 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 8 of 43 3DH5-Ant1-2402 3DH5-Ant1-2441 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 9 of 43 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.88 ≤30 PASS DH5 Ant1 2441 0.71 ≤30 PASS DH5 Ant1 2480 0.23 ≤30 PASS 2DH5 Ant1 2402 1.14 ≤20.97 PASS 2DH5 Ant1 2441 1.02 ≤20.97 PASS 2DH5 Ant1 2480 0.56 ≤20.97 PASS 3DH5 Ant1 2402 1.67 ≤20.97 PASS 3DH5 Ant1 2441 1.54 ≤20.97 PASS 3DH5 Ant1 2480 1.02 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 10 of 43 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 11 of 43 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 12 of 43 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 13 of 43 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.994 ≥0.686 PASS 2DH5 Ant1 Hop 1.204 ≥0.876 PASS 3DH5 Ant1 Hop 1.036 ≥0.884 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 14 of 43 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 15 of 43 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 130 0.375 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 120 0.347 ≤0.4 PASS 3DH5 Ant1 Hop 2.891 130 0.376 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 16 of 43 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 17 of 43 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 18 of 43 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 19 of 43 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 20 of 43 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.81 -50.72 ≤-19.19 PASS DH5 Ant1 High 2480 -0.14 -48.66 ≤-20.14 PASS DH5 Ant1 Low Hop_2402 0.23 -50.5 ≤-19.77 PASS DH5 Ant1 High Hop_2480 -0.37 -49.48 ≤-20.37 PASS 2DH5 Ant1 Low 2402 -0.28 -50.7 ≤-20.28 PASS 2DH5 Ant1 High 2480 -0.87 -49.19 ≤-20.87 PASS 2DH5 Ant1 Low Hop_2402 -4.04 -50.48 ≤-24.04 PASS 2DH5 Ant1 High Hop_2480 -2.76 -49.87 ≤-22.76 PASS 3DH5 Ant1 Low 2402 -0.69 -50.16 ≤-20.69 PASS 3DH5 Ant1 High 2480 -1.04 -49.34 ≤-21.04 PASS 3DH5 Ant1 Low Hop_2402 -4.10 -50.37 ≤-24.1 PASS 3DH5 Ant1 High Hop_2480 -2.51 -49.25 ≤-22.51 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 21 of 43 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 22 of 43…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 31 of 43 2DH5-Ant1-2480-0~Reference-PASS 2DH5-Ant1-2480-30~1000-PASS 2DH5-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 32 of 43 3DH5-Ant1-2402-0~Reference-PASS 3DH5-Ant1-2402-30~1000-PASS 3DH5-Ant1-2402-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 33 of 43 3DH5-Ant1-2441-0~Reference-PASS 3DH5-Ant1-2441-30~1000-PASS 3DH5-Ant1-2441-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 34 of 43 3DH5-Ant1-2480-0~Reference-PASS 3DH5-Ant1-2480-30~1000-PASS 3DH5-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 35 of 43 Appendix I: Duty Cycle Test Result TestMode Antenn a Frequency[ MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] DH5 Ant1 2402 2.88 3.73 77.21 1.12 DH5 Ant1 2441 2.88 3.73 77.21 1.12 DH5 Ant1 2480 2.89 3.74 77.27 1.12 2DH5 Ant1 2402 2.89 3.73 77.48 1.11 2DH5 Ant1 2441 2.89 3.73 77.48 1.11 2DH5 Ant1 2480 2.89 3.74 77.27 1.12 3DH5 Ant1 2402 2.89 3.74 77.27 1.12 3DH5 Ant1 2441 2.89 3.74 77.27 1.12 3DH5 Ant1 2480 2.89 3.74 77.27 1.12 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 36 of 43 Test Graphs NTNV-DH5-Ant1-2402 NTNV-DH5-Ant1-2441 NTNV-DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 37 of 43 NTNV-2DH5-Ant1-2402 NTNV-2DH5-Ant1-2441 NTNV-2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 38 of 43 NTNV-3DH5-Ant1-2402 NTNV-3DH5-Ant1-2441 NTNV-3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BEM6-BM10 Report No.: TZ240305470-BT Page 39 of 43 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 Peak 2390.000 -42.67 ≤-21.20 52.53 ≤74 PASS DH5 Ant1 Low 2402 Peak 2310.000 -42.03 ≤-21.20 53.17 ≤74 PASS DH5 Ant1 Low 2402 Peak 2386.940 -39.08 ≤-21.20 56.12 ≤74 PASS DH5 Ant1 Low 2402 AV 2390.000 -48.86 ≤-41.20 46.34 ≤54 PASS DH5 Ant1 Low 2402 AV 2310.000 -49.74 ≤-41.20 45.46 ≤54 PASS DH5 Ant1 Low 2402 AV 2380.850 -48.3 ≤-41.20 46.90 ≤54 PASS DH5 Ant1 High 2480 Peak 2483.500 -42.25 ≤-21.20 52.95 ≤74 PASS DH5 Ant1 High 2480 Peak 2500.000 -42.21 ≤-21.20 52.99 ≤74 PASS DH5 Ant1 High 2480 Peak 2498.720 -38.72 ≤-21.20 56.48 ≤74 PASS DH5 Ant1 High 2480 AV 2483.500 -48.29 ≤-41.20 46.91 ≤54 PASS DH5 Ant1 High 2480 AV 2500.000 -48.74 ≤-41.20 46.46 ≤54 PASS DH5 Ant1 High 2480 AV 2498.560 -47.64 ≤-41.20 47.56 ≤54 PASS 2DH5 Ant1 Low 2402 Peak 2390.000 -42.11 ≤-21.20 53.09 ≤74 PASS 2DH5 Ant1 Low 2402 Peak 2310.000 -42.26 ≤-21.20 52.94 ≤74 PASS 2DH5 Ant1 Low 2402 Peak 2361.950 -39.17 ≤-21.20 56.03 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2390.000 -48.9 ≤-41.20 46.30 ≤54 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -48.83 ≤-41.20 46.37 ≤54 PASS 2DH5 Ant1 Low 2402 AV 2384.000 -48.48 ≤-41.20 46.72 ≤54 PASS 2DH5 Ant1 High 2480 Peak 2483.500 -41.79 ≤-21.20 53.41 ≤74 PASS 2DH5 Ant1 High 2480 Peak 2500.000 -41.23 ≤-21.20 53.97 ≤74 PASS 2DH5 Ant1 High 2480 Peak 2493.600 -39.53 ≤-21.20 55.67 ≤74 PASS 2DH5 Ant1 High 2480 AV 2483.500 -48.09 ≤-41.20 47.11 ≤54 PASS 2DH5 Ant1 High 2480 AV 2500.000 -48.52 ≤-41.20 46.68 ≤54 PASS 2DH5 Ant1 High 2480 AV 2488.880 -47.76 ≤-41.20 47.44 ≤54 PASS 3DH5 Ant1 Low 2402 Peak 2390.000 -42.71 ≤-21.20 52.49 ≤74 PASS 3DH5 Ant1 Low 2402 Peak 2310.000 -42.53 ≤-21.20 52.67 ≤74 PASS 3DH5 Ant1 Low 2402 Peak 2377.805 -39.68 ≤-21.20 55.52 ≤74 PASS 3DH5 Ant1 Low 2402 AV 2390.000 -49.01 ≤-41.20 46.19 ≤54 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -49.1 ≤-41.20 46.10 ≤54 PASS 3DH5 Ant1 Low 2402 AV 2386.730 -48.35 ≤-41.20 46.85 ≤54 PASS 3DH5 Ant1 High 2480 Peak 2483.500 -41.77 ≤-21.20 53.43 ≤74 PASS 3DH5 Ant1 High 2480 Peak 2500.0…

Text truncated - open the document above for the full version.
