2BENCGB-AR-WT500Acrylic wifi digital photo frame

UserManual 2023 Contents Contents1 Gettingstarted4 Frameoapp4 Videotutorials4 Frameoquicksetup5 StartusingFrameo6 Connectinganewfriend6 NavigatingyourFrameo7 Addfriend7 Settings7 Powermenu7 React7 Hidephoto7 Gallery7 Fittoframe/Fillframe7 Adjustphoto8 Interactingwithvideos8 Powermenu9 Reactmenu9 Externalstoragemenu9 ClockandWeatherwidgets10 Weathermenu10 Settings11 Myframe11 Framename11 Framelocation11 Setlanguage11 Weatherlocation11 Temperatureunit11 Date11 Time11 Timezone11 Setfirstdayofweek12 Enable/Disable24-hourformat12 Managephotos12 Show/hidephotos12 Deletephotos12 Importphotos12 1 Transferfromcomputer12 Exportphotos13 Playfromexternalstorage13 MyFriends13 Changeoptionsforafriend13 Addperson13 Display13 Brightnesslevel13 Sleepmode13 Slideshow14 Timer14 Fillframe14 Framebackground14 Photodisplayorder14 Reversephotodisplayorder14 Showcaption14 Showclock14 Showweather15 Autoplay15 Videoplayback15 Automute15 Videovolume15 Wi-Fi15 Wi-Fidetails15 ResetWi-Fi15 Notifications16 Shownotifications16 Notificationvolume16 Storagespace16 Backup16 Networkconnection16 Newphotos16 Newfriends16 Softwareupdate16 Featurenews16 Dateandtime16 BackupandRestore17 Backupframetoexternalstorage(e.g.microSDcard)17 Automaticbackup17 Restorefrombackup17 2 Resetframe17 Help17 Guide17 Support18 About18 PeerID18 Frameoversion18 Checkforupdate18 Betaprogram18 Thirdpartyattributions18 Shareanonymousanalyticsdata18 Privacy19 Support19 Warranty,Compliance,SupportandSafetyinformation19 3 Gettingstarted CongratulationsonyourbrandnewFrameophotoframe! IfyouarenewtousingFrameothenstartbyfollowingtheFrameoquicksetuporfollowthe on-screenguidewhenpoweringitonforthefirsttime. OnceyouhavesetupyourFrameoframe,youcanstartconnectingittoyourfriendsandfamily. Frameoapp Tosendphotostoyourframe,usetheFrameoappforiOSorAndroid. Scancodetofindtheapp Videotutorials Checkoutour“FrameoTutorials”playlistonYouTubewith informativevideoswhereweguideyouonhowtogetstartedusing Frameo.Scanthecodetotherightorusethelinktofindtheplaylist. bit.ly/3zKtxWX 4 Frameoquicksetup Whenstartingyourframeforthefirsttime,youwillneedtosetuptheframe. ● Selectalanguage.ThiswillbethelanguageusedontheFrameo. ● ConnectyourframetotheinternetbyconnectingittoWi-Fi. ● Verifyorcorrectthedateandtime. ● Frameomayaskyoutoupdatetothelatestversion.Itisrecommendedtoupdateyour framebeforecontinuingifaskedto. ● Enteryourname,andthelocationwhereyouhaveplacedyourframee.g.“JohnDoe”and “Livingroom”,“Kitchen”or“Office”.Finallysetthetimezoneifnotalreadycorrect. 5 StartusingFrameo NextstepistoconnectFrameowithyourfriendsandfamilybyprovidingthemwithacodefrom yourframe. Ifyouwanttobeabletosendphotostotheframeyourself,startbydownloadingtheappforiOS orAndroidonAppStoreorGooglePlay.Thenusethecodetoconnectyourframeandappas describedbelow. Connectinganewfriend MakesurethatyourfriendhasdownloadedandinstalledtheFrameoapp. Clicktheaddfriendicononyourframe.Adialogwillappearshowingaconnectioncode, whichisvalidfor12hours. Nowsharethiscodeinwhateverfashionyouprefere.g.SMS,E-Mail,IM,phonecall,toyour friend. OnceyourfriendshaveaddedthecodeintheirFrameoapp,theywillautomaticallyappearon yourframeandbeabletosendyouphotos. ReadchapterChangeoptionsforafriendtoallowconnectedfriends,toretrieveandsharethe connectioncodeviathesmartphoneapp. 6 NavigatingyourFrameo Swipeleftorrighttogothroughyourphotos. Toaccessthemenu,simplytaponceonthescreen. Inthemenuyouwillfindthemostusedfeatures. Addfriend Thiswillgenerateacodethatyoucansharewithyourfriendsandfamilysotheycanconnectand sendphotostoyourframe. Settings OpenstheSettings. Powermenu OpensthePowermenu. React OpenstheReactmenu. NB.TheReactmenucanalsobeaccessedbydouble-tappingonthescreen. Hidephoto Hidesthecurrentphoto.Thismeansthatthephotowillnolongerbeshownintheslideshow.If neededthephotocanbeshownagainthroughthesettingsmenu. Gallery Opensagallerywhichallowsforeasyandfastnavigationthroughyourphotos. Fittoframe/Fillframe Thistoggleshowthephotoisshown. 7 TheFillframeoptionisthedefault.Thephotoisscaledsothatitfillsthewholescreen.Itwillbe centeredaroundwhatisselectedasthemostimportantpart.Seethefirstpicturebelow. Fittoframewillmakesurethattheentirephotoisshownonthescreen.Seethesecondpicture below. Adjustphoto Allowsyoutoadjustthepositionofthephotointheframeforanevenbetterfit.Hereyoucanalso usetorotateyourphoto,andyoucanusetoeditthecaptiononimportedphotos.For receivedphotos,pleaseaskthesendertoeditthecaptionintheFrameoapp. Interactingwithvideos Whenavideoisshowntwoadditionalcontrolsareshown.Oneforplay/pauseofthevideoand onetocontrolthevolumelevelforvideosounds. Presstostartthevideoplayback.Pressingwillpausethevideoplayback. Presstoopenthevolumeslider.Usetheslidertoadjustthevolumelevelforvideosounds. Pressingwillmutethevideowhilepressingwillunmutethevideo. 8 Powermenu Tapthepowericontoaccessthepowermenu.Hereyoucanpoweroffusing,restart yourframeusingorentersleepmodeusing. NB.Makesuretoalwaysusethepoweroffbuttononthedeviceorinthepowermenutoturn Frameooff.NeverdisconnectpowerwhenFrameoisrunning. Reactmenu Taponeofthereactionstoletthesenderknowhowitmadeyoufeel. Externalstoragemenu Wheninsertinganexternalstorage(e.g.amicroSDcard)amenuwillautomaticallyappearwith threeoptions:Presstoplayphotosdirectlyfromtheexternalstorage,presstoimport photostotheinternalmemoryofyourframeorpresstomakeabackupofyourframe. 9 ClockandWeatherwidgets Thecurrenttimeandweatherwillappearintheupper-rightcorneroftheframewhentheframe hasreceivedatleastonephoto.Tappingeitherofthesewillopentheweathermenu. Weathermenu Theweathermenucontainsmoredetailedweatherforecastsandhasshortcutstoweather-related settings. Showstheweatherlocationofyourframe.Taptoaccesstheweatherlocationsettings. 1DAY 1-dayforecastwhichincludesweatherconditionsfortimeperiodsoftheday. 4DAY 4-dayforecast.Taptoseetheweatherforecastforthenextfourdays. Displaystheframe’scurrenttime.Taptoaccessthetimesettings. 10 Settings Throughthesettings,youcanpersonaliseyourframetoyourneeds. Myframe Framename Changesthenameofyourframe.Thisisalsothenamethatconn…

Text truncated - open the document above for the full version.

C5266091_X24_Ed.2 1/1 Shenzhen BAOBAOMI Electronic Technology Co.,Ltd “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen GBZK Electronics Co., Ltd Grantee code: 2BENC FCC ID: 2BENCGB-AR-WT500 FRN: 0034770610 Contact Name: KuKa Address: NO 504 of Building D,Shenchanggang Investment industrial park,No 8 Jinlong 1st Road, Baolong Community, Baolong Street.Longgang District, Shenzhen city.518116.Guangdong Province.CN Telephone No: 13641452524 Fax No:/ Email: [email protected] i. [Shenzhen GBZK Electronics Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen GBZK Electronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen GBZK Electronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2024/01/19 Applicant’s Name: KuKa Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Modeldifferencedeclarationletter DifferencesDescription FCCID:2BENCGB-AR-WT500 WeShenzhenGBZKElectronicsCo.,Ltdstate: Product： Acrylicwifidigitalphotoframe ModelName ： GB-AR-WT500,GB-AR-WT700,GB-AR-WT101 We(ShenzhenGBZKElectronicsCo.,Ltd)herebystatethatallthemodelsareelectrical identicalincludingthesamesoftwareparameterandhardwaredesign(i.e.,circuitdesign, PCBLayout,RFmodule/circuit,antennatype(s)andantennalocation,componentsonPCB, etc.,),samemechanicalstructureanddesign(includingproductenclosure,materials,etc.,), theonlydifferenceisthemodelnameandappearancecolor. Signatory Date:01-18.2024 Name:KuKaDate:Jan18.2024 Title:Manager Signatureofapplicant:

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen GBZK Electronics Co., Ltd Company: Shenzhen GBZK Electronics Co., Ltd Address: NO 504 of Building D,Shenchanggang Investment industrial park,No 8 Jinlong 1st Road, Baolong Community, Baolong Street.Longgang District, Shenzhen city.518116.Guangdong Province.CN Product Name: Acrylic wifi digital photo frame Model Number: GB-AR-WT500, GB-AR-WT700, GB-AR-WT101 FCC Identifier: 2BENCGB-AR-WT500 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: KuKa Date: 2024.1.19 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Shenzhen GBZK Electronics Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-19 Subject: Request for Confidentiality FCC ID: 2BENCGB-AR-WT500 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: KuKa Title: Manager 2023.1.19

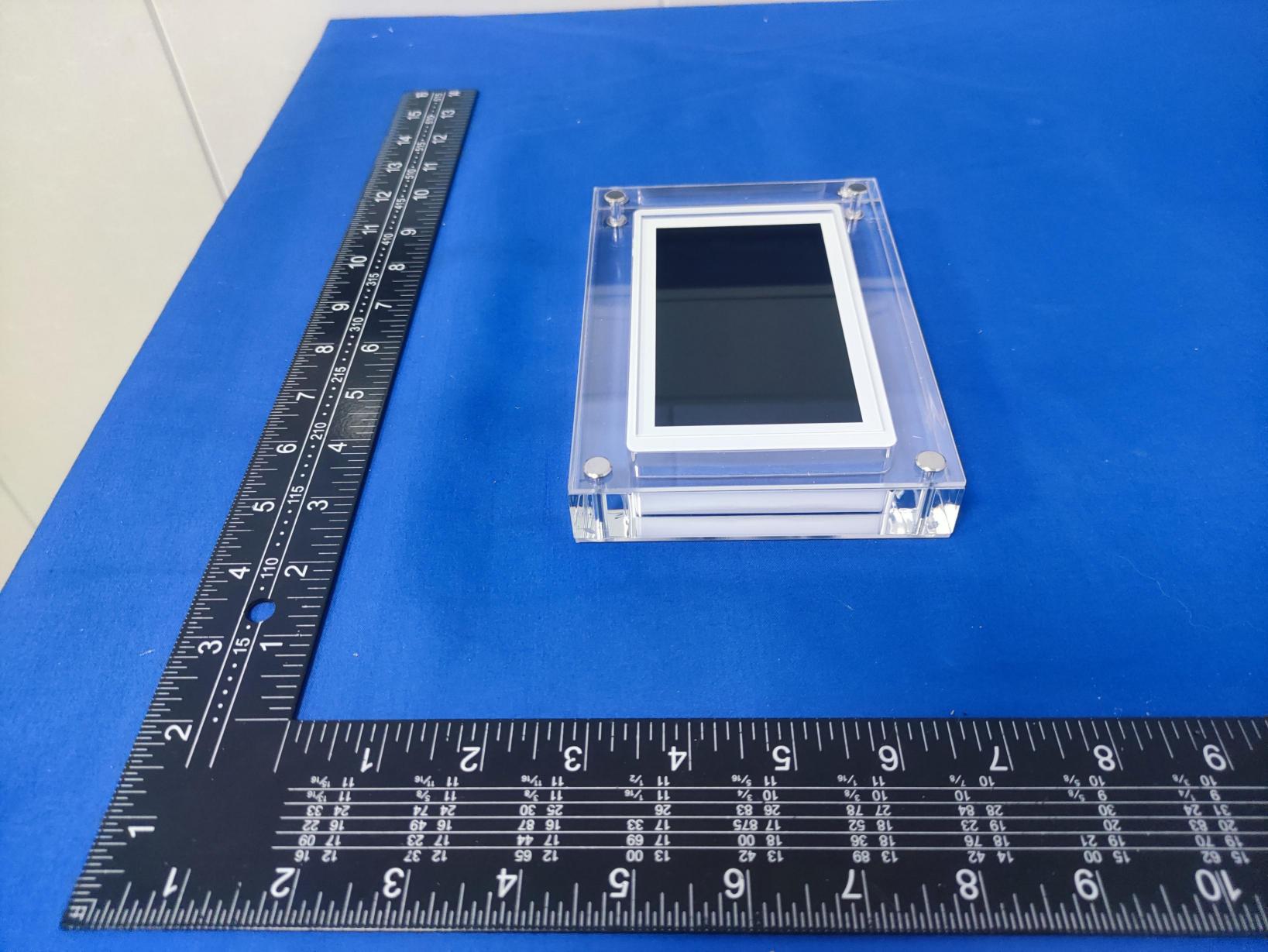

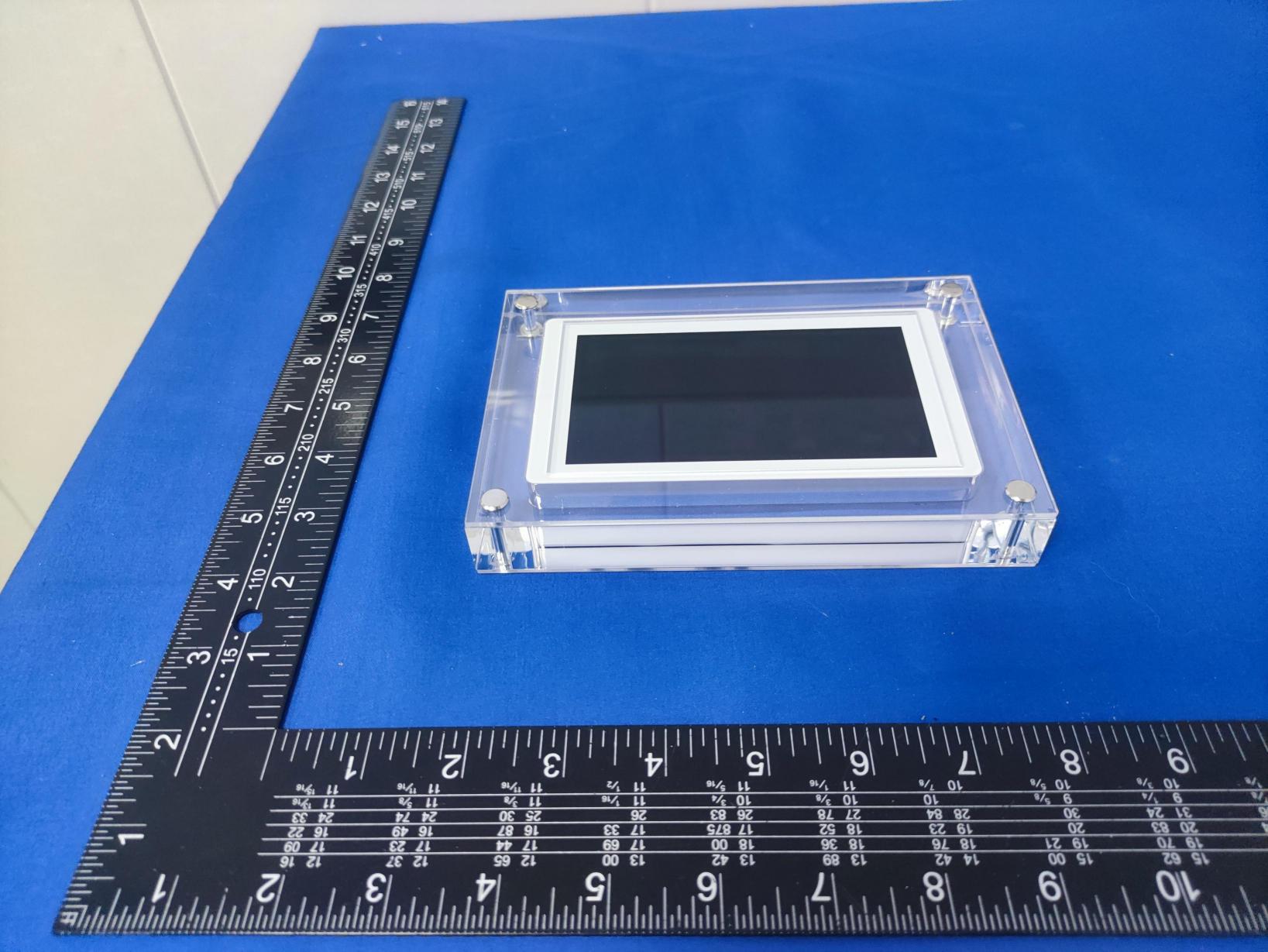

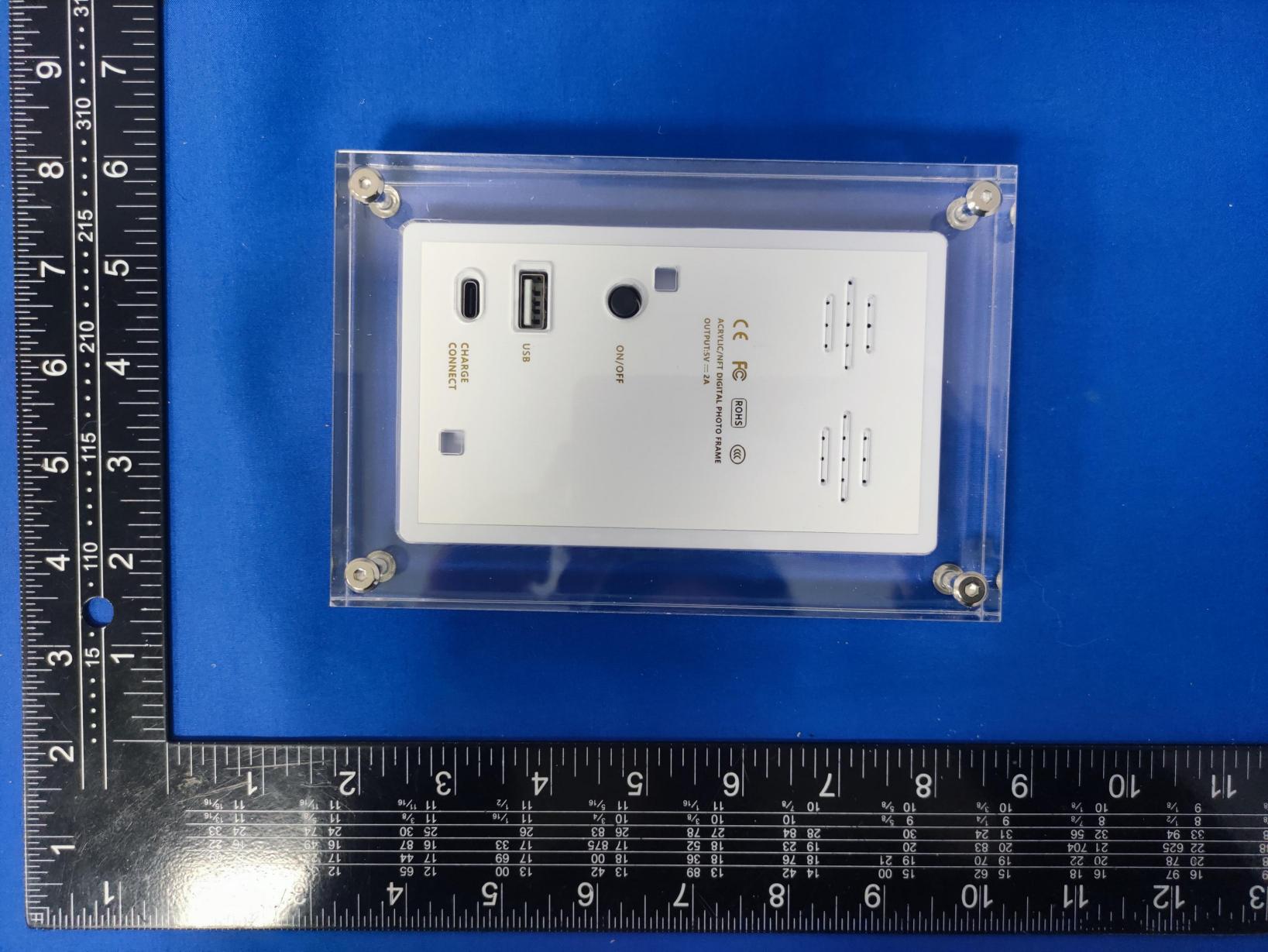

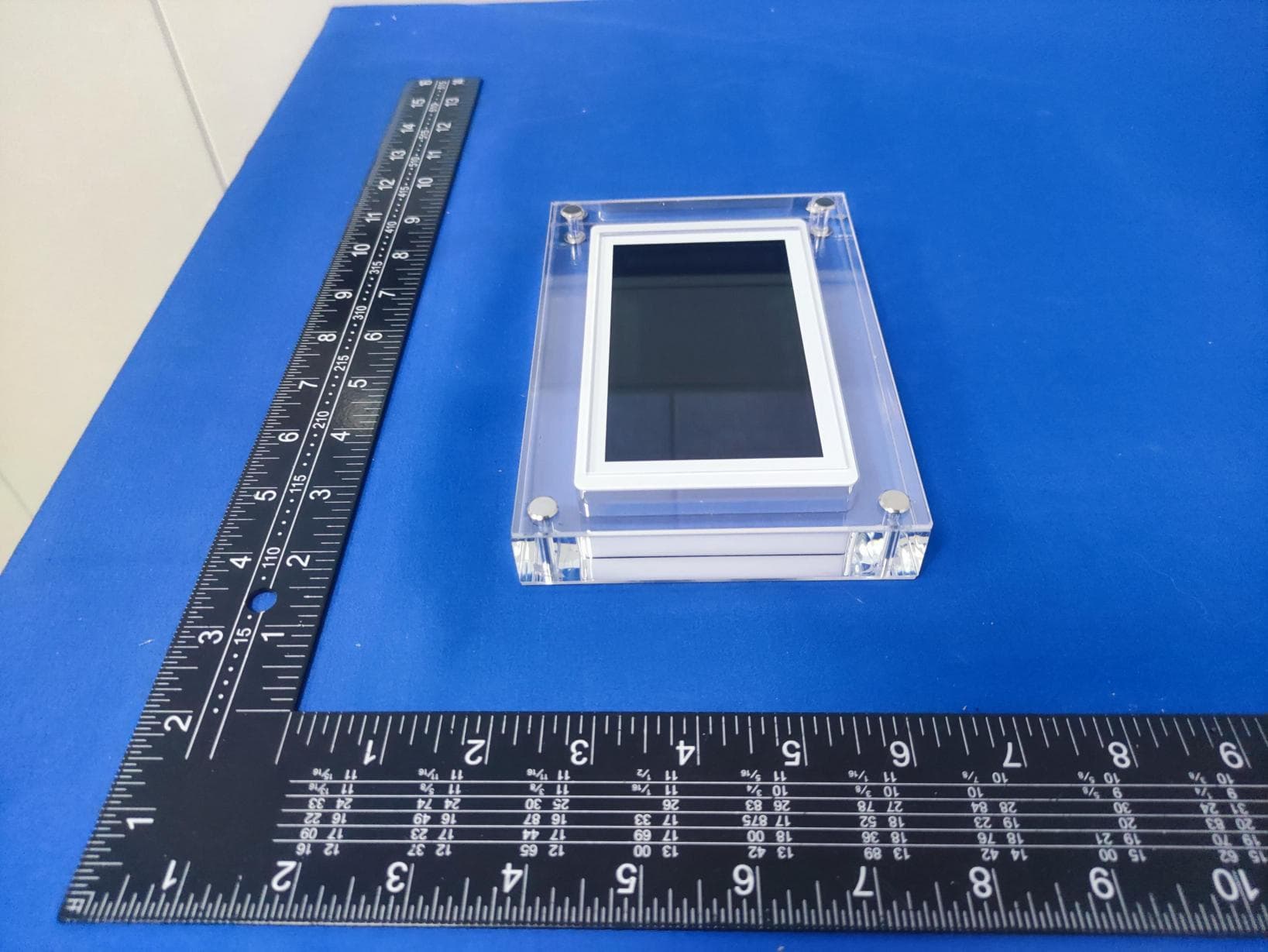

Page1of3ReportNo.:FCS20240132 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS20240132 Photo3 Photo4 Page3of3ReportNo.:FCS20240132 Photo5 Photo6

LabelandLabelLocation FCCID:2BENCGB-AR-WT500

Page1of5ReportNo.:FCS202401132 Internalphotos Photo1 Photo2 Page2of5ReportNo.:FCS202401132 Photo3 Internalantenna Photo4 Page3of5ReportNo.:FCS202401132 Photo5 Photo6 Page4of5ReportNo.:FCS202401132 Photo7 Photo8 Page5of5ReportNo.:FCS202401132 Photo9

Page1 of 2ReportNo.:FCS202401132 Flux ComplianceServiceLaboratory Room105 Floor Bao hao TechnologyBuilding1 NO.15Gong ye West Road Hi-TechIndustrial,Song shan lake Dongguan Tel: 769-27280901Fax:769-27280901http://www.FCS-lab.com FCC RF Exposure EUT Description:Acrylic wifi digital photo frame ModelNo.:GB-AR-WT500 Series Model:GB-AR-WT700, GB-AR-WT101 FCC ID: 2BENCGB-AR-WT500 Equipment type: Mobile Test procedures according to the technical standards: KDB 447498 D01 V06 andFCC 2.1091. 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) F = frequencyin MHz Formula:Pd = (Pout*G)/(4*π*r 2 ) Where: Pd = powerdensityin mW/cm 2 , Pout= outputpowerto antennain mW; G = gain of antennain linearscale, π= 3.14; R = distancebetweenobservationpointand centerof the radiatorin cm Pd id the limit of MPE,1 mW/cm2.If we knowthe maximumgain of the antennaand the total powerinputto the antenna,throughthe calculation,we will knowthe distancer wherethe MPE limit is reached. 2. Test Procedure Page2of2ReportNo.:FCS202401132 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleand highestchannelindividually. 3.TestResultofRFExposureEvaluation Modulation Channel Freq. (MHz) Conduct edpower (dBm) Max tune-up power (mW) Antenna Gain (dBi) Antenna gainnumeric Evaluation result (mW/cm2) Power density Limits (mW/cm2) 802.11b 241212.4817.701.821.520.00535501 243710.7711.941.821.520.00361241 246212.9319.631.821.52 0.0059390 1 802.11g 241211.2713.401.821.52 0.0040541 1 24379.829.601.821.52 0.0029044 1 246211.7214.861.821.520.00449581 802.11n 241211.2313.271.821.52 0.0040148 1 24379.929.821.821.52 0.0029710 1 246211.8215.201.821.52 0.0045987 1 Conclusion:themaxresult:0.0059390≤1.0compliancewithFCC'sRFExposure.

AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第1页共6页 德元科技技术(深圳)有限公司 DeyuanTechnology(Shenzhen)Co.,LTD 产品规格书 ProductSpecification 产品名称 ProductNumber 2.4G&5.8GPCB内置天线 编号 SerialNumber 2021041601 产品型号 ProductType AP477-2.4&5.8G-1I185-1.13 版本号 VersionNumber 1.0 物料编码 MaterielNumber 变更履历表 DescriptionRecord 序号 NO: 版本号 Versionnumber 更改前描述 DescriptionBeforeModification 更改后描述 DescriptionAfterModification 日期 Date 1 1.0 初始新建 2021.04.16 备注： 德元科技技术(深圳)有限公司 Tel:0755-29015125 Email:[email protected]@delincomm.com https://wwww.delincomm.com AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第2页共6页 ■外观精美 ■体积小 ■全天侯工作 ■低驻波、抗干扰 DesignSpecificationsTypical 天线形式 2.4G&5.8GPCB内置天线 工作频率(WorkingFrequency) 2400-2500/5150-5850MHz 增益(Gain) >1.0dBi 天线效率(Antennaefficiency) 40% 电压驻波比(VSWR) ≤2.0 极化方式(Ploriaztion) 垂直 辐射方向(Radiationpattern) 全向 馈电阻抗(Impedance) 50Ω 功率容量( PowerCapacity ) 3W 天线接口(Interface) IPEXI代 天线尺寸(Overaldimensions) 47*7mm 重量(Weight) ≤10g 工作温度(OperatinTemp) -40°C~80°C 储存温度(StoringTemp) -45°C~85°C AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第3页共6页 四、增益效率测试数据 五、驻波比测试图 AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第4页共6页 AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第5页共6页 AP477-2.4&5.8G-1I185-1.13Datasheet https://www.delincomm.com 第6页共6页

Page 34 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com 7RADIATEDEMISSIONMEASUREMENT 7.1RADIATEDEMISSIONLIMITS Inany100kHzbandwidthoutsidetheoperatingfrequencyband.Incasetheemissionfallwithin theRestrictedbandspecifiedonPart15.205(a)&209(a)limitinthetableandaccordingtoANSI C63.10-2013belowhastobefollowed LIMITSOFRADIATEDEMISSIONMEASUREMENT(0.009MHz-1000MHz) Frequencies (MHz) FieldStrength (micorvolts/meter) MeasurementDistance (meters) 0.009~0.4902400/F(KHz)300 0.490~1.70524000/F(KHz)30 1.705~30.03030 30~881003 88~2161503 216~9602003 Above9605003 LIMITSOFRADIATEDEMISSIONMEASUREMENT(1GHz-25GHz) FREQUENCY(MHz) (dBuV/m)(at3M) PEAKAVERAGE Above10007454 Notes: (1)ThelimitforradiatedtestwasperformedaccordingtoFCCPART15C. (2)Thetighterlimitappliesatthebandedges. (3)Emissionlevel(dBuV/m)=20logEmissionlevel(uV/m). ForRadiatedEmission SpectrumParameterSetting AttenuationAuto DetectorPeak/AV StartFrequency1000MHz(Peak/AV) StopFrequency10thcarrierhamonic(Peak/AV) RB/VB(emissioninrestricted band) PK=1MHz/1MHz,AV=1MHz/10Hz ForBandedge SpectrumParameterSetting DetectorPeak/AV Start/StopFrequency LowerBandEdge:2300to2403MHz UpperBandEdge:2479to2500MHz RB/VB(emissioninrestrictedband)PK=1MHz/1MHz,AV=1MHz/10Hz Page 35 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com ReceiverParameterSetting AttenuationAuto Start~StopFrequency9kHz~90kHz/RB200HzforPK&AV Start~StopFrequency90kHz~110kHz/RB200HzforQP Start~StopFrequency110kHz~490kHz/RB200HzforPK&AV Start~StopFrequency490kHz~30MHz/RB9kHzforQP Start~StopFrequency30MHz~1000MHz/RB120kHzforQP 7.2TESTPROCEDURE a.Themeasuringdistanceofat3mshallbeusedformeasurementsatfrequency0.009MHzup to1GHz,andabove1GHz. b.TheEUTwasplacedonthetopofarotatingtable0.8meters(above1GHzis1.5m)abovethe groundata3meteranechoicchambertestsite.Thetablewasrotated360degreesto determinethepositionofthehighestradiation. c.Theheightoftheequipmentshallbe0.8m(above1GHzis1.5m);theheightofthetest antennashallvarybetween1mto4m.horizontalandverticalpolarizationsoftheantennaare settomakethemeasurement. d.Theinitialstepincollectingconductedemissiondataisaspectrumanalyzerpeakdetector modepre-scanningthemeasurementfrequencyrange.Significantpeaksarethenmarkedand thenQuasiPeakdetectormodere-measured. e.IfthePeakModemeasuredvaluecompliancewithandlowerthanQuasiPeakModeLimit,the EUTshallbedeemedtomeetQPLimitsandthennoadditionalQPModemeasurement performed. f.Fortheactualtestconfiguration,pleaserefertotherelatedItem–EUTTestPhotos. Note: Bothhorizontalandverticalantennapolaritiesweretested andperformedpretesttothreeorthogonalaxis.Theworstcaseemissionswerereported Page 36 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com 7.3TESTSETUP （A）RadiatedEmissionTest-UpFrequencyBelow30MHz （ B ） RadiatedEmissionTest-UpFrequency30MHz~1GHz Page 37 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com （ C ） RadiatedEmissionTest-UpFrequencyAbove1GHz Page 38 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com 7.4.TESTRESULTS (9KHz-30MHz) Temperature:22.7°CRelativeHumidity:61% TestVoltage:DC5VTestMode:802.11b Freq.ReadingLimitMarginState TestResult (MHz)(dBuV/m)(dBuV/m)(dB)P/F ----------PASS ----------PASS Note: Theamplitudeofspuriousemissionswhichareattenuatedbymorethan20dBbelowthe permissiblevaluehasnoneedtobereported. Distanceextrapolationfactor=40log(specificdistance/testdistance)(dB); Limitline=specificlimits(dBuv)+distanceextrapolationfactor. Page 39 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com (30MHz-1000MHz) Temperature:24.7°CRelativeHumidity:61% TestVoltage:DC5VPhase:Horizontal TestMode:802.11b(worst) No.FrequencyReadingCorrectResultLimitMarginRemark (MHz)(dBuV)Factor(dB/m)(dBuV/m)(dBuV/m)(dB) 1 33.211245.66-9.3436.3240.00-3.68 QP 2 52.025146.72-18.5428.1840.00-11.82 QP 3 75.711462.01-32.1529.8640.00-10.14 QP 4 153.200473.70-32.1241.5843.50-2.92 QP 5 504.706274.60-31.2943.3146.00-2.69 QP 6 1000.00061.34-30.6030.7454.00-23.26 QP Note:1.Margin=Result(Result=Reading+Factor)–Limit 2.IfPeakResultcomplieswithQPlimit,QPResultisdeemedtocomplywithQPlimit. 3.Testsetup:RBW:120kHz,VBW:300kHz,Sweeptime:auto. Page 40 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com Temperature:22.7 °C RelativeHumidity:61% TestVoltage:DC5VPhase:Vertical TestMode:802.11b(worst) No.FrequencyReadingCorrectResultLimitMarginRemark (MHz)(dBuV)Factor(dB/m)(dBuV/m)(dBuV/m)(dB) 1 33.680234.42-9.6524.7740.00-15.23 QP 2 76.780853.55-32.1521.4040.00-18.60 QP 3 153.200459.57-32.1227.4543.50-16.05 QP 4 216.782869.01-32.0236.9946.00-9.01 QP 5 344.385560.77-31.7729.0046.00-17.00 QP 6 758.040864.97-30.8734.1046.00-11.90 QP Note:1.Margin=Result(Result=Reading+Factor)–Limit 2.IfPeakResultcomplieswithQPlimit,QPResultisdeemedtocomplywithQPlimit. 3.Testsetup:RBW:120kHz,VBW:300kHz,Sweeptime:auto. Page 41 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:…

Text truncated - open the document above for the full version.

FCCTestReport ReportNo:FCS202401132W01 Issuedfor Applicant: ShenzhenGBZKElectronicsCo.,Ltd Address: NO504ofBuildingD,ShenchanggangInvestmentindustrial park,No8Jinlong1stRoad,BaolongCommunity,Baolong Street.LonggangDistrict,Shenzhen city.518116.GuangdongProvince.CN ProductName: Acrylicwifidigitalphotoframe BrandName: N/A ModelName: GB-AR-WT500 SeriesModel: GB-AR-WT700,GB-AR-WT101 FCCID: 2BENCGB-AR-WT500 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com Page 2 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com TESTRESULTCERTIFICATION Applicant’sName......................: ShenzhenGBZKElectronicsCo.,Ltd Address......................................: NO504ofBuildingD,ShenchanggangInvestmentindustrial park,No8Jinlong1stRoad,BaolongCommunity,Baolong Street.LonggangDistrict,Shenzhencity.518116.Guangdong Province.CN Manufacture'sName ................ : ShenzhenGBZKElectronicsCo.,Ltd Address ...................................... : NO504ofBuildingD,ShenchanggangInvestmentindustrial park,No8Jinlong1stRoad,BaolongCommunity,Baolong Street.LonggangDistrict,Shenzhencity.518116.Guangdong Province.CN ProductDescription ProductName...........................:Acrylicwifidigitalphotoframe ModelName..............................:N/A BrandName ............................. :GB-AR-WT500 SeriesModel .............................. :GB-AR-WT700,GB-AR-WT101 TestStandards..........................:FCCPart15.247 TestProcedure .......................... :ANSIC63.10-2013 ThisdevicedescribedabovehasbeentestedbyFluxComplianceServiceLaboratory,thetest resultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements.Andit isapplicableonlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFluxCompliance ServiceLaboratory,thisdocumentmaybealteredorrevisedbyFluxComplianceService Laboratory,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest .................................. : Date(s)ofperformanceoftests . :Jan12,2024~Feb1,2024 DateofIssue.................................:Feb1,2024 TestResult....................................:Pass Testedby: (ScottShen) Reviewedby: (DukeQian) Approvedby: (JackWang) Page 3 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS...........................................................................................6 1.1TESTFACTORY............................................................................................................7 1.2MEASUREMENTUNCERTAINTY.................................................................................7 2.GENERALINFORMATION...................................................................................................8 2.1GENERALDESCRIPTIONOFTHEEUT.......................................................................8 2.2BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED............10 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS...............11 2.4EQUIPMENTSLIST.....................................................................................................12 3.6DBBANDWIDTH...............................................................................................................13 3.1Limit..................................................................................................................................13 3.2TestProcedure.................................................................................................................13 3.3Testsetup.........................................................................................................................13 3.4Testresults.......................................................................................................................14 4CONDUCTEDOUTPUTPOWER.........................................................................................18 4.1limit...............................................................................................................................18 4.2testprocedure...............................................................................................................18 4.3TESTSETUP...............................................................................................................18 4.5testresults....................................................................................................................18 5.POWERSPECTRALDENSITY...........................................................................................19 5.1LIMIT............................................................................................................................19 5.2TESTPROCEDURE.....................................................................................................19 5.3TESTSETUP..............................................................................................................19 5.4TESTRESULTS...........................................................................................................20 5.5originaltestdata...........................................................................................................21 6.Bandedgeandspurious(conducted)...............................................................................26 6.1LIMIT............................................................................................................................26 6.2TESTPROCEDURE.....................................................................................................26 6.3TESTSE…

Text truncated - open the document above for the full version.

Page 18 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com 4CONDUCTEDOUTPUTPOWER 4.1limit Forsystemsusingdigitalmodulationinthe902-928MHz,2400-2483.5MHz,and5725-5850MHz bands:1Watt.Iftransmittingantennasofdirectionalgaingreaterthan6dBiareused,the conductedoutputpowerfromtheintentionalradiatorshallbereducedbelowthestatedvaluesas appropriate,bytheamountindBthatthedirectionalgainoftheantennaexceeds6dBi. 4.2testprocedure a. ConnecteachEUT’santennaoutputtopowersensorbyRFcableandattenuator b. MeasurethePKoutputpowerofeachantennaportbypowersensor. 4.3TESTSETUP 4.5testresults TestModeChannel(MHz) Result（dBm）Limit（dBm） Verdict 802.11b2412MHz12.4830Pass 802.11b2437MHz10.7730Pass 802.11b2462MHz12.9330Pass 802.11g2412MHz11.2730Pass 802.11g2437MHz9.8230Pass 802.11g2462MHz11.7230Pass 802.11n202412MHz11.2330Pass 802.11n202437MHz9.9230Pass 802.11n202462MHz11.8230Pass Page 19 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.FCS-lab.com 5.POWERSPECTRALDENSITY 5.1LIMIT Fordigitallymodulatedsystems,thepowerspectraldensityconductedfromtheintentionalradiatorto theantennashallnotbegreaterthan8dBminany3kHzbandduringanytimeintervalofcontinuous transmission. 5.2TESTPROCEDURE (1)ConnectEUT’santennaoutputtospectrumanalyzerbyRFcable. (2)Setthespectrumanalyzerasfollows: CenterfrequencyDTSChannelcenterfrequency RBW:3kHz≤RBW≤100kHz VBW:≥3RBW Span1.5timestheDTSbandwidth DetectorMode:Peak Sweeptime:auto TracemodeMaxhold (3)Allowthetracetostabilize,usethepeakmarkerfunctiontodeterminethemaximumamplitudelevel withintheRBW (4)Ifmeasuredvalueexceedslimit,reduceRBW(nolessthan3kHz)andrepeat. 5.3TESTSETUP Page 20 of51ReportNo.:FCS202401132W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndust…
