2BEVP-AGILWRPMIU301NBIoT Meter Interface Unit

NBIoT Meter Interface Unit M IU User Manual 1. Product Usage Non-magnetic remote transmission module (AGIL WRPMIU 301 ) integrates multiple functions into one, including data collection, precise measurement, two-way communication, data calculation and storage, etc. This module strictly follows 3GPP TS 36.101 and uses standardized NB-IoT base stations and integrated smart metering platforms for efficient and secure data interaction and centralized equipment control. 2. Working Principle AGIL WRPMIU 301 can gather metering signals from water meters using non-magnetic coils and other sensors, storing the accumulated readings in an MCU. This module has the capability to report these cumulative readings either by magnetic induction triggering or by actively sending them at pre-set time intervals. Subsequently, these data are displayed on a comprehensive meter reading platform through a specific application communication protocol. Conversely, the integrated meter reading platform can also transmit specific commands to the module on the water meter. 3. Packaging information and precautions 3.1 packing list Serial Number Name Quantity 1 Non-magnetic remote transmission module 1 piece 2 Battery compartment cover 1 3 Special tool for battery compartment cover 1 4 connecting nut 1 5 Sealing gasket 1 6 manual 1 serving 7 Infrared handheld machine 1 8 programmer 1 3.2 Storage and disposal after use This device should be stored in an environment of 0~55°C (avoid direct heating), otherwise it may affect the normal operation of the MCU inside the device; This device contains batteries, after the product is scrapped, it must be handed over to the relevant electronic product processing agency for recycling and unified processing to prevent environmental impact. M IU User Manual 4. Module Installation 4.1 Installation steps 1. Install AGIL WRPMIU 301 into the water meter buckle and align it with the fixing hole . 2. Tighten 1 stainless steel screw at the fixing hole . M IU User Manual 4.2 Installation site signal judgment The signal of the module installation position can be judged by the following two data: 1. CSQ: received signal strength; the larger the value, the better the signal. When the value is less than 10, it means that the MIU installation environment signal indicators are very poor, which will cause the MIU to frequently fail to upload data. (This data is used to judge on-site NB network performance) . 2. RSRP: Received signal energy; the larger the value, the better the signal. When the value is less than -105, it means the MIU installation environment signal index is very poor. (This data is used to judge on-site NB network performance) . two. Signal parameter range reference: 1. CSQ: signal strength, range 0-31, the larger the value, the better. 2. SNR: Signal-to-noise ratio, above 0, the bigger the better. 3. RSRP: Signal receiving power, -60 ~ -130dBm, -60 ~ -100dBm good. 4. ECL: Coverage level 0-2, 0 is excellent, 1 is average, and 2 is poor. M IU User Manual 5. On-site debugging 5.1 Instructions for parameter setting of new protocol for handheld console Enter the main interface of the software and click the "Parameter Settings" option, enter the password (the initial password is: 12345), and click the "ID Parameters" option to set the unique number, user table number and base table number. Click the "Internal Parameters" option to set the base, communication method, etc. 5.2 Handheld protocol parameter reading instructions Enter the main interface of the software and click the "Parameter Acquisition" option, and click the "Read Basic Data" option to obtain the device unique number, device number, firmware version and real-time data. Click the "Read Core Data" option to obtain device flow data and voltage values. You can use the left and right keys to turn pages up and down to determine the information you need. 6. Parameters and functions 6.1 Product parameters No. Item Description 1 Network type Cellular 2 Technology NB-IoT, conforms to 3GPP TS 36.101. 3 Frequency band Cat NB1/Cat NB2 M IU User Manual 4 Geographical coverage Global (SEA, Middle East, Brazil, Europe, US) 5 Transmit power 24dBm (class 5) max. 6 Receiver sensitivity CAT NB1/NB2: -114dBm 7 Data rate Cat NB1/NB2: Max. 127 kbps (DL), Max. 158.5 kbps (UL) 8 Power class Class 5 9 Antenna gain <2dBi 10 Operating Temperature -20°C to +55°C 11 Operating Humidity <95% RH Non-Condensing 12 Ingress protection IP68 13 Battery life 15 years (transmission interval, by default 1 time/day), 10 years (transmission interval is 3 times/day) 14 Power consumption < 1A 15 Standby mode <20uA 16 Transmission inrush current <329mA 17 MIU power consumption during transmission Data Sampling per times: ＜0.30uAh Data Report per times: <500 uAh 18 Battery nominal capacity 19Ah 19 Battery storage leakage <1% per year @ +25°C 6. 2 Functional Characteristics No. Item Description 1 Data reporting There are two data reporting methods: ① Magnetic attraction trigger report: Use a magnet to approach the transceiver module for about two seconds, then remove the magnet and wait for about 30 seconds, the module will report the data (if there is an indicator light, you can see that when the module is successfully triggered by magnet, the indicator light will flash quickly. When the module is reporting the data, the indicator. light will be on for a few seconds). ②Regular active reporting: The module will automatically report data at a specific time (default 0:00) , and report data M IU User Manual at intervals according to the set interval time. 2 Power management The module will monitor and report the battery voltage value in real time at the time of data reporting, and judge whether to generate an alarm signal according to the set value. 3 Measurement The module supports data acquisition methods such as non-magnetic coils. 4 Freeze data at intervals The module can store water consumption at intervals according to the set value , up to 96 data per day, and Up to…

Text truncated - open the document above for the full version.

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-04-02 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2BEVP-AGILWRPMIU301 To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the Part 15 Class B Digital and receivers that operate in the range between 30 and 960 MHz of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Signatory [Cheow Peng SOH, Senior Manager]

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-03-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2BEVP-AGILWRPMIU301 Applicant FRN: 0034829648 US Agent – Attestation Statement / Part 2.911(d)(7) ST Engineering Urban Solutions Ltd. certifies that, as of 2024-03-11, we have designated STE URS, Inc. to accept service of process on our behalf for FCC ID: 2BEVP-AGILWRPMIU301. ST Engineering Urban Solutions Ltd, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. STE URS, Inc accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of ST Engineering Urban Solutions Ltd. for FCC ID: 2BEVP-AGILWRPMIU301. Designated Agent Information: Company Name: STE URS, Inc U.S. Agent FRN: The agent for service of process does no other business with the FCC and does not have an FRN. Address: 1201 Seven Locks Road, Suite 360, Rockville, MD 20854. Contact Person: Edwin Tan Phone: 1 571-259-7093 Email: [email protected] Sincerely, Company: ST Engineering Urban Solutions Ltd. Designated Agent: STE URS, Inc Company Representative: Soh Cheow Peng Designated Agent Representative: Edwin Tan Signature: Signature:

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-04-02 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: 2BEVP-AGILWRPMIU301 To Whom It May Concern: ST Engineering Urban Solutions Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signatory [Cheow Peng SOH, Senior Manager]

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-04-02 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: 2BEVP-AGILWRPMIU301 To Whom It May Concern: ST Engineering Urban Solutions Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Cheow Peng SOH, Senior Manager]

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-04-02 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2BEVP-AGILWRPMIU301 POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, ST Engineering Urban Solutions Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Cheow Peng SOH, Senior Manager]

ST Engineering Urban Solutions Ltd. 100 Jurong East Street 21. Singapore 609602 Date: 2024-04-02 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2BEVP-AGILWRPMIU301 Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☒ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☒ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐ For 45 days, pursuant to Public Notice DA 04-1705. or ☐ For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signatory [Cheow Peng SOH, Senior Manager]

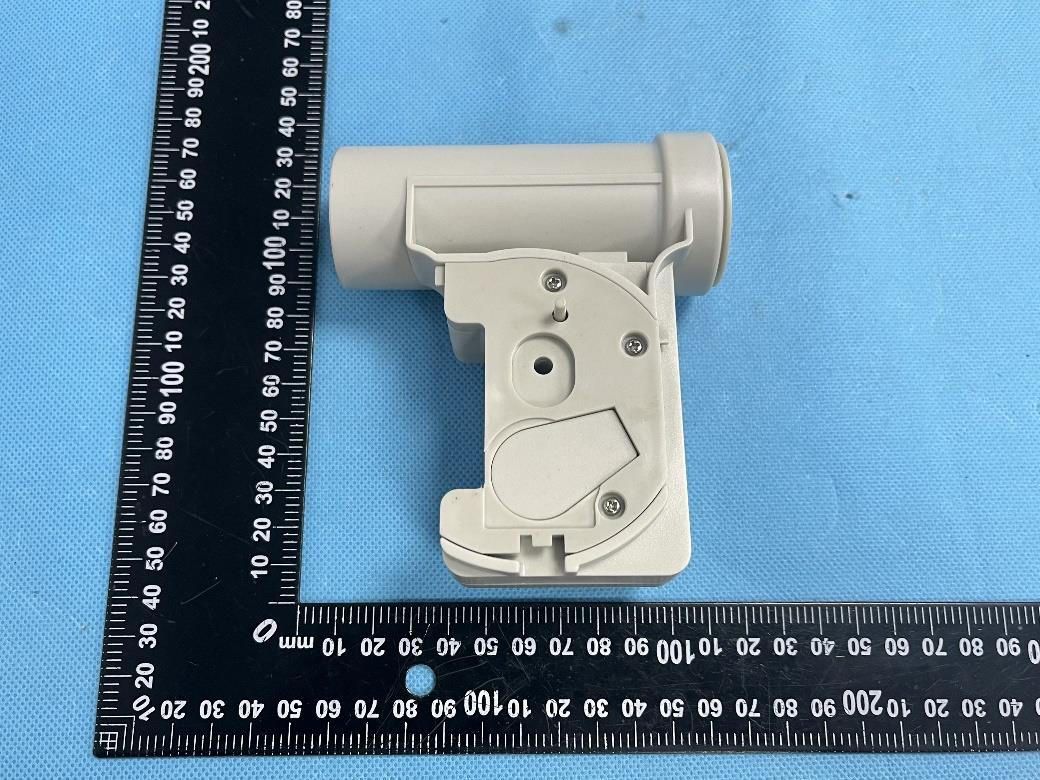

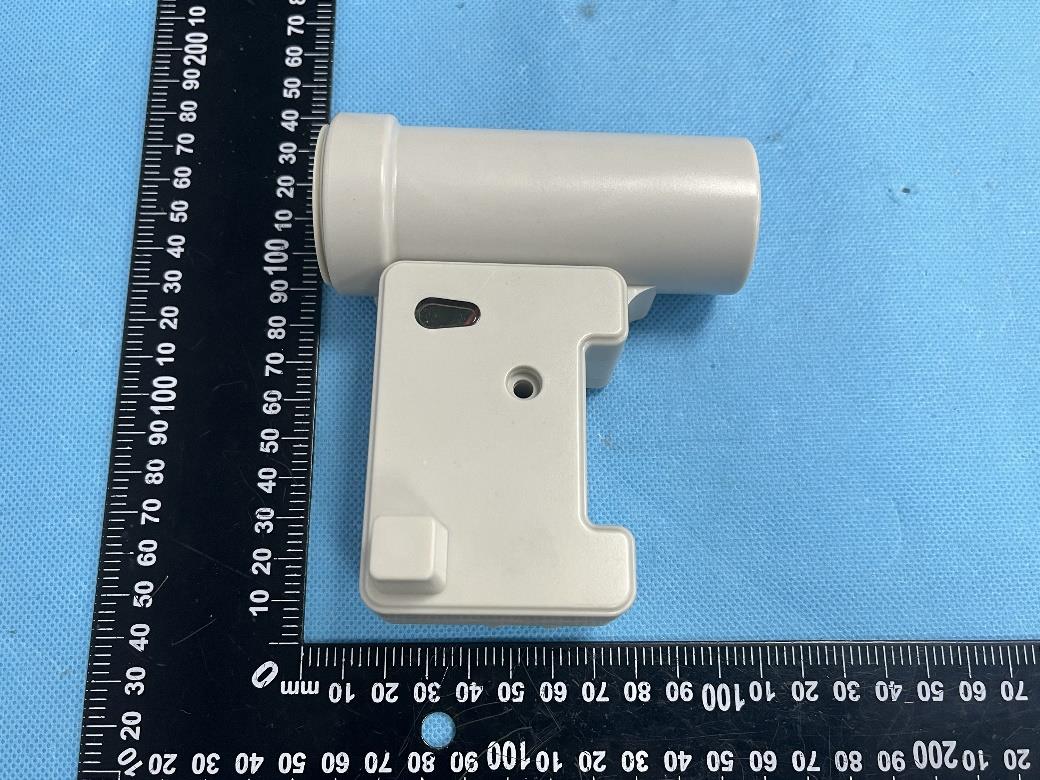

Reference No.: WTU24X01001033W Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTU24X01001033W Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTU24X01001033W Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTU24X01001033W Page 1 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2BEVP-AGILWRPMIU301 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTU24X01001033W Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTU24X01001033W Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTU24X01001033W Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTU24X01001033W Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTU24X01001033W Page 9 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View NB-IoT Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: ST Engineering Urban Solutions Ltd. Address of applicant: 100 Jurong East Street 21. Singapore 609602 Manufacturer: ZHEJIANG FONDA TECHNOLOGY CO.,LTD Address of manufacturer: 9TH FLOOR SHUYU BUILDING, NO.98 WENYI WEST ROAD, XIHU DISTRICT, HANGZHOU, ZHEJIANG, CHINA General Description of EUT: Product Name: NBIoT Meter Interface Unit Trade Name: AGIL Model No.: AGIL WRPMIU 301 Adding Model(s): / Rated Voltage: DC3.6V Battery: Built-in battery DC3.6V Battery: / Adapter Model: / FCC ID: 2BEVP-AGILWRPMIU301 Equipment Type: Mobile device Technical Characteristics of EUT: 4G Support Networks: FDD-LTE Support Band: FDD-LTE Band 2, 4, 5, 12, 13, 17, 25, 66 Uplink Frequency: FDD-LTE Band 2: Tx: 1850-1910MHz, FDD-LTE Band 4: Tx: 1710-1755MHz, FDD-LTE Band 5: Tx: 824-849MHz, FDD-LTE Band 12: Tx: 699-716MHz, FDD-LTE Band 13: Tx: 777-787MHz, FDD-LTE Band 17: Tx: 704-716MHz FDD-LTE Band 25: Tx: 1850-1915MHz FDD-LTE Band 66:Tx: 1710-1780MHz Downlink Frequency: FDD-LTE Band 2: Rx: 1930-1990MHz, FDD-LTE Band 4: Rx: 2110-2155MHz, FDD-LTE Band 5: Rx: 869-894MHz, FDD-LTE Band 12: Rx: 729-746MHz, FDD-LTE Band 13: Rx: 746-756MHz, FDD-LTE Band 17: Rx: 734-746MHz FDD-LTE Band 25: Rx: 1930-1995MHz FDD-LTE Band 66: Rx: 2110-2200MHz RF Output Power: FDD-LTE Band 2: 23.42dBm, FDD-LTE Band 4: 23.85dBm, FDD-LTE Band 5: 23.98dBm, FDD-LTE Band 12: 24.07dBm, FDD-LTE Band 13: 23.92dBm, FDD-LTE Band 17: 24.12dBm FDD-LTE Band 25: 23.63dBm, FDD-LTE Band 66: 24.08dBm Type of Emission: FDD-LTE Band 2: 177KG7D, 177KW7D FDD-LTE Band 4: 179KG7D, 179KW7D FDD-LTE Band 5: 178KG7D, 178KW7D FDD-LTE Band 12: 178KG7D, 178KW7D FDD-LTE Band13: 177KG7D, 177KW7D FDD-LTE Band 17: 177KG7D, 177KW7D FDD-LTE Band 25: 177KG7D, 177KW7D FDD-LTE Band 66: 179KG7D, 179KW7D Type of Modulation: BPSK, QPSK Antenna Type: Integral Antenna Antenna Gain: FDD-LTE Band 2: 4.18dBi, FDD-LTE Band 4: 3.5dBi, FDD-LTE Band 5: 3.12dBi, FDD-LTE Band 12: -1.52dBi, FDD-LTE Band 13: 2.90dBi, FDD-LTE Band 17: -1.52dBi FDD-LTE Band 25: 4.18dBi FDD-LTE Band 66: 3.68dBi Note: The Antenna Gain is provided by the customer and can affect the validity of results. 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Tune-up Power ERP (MHz) (dBm) (dBi) (dBm) (dBm) LTE Band 2 1850 23.42 4.18 24.00 26.03 LTE Band 4 1710 23.85 3.5 24.00 25.35 LTE Band 5 824 23.98 3.12 24.00 24.97 LTE Band 12 699 24.07 -1.52 24.50 20.83 LTE Band 13 777 23.92 2.90 24.00 24.75 LTE Band 17 704 24.12 -1.52 24.50 20.83 LTE Band 25 1850 23.63 4.18 24.00 26.03 LTE Band 66 1710 24.08 3.68 24.50 26.03 Radio Access Technology Option Min. Distance Max. Power Exposure Limit Ratio Result (cm) (dBm) (mW) (mW) Pass/Fail LTE Band 2 C 20.00 26.03 400.87 768.00 0.52 Pass LTE Band 4 C 20.00 25.35 342.77 768.00 0.45 Pass LTE Band 5 C 20.00 24.97 314.05 421.89 0.74 Pass LTE Band 12 C 20.00 20.83 121.06 357.89 0.34 Pass LTE Band 13 C 20.00 24.75 298.54 397.82 0.75 Pass LTE Band 17 C 20.00 20.83 121.06 360.45 0.34 Pass LTE Band 25 C 20.00 26.03 400.87 768.00 0.52 Pass LTE Band 66 C 20.00 26.03 400.87 768.00 0.52 Pass Note: 1. Tune-up time-average power = Tune-up Power - Duty cycle factor in dB 2. Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 3. Option A, B and C refers as clause 1.2. 4. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 5. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 6. Ratio= Tune-up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 46 TEST REPORT Reference No. .................... : WTU24X01001033W001 FCC ID ................................ : 2BEVP-AGILWRPMIU301 Applicant ........................... : ST Engineering Urban Solutions Ltd. Address ............................. : 100 Jurong East Street 21. Singapore 609602 Manufacturer ..................... : ZHEJIANG FONDA TECHNOLOGY CO.,LTD Address ............................. : 9TH FLOOR SHUYU BUILDING, NO.98 WENYI WEST ROAD, XIHU DISTRICT, HANGZHOU, ZHEJIANG, CHINA Product Name ................... : NBIoT Meter Interface Unit Model No... ......................... : AGIL WRPMIU 301 Standards .......................... : FCC Part 22,FCC Part 24E, FCC Part 27 Date of Receipt sample .... : 2024-01-02 Date of Test........................ : 2024-01-02 to 2024-02-05 Date of Issue ..................... : 2024-02-05 Test Report Form No. ....... : WTX_Part 22_ Part 24_ Part 27W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Jason Su Reference No.: WTU24X01001033W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 46 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 4 1.2 TEST STANDARDS ................................................................................................................................... 7 1.3 TEST METHODOLOGY .............................................................................................................................. 7 1.4 TEST FACILITY ........................................................................................................................................ 7 1.5 EUT SETUP AND TEST MODE .................................................................................................................. 8 1.6 MEASUREMENT UNCERTAINTY ................................................................................................................. 9 1.7 TEST EQUIPMENT LIST AND DETAILS ...................................................................................................... 10 2. SUMMARY OF TEST RESULTS ............................................................................................................. 13 3. RF OUTPUT POWER............................................................................................................................... 14 3.1 STANDARD APPLICABLE ......................................................................................................................... 14 3.2 TEST PROCEDURE ................................................................................................................................ 14 3.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 14 4. PEAK-TO-AVERAGE RATIO (PAR) OF TRANSMITTER ...................................................................... 20 4.1 STANDARD APPLICABLE ......................................................................................................................... 20 4.2 TEST PROCEDURE ................................................................................................................................ 20 4.3 SUMMARY OF TEST RESULTS ................................................................................................................. 20 5. EMISSION BANDWIDTH ......................................................................................................................... 21 5.1 STANDARD APPLICABLE ......................................................................................................................... 21 5.2 TEST PROCEDURE ................................................................................................................................ 21 5.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 21 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ....................................................................... 22 6.1 STANDARD APPLICABLE ......................................................................................................................... 22 6.2 TEST PROCEDURE ................................................................................................................................ 22 6.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 23 7. SPURIOUS RADIATED EMISSIONS ...................................................................................................... 24 7.1 STANDARD APPLICABLE ......................................................................................................................... 24 7.2 TEST PROCEDURE ................................................................................................................................ 24 7.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 24 8. FREQUENCY STABILITY ..................................................…

Text truncated - open the document above for the full version.

Reference No.: WTU24X01001033W001 Page 1 of 52 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix for NB-IOT Band 66 Product Name: NBIoT Meter Interface Unit Model No: AGIL WRPMIU 301 Reference No.: WTU24X01001033W001 Page 2 of 52 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix A: Average Power Output Data Test Result Band OpMode SCS BW Modulation Channel Tones Conducted POWER(dBm) Verdict Band 66 Stand-Al one 3.75kHz NaN BPSK 131973 1@0 23.75 PASS Band 66 Stand-Al one 3.75kHz NaN BPSK 131973 1@47 23.75 PASS Band 66 Stand-Al one 3.75kHz NaN BPSK 132322 1@0 23.85 PASS Band 66 Stand-Al one 3.75kHz NaN BPSK 132322 1@47 23.86 PASS Band 66 Stand-Al one 3.75kHz NaN BPSK 132671 1@0 24.04 PASS Band 66 Stand-Al one 3.75kHz NaN BPSK 132671 1@47 24.04 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 131973 1@0 23.75 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 131973 1@47 23.75 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 132322 1@0 23.17 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 132322 1@47 23.18 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 132671 1@0 23.16 PASS Band 66 Stand-Al one 3.75kHz NaN QPSK 132671 1@47 24.08 PASS Band 66 Stand-Al one 15kHz NaN BPSK 131973 1@0 23.76 PASS Band 66 Stand-Al one 15kHz NaN BPSK 131973 1@11 23.77 PASS Band 66 Stand-Al one 15kHz NaN BPSK 132322 1@0 23.20 PASS Band 66 Stand-Al one 15kHz NaN BPSK 132322 1@11 23.21 PASS Band 66 Stand-Al one 15kHz NaN BPSK 132671 1@0 22.98 PASS Reference No.: WTU24X01001033W001 Page 3 of 52 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Band 66 Stand-Al one 15kHz NaN BPSK 132671 1@11 22.99 PASS Band 66 Stand-Al one 15kHz NaN QPSK 131973 1@0 23.81 PASS Band 66 Stand-Al one 15kHz NaN QPSK 131973 1@11 23.38 PASS Band 66 Stand-Al one 15kHz NaN QPSK 131973 3@3 23.05 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132322 1@0 23.29 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132322 1@11 23.30 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132322 3@3 22.96 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132671 1@0 23.15 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132671 1@11 23.13 PASS Band 66 Stand-Al one 15kHz NaN QPSK 132671 3@3 22.79 PASS Reference No.: WTU24X01001033W001 Page 4 of 52 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.waltek.com.cn Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band OpMode SCS BW Modu Channel Tones Result (dBm) Limit (dBm) Verdict Band66 Stand-Alone 3.75kHz NaN BPSK 132322 1@0 8.49 <=13 PASS Band66 Stand-Alone 3.75kHz NaN BPSK 132322 1@47 0.46 <=13 PASS Band66 Stand-Alone 3.75kHz NaN QPSK 132322 1@0 0.64 <=13 PASS Band66 Stand-Alone 3.75kHz NaN QPSK 132322 1@47 0.72 <=13 PASS Band66 Stand…
