2BEVQWF-001Wireless HDMI Display Adapter

Press5sonthe buttontothe upgrademode. WirelessHDMIDisplayAdapter WirelessHDMIDisplayAdapter ModelNo WF-001 FCCStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassB digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequenceenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.ifthisequipmemtdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuser isencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanautletonacircuitdifferentfromthattowhichthe receiveris Con c s onnecte ultthed d e . a leroranexperiencedradio/TVtechnicianforhelp. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement,Thisequipment shouldbeinstalledandoperatedwithaminumumdistanceof20cmbetweentheradiator andyourbody.

Shenzhen Aidesichuang Technology Co., Ltd 2024-02-02 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BEVQWF-001) [Shenzhen Aidesichuang Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Hua Yang General manager Shenzhen Aidesichuang Technology Co., Ltd 1st Floor, Building Four, No. 355 Huarong Road,Tongsheng Community, Dalang Street, Longhua District, Shenzhen Shenzhen Aidesichuang Technology Co., Ltd 2024-02-02 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2BEVQWF-001) [Shenzhen Aidesichuang Technology Co., Ltd ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. S incerely, Hua Yang General manager Shenzhen Aidesichuang Technology Co., Ltd 1st Floor, Building Four, No. 355 Huarong Road,Tongsheng Community, Dalang Street, Longhua District, Shenzhen

AttestationStatements (2024/2/2) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(FCCID:2BEVQWF-001) (ShenzhenAidesichuangTechnologyCo.,Ltd),theundersigned,herebyauthorize （VISHTECLLC）toactasourdesignatedU.S.agentforserviceofprocess,(Shenzhen AidesichuangTechnologyCo.,Ltd )acceptstomaintainanagentfornolessthanone yearafterthegranteehasterminatedallmarketingandimportationortheconclusion ofanyCommission-relatedproceedinginvolvingtheequipment. （VISHTECLLC）acceptstheresponsibilitytoactasdesignatedU.S.agentforserviceof process. ApplicantInformation： CompanyName:ShenzhenAidesichuangTechnologyCo.,Ltd ContactName: HuaYang Address:1stFloor,BuildingFour,No.355HuarongRoad,TongshengCommunity,Dalang Street,LonghuaDistrict,Shenzhen FRN:0034834192 TelephoneNo:13632810058 Email:[email protected] Signature [HuaYang] U.S.AgentInformation: CompanyName: VISHTECLLC Address: 9888WBelleviewAveSte2142DenverCO80123 FRN: 0033407131 ContactName: AlanGraham TelephoneNo:（571）4007350 Email: [email protected] Signature [AlanGraham]

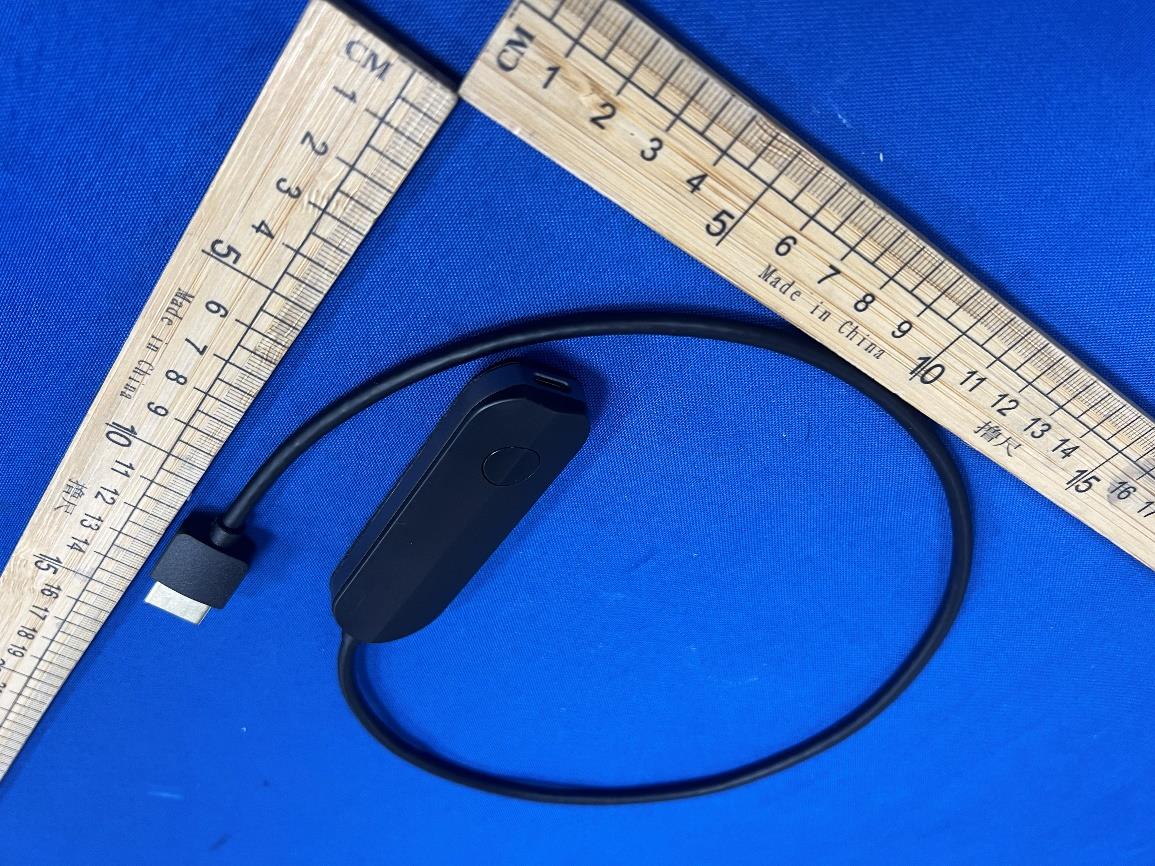

External

Shenzhen Aidesichuang Technology Co., Ltd Model No：WF-001 Input：DC 5V,500mA FCC ID: 2BEVQWF-001 Made in China

Internal 2.4GHz &5GHz WIFI Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2BEVQWF-001 EUT Specification EUT Wireless HDMI Display Adapter Model Number WF-001 Rating DC 5V Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power） IEEE 802.11b: 16.39 dBm IEEE 802.11g: 15.65dBm IEEE 802.11n-HT20: 15.88dBm 5180 MHz to 5240 MHz: 12.68dBm Antenna gain (Max) 2.4GHz WIFI: 3.04dBi 5.8G WIFI:2.22dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 , Pout=output power to antenna in Mw G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result 2.4GHz WIFI: Operation Mode Channel Number Channel Frequency (MHz) Measurement Level (dBm) Limit (dBm) Verdict 802.11b 1 2412 16.12 30 PASS 6 2437 16.32 30 PASS 11 2462 16.39 30 PASS 802.11g 1 2412 15.48 30 PASS 6 2437 15.62 30 PASS 11 2462 15.65 30 PASS 802.11n (HT20) 1 2412 15.68 30 PASS 6 2437 15.80 30 PASS 11 2462 15.88 30 PASS Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) 802.11b 1 16±1 17 50.119 3.04 2.014 0.020078 1 6 16±1 17 50.119 3.04 2.014 0.020078 1 11 16±1 17 50.119 3.04 2.014 0.020078 1 802.11g 1 15±1 16 50.119 3.04 2.014 0.015949 1 6 16±1 17 50.119 3.04 2.014 0.020078 1 11 16±1 17 50.119 3.04 2.014 0.020078 1 802.11n (HT20) 1 16±1 17 39.811 3.04 2.014 0.020078 1 6 16±1 17 39.811 3.04 2.014 0.020078 1 11 16±1 17 31.623 3.04 2.014 0.020078 1 5.8GHz WIFI: UNII-1: Operation Mode Channel Number Channel Frequency (MHz) Measurement Level (dBm) Limit (dBm) Verdict Ant1 802.11a 36 5180 11.86 24 PASS 40 5200 10.97 24 PASS 48 5240 11.58 24 PASS 11n HT20 36 5180 12.68 24 PASS 40 5200 12.57 24 PASS 48 5240 12.27 24 PASS Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/cm2) 802.11a 36 12±1 13 19.953 2.22 1.667 0.006618 1 40 11±1 12 15.849 2.22 1.667 0.005257 1 48 12±1 13 19.953 2.22 1.667 0.006618 1 802.11n HT20 36 13±1 14 25.119 2.22 1.667 0.008332 1 40 13±1 14 25.119 2.22 1.667 0.008332 1 48 12±1 13 19.953 2.22 1.667 0.006618 1 The Product unsupported at the same time to Transmitting. According to KDB 447498, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2024-01-29

Antenna specification sheet PRODUCT SPECIFICATION Customer: Shenzhen Yuhong Technology Co., Ltd Customer’s part number: ANT000074 Product description: 2.4G/5G Iron sheet antenna Manufacturer：Shenzhen Ruibotai Technology Co., Ltd 1、 产品技术指标（PRODUCT TECHNICAL SPECIFICAT ION） 电性能指标Electrical S pecifications 频率范围Frequency Range (MHz) 2400-2500/5150-5350/5700-5850 频带宽度Bandwidth (MHz) 2.4G：100 5G：350 输入阻抗Input Impendence (Ω) 50 电压驻波比V.S.W.R ≤2.0 增益Gain (dBi) 2.4G：<3.04 5.1G：<2.22 极化形式Polarization Type 垂直Vertical 机械指标Mechanical Specifications 天线长度Antenna Length (mm) 21.5*3.5*4.5mm 辐射体Radiator Nickel plating on steel sheets 连接器型号Connect Type DIP 工作温度Working Temp(°C) -20~90 储藏温度Storage Temperature(°C) -40~95 外壳颜色Radome Color 银色silvery 重量Weight (g) 0.5 Product Introduction This antenna is designed and produced specifically for wireless built-in antenna devices. The antenna has the advantages of beautiful appearance, compact structure, and convenient installation. The material is made of stainless steel plated with nickel, with sufficient hardness. 2、 产品图片（ PRODUCT PICTURE） 3、产品规 格图(PRODUCT SPECIFICATION CHART) 4、驻波图（STATIONARY WAVE PATTERN） 5.增益效率值：Gain efficiency value: 6.场型图 Field plot

1 / 43 Appendix B 7.1 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 16.12 0 16.12 30 Pass NVNT b 2437 Ant1 16.32 0 16.32 30 Pass NVNT b 2462 Ant1 16.39 0 16.39 30 Pass NVNT g 2412 Ant1 15.48 0 15.48 30 Pass NVNT g 2437 Ant1 15.62 0 15.62 30 Pass NVNT g 2462 Ant1 15.65 0 15.65 30 Pass NVNT n20 2412 Ant1 15.68 0 15.68 30 Pass NVNT n20 2437 Ant1 15.8 0 15.8 30 Pass NVNT n20 2462 Ant1 15.88 0 15.88 30 Pass 2 / 43 7.2 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 10.03 0.5 Pass NVNT b 2437 Ant1 10.04 0.5 Pass NVNT b 2462 Ant1 10.04 0.5 Pass NVNT g 2412 Ant1 16.34 0.5 Pass NVNT g 2437 Ant1 16.33 0.5 Pass NVNT g 2462 Ant1 16.34 0.5 Pass NVNT n20 2412 Ant1 17.59 0.5 Pass NVNT n20 2437 Ant1 17.6 0.5 Pass NVNT n20 2462 Ant1 17.59 0.5 Pass 3 / 43 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 4 / 43 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 5 / 43 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 6 / 43 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 7 / 43 -6dB Bandwidth NVNT n20 2462MHz Ant1 8 / 43 7.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -14 0 -14 8 Pass NVNT b 2437 Ant1 -13.5 0 -13.5 8 Pass NVNT b 2462 Ant1 -13.27 0 -13.27 8 Pass NVNT g 2412 Ant1 -20.66 0 -20.66 8 Pass NVNT g 2437 Ant1 -19.89 0 -19.89 8 Pass NVNT g 2462 Ant1 -18.78 0 -18.78 8 Pass NVNT n20 2412 Ant1 -19.91 0 -19.91 8 Pass NVNT n20 2437 Ant1 -19.93 0 -19.93 8 Pass NVNT n20 2462 Ant1 -19.81 0 -19.81 8 Pass 9 / 43 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 10 / 43 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 11 / 43 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 12 / 43 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 13 / 43 PSD NVNT n20 2462MHz Ant1 14 / 43 7.4 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -34.45 -20 Pass NVNT b 2462 Ant1 -51.14 -20 Pass NVNT g 2412 Ant1 -36.08 -20 Pass NVNT g 2462 Ant1 -41.54 -20 Pass NVNT n20 2412 Ant1 -44.97 -20 Pass NVNT n20 2462 Ant1 -45.35 -20 Pass 15 / 43 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission 16 / 43 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission 17 / 43 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission 18 / 43 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission 19 / 43 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission 20 / 43 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission 21 / 43 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -44.52 -20 Pass NVNT b 2437 Ant1 -45.42 -20 Pass NVNT b 2462 Ant1 -46.42 -20 Pass NVNT g 2412 Ant1 -45.31 -20 Pass NVNT g 2437 Ant1 -46.96 -20 Pass NVNT g 2462 Ant1 -46 -20 Pass NVNT n20 2412 Ant1 -46.01 -20 Pass NVNT n20 2437 Ant1 -46.03 -20 Pass NVNT n20 2462 Ant1 -44.89 -20 Pass 22 / 43 Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission 23 / 43 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission 24 / 43 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission 25 / 43 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission 26 / 43 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission 27 / 43 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission 28 / 43 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission 29 / 43 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission 30 / 43 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission 31 / 43 7.5 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Final settingFor VBW (kHz) NVNT b 2412 Ant1 8.39 8.45 99.29 0 0.12 1 NVNT b 2437 Ant1 8.39 8.45 99.29 0 0.12 1 NVNT b 2462 Ant1 8.39 8.45 99.29 0 0.12 1 NVNT g 2412 Ant1 1.39 1.46 95.21 0.21 0.72 1 NVNT g 2437 Ant1 1.39 1.46 95.21 0.21 0.72 1 NVNT g 2462 Ant1 1.39 1.46 95.21 0.21 0.72 1 NVNT n20 2412 Ant1 5.08 5.15 98.64 0 0.2 1 NVNT n20 2437 Ant1 5.09 5.15 98.83 0 0.2 1 NVNT n20 2462 Ant1 5.08 5.15 98.64 0 0.2 1 32 / 43 8. RADIATED TEST RESULTS The data of the mode (802.11b 2412MHz) are recorded in the following pages. The worst result as bellow: DateTime: 2024-01-25 22:36:59 Mode: FCC 2.4G WIFI 2412MHz Power: DC 5V TE: Vier Date: 2024-01-25 Humiture: 24°C 55% Barometric Pessure 101.5 Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 215.270 31.19 -21 10.19 43.50 33.31 PK+ V 2 400.540 30.71 -13.92 16.79 46.00 29.21 PK+ V 3 557.680 30.72 -10.16 20.56 46.00 25.44 PK+ V 4 744.890 30.73 -7.17 23.56 46.00 22.44 PK+ V 5 832.190 30.79 -5.83 24.96 46.00 21.04 PK+ V 6 944.710 30.03 -3.33 26.70 46.00 19.30 PK+ V 33 / 43 DateTime: 2024-01-25 22:36:13 Mode: FCC 2.4G WIFI 2412 Power: DC 5V TE: Vier Date: 2024-01-25 Humiture: 24°C 55% Barometric Pessure 101.5 Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 405.390 30.61 -13.71 16.90 46.00 29.10 PK+ H 2 547.980 29.94 -9.82 20.12 46.00 25.88 PK+ H 3 634.310 30.78 -8.93 21.85 46.00 24.15 PK+ H 4 741.010 31.02 -7.05 23.97 46.00 22.03 PK+ H 5 844.800 31.47 -5.79 25.68 46.00 20.32 PK+ H 6 979.630 30.87 -3.61 27.26 53.90 26.64 PK+ H Note: 1. Result Level = Read Level+ Antenna Factor+ Cable Loss- Amp. Factor 34 / 43 Above 1000MHz~10 th Harmonics…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DTS) TEST REPORT For Wireless HDMI Display Adapter MODEL NUMBER: WF-001, WF-002, WF-003, WF-004, WF-005, WF-006, WF-007, WF- 008 REPORT NUMBER: E04A24010839F00101 ISSUE DATE: Jan. 29, 2024 FCC ID: 2BEVQWF-001 Prepared for Shenzhen Aidesichuang Technology Co., Ltd 1st Floor, Building Four, No. 355 Huarong Road,Tongsheng Community, Dalang Street, Longhua District, Shenzhen Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A24010839F00101 Page 2 of 33 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 Jan. 29, 2024 Initial Issue Jok REPORT NO.: E04A24010839F00101 Page 3 of 33 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A24010839F00101 Page 4 of 33 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM AVERAGE EIRP ..................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth ........................................................................................................ 14 7.3. Power Spectral Density ........................................................................................... 15 7.4. Conducted Band edge and spurious emission ........................................................ 16 7.5. Duty Cycle .............................................................................................................. 18 8. RADIATED TEST RESULTS ............................................................................................... 19 9. ANTENNA REQUIREMENT ................................................................................................ 24 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 25 11. TEST DATA ............................................................................................................ 28 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ..................................................... 29 APPENDIX: PHOTOGRAPHS OF THE EUT .............................................................................. 31 REPORT NO.: E04A24010839F00101 Page 5 of 33 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Shenzhen Aidesichuang Technology Co., Ltd Address: 1st Floor, Building Four, No. 355 Huarong Road,Tongsheng Community, Dalang Street, Longhua District, Shenzhen Manufacturer Information Company Name: Shenzhen Aidesichuang Technology Co., Ltd Address: 1st Floor, Building Four, No. 355 Huarong Road,Tongsheng Community, Dalang Street, Longhua District, Shenzhen EUT Information EUT Name: Wireless HDMI Display Adapter Model: WF-001 Brand: N/A Sample Received Date…

Text truncated - open the document above for the full version.

AC Power Line Conducted Emission Radiated emissions below 1GHz Radiated emissions above 1GHz
