2BEWM-FFUNITY1915Farmfit Unity

User Manual. System instalation Your calf today is your future cow Alerts and notifications of core body temperatures from each bolus right to your phone. ✓ Early diagnosis of calf illness ✓ Work-flow and labor optimization ✓ Full traceability of animals and interventions ✓ Improve animal comfort ✓ Around the clock monitoring Know your herd inside and out User Manual. System installation User Manual. System installation To install the Farmfit® system you will need the following things: Unity Gateway An Industrial Gateway will come packaged with these items. • Gateway • Power Cable • 2.4GHz Antenna • Cat-5 Ethernet Cable • Zip Ties • Mounting Hardware • An equipment location site plan developed during the site survey. A copy of the site survey should be included with the equipment package. If not, contact a Farmfit® or ST representative. Before beginning installation, open the equipment package andinspect the contents. Each package will have a minimum of 1 of each of the following items. • An equipment package. The equipment package should include all hardware that needs to be installed. • Tools User Manual. System installation 865/900 MHz Directional Antenna Unity Collector A Collector kit will come packaged with these items. • Collector • Power Cable • 2.4GHz Antenna • 865/900 MHz Directional Antenna • Brackets • Zip Ties • Mounting Hardware • Mounting bracket User Manual. System installation Bolus Boluses* are shipped in boxes of 100 units. (depending on the size of the facility) *Operate on 865/900 MHz GFSK Additional itemsNecessary Tools Installation Instructions Begin by consulting the equipment location site plan and matching the items in the equipment package with the equipment locations in the plan. Make sure that all of the necessary pieces have been allocated for the locations in the site plan. If there are any pieces missing, consult an Farmfit® or ST representative to obtain the missing pieces. You will need the following tools to install the equipment. • Cordless drill • Ladder (Sft.) • Phillips head screwdriver/bit • 5/16" Hex head driver/bit • 1/4" Hex head driver/bit • Side cutter • 1/8" Drill bit The equipment package may come with additional pieces not discussed above. These can be items such as Gateway Range Extenders or Solar Powered Collectors. These items, as well as their necessary locations, will be called out specifically in the Equipment Location Site plan. It is important to note that these items are specialty case use and may or may not be included in your equipment package. The first item that needs to be installed is the Industrial Gateway. There should be a location marked on the site plan for this with notes for where to mount the device and any special considerations that should be taken for the system to operate optimally User Manual. System installation •Step 4. Connect one end of the Cat-5 Network Cable to the network port on the Gateway. •Step 5. Connect the other end of the Cat-5 Network Cable to an open network port on the facility’s existing Internet network. An empty port on a router or switch is sufficient, as long as it has Internet connection. •Step 6. Plug the included power supply into an open outlet. •Step 7. Plug the power supply’s barrel connection into the power port on the Gateway. Please use only the power adaptor provided with the equipment or an equivalent external power source rated at less than 100 W and classified as PS2 according to IEC/EN 62368-1. •Step 8. Use the included cable ties to secure the Network cable and Power cable out of the way if necessary. Once the Gateway is in place and activated, begin installing the Collectors. The locations for these will be marked on the equipment location site plan. If applicable, the site plan will have notes for each collector location that will detail specific instructions that will need to be followed to obtain satisfactory performance from the system. CAUTION: Failure to follow these instructions may result Inpoor system performance. Every effort should be taken to adhere to these specific notes, where applicable, to ensure proper system performance. The following steps should be followed for each Collector being Installed. •Step 3. Attach the 2.4GHz Antenna to the Gateway by screwing it on. Once it is snugly threaded on, rotate the antenna and bend it if necessary so that it is perpendicular to the ground. •Step 2. If mounting to a wall, use the included wall anchors by marking the mounting hole locations on the gateway, drilling a 1/8” hole in each location, and inserting the anchors into the holes. Then use the phillips head screws to attach the Gateway to the wall. •Step 1. Mount the Gateway in the location specified in the site plan. If no location is specified, locate the Gateway near enough to the internet connection point specified in the site plan that the included Cat-5 Network Cable will reach, and close enough to an outlet that the included power can also reach. Gateway Set Up Model : FFUNITY1915 User Manual. System installation Collector Installation Model : FCUNITY1915 •Step 1. consult the site plan, and any installation notes to identify the Collector location. •Step 2. Attach the appropriate mounting material to the collector. •Step 3. If mounting to a wall, wooden post, or the mounting bracket, attach the included stainless steel mounting feet to the back of the Collector housing using the Included phllllps head screws. use a minimum of 2, 5/16" hex head self tapping screws and a cordless drill with a 5/16" nut driver attachment to secure the Collectors’ stainless steel mounting feet to the surface. •Step 4. If mounting to a round pole, attach the pole mounting bracket using the included bracket instructions. Then, use a minimum of 2, 5/16" hex head self tapping screws and a cordless drill with a 5/16" nut driver attachment to secure the Collectors’ stainless steel mounting feet to the surface of the pole bracket. •Step 5. Attach the 2.4GHz antenna (approximately 3 inc…

Text truncated - open the document above for the full version.

Farmfit Unity Model: FCUNITY1915 FCC ID: 2BEWM-FFUNITY1915, IC: 32056-FFUNITY1915 Contains FCC ID: MCQ-XBEE3, SH6MDBT50Q Contains IC: 1846A-XBEE3, 8017A-MDBT50Q This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-003(B) / NMB-003(B) Made in USA

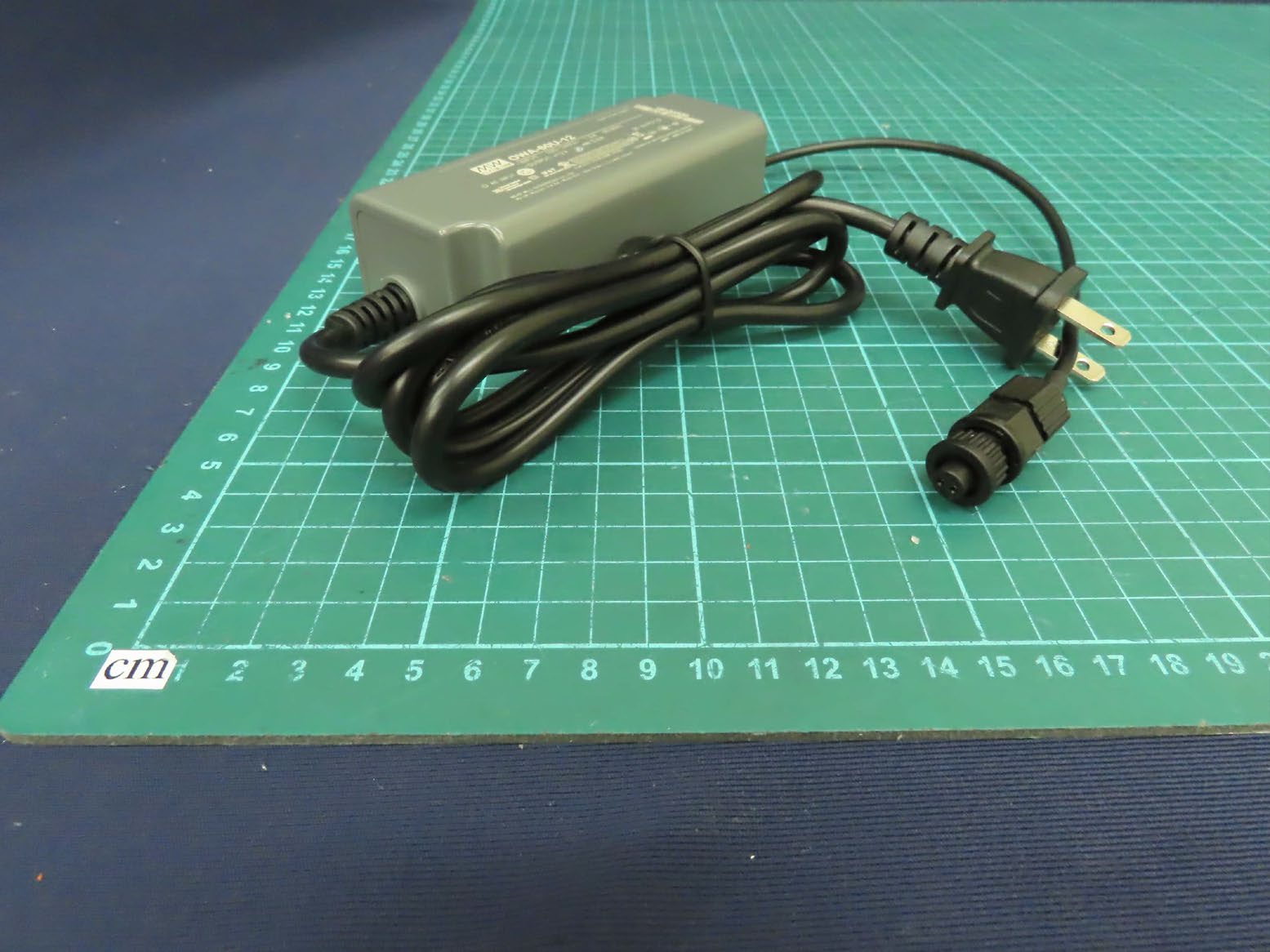

Report No.: 25B0740R-RFUSV01S-C Page : 23 of 26 Appendix J. Test Setup Photograph For Adapter Front View of AC Power Line Conducted Emission Test Back View of AC Power Line Conducted Emission Te s t Report No.: 25B0740R-RFUSV01S-C Page : 24 of 26 Radiated Test (Below 1 GHz) Radiated Test (Above 1 GHz) Report No.: 25B0740R-RFUSV01S-C Page : 25 of 26 For PoE Front View of AC Power Line Conducted Emission Test Back View of AC Power Line Conducted Emission Te s t Report No.: 25B0740R-RFUSV01S-C Page : 26 of 26 Radiated Test (Below 1 GHz)

Report No.: 25B0740R-RFUSV01S-C Page: 1 of 25 Test Report No: 25B0740R-RFUSV01S-C TEST REPORT FCC Rules & Regulations Product Name Farmfit Unity Brand Name Farmfit LLC Model No. FFUNITY1915, FCUNITY1915 FCC ID 2BEWM-FFUNITY1915 Contains FCC ID MCQ-XBEE3, SH6MDBT50Q Applicant ́s Name / Address Farmfit LLC 22575 State Hwy 6 South, Navasota, Texas 77868, United States Manufacturer’s Name Farmfit LLC Test Method Requested, Standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 Verdict Summary IN COMPLIANCE Documented by Jinn Chen Approved by Alan Chen Date of Receipt 2025/11/26 Date of Issue 2026/03/19 Report Version V1.0 Report No.: 25B0740R-RFUSV01S-C Page: 2 of 25 INDEX page Competences and Guarantees ............................................................................................................................... 4 General Conditions ................................................................................................................................................. 4 Revision History ...................................................................................................................................................... 5 Summary of Test Result .......................................................................................................................................... 6 1. General Information ................................................................................................................................. 7 1.1. EUT Description ...................................................................................................................................... 7 1.2. EUT Information .................................................................................................................................... 10 1.3. Testing Location Information ................................................................................................................. 10 1.4. Measurement Uncertainty ..................................................................................................................... 11 1.5. List of Test Equipment ........................................................................................................................... 12 2. Test Configuration of EUT ..................................................................................................................... 13 2.1. Test Condition ........................................................................................................................................ 13 2.2. Test Frequency Mode ............................................................................................................................ 13 2.3. Duty Cycle ............................................................................................................................................. 14 2.4. Measurement Configuration .................................................................................................................. 14 2.5. Tested System Details ........................................................................................................................... 15 2.6. Configuration of Tested System ............................................................................................................ 15 2.7. EUT Operating Procedures ................................................................................................................... 16 3. AC Power Line Conducted Emission .................................................................................................... 17 3.1. Test Setup ............................................................................................................................................. 17 3.2. Test Limit ............................................................................................................................................... 17 3.3. Test Procedure ...................................................................................................................................... 17 3.4. Test Result of AC Power Line Conducted Emission ............................................................................. 17 4. 20dB Bandwidth .................................................................................................................................... 18 4.1. Test Setup ............................................................................................................................................. 18 4.2. Test Limit ............................................................................................................................................... 18 4.3. Test Procedures .................................................................................................................................... 18 4.4. Test Result of 20dB Bandwidth ............................................................................................................. 18 5. Carrier Frequency Separation ............................................................................................................... 19 5.1. Test Setup ............................................................................................................................................. 19 5.2. Test Limit ............................................................................................................................................... 19 5.3. Test Procedures .................................................................................................................................... 19 5.4. Test Result of Carrier Frequency Separation ........................................................................................ 19 6. Maximum Peak Conducted Output Power ............................................................................................ 20 6.1. Test Setup ..............................................…

Text truncated - open the document above for the full version.

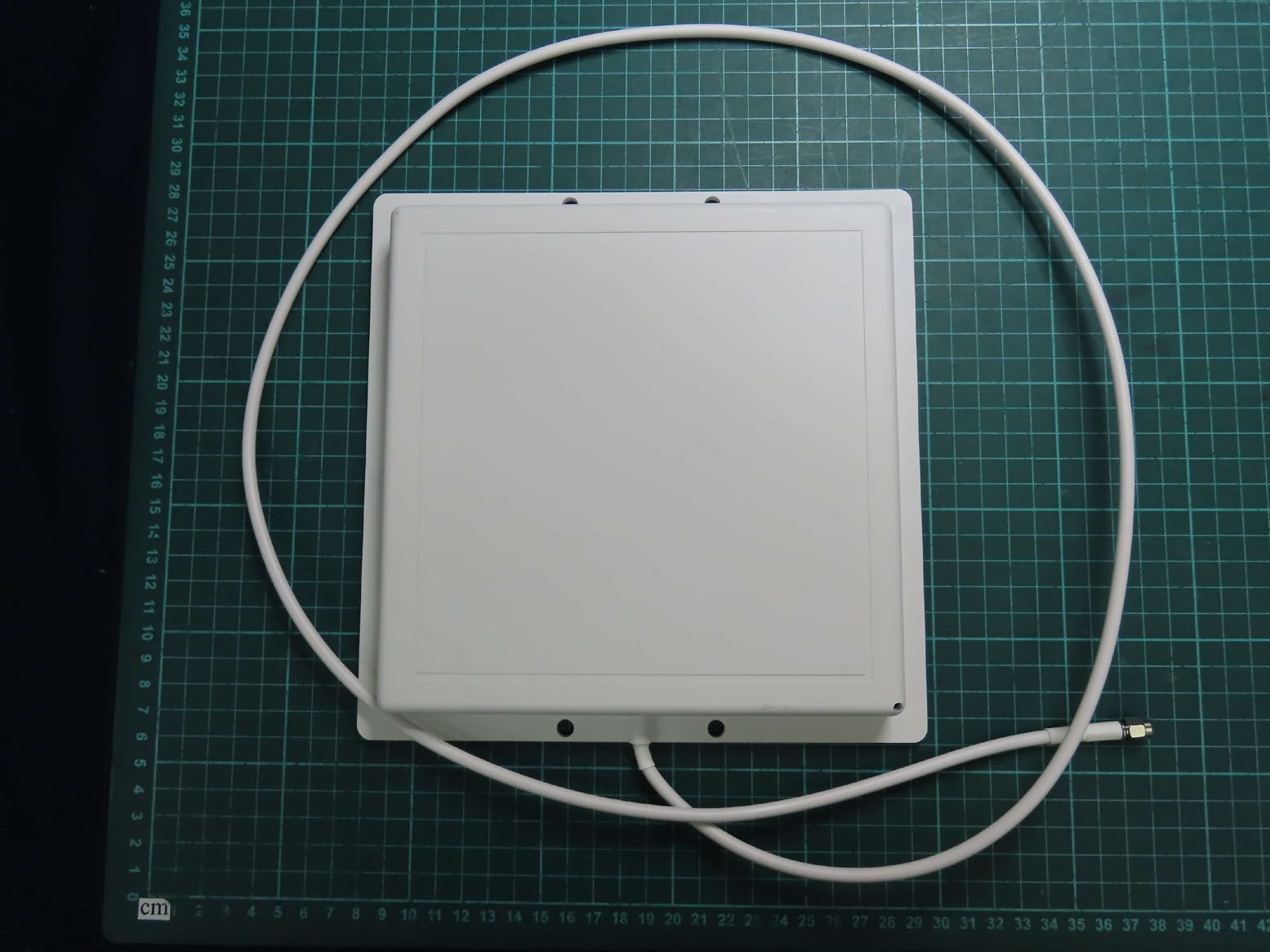

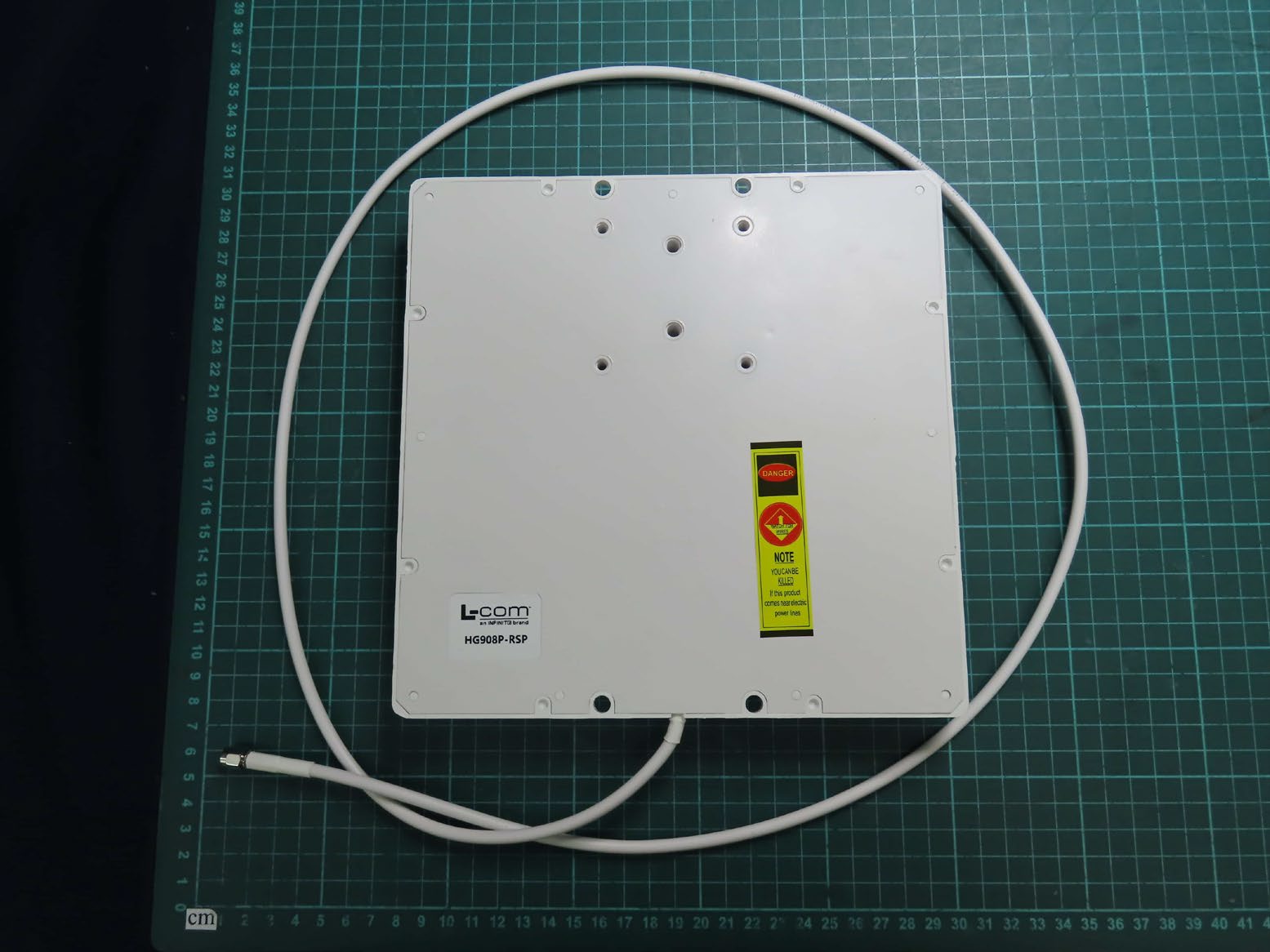

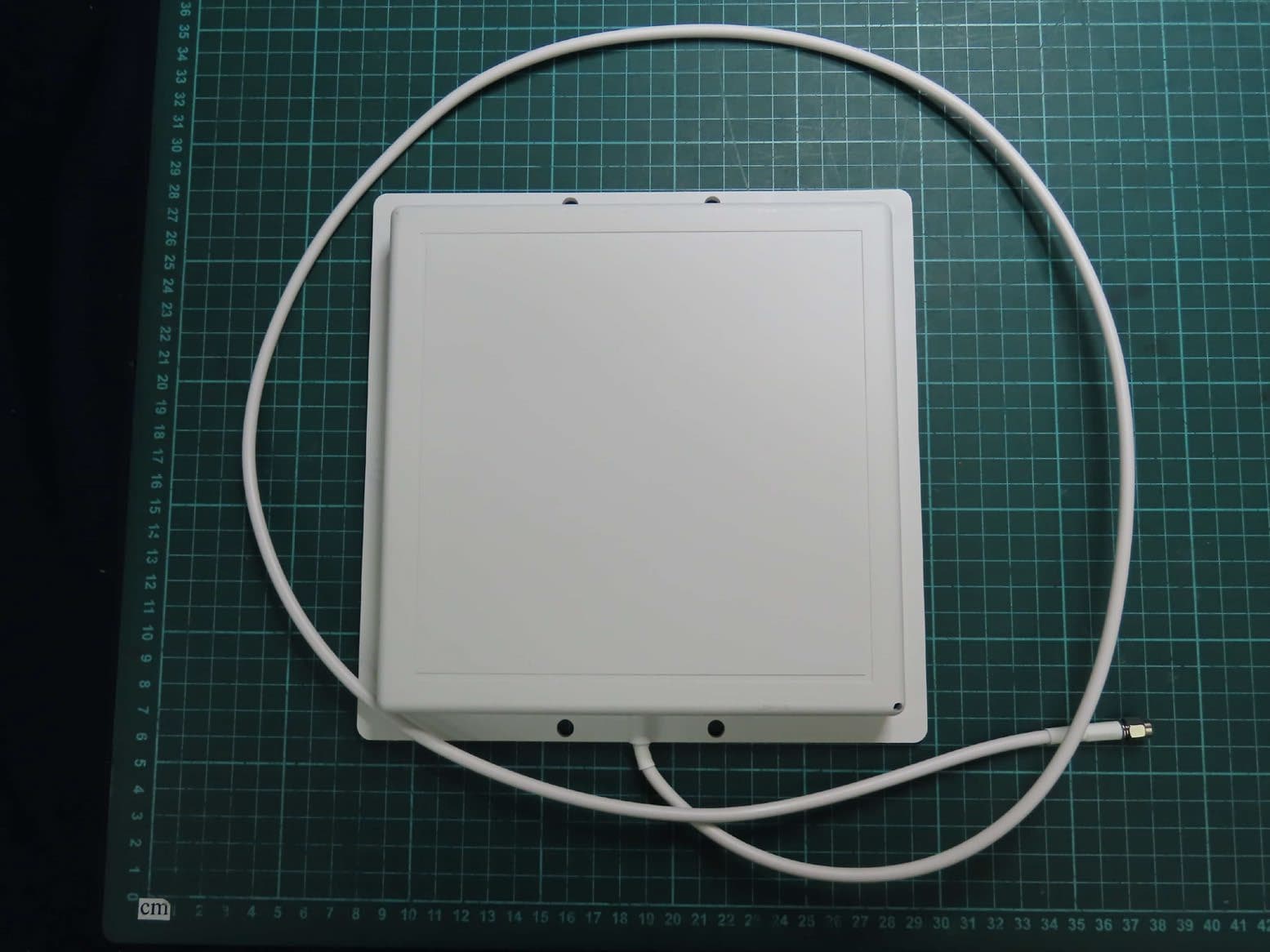

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. HyperLink Wireless 900 MHz 8 dBi Flat Patch Antenna for ISM, GSM, RFID and Wireless LAN Systems Features Applications: y 900MHz ISM Band y Wireless LAN systems y GSM y RFID y SCADA y Wireless Video Links y 900MHz Cellular Features: y Superior performance y Light weight y Durable UV-stable, UL flame rated radome y Low loss solid brass elements y DC Short lightning protection y 12 inch coax lead y Can be installed for either vertical or horizontal polarization y Optional Mounting Kits available y RoHS Compliant Model: HG908P Product Description Only 8.5 inches square! Superior Performance This high gain flat patch antenna provides 8 dBi gain with broad coverage. It is suitable for both indoor and outdoor wireless LAN and wireless video applications in the 900MHz ISM band, GSM, 900MHz cellular and RFID applications. Rugged and Weatherproof This antenna's construction features sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic radome. Can be wall or mast mounted using U-bolts. L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Model: HG908P Specifications Electrical Specifications Frequency 902-928 MHz Gain 8 dBi Horizontal Beam Width 75 degrees Vertical Beam Width 65 degrees Impedance 50 Ohm VSWR < 1.5:1 avg. Mechanical Specifications Weight < 1 lb. (0.45 kg) Dimensions 8.5" x 8.5" x 1.2" (0.22 x 0.22 x 0.03 mm) Radome Material UV-inhibited Polymer Flame Rating UL 94HB Mounting Four ¼" Holes Polarization Horizontal and Vertical Operating Temperature -40° C to 85° C (-40° F to 185° F) Wind Survival >150 MPH RoHS Compliant Yes RF Antenna Gain Patterns L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Model: HG908P Mounting Options Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20 threads. Description Part Number Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT02 Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT03 Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or mast mounting. Includes wall-mounting hardware. Can be mast-mounted using U-Bolt Kit (sold separately). HGX-PMT04 Universal Antenna Mount powder coated galvanized steel “DSS-style” arm for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold separately). HGX-UMOUNT Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U-Bolts, nuts and mast clamp. HGX-PMT07 60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Mounting hardware included. HGX-PMT06 Ceiling/Wall Universal Antenna Mount can be used with 4.5" sq and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC bulkhead omni directional antennas. Includes ceiling/wall mounting hardware. HGX-UMOUNT02 Universal Corner Mounting Bracket: This bracket is designed to mount to an outside corner of a structure. It can be used with 4.5" and 8.5" sq. patch antennas, radome enclosed Yagi antennas, the HGX-PMT02 tilt & swivel bracket and can accommodate the SC2402N and SC5802N 2-Way signal splitters as well as HyperAmp outdoor amplifiers. HGX-UMOUNT03 Window Mounting Kit Includes suction cups and mounting hardware. HGX-PMT08

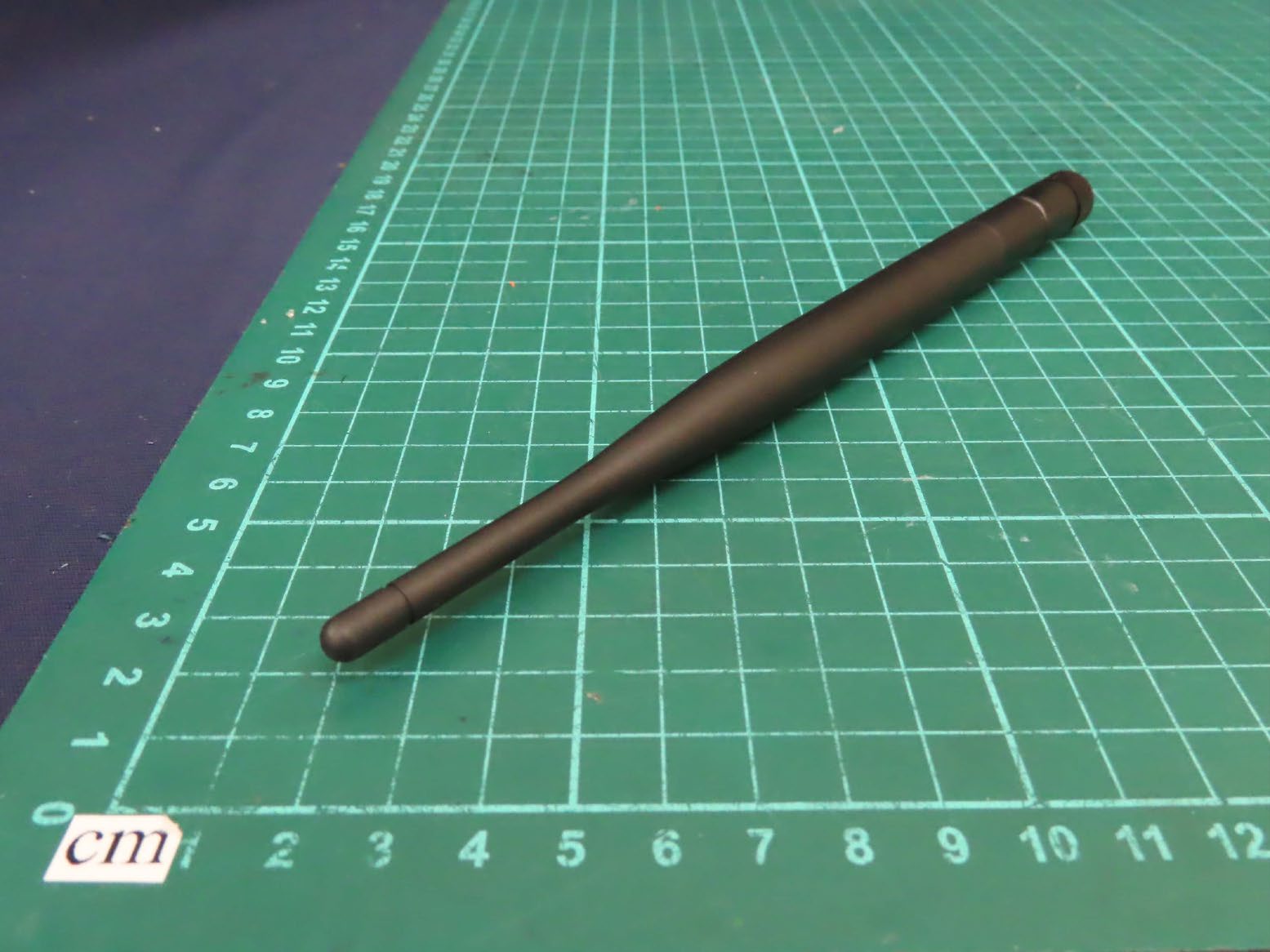

Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M Series: Stick Antenna Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. For more information: Features: Applications: All dimensions are in mm •Frequency 868-928MHz •Gain 1dBi •Efficiency 70% •Length 195mm straight •Connectors: •W1063 RP-SMA Male •W1063M SMA Male •RoHS Compliant •Indoor use •868MHz and 915MHz ISM band radios •IoT devices •Security •Sensors •Monitoring 1 Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 2 Frequency 863-928 MHz Nominal Impedance 50  VSWR 2 Maximum Radiation Pattern Omni Gain 1 dBi Efficiency 70 % Polarization Linear Power Withstanding 1 W Overall Length 195+/-2 mm Weight 23.5 g Antenna Color / Material Black Connector type W1063 RP SMA Male W1063M SMA Male IP Rating IP20, Indoor use Operating Temperature -20 °C /+65 ° C Storage Temperature -30 °C /+75 °C MECHANICAL SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 3 MECHANICAL DRAWING All dimensions are in mm Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 4 TEST SETUP Z X Y Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 5 VSWR Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 6 Efficiency(%) Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 7 Peak Gain (dBi) Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 8 Free space radiation pattern Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 9 Free space radiation pattern Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M CHARTS 10 Free space radiation pattern Issue: 1837 In the effort to improve our products, we reserve the right to make changes judged to be necessary. . Series: Stick Antenna Description: 868-928MHz Swivel Type dipole antenna PART NUMBER: W1063/ W1063M 11 PACKAGING 1PCS/PE BAG 250PCS/ carton box Carton box dimensions (MM)：460x235x140

Report No.: 25B0740R-RFUSV01S-C Page : 1 of 26 Appendix A. Test Result of AC Power Line Conducted Emission For Adapter TX_915.000 MHz_Line TX_915.000MHz_Neutral Report No.: 25B0740R-RFUSV01S-C Page : 2 of 26 For PoE TX_915.000 MHz_Line TX_915.000 MHz_Neutral Report No.: 25B0740R-RFUSV01S-C Page : 3 of 26 Appendix B. Test Result of 20dB Bandwidth Modulation Frequency (MHz) Measure Level (kHz) Limit (kHz) FHSS 902.106 48.0 - 915.000 48.0 - 927.398 48.0 - Figure Channel 902.106 MHz: Figure Channel 915.000 MHz: Figure Channel 927.398 MHz: Report No.: 25B0740R-RFUSV01S-C Page : 4 of 26 Appendix C. Test Result of Carrier Frequency Separation Modulation Frequency (MHz) Measure Level (kHz) Limit (kHz) Limit of 20dB Bandwidth (kHz) FHSS 902.106 79.9 >25 48.0 915.000 79.9 >25 48.0 927.398 95.9 >25 48.0 Figure Channel 902.106 MHz: Figure Channel 915.000 MHz: Figure Channel 927.398 MHz: Report No.: 25B0740R-RFUSV01S-C Page : 5 of 26 Appendix D. Test Result of Maximum Peak Conducted Output Power Modulation Frequency (MHz) Maximum Conducted Peak Output Power (dBm) Limit (dBm) FHSS 902.106 19.99 28 915.000 20.28 28 927.398 19.97 28 Report No.: 25B0740R-RFUSV01S-C Page : 6 of 26 Appendix E. Test Result of Number of Hopping Frequency Modulation Frequency Range (MHz) Measure Level (Channels) Limit (Channels) FHSS 902.106 – 927.398 256 ≧ 50 Report No.: 25B0740R-RFUSV01S-C Page : 7 of 26 Appendix F. Test Result of Dwell Time Modulation Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Dwell Time (ms) Limit (ms) FHSS 902.106 7.200 5 20000 36.000 400 915.000 7.200 5 20000 36.000 400 927.398 7.000 2 20000 14.000 400 Note: Dwell time =Time slot length* Hopping of Number CH 902.106 MHz Time slot length: CH 902.106 MHz Time slot length: CH 915 MHz Time slot length: CH 915 MHz Time slot length: Report No.: 25B0740R-RFUSV01S-C Page : 8 of 26 CH 927.398 MHz Time slot length: CH 927.398 MHz Time slot length: Report No.: 25B0740R-RFUSV01S-C Page : 9 of 26 Appendix G. Test Result of Antenna Port Conducted Emission Figure Channel 902.106 MHz: Figure Channel 915.000 MHz: Figure Channel 927.398 MHz: Figure Channel 902.106 MHz: Figure Channel 927.398 MHz: Figure Channel Hopping Report No.: 25B0740R-RFUSV01S-C Page : 10 of 26 Appendix H. Test Result of Radiated Emission Dipole TX_902.106MHz_H TX_902.106MHz_V TX_915.000MHz_H TX_915.000MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 11 of 26 TX_927.398MHz_H TX_927.398MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 12 of 26 For Adapter TX_902.106MHz_H TX_902.106MHz_V TX_915.000MHz_H TX_915.000MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 13 of 26 TX_927.398MHz_H TX_927.398MHz_V For PoE TX_902.106MHz_H TX_902.106MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 14 of 26 TX_915.000MHz_H TX_915.000MHz_V TX_927.398MHz_H TX_927.398MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 15 of 26 Panel TX_902.106MHz_H TX_902.106MHz_V TX_915.000MHz_H TX_915.000MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 16 of 26 TX_927.398MHz_H TX_927.398MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 17 of 26 For Adapter TX_902.106MHz_H TX_902.106MHz_V TX_915.000MHz_H TX_915.000MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 18 of 26 TX_927.398MHz_H TX_927.398MHz_V For PoE TX_902.106MHz_H TX_902.106MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 19 of 26 TX_915.000MHz_H TX_915.000MHz_V TX_927.398MHz_H TX_927.398MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 20 of 26 Appendix I. Test Result of Radiated Emissions Co-location TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_H TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_H_002.png TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_V TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_V_002.png Report No.: 25B0740R-RFUSV01S-C Page : 21 of 26 TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_H TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_V Report No.: 25B0740R-RFUSV01S-C Page : 22 of 26 For Adapter TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_H TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_V For PoE TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_H TX_926.901MHz+902.106MHz+Zigbee2405MHz+BLE2M2442MHz_V

Report No.: 25B0740R-RFUSV17S-B Page: 1 of 8 Test Report No: 25B0740R-RFUSV17S-B RF EXPOSURE EVALUATION DECLARATION Product Name Farmfit Unity Brand Name Farmfit LLC Model No. FFUNITY1915, FCUNITY1915 FCC ID 2BEWM-FFUNITY1915 Contains FCC ID MCQ-XBEE3, SH6MDBT50Q Applicant ́s Name / Address Farmfit LLC 22575 State Hwy 6 South, Navasota, Texas 77868, United States Manufacturer’s Name Farmfit LLC Test Method Requested, Standard KDB 447498 D01 v06 Verdict Summary IN COMPLIANCE Documented by Jinn Chen Approved by Alan Chen Approved By Tim Sung Date of Receipt 2025/11/26 Date of Issue 2026/03/19 Report Version V1.0 Report No.: 25B0740R-RFUSV17S-B Page: 2 of 8 INDEX page Competences and Guarantees ................................................................................................................................ 3 General Conditions .................................................................................................................................................. 3 Revision History ....................................................................................................................................................... 4 1. General Information ............................................................................................................................... 5 1.1. EUT Description .................................................................................................................................... 5 1.2. Testing Location Information ................................................................................................................. 5 2. RF Exposure Evaluation ........................................................................................................................ 6 2.1. Standard Applicable .............................................................................................................................. 6 2.2. Test Limit ............................................................................................................................................... 6 2.3. Test Result of RF Exposure Evaluation ................................................................................................. 8 Report No.: 25B0740R-RFUSV17S-B Page: 3 of 8 Competences and Guarantees DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. General Conditions 1. The test results relate only to the samples tested. 2. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. 3. This report must not be used to claim product endorsement by TAF or any agency of the government. 4. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. 5. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 25B0740R-RFUSV17S-B Page: 4 of 8 Revision History Version Description Issued Date V1.0 Initial issue of report 2026/03/19 Report No.: 25B0740R-RFUSV17S-B Page: 5 of 8 1. General Information 1.1. EUT Description Product Name Farmfit Unity Brand Name Farmfit LLC Model No. FFUNITY1915, FCUNITY1915 Note: For more detailed information, please refer to Report No. 25B0740R-RFUSV01S-C and 25B0740R-RFUSV01S-D. 1.2. Testing Location Information USA FCC Designation Number: TW0033 / FCC Registration Number: 647365 Canada CAB Identifier Number: TW3023 / Company Number: 26930 Site Description Accredited by TAF Accredited Number: 3023 Test Laboratory DEKRA Testing and Certification Co., Ltd. Linkou Laboratory Address No. 85, Wenlin St., Linkou Dist., New Taipei City 244017, Taiwan, R.O.C. Performed Location No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number +886-3-275-7255 Fax Number +886-3-327-8031 Report No.: 25B0740R-RFUSV17S-B Page: 6 of 8 2. RF Exposure Evaluation 2.1. Standard Applicable 47CFR §2.1091(b) states, “A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at …

Text truncated - open the document above for the full version.
