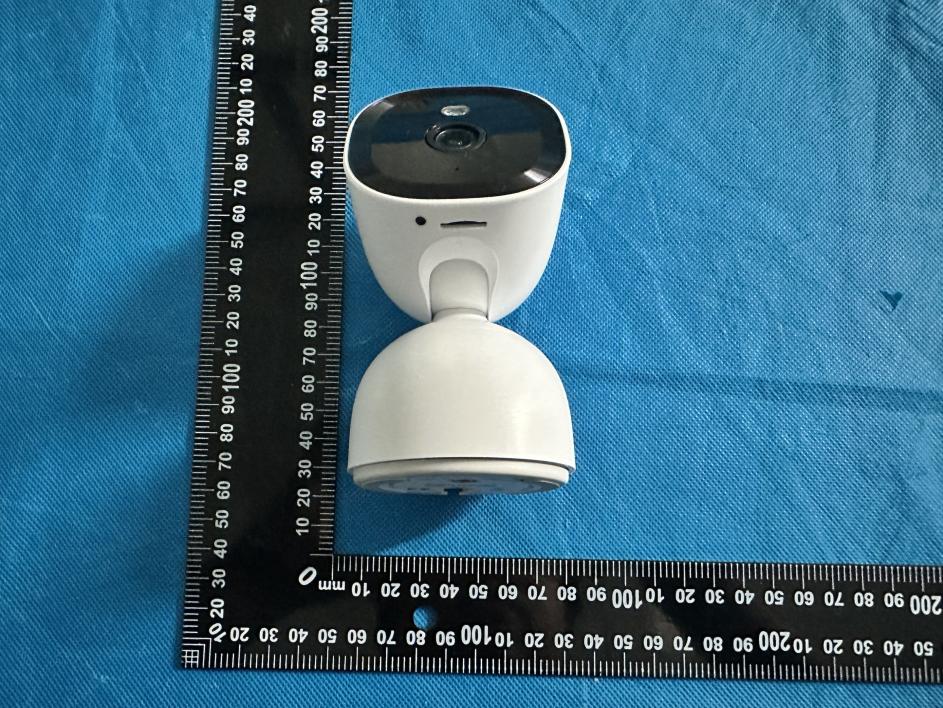

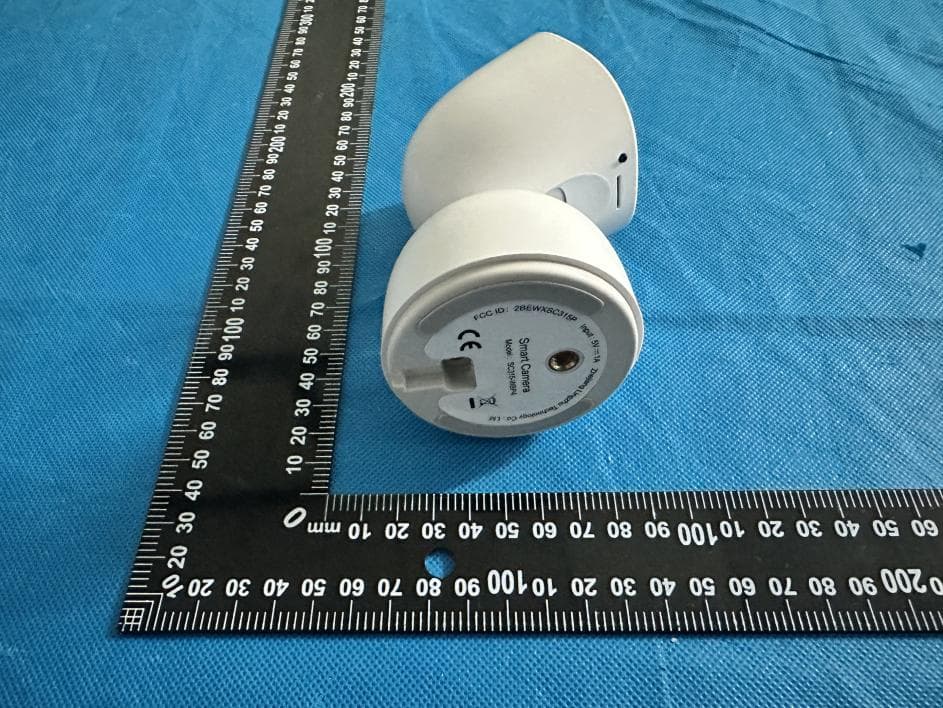

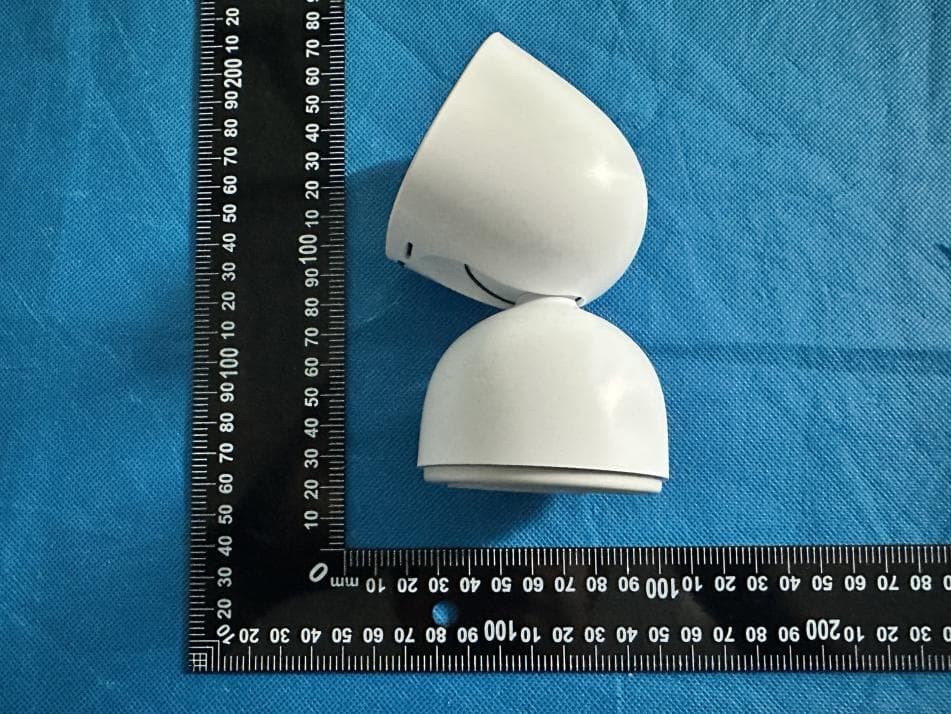

2BEWXSC315PSmart Camera

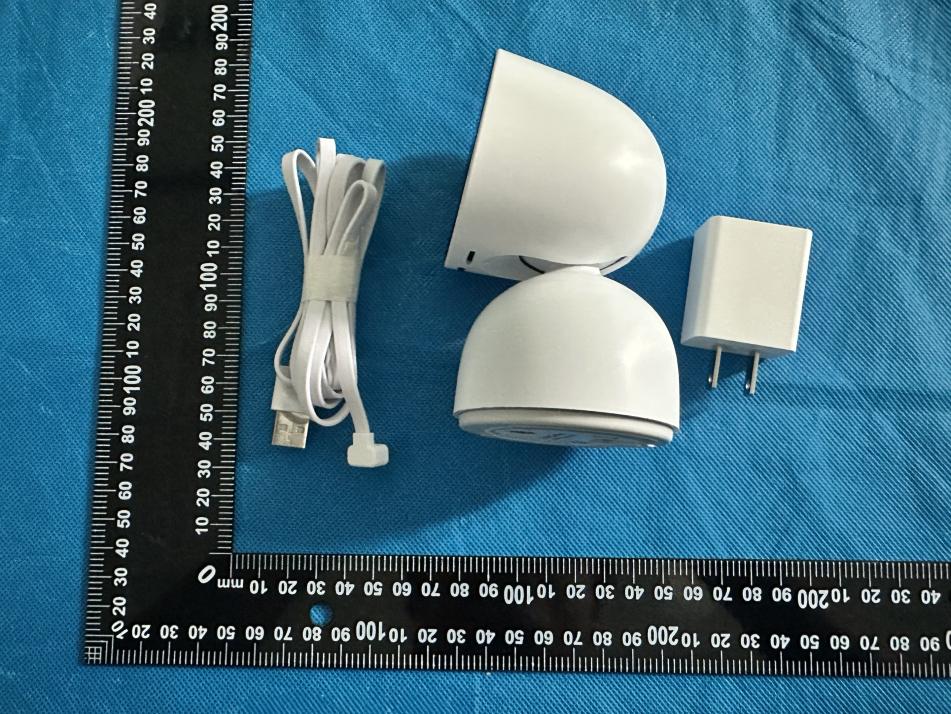

图纸发布类别 正式归档图纸 版本 1.0 智能摄像机( 云台机) SC315-WBP4-智能摄像机(云台 机)-海外版-说明书 原始版本 物料编号变更者变更时间版本升级原因描述 SC315-WBP4 风琴8折页，正反印刷 / 四色印刷 105g铜版纸 20250314 子柳（徐涛） 大川 接合方式 印刷色 材质 加工工艺 75*75mm 75x525mm 成品尺寸 单位：mm 公差： 展开图尺寸： ±1mm xxx-xxxx-xxxx What’s in the Box Thank you for purchasing Smart Camera. Get started using your new devices by downloading Smart Life, one convenient app that manages everything straight from your phone. Easily connect to your home Wi-Fi and control multiple devices from the touch of your fingertips *: Different products have different accessories, please refer to physical packing. Smart Camera ×1 USB Cable ×1 User Manual ×1 Adapter ×1 * Please read the instruction manual carefully before using the product SMART CAMERA USER MANUAL Frequently Asked Questions Yes, you can share your cameras with family and friends who will have access to view the camera and control your bulbs, plugs, and other devices. In the app, press the Profile button and click on the “Home Management” button, and you will be able to give or revoke sharing permissions. In order to share, the other user should already have downloaded the app and registered a new account. Can I share with family and friends? 1 • Make sure the device is under the config status (indicator light is flashing quickly) • Make sure the Wi-Fi is available and not too far away from router • Make sure the Wi-Fi password you input is correct English Warning Statement: Open “Smart Life” APP, Turn on the Bluetooth on your mobile phone, and grant the corresponding permission to the “Smart Life” APP. Click the “Add” button. Enter Wi-Fi name and password, then click the “Next”. Wait for the camera to automatically complete network configuration. If the dialog box does not pop up,you can click the “+” icon or “Add Device” button on the home page, and the camera will be searched, then click the “Add”. My device can't be connected to network with App 4 • Make sure the device is powered on • Make sure the network is stable and the Wi-Fi name and password not modified. If not, add device again. • If the network is normal, but it's still offline. Check if there are too many Wi-Fi connections. You can restart your router to check the status of the device. My device shows offline in my App 5 The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data. What’s the Wireless Range? 2 Smart Life app can control an unlimited amount of devices in an unlimited amount of locations. Your router may have a limit of how many devices can be connected to one router. How many cameras can I control? 3 Technical Specifications • Audio: Internal Speaker and Microphone • Storage: supports up to 128G Micro SD card (not included) • Power: General 5V Direct Current 1Asymbol “ ” means direct current • It is recommended that the camera only be used indoor. • Operating temperature -1045Operating humidity ≤95% • RF Output Power: 17.5 dBm warning Federal Communications Commission (FCC) Declaration of Conformity FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled rolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Declaration Of Conformity European Notice Hereby, Ningbo Lingzhu Technology CO., Ltd. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU,2011/65/EU. This product must not be disposed of as normal household waste, in accordance with EU directive for waste electrical and electronic equipment (WEEE- 2012/19/EU). Insteadit should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. The device could be used with a separation distance of 20cm to the human body. Know your Wi-Fi network and password Make sure your mobile device is running iOS® 11 or higher or Android™ 6.0× or higher Make sure you’re connecting to a 2.4GHz Wi-Fi network (It can’t connect to 5GHz networks) STEP 1. Enter your mobile phone number or email address. STEP 2. Enter the verification code and create a password. Register an account on your Smart Life app 2 Add device A.Quickly wayB.QR code way 4 Open “Smart Life” APP, click “+” on the top right corner of the page “HOME”, then select “Smart Camera (Wi-Fi) ”. *Please refer to the specific APP interface if there are any diff…

Text truncated - open the document above for the full version.

地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 深圳市天联凌科技有限公司 ShenzhenSKYLinkTechnologyCo.,Ltd 天线规格承认书 编号：SLSOA20240918ZCH01 客户名称：鲸视 项目名称：P150 产品描述：FPC黑色带背胶，焊接1.13mm黑色同轴线，线长60mm，一代端子 产品料号：P150.WIFI.C113.60B.1 板本：V1.0 日期：2024-09-18 客户 工程采购承认 天联凌 研发工程审核 此承认书严禁修改 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 规格概述 电特性 频率 2400MHz~2500MHz、5150MHz~5850MHz 电压驻波比<3.0 效率 >40% 增益 2dbi 阻抗50欧姆 极化方式线极化 材料和机械特性 材料FPC黑色 线材类型黑色同轴线 端子类型一代端子 图纸尺寸详见图纸 丝印方式黑底白字 环境特性 储存温度 -30 ̊C~+85 ̊C FPC焊接温度280±5°C浸渍时间:10秒 射频线焊接温度320±5°C2-3秒 A 0 . 0 3 0 . 0 2 0 . 0 4 0 ～ 1 0 ± 0 . 0 5 1 0 ～ 1 8 ± 0 . 1 0 1 8 ～ 3 0 ± 0 . 1 2 ∅ 0 . 0 2 3 0 ～ 4 0 ± 0 . 1 5 R e m a r k R e v D a t e T h i r d A n g l e N e w d r a w i n g D e s c r i p t i o n 4 0 ～ ± 0 . 2 0 1 2 3 4 A p p r o v e d b y DCB 5 6 7 8 A 1 2 3 4 5 6 7 8 P a r t N o . D a t e D e s i g n e d b y C h e c k e d b y S c a l e R e v m m L o c a t i o n P r o j e c t M a t e r i a l P a r t N a m e U n i t R F M D A A n g l e ± 0 . 5 ° 1 : 1 DCBA 深 圳 天 联 凌 科 技 有 限 公 司 S H E N Z H E N S K Y L i n k C O . , L T D R o H S P G C o m p l i a n t D W G N o . 2 0 2 4 . 0 9 . 1 8 W I F I 天 线 P 1 5 0 . W I F I . C 1 1 3 . 6 0 B . 1 R e m a r k C o l o u r M a t e r i a l P a r t N a m e N o . 1 黑 色 F P C 2 同 轴 线 镀 银 铜 丝 黑 色 天 线 注 ： 1 . " * " 为 重 点 尺 寸 ; 2 . 未 标 注 尺 寸 请 依 图 纸 ； 3 . P b 、 H g 、 C r + 6 、 P B B s 、 P B D E s 各 项 小 于 1 0 0 0 P P M ， C d 小 于 1 0 0 P P M 。 P 1 5 0 . W I F I 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 测试设备与条件 1.网络分析仪: Agilent8753DAgilent5071B 通讯测试设备 : AgilentE5515CR&SCMW500 2.3D测试系统 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 原主板匹配电路不变 匹配电路 天线端 模块端 无源测试报告 S11图 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 效率 FreqEffiGain (MHz)(%)(dBi) 515057.481.94 520056.22.35 525054.852.59 530057.282.67 535058.482.65 540056.852.5 545052.532.27 550052.472.08 555053.062.11 560052.362 5650531.93 570053.382 575056.12.05 580056.112.25 585060.432.6 FreqEffiGain (MHz)(%)(dBi) 240044.370.05 241044.170.16 242044.20.26 243043.040.13 244041.560.01 245041.42-0.44 246042.29-0.51 247042.98-0.52 248040.35-0.46 249041.79-0.42 250040.64-0.78 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 辐射方向图 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 OTA有源测试 802.11b:11MBps TestWifi2GTRP Result1611 Frequency(MHz)241224372462 TRP(dBm)15.8615.0615.74 TestWifi2GTIS Result1611 Frequency(MHz)241224372462 TIS(dBm)-64.17-66.45-65.82 802.11n:MCS7 TestWifi5GTRP Result36149161 Frequency(MHz)518057455805 TRP(dBm)15.4215.7415.23 TestWifi5GTIS Result36149161 Frequency(MHz)518057455805 TIS(dBm)-65.38-66.86-67.14 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741 天线装配方式(整机全图，细节图) 地址：深圳市宝安71区留仙一路二巷26号L栋5楼5D传真0755-85263741  可靠性测试 测试项目测试条件设备规范结果 1低温测试 温度：-30°C，湿度：65%，时间：48小时 测试条件： 把天线放置在高低温测试箱里，温度保持在 25°C，湿度保持在65%,时间为1小时，然后在1 小时内降低温度到-30°C，保持44小时，再升 温到25°C，保持2小时 高低温测试机 不允许材料变形 电子性能好 通过 2 高温测试 温度：85°C，湿度：85%，时间：48小时 测试条件： 把天线放置在高低温测试箱里，温度保持在 25°C，湿度保持在65%，时间为1小时，然后在 1小时内，把温度升到80°C，湿度为85%,保持 44小时，再把温度降到25°C，保持2小时。 高低温测试机 不允许材料变形 电子性能好 通过 3盐雾测试 盐雾测试： 把天线放置在盐雾测试机内 设置测试环境： 温度35±2°C 湿度85% 盐雾喷剂：5±1% PH值6.5~7.2 时间：24小时 盐雾测试机 没有颜色变化 没有出现生锈 通过

Page 1 of 2 FCC ID:2BEWXSC315P Setup photo AC Conduction RE (Below 1GHz) Page 2 of 2 FCC ID:2BEWXSC315P RE (Above 1GHz)

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2512451W04 Issued for Zhejiang Lingzhu Technology Co., Ltd. Room 302,No 1 Building Huace Center,Xihu District, Hangzhou,China Product Name: Smart Camera Brand Name: N/A Model Name: SC315-WBP4 Series Model(s): SC315-WBPA,SC315-WBPB,SC315-WB PC,SC315-WBPD,SC315-WBPE,SC315- WBPF,SC315-WBPG FCC ID: 2BEWXSC315P Test Standard: FCC Part15.407 Page 2 of 20 Report No.: STS2512451W04 TEST REPORT Applicant’s Name ................. : Zhejiang Lingzhu Technology Co., Ltd. Address ................................. : Room 302,No 1 Building Huace Center,Xihu District, Hangzhou,China Manufacturer's Name ........... : Zhejiang Lingzhu Technology Co., Ltd. Address ................................. : Room 302,No 1 Building Huace Center,Xihu District, Hangzhou,China Product Description Product Name ........................ : Smart Camera Brand Name ........................... : N/A Model Name .......................... : SC315-WBP4 Series Model(s) .................... : SC315-WBPA,SC315-WBPB,SC315-WBPC,SC315-WBPD,SC315- WBPE,SC315-WBPF,SC315-WBPG Test Standards ..................... : FCC Part 15.407 Test Procedure 905462 D02 UNII DFS Compliance Procedures New Rules v02 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 2025-12-02 Date (s) of performance of tests ........................................................ : 2025-12-02 to 2025-12-17 Date of Issue .......................................... : 2025-12-17 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 20 Report No.: STS2512451W04 Table of Contents 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2.EQUIPMENT UNDER TEST (EUT) DETAILS 9 2.3 TEST CONDITIONS AND CHANNEL 9 2.4 DFS MEASUREMENT INSTRUMENTATION 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. DFS PARAMETERS 12 3.1 DFS PARAMETERS 12 3.2 DFS –TEST RESULTS 16 Page 4 of 20 Report No.: STS2512451W04 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2025-12-17 STS2512451W04 ALL Initial Issue Page 5 of 20 Report No.: STS2512451W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 and 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 Part 15.407 Requirement Operational Mode RESULTS Master Client Non-Occupancy Period Yes Not required Not required DFS Detection Threshold Yes Not required Not required Channel Availability Check Time Yes Not required Not required Channel Closing Transmission Time Yes Yes Pass Channel Move Time Yes Yes Pass U-NII Detection Bandwidth Yes Not required Not required Page 6 of 20 Report No.: STS2512451W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 DFS Threshold (conducted) ±0.751dB 2 Temperature ±1.054°C 3 Humidity ±4.543% Page 7 of 20 Report No.: STS2512451W04 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Smart Camera Brand Name N/A Model Name SC315-WBP4 Series Model(s) SC315-WBPA,SC315-WBPB,SC315-WBPC,SC315-WBPD, SC315-WBPE,SC315-WBPF,SC315-WBPG Model Difference The main model and subsequent models tested in this test differ only in naming and color. All other aspects, including materials, other manufacturing processes, circuit design, and manufacturers, are exactly the same. We finally decided on the SC315-WBP4 as the test model. Product Description The EUT is Smart Camera Operation Frequency: 802.11a/n (20):5260 MHz -5320 MHz 802.11n (40):5270 MHz -5310 MHz 802.11a/n (20):5500 MHz -5700 MHz 802.11n (40):5510 MHz -5670 MHz Modulation Type: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM Number Of Channel Please see Note 2. Antenna Gain(Peak) 2.67 dBi Based on the application, features, or specification exhibited in User’s Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User’s Manual. Channel List Refer to below Power Rating DC 5V/1A Adapter Input: AC 100-240V,50/60Hz,0.25A Output: DC 5V/1000mA, Battery N/A Hardware version number N/A Software version number N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual, the antenna information refer the manufacturer provide report, applicable only to the tested sample identified in the report. Page 8 of 20 Report No.: STS2512451W04 2 For 802.11a/n(HT20) Channel Freq.(MHz) Channel Freq.(MHz) 52 5260 100 5500 60 5300 116 5580 64 5320 140 5700 Channel List for 802.11 n (40 MHz) Channel Frequency (MHz) Channe…

Text truncated - open the document above for the full version.

Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 99.28 0 3.61 NVNT a 5785 Ant1 99.28 0 3.62 NVNT a 5825 Ant1 99.28 0 3.61 NVNT n20 5745 Ant1 98.98 0 3.42 NVNT n20 5785 Ant1 99.32 0 3.41 NVNT n20 5825 Ant1 98.98 0 3.42 NVNT n40 5755 Ant1 99.93 0 0.03 NVNT n40 5795 Ant1 100 0 0 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 10.37 30 Pass NVNT a 5785 Ant1 10.75 30 Pass NVNT a 5825 Ant1 10.55 30 Pass NVNT n20 5745 Ant1 10.3 30 Pass NVNT n20 5785 Ant1 10.71 30 Pass NVNT n20 5825 Ant1 10.54 30 Pass NVNT n40 5755 Ant1 9.97 30 Pass NVNT n40 5795 Ant1 10.23 30 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 15.093 0.5 Pass NVNT a 5785 Ant1 15.115 0.5 Pass NVNT a 5825 Ant1 15.125 0.5 Pass NVNT n20 5745 Ant1 15.124 0.5 Pass NVNT n20 5785 Ant1 15.071 0.5 Pass NVNT n20 5825 Ant1 15.077 0.5 Pass NVNT n40 5755 Ant1 32.56 0.5 Pass NVNT n40 5795 Ant1 30.084 0.5 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 20.198 NVNT a 5785 Ant1 19.428 NVNT a 5825 Ant1 19.26 NVNT n20 5745 Ant1 20.833 NVNT n20 5785 Ant1 20.147 NVNT n20 5825 Ant1 20.091 NVNT n40 5755 Ant1 38.995 NVNT n40 5795 Ant1 37.565 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 OBW NVNT a 5825MHz Ant1 OBW NVNT n20 5745MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -2.63 0 -2.63 30 Pass NVNT a 5785 Ant1 -2.21 0 -2.21 30 Pass NVNT a 5825 Ant1 -2.38 0 -2.38 30 Pass NVNT n20 5745 Ant1 -2.49 0 -2.49 30 Pass NVNT n20 5785 Ant1 -2.13 0 -2.13 30 Pass NVNT n20 5825 Ant1 -2.3 0 -2.3 30 Pass NVNT n40 5755 Ant1 -5.53 0 -5.53 30 Pass NVNT n40 5795 Ant1 -4.85 0 -4.85 30 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 PSD NVNT a 5825MHz Ant1 PSD NVNT n20 5745MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -16.98 Pass NVNT a 5825 Ant1 -28.65 Pass NVNT n20 5745 Ant1 -18.56 Pass NVNT n20 5825 Ant1 -26.95 Pass NVNT n40 5755 Ant1 -17.45 Pass NVNT n40 5795 Ant1 -35.09 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Frequency Stability Condition Mode Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict NVNT a 5745 Ant1 5745.04 40000 6.96 25 Pass NVNT a 5785 Ant1 5785.04 40000 6.91 25 Pass NVNT a 5825 Ant1 5825.06 60000 10.3 25 Pass NVNT n20 5745 Ant1 5745.02 20000 3.48 25 Pass NVNT n20 5785 Ant1 5785.02 20000 3.46 25 Pass NVNT n20 5825 Ant1 5825.02 20000 3.43 25 Pass NVNT n40 5755 Ant1 5755 0 0 25 Pass NVNT n40 5795 Ant1 5795 0 0 25 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Test Graphs Freq. Stability NVNT a 5745MHz Ant1 Freq. Stability NVNT a 5785MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Freq. Stability NVNT a 5825MHz Ant1 Freq. Stability NVNT n20 5745MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Freq. Stability NVNT n20 5785MHz Ant1 Freq. Stability NVNT n20 5825MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Freq. Stability NVNT n40 5755MHz Ant1 Freq. Stability NVNT n40 5795MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-3 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -33.3 -27 Pass NVNT a 5785 Ant1 -32.26 -27 Pass NVNT a 5825 Ant1 -33.65 -27 Pass N…

Text truncated - open the document above for the full version.

Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5500 Ant1 100 0 0 NVNT a 5580 Ant1 100 0 0 NVNT a 5700 Ant1 100 0 0 NVNT n20 5500 Ant1 100 0 0 NVNT n20 5580 Ant1 100 0 0 NVNT n20 5700 Ant1 100 0 0 NVNT n40 5510 Ant1 100 0 0 NVNT n40 5550 Ant1 100 0 0 NVNT n40 5670 Ant1 100 0 0 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs Duty Cycle NVNT a 5500MHz Ant1 Duty Cycle NVNT a 5580MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Duty Cycle NVNT a 5700MHz Ant1 Duty Cycle NVNT n20 5500MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Duty Cycle NVNT n20 5580MHz Ant1 Duty Cycle NVNT n20 5700MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Duty Cycle NVNT n40 5510MHz Ant1 Duty Cycle NVNT n40 5550MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Duty Cycle NVNT n40 5670MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 11.84 24 Pass NVNT a 5580 Ant1 11.03 24 Pass NVNT a 5700 Ant1 11.07 24 Pass NVNT n20 5500 Ant1 10.45 24 Pass NVNT n20 5580 Ant1 10.58 24 Pass NVNT n20 5700 Ant1 10.26 24 Pass NVNT n40 5510 Ant1 9.26 24 Pass NVNT n40 5550 Ant1 8.98 24 Pass NVNT n40 5670 Ant1 9.59 24 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5500 Ant1 28.348 0.5 Pass NVNT a 5580 Ant1 30 0.5 Pass NVNT a 5700 Ant1 29.966 0.5 Pass NVNT n20 5500 Ant1 28.141 0.5 Pass NVNT n20 5580 Ant1 29.883 0.5 Pass NVNT n20 5700 Ant1 30 0.5 Pass NVNT n40 5510 Ant1 54.847 0.5 Pass NVNT n40 5550 Ant1 56.624 0.5 Pass NVNT n40 5670 Ant1 55.889 0.5 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs -26dB Bandwidth NVNT a 5500MHz Ant1 -26dB Bandwidth NVNT a 5580MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C -26dB Bandwidth NVNT a 5700MHz Ant1 -26dB Bandwidth NVNT n20 5500MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C -26dB Bandwidth NVNT n20 5580MHz Ant1 -26dB Bandwidth NVNT n20 5700MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C -26dB Bandwidth NVNT n40 5510MHz Ant1 -26dB Bandwidth NVNT n40 5550MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C -26dB Bandwidth NVNT n40 5670MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5500 Ant1 16.964 NVNT a 5580 Ant1 20.868 NVNT a 5700 Ant1 20.993 NVNT n20 5500 Ant1 18.014 NVNT n20 5580 Ant1 19.839 NVNT n20 5700 Ant1 19.843 NVNT n40 5510 Ant1 35.937 NVNT n40 5550 Ant1 36.196 NVNT n40 5670 Ant1 36.096 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs OBW NVNT a 5500MHz Ant1 OBW NVNT a 5580MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C OBW NVNT a 5700MHz Ant1 OBW NVNT n20 5500MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C OBW NVNT n20 5580MHz Ant1 OBW NVNT n20 5700MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C OBW NVNT n40 5510MHz Ant1 OBW NVNT n40 5550MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C OBW NVNT n40 5670MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 2.04 0 2.04 11 Pass NVNT a 5580 Ant1 1.55 0 1.55 11 Pass NVNT a 5700 Ant1 1.06 0 1.06 11 Pass NVNT n20 5500 Ant1 0.91 0 0.91 11 Pass NVNT n20 5580 Ant1 0.74 0 0.74 11 Pass NVNT n20 5700 Ant1 0.57 0 0.57 11 Pass NVNT n40 5510 Ant1 -2.7 0 -2.7 11 Pass NVNT n40 5550 Ant1 -2.81 0 -2.81 11 Pass NVNT n40 5670 Ant1 -1.92 0 -1.92 11 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs PSD NVNT a 5500MHz Ant1 PSD NVNT a 5580MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C PSD NVNT a 5700MHz Ant1 PSD NVNT n20 5500MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C PSD NVNT n20 5580MHz Ant1 PSD NVNT n20 5700MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C PSD NVNT n40 5510MHz Ant1 PSD NVNT n40 5550MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C PSD NVNT n40 5670MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5500 Ant1 -31.76 -27 Pass NVNT a 5700 Ant1 -28.77 -27 Pass NVNT n20 5500 Ant1 -31.55 -27 Pass NVNT n20 5700 Ant1 -28.03 -27 Pass NVNT n40 5510 Ant1 -28.05 -27 Pass NVNT n40 5670 Ant1 -43.88 -27 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs Band Edge NVNT a 5500MHz Low Ant1 Band Edge NVNT a 5700MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Band Edge NVNT n20 5500MHz Low Ant1 Band Edge NVNT n20 5700MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Band Edge NVNT n40 5510MHz Low Ant1 Band Edge NVNT n40 5670MHz High Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5500 Ant1 -38.18 -27 Pass NVNT a 5580 Ant1 -38.93 -27 Pass NVNT a 5700 Ant1 -39.84 -27 Pass NVNT n20 5500 Ant1 -39.41 -27 Pass NVNT n20 5580 Ant1 -39.66 -27 Pass NVNT n20 5700 Ant1 -38.84 -27 Pass NVNT n40 5510 Ant1 -39.63 -27 Pass NVNT n40 5550 Ant1 -37.74 -27 Pass NVNT n40 5670 Ant1 -39.28 -27 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Test Graphs Tx. Spurious NVNT a 5500MHz Ant1 Emission Tx. Spurious NVNT a 5580MHz Ant1 Emission Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2C Tx. Spurious NVNT a 5700MHz Ant1 Emission Tx. Spurious NVNT n20 5500MHz Ant1 Emission Report No.: STS2512451W03_RF_Appendix…

Text truncated - open the document above for the full version.

Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5260 Ant1 100 0 0 NVNT a 5280 Ant1 100 0 0 NVNT a 5320 Ant1 100 0 0 NVNT n20 5260 Ant1 100 0 0 NVNT n20 5280 Ant1 100 0 0 NVNT n20 5320 Ant1 100 0 0 NVNT n40 5270 Ant1 100 0 0 NVNT n40 5310 Ant1 100 0 0 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Test Graphs Duty Cycle NVNT a 5260MHz Ant1 Duty Cycle NVNT a 5280MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Duty Cycle NVNT a 5320MHz Ant1 Duty Cycle NVNT n20 5260MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Duty Cycle NVNT n20 5280MHz Ant1 Duty Cycle NVNT n20 5320MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Duty Cycle NVNT n40 5270MHz Ant1 Duty Cycle NVNT n40 5310MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5260 Ant1 11.73 24 Pass NVNT a 5280 Ant1 11.47 24 Pass NVNT a 5320 Ant1 11.59 24 Pass NVNT n20 5260 Ant1 10.37 24 Pass NVNT n20 5280 Ant1 11.04 24 Pass NVNT n20 5320 Ant1 11.16 24 Pass NVNT n40 5270 Ant1 9.89 24 Pass NVNT n40 5310 Ant1 9.68 24 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5260 Ant1 22.71 0.5 Pass NVNT a 5280 Ant1 28.269 0.5 Pass NVNT a 5320 Ant1 28.338 0.5 Pass NVNT n20 5260 Ant1 22.67 0.5 Pass NVNT n20 5280 Ant1 29.359 0.5 Pass NVNT n20 5320 Ant1 29.243 0.5 Pass NVNT n40 5270 Ant1 50.995 0.5 Pass NVNT n40 5310 Ant1 47.469 0.5 Pass Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Test Graphs -26dB Bandwidth NVNT a 5260MHz Ant1 -26dB Bandwidth NVNT a 5280MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A -26dB Bandwidth NVNT a 5320MHz Ant1 -26dB Bandwidth NVNT n20 5260MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A -26dB Bandwidth NVNT n20 5280MHz Ant1 -26dB Bandwidth NVNT n20 5320MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A -26dB Bandwidth NVNT n40 5270MHz Ant1 -26dB Bandwidth NVNT n40 5310MHz Ant1 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5260 Ant1 16.436 NVNT a 5280 Ant1 16.727 NVNT a 5320 Ant1 16.859 NVNT n20 5260 Ant1 17.619 NVNT n20 5280 Ant1 17.807 NVNT n20 5320 Ant1 17.877 NVNT n40 5270 Ant1 35.779 NVNT n40 5310 Ant1 35.648 Report No.: STS2512451W03_RF_Appendix 5G WIFI U-NII-2A Test Graphs OBW NVNT a 5260MHz Ant1 OBW NVNT a 5280MHz Ant1 Report …
