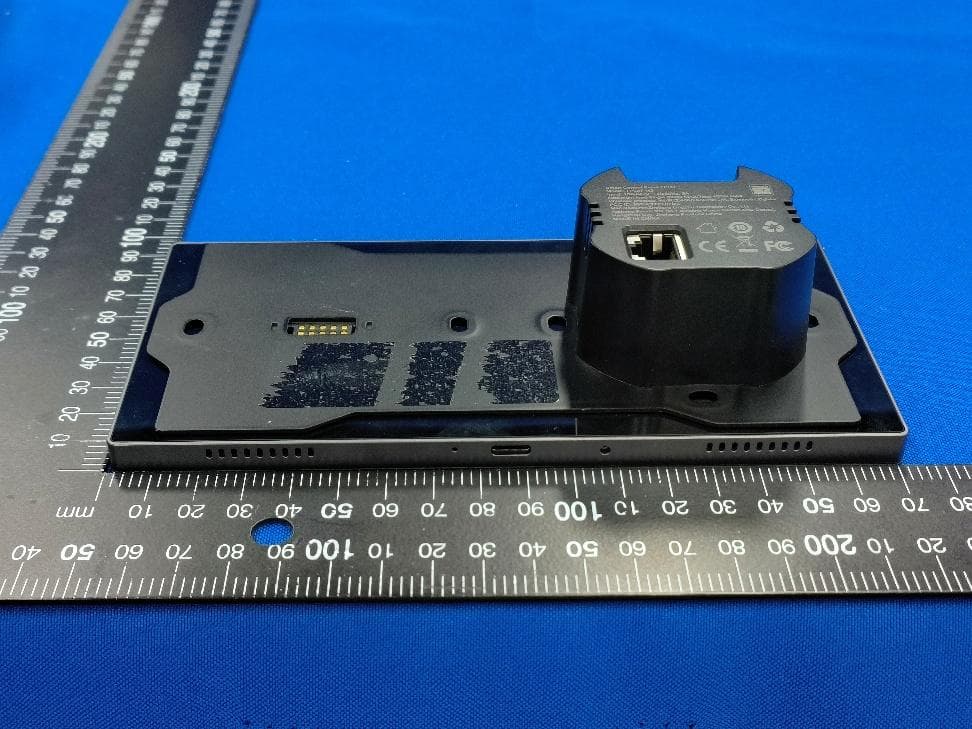

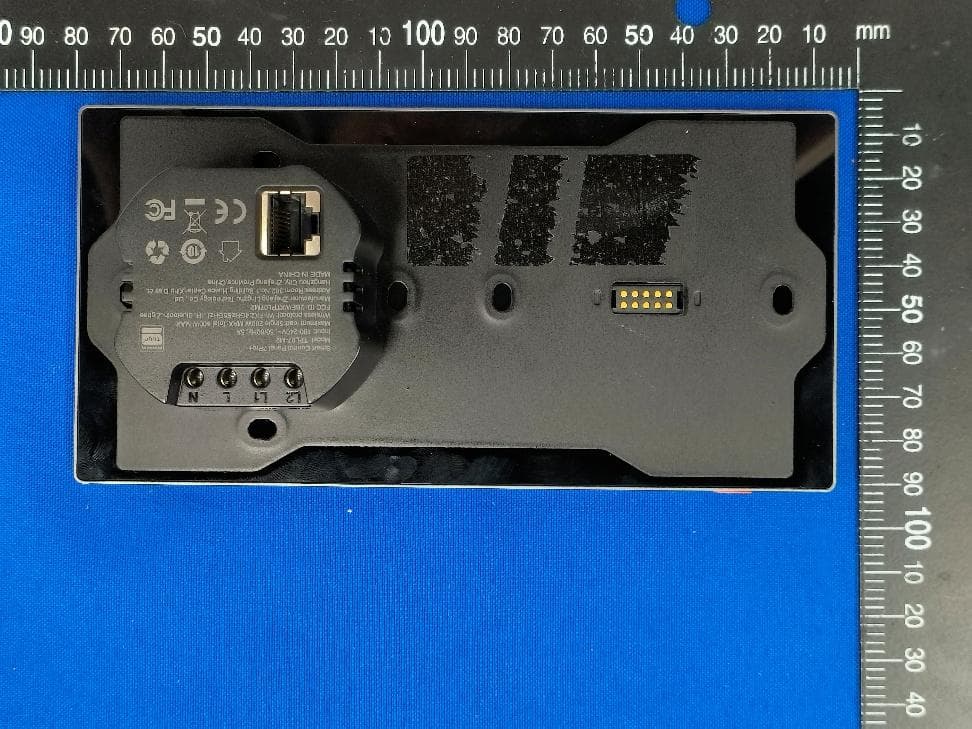

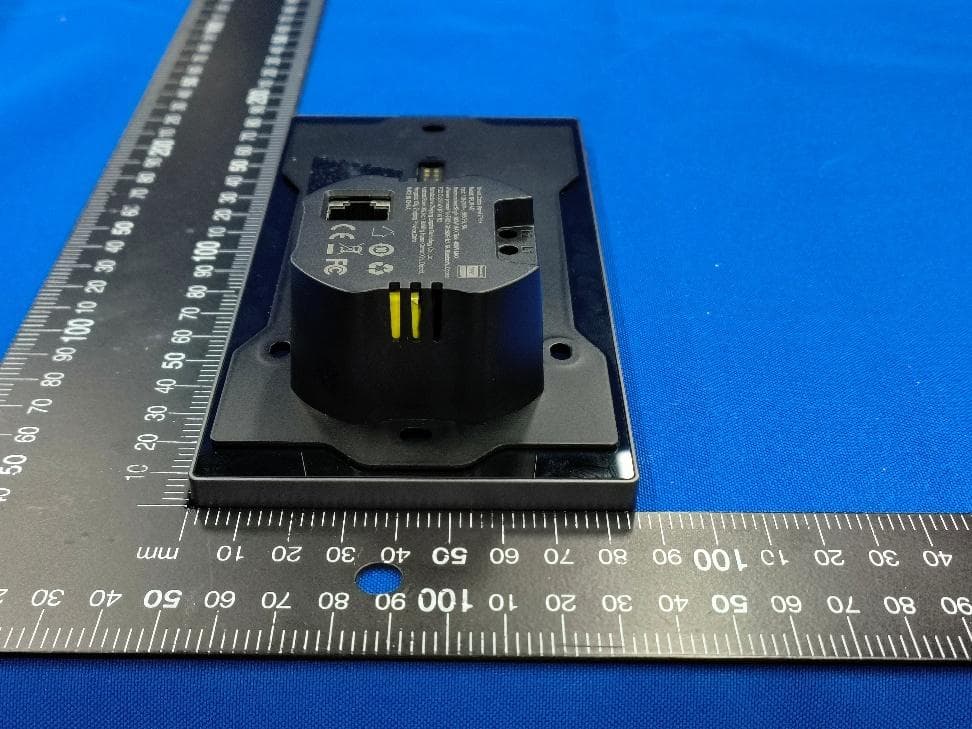

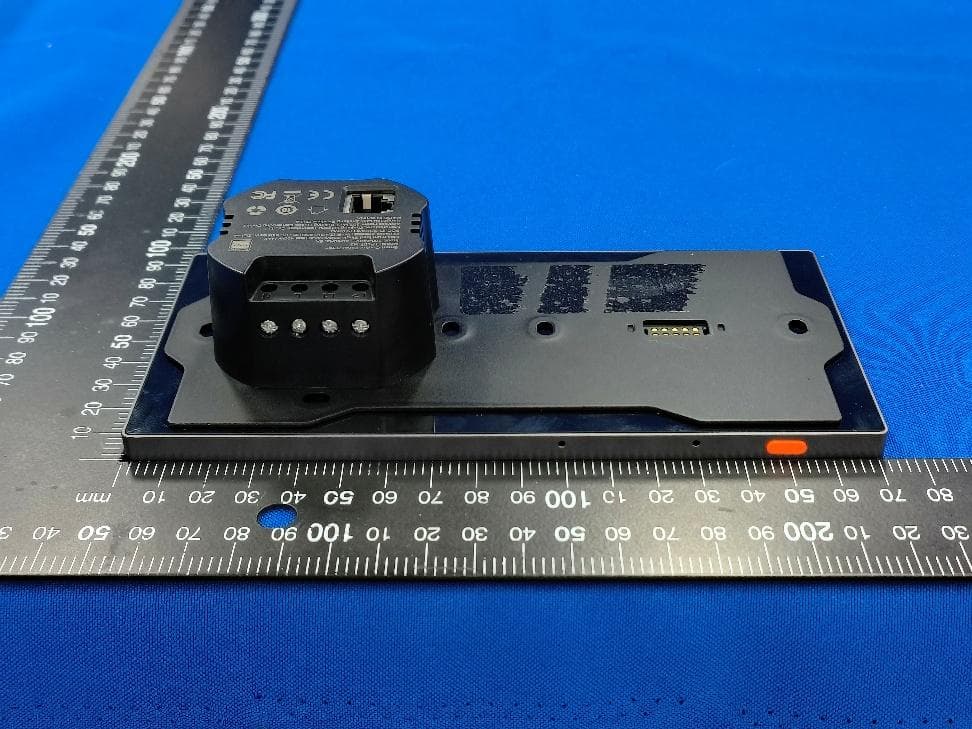

2BEWXTPL07M2Smart Control Panel 7Pro+

Smart Control Panel Product Manual 7Pro Premium Ultra-Slim AI Flagship Control Panel Contents Welcome Installation Guide Product Specifications FCC Statement Warranty Policy Non‑Warranty Conditions 01 03 07 08 09 09 Hazardous Substances Declaration10 Product Diagram02 Welcome Smart Control Panel 7Pro+ is a multi‑functional interactive device that combines touch control, voice control, a multi‑mode gateway, a dual‑channel relay, and infrared remote control. Through touch and voice interaction, you can control various Powered by Tuya devices and scenes in your home. The multi‑mode gateway supports connecting Zigbee and Bluetooth Sigmesh sub‑devices. The dual‑channel relay can replace traditional switches to control two lighting circuits. The built‑in infrared remote control can directly control infrared devices such as TVs and air conditioners. In addition to controlling devices and scenes, the Smart Control Panel 7Pro+ also supports smart cameras, video doorbells, and video door locks. You can view the camera’s audio/video stream directly on the screen, and when paired with a video door lock, you can unlock the door right from the screen. 01 Product Diagram 02 86mm 172mm IR Remote Mute Button Mic Hole Type C *For Debug Only Speaker Speaker Reset Hole Mute Indicator Light Sensor Proximity Sensor Product Diagram Magnetic connector*2 03 L1 L2 Neutral wire Live wire RJ45 network port *Original wall base – as shown Optional desktop base 60mm 54mm 83.5mm 146mm *86-type switch standard mounting hole spacing *US standard switch mounting hole spacing *Double 86-type switch tandem mounting hole spacing 52.5mm 60mm Installation Guide ①Packing List 03 Smart Control Panel 7Pro+ X 1 User Guide X 1 Accessory kit X 1 (Including screen and wall-mount base) Installation Guide ②Installation Notes 1.This product connects to the internet via Wi‐Fi or an Ethernet cable. Please ensure Wi‐Fi or an Ethernet cable is ready. 2.The power back box requires a neutral wire and live wire. The mounting box must have a neutral wire. If not, a neutral wire must be added. 3.Installation of the power back box involves 220V mains voltage. It must be carried out by a qualified electrician. Read the Installation Guide carefully before installation. Failure to follow the Installation Guide may endanger your life. 4.The product supports two loads, each up to 200W max. 5.For indoor use only. Do not install in damp environments such as bathrooms. 6.Only install and use at altitudes below 2000 meters. 7.Prepare tools: screwdriver, voltage tester, electrical tape, etc. 8.Do not work on live wires. *This product features an industry-leading full-screen design, delivering an ultimate visual experience. Due to its bezel-less construction and larger display area, the screen itself has limited durability against drops or impacts. To avoid accidental damage, please handle with care and prevent contact with hard objects. 04 Installation Guide ③Installation Location The Smart Control Panel 7Pro+ has a built‑in infrared transmitter to control infrared appliances. During installation, you can power the device via USB‑C to verify that the chosen location allows effective control of the infrared appliances. Infrared signals cannot penetrate walls. For the best control experience, it is recommended to install the panel in an open area directly facing the infrared device 05 Installation location diagram Smart Control Panel 7Pro+ air conditioner Installation Guide ③Installation Steps 1.Use a voltage tester to identify the live wire, neutral wire, and lighting control wires, then turn off the circuit breaker. 2.Take out the product body and the screw accessory pack from the box. 3.Use a flat‐head screwdriver to gently pry open the panel from the bottom release slot, separating the panel from the power base (Fig. 1). 4.Connect the neutral wire to terminal N, the live wire to terminal L, and the lighting control wires to terminals L1/L2 respectively (Fig. 2). 5.After verifying the connections are correct, tighten the terminal screws. 6.Use the KM4 screws from the accessory pack to secure the power base to the wall box (Fig. 3). 7.Tilt the panel and snap it onto the wall‐mounted power base. Check that the panel is firmly attached. 06 Product Specifications Product NameSmart Control Panel 7Pro+ ModelTPL07-M2 Screen Size6.9 inches Screen Resolution1440*720 Input100-240V~; 50/60Hz;5A Wireless Protocols Wi‐Fi (2.4GHz/5GHz) Zigbee 3.0 Bluetooth 5.2/Bluetooth Mesh Max Load Total max 400W Single channel max 200W Operating Temperature0°C ~ 40°C Operating Humidity5% ~ 90% RH (non‐condensing) Product Dimensions 172*65*8.5mm (without base) 172*65*39.2mm (with base) Net WeightApprox. 360g 07 Warranty Policy After‐sales service strictly follows the Law of the People's Republic of China on the Protection of Consumer Rights and Interests and the Product Quality Law of the People's Republic of China, implementing the "Three Guarantees" policy. Service terms: 1.Within 7 days from the date of receipt, if a performance defect occurs, you may receive a free refund or replacement. 2.Within 8‐15 days from the date of receipt, if a performance defect occurs, you may receive a free replacement or repair. 3.Within 12 months from the date of receipt, if a performance defect occurs, you may receive free repair services. 08 Non‑Warranty Conditions 1.Damage caused by unauthorized repair, misuse, collision, neglect, abuse, liquid ingress, accident, modification, incorrect use of non‐original accessories, or tampering with/removing labels or anti‐counterfeit marks. 2.Exceeding the warranty period. 3.Damage caused by force majeure. 4.Damage or failure caused by issues other than design, technology, manufacturing, or quality defects of the product itself. 09 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including inter…

Text truncated - open the document above for the full version.

Report No.: SUCR260400032307 Page: 1 of 11 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 Member of the SGS Group （SGS SA） t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory RF Exposure Evaluation Report Application No.: SUCR2604000323AT FCC ID: 2BEWXTPL07M2 Applicant: Zhejiang Lingzhu Technology Co., Ltd. Address of Applicant: Room 302,No 1 Building Huace Center,Xihu District, Hangzhou City, Zhejiang Province,China Manufacturer: Zhejiang Lingzhu Technology Co., Ltd. Address of Manufacturer: Room 302,No 1 Building Huace Center,Xihu District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: Smart Control Panel 7Pro+ Model No.: TPL07-M2,TPL07-M2+ Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D04 Interim General RF Exposure Guidance v01 Date of Receipt: 2026-04-08 Date of Issue: 2026-06-02 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: SUCR260400032307 Page: 2 of 11 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Revision Record Version Description Date Remark 00 Original 2026-06-02 / Authorized for issue by: Prepared By Hayley_Zhang/Project Engineer Approved By Cedar Cheng /Reviewer Report No.: SUCR260400032307 Page: 3 of 11 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） 1 Contents Page 1 Contents ............................................................................................................................................ 3 2 General Information .......................................................................................................................... 4 2.1 General Description of E.U.T. .................................................................................................... 4 2.2 Test Location ............................................................................................................................ 6 2.3 Test Facility............................................................................................................................... 6 3 RF Exposure Test Exemptions ........................................................................................................ 7 3.1 FCC RF Exposure Test Exemptions for single RF sources ....................................................... 7 4 Measurement and Calculation ....................................................................................................... 11 4.1 Maximum transmit power ......................................................................................................... 11 4.2 RF Exposure Calculation ......................................................................................................... 11 Report No.: SUCR260400032307 Page: 4 of 11 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） 2 General Information 2.1 General Description of E.U.T. BLE Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.2 Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Rates Type: 1M Antenna Type: LDS Antenna Antenna Gain: ANT2: 0.99dBi (Provided by the manufacturer) BT Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.2 Modulation Type: GFSK, pi/4DQPSK, 8DPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Rates Type: 1M/2M/3M Antenna Type: LDS Antenna Antenna Gain: ANT1: 0.88dBi (Provided by the manufacturer) 2.4GHz WiFi Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz; 802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (DBPSK, DQPSK, CCK); 8 02.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type:…

Text truncated - open the document above for the full version.

Page: 1 of 5 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Appendix A.3 Test Setup Photo for SUCR2604000323AT Test Model No.: TPL07-M2 Page: 2 of 5 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Test Setup Photo Conducted Emissions at AC Mains Terminals (150kHz-30MHz) Radiated Emissions (9kHz-30MHz) Page: 3 of 5 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Radiated Emissions (30MHz-1GHz) Radiated Emissions (1-18GHz) Page: 4 of 5 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Radiated Emissions (18-40GHz) RF Conducted Page: 5 of 5 TRF No. SUZSCONN-TRF-CR001A_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） DFS - End of the Report -

Antenna Specification Manufacture：TUYA Product Name：TPL07-M2 Zigbee Antenna Antenna Type：LDS Test Date：2025.3.20 Tested by：CaiQuan Approved by：Licco Content 1.General Description ................................................................................. 1 2.Test Configurations .................................................................................. 2 2.1 Test Environment ............................................................................ 2 2.2 Test Equipment ............................................................................... 2 2.3 Test Principle ................................................................................... 4 3.Test Results .............................................................................................. 4 3.1 Gain and Efficiency.......................................................................... 4 3.2 Radiation Pattern ............................................................................ 6 4.Antenna Dimensions ............................................................................... 8 5.EUT Photo................................................................................................ 9 6.Test Setup Photo .................................................................................... 10 1 1.General Description Manufacturer Hangzhou Tuya Information Technology Co.,Ltd Address Room 701,Building 3,More Center,No.87 GuDun Road, Hangzhou, Zhejiang,China Test Location Room 106, Building 3, Letong Science Park, No. 500, Qiuyi Road, Binjiang District, Hangzhou Product Name TPL07-M2 Zigbee Antenna Product model TPL07-M2 Antenna Type LDS Antenna Test Items Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz Test Standard ANSI/IEEE Std 149-1979 2 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test itens Test equipment S Parameter 1.Retum Loss 2.VSWR Network analyzer （Agilent E5071B） (Calibration date: November 21, 2024 - November 20, 2025) Passive test 1.Frequency 2.Gain 3.Radiation Pattern 1.3Dmicrowave darkroom （5m*4m*4m） 2.Network analyzer （Agilent E5071B） (Calibration date: December 18, 2024 - December 17, 2025) Active test 1. TRP 2. TIS 1.3Dmicrowave darkroom （5m*4m*4m） 2.Comprehensive test instrument (CMW500) (Calibration date: December 16, 2024 - December 15, 2025) The passive test results are obtained by collecting the near-field data of the DUT spherical surface through multiple probes, and then calculating the 3 directivity of the DUT through the near-far field conversion formula. Finally, the gain and efficiency are calculated through the directivity coefficient on the directivity diagram. Test software：PassiveTest.exe Darkroom coordinates Test antenna CMW500 Agilent E5071B 4 2.3 Test Principle 3.Test Results 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 -0.02 31.77 2410 0.26 31.33 2420 -0.42 40.09 2430 -0.01 39.63 2440 -0.55 38.82 2450 -0.25 40.27 2460 0.54 42.95 5 2470 -0.05 41.02 2480 0.28 44.67 2490 0.05 45.6 2500 0.6 41.69 6 3.2 Radiation Pattern Phi 0 2D Phi 90 2D 7 Theta 90 2D 2400MHz 3D 放类似图Z轴朝上 2450MHz 3D 8 2500MHz 3D 3. Antenna Dimensions 单位：mm 9 5.EUT Photo 10 6.Test Setup Photo

Antenna Specification Manufacture：TUYA Product Name：TPL07-M2 WIFI Antenna Antenna Type：LDS Test Date：2025.3.20 Tested by：CaiQuan Approved by：Licco Content 1.General Description ................................................................................. 1 2.Test Configurations .................................................................................. 2 2.1 Test Environment ............................................................................ 2 2.2 Test Equipment ............................................................................... 2 2.3 Test Principle ................................................................................... 4 3.Test Results .............................................................................................. 4 3.1 Gain and Efficiency.......................................................................... 4 3.2 Radiation Pattern ............................................................................ 7 4.Antenna Dimensions ............................................................................. 10 5.EUT Photo.............................................................................................. 11 6.Test Setup Photo .................................................................................... 12 1 1.General Description Manufacturer Hangzhou Tuya Information Technology Co.,Ltd Address Room 701,Building 3,More Center,No.87 GuDun Road, Hangzhou, Zhejiang,China Test Location Room 106, Building 3, Letong Science Park, No. 500, Qiuyi Road, Binjiang District, Hangzhou Product Name TPL07-M2 WIFI Antenna Product model TPL07-M2 Antenna Type LDS Antenna Test Items Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz 5150-5850MHz Test Standard ANSI/IEEE Std 149-1979 2 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test itens Test equipment S Parameter 1.Retum Loss 2.VSWR Network analyzer （Agilent E5071B） (Calibration date: November 21, 2024 - November 20, 2025) Passive test 1.Frequency 2.Gain 3.Radiation Pattern 1.3Dmicrowave darkroom （5m*4m*4m） 2.Network analyzer （Agilent E5071B） (Calibration date: December 18, 2024 - December 17, 2025) Active test 1. TRP 2. TIS 1.3Dmicrowave darkroom （5m*4m*4m） 2.Comprehensive test instrument (CMW500) (Calibration date: December 16, 2024 - December 15, 2025) The passive test results are obtained by collecting the near-field data of the DUT spherical surface through multiple probes, and then calculating the 3 directivity of the DUT through the near-far field conversion formula. Finally, the gain and efficiency are calculated through the directivity coefficient on the directivity diagram. Test software：PassiveTest.exe Darkroom coordinates Test antenna CMW500 Agilent E5071B 4 2.3 Test Principle 3.Test Results 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 0.5 30.9 2410 0.87 30.06 2420 0.98 34.04 2430 0.88 30.83 2440 0.73 33.88 2450 0.72 33.88 2460 0.84 34.59 5 2470 0.98 36.06 2480 -0.17 33.42 2490 0.21 34.36 2500 -0.09 33.81 5150 0.51 29.72 5200 0.8 34.99 5250 0.55 37.24 5300 0.04 41.11 5350 0.62 46.77 5400 0.3 48.98 5450 0.08 39.17 5500 0.77 45.6 5550 0.91 37.15 5600 0.67 35.73 5650 0.75 31.7 5700 0.8 33.42 5750 0.92 30.41 5800 0.16 30.27 6 5850 0.09 33.81 7 3.2 Radiation Pattern Phi 0 2D Phi 90 2D 8 Theta 90 2D 2400MHz 3D 放类似图Z轴朝上 2450MHz 3D 9 2500MHz 3D 5150MHz 3D 5450MHz 3D 10 5800MHz 3D 4.Antenna Dimensions 11 5.EUT Photo 12 6.Test Setup Photo

Antenna Specification Manufacture：TUYA Product Name：TPL07-M2 BLE Antenna Antenna Type：LDS Test Date：2025.3.20 Tested by：CaiQuan Approved by：Licco Content 1.General Description ................................................................................. 1 2.Test Configurations .................................................................................. 2 2.1 Test Environment ............................................................................ 2 2.2 Test Equipment ............................................................................... 2 2.3 Test Principle ................................................................................... 4 3.Test Results .............................................................................................. 4 3.1 Gain and Efficiency.......................................................................... 4 3.2 Radiation Pattern ............................................................................ 6 4.Antenna Dimensions ............................................................................... 8 5.EUT Photo................................................................................................ 9 6.Test Setup Photo .................................................................................... 10 1 1.General Description Manufacturer Hangzhou Tuya Information Technology Co.,Ltd Address Room 701,Building 3,More Center,No.87 GuDun Road, Hangzhou, Zhejiang,China Test Location Room 106, Building 3, Letong Science Park, No. 500, Qiuyi Road, Binjiang District, Hangzhou Product Name TPL07-M2 BLE Antenna Product model TPL07-M2 Antenna Type LDS Antenna Test Items Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz Test Standard ANSI/IEEE Std 149-1979 2 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test itens Test equipment S Parameter 1.Retum Loss 2.VSWR Network analyzer （Agilent E5071B） (Calibration date: November 21, 2024 - November 20, 2025) Passive test 1.Frequency 2.Gain 3.Radiation Pattern 1.3Dmicrowave darkroom （5m*4m*4m） 2.Network analyzer （Agilent E5071B） (Calibration date: December 18, 2024 - December 17, 2025) Active test 1. TRP 2. TIS 1.3Dmicrowave darkroom （5m*4m*4m） 2.Comprehensive test instrument (CMW500) (Calibration date: December 16, 2024 - December 15, 2025) The passive test results are obtained by collecting the near-field data of the DUT spherical surface through multiple probes, and then calculating the 3 directivity of the DUT through the near-far field conversion formula. Finally, the gain and efficiency are calculated through the directivity coefficient on the directivity diagram. Test software：PassiveTest.exe Darkroom coordinates Test antenna CMW500 Agilent E5071B 4 2.3 Test Principle 3.Test Results 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 -0.39 27.42 2410 0.99 30.69 2420 0.08 45.92 2430 0.56 45.29 2440 0.6 47.21 2450 0.88 49.77 2460 0.82 51.76 5 2470 0.25 48.42 2480 0.62 47.86 2490 0.09 42.17 2500 -1.15 34.67 6 3.2 Radiation Pattern Phi 0 2D Phi 90 2D 7 Theta 90 2D 2400MHz 3D 放类似图Z轴朝上 2450MHz 3D 8 2500MHz 3D 3. Antenna Dimensions 单位：mm 9 5.EUT Photo 10 6.Test Setup Photo

Report No.: SUCR260400032306 Page: 1 of 57 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 Member of the SGS Group （SGS SA） t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory TEST REPORT Application No.: SUCR2604000323AT FCC ID: 2BEWXTPL07M2 Applicant: Zhejiang Lingzhu Technology Co., Ltd. Address of Applicant: Room 302,No 1 Building Huace Center,Xihu District, Hangzhou City, Zhejiang Province,China Manufacturer: Zhejiang Lingzhu Technology Co., Ltd. Address of Manufacturer: Room 302,No 1 Building Huace Center,Xihu District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: Smart Control Panel 7Pro+ Model No.: TPL07-M2,TPL07-M2+   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2026-04-08 Date of Test: 2026-05-11 to 2026-05-27 Date of Issue: 2026-06-02 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: SUCR260400032306 Page: 2 of 57 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） Revision Record Version Description Date Remark 00 Original 2026-06-02 / Authorized for issue by: Prepared By Hayley_Zhang/Project Engineer Approved By Cedar Cheng /Reviewer Report No.: SUCR260400032306 Page: 3 of 57 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10- 2020/Cor1-2023 Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions which fall in the restricted bands ANSI C63.10- 2020/Cor1-2023 Section 6.10.5 & 11.12 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10- 2020/Cor1-2023 Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10- 2020/Cor1-2023 Section 6.6 & 11.12 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Maximum Conducted Output Power ANSI C63.10- 2020/Cor1-2023 Section 11.9 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10- 2020/Cor1-2023 Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectral Density ANSI C63.10- 2020/Cor1-2023 Section 11.10 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10- 2020/Cor1-2023 Section 6.10.4 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10- 2020/Cor1-2023 Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are identical in electrical and electronic characters. Only the model TPL07-M2 was tested according to the declaration letter from client. Report No.: SUCR260400032306 Page: 4 of 57 TRF No. SUZSCONN-TRF-CR001_A_Jun 1 st ,2026 South of No. 6 Plant, No. 1, RunSheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone 215123 t (86-512) 6229 2980 www.sgsgroup.com.cn SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Connectivity Laboratory Member of the SGS Group （SGS SA） 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 Test Summary ......................................................................................................................................... 3 3 Contents ...........................................................................................................................................…
