2BEXL-GLSTATIONGL STATION

Transcend IoT USER MANUAL  EN Summary Transcend IoT About Application Product Specification Operating Procedures Wi-Fi Configuration FCC Warning Statement IC Warning Avertissement IC 02 03 04 05 06 12 13 14 About Group Link Station is a Plug & Play IoT Sensor capable of identifying users remotely and impacting them with real-time notifications. It works together with other Group Link devices where its main purpose is to obtain data f rom these devices and send it directly to the cloud server via HTTPS protocol. GL Station allows Ethernet and WiFi connectivity and is powered through a USB source (not provided with the product). Available colors 3 • The gateway only scans Group Link-enabled devices; • The gateway uploads the read data only to the Group Link cloud server in a unidirectional way; • If using a Wi-fi connection, make sure your network is not a Captive Portal. GLStation just works on networks that only need an SSID and Password authentication; • If using an Ethernet cable, make sure your network doesn’t need MAC Address authentication. If so, use the MAC Address provided on the product label. Application Product notes GL Station Gateway Enabled Devices Advertising data via bluetooth Gateway scanning and getting the data Ethernet / Wifi HTTPS InternetServer Transcend IoT 4 Product Micro USB power supply* PoE power supply* Bluetooth standard Bluetooth f requency operation Bluetooth TX power Wi-Fi encryption Wi-Fi Standard Wi-Fi TX power No network Wi-Fi connected without internet access Ethernet connected without internet access Wi-Fi and Ethernet connected, without internet access - Wi-Fi connected with internet access Ethernet connected with internet access Wi-Fi and Ethernet connected, with internet access RED WHITE BLUE GREEN ColorFadingFixed GL Station 5V/1A 48V/1A BLE 4.2 2.4GHz -0.15 dBm IEEE 802.11B IEEE 802.11G IEEE 802.11N WP A WPA2 WPA2- Enterprise +16.68dBm LED Status Product Specification Transcend IoT * Only one power supply (USB or PoE adapter) is required, which is not supplied with the product Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN Step 2 5 Connect the GL Station to the internet through Ethernet or Wi-Fi Power input through Micro USB Step 1 Operating Procedures Transcend IoT Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN 6 Power on GL Station Using a PC or mobile phone, open Wi-Fi settings and search for the GL Station SSID among listed networks, indentified by the following format: GLStation_XXXXXXXX Step 1 Step 2 Wi-Fi Configuration Transcend IoT Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN 7 Click on it and insert the following password: grouplink connecting to GL Station device Transcend IoT Step 3 Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN 8 Use a web browser to open the IP address: http://10.10.0.1 Transcend IoT Step 4 Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN Step 5 9 Choose a network in the list Transcend IoT Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN Step 6 10 Insert the password, click enter and wait Transcend IoT Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN Step 7 11 A message will indicate if the connection was successfully established. Transcend IoT Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.6684 [email protected] www.grouplinknetwork.com GL STATION  USER MANUAL EN 12 Transcend IoT FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio f requency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different f rom that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm f rom all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. Rua Quintana 887, 6th floor Cidade Monções Sao Paulo • Brazil +55 11 9.1162.668…

Text truncated - open the document above for the full version.

GROUP LINK NETWORK S.A 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: GROUP LINK NETWORK S.A Address: Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Product Name: GL STATION FCC ID: 2BEXL-GLSTATION Model(s): GL Station 2.911(d)(5)(i) Equipment Type We, [GROUP LINK NETWORK S.A] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Joao Silva Date: Jul. 27, 2024 Title and Company name: CO-FOUNDER; GROUP LINK NETWORK S.A NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

GROUP LINK NETWORK S.A 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: GROUP LINK NETWORK S.A Address: Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Product Name: GL STATION FCC ID: 2BEXL-GLSTATION Model(s): GL Station 2.911(d)(5)(ii) Applicant filing We, [GROUP LINK NETWORK S.A] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Joao Silva Date: Jul. 27, 2024 Title and Company name: CO-FOUNDER; GROUP LINK NETWORK S.A NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Section 2.911(d)(7) USA Agent for Service of Process Company name: GROUP LINK NETWORK S.A Address: Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Product Name: GL Station Model(s): GL Station 2.911(d)(7) USA Designated Agent for Service of Process We, GROUP LINK NETWORK S.A (“the applicant”) designate GROUP LINK ONE LLC NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. ZapSign747d25c1-48b8-4fe9-bd97-9ec1e8706e5e. Documento assinado eletronicamente, conforme MP 2.200-2/2001 e Lei 14.063/2020. USA Agent Company name: GROUP LINK ONE LLC USA Address: 6950 NORTHWEST 28TH AVENUE BOCA RATON, FL. US 33496 Applicant Company name: GROUP LINK NETWORK S.A Address: Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil FRN Number 0035649375 Contact Name: Luis Marcello Hayashi Telephone No: +1 305 7419807 Email: [email protected] Signature: Title: MGR Date: 03/06/2024 Grantee FRN Number 0034847004 FCC Grantee Code: 2BEXL Contact Name: Joao Silva Telephone No: +55 11 5550-4750 Email: [email protected] Signature: Title: CO-FOUNDER Date: 03/06/2024 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national- security-threats-to-the-communications-supply-chain-through-the ZapSign747d25c1-48b8-4fe9-bd97-9ec1e8706e5e. Documento assinado eletronicamente, conforme MP 2.200-2/2001 e Lei 14.063/2020.

GROUP LINK NETWORK S.A Agent Authorization Company: GROUP LINK NETWORK S.A Address: Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Product Name: GL STATION Model Number(s): GL Station Product Description: GL STATION We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 27, 2024 Name: Joao Silva Title: CO-FOUNDER Company: GROUP LINK NETWORK S.A

< GROUP LINK NETWORK S.A > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jul. 27, 2024 Subject; Request for Long Term Confidentiality FCC ID: 2BEXL-GLSTATION To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Joao Silva Title: CO-FOUNDER

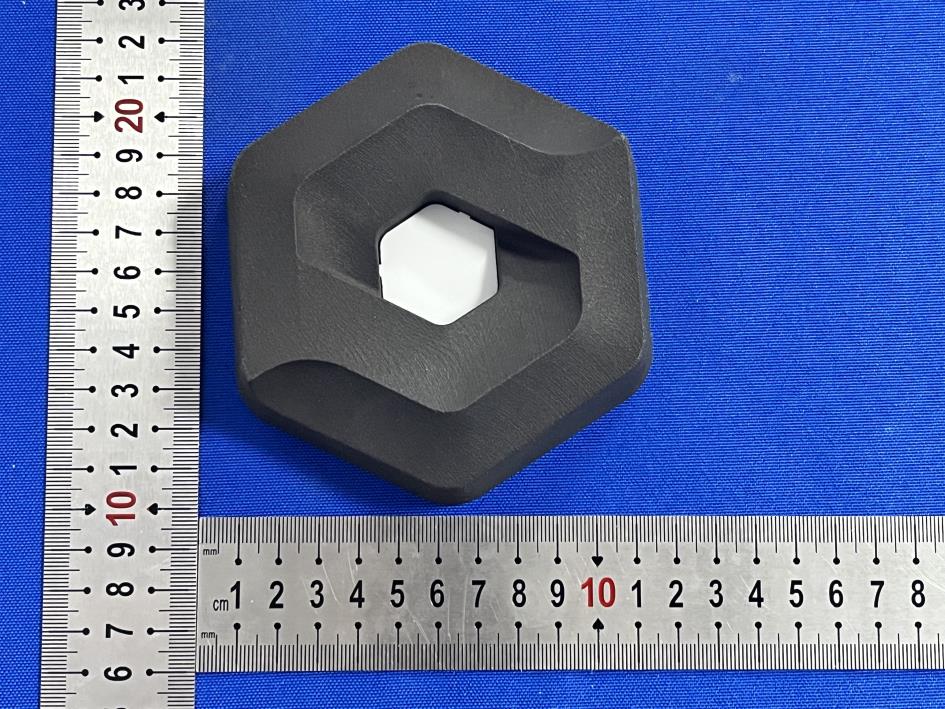

Model: GL Station Model: GL Station Model: GL Station

FCC ID LABEL: Label Location: FCC ID: 2BEXL-GLSTATION 3cm 3cm

Model: GL Station Model: GL Station Model: GL Station WIFI2.4G Antenna BLE Antenna

MPE ESTIMATION FCC ID: 2BEXL-GLSTATION 1. Limit for General Population/Uncontrolled Exposures Frequency Power Density(mW/cm2) Averaging Time(minutes) 300MHz-1.5GHz F/1500 30 1.5GHz-100GHz 1.0 30 Note: F= Frequency in MHz 2. Estimation Result BLE: Frequency (MHz) Reading result (dBμV) EIRP(dBm) Max Tune Up Power (mW) MPE (mW/cm²) Power Density (mW/cm2) Limit Result 2402 95.05 -0.15 0.966 0.000272 1.0 PASS Note: Note: The estimation distance is 20cm. Note: Reading result see the test report UNIA23101336ER-61. EIRP= Reading result - 95.2 WIFI2.4G: Mode AV Output Power(dBm) Tune Up Power(dBm) Tune Up Power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 11b 16.68 17±1(18) 63.096 3.71 2.3496 0.029508 11g 13.92 14±1(15) 31.623 3.71 2.3496 0.014789 11n/HT20 11.74 12±1(13) 19.953 3.71 2.3496 0.009332 11n/HT40 9.35 9±1(10) 10.000 3.71 2.3496 0.004677 Note: Note: The estimation distance is 20cm. Note: AV Output power=conducted power. Conducted power see the test report UNIA23101336ER-62, antenna gain=3.71dBi. The Bluetooth can transmit simultaneously with WIFI. So the worst simultaneous transmitting consideration: The ratio=MPE BT /Limit +MPE 2.4G WIFI /Limit =0.000272/1.00+0.029508/1.00=0.002978＜1.00 ------The End------

OTA TEST REPORT Applicant Espressif Systems Product ESP-ANT A Model ESP-ANT A Report No. YXA1711-1424OTA01R1 Issue Date November 30, 2017 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Jiangpeng Lan Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 OTA Test Report Report No: YXA1711-1424OTA01R1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 12 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. General Information ....................................................................................................................... 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing laboratory .............................................................................................................. 4 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant Information ......................................................................................................... 5 2.2. Manufacturer Information .................................................................................................. 5 2.3. Information of EUT ............................................................................................................ 5 2.4. Test Date ........................................................................................................................... 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 4.2. Voltage Standing Wave Ratio (VSWR) .............................................................................. 9 4.3. Antenna S11 ...................................................................................................................... 9 5. Test Equipment List ..................................................................................................................... 10 APPENDIX A: 2-D Pattern Plots ............................................................................................................. 11 APPENDIX B: The EUT Appearance and Test Configuration .................................................................. 12 B.1 EUT Appearance ................................................................................................................... 12 OTA Test Report Report No: YXA1711-1424OTA01R1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 12 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. General Information 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd.The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. This report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. 1.2. Test facility CNAS (accreditation number:L2264) TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS). FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. IC (recognition number is 8510A) TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. OTA Test Report Report No: YXA1711-1424OTA01R1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 12 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.3. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2…

Text truncated - open the document above for the full version.

Page 1 of 86 Report No.: UNIA23101336ER-62 FCC RADIO TEST REPORT FCC ID: 2BEXL-GLSTATION Sample : GL STATION Trade Mark : GROUP LINK Main Model : GL Station Additional Model : N/A Report No. : UNIA23101336ER-62 Prepared for GROUP LINK NETWORK S.A Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 86 Report No.: UNIA23101336ER-62 TEST RESULT CERTIFICATION Applicant ............................... : GROUP LINK NETWORK S.A Address .................................. : Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Manufacturer ........................ : GROUP LINK NETWORK S.A Address .................................. : Rua Quintana,887 Cidade Moncoes Conj. 61/62-CEP: 04569-011 Sao Paulo Brazil Product description Product ................................... : GL STATION Trade Mark ............................. : GROUP LINK Model Name ........................... : GL Station Test Methods ........................ : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Oct. 14, 2023 ~ Jan. 05, 2024 Date of Issue .......................................... : Jan. 08, 2024 Test Result ............................................. : Pass Edited by: Jason Ye Reviewed by: Kelly Cheng Approved by: Liuze Page 3 of 86 Report No.: UNIA23101336ER-62 Table of Contents Page 1 TEST SUMMARY 5 1.1 TEST PROCEDURES AND RESULTS 5 1.2 TEST FACILITY 6 1.3 MEASUREMENT UNCERTAINTY 7 1.4 ENVIRONMENTAL CONDITIONS 7 2 GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 CARRIER FREQUENCY OF CHANNELS 9 2.3 TEST MODE 9 2.4 DESCRIPTION OF THE TEST MODES 9 2.5 TEST SETUP 10 2.6 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 10 2.7 MEASUREMENT INSTRUMENTS LIST 11 3 CONDUCTED EMISSION 12 3.1 TEST LIMIT 12 3.2 TEST SETUP 12 3.3 TEST PROCEDURE 13 3.4 TEST RESULT 13 4 RADIATED EMISSION 16 4.1 TEST LIMIT 16 4.2 TEST SETUP 17 4.3 TEST PROCEDURE 18 4.4 TEST RESULT 18 5 6dB BANDWIDTH 41 5.1 TEST LIMIT 41 5.2 TEST PROCEDURE 41 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) 41 5.4 MEASUREMENT EQUIPMENT USED 41 5.5 TEST RESULT 41 6 POWER SPECTRAL DENSITY 50 6.1 TEST LIMIT 50 6.2 TEST PROCEDURE 50 6.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) 50 6.4 EQUIPMENT USED 50 6.5 TEST RESULT 50 Page 4 of 86 Report No.: UNIA23101336ER-62 Table of Contents Page 7 AVERAGE OUTPUT POWER 59 7.1 TEST LIMIT 59 7.2 TEST PROCEDURE 59 7.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) 59 7.4 EQUIPMENT USED 59 7.5 TEST RESULT 60 8 OUT OF BAND EMISSIONS 71 8.1 TEST LIMIT 71 8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) 71 8.3 TEST PROCEDURE 71 8.4 MEASUREMENT EQUIPMENT USED 71 8.5 TEST RESULT 71 9 ANTENNA REQUIREMENT 84 10 PHOTO OF TEST 85 Page 5 of 86 Report No.: UNIA23101336ER-62 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Note: “N/A” denotes test is not applicable in this Test Report. Item FCC Rules Description Of Test Result 1 FCC Part 15.207 Conducted Emission Pass 2 FCC Part 15.209(a) Radiated Emission Pass 3 FCC Part 15.247(a)(2) Occupied Bandwidth Pass 4 FCC Part 15.247(e) Power Spectral Density Pass 5 FCC Part 15.247(b) Average Output Power Pass 6 FCC Part 15.247(d) Out Of Band Emissions Pass 7 FCC Part 15.247(d) Conducted Spurious Emission Pass 8 FCC Part 15.203 Antenna Requirement Pass Page 6 of 86 Report No.: UNIA23101336ER-62 1.2 TEST FACILITY Test Firm : Shenzhen United Testing Technology Co., Ltd. Address : D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19.The testing quality system of our laboratory meets with ISO/IEC-17025 requirements. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: A2LA Certificate Number: 4747.01 The EMC Laboratory has been accredited by A2LA, and in compliance with ISO/IEC 17025:2017 General Requirements for testing Laboratories. FCC Registration Number: 674885 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. IC Registration Number: 31584 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. Page 7 of 86 Report No.: UNIA23101336ER-62 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement: Test Site Method Measurement Frequency Range U, (dB) UNI ANSI 9kHz ~ 150kHz 2.96 150kHz ~ 30MHz 2.44 B. Radiated Measurement: Test Site Method Measurement Frequency Range U, (dB) UNI ANSI 9kHz ~ 30MHz 2.50 30MHz ~ 1000MHz 4.80 1000MHz ~ 18000MHz 4.13 C. RF Conducted Method: Item Measurement Uncertainty Uncertainty of total RF power, conducted U c = ±0.8 dB Uncertainty of RF power density, conducted U c = ±2.6 dB Uncertainty of spurious emissions, conducted U c = ±2 % Uncertainty of Occupied Channel Bandwidth U c = ±2 % 1.4 ENVIRONMENTAL CONDITIONS During the measurement the environment…

Text truncated - open the document above for the full version.

Model: GL Station Radiated Emission test Model: GL Station Conducted Emission test RF Conducted test BLE: Model: GL Station 2.4G WiFi:
