2BEXT-MOB9500Mobile Payment Terminal

Ingenico Mobile Solutions –3025 Windward Plaza, suite 600 Alpharetta, GA 30005 United States Phone: +1.888.589.5885 USER GUIDE Moby/9500 • R02 0000 04182/9Copyright © 2018Ingenico Inc. We recommend that you read this installation guide before use. It will give you the necessary information about usage, safety precautions, installation and maintenance of your Moby/9500 card reader. WARRANTY / SECURITY In order to benefit from the product-related guaranteeand to respect security, we ask you to use only accessories delivered in box with the product, entrusting maintenance operations only to an authorized person. Moby/9500is battery powered, use only INGENICO parts for replacement: Moby/9500 can be charged with the USB cable connected to a mobile phone charger. Failure to comply with these instructions will void the manufacturer’s responsibility. Unpacking Following items are included in the Moby/9500 box: • The Moby/9500 Card Reader • USB cable • This User guide Security of your Moby/9500 Upon receipt of your card reader you should check for signs of tampering of the equipment. It is strongly advised that these checks are performed regularly. You should check, for example: that the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to any ports on your reader or associated equipment, the chip card slot, or any other part of your reader. Such checks would provide warning of any unauthorized modifications to your card reader, and other suspicious behavior of individuals that have access to your reader. Your reader detects any “tampered state”. If the reader is tampered, it will repeatedly flash the message ”Alert Interruption!” and further use of • R02 0000 04183/9Copyright © 2018Ingenico Inc. the reader will not be possible. If you observe the “Alert Interruption!” message, you should contact our helpdesk immediately. Battery Moby/9500 is fitted with a lithium battery which is not accessible to the user. • Only use chargers with rating that match the power ratings. • Moby/9500 can be charged with the USB cable connected to a mobile phone charger. • Do not attempt to open the reader. Warning Risk of explosion if battery is replaced by an incorrect type. Do not disassemble.Do not short-circuit. Do not dispose in fire. Do not throw in water. Dispose used batteries according to the instructions. Charging • A battery indicator is provided on the reader’s display, indicating the charge level of the battery. When connected to a charger, the symbol changes to charging. Moby/9500 Card Reader Moby/9500 allows merchants to convert a smartphone or a tablet into a powerful & secure POS solution. Usage ON To power on the reader press the ON/OFF Button. OFF Moby/9500 powers off on its own after a time. Alternatively, you can long press the ON/OFF button to turn it OFF. • R02 0000 04184/9Copyright © 2018Ingenico Inc. BLUETOOTH PAIRING AND CONNECTION Bluetooth is enabled as soon as the reader is turned on. Moby/9500is discoverable all the time. Pairing: Pairing of Moby/9500with your mobile phone/tablet must be done from the mobile app that comes with it: 1. Open the mobile app 2. Tap on the Menu icon on the top left corner. 3. Tap on Settings 4. Tap on Bluetooth Readers 5. If Bluetooth on your device is OFF, turn it ON. 6. Tap on ‘Pair a New Reader’ to start the pairing process. Connectivity: Once the Moby/9500 is paired to you mobile phone/tablet, it will automatically connect to your mobile app during subsequent use. Icon is shown when the reader is not connected via Bluetooth. Icon is shown when the reader is connected via Bluetooth. The pairing of Moby/9500 with your mobile device has to be performed from the mobile application that comes with the reader. You will not be able to pair the app from your device’s system Bluetooth Settings. Card reading Swiping a card • Insert the card manually in the swiping slot at the top of the reader , magstripe-facing up. Swipe the card with constant speed, not too slow not too fast, for optimum reading accuracy. Inserting a chip card • Chip Cards should be inserted into the reader, with the chip facing up and into the card reader slot. Tapping a contactless card/mobile device • R02 0000 04185/9Copyright © 2018Ingenico Inc. • Contactless Antenna is located around the LCD screen. Customers can tap close to the face of the screen to perform transaction. Tapping works best whenthe distance between the card/phone and the Moby/9500 is less than 1.5 inches. Maintenance First of all, unplug all cables from the reader. Good rules for proper cleaning of the reader are: • Do not clean the electrical connections. • Do not use in any case solvents, detergents, alcoholic or abrasive products as those materials will damage the plastic or electrical contacts. • Avoid exposing the reader to direct sunlight. • Do not insert anything but cards into the smart card reader slot. Troubleshooting Moby/9500 does not turn on: • Battery level is too low. • Check the USB connection. • Check that the wall plug PSU is fully inserted in the electrical socket. If Moby/9500 fails to establish Bluetooth Connection with your mobile app: • Check if Moby/9500 is paired to your mobile device using the mobile app. • Check if Bluetooth on your mobile device in ON. • Unpair the reader from your mobile device’s system Bluetooth Settings, and pair the reader again from your mobile app (refer to the pairing user guide). • Seek technical support. Make sure the pairing of Moby/9500with the device is done from the mobile payment application and not the device’s system settings. • R02 0000 04186/9Copyright © 2018Ingenico Inc. Cards are not read • Check that the magnetic card is swiped correctly (with magnetic stripe inserted into the slot & facing towards the keypad). • Swipe again the card with a constant movement. • Check that the magnetic stripe is not damaged, grooved or cracked. • Make sure you have inserted correctly the smart card into the smart card reader and tha…

Text truncated - open the document above for the full version.

Ingenico Inc. Add: 3025 Windward Plaza, Suite 600 Alpharetta, GA 30005 United States Tel: 6784561200 Mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2024-02-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2BEXT-MOB9500 Ingenico Inc.(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ingenico Inc. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Printed name: CHristopher Bryant Title: Product Management

U.S. AGENT LETTER OF ATTESTATION Date: Feb. 2 , 2024 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID:2BEXT-MOB9500 TO WHOM IT MAY CONCERN: We, Ingenico Inc. designate Ingenico Inc. to act as U.S. agent for service of process. Ingenico Inc. with FCC Registration Number (FRN) 0033589185 hereby acknowledges the obligation of the U.S. agent for service of process. Further Ingenico Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding in volving the equipment. Ingenico Inc. (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. ______________________________ Signature Applicant/ U.S. Agent Contact: CHristopher Bryant Title: Product Management Company: Ingenico Inc. Address: 3025 Windward Plaza, Suite 600 Alpharetta, GA 30005 United States FRN: 0033589185 Tel: 6784561200 Mail: [email protected]

QA-FR-170-B Ingenico Inc. Add: 3025 Windward Plaza, Suite 600 Alpharetta, GA 30005 United States Tel: 6784561200 Mail: [email protected] FCC Authorization Date: 2024-02-02 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Ingenico Inc., hereby authorizes China Certification ICT Co.,Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co.,Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed name: CHristopher Bryant Title: Product Management

QA-FR-172-A Ingenico Inc. Add: 3025 Windward Plaza, Suite 600 Alpharetta, GA 30005 United States Tel: 6784561200 Mail: [email protected] FCC Confidential Authorization Date: 2024-02-02 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2BEXT-MOB9500 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ingenico Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed name: CHristopher Bryant Title: Product Management

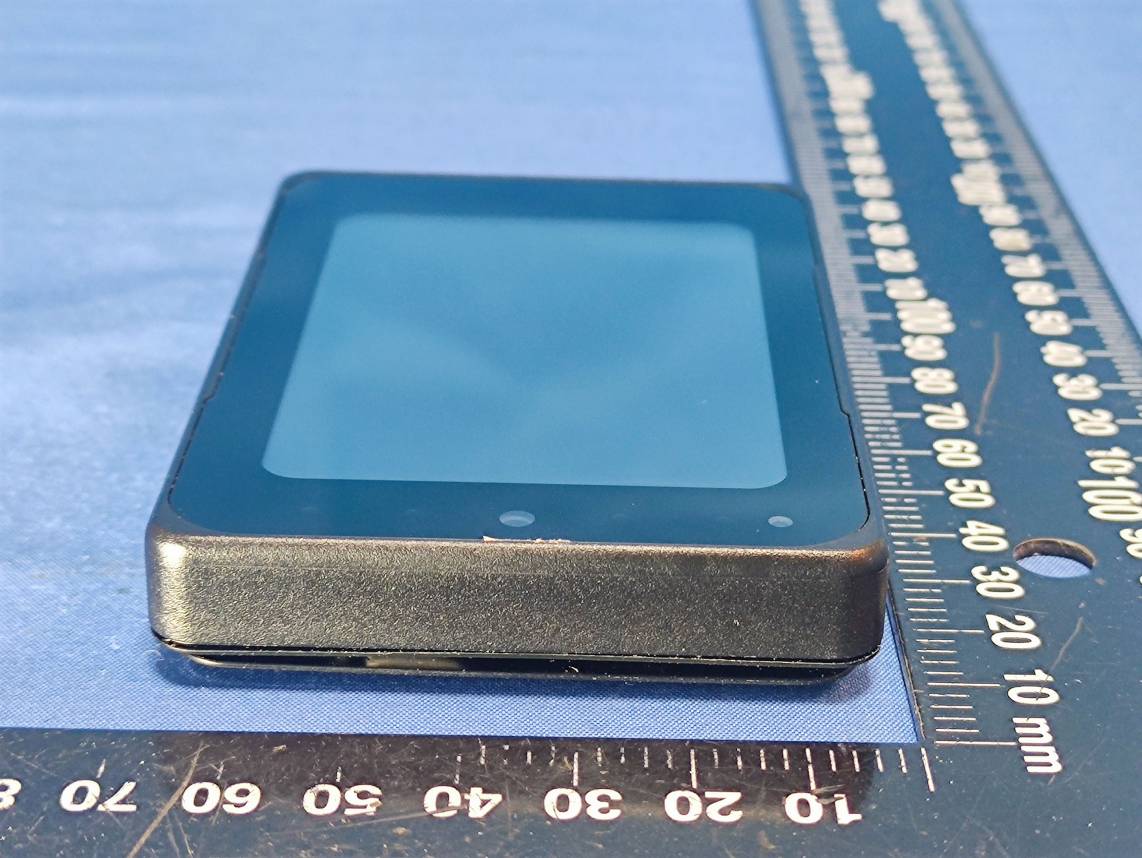

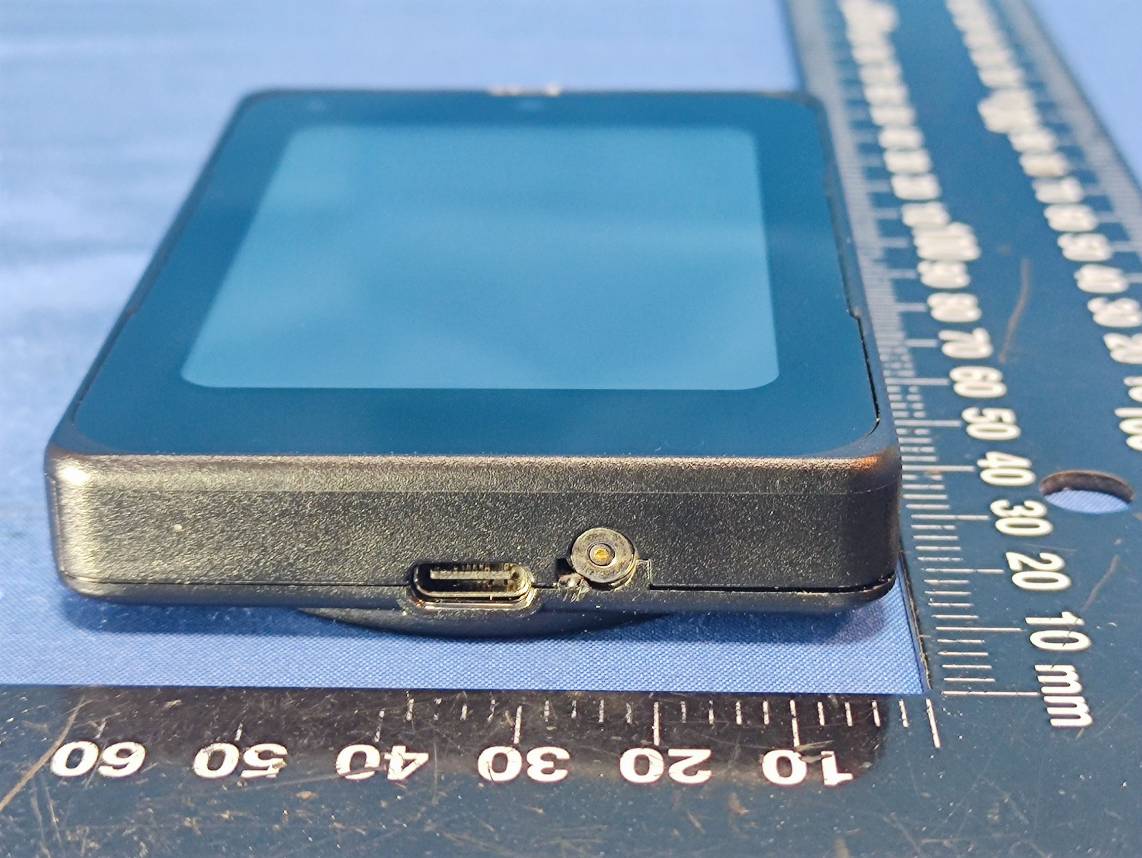

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-EXP Page 2 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-EXP Page 3 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-EXP Page 4 of 4

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 1 of 11 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 2 of 11 Wireless Charging Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 3 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 4 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 5 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 6 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 7 of 11 NFC Antenna NFC Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 8 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 9 of 11 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 10 of 11 Bluetooth Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-INP Page 11 of 11

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A Page 49 of 51 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 1.5 dBm (1.41 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =1.41/5*(√2.480) = 0.4< 3.0 Note: the output power of NFC is far less than SAR test exclusion threshold, so SAR estimation is very low, consider simultaneous transmission Bluetooth/BLE and NFC is not necessary. Result: Compliant. The stand-alone SAR evaluation is not necessary.

frequency（MHz） Efficiency-DBEfficiency-%Gain(dBi) 2000-16.431446042.274340035-12.250743 2010-16.358121352.31306515-12.227356 2020-16.327455252.329455801-12.162435 2030-16.313198062.337115598-12.283745 2040-16.241108082.376233923-12.17575 2050-16.176995452.411573234-12.166043 2060-16.11851152.444268156-12.229128 2070-16.008169532.507165755-12.14611 2080-16.017709082.50166465-12.220474 2090-16.004992422.509000559-12.186172 2100-15.818601422.619026291-12.024094 2110-15.719344722.679572599-11.915263 2120-15.657754182.717844356-11.779011 2130-15.54283892.790719002-11.720829 2140-15.386654712.892907376-11.49522 2150-15.187117163.028923356-11.350187 2160-14.91973363.221266383-11.100348 2170-14.614520763.455794615-10.766225 2180-14.457918243.582681296-10.697903 2190-14.272676483.738801016-10.486042 2200-14.059929363.926513218-10.439586 2210-13.806925014.162051971-10.314002 2220-13.592958914.372241162-10.205027 2230-13.432287264.537026061-10.082534 2240-13.285231874.693283766-10.044449 2250-13.136609794.856674763-9.7942124 2260-12.907398365.119884503-9.4736334 2270-12.634339175.4521285-9.2260341 2280-12.472791545.658754407-9.0026805 2290-12.29766995.891596701-8.8228385 2300-12.155520996.087625122-8.6748361 2310-11.986583446.329095607-8.3729423 2320-11.833137486.556714179-8.2053293 2330-11.678670426.794116012-7.9698806 2340-11.51384957.056917655-7.7951526 2350-11.354405547.320815239-7.579782 2360-11.247162877.50384255-7.4703579 2370-11.17682647.62636101-7.4025443 2380-11.197086067.590867198-7.368704 2390-11.281473367.444793631-7.4793147 2400-11.352392717.324209013-7.597974 2410-11.529330277.031807496-7.7573687 2420-11.66320756.818349365-7.8710926 2430-11.885224296.478546365-8.1323751 2440-12.112202626.148649516-8.4033551 2450-12.342081515.831655345-8.6701122 2460-12.561596435.544218742-8.8255522 Manufacturer: Shenzhen Kinwong Electronic Co.,Ltd. Address: No. 166, Tiegang Reservoir Road, Xixiang Street, Bao’an District, Shenzhen, China. 2470-12.787718175.262937145-8.882331 2480-12.926874365.096975708-8.8234676 2490-13.050504324.9539266-8.8303648 2500-13.141314064.851416873-8.8295793 2510-13.240762264.741587555-8.803309 2520-13.291238874.686796669-8.7894957 2530-13.334177054.640687184-8.7800583 2540-13.429125784.540330024-8.8401704 2550-13.395690974.575419331-8.8874462 2560-13.393666684.577552485-8.9508193 2570-13.425442684.544182155-9.1365831 2580-13.465712394.502241234-9.3847612 2590-13.520066284.446244821-9.5059641 2600-13.575233974.390122137-9.7261935 2610-13.59144824.373762329-9.8486774 2620-13.634131734.330986468-9.9000407 2630-13.642994914.322156712-9.9699911 2640-13.738516094.22813058-10.137468 2650-13.718751654.247416355-10.130965 2660-13.728072584.238310229-10.063206 2670-13.750489264.216489992-9.6377148 2680-13.781156024.186821038-9.2870662 2690-13.761192034.206111648-8.9212509 2700-13.830363634.139650121-8.6903086 2710-13.763611894.203768691-8.3492693 2720-13.732404214.23408507-8.1455312 2730-13.738999064.227660403-7.9672317 2740-13.75180944.215208487-7.9073756 2750-13.865422854.106366565-7.9602256 2760-13.903985034.070066428-7.9454534 2770-13.936542034.039669141-7.9895613 2780-14.056158533.929923957-8.0610582 2790-14.135699893.858602231-7.9876212 2800-14.189553913.81104967-7.8522353 2810-14.311136153.70583761-7.8032469 2820-14.287593383.725981226-7.6060126 2830-14.234987833.771388018-7.4093625 2840-14.151906953.844229478-7.2153204 2850-14.090506993.898964676-7.0669891 2860-14.072534743.915133055-6.9675673 2870-14.044819863.940197705-6.910422 2880-14.015220863.967143537-6.8448991 2890-14.037159283.947154009-6.8367213 2900-14.006760873.974878999-6.8077764

TEST REPORT Applicant: Ingenico Inc. Address: 3025 Windward Plaza, Suite 600 Alpharetta, GA 30005 United States FCC ID: 2BEXT-MOB9500 Product Name: Mobile Payment Terminal Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230849077-00A Date Of Issue: 2023/12/15 Reviewed By: Julie Tan Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A Page 2 of 51 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A Page 3 of 51 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB BANDWIDTH ............................................................................................................. 17 3.3.1 Applicable Standard ..................................................................................................................................... 17 3.3.2 EUT Setup.................................................................................................................................................... 17 3.3.3 Test Procedure ...........................................................................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A-TSP Page 1 of 4 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A-TSP Page 2 of 4 Radiated Emission 30MHz to 1GHz View Radiated Emission 9kHz to 30MHz View Parallel China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A-TSP Page 3 of 4 Radiated Emission 9kHz to 30MHz View Perpendicular Radiated Emission 9kHz to 30MHz View Ground-parallel China Certification ICT Co., Ltd (Dongguan) Report No.: CR230849077-00A-TSP Page 4 of 4 Radiated Emission Above 1GHz View
