2BEYTM87P1UHF RFID 1-Port Module

M87P1 Evaluation Kit User Manual V1.00 1 M87P1 Module Evaluation Kit User Manual V1.0 M87P1 Evaluation Kit User Manual V1.00 2 1. Initial setup 1.1 Powering the Reader Plug the power cable in, with the indicator light on & reader is ready. As illustrated below: 1.2 Connecting Antenna to Reader Connect the antenna with the antenna MMCX port as illustrated below: 1.3 Connecting Data Line to Reader You can connect the reader to your PC via B type USB, as illustrated below: M87P1 Evaluation Kit User Manual V1.00 3 2. Connect DEMO SW Double-click EagleDemo.exe to run the software. 2.1 Connect 2.1.1 Open the software and it will shows as below: 2.1.2. Please select USB as Connection, Choose the corresponding Serial Port and Baud Rate (default baud rate is 921600). As illustrated below: M87P1 Evaluation Kit User Manual V1.00 4 2.1.3. Click Connect, if it is connected successfully, the FW version will display as below: 2.1.4. Text communication with the reader: Click on Get in Firmware Version or in Reader Region, the following screen displays: 3. Run Inventory function After connecting the reader with PC, we can start go Inventory Run function. Please select ISO 18000-6C tag test as illustrated below: M87P1 Evaluation Kit User Manual V1.00 5 3.1 Setp1: Enable ANT 1 Check mark the ANT1. 3.2 Setp2: Setting RF Output Power RF Output Power is the strength of RF output signal from antenna port whose unit is dBm. The output power range is 0 - 33dBm. Default RF output power is 30dBm . 3.3 Setp2: Setting Inventory time & Run Setting Inventory time is mean the running time when start inventory command. Setting Inventory Run is mean the running once when start inventory command. Inventory stop if which time or run up to the setting value The default inventory time is 1000ms. The default inventory run is 0, which mean “don`t care”. 3.4 Setp3: Setting RF-link mode There is different read speed & sensitivity in different RF-link mode. To more detail, please check the RF-link profile of datasheet. M87P1 Evaluation Kit User Manual V1.00 6 3.5 Setp4: Run/Stop Inventory click Inventory button to Run Inventory function. click Stop button enforce to stop Inventory function. 3.6 Parameter of AUTO Stop Inventory Loop time Inventory stop when reach the setting of command count. Conti-Inventory Inventory stop when reach the setting of Inventory period. * it will no stop if tick continuous 3.7 The parameter of Running Inventory There are 13 parameters when run inventory as shown as following. Inventoried Quantity Total number of inventory tags since click Inventory. Peak Speed Read Speed of Tag for last one inventory command, unit: Tag/s Max speed MAX Read Speed of Tag for total inventory period, unit: Tag/s AVG speed AVG Read Speed of Tag for total inventory period, unit: Tag/s Command Duration Time between Inventory Command to command, unit: ms Total Inventory Duration Total inventory period when click Inventory, unit: ms. Total Tag Count Total tags when start Inventory period. Count Tag count EPC EPC data of tag. PC PC data CRC CRC data RSSI The Tag signal strength at the last inventory command. Carrier Frequency Carrier Frequency of tag at the last time. M87P1 Evaluation Kit User Manual V1.00 7 4. Error Display ◆ ANT error: Reason: 1. ANT is Disconnection to ANT port of module 2. VSWR is too large of ANT, it should be lower than 1.3 3. Reflection RF power too large, please check is there some Metal around ANT. ◆ Receiver data time out: Reason: 1. Software CRASH 2. Interface CRASH M87P1 Evaluation Kit User Manual V1.00 8 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following" Contains TX FCC ID: 2BEYTM87P1 ". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Grantee also Agent for Service of Process_FCC_Attestation Statements_Kiwa Page 1 of 2 RF_754_02 15-02-2023 Xema, Inc. 12960 Sunnyside Place, Santa Fe Springs, CA 90670, United States U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. FCC ID: 2BEYTM87P1 Applicant & Agent Company name: Xema, Inc. FRN: 0034872176 Grantee Code: 2BEYT Contact person name: Wayne Lin Agent name: Wayne Lin Street address: 12960 Sunnyside Place ZIP/City/State 90670 / Santa Fe Springs / CA Telephone number: (562) 204-0292 Email address: [email protected] Signature Contact person*: Date: March 1 st , 2024 Signature Agent*: Date: March 1 st , 2024 Note *Must be signed by both the applicant, and agent on behalf

Covered list attestation FCC application letter Kiwa Page 1 of 2 RF_755_02 15-02-2023 Xema, Inc. 12960 Sunnyside Place, Santa Fe Springs, CA 90670, United States Certification Application Attestation Statements Xema, Inc. 12960 Sunnyside Place Santa Fe Springs, CA 90670 USA Subject: FCC ID: 2BEYTM87P1 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [Xema, Inc.] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) [Xema, Inc.] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: March 1, 2024 City: Santa Fe Springs Name (2) : Wayne Lin Function: Director Telephone number: (562) 204-0292 Email address: [email protected] Signature: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK”

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Xema, Inc. 12960 Sunnyside Place Santa Fe Springs, CA 90670 United States Declaration of Authorization We Name: Xema, Inc. Address: 12960 Sunnyside Place City: Santa Fe Springs, CA 90670 Country: USA Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., City: Taoyuan City 33848 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: UHF RFID 1-Port Module Type designation: M87P1 Trademark: XEMA Validity/ expiry date N/A on our behalf. Date: March 1, 2024 City: Santa Fe Springs Name: Wayne Lin (2) Function: Director Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 02-01-2022 RF_501, Issue 10 Company Name: Xema, Inc. Address: 12960 Sunnyside Place City: Santa Fe Springs, CA 90670 Country: United States To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: 2BEYTM87P1 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: March 1, 2024 Name and signature of applicant: Wayne Lin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period

RF_734_05 FCC Modular Approval Request Page 1 of 3 28-12-2022 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2BEYTM87P1 Items to be covered by Single modular transmitters. Answer from applicant 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, it is fulfilled. The modular transmitter has own shielding. Shielding is show on external photos. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. YES , Module use U14 MCU as buffer modulation / data inputs 3. The module must contain power supply regulation on the module Yes, it is fulfilled. The modular transmitter have its own power supply regulation 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes. The module is the contain a unique antenna connector and be marketed and operated only with specific antenna 5.The module must demonstrate compliance in a stand-alone configuration. Yes, it is fulfilled. The modular was tested in a stand-alone configuration. Please see setup photos and test jig photo 6.The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes, it is fulfilled. The label is shown on transmitter modular, please see the label view. . 7.The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, it is fulfilled. The operation description and user guides provide this detail. 8.The module must comply with RF exposure requirements. YES Name and surname of applicant (or authorized representative): Wayne Lin Date: March 1, 2024 Signature:

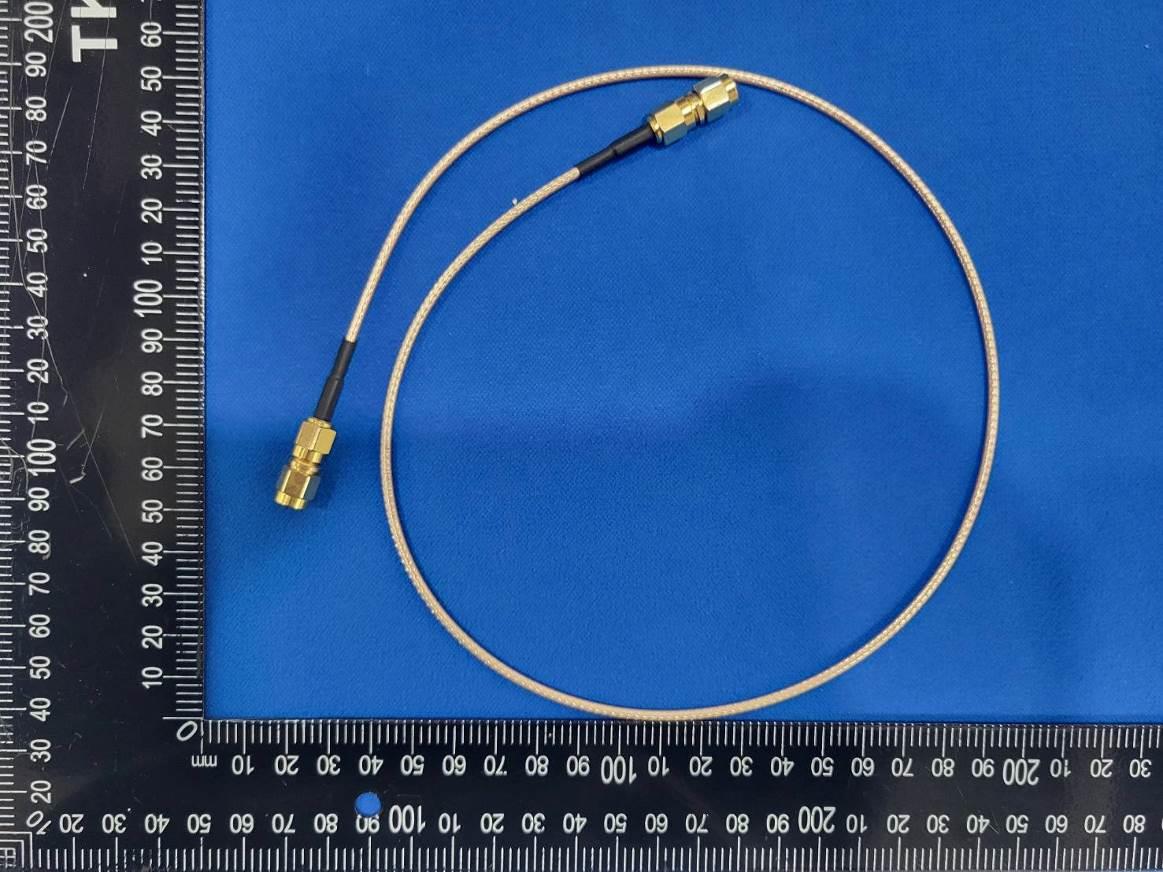

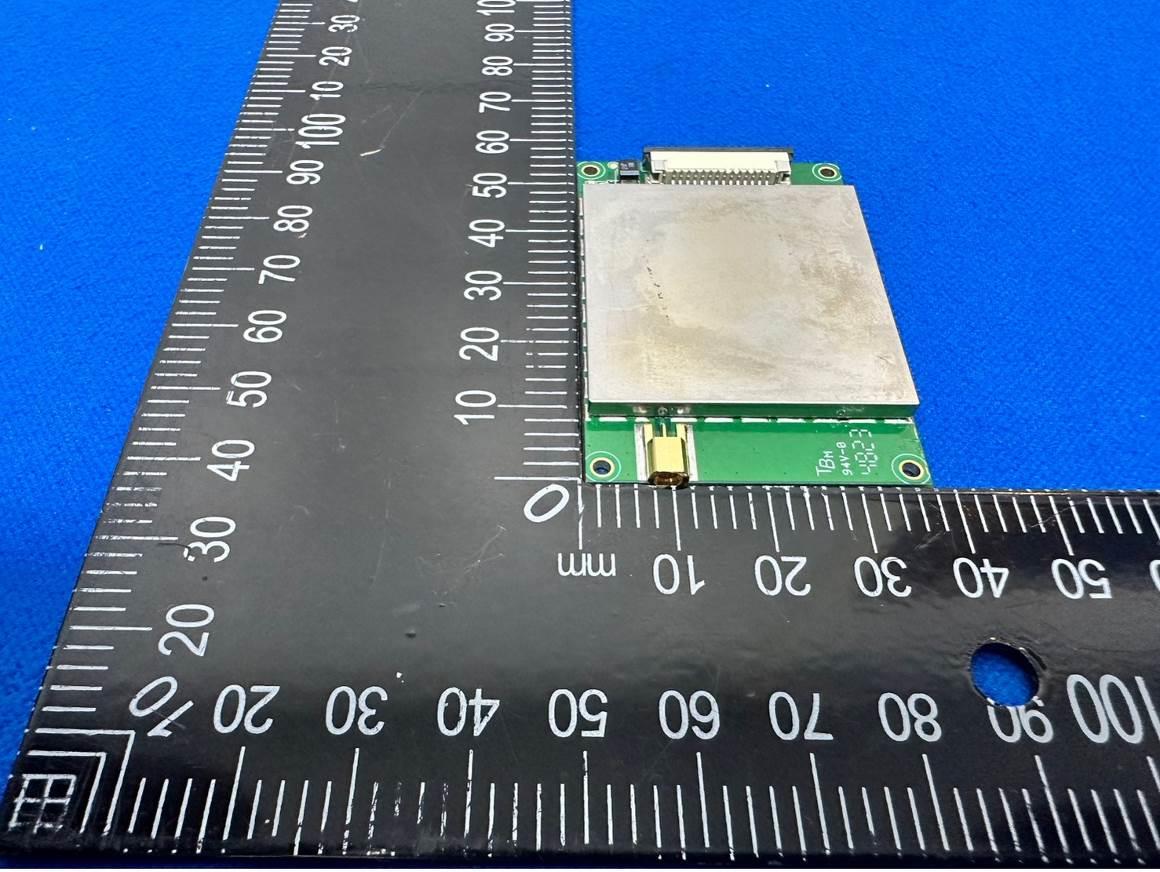

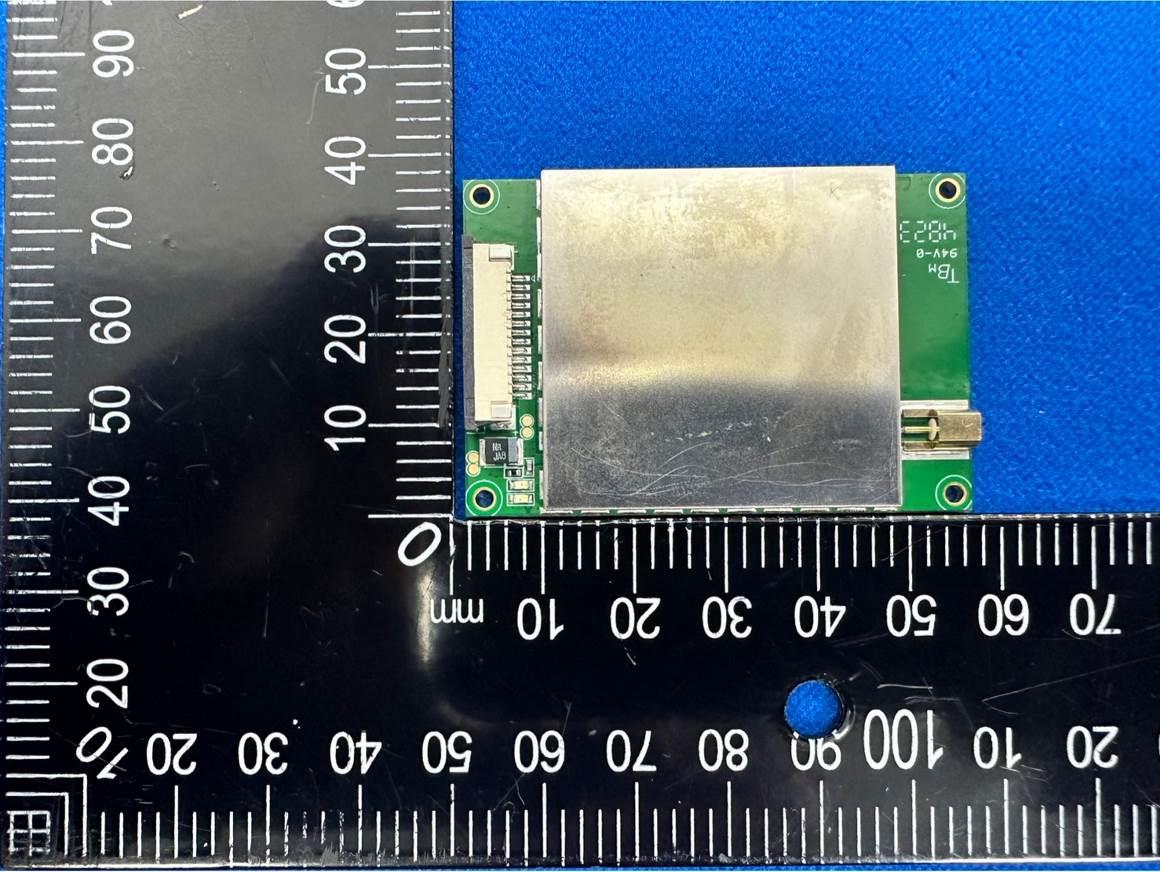

CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 1 of 7 Photographs of EUT Label Position CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 2 of 7 CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 3 of 7 CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 4 of 7 ANT CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 5 of 7 CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 6 of 7 CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 7 of 7

Label & location

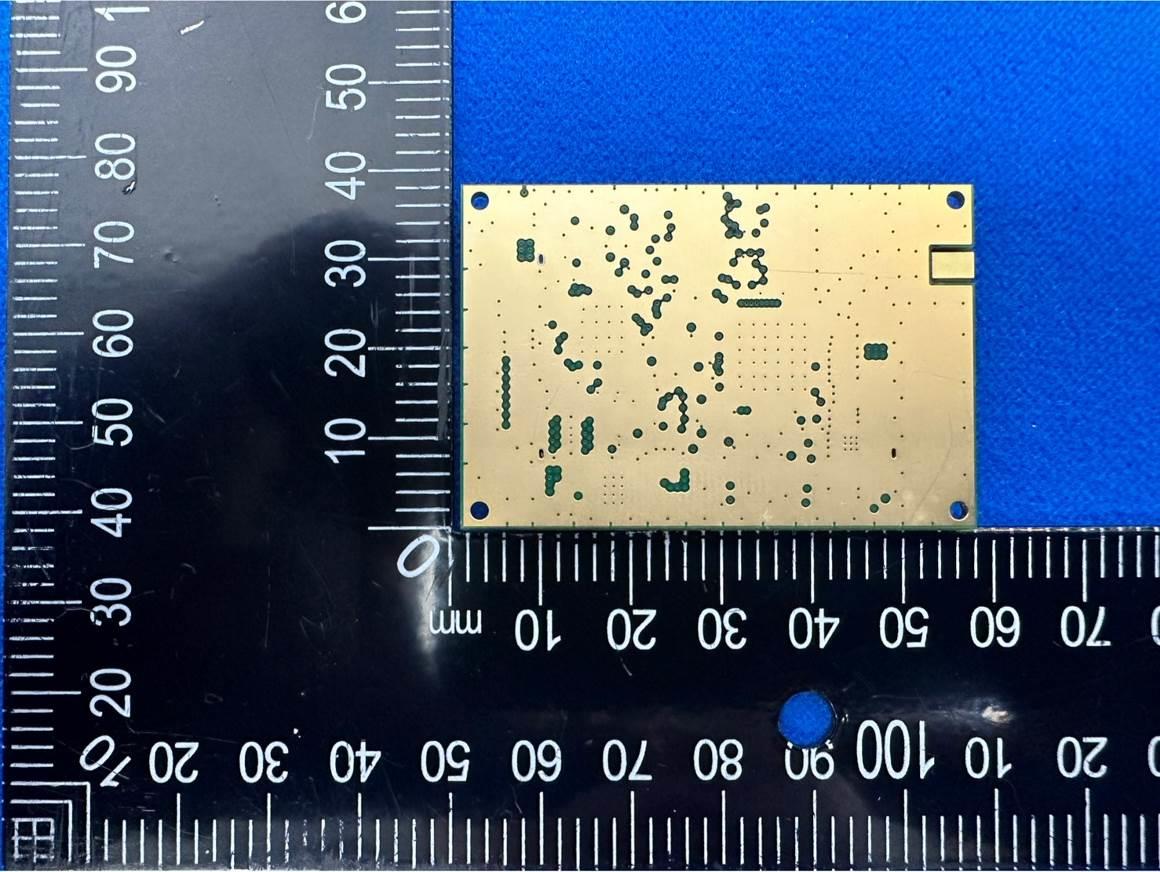

CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 1 of 3 Photographs of EUT RF Chip CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 2 of 3 CERPASS TECHNOLOGY CORP. Report No.: 24020201 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 Page No. : 3 of 3

CERPASS TECHNOLOGY CORP. Report No.: 24020201-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 T-FD-517-0 Ver 1.6 Page No. : 44 of 45 FCC ID. : 2BEYTM87P1 14. Radio Frequency Exposure 14.1 Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance , R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 24020201-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 T-FD-517-0 Ver 1.6 Page No. : 45 of 45 FCC ID. : 2BEYTM87P1 14.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz 902MHz~928MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 29.48dBm (887.156mW) at 927.25MHz (with 4dBi antenna gain.) 14.3 Result Modulation Type Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max. Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) ASK 902.75 29.45 29.95 4 31.80 1513.56 1841.61 915 29.46 29.96 4 31.81 1517.05 1866.09 927.25 29.48 29.98 4 31.83 1524.05 1891.59 ----------THE END OF REPORT----------

Address:6F-11,No28,Tai-Yuen St.,Chu-Pei City Hsin Chu County, Taiwan, R.O.C Phone:+886-3-5525838 / Fax:+886-3-5525938 / Email:[email protected] RFID UHF Antenna Datasheet AUTHORIZED SIGNATURE Data Customer name Product Name 13x13x2cm RFID UHF US Antenna Product Number FI-A1320-FCC Version 1 Date issued 2024/1/19 - 2 - 1. Electrical Characteristics Antenna
 1 Antenna model(  ) 128mm*128mm*20mm 2 Frequency Range(  ) 902MHz ~ 928MHz 3 V.S.W.R  1.3 MAX 4 Return Loss (  ) -17dB MAX 5 Gain(  ) 5 dBic MAX 6 H plane HPBW 70° 7 E plane HPBW 70° 8 Antenna Type Quadrifilar Antenna 9 Impendence  50  10 Polarization  Circular Polarization 11 Weight (  ) 0.3kg Typical 2. Material  !" #$%&'(#&)*+%,- . /0(*00&12 ,0340**'40356&7(487/+/9&6:)40:) ; -$6$'1<=2 >?4(* @ AB-$00*8($' CD A*E*'7*+F/G&8H - 3 - 3. Environment Condition . >$'H403I*)5 JKLMNOPQRSTUQ9.PVRWUVAX ; +($'&3*I*)5 YZLMNOPQRSTUQ9.PVRWUVAX 4. Dimensions ( [\ ) - 4 - 5. S-parameter Data 5.1 VSWR(S11) - 5 - 6. Antenna Chamber Data - 6 - 7. Note ]^_`" abcdefghijklmfgnleoelpmeiqrkphpqmnnfmdnskptemuioikhghijklmpf pfeqrtnkqemvwtnpfnxpynfkhnmdpmuikhghijklmefnzptkpmnjpqj liqoehxnjprpeqfmuikhfgnleoelpmeiqf{dnqikhghijklmefxikqmnjmiuikh ghijklmv |bcdnghijklm{ettrnmohnn{phhpqmuoihmdhnnxiqmdffeqlnmdnjpmnio gkhldpfnkfnhfignhpmneqmdnlihhnlm{pu}~fnhf{ettdpznmigpulifm iomdnxpmnheptfpqjxpeqmpeqeqronnikmiomdnliqjemeiqv b€tnlmhifmpmelfnqfemeznjnzelnv‚fnhznghnlpkmeiqfoihdpqjteqrv The information in this data sheet is believed to be accurate and reliable. We reserve the right to make changes without prior notice to any specifications of this product. This device is not intended to be used for systems that support or sustain life or for systems where failure may cause personal injury. The customers use this product at their own risk. 8. Antenna manufacturer ƒ„…†‡" QUN-DA Technology Co. No.154-2 Yuanpei Street, Hsinchu ,Taiwan

CERPASS TECHNOLOGY CORP. Report No.: 24020201-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 T-FD-517-0 Ver 1.6 Page No. : 1 of 45 FCC ID. : 2BEYTM87P1 FCC RADIO TEST REPORT Applicant : Xema Inc. Address : 12960 Sunnyside, Santa Fe Springs, CA 90670 Equipment : UHF RFID 1-Port Module Model No. : M87P1 Trade Name : XEMA FCC ID : 2BEYTM87P1 I HEREBY CERTIFY THAT : The sample was received on Mar. 11, 2024 and the testing was completed on Mar. 12, 2024 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 24020201-TRFCC01 Cerpass Technology Corp. Issued Date : Mar. 12, 2024 T-FD-517-0 Ver 1.6 Page No. : 2 of 45 FCC ID. : 2BEYTM87P1 CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 9 4. Antenna Requirements ..................................................................................................................... 11 4.1 Standard Applicable ................................................................................................................. 11 4.2 Antenna Construction and Directional Gain ............................................................................. 11 5. Test of AC Power Line Conducted Emission ................................................................................. 12 5.1 Test Limit .................................................................................................................................. 12 5.2 Test Procedures ....................................................................................................................... 12 5.3 Typical Test Setup .................................................................................................................... 13 5.4 Test Result and Data ................................................................................................................ 14 5.5 Test Photographs ..................................................................................................................... 16 6. Test of Spurious Emission (Radiated) ............................................................................................ 17 6.1 Test Limit .................................................................................................................................. 17 6.2 Test Procedures ....................................................................................................................... 18 6.3 Typical Test Setup .................................................................................................................... 19 6.4 Test Result and Data (9kHz ~ 30MHz)..................................................................................... 20 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 20 6.6 Test Result and Data (1GHz ~ 10GHz) .................................................................................... 22 6.7 Restricted Bands of Operation ................................................................................................. 28 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 29 6.9 Test Photographs (1GHz ~ 10GHz) ......................................................................................... 30 7. Test of Spurious Emission (Conducted)......................................................................................... 32 7.1 Test Limit .................................................................................................................................. 32 7.2 Test Procedure ......................................................................................................................... 32 7.3 Test Setup Layout .................................................................................................................... 32 7.4 Test Result and Data ................................................................................................................ 32 8. On Time, Duty Cycle and Measurement methods ......................................................................... 35 8.1 Test Limit .................................................................................................................................. 35 8.2 Test Procedure ........................................................................…
