2BEZ5-KL01Wireless Karaoke Speaker

[Shenzhenyuanruijingfukejiyouxiangongsi] [2407 Wanlida Technology Building, No. 9992 Shennan Avenue, Nanshan District, Shenzhen, China] Date: [2024-3-4] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: [2BEZ5-KL01] FRN: [0034938290] US Agent -Attestation Statement I Part 2.911 (d)(7) [Shenzhenyuan「uijingfukejiyouxiangongsi] certifies, that as _of [2024-3-4], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: [2BEZ5-KL01 ]. [Shenzhenyuanruijingfukejiyouxiangongsi], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [Shenzhenyuanruijingfukejiyoux iangongsi] for FCC ID: [2BEZ5-KL01]. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: [Shenzhenyuanruijingfukejiyou xiangongsi] Company Representative: [Will Feng] Signatu re: ［叫叫 l Designated Agent: FCC US Agent, LLC Designated Agent Representative: Tim Payne Signature:

Shenzhenyuanruijingfukejiyouxiangongsi FederalCommunicationsCommission Authorizationand EvaluationDivision 7435 OaklandMills Road Columbia,MD 21046 USA Date: 2024-3-4 SUBJECT:FCCApplicationforFCCID:2BEZ5-KL01 To WhomIt May Concern: We, the undersigned,herebyauthorizeLisa Wang atEMTEK(SHENZHEN)CO., LTD.on our behalf,to apply to the FederalCommunicationsCommissionon our equipment.Any and all acts carriedout by EMTEK(SHENZHEN)CO., LTD.on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliancewith the Anti- Drug Abuse Act. We, the applicant,are not subjectto a denial of federalbenefitspursuantto Section5301 of the Anti-DrugAct of 1988, 21 USC853a,and no party to the applicationis subjectto a denial of federalbenefitspursuantto that section. Regards, Will Feng/ProductManager Shenzhenyuanruijingfukejiyouxiangongsi 仰 �t F 哼

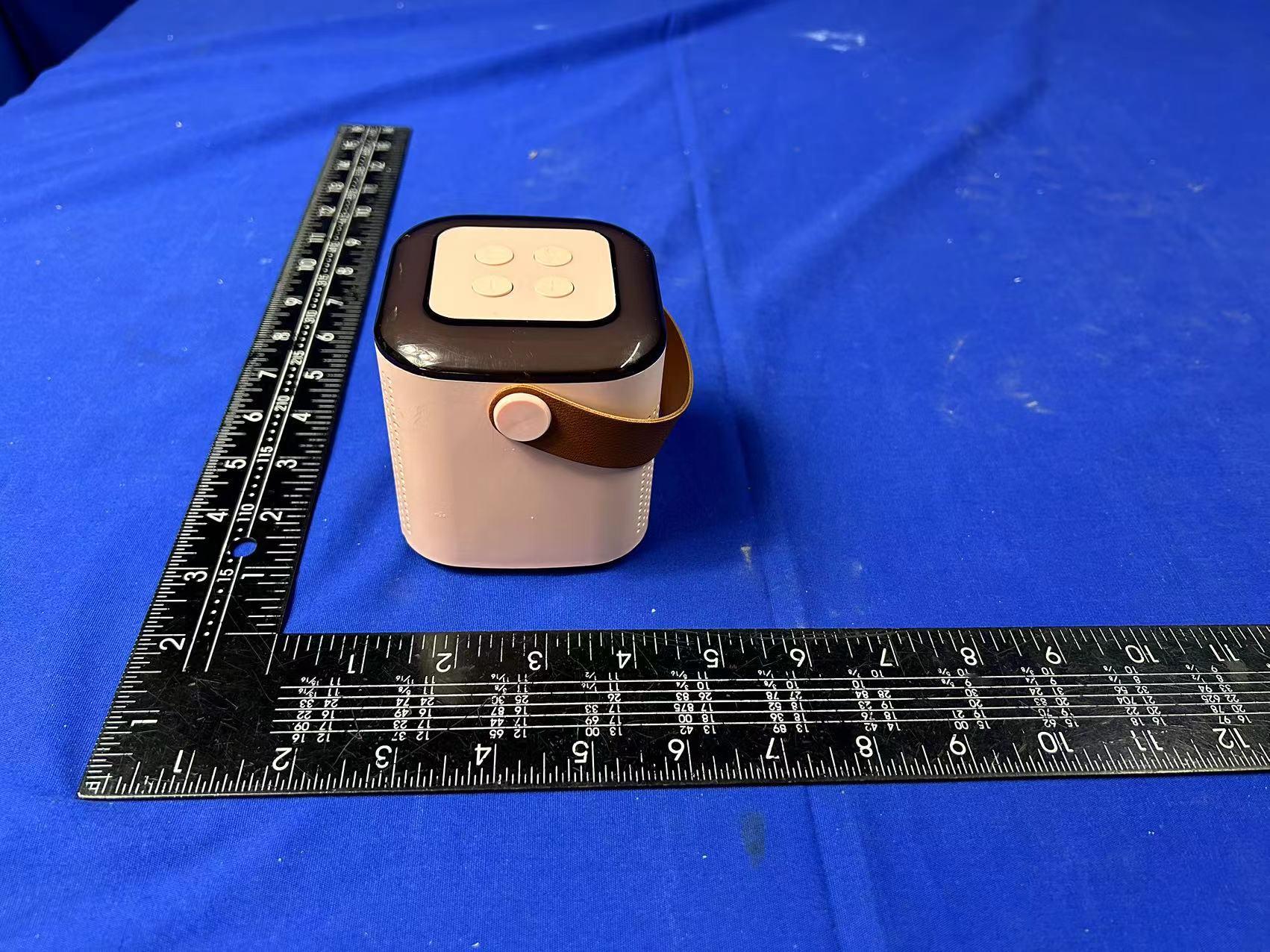

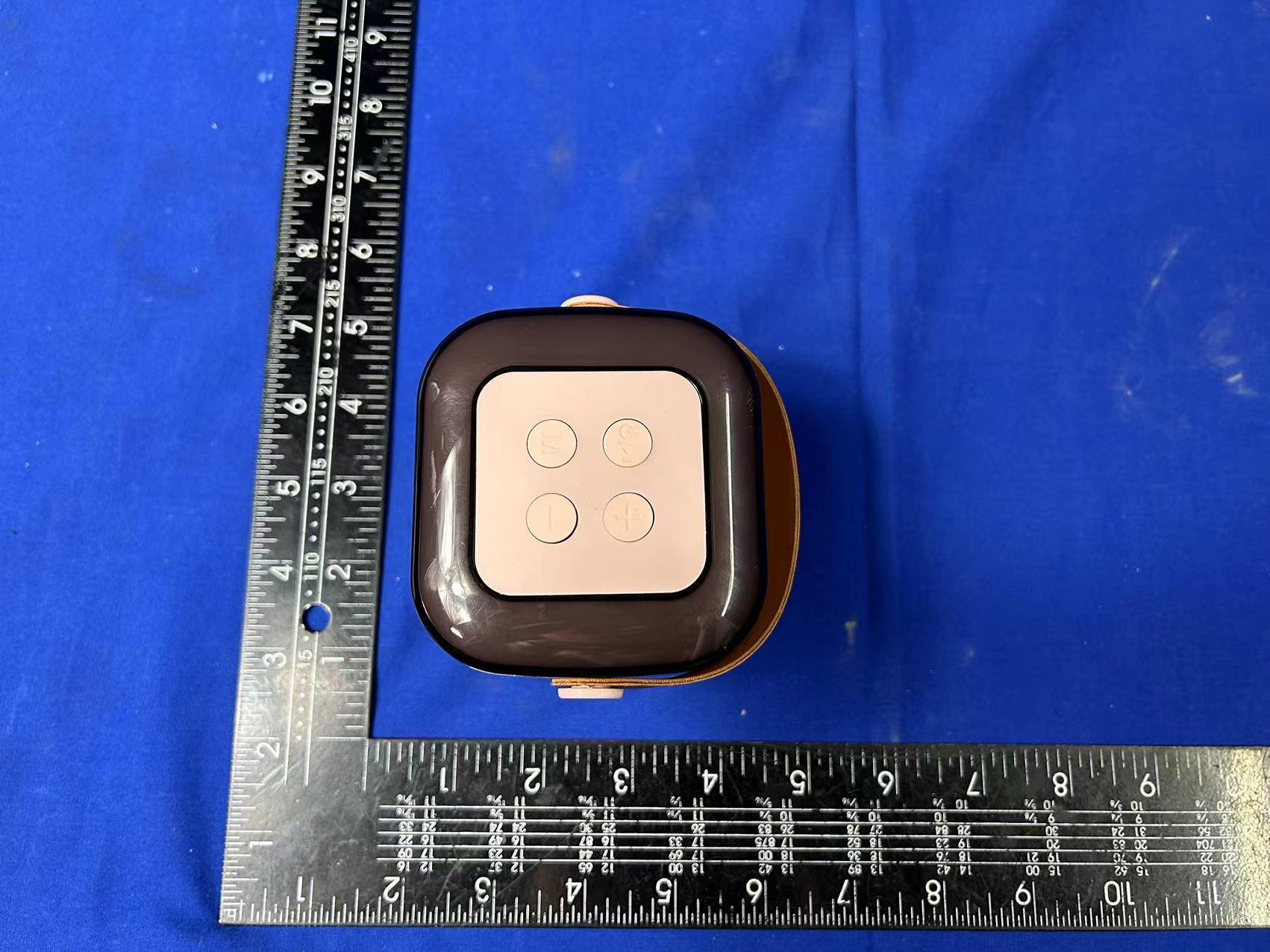

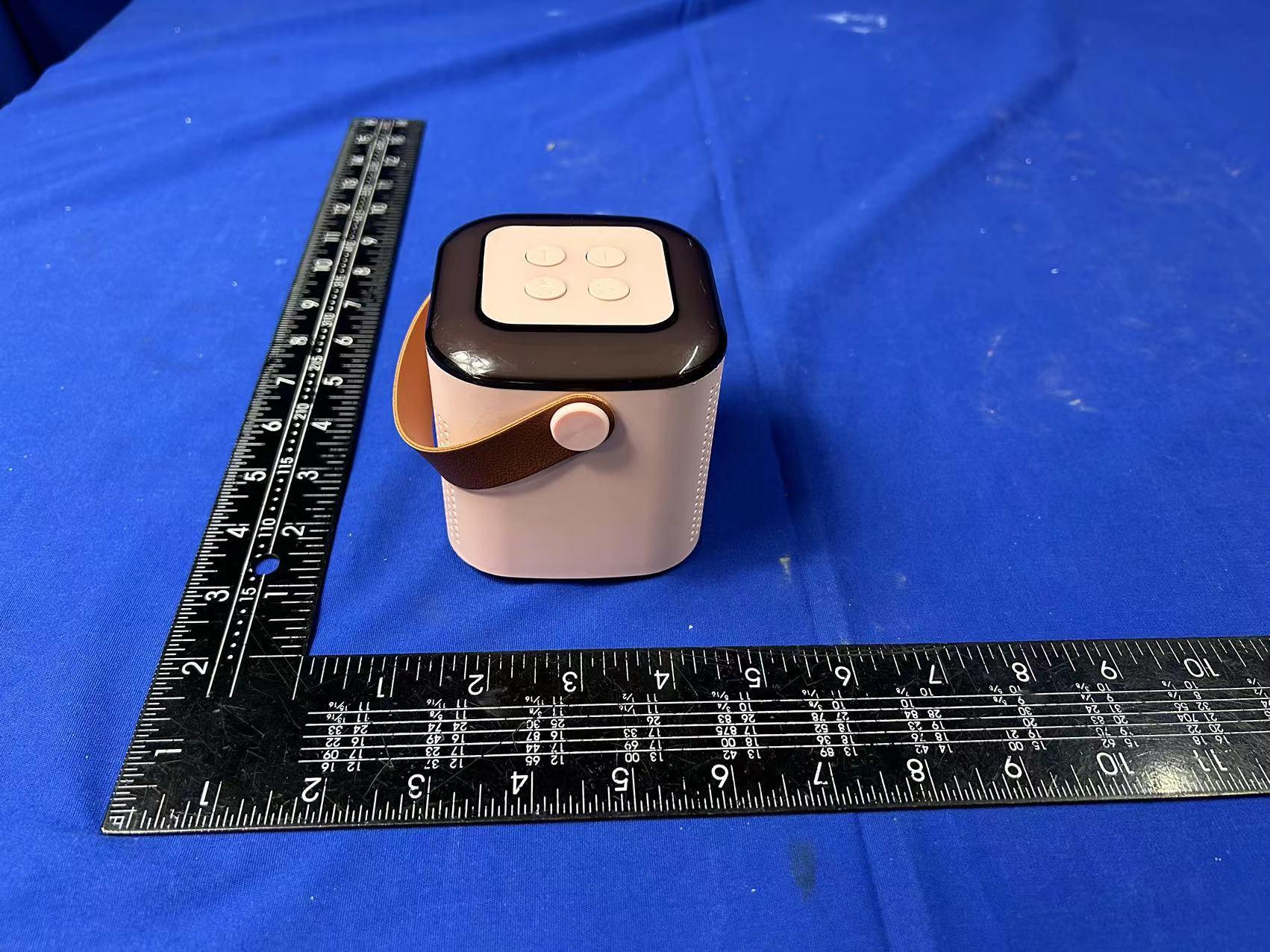

EUTEXTERNALPHOTOGRAPHS ----------------Theend----------------

Page1of2 EUTINTERNALPHOTOGRAPHS Page2of2 ----------------Theend---------------- BTAntenna TransmitandReceive ReceiveOnly

FCCID:2BEZ5-KL01 Portabledevice Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. AccordingtoKDB447498D01GeneralRFExposureGuidanceV06 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]* [√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz ； PoweranddistanceareroundedtothenearestmWandmmbeforecalculation ； Theresultisroundedtoonedecimalplaceforcomparison； Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. Weuse5mmasseparationdistancetocalculate. Themaxconductedpoweris1.01dBm(1.26mW). [(max.powerofchannel,mw)/(min.testseparationdistance,mm)][√f(GHz)] =1.26/5*(√2.441)=0.394<3.0 Conclusion: Forthemaxresult:0.394≤3.0for1-gSARextremitySAR,NoSARisrequired.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

ReportNo.ENS2401190062W00401RPage1of80Ver.1.0 TESTREPORT ProductName ： WirelessKaraokeSpeaker ModelNumber ： KL01 FCCID ： 2BEZ5-KL01 Preparedfor:Shenzhenyuanruijingfukejiyouxiangongsi Address:2407WanlidaTechnologyBuilding,No.9992Shennan Avenue,NanshanDistrict,Shenzhen,China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2401190062W00401R Date(s)ofTests:January20,2024toFebruary8,2024 Dateofissue:February27,2024 $二维码$ ReportNo.ENS2401190062W00401RPage2of80Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION.................................................................................................................................3 2EUTTECHNICALDESCRIPTION..............................................................................................................................4 3SUMMARYOFTESTRESULT....................................................................................................................................6 4TESTMETHODOLOGY...............................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS....................................................................................7 4.2MEASUREMENTEQUIPMENTUSED................................................................................................................7 4.3DESCRIPTIONOFTESTMODES........................................................................................................................9 5FACILITIESANDACCREDITATIONS.....................................................................................................................10 5.1FACILITIES..........................................................................................................................................................10 5.2LABORATORYACCREDITATIONSANDLISTINGS......................................................................................10 6TESTSYSTEMUNCERTAINTY................................................................................................................................11 7SETUPOFEQUIPMENTUNDERTEST...................................................................................................................12 7.1RADIOFREQUENCYTESTSETUP1...............................................................................................................12 7.2RADIOFREQUENCYTESTSETUP2...............................................................................................................12 7.3CONDUCTEDEMISSIONTESTSETUP...........................................................................................................13 7.4SUPPORTEQUIPMENT......................................................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS............................................................................................15 8.1StandardApplicable...............................................................................................................................................15 8.2EUTPseudorandomFrequencyHoppingSequence..............................................................................................15 8.3EqualHoppingFrequencyUse..............................................................................................................................16 8.4FrequencyHoppingSystem...................................................................................................................................16 9TESTREQUIREMENTS.............................................................................................................................................18 9.120DBBANDWIDTH............................................................................................................................................18 9.2CARRIERFREQUENCYSEPARATION............................................................................................................24 9.3NUMBEROFHOPPINGFREQUENCIES..........................................................................................................30 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME).......................................................................................33 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER......................................................................................36 9.6CONDUCTEDSUPRIOUSEMISSION...............................................................................................................42 9.7RADIATEDSPURIOUSEMISSION...................................................................................................................62 9.8CONDUCTEDEMISSIONTEST........................................................................................................................77 9.9ANTENNAAPPLICATION..................................................................................................................................80 ReportNo.ENS2401190062W00401RPage3 of 80Ver.1.0 1 TEST RESULTCERTIFICATION Applicant: Shenzhenyuanruijingfukejiyouxiangongsi 2407WanlidaTechnologyBuilding,No. 9992ShennanAvenue,Nanshan District,Shenzhen,China Manufacture: Shenzhenyuanruijingfukejiyouxiangongsi 2407 Wanlida Technology Building, No. 9992 Shennan Avenue, Nanshan District, Shenzhen, China ProductDescription:WirelessKaraokeSpeaker ModelNumber:KL01 TradeMark :N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTEST RESULT FCC47 CFRPart 2, SubpartJ FCC47 CFRPart 15, SubpartC PASS The aboveequipmentwas testedby EMTEK(SHENZHEN)CO.,LTD.Thetest data,dataevaluation,test procedures,and equipmentconfigurationsshownin this reportweremadein accordancewiththe proceduresgivenin ANSIC63. 10 (20 13 ) and the energyemittedby the sampleEUT testedas describedin this reportis in compliancewith…

Text truncated - open the document above for the full version.

ReportNo.ENS2401190062W00401RPage43of80Ver.1.0 9.6.5TestResults Bluetooth(GFSK,pi/4-DQPSK,8DPSK)modehavebeentested,andtheworstresultwasreportasbelow: Referencelevelmeasurement TestModeAntennaFreq(MHz)Max.Point[MHz]Result[dBm] DH5Ant1 24022402.01-1.96 24412441.01-0.97 24802480.02-0.99 2DH5Ant1 24022401.99-2.41 24412441.17-0.84 24802479.97-1.27 3DH5Ant1 24022401.87-1.05 24412440.85-0.85 24802479.99-1.19 Bandedgemeasurements TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-1.96-46.81≤-21.96PASS High2480-0.99-47.69≤-20.99PASS LowHop_2402-2.64-47.38≤-22.64PASS HighHop_2480-0.96-47.04≤-20.96PASS 2DH5Ant1 Low2402-2.41-49.46≤-22.41PASS High2480-1.27-50.14≤-21.27PASS 3DH5Ant1 Low2402-1.05-47.77≤-21.05PASS High2480-1.19-48.86≤-21.19PASS thehoppingworstcaseisDH5mode ConductedSpuriousEmission TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 30~1000-1.96-74.18≤-21.96PASS 1000~26500-1.96-42.63≤-21.96PASS 2441 30~1000-0.97-75.78≤-20.97PASS 1000~26500-0.97-42.33≤-20.97PASS 2480 30~1000-0.99-73.02≤-20.99PASS 1000~26500-0.99-42.05≤-20.99PASS 2DH5Ant1 2402 30~1000-2.41-74.59≤-22.41PASS 1000~26500-2.41-44.18≤-22.41PASS 2441 30~1000-0.84-75.87≤-20.84PASS 1000~26500-0.84-44.16≤-20.84PASS 2480 30~1000-1.27-72.14≤-21.27PASS 1000~26500-1.27-44.03≤-21.27PASS 3DH5Ant1 2402 30~1000-1.05-72.91≤-21.05PASS 1000~26500-1.05-42.18≤-21.05PASS 2441 30~1000-0.85-73.86≤-20.85PASS 1000~26500-0.85-43.33≤-20.85PASS 2480 30~1000-1.19-73.73≤-21.19PASS 1000~26500-1.19-43.09≤-21.19PASS ReportNo.ENS2401190062W00401RPage44of80Ver.1.0 Referencelevelmeasurement DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 ReportNo.ENS2401190062W00401RPage45of80Ver.1.0 2DH5_Ant1_2402 2DH5_Ant1_2441 ReportNo.ENS2401190062W00401RPage46of80Ver.1.0 2DH5_Ant1_2480 3DH5_Ant1_2402 ReportNo.ENS2401190062W00401RPage47of80Ver.1.0 3DH5_Ant1_2441 3DH5_Ant1_2480 ReportNo.ENS2401190062W00401RPage48of80Ver.1.0 ReportNo.ENS2401190062W00401RPage49of80Ver.1.0 Bandedgemeasurements DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ReportNo.ENS2401190062W00401RPage50of80Ver.1.0 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 ReportNo.ENS2401190062W00401RPage51of80Ver.1.0 2DH5_Ant1_High_2480 3DH5_Ant1_Low_2402 ReportNo.ENS2401190062W00401RPage52of80Ver.1.0 3DH5_Ant1_High_2480 ReportNo.ENS2401190062W00401RPage53of80Ver.1.0 ConductedSpuriousEmission DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_30~1000 ReportNo.ENS2401190062W00401RPage54of80Ver.1.0 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_30~1000 ReportNo.ENS2401190062W00401RPage55of80Ver.1.0 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_30~1000 ReportNo.ENS2401190062W00401RPage56of80Ver.1.0 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 ReportNo.ENS2401190062W00401RPage57of80Ver.1.0 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_30~1000 ReportNo.ENS2401190062W00401RPage58of80Ver.1.0 2DH5_Ant1_2480_1000~26500 3DH5_Ant1_2402_30~1000 ReportNo.ENS2401190062W00401RPage59of80Ver.1.0 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 ReportNo.ENS2401190062W00401RPage60of80Ver.1.0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 ReportNo.ENS2401190062W00401RPage61of80Ver.1.0 3DH5_Ant1_2480_1000~26500 ReportNo.ENS2401190062W00401RPage62of80Ver.1.0 9.7RADIATEDSPURIOUSEMISSION 9.7.1ApplicableStandard AccordingtoFCCPart15.247(d)and15.209andFCCKDB558074D0115.247MeasGuidancev05r02 9.7.2ConformanceLimit AccordingtoFCCPart15.247(d):radiatedemissionswhichfallintherestrictedbands,asdefinedin §15.205(a),mustalsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). AccordingtoFCCPart15.205,Restrictedbands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 AccordingtoFCCPart15.205,thelevelofanytransmitterspuriousemissioninRestrictedbandsshallnot exceedtheleveloftheemissionspecifiedinthefollowingtable RestrictedFrequency(MHz)FieldStrength(μV/m)FieldStrength(dBμV/m)MeasurementDistance 0.009-0.4902400/F(KHz)20log(uV/m)300 0.490-1.7052400/F(KHz)20log(uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above960500543 9.7.3TestConfiguration Testaccordingtoclause7.2radiofrequencytestsetup2 9.7.4TestProcedure ThistestisrequiredforanyspuriousemissionthatfallsinaRestrictedBand,asdefinedinSection15.205. ItmustbeperformedwiththehighestgainofeachtypeofantennaproposedforusewiththeEUT.Usethe followingspectrumanalyzersettings: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=1MHzforf  1GHz(1GHzto25GHz),100kHzforf<1GHz(30MHzto1GHz) ReportNo.ENS2401190062W00401RPage63of80Ver.1.0 VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold FollowtheguidelinesinANSIC63.10-2013respecttomaximizingtheemissionbyrotatingtheEUT, measuringtheemissionwhiletheEUTissituatedinthreeorthogonalplanes(ifappropriate),adjustingthe measurementantennaheightandpolarization,etc.Apre-ampandahighpassfilterarerequiredforthis test,inordertoprovidethemeasuringsystemwithsufficientsensitivity.Allowthetracetostabilize.The peakreadingoftheemission,afterbeingcorrectedbytheantennafactor,cableloss,pre-ampgain,etc.,is thepeakfieldstrength,whichmustcomplywiththelimitspecifiedinSection15.35(b).Submitthisdata. NowsettheVBWto10Hz,whilemaintainingalloftheotherinstrumentsettings.Thispeaklevel,once corrected,mus…

Text truncated - open the document above for the full version.

ReportNo.ENS2401190062W00401RPage65of80Ver.1.0 Temperature: 25°C TestDate:February7,2024 Humidity:60%TestBy:KK Testmode:GFSKFrequency:Channel39:2441MHz Freq. [MHz] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Detector PolarityPass/Fail 11512.559.717414.29PKVerticalPass 14716.87562.57411.5PKVerticalPass 1759567.22746.78PKVerticalPass 11512.541.935412.07 AV VerticalPass 14716.87542.445411.56 AV VerticalPass 1759546.01547.99 AV VerticalPass 11512.559.687414.32PKHorizontalPass 14683.12563.897410.11PKHorizontalPass 17602.566.57747.43PKHorizontalPass 11512.542.025411.98 AV HorizontalPass 14683.12543.455410.55 AV HorizontalPass 17602.546.21547.79 AV HorizontalPass Note:(1)AllReadingsarePeakValue(VBW=3MHz)andAverageValue(VBW=10Hz). (2)EmissionLevel=ReadingLevel+CorrectFactor. (3)CorrectFactor=Ant_F+Cab_L-Preamp (4)Margin=Limit-EmissionLevel (5)Thereadingofemissionsareattenuatedmorethan20dBbelowthe permissiblelimitsorthefieldstrengthistoosmalltobemeasured. ReportNo.ENS2401190062W00401RPage66of80Ver.1.0 Temperature: 25°C TestDate:February7,2024 Humidity:60%TestBy:KK Testmode:GFSKFrequency:Channel78:2480MHz Freq. [MHz] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Detector PolarityPass/Fail 11527.5607414PKVerticalPass 14553.7562.787411.22PKVerticalPass 17634.37567.26746.74PKVerticalPass 11527.541.945412.06 AV VerticalPass 14553.7543.775410.23 AV VerticalPass 17634.37546.96547.04 AV VerticalPass 11420.62559.397414.61PKHorizontalPass 14746.87562.737411.27PKHorizontalPass 17604.37567.73746.27PKHorizontalPass 11420.62541.245412.76 AV HorizontalPass 14746.87543.035410.97 AV HorizontalPass 17604.37546.03547.97 AV HorizontalPass Note:(1)AllReadingsarePeakValue(VBW=3MHz)andAverageValue(VBW=10Hz). (2)EmissionLevel=ReadingLevel+CorrectFactor. (3)CorrectFactor=Ant_F+Cab_L-Preamp (4)Margin=Limit-EmissionLevel (5)Thereadingofemissionsareattenuatedmorethan20dBbelowthe permissiblelimitsorthefieldstrengthistoosmalltobemeasured. ReportNo.ENS2401190062W00401RPage67of80Ver.1.0 SpuriousEmissioninRestrictedBand2310-2390MHzand2483.5-2500MHz Bluetooth(GFSK,pi/4-DQPSK,8DPSK)modehavebeentested,andtheworstresult(AC120V/60Hz)wasreportas below: Testmode:GFSKFrequency:Channel0:2402MHz Frequency (MHz) Polarity PK(dBuV/m) (VBW=3MHz) Limit3m (dBuV/m) AV(dBuV/m) (VBW=10Hz) Limit3m (dBuV/m) 2381.81H46.6674.0036.7954.00 2377.99V46.0774.0037.7254.00 Testmode:GFSKFrequency:Channel39:2480MHz Frequency (MHz) Polarity PK(dBuV/m) (VBW=3MHz) Limit3m (dBuV/m) AV(dBuV/m) (VBW=10Hz) Limit3m (dBuV/m) 2485.43H47.2174.0037.0354.00 2483.78V46.5074.0037.5254.00 Testmode:GFSKFrequency:Hopping Frequency (MHz) Polarity H/V PK(dBuV/m) (VBW=3MHz) Limit3m (dBuV/m) AV(dBuV/m) (VBW=10Hz) Limit3m (dBuV/m) 2400.00H60.9574.0042.9754.00 2483.50H44.6574.0036.1554.00 2400.00V59.3674.0042.0554.00 2483.50V45.0574.0037.2654.00 Note:(1)AllReadingsarePeakValue(VBW=3MHz)andAverageValue(VBW=10Hz). (2)EmissionLevel=ReadingLevel+CorrectFactor. (3)CorrectFactor=Ant_F+Cab_L-Preamp (4)Thereadingofemissionsareattenuatedmorethan20dBbelowthepermissible limitsorthefieldstrengthistoosmalltobemeasured. ReportNo.ENS2401190062W00401RPage68of80Ver.1.0 TestModel SpuriousEmissioninRestrictedBand2310-2390MHz Channel0:2402MHzGFSKV TestModel SpuriousEmissioninRestrictedBand2310-2390MHz Channel0:2402MHzGFSKH ReportNo.ENS2401190062W00401RPage69of80Ver.1.0 TestModel SpuriousEmissioninRestrictedBand2483.5-2500MHz Channel78:2480MHzGFSKV TestModel SpuriousEmissioninRestrictedBand2483.5-2500MHz Channel78:2480MHzGFSKH ReportNo.ENS2401190062W00401RPage70of80Ver.1.0 TestModel SpuriousEmissioninRestrictedBand2310-2390&2483.5-2500MHz HoppingGFSKV TestModel SpuriousEmissioninRestrictedBand2310-2390&2483.5-2500MHz HoppingGFSKH ReportNo.ENS2401190062W00401RPage71of80Ver.1.0 SpuriousEmissionbelow1GHz(30MHzto1GHz) Bluetooth(GFSK,pi/4-DQPSK,8DPSK)modehavebeentested,andtheworstresultwas8DPSKreportasbelow: 2402 SuspectedDataList NO. Freq. [MHz] Reading [dBμV] Factor [dB/m] Level [dBμV/m] Detector Limit [dBμV/m] Margin [dB] Polarity 132.912937.58-18.3519.23PK40.0020.77Vertical 2 347.507 5 36.32-13.4722.85PK46.0023.15Vertical 3 495.095 1 31.58-9.7821.80PK46.0024.20Vertical 4 595.105 1 31.12-7.1423.98PK46.0022.02Vertical 5 645.595 6 31.84-6.2325.61PK46.0020.39Vertical 6 784.444 4 31.26-4.5826.68PK46.0019.32Vertical ReportNo.ENS2401190062W00401RPage72of80Ver.1.0 SuspectedDataList NO. Freq. [MHz] Reading [dBμV] Factor [dB/m] Level [dBμV/m] Detector Limit [dBμV/m] Margin [dB] Polarity 132.912937.37-18.3519.02PK40.0020.98Horizontal 270.780836.54-20.0816.46PK40.0023.54Horizontal 3599.9631.02-7.1423.88PK46.0022.12Horizontal 4698.99931.44-5.9525.49PK46.0020.51Horizontal 5 843.673 7 31.31-3.8427.47PK46.0018.53Horizontal 6 923.293 3 32.01-2.7829.23PK46.0016.77Horizontal ReportNo.ENS2401190062W00401RPage73of80Ver.1.0 2441 SuspectedDataList NO. Freq. [MHz] Reading [dBμV] Factor [dB/m] Level [dBμV/m] Detector Limit [dBμV/m] Margin [dB] Polarity 132.912937.45-18.3519.10PK40.0020.90Vertical 2 347.507 5 36.07-13.4722.60PK46.0023.40Vertical 3 592.192 2 30.95-7.1423.81PK46.0022.19Vertical 4 649.479 5 32.37-6.2226.15PK46.0019.85Vertical 5 824.254 3 31.31-4.2127.10PK46.0018.90Vertical 6 942.712 7 30.94-2.4128.53PK46.0017.47Vertical ReportNo.ENS2401190062W00401RPage74of80Ver.1.0 SuspectedDataList NO. Freq. [MHz] Reading [dBμV] Factor [dB/m] Level [dBμV/m] Detector Limit [dBμV/m] Margin [dB] Polarity 132.912937.87-18.3519.52PK40.0020.48Horizontal 2499.9532.67-9.7622.91PK46.0023.09Horizontal 3 595.105 1 31.11-7.1423.97PK46.0022.03Horizontal 4 701.911 9 31.60-5.9225.68PK46.0020.32Horizontal 5 827.167 2 30.90-4.1726.73PK46.0019.27Horizontal 6 948.538 5 31.34-2.3528.99PK46.0017.01Horizontal ReportNo.ENS2401190062W00401RPage75of80Ver.1.0 2480 SuspectedDataList NO. Freq. [MHz] Reading [dBμV] Factor [dB/m] Level [dBμV/m] Detector Limit [dBμV/m] Margin [dB] Polarity 132.912937.12-18.3518.77PK40.0021.23Vertical 2 347.507 5 36.15-13.4722.68PK46.0023.32Vertical 3 501.891 9 31.81-9.7622.05PK46.0023.95Vertical 4598.01832.42-7.1425.28PK46.0020.72Ve…

Text truncated - open the document above for the full version.

1.1.PhotosofRadiationEmissionMeasurement PhotosofConductedEmissionMeasurement SpuriousEmissionTestSetup(Below30MHz) SpuriousEmissionTestSetup(30MHz-1GHz)
