Bridgelux ® Vesta-W4 Quad Channel 42W (Wiz) Brick Driver Product Data Sheet DS1221 Product Feature Map Bridgelux Vesta-W4 (Wiz) Quad Channel 42W Driver provides dynamic constant current output for LED modules and arrays. This Driver interoperates with Wiz control lighting systems and protocols and allows for simple integration of Bridgelux’s RGBW and 3CCT White Arrays and Linear modules. Please visit www.bridgelux.com for more information. The part number designation for Bridgelux Vesta-W4 (Wiz) Quad Channel 42W Driver is explained as follows: Product Nomenclature Configuration Part Number Brick with Strain Relief, US 120/277VACBXDR -PS-42BS -U411W -01 -A Table 1:Product Selection Guide 2 BXDR42BSU411W01A -- -- Housing Material P = Plastic Maximum Output Power Product Family BXDR = Driver 42 = 42W Form Factor B = Brick Connector Type S = Strain Relief Input Voltage U = Universal Inputs Output Channels 4 = Quad Channel Maximum Output Current x 100mA 11 = 1050 mA Control Input W = Wiz Pro Control Product Version 01 = Standard Product Generation 1,2,3,47,8,9,1011,12,13,14,1516,1718 A = Generation A PS - 5,6 Current Setting S = Dip -Switch Setting LED Output Universalinputs: 120/ 220-240/ 277VAC 4 Dip -switch (16 steps) Electrical Characteristics Table 2:Input Electrical Characteristics Table 3:Output Electrical Characteristics 3 SpecificationUnit Parameter 120 / 220 –240 / 277VNominal voltage 50 / 60HzNominal frequency 108 –305VAC voltage range NAVDC voltage range 0.40A @120VA Nominal current (Max) ≥ 0.95- Power factor (Full load) ≤ 10%THD (Full load) ≥ 88%Efficiency (Full load) ≤ 0.5WNO load I, II-Protection class SpecificationUnitParameter 18 -40V V Nominal voltage range ≤ 59Vdc Maximum voltage(Open Circuit) 1050900800700600550500490470460440400370350330320 mANominal current +/ -5 %Current accuracy Wiz Pro (Wireless)Dimming 10% -100 %Dimming Range ≤ 10 % Current ripple LF < 2KHz ≤ 1.0-Pst LM ≤ 0..4-SVM 42WMaximum power SELV-Galvanic isolation Mechanical Characteristics 4 SpecificationCharacteristics 123.9 mm (L) x 78.8 mm (W) x 30.0 mm (H)Dimensions PC PlasticEnclosure Materials 176.8 gWeight IP20Ingress Protection Table 4:Product Selection Guide Figure 5:Mechanical Drawing Notes for Figure 5: 1. Drawing dimensions are in millimeters 2. Unless otherwise specified, all linear tolerances are +/ -1.0mm. Wiring & Connections 5 DIP-switch operation instructions & operating window Notes for Table 6: 1. Unless otherwise specified, all linear tolerances are +/-1.0mm Specification item Value 0.5 –1.5 mm 2 / AWG 20 –15 0.75 –1.5 mm 2 / AWG 18 –15 (with Strain Relief) Cable cross-section PRI 8 mmStripping 0.5 –1.5 mm 2 / AWG 20 –15 0.75 –1.5 mm 2 / AWG 18 –15 (with Strain Relief) Cable cross-section SEC 8 mmStripping Table 6:Wiring Table 7:Dip -switch operation instructions & operating window I out U out Dip -switch setting 4321 1050 mA18 –40V ---- 900 mA18 –40V ---ON 800 mA18 –40V --ON- 700 mA18 –40V --ONON 600 mA18 –40V -ON-- 550 mA18 –40V -ON-ON 500 mA18 –40V -ONON- 490 mA18 –40V ON--- 470 mA18 –40V -ONONON 460 mA18 –40V ON--ON 440 mA18 –40V ON-ON- 400 mA18 –40V ON-ONON 370 mA18 –40V ONON-- 350 mA18 –40V ONON-ON 330 mA18 –40V ONONON- 320 mA18 –40V ONONONON Environmental and Regulatory Standards SpecificationParameter -20°Cto + 50°C Ambient Operating Temperature +80°C (max) Max. Case Temperature Tc Maximum 90% Relative Humidity, non condensingHumidity Rating -40°Cto + 80°C Storage Temperature > 50,000 hours (Tc < 80°C) Expected Lifetime Table 8:Environmental Conditions Table 9:Regulatory Approvals and Compliance ConditionReference StandardSpecification US: Class B at 120VAC, Class A at 277VACUS: FCC Title 47 Part 15B EU: EN 55015:2013 (CISPR 15:2013) Conducted and Radiated EMI EN IEC 61000-3-2:2014Harmonic Current Emissions IEC 61000-3-3:2013Voltage Fluctuations & Flicker 4 kV contact discharge, 8 kV air discharge, level 3 IEC 61547:2009 Section 5.2 Test des.: IEC 61000-4-2 ESD (Electrostatic Discharge) 3 V/m, 80 -1000 MHz, 80% modulated at distance of 3 meters IEC 61547:2009 Section 5.3 Test des.: IEC 61000-4-3 Continuous Radiated Disturbance ±1 kV on AC power port for 1 minute, IEC 61547:2009 Section 5.5 Test des.: IEC 61000-4-4 Electrical Fast Transient ±1 kV (differential mode)IEC 61547 Section 5.7 Test des.: IEC 61000-4-5 Surge 3V, 0.15 -80 MHz, 80% modulated, Level 2IEC 61547:2009 Section 5.6 Test des.: IEC 61000-4-6 Continuous Conducted Disturbance 70% dip during 25 cycles @ 50Hz, 30 cycles @ 60Hz 0% dip during ½ cycles IEC 61547 Section 5.8, 5.9 Test des.: IEC 61000-4-11 Voltage Dips 6 Regulatory Standards (continued) Table 10:Safety Agency Approvals ConditionReference StandardSpecification *pendingUL8750, CAN/CSA-C22.2 No. 250.13 *UL / cUL *pendingEN 61347-1:2015, EN 61347-2-13:2014/A1:2017 *ENEC / CE / UKCA Table 11:Wireless Standards / Parameters Condition Reference Standard / ParametersSpecification Wi-Fi: 802.11b/gWork Mode Wi-Fi: 20 dBmRF Output Power Wi-Fi: 2.4 –2.4835 GHzWork Frequency 7 Protection SpecificationParameters 103% -120% Yes / Auto Resume Over LoadProtection > 55Vdc Yes / Auto Resume Over Voltage Protection Yes / Auto ResumeShort Circuit Protection Yes / Auto ResumeOver-Temperature Table 12:Protection Design Resources 8 Application Notes Please contact your Bridgelux sales representative for assistance on obtaining application support when designing with the Bridgelux Vesta-W4 Quad Channel Driver. For a list of available resources, visit www.bridgelux.com. Precautions CAUTION: PRODUCT HANDLING Handle the Vesta-W4 Quad Channel Driver with care to prevent any damage from mechanical shock It is recommended to handle this driver in a static-free environment To maintain product warranty, the product must not be opened or disassembledand the installer must ensure that the driver's operating conditions do not exceed the maximum conditions stated within this data sheet. CAUTION: PRODUCT INSTALLATION Incorrect installation of the Vesta-W4 Quad Channel Driver can cause irreparabl…

Text truncated - open the document above for the full version.

5/27 Fe d Auth 743 Colu USA AT T FCC Brid sou pur s Bri d app “cov Sig n Pri n Title Com Date Co 7/2024 deral Comm horization a 35 Oakland umbia, MD A TN.: Revie C ID: 2BF24 dgelux, lnc ght is not “c suant to sec Note: If any of t include dgelux, lnc plication, the vered” equip ned: nted name: e: Director mpany Nam e: 5/27/202 46410 F overed E munications and Evaluat Mills Road 21046 ewing Engin 4-42BS-U41 c. (“the appl covered” eq ction 2.903 f the equipm the entities an explan a c. (“the appl e applicant i pment. Kin Chan of Driver B me: Bridgelu 24 Fremont Bou Equipmen Commissio tion Division neer 11W icant”) cert i quipment pr of the FCC ment for whi identified o ation on why icant”) certi is not ident Business D ux, lnc. Bridgelux, ulevard, Fre nt Certifica on n ifies that the rohibited fro C rules. ich the appl n the curren y the equipm ifies that, as tified on the Developme lnc. emont, CA ation Atte e equipmen om receiving licant seeks nt Covered ment is not s of the date e Covered L ent 94538 USA estation L nt for which g an equipm s authorizat List , the ap “covered” e e of the filin List as an en A Letter authorizatio ment author ion is produ pplicant sho equipment. ng of the ntity produc on is rization uced by ould cing

* the ap en 5/27 TO: AT T FCC FRN Per aut h Co m FCC Phy Con Age Th e Th e term proc Ap p Sign Prin Titl e Com Date applicant m pplicant’s age ntity. An appl 7/2024 Federa 7435 O Columb TN.: Review C ID: 2BF24 N of applica section 2.9 horization is mpany Nam C Registrati ysical U.S. C ntact Person ent Email Ad e above con e applicant a minated all m ceeding inv plicant Sign ned: ted name: K e: Director of mpany Name e: 5/27/2024 464 ust designat ent for servic licant located U.S. A l Communic Oakland Mills bia, MD 210 wing Engine 4-42BS-U41 ant: 003475 911(d)(7) of s sought is d me: Bridgelux ion Number Company A n: Director o ddress: Kin ntact person accepts to m marketing a volving the e ned: Kin Chan Driver Busi n e: Bridgelux, 10 Fremont te a contact l ce of process d in the Unite Agent Des Certifi cations Com s Road 046 eer 11W 3293 fthe FCC ru designated x, lnc. r (FRN): 003 Address: 464 of Driver Bus nchan@bride n accepts th maintain an and importat equipment. ness Develop lnc. Bridgel t Boulevard located in the s, regardless ed States ma signation cation At mmission ules, Bridge to the follo 34753293 410 Fremont siness Devel lux.com he obligation agent for n tion or the c pment lux, lnc. d, Fremont, C e United Sta s of whether ay designate for Servi ttestation elux, lnc. cer owing U.S. tBoulevard, lopment n for service no less than conclusion o Agent S Signed: Printed Title: Di Compa n Date: 5/ CA 94538 U tes for purpo the applican e itself as the ice of Pro Letter rtifies that th agent* for Fremont, C A e of process n one year a of any Com Signed (if d name: Kin C rector of Driv ny Name: Br /27/2024 USA oses of acting t is a domes e agent for se ocess - he equipme service of A 94538 USA s. after the gra mmission-rel ifferent fro Chan ver Business idgelux, lnc. g as the tic or foreig n ervice of pro ent for whic process: A antee has lated om Applica s Developme n cess. h ant): ent

DATE Fed e Auth 7345 Colu On o Nort Repu equi syst e man Co m appr For i beha for c CA 9 <Sign Name Title: Com p : 5/27/2024 eral Commu horization & 5 Oakland M umbia, Mary our behalf, I h Industry R ublic of Chin pment certif em for which ufactured, im mmission’s re roval with th instances w alf, I acknow certification, 94538 USA nature> e: Kin Chan Director of pany : Bridg unications C Evaluation D Mills Road land 21046 appoint Do n Road Songsh na 523808. t fication. I ce h equipment mported or m egulations w is applicatio here our aut wledge that a still resides Driver Busi elux, lnc. ommission Division Autho r ngguan New han Lake Sc to act as ou rtify that su b t certification marketed, a will have affix on. thorized age all responsib with Bridge ness Devel rity to Act a w Testing Ce cience & Te r agent in th bmitted docu n is sought. s defined in xed to it a la ent signs the bility for com elux, lnc. & 4 opment asAgent entre Co., Lt chnology Pa he preparatio uments prop I also certify the Federa abel identica e application mplying with 46410 Frem td；1F & 3F ark Donggua on of this ap perly describ y that each l Communi c al to that sub n for certifica the terms an mont Bouleva F, No. 1 the an, People’s pplication for be the devic unit cations bmitted for ation on our nd condition ard, Fremon 1st s r e or ns nt,

DATE : 5/27/2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BF24-42BS-U411W Product Name: LED Driver _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Kin Chan Title: Director of Driver Business Development Company : Bridgelux, lnc.

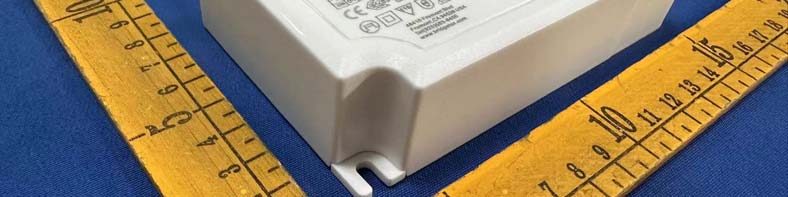

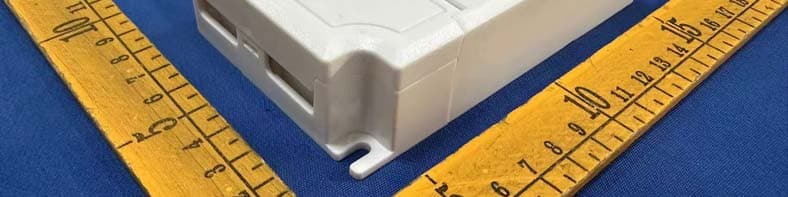

External photos Model No: BXDR‐PS‐42BS‐U411W‐01‐A

FCC‐ID:2BF24‐42BS‐U411W Page 1 of 1 Report No.: NTC‐ER2311036 Label and label location Model No: BXDR‐PS‐42BS‐U411W‐01‐A LED Driver Model: BXDR‐PS‐42BS‐U411W‐01‐A FCC ID: 2BF24‐42BS‐U411W This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Model No: BXDR‐PS‐42BS‐U411W‐01‐A 2.4G Antenna

FCC ID: 2BF24-42BS-U411W Page 1 of 2 Report No.: NTC-ER2311036 RF Exposure evaluation FCC ID: 2BF24-42BS-U411W 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D04: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density FCC ID: 2BF24-42BS-U411W Page 2 of 2 Report No.: NTC-ER2311036 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi for 2.4GHz , the RF power density can be obtained. For 2.4GHz wifi Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 23.108204.5502 1.0000 0.0407 1.0000 PASS 802.11g 21.057127.5557 1.0000 0.0254 1.0000 PASS 802.11n20 21.293134.6790 1.0000 0.0268 1.0000 PASS 5. Conclusion The SAR evaluation is not required.

1.Sample photo Applicant : Bridgelux, lnc. Address : 46410 Fremont Boulevard, Fremont, CA 94538 USA Model/Type reference : BXDR-PS-42BS-U411W-01-A Power supply: : 120-277V, 50/60Hz Modulation: : 802.11b: CCK/QPSK/BPSK 802.11g/n: BPSK/QPSK/16QAM/64QAM Operation frequency: : 2412 MHz to 2462 MHz for 802.11b/g/n(HT20) Antenna type: : PCB Antenna 6.5mm 14.5mm 2. Project biref 1 Operating band WIFI:2.4G 2 Frequency band WIFI:2400-2500Mhz 3 Antenna type WIFI:PCB Antenna 4 Material and implementation shape PCB Results Summary ( 2D/3D Radiation Pattern/Efficiency ) Overview WIFI Frequency (MHz) Gain(dB) Efficiency(dB) Efficiency(%) 2400 -0.66 -6.51 14.067 2410 -3.50 -4.36 12.655 2420 -4.67 -4.16 13.718 2430 -3.83 -3.56 12.788 2440 -4.18 -4.86 11.182 2450 -2.31 -4.74 12.012 2460 -2.62 -5.01 13.199 2470 0.00 -6.68 11.703 2480 -4.61 -6.80 15.996 2490 -3.12 -5.56 13.025 2500 -3.41 -5.88 10.707 3. SWR

FCC TEST REPORT Report No. ................................ NTC-ER2311036 Applicant’s name ..................... Bridgelux, lnc. Address .................................... 46410 Fremont Boulevard, Fremont, CA 94538 USA DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 31F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Tel: +86-769-22212079 Web: http://www.ntc-cert.com E-mail: [email protected] Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 1 of 72 Report No.: NTC-ER2311036 TABLE OF CONTENTS TEST REPORT DECLARE ............................................................................................................ 3 1. Summary of test results .................................................................................................................... 4 2. General test information ................................................................................................................... 4 2.1. Detail models ...................................................................................................................................... 5 2.2. Test Peripheral List ............................................................................................................................ 6 2.3. Block diagram EUT configuration for test....................................................................................... 6 2.4. Test environment conditions ............................................................................................................ 6 2.5. Measurement uncertainty ................................................................................................................. 6 3. Power Line Conducted Emission Test ............................................................................................ 7 3.1. Test equipment .................................................................................................................................. 7 3.2. Block diagram of test setup .............................................................................................................. 7 3.3. Power Line Conducted Emission Limits (Class B) ....................................................................... 7 3.4. Test Procedure ................................................................................................................................... 8 3.5. Test Result .......................................................................................................................................... 8 4. Radiated emission test .................................................................................................................... 11 4.1. Test equipment ................................................................................................................................ 11 4.2. Block diagram of test setup ............................................................................................................ 12 4.3. Limit.................................................................................................................................................... 14 4.4. Test Procedure ................................................................................................................................. 15 4.5. Test result ......................................................................................................................................... 15 5. Output Power .................................................................................................................................... 24 5.1. Test equipment ................................................................................................................................ 24 5.2. Block diagram of test setup ............................................................................................................ 24 5.3. Limit.................................................................................................................................................... 24 5.4. Test Procedure ................................................................................................................................. 24 5.5. Test result ......................................................................................................................................... 25 6. -6dB Bandwidth ................................................................................................................................ 31 6.1. Test equipment ................................................................................................................................ 31 6.2. Block diagram of test setup ............................................................................................................ 31 6.3. Limit.................................................................................................................................................... 31 6.4. Test Procedure ................................................................................................................................. 31 6.5. Test result ......................................................................................................................................... 32 7. Band Edges Measurement ............................................................................................................. 38 7.1. Test equipment ................................................................................................................................ 38 7.2. Block diagram of test setup ............................................................................................................ 38 7.3. Limit................................................…
