2BF3H-HF-X05HF-X05 Biometric Time Attendance and Access Control Terminal

www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. New product X05, delicate outlooking design, metal shell, frosted texture. Advanced access control function, fully open for programming with Android 11 system. High compatibility and stability. Multi recognition including face, card, and fingerprint recognition, with a 20,000 large capacity, can be applied to different scenes. Attendance, security and access control integrated machine. With video intercom let you know the company' s affairs anytime and anywhere, and the SMS function for school solutions allows parents and teachers to know whether the students are in school at any time. Function Introduction Product display Identify www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. Application solution www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. www.hfteco.comwww.hfsecurity.cn Configuration D-13,Dongli International Building Longtousi, Yubei District, Chongqing, China. Branch: Shenzhen BIO Technology Co., Ltd. Room 301-305,No.30, Jianlong Industrial Zone, Henggang, Longgang District, Shenzhen Huifan Technology Co.,Ltd Huifan Technology HF_Security Chongqing-huifan-technology www.hfteco.comwww.hfsecurity.cn Chongqing Huifan Technology Co.,Ltd. CPU RAM ROM OTA MT8768, Octa-core 2.3GHz 2GB 2G(Optional 4G or more) 16GB (Optional 32G or more) Support Sensor Image Resolution Image Area Image Size Gray Scale Standard Image Format API Calling for 1-to-N Matching FBI Certificated Fingerprint Sensor(FAP10) 508DPI 18.00mm*12.80mm 256*360 pixels 5-bit(256levels) Support ANSI378/381, ISO19794-5/-4 WSQ, RAW, jpg, etc Support W i-Fi 2.4GHz / 5.0GHz Standard ODM Protective silicone cover CE, FBI, GMS Logo Optional Bluetooth 5.0 USB-A; Micro USB Support 26/34/37/56/64/input&outputRS232/RS485 Support Support Support Support Support SPECIFICATION FINGERPRINT SENSOR HARDWARE OTHER CARD SLOT COMMUNICATION @ www.hfsecurity.cn www.hfteco.com [email protected] YouTube Head-quarter: Chongqing Huifan Technology Co., Ltd. Android 11 5inch 720*1280 225mm(L)*115mm(W)*11.5mm(H) 5.0M (RGB Camera); 2.0M (Infrared Camera Support DC 4.3V 3000mAh Support Support ISO/IECC1443 Type A&B, 13.56MHz Support Gravity acceleration sensor Built-in stereo speaker 8•/1.5W Built-in microphone Capacitive panel, multi-point touch, G+G - 5~60°C Iris camera Image transmission rate Distortion CRA Lens temperature range Lens structure Focus distance Depth of field Video output compression format MJPG/YUY Working wavelength Dynamic range CMOS photosensitive chip Maximum resolution Sensor Pixel Dimensions 810nm 60dB 1920*1080/30fps TVDistortion<1.0% <23.58° -20°/+80° 2P+2G 37cm 32~42CM 1/2.8sensor 1920(H)x1080(V) 2.9um x 2.9um Iris camera OS LCD Dimension Camera Battery 12V Input RFID GPS G-Sensor Speaker Mic Touch Panel Storage Temperature Bluetooth USB POE Wiegand N O NC COM Button Doorbell Open button Door Magnet RJ45 LAN SIM Card SMS 1* SIM card slot, 4G Support FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

CHONGQING HUIFAN TECHNOLOGY CO.,LTD Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-4 To whom it may concern: We, CHONGQING HUIFAN TECHNOLOGY CO.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BF3H-HF-X05) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature nick ling Manager CHONGQING HUIFAN TECHNOLOGY CO.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

CHONGQING HUIFAN TECHNOLOGY CO.,LTD Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/04/26 U.S. Agent Designation CHONGQING HUIFAN TECHNOLOGY CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BF3H-HF-X05): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of CHONGQING HUIFAN TECHNOLOGY CO.,LTD CHONGQING HUIFAN TECHNOLOGY CO.,LTD with the FRN [0035331438] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature nick ling Manager CHONGQING HUIFAN TECHNOLOGY CO.,LTD Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CHONGQING HUIFAN TECHNOLOGY CO.,LTD Add: Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Date: 2024-5-4 FCC ID: 2BF3H-HF-X05 Dear Sir/Madam, We, CHONGQING HUIFAN TECHNOLOGY CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: HF-X05 Biometric Time Attendance and Access Control Terminal Model no.: HF-X05, HF-FP07, HF-FP08, HF-FP05, HF-FP09, HF-FP62 Series Sincerely, Name/Title： nick ling/Manager Company: CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address: Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Phone: 13242432090 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-5-4> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BF3H-HF-X05 HF-X05 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： nick ling/Manager Company: CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address: Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Phone: 13242432090 Fax: N/A E-Mail: [email protected]

CHONGQING HUIFAN TECHNOLOGY CO.,LTD Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Date: 2024-5-4 FCC ID: 2BF3H-HF-X05 Model Number: HF-X05 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, CHONGQING HUIFAN TECHNOLOGY CO.,LTD, declare that this EUT (FCC ID: 2BF3H-HF-X05) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： nick ling/Manager Company: CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address: Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Phone: 13242432090 Fax: N/A E-Mail: [email protected]

CHONGQING HUIFAN TECHNOLOGY CO.,LTD Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-5-4 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BF3H-HF-X05 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： nick ling/Manager Company: CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address: Dongli Intl. Bldg. D 1313-1316 LongTouSi New North Zone Chongqing China Phone: 13242432090 Fax: N/A E-Mail: [email protected]

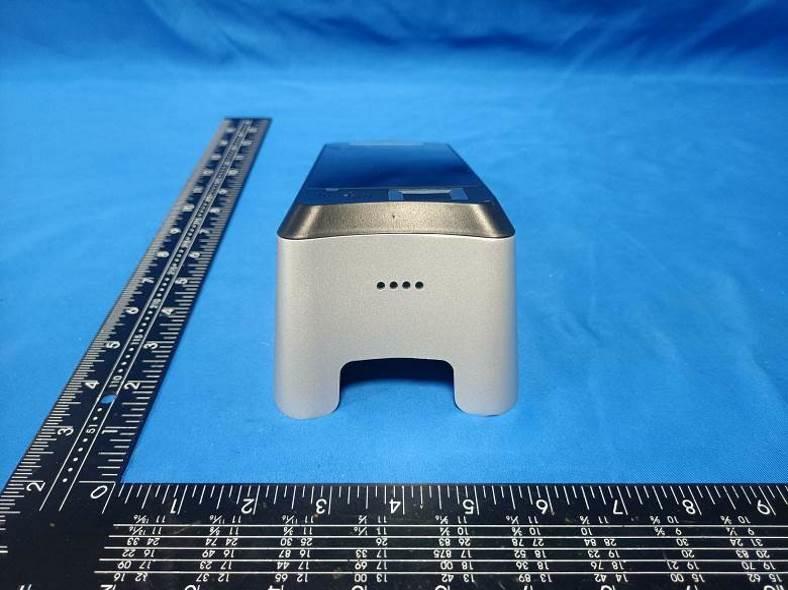

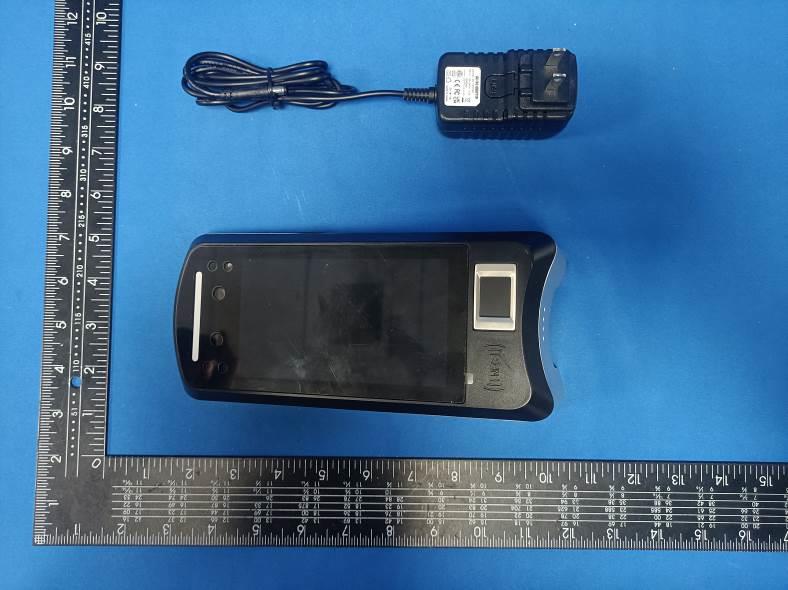

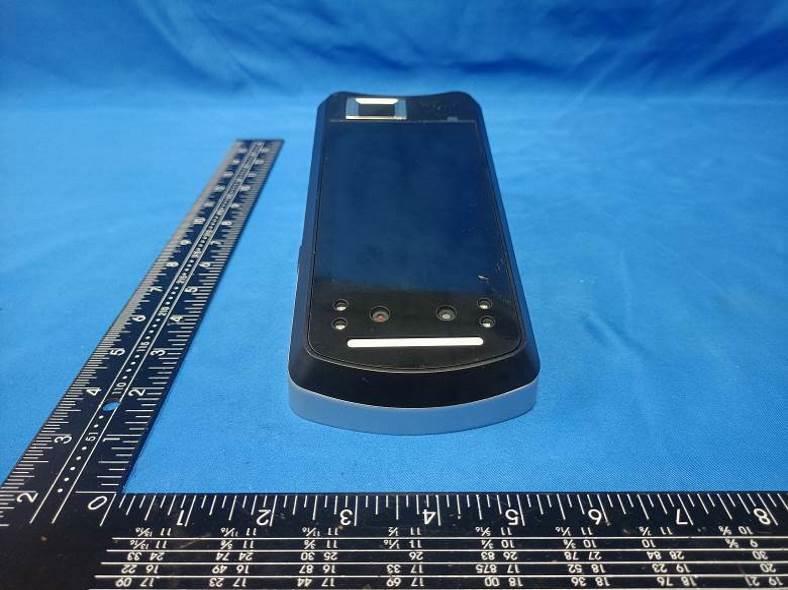

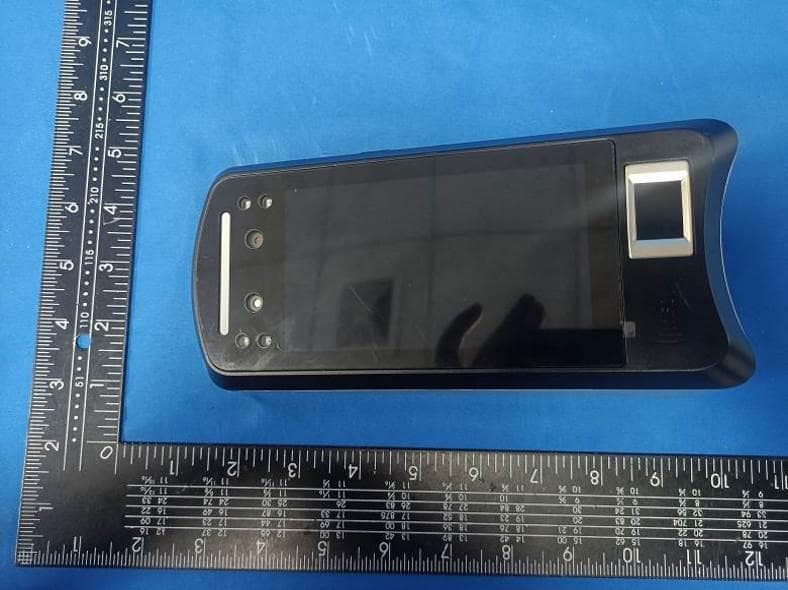

FCC ID: 2BF3H-HF-X05 External Photos of the EUT FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05

FCC ID: 2BF3H-HF-X05 Internal Photos of the EUT FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05 LTE Main FPC Antenna BT/WIFI FPC Antenna RF ID FPC Antenna LTE Diversity FPC Antenna FCC ID: 2BF3H-HF-X05 FCC ID: 2BF3H-HF-X05

1. Antenna Description: Antenna type FPC Antenna Model D860-3004-GWB Frequency range 2400-2500MHz Manufacturer CHONGQING HUIFAN TECHNOLOGY CO.,LTD ANT Peak Gain 1.50 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24032800602 2BF3H-HF-X05 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Zoey Cao Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Apr. 11, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address ............................................ : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: HF-X05 Biometric Time Attendance and Access Control Terminal Trade Mark ....................................... : HFSECURITY Manufacturer .................................... : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Model/Type reference....................... : HF-X05 Listed Models .................................. : HF-FP07, HF-FP08, HF-FP05, HF-FP09, HF-FP62 Series Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.8V From battery and DC 12.0V From external circuit Result................................................ : PASS Report No.: CTA24032800602 Page 2 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HF-X05 Biometric Time Attendance and Access Control Terminal Model /Type : HF-X05 Listed Models : HF-FP07, HF-FP08, HF-FP05, HF-FP09, HF-FP62 Series Applicant : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Manufacturer : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24032800602 Page 3 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P PHO T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA24032800602 Page 4 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24032800602 Page 5 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA24032800604 2BF3H-HF-X05 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 11, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address ............................................ : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : HF-X05 Biometric Time Attendance and Access Control Terminal Trade Mark ....................................... : HFSECURITY Manufacturer .................................... : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Model/Type reference ...................... : HF-X05 Listed Models .................................. : HF-FP07, HF-FP08, HF-FP05, HF-FP09, HF-FP62 Series Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 3.8V From battery and DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA24032800604 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HF-X05 Biometric Time Attendance and Access Control Terminal Model /Type : HF-X05 Series Model No. HF-FP07, HF-FP08, HF-FP05, HF-FP09, HF-FP62 Series Applicant : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Manufacturer : CHONGQING HUIFAN TECHNOLOGY CO.,LTD Address : Dongli International Building D 1313-1316 LongTouSi, New North Zone, Chongqing, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24032800604 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E ST S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 6 2.4 Short description of the Equipment under Test (EUT) 6 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 36 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 37 6 P H O T O S O F T H E E U T ........................................................... 38 Report No.: CTA24032800604 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.…

Text truncated - open the document above for the full version.

Report No.: CTA24032800604 Page 29 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24032800604 Page 30 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24032800604 Page 31 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24032800604 Page 32 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 802.11n40 Reference Reference CH11 CH03 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24032800604 Page 33 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n40 Reference Reference CH06 CH09 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24032800604 Page 34 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge Report No.: CTA24032800604 Page 35 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) Left bandedge Right bandedge 802.11n(HT40) Left bandedge Right bandedge Report No.: CTA24032800604 Page 36 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.50 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24032800604 Page 37 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24032800604 Page 38 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Reference to the test report No. CTA24032800601. ********************** End of Report **********************

FCC ID: 2BF3H-HF-X05 Test Setup Photos of the EUT FCC…

Text truncated - open the document above for the full version.
