2BFB2-KTX-TH01-EVTESLA AUTOMATIC POP UP DOOR HANDLE

TESLA AUTOMATIC POP UP DOOR HANDLE KTX-TH01-EV 安装接线示意图Installation wiring diagram 一.特斯拉model3安装步骤Tesla Model 3 installation steps 1.特斯拉3左右前门配件拆卸与安装model3 Remove and install left and right front door accessories (1).卸下上图三处螺丝 Remove the three screws in the picture above (2).用撬刀撬右下角 卸下门饰板 Pry the lower right corner with a pry knife to remove the door trim panel (3).拿出标示处胶条和胶塞把玻璃螺丝对上孔位 Take out the rubber strip and rubber plug at the marking point and align the glass screw with the hole (4).把与盖板相连的插线拔下 拿下盖板 Remove the plug wire connected to the cover plate and remove the cover plate (5).把饰板处如图灯取出来插回去(非常重要） Take out the figure lamp from the trim plate and insert it back (very important) (6).拿出标示处胶条和胶塞把两圆圈内玻璃螺丝拧出就 可以直接把玻璃拿出来了 Take out the rubber strip and rubber plug at the mark and unscrew the glass screws inside the two circles to take out the glass directly (7).卸下固定饰板上的所有螺丝 Remove all screws from the fastening trim plate (8).把与固定饰板上连接的所有线取下，用手从固定饰板 下端用力往上提的同时 往外拉出即可取下饰板 Remove all the wires connected with the fixed plate and pull out the lower plate by hand while lifting the lower end of the fixed plate forcefully (9).取出上图三颗螺丝，拆下原车把手 Take out the three screws in the picture above and remove the original handlebar (10).将原车上的信号器拆装到相对应的电动把手上，用 原车螺丝固定 Disassemble the signal on the original vehicle to the corresponding electric handle and fix it with the original vehicle screw (11).将第二代把手安装到车上，用原车螺丝固定 Install the second generation handle on the car and secure it with the original car screws 2.左右后门配件拆卸和安装model3 Remove and install the left and right rear door accessories of Tesla (1).卸下上图两处螺丝 Remove the three screws in the picture above (2).用撬刀撬右下角 卸下门饰板 Pry the lower right corner with a pry knife to remove the door trim panel (3).拿出标示处胶条和胶塞把玻璃螺丝对上孔位 Take out the rubber strip and rubber plug at the marking point and align the glass screw with the hole (4).把与盖板相连的插线拔下 拿下盖板 Remove the plug wire connected to the cover plate and remove the cover plate (5).把饰板处如图灯取出来插回去(非常重要） Take out the figure lamp from the trim plate and insert it back (very important) (6).拿出标示处胶条和胶塞把两圆圈内玻璃螺丝拧出就 可以直接把玻璃拿出来了 Take out the rubber strip and rubber plug at the mark and unscrew the glass screws inside the two circles to take out the glass directly (7).除了图中红圈内四颗螺丝外，全部取下 Remove all screws from the fastening trim plate (8).把与固定饰板上连接的所有线取下，用手从固定饰板 下端用力往上提的同时往外拉出即可取下饰板 (8). Remove all the wires connected with the fixed plate and pull out the lower plate by hand while lifting the lower end of the fixed plate forcefully (9).取出上图三颗螺丝，拆下原车把手 Take out the three screws in the picture above and remove the original handlebar (10).将原车上的信号器拆装到相对应的电动把手上，用 原车螺丝固定 Disassemble the signal on the original vehicle to the corresponding electric handle and fix it with the original vehicle screw (11).将第二代把手安装到车上插头直接对插原车，用原 车螺丝固定好把手即可 Install the second generation handlebars to the car Pair plug directly on the original car, with the original car screw fixed handle (12).拆下B柱上边饰板 用穿线绳将把手线从波纹管穿 到车内，线材隐藏在车边沿饰板内 Remove the upper edge panel of pillar B and thread the handle line from the bellows to the inside of the car with the string, the wire is hidden in the edge panel of the car 3.取电说明 Circuit connection Description (1) .在前盖电池取电，左边找孔穿线至副驾驶 Connect the cable to the battery in the front cover, find a hole on the left side and thread the cable to the co-pilot (2) .拆下副驾A柱饰板CAN线直接与蓝色插座对插 Remove co-pilot's A-pillar trim panel and plug the CAN cable directly into the blue socket (3) .拆下马鞍两侧饰板，左侧前后门把手线材按照上图 走线至副驾驶控制盒放置位置，控制盒隐藏在饰板里面 Remove the decorative plates on both sides of the saddle, and route the left front and rear door handle wire to the position of the copilot control box according to the figure above. The control box is hidden inside the decorative plate (4) .在主驾驶脚踏旁边接地线。接好之后测试把手，把 手工作正常即可恢复车门饰板 Ground wire next to main driver's foot. After connecting the handle, test the handle to restore the door trim panel when it works normally 二.特斯拉Y安装步骤Tesla Model Y installation steps 1. 左右前门配件拆卸与安装Remove and install accessories on the left and right front doors (1).卸下上图三处螺丝 Remove the three screws in the picture above (2).用撬刀撬右下角 卸下门饰板 Pry the lower right corner with a pry knife to remove the door trim panel (3).拿出标示处胶条和胶塞把玻璃螺丝对上孔位 Take out the rubber strip and rubber plug at the marking point and align the glass screw with the hole (4).把与盖板相连的插线拔下 拿下盖板 Remove and remove the plug wire connected to the cover plate (5).玻璃有卡扣需要同时拿螺丝刀拨住才能取出玻璃 The glass has a buckle. You need to hold the screwdriver at the same time to remove the glass (6.)拔掉与饰板相连的插头 Remove the plug connected to the trim plate (7).取下标记的所有螺丝，拿下饰板 Remove all screws from the mark and remove the trim plate (8).取出上图三颗螺丝，拆下原车把手 Take out the three screws in the picture above and remove the original handlebar (9).将原车上的信号器拆装到相对应的电动把手上，用 原车螺丝固定 Disassemble the signal on the original vehicle to the corresponding electric handle and fix it with the original vehicle screw （10）.将第二代把手安装到车上，用原车螺丝固定 Install the second generation handle on the car and secure it with the original car screws 2.左右后门配件拆卸与安装Removal and installation of left and right rear door accessories (1).卸下上图两处螺丝 Remove the two screws in the figure above (2).用撬刀撬右下角卸下门饰板 Pry the lower right corner with a pry knife to remove the door trim panel (3).拿出标示处胶条和胶塞把玻璃螺丝对上孔位 Take out the rubber strip and rubber plug at the marking point and align the glass screw with the hole (4).把与盖板相连的插线拔下 拿下盖板 Remove the plug wire connected to the cover plate and remove the cover plate (5).拔掉所有插头取下标记的所有螺丝拿下饰板 Unplug all plugs, remove all marked screws and remove the trim plate (6).取出上图三颗螺丝，拆下原车把手 Take out the three screws in the picture above and remove the original handlebar (7).将原车上的信号器拆装到相对应的电动把手上，用原 车螺丝固定 Disassemble the signal on the original vehicle to the corresponding electric handle and fix it with the original vehicle screw (8).将第二代把手安装到车上 插头直接对插原车，用 原车螺丝固定好把手即可 Install the second generation handlebars to the car Pair plug directly on the original car, wit…

Text truncated - open the document above for the full version.

ALPS ALPINE (China) Co., Ltd. Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-1 To whom it may concern: We, ALPS ALPINE (China) Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID:2BFB2-KTX-TH01-EV}) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Shuxing Qian Market Manager ALPS ALPINE (China) Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

ALPS ALPINE (China) Co., Ltd. Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Reference Number: N/A Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 4/1/2024 U.S. Agent Designation ALPS ALPINE (China) Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFB2-KTX-TH01-EV): Name and company of U.S. agent: Formates LLC Physical U.S. address of agent: 1400 Hudson St, Hoboken, New Jersey, 07030, USA FRN of U.S. agent: 0033456468 Email address of U.S. agent: [email protected] ALPS ALPINE (China) Co., Ltd. with the FRN [0035090992] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Shuxing Qian Market Manager ALPS ALPINE (China) Co., Ltd. Signature Abi Aribisala Project Manager Formates LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V05

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-4-1> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BFB2-KTX-TH01-EV KTX-TH01-EV For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Shuxing Qian/Market Manager Company: ALPS ALPINE (China) Co., Ltd. Address: Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Phone: 86-02152418883 Fax: / E-Mail: [email protected]

ALPS ALPINE (China) Co., Ltd. Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-1 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BFB2-KTX-TH01-EV including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Shuxing Qian/Market Manager Company: ALPS ALPINE (China) Co., Ltd. Address: Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Phone: 86-02152418883 Fax: / E-Mail: [email protected]

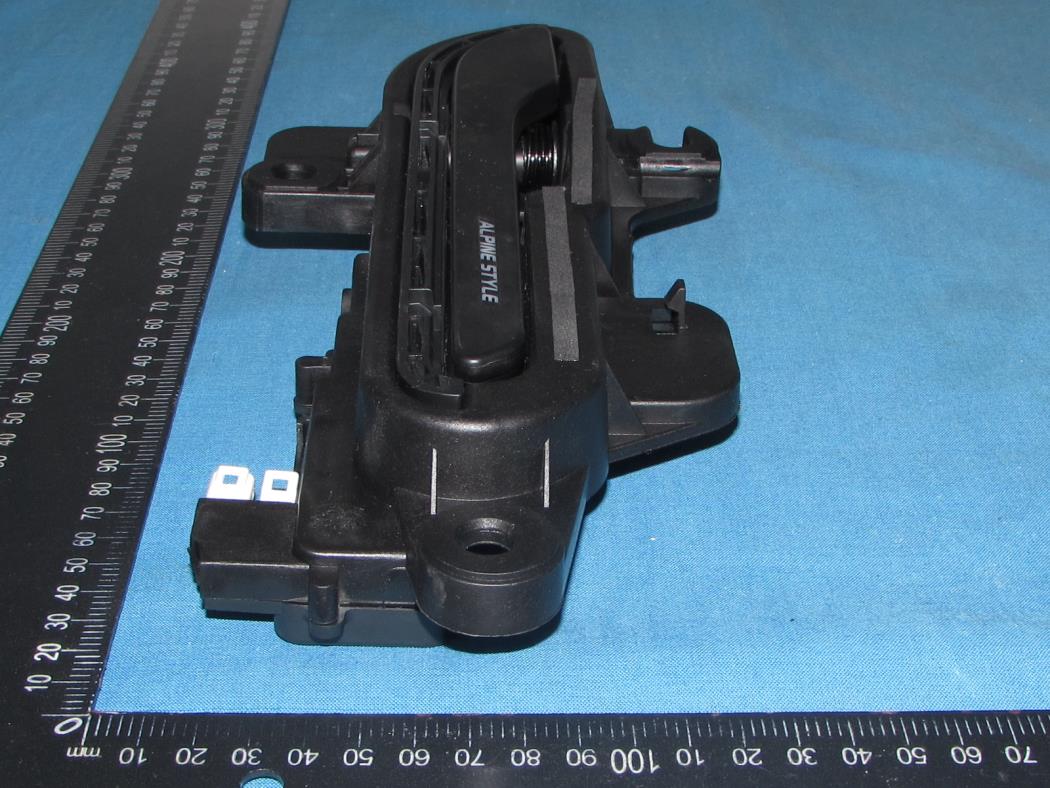

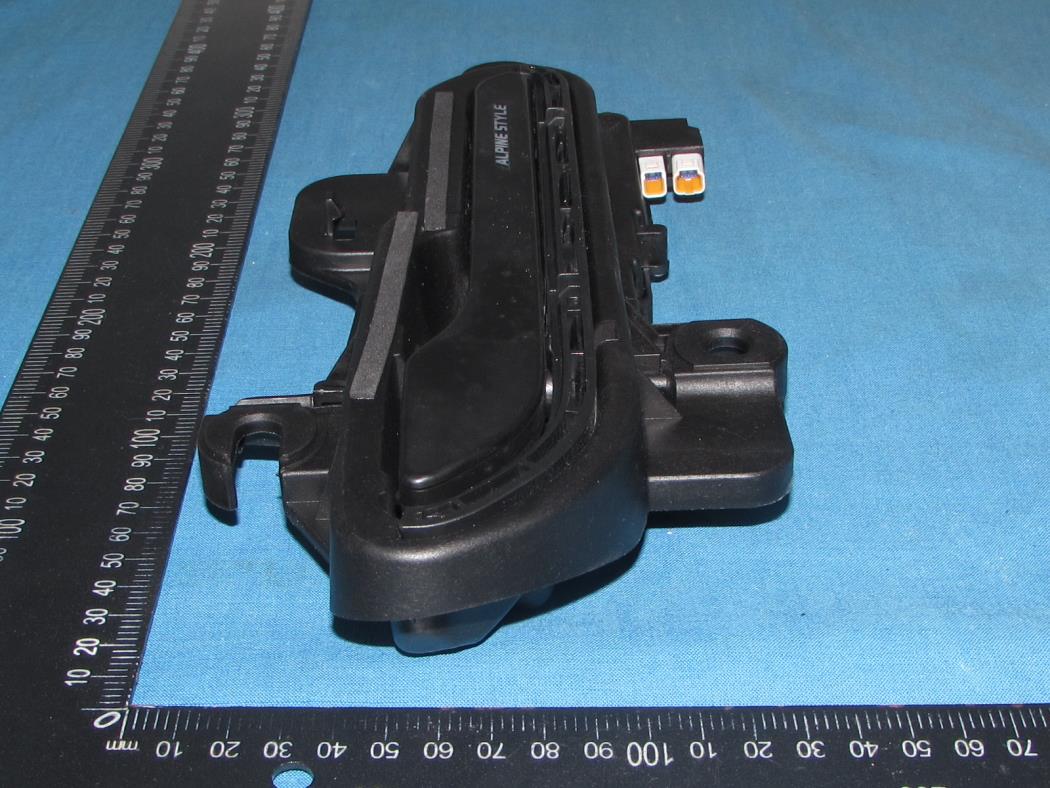

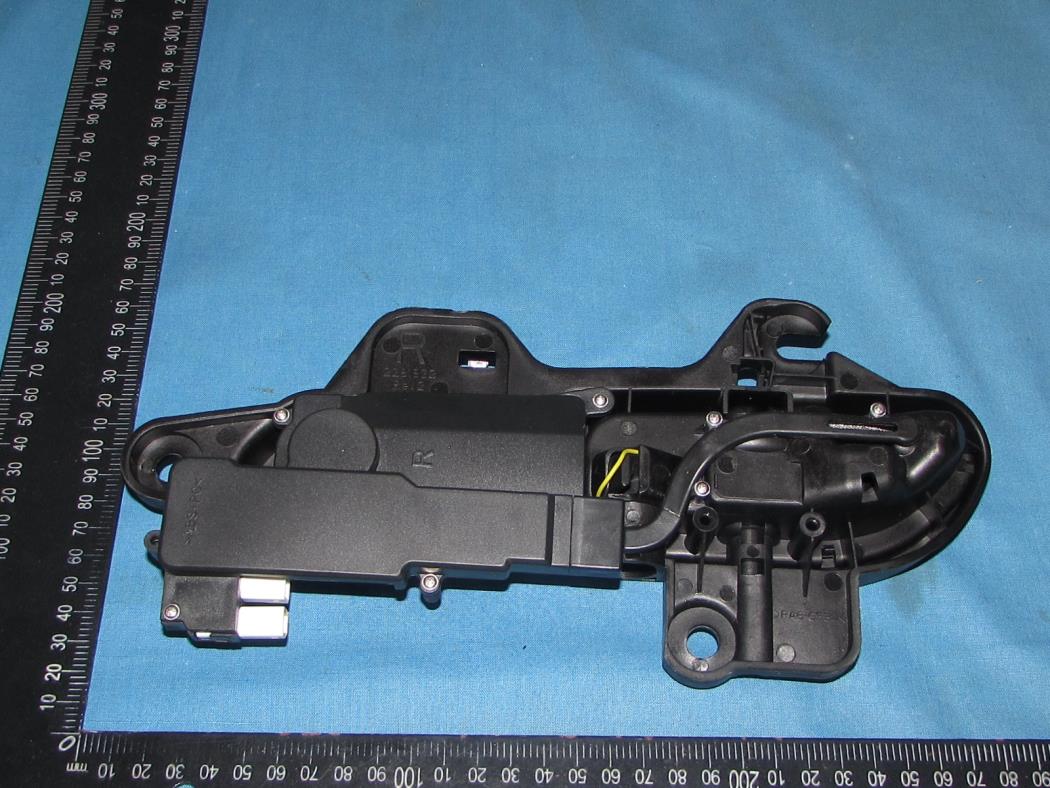

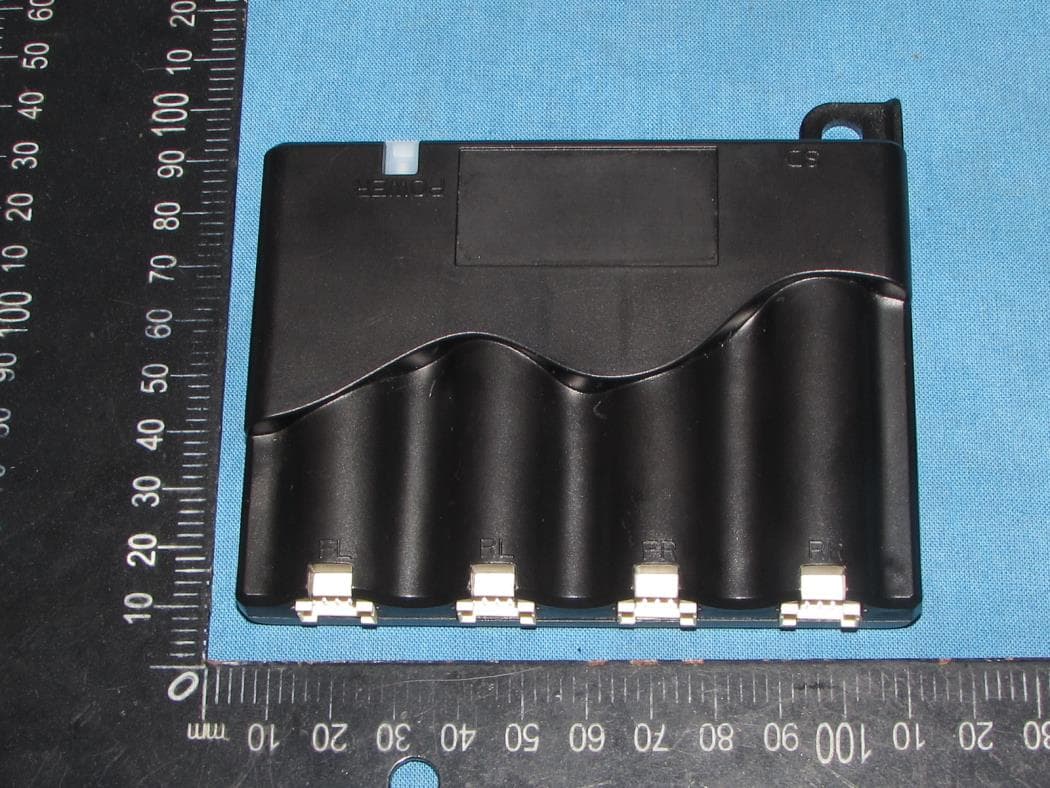

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location: FCC ID: 2BFB2-KTX-TH01-EV

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8 Bluetooth Antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 -5.32 19 2440 -5.55 39 2480 -5.54 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -5.5 -6.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 -4.5 -3.3 0.47 3 2440 -5.0 -3.8 0.42 3 2480 -5.0 -3.8 0.42 3 The antenna gain of the EUT for BT is PCB Antenna, 1.2dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Product specification Model: N/A Manufacturer: Shenzhen Yunchuang Century Technology Co., Ltd. Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2dBi (Peak Gain) Input Impendence(ohm) 50 Polarization Type Vertical & Horizontal V.S.W.R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -1.5 1.0 -6.6 0.8 -6.1 60.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 1 of 19 Appendix Test Data for BLE (Conducted Measurement) Product Name: TESLA AUTOMATIC POP UP DOOR HANDLE Trade Mark: ALPINE STYLE Test Model: KTX-TH01-EV FCC ID: 2BFB2-KTX-TH01-EV Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.672 2401.688 2402.360 0.5 PASS BLE_1M Ant1 2440 0.684 2439.680 2440.364 0.5 PASS BLE_1M Ant1 2480 0.680 2479.680 2480.360 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 2 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0573 2401.4931 2402.5504 --- --- BLE_1M Ant1 2440 1.1300 2439.4545 2440.5845 --- --- BLE_1M Ant1 2480 1.1319 2479.4556 2480.5875 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 4 of 19 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 5 of 19 Appendix C: Maximum peak conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] EIRP[dBm] EIRP Limit[dBm] Verdict BLE_1M Ant1 2402 -5.32 ≤30 -4.12 ≤36 PASS BLE_1M Ant1 2440 -5.55 ≤30 -4.35 ≤36 PASS BLE_1M Ant1 2480 -5.54 ≤30 -4.34 ≤36 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 6 of 19 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 7 of 19 Appendix D: Maximum peak power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.07 ≤8.00 PASS BLE_1M Ant1 2440 -19.71 ≤8.00 PASS BLE_1M Ant1 2480 -19.63 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 8 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 9 of 19 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -6.64 -47.82 ≤-26.64 PASS BLE_1M Ant1 High 2480 -6.67 -47.43 ≤-26.67 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 10 of 19 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMod e Antenn a Frequency[MHz ] FreqRange [MHz] RefLeve l [dBm] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 2402 0~Referenc e -7.27 -7.27 --- PASS BLE_1M Ant1 2402 30~1000 -7.27 -61.69 ≤-27.27 PASS BLE_1M Ant1 2402 1000~26500 -7.27 -49.72 ≤-27.27 PASS BLE_1M Ant1 2440 0~Referenc e -7.50 -7.50 --- PASS BLE_1M Ant1 2440 30~1000 -7.50 -63.18 ≤-27.5 PASS BLE_1M Ant1 2440 1000~26500 -7.50 -50.71 ≤-27.5 PASS BLE_1M Ant1 2480 0~Referenc e -6.84 -6.84 --- PASS BLE_1M Ant1 2480 30~1000 -6.84 -62.16 ≤-26.84 PASS BLE_1M Ant1 2480 1000~26500 -6.84 -50.47 ≤-26.84 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 12 of 19 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS BLE_1M-Ant1-2402-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 13 of 19 BLE_1M-Ant1-2440-0~Reference-PASS BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 14 of 19 BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS BLE_1M-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2402 19.00 19.00 100.00 0.00 BLE_1M Ant1 2440 19.00 19.00 100.00 0.00 BLE_1M Ant1 2480 17.00 17.00 100.00 0.00 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 16 of 19 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 NTNV-BLE_1M-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV Report No.: TZ240205382-BLE Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 Peak 2390.000 -40.05 ≤-21.20 55.15 ≤74 PASS BLE_1M Ant1 Low 2402 Peak 2310.000 -44.2 ≤-21.20 51.00 ≤74 PASS BLE_1M Ant1 Low 2402 Peak 2389.985 -40.05 ≤-21.20 55.15 ≤74 PASS BLE_1M Ant1 Low 2402 AV 2390.000 -49.82 ≤-41.20 45.38 ≤54 PASS BLE_1M Ant1 Low 2402 AV 2310.000 -50.93 ≤-41.20 44.27 ≤54 PASS BLE_1M Ant1 Low 2402 AV 2378.225 -48.75 ≤-41.20 46.45 ≤54 PASS BLE_1M Ant1 High 2480 Peak 2483.500 -38.8 ≤-21.20 56.40 ≤74 PASS BLE_1M Ant1 High 2480 Peak 2500.000 -45.18 ≤-21.20 50.02 ≤74 PASS BLE_1M Ant1 High 2480 Peak 2484.160 -37.41 ≤-21.20 57.79 ≤74 PASS BLE_1M Ant1 High 2480 AV 2483.500 -45.72 ≤-41.20 49.48 ≤54 PASS BLE_1M Ant1 High 2480 AV 2500.000 -49.6 ≤-41.20 45.60 ≤54 PASS BLE_1M Ant1 High 2480 AV 2484.640 -45.34 ≤-41.20 49.86 ≤54 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The …

Text truncated - open the document above for the full version.

Report No.: TZ240205382-BLE Page 1 of 31 FCC TEST REPORT Test report On Behalf of ALPS ALPINE (China) Co., Ltd. For TESLA AUTOMATIC POP UP DOOR HANDLE Model No: KTX-TH01-EV FCC ID: 2BFB2-KTX-TH01-EV Prepared for : ALPS ALPINE (China) Co., Ltd. Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/2/29 ~ 2024/3/6 Date of Report: 2024/3/7 Report Number: TZ240205382-BLE The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240205382-BLE Page 2 of 31 TEST RESULT CERTIFICATION Applicant’s name ................. : ALPS ALPINE (China) Co., Ltd. Address .................................. : Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Manufacture's Name ............ : ALPS ALPINE (China) Co., Ltd. Address .................................. : Room 28A1, 28th Floor, 7 Guanghua Road, Chaoyang District, Beijing, China Product description Trade Mark: ALPINE STYLE Product name ........................... : TESLA AUTOMATIC POP UP DOOR HANDLE Model and/or type reference : KTX-TH01-EV Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/2/29 ~ 2024/3/6 Date of Issue .......................................... : 2024/3/7 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240205382-BLE Page 3 of 31 Revision History Revision Issue Date Revisions Revised By 000 2024/3/7 Initial Issue Andy Zhang Report No.: TZ240205382-BLE Page 4 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Function Tested in this Report .................................................................................... 5 1.3 EUT configuration ...................................................................................................................... 6 1.4 External I/O Cable ..................................................................................................................... 6 1.5 Description of Test Facility ........................................................................................................ 6 1.6 Statement of the Measurement Uncertainty .............................................................................. 7 1.7 Measurement Uncertainty ......................................................................................................... 7 1.8 Description of Test Modes ......................................................................................................... 7 1.9 Frequency of Channels ............................................................................................................. 7 2 TEST METHODOLOGY ........................................................................................................ 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................. 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION ....................................................................................... 9 3.1 Justification ................................................................................................................................ 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ........................................................................................................ 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ......................................................................................... 10 5 TEST RESULT..................................................................................................................... 11 5.1 On Time and Duty Cycle ......................................................................................................... 11 5.2 Maximum Peak Conducted Output Power Measurement ....................................................... 12 5.3 Power Spectral Density Measurement .................................................................................... 13 5.4 6 dB Spectrum Bandwidth Measurement .........…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BFB2-KTX-TH01-EV This report shall not be reproduced except in full, withou…
