2BFCB-P6TD-LTE wireless data terminal

Attestation Statements (March 12, 2024) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BFCB-P6 ) (Shenzhen Xinchun Technology Co., Ltd), the undersigned, hereby authorize (NEWENERGYER LIMITED) to act as our designated U.S. agent for service of process, (Shenzhen Xinchun Technology Co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (NEWENERGYER LIMITED) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Shenzhen Xinchun Technology Co., Ltd Contact Name: BinHui Lei Address: 401, No. 89, Zone 1, Fifth Industrial Zone, Shangfen Community, Minzhi Street, Longhua District, Shenzhen, China Telephone No: 13538214502 Email: [email protected] FRN: 0035097518 Signature [BinHui Lei] U.S. Agent Information: Company Name: NEWENERGYER LIMITED Address: 1818 S Patton Ct, Denver, CO, 80219 Contact Name: CHUN LIU Telephone No: 213 289 5042 Email: [email protected] FRN: 0034665885 Signature [CHUN LIU]

(Shenzhen Xinchun Technology Co., Ltd) (March 12, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BFCB-P6) [Shenzhen Xinchun Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) BinHui Lei (Shenzhen Xinchun Technology Co., Ltd) (March 12, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BFCB-P6) [Shenzhen Xinchun Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) BinHui Lei

Shenzhen Xinchun Technology Co., Ltd Model Difference Data：March 12, 2024 Product description: TD-LTE wireless data terminal Model name: P6, P7, P8, D12, X1, A5, A10, A7C Trade Name: N/A FCC ID: 2BFCB-P6 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : BinHui Lei（Manager） Contact information / address：401, No. 89, Zone 1, Fifth Industrial Zone, Shangfen Community, Minzhi Street, Longhua District, Shenzhen, China

Shenzhen Xinchun Technology Co., Ltd (2024.03.12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (TD-LTE wireless data terminal / P6, P7, P8, D12, X1, A5, A10, A7C / FCC ID: 2BFCB-P6) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: BinHui Lei Title: Manager

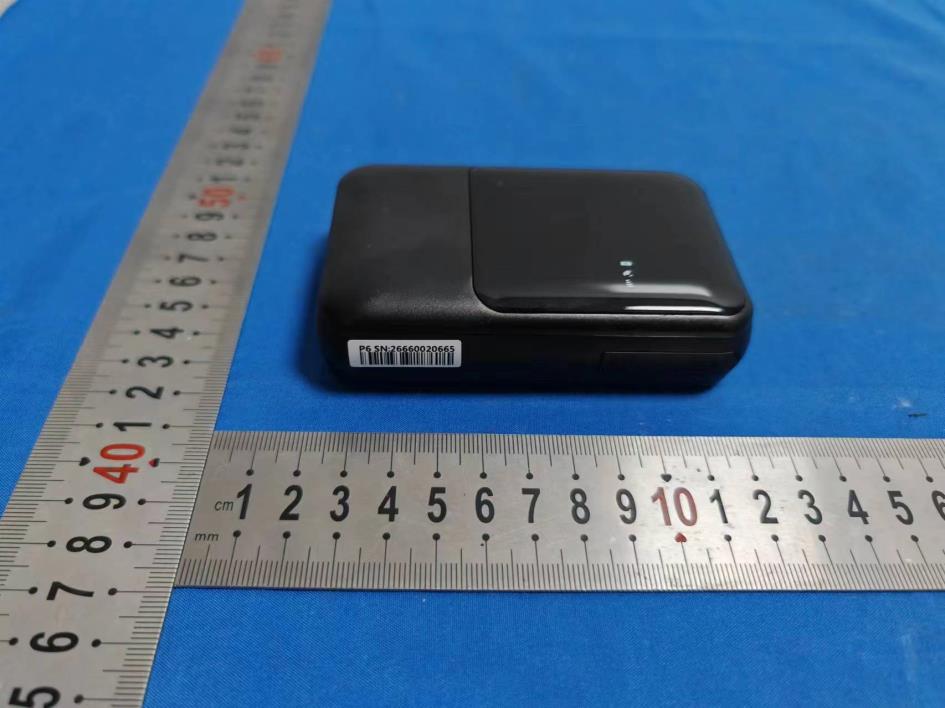

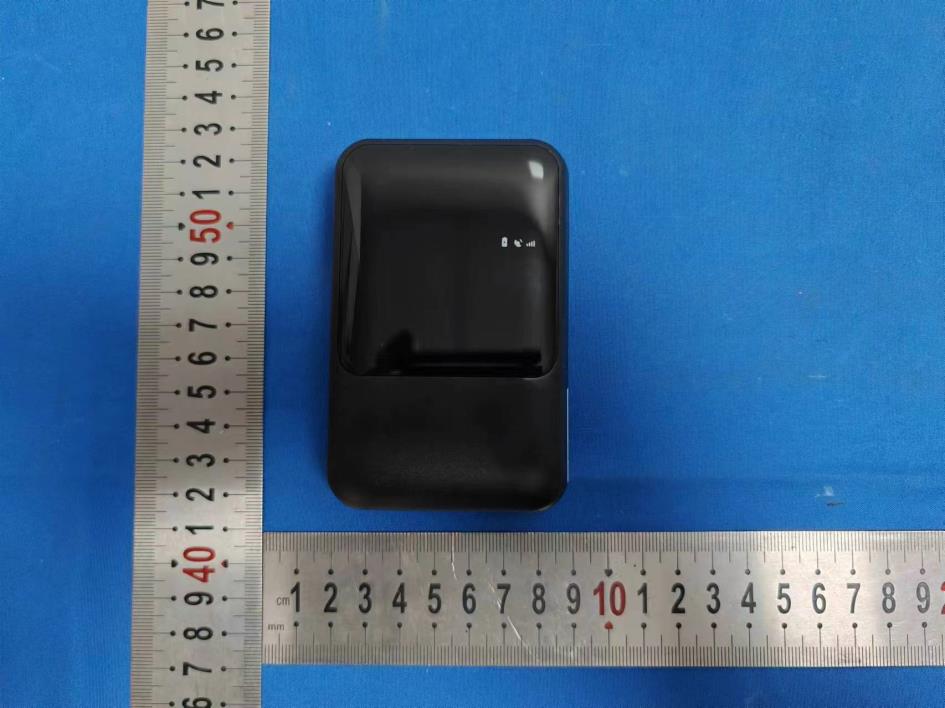

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: P6 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: FCC ID: 2BFCB-P6 Model: P6 Label Location:

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 82 TEST REPORT Compiled by: Reviewed by: Approved by: Zhang Mao cheng Martin Feng Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: TD-LTE wireless data terminal FCC ID: 2BFCB-P6 Trademark: N/A Model Number: P6, P7, P8, D12, X1, A5, A10, A7C Prepared For: Shenzhen Xinchun Technology Co., Ltd Address: 401, No. 89, Zone 1, Fifth Industrial Zone, Shangfen Community, Minzhi Street, Longhua District, Shenzhen, China Manufacturer: Shenzhen Xinchun Technology Co., Ltd Address: 401, No. 89, Zone 1, Fifth Industrial Zone, Shangfen Community, Minzhi Street, Longhua District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jan. 29, 2024 Sample tested Date: Jan. 29, 2024 to Mar. 07, 2024 Issue Date: Mar. 07, 2024 Report No.: CTB240307004RHX Test Standards FCC 47 CFR Part2(2.1093), FCC 47 CFR Part1(1.1310) FCC 47 CFR Part1(1.1307), ANSI/IEEE C95.1-2019 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Results PASS Remark: This is SAR test report. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 82 Contents Page 1 COVER PAGE ......................................................................................................................................... 1 CONTENTS ....................................................................................................................................................................... 2 1. VERSION .................................................................................................................................................................. 4 2. PRODUCT INFORMATION AND TEST SETUP............................................................................................... 5 2.1 PRODUCT INFORMATION ................................................................................................................................... 5 3 EQUIPMENT USED DURING TEST ................................................................................................................... 6 3.1 EQUIPMENT LIST ............................................................................................................................................... 6 3.2 TEST EQUIPMENT CALIBRATION ....................................................................................................................... 7 4 SAR INTRODUCTION ........................................................................................................................................... 8 4.1 INTRODUCTION .................................................................................................................................................. 8 4.2 SAR DEFINITION ............................................................................................................................................... 8 5 SAR MEASUREMENT SETUP ............................................................................................................................. 9 5.1 SAR MEASUREMENT SETUP ...................................................................................................................... 9 5.2 DASY5 E-FIELD PROBE SYSTEM .................................................................................................................... 10 5.3 PROBE SPECIFICATION ..................................................................................................................................... 10 5.4 ISOTROPIC E-FIELD PROBE .............................................................................................................................. 10 5.5 PHANTOMS ...................................................................................................................................................... 11 5.6 DEVICE HOLDER .............................................................................................................................................. 11 6 SAR TEST PROCEDURE .................................................................................................................................... 13 6.1 SCANNING PROCEDURE ................................................................................................................................... 13 6.2 EXTRAPOLATION ............................................................................................................................................. 16 6.3 EAR REFERENCE POINT ................................................................................................................................... 16 6.4 DEVICE REFERENCE POINTS ............................................................................................................................ 16 6.5 TEST CONFIGURATION – POSITIONING FOR CHEEK / TOUCH ........................................................................... 16 6.6 TEST CONFIGURATION – POSITIONING FOR EAR / 15° TILT ............................................................................. 18 6.7 TEST POSITION – BODY CONFIGURATIONS ...................................................................................................... 18 7 EXPOSURE LIMIT .....................…

Text truncated - open the document above for the full version.

In Collaboratio n wi th CALIBRATION LABORATORY 尺咚多���中 国认 可 舫CNAS校准 国 际互 认 -:;" - ＾ Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China ...... � 左心、 § 、骂雪 Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client CTB Certificate No: 223-60014 CALIBRATION CERTIFICATE Object Calibration P「ocedure(s) Calibration date D2600V2 - SN: 1101 FF-211-003-01 Calibration Procedures for dipole validation kits January 12, 2023 This calib「ationCertificate documents the traceab小tyto national standa「ds,which realize the physical units of measu 「ements(SI).The measurements and the uncertainties with confidence p「obab仆ityare given on the following pages and are part of the certificate All calibrations have been conducted in the closed labo「atoryfacility: environment temperature(22士3) ° C and humidity<70%. Calibration Equipment used (M&TE c咄calfor calibration) Primary Standards ID# Cal Date(Calibrated by, Cert巾cateNo.) Scheduled Calibration Power Meter NRP2 106276 May-23 Power sensor NRP6A 101369 May-23 Reference Probe EX3DV4 SN 7600 Nov-23 DAE4 SN 771 Feb-23 Secondary Standards ID# 12-May-22(CTTL, No.J20X02965) 12-May-22(CTTL, No.J20X02965) 30-Nov-22(CTTL-SPEAG, No.Z20-60421) 1 O-Feb-22(CTTL-SPEAG, No.Z20-60017) Cal Date(Calibrated by, Certificate No.) Scheduled Calibration Signal Generate「E4438C MY49071430 25-Feb-22 (CTTL, No.J20X00516) Network Analyzer E5071 C MY46110673 10-Feb-22 (CTTL, No.J20X00515) Feb-23 F eb-23 Name Function Signature Calibrated by: Zhao Jing SAR Te st Engineer it Reviewed by: Lin Hao SAR Test Engineer 啡羌 Approved by: Qi Dianyuan SAR Project Leader 一分三 Issued: January 15, 2023 This calibration certificate shall not be reproduced except in full without written approval of the laboratory Certificate No: Z23-600 I 4 Page I of 6 In Collaboration with 呈 CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Hai小anDistrict, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Glossary: TSL ConvF NIA tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measu「ed Calibration is Performed According to the Following Standards: a)I EC/IEEE 62209-1528, "Measurement Procedure for The Assessment of Specific Absorption Rate of Human Exposure to Radio Frequency Fields from Hand-held and Body-mounted Wireless Communication Devices- Part 1528: Human Models, Instrumentation and Procedures (Frequency range of 4 MHz to 10 GHz)", October 2020 b)KDB 865664, "SAR Measurement Requirements for 100 MHz to 6 GHz" ． ． ． ． Additional Documentation: c) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: ． Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. ． Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented p arallel to the body axis. ． Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. Electrical Delay: One-way delay between the SMA connector and the antenna feed point No uncertainty required. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distribution Corresponds to a coverage probability of approximately 95% Certificate No: Z23-60014 Page 2 of 6 In Collabo rati on with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, I 00191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions DASY system configuration, as fa DASY Version DASY52 V52.10.4 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center - TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 2600 MHz土1MHz Head TSL parameters The fo Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 ° C 39.0 1.96 mho/m Measured Head TSL parameters (22 0士0.2) ° C 40.1士6% 1.95 mho/m士6% Head TSL temperature change during test <1.0 ° C －－－－ ---- d a pplied SAR result with Head TSL 3 Condition SAR averaged over 1 cm (1 g) of Head TSL SAR measured 250 mW input power 14.2 W/kg SAR to「 nominalHead TSL parameters no「malizedto 1 W 57.3 W/kg士18.8% (/r-2) 3 Condition SAR averaged over 10 cm (10 g) of Head TSL SAR measured 250 mW input power 6.25 W/kg SAR for nominal Head TSL parameters normalized to 1 W 25.1 W/kg士18.7% (/r-2) Certificate No: Z23-60014 Page 3 of 6 ln Collaborati on with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, Chma Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix(Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL Impedance, transfo「med to feed point 48.40-6.46j0 Return Loss - 23.4d8 General Antenna Parameters and Design Electrical Delay (one direction) 1.065 ns After long term use with 1 OOW radiated power, only a slight warming of the dipole near the feed point can be measured. The dipole is made of standard semi rigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps a「e…

Text truncated - open the document above for the full version.

Report 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Gain (dB) EIRP (dBm) EIRP (mW) EIRP Limit (mW) Verdict Band2 1.4 18607 1 #0 QPSK 21.13 0.45 21.58 143.88 2000 PASS Band2 1.4 18607 1 #Mid QPSK 21.06 0.45 21.51 141.58 2000 PASS Band2 1.4 18607 1 #Max QPSK 20.97 0.45 21.42 138.68 2000 PASS Band2 1.4 18607 3 #0 QPSK 21.01 0.45 21.46 139.96 2000 PASS Band2 1.4 18607 3 #Max QPSK 20.99 0.45 21.44 139.32 2000 PASS Band2 1.4 18607 6 #0 QPSK 19.91 0.45 20.36 108.64 2000 PASS Band2 1.4 18607 1 #0 QAM16 20.10 0.45 20.55 113.50 2000 PASS Band2 1.4 18607 1 #Mid QAM16 20.17 0.45 20.62 115.35 2000 PASS Band2 1.4 18607 1 #Max QAM16 20.14 0.45 20.59 114.55 2000 PASS Band2 1.4 18607 3 #0 QAM16 19.98 0.45 20.43 110.41 2000 PASS Band2 1.4 18607 3 #Max QAM16 20.00 0.45 20.45 110.92 2000 PASS Band2 1.4 18607 6 #0 QAM16 19.01 0.45 19.46 88.31 2000 PASS Band2 1.4 18900 1 #0 QPSK 21.39 0.45 21.84 152.76 2000 PASS Band2 1.4 18900 1 #Mid QPSK 21.38 0.45 21.83 152.41 2000 PASS Band2 1.4 18900 1 #Max QPSK 21.29 0.45 21.74 149.28 2000 PASS Band2 1.4 18900 3 #0 QPSK 21.33 0.45 21.78 150.66 2000 PASS Band2 1.4 18900 3 #Max QPSK 21.25 0.45 21.70 147.91 2000 PASS Band2 1.4 18900 6 #0 QPSK 20.33 0.45 20.78 119.67 2000 PASS Band2 1.4 18900 1 #0 QAM16 20.32 0.45 20.77 119.40 2000 PASS Band2 1.4 18900 1 #Mid QAM16 20.28 0.45 20.73 118.30 2000 PASS Band2 1.4 18900 1 #Max QAM16 20.27 0.45 20.72 118.03 2000 PASS Band2 1.4 18900 3 #0 QAM16 20.37 0.45 20.82 120.78 2000 PASS Band2 1.4 18900 3 #Max QAM16 20.32 0.45 20.77 119.40 2000 PASS Band2 1.4 18900 6 #0 QAM16 19.44 0.45 19.89 97.50 2000 PASS Band2 1.4 19193 1 #0 QPSK 21.12 0.45 21.57 143.55 2000 PASS Band2 1.4 19193 1 #Mid QPSK 21.07 0.45 21.52 141.91 2000 PASS Band2 1.4 19193 1 #Max QPSK 20.94 0.45 21.39 137.72 2000 PASS Band2 1.4 19193 3 #0 QPSK 20.92 0.45 21.37 137.09 2000 PASS Band2 1.4 19193 3 #Max QPSK 20.90 0.45 21.35 136.46 2000 PASS Band2 1.4 19193 6 #0 QPSK 19.83 0.45 20.28 106.66 2000 PASS Band2 1.4 19193 1 #0 QAM16 20.03 0.45 20.48 111.69 2000 PASS Band2 1.4 19193 1 #Mid QAM16 20.03 0.45 20.48 111.69 2000 PASS Band2 1.4 19193 1 #Max QAM16 19.91 0.45 20.36 108.64 2000 PASS Band2 1.4 19193 3 #0 QAM16 20.11 0.45 20.56 113.76 2000 PASS Band2 1.4 19193 3 #Max QAM16 20.09 0.45 20.54 113.24 2000 PASS Band2 1.4 19193 6 #0 QAM16 19.00 0.45 19.45 88.10 2000 PASS Band2 3 18615 1 #0 QPSK 20.87 0.45 21.32 135.52 2000 PASS Band2 3 18615 1 #Mid QPSK 20.88 0.45 21.33 135.83 2000 PASS Band2 3 18615 1 #Max QPSK 20.77 0.45 21.22 132.43 2000 PASS Report Band2 3 18615 8 #0 QPSK 19.77 0.45 20.22 105.20 2000 PASS Band2 3 18615 8 #Max QPSK 19.82 0.45 20.27 106.41 2000 PASS Band2 3 18615 15 #0 QPSK 19.79 0.45 20.24 105.68 2000 PASS Band2 3 18615 1 #0 QAM16 20.18 0.45 20.63 115.61 2000 PASS Band2 3 18615 1 #Mid QAM16 20.19 0.45 20.64 115.88 2000 PASS Band2 3 18615 1 #Max QAM16 20.11 0.45 20.56 113.76 2000 PASS Band2 3 18615 8 #0 QAM16 18.94 0.45 19.39 86.90 2000 PASS Band2 3 18615 8 #Max QAM16 18.94 0.45 19.39 86.90 2000 PASS Band2 3 18615 15 #0 QAM16 18.94 0.45 19.39 86.90 2000 PASS Band2 3 18900 1 #0 QPSK 21.34 0.45 21.79 151.01 2000 PASS Band2 3 18900 1 #Mid QPSK 21.32 0.45 21.77 150.31 2000 PASS Band2 3 18900 1 #Max QPSK 21.16 0.45 21.61 144.88 2000 PASS Band2 3 18900 8 #0 QPSK 20.34 0.45 20.79 119.95 2000 PASS Band2 3 18900 8 #Max QPSK 20.30 0.45 20.75 118.85 2000 PASS Band2 3 18900 15 #0 QPSK 20.30 0.45 20.75 118.85 2000 PASS Band2 3 18900 1 #0 QAM16 20.54 0.45 20.99 125.60 2000 PASS Band2 3 18900 1 #Mid QAM16 20.53 0.45 20.98 125.31 2000 PASS Band2 3 18900 1 #Max QAM16 20.38 0.45 20.83 121.06 2000 PASS Band2 3 18900 8 #0 QAM16 19.46 0.45 19.91 97.95 2000 PASS Band2 3 18900 8 #Max QAM16 19.42 0.45 19.87 97.05 2000 PASS Band2 3 18900 15 #0 QAM16 19.33 0.45 19.78 95.06 2000 PASS Band2 3 19185 1 #0 QPSK 21.12 0.45 21.57 143.55 2000 PASS Band2 3 19185 1 #Mid QPSK 21.12 0.45 21.57 143.55 2000 PASS Band2 3 19185 1 #Max QPSK 20.81 0.45 21.26 133.66 2000 PASS Band2 3 19185 8 #0 QPSK 19.97 0.45 20.42 110.15 2000 PASS Band2 3 19185 8 #Max QPSK 19.88 0.45 20.33 107.89 2000 PASS Band2 3 19185 15 #0 QPSK 19.95 0.45 20.40 109.65 2000 PASS Band2 3 19185 1 #0 QAM16 19.96 0.45 20.41 109.90 2000 PASS Band2 3 19185 1 #Mid QAM16 19.92 0.45 20.37 108.89 2000 PASS Band2 3 19185 1 #Max QAM16 19.74 0.45 20.19 104.47 2000 PASS Band2 3 19185 8 #0 QAM16 19.12 0.45 19.57 90.57 2000 PASS Band2 3 19185 8 #Max QAM16 19.05 0.45 19.50 89.13 2000 PASS Band2 3 19185 15 #0 QAM16 19.09 0.45 19.54 89.95 2000 PASS Band2 5 18625 1 #0 QPSK 21.12 0.45 21.57 143.55 2000 PASS Band2 5 18625 1 #Mid QPSK 20.94 0.45 21.39 137.72 2000 PASS Band2 5 18625 1 #Max QPSK 20.90 0.45 21.35 136.46 2000 PASS Band2 5 18625 12 #0 QPSK 19.79 0.45 20.24 105.68 2000 PASS Band2 5 18625 12 #Max QPSK 19.76 0.45 20.21 104.95 2000 PASS Band2 5 18625 25 #0 QPSK 19.74 0.45 20.19 104.47 2000 PASS Band2 5 18625 1 #0 QAM16 20.26 0.45 20.71 117.76 2000 PASS Band2 5 18625 1 #Mid QAM16 20.25 0.45 20.70 117.49 2000 PASS Band2 5 18625 1 #Max QAM16 20.23 0.45 20.68 116.95 2000 PASS Band2 5 18625 12 #0 QAM16 18.84 0.45 19.29 84.92 2000 PASS Band2 5 18625 12 #Max QAM16 18.85 0.45 19.30 85.11 2000 PASS Report Band2 5 18625 25 #0 QAM16 18.88 0.45 19.33 85.70 2000 PASS Band2 5 18900 1 #0 QPSK 21.47 0.45 21.92 155.60 2000 PASS Band2 5 18900 1 #Mid QPSK 21.30 0.45 21.75 149.62 2000 PASS Band2 5 18900 1 #Max QPSK 21.26 0.45 21.71 148.25 2000 PASS Band2 5 18900 12 #0 QPSK 20.30 0.45 20.75 118.85 2000 PASS Band2 5 18900 12 #Max QPSK 20.21 0.45 20.66 116.41 2000 PASS Band2 5 18900 25 #0 QPSK 20.24 0.45 20.69 117.22 2000 PASS Band2 5 18900 1 #0 QAM16 20.66 0.45 21.11 129.12 2000 PASS Band2 5 18900 1 #Mid QAM16 20.58 0.45 21.03 126.77 2000 PASS Band2 5 18900 1 #Max QAM16 20.58 0.45 21.03 126.77 2000 PASS Band2 5 18900 12 #0 QAM16 19.39 0.45 19.84 96.38 2000 PASS Band2 5 18900 12 #Max QAM16 19.36 0.45 19.81 95.72 2000 PASS Band2 5 18900 25 #0 QAM16 19.40 0.45 19.85 96.61 2000 PASS Band2 5 19175 1 #0 QPSK 21.43 0.45 21.88…

Text truncated - open the document above for the full version.

Report Band5 QAM16 BW=3MHz Channel=20525 RB Size=15 Position=#0 Band5 QPSK BW=5MHz Channel=20525 RB Size=25 Position=#0 Report Band5 QAM16 BW=5MHz Channel=20525 RB Size=25 Position=#0 Band5 QPSK BW=10MHz Channel=20525 RB Size=50 Position=#0 Report Band66 QPSK BW=1.4MHz Channel=132322 RB Size=6 Position=#0 Band66 QAM16 BW=1.4MHz Channel=132322 RB Size=6 Position=#0 Report Band66 QPSK BW=3MHz Channel=132322 RB Size=15 Position=#0 Band66 QAM16 BW=3MHz Channel=132322 RB Size=15 Position=#0 Report Band66 QPSK BW=5MHz Channel=132322 RB Size=25 Position=#0 Band66 QAM16 BW=5MHz Channel=132322 RB Size=25 Position=#0 Report Band66 QPSK BW=10MHz Channel=132322 RB Size=50 Position=#0 Band66 QPSK BW=15MHz Channel=132322 RB Size=75 Position=#0 Report Band66 QPSK BW=20MHz Channel=132322 RB Size=100 Position=#0 Band7 QPSK BW=5MHz Channel=21100 RB Size=25 Position=#0 Report Band7 QAM16 BW=5MHz Channel=21100 RB Size=25 Position=#0 Band7 QPSK BW=10MHz Channel=21100 RB Size=50 Position=#0 Report Band7 QPSK BW=15MHz Channel=21100 RB Size=75 Position=#0 Band7 QPSK BW=20MHz Channel=21100 RB Size=100 Position=#0 Report 5 Band edge Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict Band2 1.4 18607 6 #0 QPSK 1849.99 -32.71 -13 PASS Band2 1.4 18607 6 #0 QAM16 1849.99 -34.66 -13 PASS Band2 1.4 19193 6 #0 QPSK 1910.00 -30.99 -13 PASS Band2 1.4 19193 6 #0 QAM16 1910.02 -31.84 -13 PASS Band2 3 18615 15 #0 QPSK 1850.00 -33.49 -13 PASS Band2 3 18615 15 #0 QAM16 1850.00 -34.43 -13 PASS Band2 3 19185 15 #0 QPSK 1910.00 -33.17 -13 PASS Band2 3 19185 15 #0 QAM16 1910.00 -34.40 -13 PASS Band2 5 18625 25 #0 QPSK 1849.99 -34.33 -13 PASS Band2 5 18625 25 #0 QAM16 1850.00 -35.82 -13 PASS Band2 5 19175 25 #0 QPSK 1910.00 -33.13 -13 PASS Band2 5 19175 25 #0 QAM16 1910.01 -34.97 -13 PASS Band2 10 18650 50 #0 QPSK 1850.00 -36.91 -13 PASS Band2 10 19150 50 #0 QPSK 1910.00 -39.18 -13 PASS Band2 15 18675 75 #0 QPSK 1850.00 -37.01 -13 PASS Band2 15 19125 75 #0 QPSK 1910.57 -40.10 -13 PASS Band2 20 18700 100 #0 QPSK 1850.00 -36.80 -13 PASS Band2 20 19100 100 #0 QPSK 1910.00 -42.02 -13 PASS Band4 1.4 19957 6 #0 QPSK 1710.00 -32.18 -13 PASS Band4 1.4 19957 6 #0 QAM16 1710.00 -32.43 -13 PASS Report Band4 1.4 20393 6 #0 QPSK 1755.00 -34.50 -13 PASS Band4 1.4 20393 6 #0 QAM16 1755.00 -35.42 -13 PASS Band4 3 19965 15 #0 QPSK 1709.99 -31.20 -13 PASS Band4 3 19965 15 #0 QAM16 1710.00 -32.28 -13 PASS Band4 3 20385 15 #0 QPSK 1755.00 -32.59 -13 PASS Band4 3 20385 15 #0 QAM16 1755.00 -33.62 -13 PASS Band4 5 19975 25 #0 QPSK 1710.00 -31.71 -13 PASS Band4 5 19975 25 #0 QAM16 1709.99 -32.55 -13 PASS Band4 5 20375 25 #0 QPSK 1755.00 -31.76 -13 PASS Band4 5 20375 25 #0 QAM16 1755.00 -34.02 -13 PASS Band4 10 20000 50 #0 QPSK 1710.00 -35.80 -13 PASS Band4 10 20350 50 #0 QPSK 1755.00 -38.83 -13 PASS Band4 15 20025 75 #0 QPSK 1709.37 -37.27 -13 PASS Band4 15 20325 75 #0 QPSK 1755.12 -38.51 -13 PASS Band4 20 20050 100 #0 QPSK 1710.00 -38.32 -13 PASS Band4 20 20300 100 #0 QPSK 1755.28 -39.68 -13 PASS Band5 1.4 20407 6 #0 QPSK 824.00 -33.92 -13 PASS Band5 1.4 20407 6 #0 QAM16 824.00 -33.69 -13 PASS Band5 1.4 20643 6 #0 QPSK 849.01 -34.95 -13 PASS Band5 1.4 20643 6 #0 QAM16 849.00 -36.38 -13 PASS Band5 3 20415 15 #0 QPSK 824.00 -32.57 -13 PASS Band5 3 20415 15 #0 QAM16 823.99 -34.23 -13 PASS Band5 3 20635 15 #0 QPSK 849.00 -32.91 -13 PASS Band5 3 20635 15 #0 QAM16 849.00 -34.50 -13 PASS Band5 5 20425 25 #0 QPSK 824.00 -31.87 -13 PASS Band5 5 20425 25 #0 QAM16 824.00 -32.99 -13 PASS Band5 5 20625 25 #0 QPSK 849.01 -34.73 -13 PASS Band5 5 20625 25 #0 QAM16 849.01 -33.42 -13 PASS Band5 10 20450 50 #0 QPSK 823.96 -35.21 -13 PASS Band5 10 20600 50 #0 QPSK 849.06 -39.13 -13 PASS Band66 1.4 131979 6 #0 QPSK 1709.99 -30.83 -13 PASS Band66 1.4 131979 6 #0 QAM16 1709.99 -32.23 -13 PASS Band66 1.4 132665 6 #0 QPSK 1780.01 -36.26 -13 PASS Band66 1.4 132665 6 #0 QAM16 1780.01 -38.43 -13 PASS Band66 3 131987 15 #0 QPSK 1710.00 -30.08 -13 PASS Band66 3 131987 15 #0 QAM16 1709.99 -31.80 -13 PASS Band66 3 132657 15 #0 QPSK 1780.00 -38.25 -13 PASS Band66 3 132657 15 #0 QAM16 1780.00 -38.81 -13 PASS Band66 5 131997 25 #0 QPSK 1709.95 -31.03 -13 PASS Band66 5 131997 25 #0 QAM16 1710.00 -32.09 -13 PASS Band66 5 132647 25 #0 QPSK 1780.00 -38.53 -13 PASS Band66 5 132647 25 #0 QAM16 1780.00 -37.56 -13 PASS Band66 10 132022 50 #0 QPSK 1709.98 -35.55 -13 PASS Band66 10 132622 50 #0 QPSK 1780.02 -42.59 -13 PASS Report Band66 15 132047 75 #0 QPSK 1709.82 -36.43 -13 PASS Band66 15 132597 75 #0 QPSK 1780.45 -43.54 -13 PASS Band66 20 132072 100 #0 QPSK 1710.00 -37.54 -13 PASS Band66 20 132572 100 #0 QPSK 1780.60 -43.87 -13 PASS Band7 5 20775 25 #0 QPSK 2499.00 -13.50 -10 PASS Band7 5 20775 25 #0 QAM16 2499.00 -13.93 -10 PASS Band7 5 21425 25 #0 QPSK 2571.00 -15.37 -10 PASS Band7 5 21425 25 #0 QAM16 2571.00 -16.67 -10 PASS Band7 10 20800 50 #0 QPSK 2499.00 -22.01 -10 PASS Band7 10 21400 50 #0 QPSK 2571.07 -24.43 -10 PASS Band7 15 20825 75 #0 QPSK 2498.89 -23.40 -10 PASS Band7 15 21375 75 #0 QPSK 2571.03 -25.15 -10 PASS Band7 20 20850 100 #0 QPSK 2495.86 -29.03 -13 PASS Band7 20 21350 100 #0 QPSK 2593.81 -41.24 -25 PASS Band2 QPSK BW=1.4MHz Channel=18607 RB Size=6 Position=#0 Band2 QAM16 BW=1.4MHz Channel=18607 RB Size=6 Position=#0 Report Band2 QPSK BW=1.4MHz Channel=19193 RB Size=6 Position=#0 Band2 QAM16 BW=1.4MHz Channel=19193 RB Size=6 Position=#0 Report Band2 QPSK BW=3MHz Channel=18615 RB Size=15 Position=#0 Band2 QAM16 BW=3MHz Channel=18615 RB Size=15 Position=#0 Report Band2 QPSK BW=3MHz Channel=19185 RB Size=15 Position=#0 Band2 QAM16 BW=3MHz Channel=19185 RB Size=15 Position=#0 Report Band2 QPSK BW=5MHz Channel=18625 RB Size=25 Position=#0 Band2 QAM16 BW=5MHz Channel=18625 RB Size=25 Position=#0 Report Band2 QPSK BW=5MHz Channel=19175 RB Size=25 Position=#0 Band2 QAM16 BW=5MHz Channel=19175 RB Size=25 Position=#0 Report Band2 QPSK BW=10MHz Channel=18650 RB Size=50 Position=#0 Band2 QPSK BW=10MHz Channel=19150 RB Size=50…

Text truncated - open the document above for the full version.

Report Band66 QPSK BW=10MHz Channel=132022 RB Size=50 Position=#0 Band66 QPSK BW=10MHz Channel=132622 RB Size=50 Position=#0 Report Band66 QPSK BW=15MHz Channel=132047 RB Size=75 Position=#0 Band66 QPSK BW=15MHz Channel=132597 RB Size=75 Position=#0 Report Band66 QPSK BW=20MHz Channel=132072 RB Size=100 Position=#0 Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Report Band7 QPSK BW=5MHz Channel=20775 RB Size=25 Position=#0 Band7 QAM16 BW=5MHz Channel=20775 RB Size=25 Position=#0 Report Band7 QPSK BW=5MHz Channel=21425 RB Size=25 Position=#0 Band7 QAM16 BW=5MHz Channel=21425 RB Size=25 Position=#0 Report Band7 QPSK BW=10MHz Channel=20800 RB Size=50 Position=#0 Band7 QPSK BW=10MHz Channel=21400 RB Size=50 Position=#0 Report Band7 QPSK BW=15MHz Channel=20825 RB Size=75 Position=#0 Band7 QPSK BW=15MHz Channel=21375 RB Size=75 Position=#0 Report Band7 QPSK BW=20MHz Channel=20850 RB Size=100 Position=#0 Band7 QPSK BW=20MHz Channel=21350 RB Size=100 Position=#0 Report

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit …

Text truncated - open the document above for the full version.
