2BFD2-S11Wireless speaker

音箱在手机连接状态下，当有人呼入电话时，此时按下音箱上 的 键可接听电话，通话结束时，再按一下 键 可挂断电话。 Micro充电接口外接5V 1A充电器充电，充电过程指示灯亮红 色充满后红色指示灯熄灭，关机状态下3小时左右充满工作状态。 音箱多音源连接播放时，可通过长按” “键2秒来回切换 蓝牙模式、TF卡模式、音源输入模式、FM模式、U盘模式。 音箱开机后，插入音频线选择到音源输入模式，再将音频线 的另一端连接电脑或者手机耳机插孔即可作为外接音箱，音频线 插入电脑，如电脑有弹出提示输出选择，应该选择耳机。 音箱开机后，无其它设备连接时，默认进入无线模式，蓝灯 闪烁进入搜索配对状态，此时打开手机无线搜索设备找到设备名 “SPEAKER 5.0”点击连接即可成功配对。 音箱开机后，然后插上充电线当外接天线，长按 键2秒 音箱切换至FM模式，FM模式下长按 键2秒后松开，音箱蓝色 指示灯快速闪烁，音箱提示搜索电台，此时等待1-2分钟音箱搜台 完成后，可通过 或 切换电台频道。 音箱开机后，插入TF卡或者U盘，音箱提示TF卡模式/U盘模 式，TF卡或者U盘内有MP3音频文件时，音箱会自动播放U盘TF 卡内的音频文件短按 或 切换歌曲， 通过 + 或 - 调节音箱 音量大小，短按 键播放暂停音乐 M M MM M 将两台音箱同时开机后，长按其中一台音箱的 键2秒后， 音箱提示互联模式，此时音箱提示灯快速闪烁进入互联搜索配对， 等待4-6秒后，两台音箱互连成功，音箱蓝色指示灯状态常亮，此 时再用手机搜索设备名“SPEAKER 5.0”点击配对连接即可实现一 台手机连接两台音箱。 物品清单 安全警告 声明 示意图及使用说明 操作指南 本手册描述的产品及附件某些特征和功能仅供参考。我公司保 留随时修改本手册中任何信息的权利，我公司对本手册中的所有 内容不提供任何明示暗示的保证，包括但不限于销售或者使用于 某特定的目的保证。在法律允许的范围内，我公司在任何情况下， 都不对因使用本手册相关内容而产生的任何特殊的、附带的、间 接的、继发性的损害进行赔偿，也不对任何利润、数据、商誉或 可预期的损失进行赔偿。 请在常温下存放使用本产品； 请勿将本产品浸入水中； 请勿丢掷，避免因跌落造成产品损坏； 请勿自行拆解、修理和改造本产品； 不要在靠近任何热源地方使用耳机； 在易烯易爆区域，请关闭您的设备 ，并遵守相关标示说明， 以免引起爆炸或火灾，易燃易爆包括但不限于加油站燃料区,有爆 炸危险标志区域、有“关掉双向无线电设备”标志区域。把声音 调整至合适的音量，以免损坏您的健康和设备。 1 1 2 3 4 5 上一曲/TWS互联切换键/收音机收台 下一曲 长按模式切换/短按播放暂停/接听电话 音量加 音量减 6 7 8 9 10 内存卡接口 U盘接口 外接音频口 充电接口 开/关 音箱主机 备注：商品不带适配器销售 1台1条 1份 USB电源线 说明书/保修卡 Page 1Page 2Page 3Page 4Page 5 充电说明 开/关机 模式切换 音箱连接 音乐模式 音源输入 免提通话 FM模式 参数说明 单台无线连接 2 同款两台无线互联 保修需知 保修期内，用户需保修产品时，请填写本卡到购买商店接受 保修属下列情况之一的产品不属于免费保修的范围： 1.超过保修期。由购买日期起，保修一年。 2.用户自行拆机，机器结构有人为损坏的。 3.用户维修或使用不当（如受潮、撞击、电压过高过低环境 过热过冷、入水等）而引起的损坏。 4.随机配件不予保修。 产品保修卡 日期 产品型号：购货日期： 用户地址： 数码播放器系列产品在出厂前已经严格检查本 公司司向用户 提供性能优良的产品及售后服务 保修部门故障现象保修人 产品保修卡 维修联 用户联 版 本V5.0+EDR 喇 叭：Φ45mm *2 频率响应：100HZ-16KHZ 信 噪 比 ：≥85db 连接范围：直线有效距离10米 支持音频：MP3格式 输 入：5V 1A 将开关推到ON的位置，机器开机，推到OFF位置关机 合格证 QC PASS 使用手册 使用前请仔细阅读此手册 After the speaker is started up, plug in the 3.5mm audio cable as an external antenna and switch the speaker to FM mode by long pressing the key . At this time, Radio auto search pressing the key,the blue indicator light of the sound box flashes rapidly, and the radio station is searched automatically. At this time, no other operation is required.After finished, radio channels can be switched through pressing or . When the speaker is connected to multiple audio sources, you can switch by long-press the " " key for 2 seconds mode. Wireless version:Wireless5.0+EDR Speaker:Double Speakers 45mm *2+one passive speaker SNR:≥85db FM Frequency Range :87.5-108Hz Frequency Response:100Hz-16KHz Battery: Lithium Battery Audio format: Mp3 Playing Time : 6~8 Hours Input Voltage:5V 1A Product size:180mmX63mmX44mm M M M M M When the speaker is connected, press the button on the speaker to answer the call when someone calls into the phone. When the call is over, press the button again to hang up the call. The Micro interface is connected with the 5V 1A charger, and the charging process is bright red.After the color is full, the red indicator lights go off, and the working state is full about 3 hours after the shutdown. When turn ON/OFF the key to the ON position and the indicator light is bule ,It works;OFF,not. After opening the loudspeaker box, when there is no other device connection, the default access to search matches. The blue light flashes into the search pairing state. At this point, turn on the mobile phone's BT wireless search device and find the device name "SPEAKER 5.0". Click the connection and the pairing will be successful. After the speaker is started up, insert the TF card or usb drive, and the speaker will automatically play the audio files in the TF card of the usb drive.Short press or to switch songs, press + or - to adjust the sound box volume, short press key to play suspended music. After two loudspeaker boxes opening, long-press the switch button for 2 seconds and release it after the speaker box is prompted. At this point, the spaker box prompt light flashes rapidly and enters the matching mode of the search box After waiting 6-8 seconds, the two speakers are connected to each other successfully, and the blue indicator of the speakers is always on. At this point, you can use the mobile phone search device name "SPEAKER 5.0" to click the paired connection to connect one phone to two speakers. Package Include Specification Attention Buttons instructionOperation guide Please read and keep this Manual,adn pay attention to the below warnings. NO strong impact on the machine. Do not use when you are close to the strong magnetic or electric field. Do not disassemble,repair and rebuild. Do not clean the machine by water. Low power consumption may cause distortion of the sound , please charge in time . Please disconnect the power supply if you are not going to use it for quite some time . The charging voltage is 5V,The speaker’s internal chip will be burned out and couldn’t work normall if using higher charger. 1 1 2 3 4 5 Previous song/Radio auto search TWS Interconnected Next Song Mode Switching/Play/Pause/Phone Volume Up Volume Down 6 7 8 9 10 Memory card slot U disk slot AUX Charging interface OFF/ON SPEAKER 1pcs1pcs 1pcs USB CABLE USER MANUAL Page 1Page 2Page 3 Page 4 Page 5 Charging description ON/OF Mode Witching Wireless connection Music Mode After the speaker is turned on, insert the 3.5mm audio cable and select the input mode of the sound source,and then connect the other end of the 3.5mm audio cable to the headphone jack of your computer or mobile phone to act as an external speaker. AUX Mode Hands-free calls FM Mode One-to-one connection 2 One-to-two connection 2 USER MANUAL Please read me before using FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee …

Text truncated - open the document above for the full version.

Shenzhen Yurun Industrial Co., Ltd 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-14 To whom it may concern: We, Shenzhen Yurun Industrial Co., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BFD2-S11) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Jingwen Ding Manager Shenzhen Yurun Industrial Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Yurun Industrial Co., Ltd 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/03/13 U.S. Agent Designation Shenzhen Yurun Industrial Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFD2-S11): Name and company of U.S. agent: Formates LLC Physical U.S. address of agent: 1400 Hudson St, Hoboken, NJ 7030, USA FRN of U.S. agent: 0033456468 Email address of U.S. agent: [email protected] Formates LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Yurun Industrial Co., Ltd Shenzhen Yurun Industrial Co., Ltd with the FRN [0035105568] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jingwen Ding Manager Shenzhen Yurun Industrial Co., Ltd Signature Abi Aribisala Project Manager Formates LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Yurun Industrial Co., Ltd Add: 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Date: 2024-3-14 FCC ID: 2BFD2-S11 Dear Sir/Madam, We, Shenzhen Yurun Industrial Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless speaker Model no.: S11, SC215, SC211, SC218, SC311, N1, N2 Sincerely, Name/Title： Jingwen Ding/Manager Company: Shenzhen Yurun Industrial Co., Ltd Address: 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Phone: 13025473383 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-3-14> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BFD2-S11 S11 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jingwen Ding/Manager Company: Shenzhen Yurun Industrial Co., Ltd Address: 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Phone: 13025473383 Fax: N/A E-Mail: [email protected]

Shenzhen Yurun Industrial Co., Ltd 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-14 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BFD2-S11 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jingwen Ding/Manager Company: Shenzhen Yurun Industrial Co., Ltd Address: 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen China Phone: 13025473383 Fax: N/A E-Mail: [email protected]

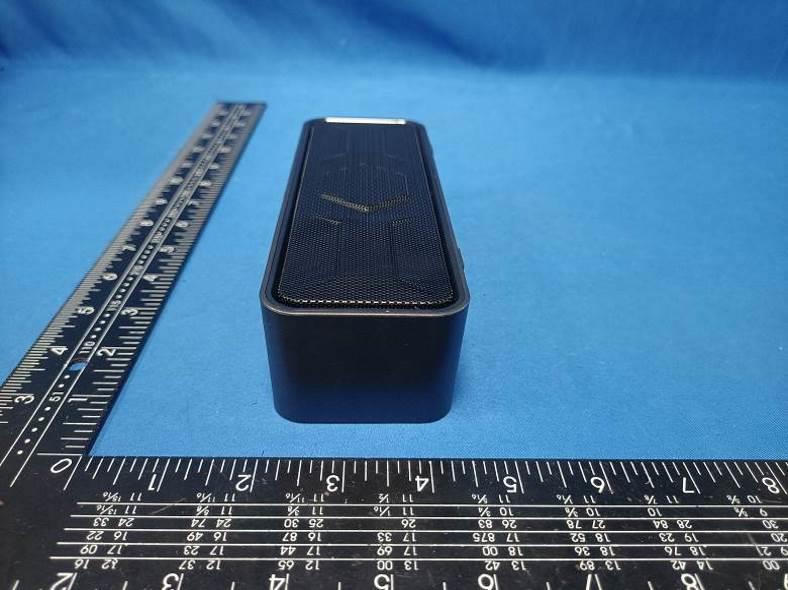

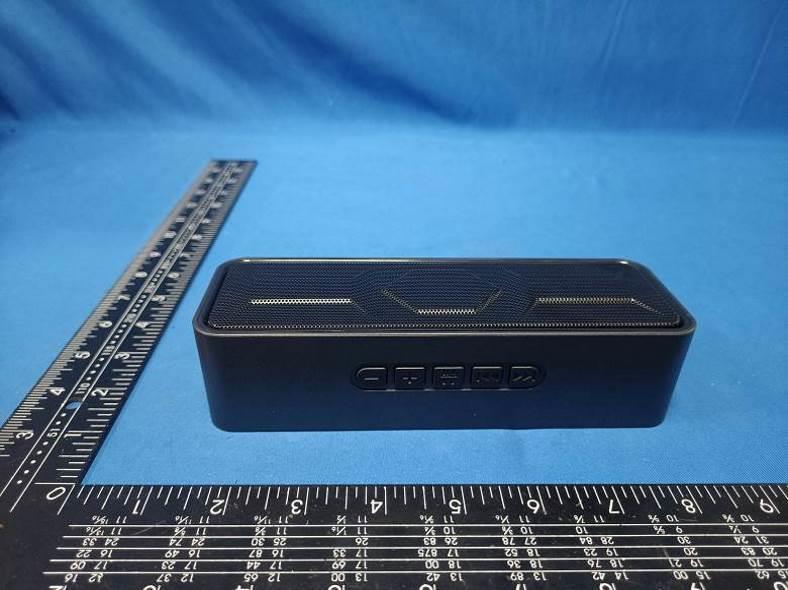

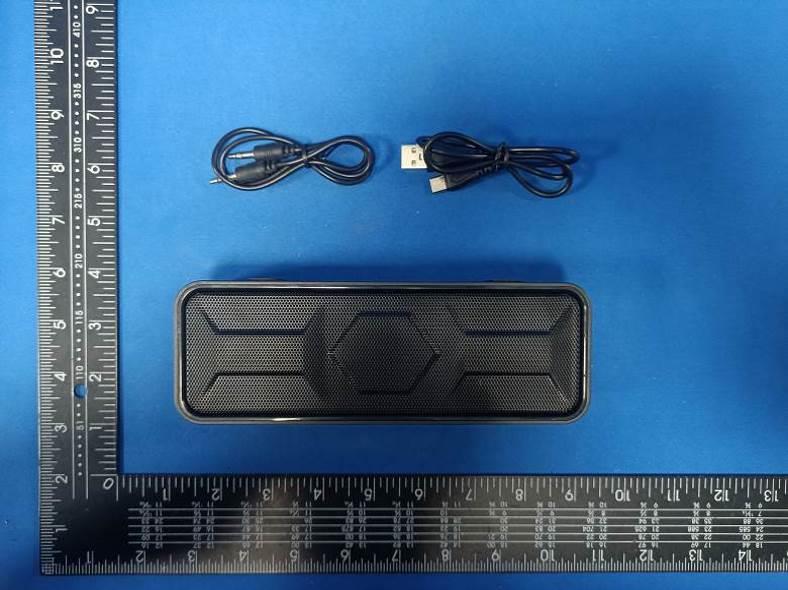

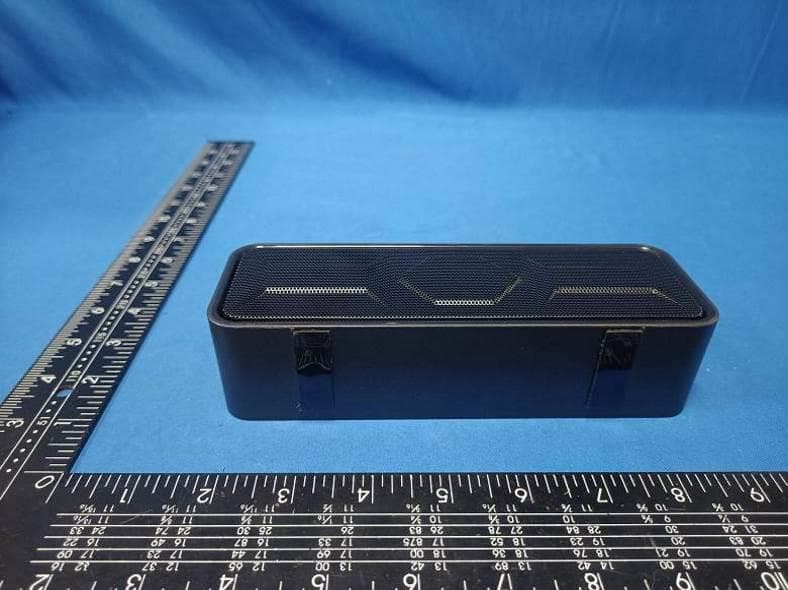

FCC ID: 2BFD2-S11 External Photos of the EUT FCC ID: 2BFD2-S11 FCC ID: 2BFD2-S11

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BFD2-S11

FCC ID: 2BFD2-S11 Internal Photos of the EUT FCC ID: 2BFD2-S11 BT PCB Antenna FCC ID: 2BFD2-S11

RF Exposure evaluation FCC ID: 2BFD2-S11 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2400MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBi MAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 2400MHz 2500MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24030700701 2BFD2-S11 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 12, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Yurun Industrial Co., Ltd Address ............................................ : 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless speaker Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Yurun Industrial Co., Ltd Model/Type reference ...................... : S11 Listed Models .................................. : SC215, SC211, SC218, SC311, N1, N2 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24030700701 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless speaker Model /Type : S11 Listed Models : SC215, SC211, SC218, SC311, N1, N2 Applicant : Shenzhen Yurun Industrial Co., Ltd Address : 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen, China Manufacturer : Shenzhen Yurun Industrial Co., Ltd Address : 5th Floor, Factory 6#, Baoyunda Logistics Center, Xixiang Street, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24030700701 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 31 4.9 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 40 Report No.: CTA24030700701 Page 4 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24030700701 Page 5 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remark…

Text truncated - open the document above for the full version.

Report No.: CTA24030700701 Page 34 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24030700701 Page 35 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24030700701 Page 36 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24030700701 Page 37 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA24030700701 Page 38 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was -0.58 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24030700701 Page 39 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24030700701 Page 40 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA24030700701 Page 41 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24030700701 Page 42 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24030700701 Page 43 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-7…
