2BFGC-MDC2000remote control

1. Don’t operate motors when low voltage alarm 8V motor power supply voltage is below 6.8V when the motor stops running,when the voltage is more than 7.5V to restart;When the power supply voltage is lower than 7.5V motor, the motor will call the alarm and the buzzer will call 10 times. 12V motor power supply voltage is below 8.0V when the motor stops running,when the voltage is more than 8.5V to restart;When the power supply voltage is lower than 7.0V when the motor stops the buzzer call, when the voltage is greater than 7.5V before starting again;When the power supply voltage is lower than 10V motor, the motor will call the alarm and the buzzer will call 10 times. 2. Operating The valid interval of the emitter button is 10s,the emitter will quit the set after 10s. The motor will run or beep for hint,please do the next step after the hint. 3. Set limit position After the up/down limit position setting,and the up/down limit position can’t at the same position. After limit setting,with power off and memory function. Into the match-code status 2 minutes later,it will quit out the setting limits status automatically. It will delete every memory and restore the factory settings. 4. When the motor running without any operation, the maximum running time is 6 minutes,it will stop automatically. 5. If the emitter lost,please setting up again with new emitter. Parameter (More models and parameters are subject to the nameplate) Type Rated Voltage DM25LE/L 8V/ 12V 433.92MHzEmission Frequency One motor maximum can store 20 channels, over 20 channels, if still need add new channels, it will be repeating covered last channel Driving tube must be close-fitting with crown and drive adapter. Choose crown and drive adapter based on the driving tube. Drive tube Drive tube Runner Crown Circlip Stroke support Tail insert bracket The motor has a built-in battery,0.7nm motor uses DC782 charger to charge. You can also use solar panels DC683B to charge;when the battery is low, insert the charge,charger light shows red light. batteries is full when the red light turns to green. & Functional features： Switch Direction Built-in Receiver Preferred Stop Position Reset to Factor Mode DC Power Solar Charging Electronic Limit Stall Protection Jog & Tilt Program Button Speed Regulation Memorized Setting Built-in Lithium Battery Working Temperature -10°C ~ +55°C Each press once Note: After the success of the reversing, motor limit remains the same. 2, Setting up or add emitter Enter setting up state Repeat setting up operation loosen P1 Run for hint x1“Di~” x1 4, Switch direction 5, Reset to factor mode Long press 2s loosen P1 Run for hint x3“Di” x3 Long press 10s Reset to factor mode successfully loosen P1 Run for hint x4“Di” x4 Long press 14s 1, Short press operation Short press P1 Motor run upward/stop running/run downward ...... Note: This operation should be carried out under the conditions of motor has the limit. 1 REASON Motor can’t running PHENOMENONPROCESSING METHODNUMBER Successful change the direction Note: the motor enters the wireless shield mode, saves the previous system function setting and the emitter code, and closes the wireless reception function(short press P1 to restore wireless reception). 3, Shielding wireless function loosen P1 Run for hint x2“Di” x2 Long press 6s The motor enters the wireless shield mode a, Activate the motor after fully charged b, Set up the match code c, Contact the engineers for after-sales a, The battery is not activated. b, The emitter is not matched. c, If press P1 button for a long time while with no reaction.may be the power is short-ciralit or the ciralit board or the motor is broken. Setting button(P1) Motor charging interface Up button Setting button Stop button Down button P2 P2P2Up Setting up is ok Press 1s Press 2sloosen P1 Press 1sPress 1s P2 P2 “Di” x1 Run for hint x1“Di~” x1 “Di” x6 Run for hint x1 “Di” x1 Run for hint x1 Note: after the success of the code, remove the original travel setting and the speed of the motor operation mode, restore the factory value. If you need to reverse the rotateon of the motor controlled by the emitter,please run the reverse of direction setting(see the motor P1 button operation) “Di” x1 Run for hint x1 “Di” x4 Run for hint x1 “Di” x1 Run for hint x1 1, Enter the limit position setting mode P2UpP2 Enter into the mode of setting limits P2P2 Down limit is ok Up limit is ok 2, Set the up limit position UpStopStop 3, Set the down limit position DownStopStop Note: This operation must be carried out without the limit;In the process of motor running upward or downward,press the emitter setting button,the motor enters the jog-move operation state,can precisely set the limit position. Press 1sPress 1sPress 1s Note: After the motor is powered off again, it will exit the trip setting mode;If you have not completed the limit, you will exit the setting mode of the limit, if you already have a limit, you will continue to use the pre-set limit;If the motor already has a limit, you need to delete the limit before you can set the limit. “Di” x5 Run for hint x1 “Di” x5 Run for hint x1 The curtain run upward The curtain stop running The curtain stop running The curtain run downward The up limit position Short press x5 or long press 3s Press 1sPress 1s Run to the required top up position Short press x5 or long press 3s Press 1sPress 1s Run to the required down bottom position The down limit position Press 1s “Di” x4 Run for hint x1 “Di” x5 Run for hint x1 Up+DownUpDownStop Run to the up/down limit Long press 5s +or Adjust the required up/down limit position Short press x5 or long press 3s The up/down limit is fine-tuned P2 UpDown Note: Repeat this operation to cancel dot-move function;In the jog-move mode,short press up/down burron 2s to loosen, the motor is jog-move to run;If long press more than 2s, the motor run continuously. Jog-move function is opened Press 1sPress 1sPress 1s P2 “Di” x1 Run for hint x1 “Di” x1 Run for hint x1 “Di” x2 Run for hint…

Text truncated - open the document above for the full version.

Ningbo Fujing Intelligent Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/3/2024 U.S. Agent Designation Ningbo Fujing Intelligent Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFGC-MDC2000): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Ningbo Fujing Intelligent Technology Co., Ltd. Ningbo Fujing Intelligent Technology Co., Ltd with the FRN 0035132380 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Yijun Yin manager Ningbo Fujing Intelligent Technology Co., Ltd Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

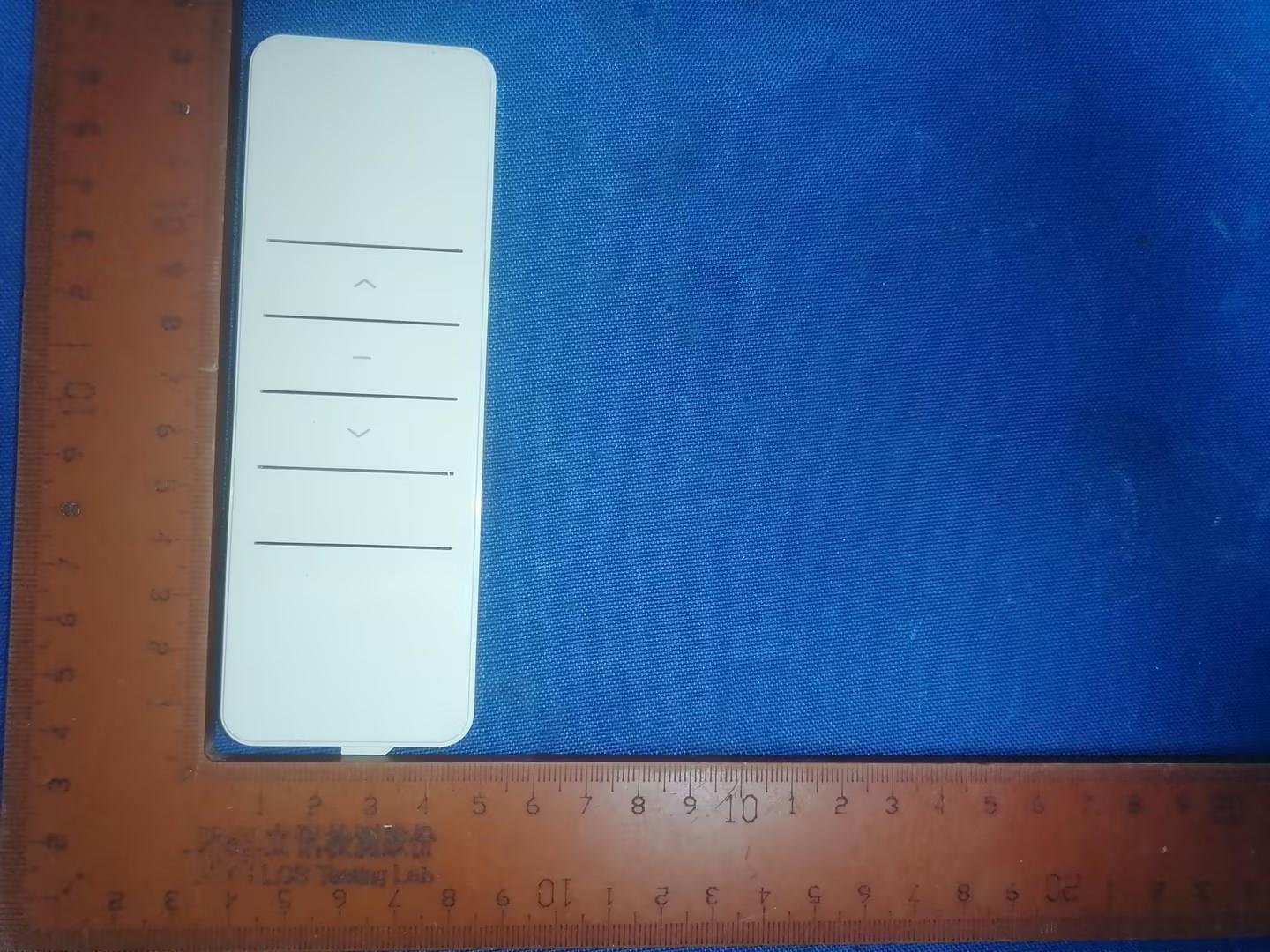

Page 1 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6

Page 1 of 1 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION Label Location remote control Model: mDC2000 FCC ID: 2BFGC-MDC2000

Page 1 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Antenna Page 2 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5

Page 1 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name remote control Test Model mDC2000 Power Supply DC 3V By CR2450 Lithium Battery Hardware Version mDC2000 V1.0 Software Version mDC2000 V1.0 Frequency Range 433.92MHz Channel Number 1 Modulation Type ASK Antenna Description PCB Antenna, 0dBi(Max) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Page 2 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2.Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 3 FCC ID: 2BFGC-MDC2000 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. Conducted Power Test Procedure TX frequency range: 433.92 MHz Device category: Portable device (Distance: 5mm) Max. Field Strength: 62.33dBuV/m @3m EIRP=E-104.7+20logD=62.33-104.8+20log3=-32.93dBm Maximum Conducted Output Power: -32.93dBm Tune up: -32±1 5. Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW ASK 0.43392 5 -31 0.0008 0.0001< 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is…
