2BFH8PLUG5LTEPlug5

UAB Ruptela
Plug5 - FCC ID 2BFH8PLUG5LTE - UAB Ruptela
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 08, 2024
Application Purpose
Original Equipment
Date of Application
Jul 08, 2024
Equipment Note
Plug5
Frequency Range
793.00000000 - 793.00000000
Company
UAB Ruptela
Country
Lithuania

Documents & Files

Select a file to view

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-29-2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BFH8PLUG5LTE Applicant FRN: 0035116961 UAB Ruptela (“the applicant”) certifies that, as of the date of the filing of the application, FCC US Agent, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. UAB Ruptela accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Tel.: 708-571-3148 Email: [email protected] Sincerely, UAB Ruptela FCC US Agent, LLC Tomas Slavinskas Tim Payne Applicant signature: U.S. Agent signature:

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) & Part 2.911(d)(5)(ii) Filing FCC ID: 2BFH8PLUG5LTE We, UAB Ruptela, certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And we certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, _________________ Name: Tomas Slavinskas Position: Product Owner, UAB Ruptela Date: 2024-05-02

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: 2BFH8PLUG5LTE To Whom It May Concern: We, the undersigned, hereby state a certified module (FCC ID: XMR2021EC25AFDL) was integrated in our product (FCC ID: 2BFH8PLUG5LTE) following manufacturers integration guidelines. The RF output power and RSE are verified to be the same, thus, test data (OBW/CSE/PAPR/Frequency stability) were re-used from the original test report to the new test report for LTE bands that are not locked out by means of change of configurable parameters in firmware. Regards, _________________ Name: Tomas Slavinskas Position: Product Owner Date: 2024-07-04

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BFH8PLUG5LTE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐ Short Term ☑ Permanent Block Diagrams ⃣ Short Term External Photos ☑ Short Term ☐ Permanent* Internal Photos ☐ Short Term ☑ Permanent Operation Description ☐ Short Term ☑ Permanent Parts List/BOM ☐ Short Term ☑ Permanent Schematics ☑ Short Term Test Setup Photos ☑ Short Term ☐ Permanent* User manual *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period 180 days. Name: Tomas Slavinskas Title: Product Owner, UAB Ruptela Date: 2024-05-02 Signature:

Cover Letter(s)

Declaration of Authorization We, Name: UAB Ruptela Address: Perkunkiemio str. 6., Vilnius, Lithuania Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Plug5 FCC ID: 2BFH8PLUG5LTE Model: Plug5-LTE-NA-BT-WiFi Brand: Ruptela Sincerely, _________________ Name: Tomas Slavinskas Position: Product Owner, UAB Ruptela Date: 2024-05-02

Cover Letter(s)

Declaration of Conformity We Name: UAB Ruptela Address: Perkunkiemio str. 6., Vilnius, Lithuania Declare that: Product: Plug5 FCC ID: 2BFH8PLUG5LTE Model: Plug5-LTE-NA-BT-WiFi Brand: Ruptela Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Tomas Slavinskas Position: Product Owner, UAB Ruptela Date: 2024-05-02

External Photos

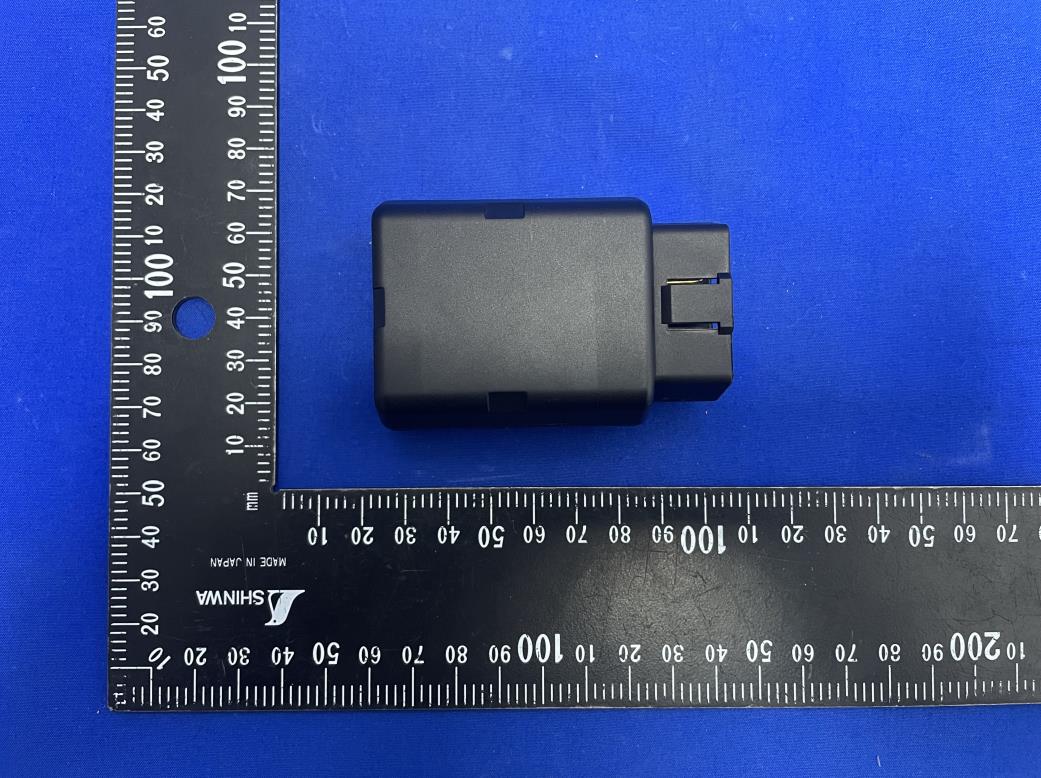

Report No.: 2403RSU012-UE 1 of 16 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2403RSU012-UE 2 of 16 (3) EUT Photo (4) EUT Photo Report No.: 2403RSU012-UE 3 of 16 (5) EUT Photo (6) EUT Photo

RF Exposure Info

MRT Technology (Suzhou) Co., Ltd Report No.: 2403RSU012-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2024-04-24 Template Version:0.1 1 of 10 RF Exposure Evaluation Declaration FCC ID: 2BFH8PLUG5LTE Applicant: UAB “Ruptela” Product: Plug5 Model No.: Plug5-LTE-NA-BT-WiFi Brand Name: Ruptela FCC Rule Part(s): FCC Part 2.1091 Result: Complies Evaluation Date: 2024-04-19 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2403RSU012-U3 2 of 10 Revision History Report No. Version Description Issue Date Note 2403RSU012-U3 V01 Initial Report 2024-04-24 Valid Report No.: 2403RSU012-U3 3 of 10 CONTENTS Description Page 1. General Information ............................................................................................................................... 4 1.1. Applicant....................................................................................................................................... 4 1.2. Manufacturer ................................................................................................................................ 4 1.3. Testing Facility .............................................................................................................................. 4 1.4. Product Information ...................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................ 5 1.6. Device Classification .................................................................................................................... 5 1.7. Applied Standards ........................................................................................................................ 5 2. RF Exposure Evaluation ........................................................................................................................ 6 2.1. Limits ............................................................................................................................................ 6 2.2. MPE Exemptions .......................................................................................................................... 7 2.3. Calculated Result ....................................................................................................................... 10 Report No.: 2403RSU012-U3 4 of 10 1. General Information 1.1. Applicant UAB “Ruptela” Perkūnkiemio st. 6, LT-12130, Vilnius, Lithuania 1.2. Manufacturer UAB “Ruptela” Raudondvario pl. 242c, LT-47158, Kaunas, Lithuania 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R- 20025 G-20034 C- 20020 T- 20020 R- 20141 G-20134 C- 20103 T- 20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: 3261 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2403RSU012-U3 5 of 10 1.4. Product Information Product Plug5 Model No. Plug5-LTE-NA-BT-WiFi Brand Name Ruptela Wi Fi Specification 802.11b/g/n Bluetooth Specification V5.1 Bluetooth LE 3GPP Specification LTE Band 2/4/5/12/14 Antenna Information Refer to Section 1.5 Power Type 9 ~ 32Vdc, typically 12Vdc Integrated Modular Information Cellular Modular Information Model Number: EC25-AFDL, EC25-AFDL MINIPCIE Brand Name: QUECTEL Note: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 1.5. Antenna Details Technology Frequency Range (MHz) Antenna Type Max Peak Gain (dBi) LTE Band 2 1850 ~ 1910 LDS Antenna 2.35 LTE Band 4 1710 ~ 1755 2.35 LTE Band 5 824 ~ 849 2.35 LTE Band 12 699 ~ 716 2.35 LTE Band 14 788 ~ 798 2.35 2.4GHz Wi-Fi 2412 ~ 2462 LDS Antenna 3.01 Bluetooth- LE 2402 ~ 2480 PCB Antenna 1.34 Note: The antenna gain is from antenna data sheet provided by the manufacturer. 1.6. Device Classification According to the user manual, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 1.7. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards:  FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2403RSU012-U3 6 of 10 2. RF Exposure Evaluation 2.1. Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For M aximum Permissible E xposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0 -30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1, 500-100,000 -- -- 5 <6 (B) Limits f…

Text truncated - open the document above for the full version.

Test Report

MRT Technology (Suzhou) Co., Ltd Report No.: 2112RSU017-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 01-13-2022 1 of 75 FCC ID: XMR2021EC25AFDL Application: Quectel Wireless Solutions Co., Ltd Application Type: Certification Product: LTE Module Model No.: EC25-AFDL, EC25-AFDL MINIPCIE Brand Name: Quectel FCC Rule Part(s): Part 2, Part 22 (H), 24 (E), 27, 90 (R) Test Procedure(s): ANSI C63.26: 2015 Test Date: December 08 ~ 28, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu MEASUREMENT REPORT FCC PART 2 & 22 & 24 & 27 & 90 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2112RSU017-U1 2 of 75 Revision History Report No. Version Description Issue Date Note 2112RSU017-U1 Rev. 01 Initial Report 01-13-2022 Valid Note: This application for certification is leveraging the data reuse procedures from KDB 484596 based on reference FCC ID: XMR201808EC25AF to cover variant FCC ID: XMR2021EC25AFDL Report No.: 2112RSU017-U1 3 of 75 CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................... 5 1.1. Applicant ...................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 1.4. Product Information ...................................................................................................... 6 1.5. Radio Specification under Test ..................................................................................... 6 1.6. Description of Available Antennas ................................................................................. 6 1.7. Test Methodology ......................................................................................................... 7 1.8. Device Capabilities ....................................................................................................... 7 1.9. EMI Suppression Device(s)/Modifications ..................................................................... 7 1.10. Configuration of Tested System .................................................................................... 7 1.11. Test Environment Condition .......................................................................................... 8 2. TEST EQUIPMENT CALIBRATION DATE ............................................................................... 9 3. MEASUREMENT UNCERTAINTY ......................................................................................... 10 4. TEST RESULT ....................................................................................................................... 11 4.1. Summary ..................................................................................................................... 11 4.2. Equivalent Isotropically Radiated Power Measurement .............................................. 12 4.2.1. Test Limit ................................................................................................................ 12 4.2.2. Test Procedure ....................................................................................................... 12 4.2.3. Test Setting ............................................................................................................. 12 4.2.4. Test Setup .............................................................................................................. 13 4.2.5. Test Result .............................................................................................................. 14 4.3. Conducted Spurious Emission Measurement ............................................................. 42 4.3.1. Test Limit ................................................................................................................ 42 4.3.2. Test Procedure ....................................................................................................... 42 4.3.3. Test Setting ............................................................................................................. 42 4.3.4. Test Setup .............................................................................................................. 43 4.3.5. Test Result .............................................................................................................. 44 4.4. Radiated Spurious Emission Measurement ................................................................ 65 4.4.1. Test Limit ................................................................................................................ 65 4.4.2. Test Procedure ....................................................................................................... 65 4.4.3. Test Setting ............................................................................................................. 65 4.4.4. Test Setup .............................................................................................................. 66 4.4.5. Test Result .............................................................................................................. 67 Appendix A - Test Setup Photograph .......................................................................................... 74 Report No.: 2112RSU017-U1 4 of 75 Appendix B - EUT Photograph...........................…

Text truncated - open the document above for the full version.

Test Report

Report No.: 2112RSU017-U1 56 of 75 1.4MHz Channel Bandwidth Channel 23017 (699.7MHz) Channel 23095 (707.5MHz) Channel 23173 (715.3MHz) 3MHz Channel Bandwidth Channel 23025 (700.5MHz) Channel 23095 (707.5MHz) Channel 23165 (714.5MHz) Report No.: 2112RSU017-U1 57 of 75 5MHz Channel Bandwidth Channel 23035 (701.5MHz) Channel 23095 (707.5MHz) Channel 23165 (714.5MHz) 10MHz Channel Bandwidth Channel 23060 (704.0MHz) Channel 23095 (707.5MHz) Channel 23130 (711.0MHz) Report No.: 2112RSU017-U1 58 of 75 Product LTE Module Test Site WZ-SR6 Test Engineer Eric Xu Test Date 2021/12/10 ~ 2021/12/15 Test Band LTE Band 13_1RB_QPSK Channel Frequency (MHz) Channel Bandwidth (MHz) Frequency Range (MHz) Max Spurious Emissions (dBm) Limit (dBm) Result 23205 779.5 5 30 ~ 10000 -31.60 ≤ -13.00 Pass 23230 782.0 5 30 ~ 10000 -30.99 ≤ -13.00 Pass 23255 784.5 5 30 ~ 10000 -31.25 ≤ -13.00 Pass 23230 782.0 10 30 ~ 10000 -31.70 ≤ -13.00 Pass Note: Spurious emissions within 9kHz ~ 30MHz were found more than 20dB below limit line. Report No.: 2112RSU017-U1 59 of 75 5MHz Channel Bandwidth Channel 23205 (779.5MHz) Channel 23230 (782MHz) Channel 23255 (784.5MHz) 10MHz Channel Bandwidth Channel 23230 (782.0MHz) Report No.: 2112RSU017-U1 60 of 75 Product LTE Module Test Site WZ-SR6 Test Engineer Eric Xu Test Date 2021/12/27 Test Band LTE Band 14_1RB_QPSK Channel Frequency (MHz) Channel Bandwidth (MHz) Frequency Range (MHz) Max Spurious Emissions (dBm) Limit (dBm) Result 5305 760.5 5 30 ~ 8000 -35.67 ≤ -13.00 Pass 5330 763.0 5 30 ~ 8000 -39.72 ≤ -13.00 Pass 5355 765.5 5 30 ~ 8000 -38.94 ≤ -13.00 Pass 5330 763.0 10 30 ~ 8000 -37.49 ≤ -13.00 Pass Note: Spurious emissions within 9kHz ~ 30MHz were found more than 20dB below limit line. Report No.: 2112RSU017-U1 61 of 75 5MHz Channel Bandwidth Low Channel Middle Channel High Channel 10MHz Channel Bandwidth Middle Channel Report No.: 2112RSU017-U1 62 of 75 Product LTE Module Test Site WZ-SR6 Test Engineer Eric Xu Test Date 2021/12/10 ~ 2021/12/15 Test Band LTE Band 71_1RB_QPSK Channel Frequency (MHz) Channel Bandwidth (MHz) Frequency Range (MHz) Max Spurious Emissions (dBm) Limit (dBm) Result 133147 665.5 5 30 ~ 10000 -32.05 ≤ -13.00 Pass 133297 680.5 5 30 ~ 10000 -31.74 ≤ -13.00 Pass 133447 695.5 5 30 ~ 10000 -32.24 ≤ -13.00 Pass 133172 668.0 10 30 ~ 10000 -32.29 ≤ -13.00 Pass 133297 680.5 10 30 ~ 10000 -31.60 ≤ -13.00 Pass 133422 693.0 10 30 ~ 10000 -31.90 ≤ -13.00 Pass 133197 670.5 15 30 ~ 10000 -32.14 ≤ -13.00 Pass 133297 680.5 15 30 ~ 10000 -31.55 ≤ -13.00 Pass 133397 690.5 15 30 ~ 10000 -32.00 ≤ -13.00 Pass 133222 673.0 20 30 ~ 10000 -32.61 ≤ -13.00 Pass 133322 683.0 20 30 ~ 10000 -32.12 ≤ -13.00 Pass 133372 688.0 20 30 ~ 10000 -31.74 ≤ -13.00 Pass Note: Spurious emissions within 9kHz ~ 30MHz were found more than 20dB below limit line. Report No.: 2112RSU017-U1 63 of 75 5MHz Channel Bandwidth Channel 133147 (665.5MHz) Channel 133297 (680.5MHz) Channel 133447 (695.5MHz) 10MHz Channel Bandwidth Channel 133172 (668.0MHz) Channel 133297 (680.5MHz) Channel 133422 (693MHz) Report No.: 2112RSU017-U1 64 of 75 15MHz Channel Bandwidth Channel 133197 (670.5MHz) Channel 133297 (680.5MHz) Channel 133397 (690.5MHz) 20MHz Channel Bandwidth Channel 133222 (673.0MHz) Channel 133322 (683.0MHz) Channel 133372 (688.0MHz) Report No.: 2112RSU017-U1 65 of 75 4.4. Radiated Spurious Emission Measurement 4.4.1.Test Limit The power of any emission outside of theauthorized operating frequency ranges must be attenuated below the transmitting power (P) by a factorof at least 43 + 10 log(P) dB. The emission limit equal to -13dBm. For LTE Band 13, 14, For operations in the 746-758 MHz, 775-788 MHz, and 805-806 MHz bands, emissions in the band 1559-1610 MHz shall be limited to -70 dBW/MHz (-40dBm/MHz) equivalent isotropically radiated power (EIRP) for wideband signals, and -80 dBW (-50dBm) EIRP for discrete emissions of less than 700 Hz bandwidth. E (dBμV/m) = EIRP (dBm) - 20 log D + 104.8; where D is the measurement distance in meters. The emission limit equal to 82.3dBμV/m or 70.3dBμV/m. 4.4.2.Test Procedure ANSI C63.26-2015 - Section 5.2.7 & 5.5 4.4.3.Test Setting 1. RBW = 1MHz 2. VBW ≥ 3*RBW 3. Sweep time ≥ 10 × (number of points in sweep) × (transmission symbol period) 4. Detector = Peak 5. Trace mode = max hold 6. The trace was allowed to stabilize Report No.: 2112RSU017-U1 66 of 75 4.4.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2112RSU017-U1 67 of 75 4.4.5.Test Result Product LTE Module Test Site WZ-AC2 Test Engineer Bob Zhang Test Date 2021/12/10 ~ 2021/12/15 Test Band LTE Band 2_1RB_QPSK Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level(dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization Low Channel 153.68 21.01 15.45 36.46 82.30 -45.84 PK Horizontal 868.08 3.73 31.43 35.16 82.30 -47.14 PK Horizontal 42.13 14.77 20.01 34.78 82.30 -47.52 PK Vertical 145.43 20.38 15.19 35.57 82.30 -46.73 PK Vertical 3703.00 47.36 -0.10 47.26 82.30 -35.04 PK Horizontal 7502.50 34.05 11.71 45.76 82.30 -36.54 PK Horizontal 3703.00 41.94 -0.10 41.84 82.30 -40.46 PK Vertical 5547.50 46.11 4.23 50.34 82.30 -31.96 PK Vertical Middle Channel 148.83 22.22 15.23 37.45 82.30 -44.85 PK Horizontal 473.29 7.51 24.62 32.13 82.30 -50.17 PK Horizontal 41.16 15.51 19.75 35.26 82.30 -47.04 PK Vertical 165.80 19.67 16.12 35.79 82.30 -46.51 PK Vertical 3762.50 46.06 0.03 46.09 82.30 -36.21 PK Horizontal 5641.00 40.03 4.69 44.72 82.30 -37.58 PK Horizontal 3762.50 43.27 0.03 43.30 82.30 -39.00 PK Vertical 5641.00 44.65 4.69 49.34 82.30 -32.96 PK Vertical High Channel 147.86 22.86 15.21 38.07 82.30 -44.23 PK Horizontal 474.26 7.78 24.63 32.41 82.30 -49.89 PK Horizontal 143.49 21.11 15.18 36.29 82.30 -46.01 PK Vertical 503.36 6.94 25.24 32.18 82.30 -50.12 PK Vertical 3822.00 44.37 0.20 44.57 82.30 -37.73 PK Horizontal 5726.00 39.30 5.39 44.69 82.30 -37.61 PK Horizontal 3822.00 45.92 0.20 46.12 82.30 -36.18 PK Vertical 5726.00 46.97 5.39 52.36 82.30 -29.94 PK Vertical Note: Measure Level (dBμV/m) …

Text truncated - open the document above for the full version.

Test Report

MRT Technology (Suzhou) Co., Ltd Report No.: 2403RSU012-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2024-06-30 Template Version: 1.2 1 of 46 RF MEASUREMENT REPORT FCC ID: 2BFH8PLUG5LTE IC: 32278-PLUG5LTE Applicant: UAB “Ruptela” Product: Plug5 Model No.: Plug5-LTE-NA-BT-WiFi Brand Name: Ruptela FCC Rule(s): Part 2, 22 (H), 24 (E), 27, Part 90 (R) ISED Rule(s): RSS-130 Issue 2, RSS-132 Issue 4, RSS-133 Issue 6 RSS-139 Issue 4, RSS-140 Issue 1, RSS-Gen Issue 5 Result: Complies Received Date: 2024-06-12 Test Date: 2024-06-13 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2403RSU012-U1 2 of 46 Revision History Report No. Version Description Issue Date Note 2403RSU012-U1 V01 Initial Report 2024-06-30 Valid Report No.: 2403RSU012-U1 3 of 46 CONTENTS Description Page 1. General Information ................................................................................................................................. 4 1.1. Applicant ....................................................................................................................................... 4 1.2. Manufacturer................................................................................................................................. 4 1.3. Testing Facility .............................................................................................................................. 4 1.4. Product Information ...................................................................................................................... 5 1.5. Radio Specification under Testing ................................................................................................ 5 1.6. Description of Available Antennas ................................................................................................ 6 1.7. Test Methodology ......................................................................................................................... 6 2. Test Configuration .................................................................................................................................... 7 2.1. Test Environment Condition .......................................................................................................... 7 3. Measuring Instrument .............................................................................................................................. 7 4. Decision Rules and Measurement Uncertainty ..................................................................................... 8 4.1. Decision Rules .............................................................................................................................. 8 4.2. Measurement Uncertainty ............................................................................................................ 8 5. Test Result ................................................................................................................................................. 9 5.1. Summary ...................................................................................................................................... 9 5.2. Equivalent Isotropically Radiated Power Measurement ............................................................. 10 5.2.1. Test Limit ..................................................................................................................................... 10 5.2.2. Test Procedure ........................................................................................................................... 10 5.2.3. Test Setting ................................................................................................................................. 11 5.2.4. Test Setup ................................................................................................................................... 11 5.2.5. Test Result .................................................................................................................................. 11 Appendix A - Test Result ................................................................................................................................. 12 A.1 Equivalent Isotropically Radited Power Test Result ................................................................... 12 Appendix B - Test Setup Photograph ............................................................................................................ 45 Appendix C - EUT Photograph ....................................................................................................................... 46 Report No.: 2403RSU012-U1 4 of 46 1. General Information 1.1. Applicant UAB “Ruptela” Perkūnkiemio st. 6, LT-12130, Vilnius, Lithuania 1.2. Manufacturer UAB “Ruptela” Perkūnkiemio st. 6, LT-12130, Vilnius, Lithuania 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 …

Text truncated - open the document above for the full version.

Test Report

Intertek 731 Enterprise Drive Lexington, KY 40510 Tel 859 226 1000 Fax 859 226 1040 www.intertek.com UAB Ruptela TEST REPORT SCOPE OF WORK EMC TESTING – Plug5-LTE-NA-BT-WiFi REPORT NUMBER 105601636LEX-007.2 ISSUE DATE REVISED DATE 11/28/2023 6/17/2024 PAGES 25 DOCUMENT CONTROL NUMBER Non-Specific EMC Report Shell Rev. December 2017 © 2017 INTERTEK This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Tomas Slavinskas
[email protected]+37052045188Fax: +37052784733

Test Firm

Intertek Testing Services NAJames Sudduth
[email protected]859-226-1037Fax: 859 226 1040

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
199793 MHz - 793 MHz146.90 mW9M03W7D0.0096 ppm
Confidentiality
Long Term
Grant Notes
Output Power is EIRP and ERP for above and below 1 GHz, respectively. The antenna(s) used for this transmitter must be installed and operated so as to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures, or as evaluated in this filing. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2 and 4; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Bands 5 and 12; and LTE of 5 and 10 MHz bandwidth modes for FDD LTE Band 14.
