2BFHI-TB55SWLed desk lamp

10° 0° AA级照度测试图示 - 4 -- 5 - 防止6°倾倒台灯调节范围图示 LED台灯 使用产品前请仔细阅读本使用说明书，并请妥善保管。 目录（82号） 一：产品介绍 - - - - - - - - - - - - - - - - - - 1 二：产品特点 - - - - - - - - - - - - - - - - - - 1 三：产品参数 - - - - - - - - - - - - - - - - - - 1 四：产品配件清单 - - - - - - - - - - - - - - - - 1 五：产品部件名称 - - - - - - - - - - - - - - - - 2 六：产品使用说明 - - - - - - - - - - - - - - - - 3 七：注意事项 - - - - - - - - - - - - - - - - - - 4 TB-55SW 灯头 触摸按键 灯杆 夜灯 底座 TB-55SW无线充电符号 亮度滑条 TB-55SW无线充电指示灯 插电口 电源指示灯 定时指示灯 六.产品使用说明 - 3 - (1)：TB-55S：将电源适配器12V 1A接上电源，另一端连接产品，指示灯亮红色。 TB-55SW：将电源适配器12V 2A接上电源，另一端连接产品，指示灯亮红色。 (2)：用手按下约1秒钟，台灯模式开启，再按1秒钟台灯关闭。在台灯开启的 情况下，按下调节台灯的色温（五色可调）。按下的时候开启夜 灯，七色转换，再按夜灯关闭。在台灯开启状态下，按下此时灯亮约45分钟 后，自动熄灭。在台灯开启的状态下，滑动调节灯光亮度，滑左灯光 变暗，滑右灯光变亮。 (3)： 带W型号的有无线充电功能，接上电源，无线充亮红灯，进入待机状态，把带有 无线充电并适合匹配于本机的手机放在图案上，当手机在充电时，指示灯红灯 熄灭，蓝灯亮起， 充电时长因手机而异，手机充满电后，指示灯同时亮起红灯和蓝灯。 当有金属异物在上面，指示灯会亮蓝灯一闪一闪。 一.产品介绍 二.产品特点 LED台灯，采用圆形面设计，发光效果广，五种色温可调，亮度可以任意调节， 无可视频闪，用光清晰舒适，带有小夜灯功能。 五.产品部件名称七.注意事项 三.产品参数 四.产品配件清单 主机*1 说明书 *1 1.五种色温可调2.无极调光3.定时模式 4.无可视频闪5.夜灯 - 1 -- 2 - 敬告： 1.本产品不具备防水功能，请勿在潮湿的环境中使用。 2.请勿自行拆卸本产品 3.请勿覆盖本产品，以免发生危险 4.本产品不是儿童灯具/玩具，请勿让小孩接触 5.灯具发生异常现象时，要迅速切断电源，并与销售商联系。 注意： 此灯具的光源是不可替换的，当光源到其寿终时，应替换整个灯具。 此灯具不可以在超过6°的斜面上使用。 使用CCC认证的SELV LED用交流电子控制装置供电。 - --- - --- - --- - --- 产品型号：TB-55SW 产品材料：ABS 产品颜色：白色 额定电压：12V 额定功率：24W (64X0.5W+6X0.5W/LED模块 +无线充电模块*1) 额定电流：2A 光源：LED 显色指数：>95 工作温度：-5 ~ +45 色温：2900K-5800K(五色可调) 光通量：≈800LM 产品重量：≈1731g 产品尺寸：483*219*438MM 包装尺寸：455*220*100MM Product model：TB-55SW Product material：ABS Product color：white Rated voltage：12V Product power：24W (64X0.5W+6X0.5W/LEDmodule +Wireless charging module*1) Rated current：2A Light source：LED Color rendering index（Ra）：>95 Working temperature：-5 ~ +45 Color temperature：2900K-5800K (Five colors temperature adjustment) Luminous flux：≈800LM Product weight：≈1731g Product size：483*219*438MM Packing size：455*220*100MM - --- - --- Prevent 6° tipping table lamp adjustment range shown in figure AA level illumination test diagram - 5 - CatalogueUser Manual（No. 82） TB-55SW Led desk lamp Please read this manual carefully before using the product and keep it properly. 1：Product Introduction - - - - - - - - - - - - 1 2：Product Features - - - - - - - - - - - - - - 1 3：Product Parameters - - - - - - - - - - - - - 1 4：Product Parts List - - - - - - - - - - - - - 1 5：Product Part Name - - - - - - - - - - - - - 2 6：Product Instructions - - - - - - - - - - - - 3 7：Notes - - - - - - - - - - - - - - - - - - - 4 LED Desk Lamp*1 User Manual*1 6.Product Instructions - 3 - (2)：Press the buttonfor 1 second to turn the lamp on and press again for 1 second to turn the lamp off.When the lamp is on, press to switch the color temperature of the lamp (Five color adjustable). Press to turn on the night light, switch to seven colors, and then press the night light to turn off.When the lamp is on,press the buttonand the lamp will automatically turn off after 45 minutes. When the lamp is on, slide the buttonto adjust the brightness level. Slide left to dim and slide right to brighten. （3）：Model W has wireless charging function,Connect the power, wireless charging red light, enter the standby state, put the mobile phone with wireless charging and suitable to match the machine on thepattern, when the mobile phone is charging, the red light off, blue light on, charging time varies with the mobile phone, after the mobile phone is fully charged, the indicator light at the same time red light and blue light. When there's a metal object on it, the light will flash blue. (1)：Tb-55S：Connect the power adapter 12V 1A to the power supply, connect the other end to the product, and the indicator is on red. Tb-55SW：Connect the power adapter 12V 2A to the power supply, connect the other end to the product, and the indicator is on red. Lamp Head Lamp Body Night Light Touching Keys Brightness slider TB-55SW Wireless charging indicator TB-55SW Wireless charging symbol Lamp Base USB Port Timing indicator light Power indicator - --- - --- 1.Product Introduction 2.Product Features LED desk lamp, using circular surface design, luminous effect is wide, five kinds of color temperature can be adjusted, brightness can be adjusted at will, no video flash, light clear and comfortable, with small night light function. 5.Product Part Name Warning: 1. The product does not have waterproof function, do not use it in a wet environment. 2. Please do not disassemble the product by yourself. 3. To avoid danger,do not cover the product. 4. Keep children away from the lamp,this product is not a children's lamp/toy. 5. Cut off the power supply quickly in case of abnormal phenomenon,and contact with the seller. Note: The light source of the secondary lamp is not replaceable. When the light source reaches the end of its life, the whole lamp should be replaced. This lamp shall not be used on an inclined plane of more than 6°. SELV LED with CCC certification is powered by AC electronic control device. 7.Notes 3.Product Parameters 4.Product Parts List 1.five color temperature adjustment2.Stepless dimming 3.Timer mode4. Flicker Free5.Night light - 1 -- 2 -- 4 - 10° 0° This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferen…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: UGK-LVM UNITED INC FRN: 0033476375 Contact Name: Jimmychen Address: 6547NAcademyBlvd#2266,ColoradoSprings,CO80918 Telephone No: 001-323-51 04660 Email: [email protected] Applicant: Company name: Suzhou Yule Lighting Technology Co., Ltd. Grantee code: 2BFHI FCC ID: 2BFHI-TB55SW FRN: 0035143924 Contact Name: Jack bu Address: No. 20, Qianjingtang Rd.Luhe In. Park, Huangjing Town, Taicang Suzhou, Jiangsu Telephone: 18906679427 Fax: 18906679427 E-mail: [email protected] [Suzhou Yule Lighting Technology Co., Ltd.] certifies that, as of the date of this filing of the application with the TCB, [UGK-LVM UNITED INC] is our designated US agent for service of process for the above referenced FCC ID. [Suzhou Yule Lighting Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [UGK-LVM UNITED INC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024/03/20 Applicant’s Name: Jack bu US Agent for Service of Process’s Name: Jimmychen Title: Manager Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Suzhou Yule Lighting Technology Co., Ltd. Grantee code: 2BFHI FCC ID: 2BFHI-TB55SW FRN: 0035143924 Contact Name: Jack bu Address: No. 20, Qianjingtang Rd.Luhe In. Park, Huangjing Town, Taicang Suzhou, Jiangsu Telephone: 18906679427 Fax: 18906679427 E-mail: [email protected] i. [Suzhou Yule Lighting Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Suzhou Yule Lighting Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Suzhou Yule Lighting Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2024/03/20 Applicant’s Name: Jack bu Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Suzhou Yule Lighting Technology Co., Ltd. 1/1 Letter of Authorization Company: Suzhou Yule Lighting Technology Co., Ltd. Address: No. 20, Qianjingtang Rd.Luhe In. Park, Huangjing Town, Taicang Suzhou, Jiangsu Product Name: Led desk lamp Model Number: TB-55SW FCC Identifier: 2BFHI-TB55SW We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jack bu Date: 2024-03-20 Title: Manager Signature of applicant:

Suzhou Yule Lighting Technology Co., Ltd. 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-03-20 Subject: Request for Confidentiality FCC ID: 2BFHI-TB55SW To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Name: Jack bu Date: 2024-03-20 Title: Manager Signature of applicant:

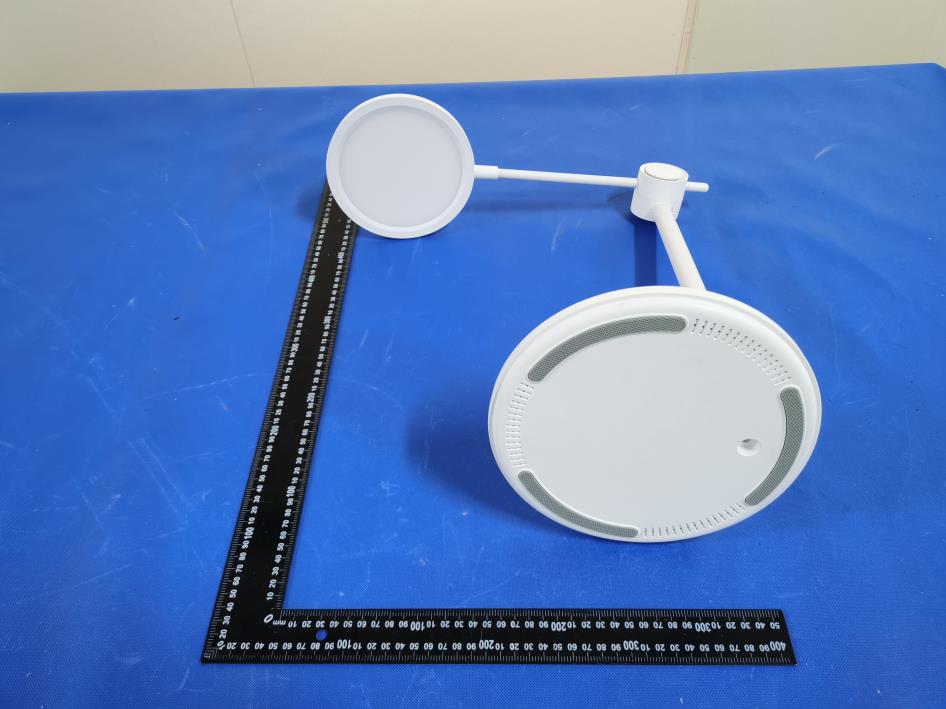

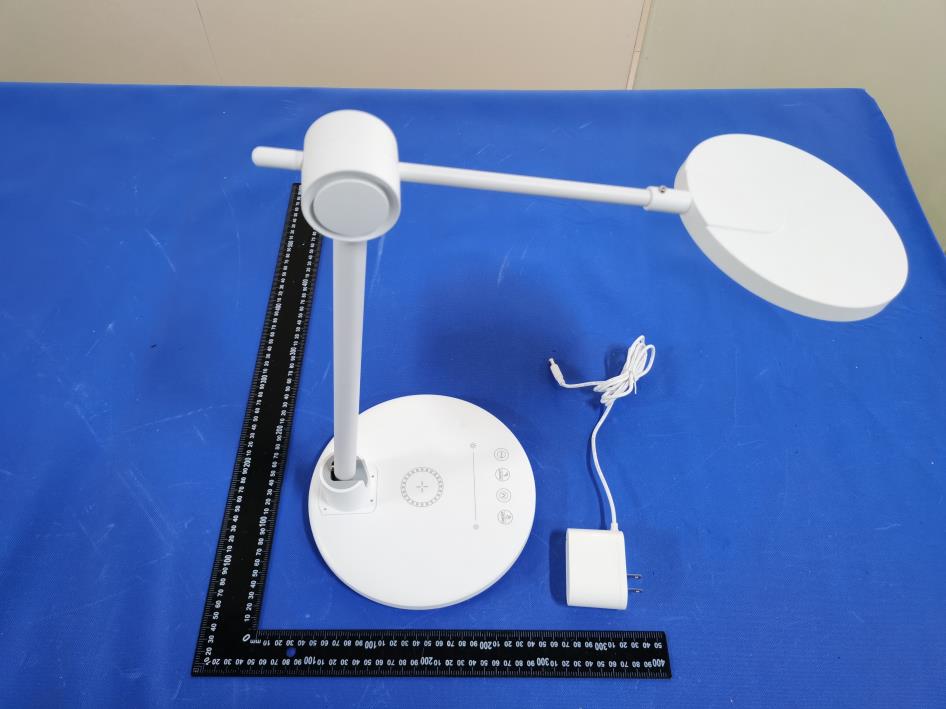

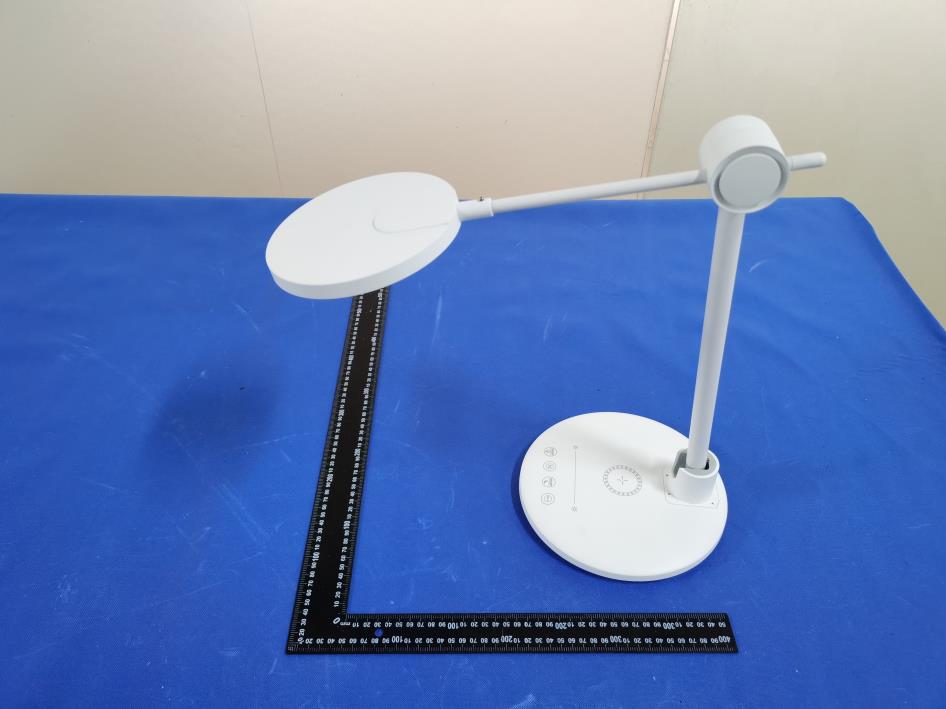

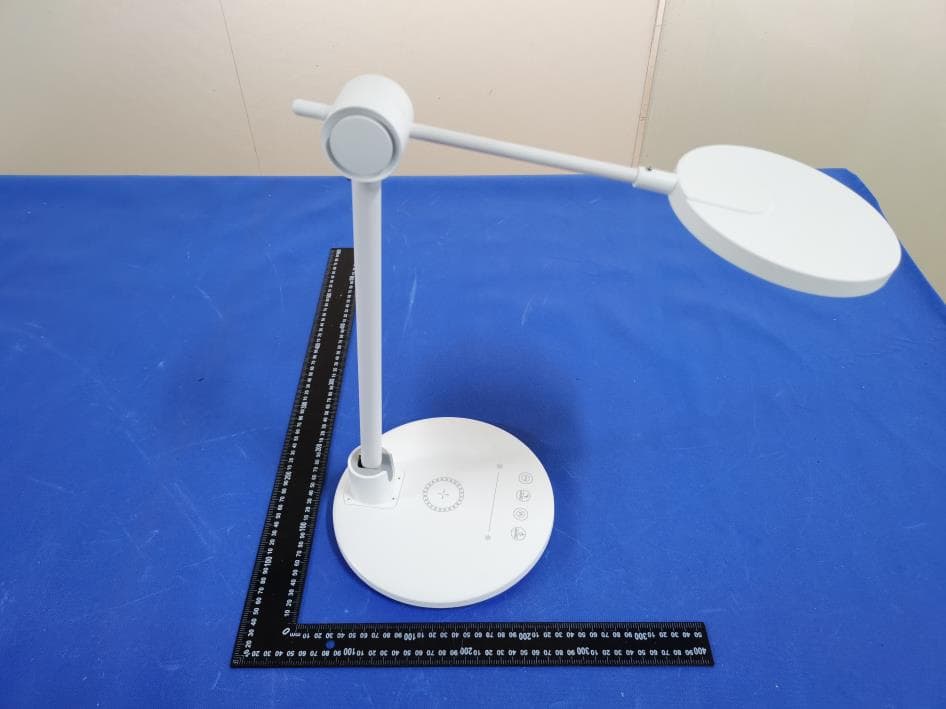

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 12*10mm M/N: TB-55SW FCC ID: 2BFHI-TB55SW Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BFHI-TB55SW Product Name: Led desk lamp Trade Mark: RWOCCOLUX Model No.: TB-55SW Model Difference: N/A Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: 12.0V/2000mA Wireless charging Output: 15W Adapter: Model No.: GA-1202000 Input: AC 100-240V~ 50/60Hz 0.6A Output: DC 12.0V/2000mA Date of Receipt: Feb. 26, 2024 Test Date: Feb. 26, 2024 - Mar. 07, 2024 Date of Report: Mar. 07, 2024 Test Modes: Mode1. Wireless charging Output Mode (Full Load, 1%/50%/99%) Mode2. Wireless charging Output Mode (Half Load, 1%/50%/99%) Mode3. Wireless charging Output Mode (No Load, 1%/50%/99%) Note: 1. We have evaluated 1%, 50% and 99% battery charging mode, and the worst mode (99%) is showed in this report. 2. All modes have been tested, and the report only shows the results of the worst mode1. RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Power Transfer v04 2 Requirements 3 According to the item 5 of KDB 680106 v04: 4 Inductive wireless power transfer applications that meet all of the following requirements are excluded from 5 submitting an RF exposure evaluation. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 6 Test Setup 7 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (20 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 v04. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 8 Description of Support Units Model No.: GA-1202000 Input: AC 100-240V~ 50/60Hz 0.6A Output: DC 12.0V/2000mA Mobile phone (Provide by test lab): Manufacturer: SAMSUNG Model: Galaxy S21 5G 9 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June. 25 2023 June. 26 2024 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June. 25 2023 June. 26 2024 Field Probe ETS HI-6105 / June. 25 2023 June. 26 2024 Laser Data Interface ETS HI-6113 / June. 25 2023 June. 26 2024 10 Test Uncertainty E-Filed Strength : ±0.08V/m H-Filed Strength : ±0.02A/m uT : ±0.01 Note: The field intensity value A/m in the report is converted from uT, and the formula is as follows: 11 Test Result E-Filed Strength at 20 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.115-0.205 0.19 0.15 0.16 0.18 614 E-Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.115-0.205 0.13 614 H-Filed Strength at 20 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.115-0.205 0.04 0.13 0.09 0.25 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.115-0.205 0.13 1.63 12 Test Set-up Photo

深圳市三盛创电子科技有限公司 ShenzhenSanshengChuangElectronic TechnologyCo.,LTD 承認書 Acknowledgement 客戶： CUSTOMER: 中立冠达【深圳】智能有限公司 [Shenzhen]IntelligentCo.,LTD 客戶料號： CUSTP/N: ZLGD-A1-0046 三盛创料號： FINEP/N: G43.5-6.5uHunicoil0.08*24P*2P*10TS 産品型號： DESC: Φ43.5MMX5.3MMX0.8MMopenslot 日期： DATE: 2023.11.28 版本： Version: A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 郭柳 GuoLiu 安帅印 Anshuai 安帅印 Anshuai 工廠地址： 深圳市光明区玉塘街道玉律社区大洋一路19号2栋2楼 Factoryaddress:2ndfloor,Building2,No.19,DayangRoad,YutangStreet,GuangmingDistrict,Shenzhen 版本變更履歷 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 newissue ----2023.11.28 安帅印 Anshuai SPECIFICATION 産品型號： DESC Φ20.5x40-6.5uH-0.08x24P*2P-15mm 版本 Rev：A.0 客戶CUST: 客户料号CUSTP/N:ZLGD-A1-0046 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 40.0±1.0 B 20.5±0.5 C 0.7Max D 15±2 E 3±1 F 43.5±0.5 G 8.0±1.0 H 1.8±0.1 I 5.0±0.3 M 7.0±1.0 J 42.5±1 K 3.0±1 注： 1. 交叉出线 ; 1 、 Crossline; 2. 出线位置缠 8mm(ref) 宽度高温 胶纸 1-2Ts; 2 、 8mm(ref)widthhigh temperatureadhesivetape1-2Ts; 3. 线圈贴圆形硬磁片带槽，磁片 尺寸 3、Coilstickcircularhard magneticplatewithslot, magneticplatesize 4、3.5 ±0.5mm, 内孔 5.3mm, 厚度 为 0.8±0.1mm 。 4. 工作温度≦ 100 ° C 4 、 3.5 ± 0.5mm,Innerholeof 5.3mm,withathicknessof0.8 ± 0.1mm.Operatingtemperatureis 100C 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1SFHot wind line 0.08*24P 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1IND.S-F4.0uH ±10% Separate coil100KHz/1.0VLCZ METER 1062B 2IND.S-F6.5uH ±10%Add magnetic sheet 100KHz/1.0VLCZ METER 1062B 3DCRS-F≤98mΩ100KHz/1.0VLCZ METER 502B 4QS-F≤42100KHz/1.0VLCZ METER 502B 擬制/日期PREPARED BY/DATE審核/日期CHECKED BY/DATE Guo Liu 2023.11.28Anshuai 2023.11.28

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20240226055E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 16 TEST REPORT FCC ID: 2BFHI-TB55SW Applicant: Suzhou Yule Lighting Technology Co., Ltd. Address: No. 20, Qianjingtang Rd.Luhe In. Park, Huangjing Town, Taicang Suzhou, Jiangsu Manufacturer: Suzhou Yule Lighting Technology Co., Ltd. Address: No. 20, Qianjingtang Rd.Luhe In. Park, Huangjing Town, Taicang Suzhou, Jiangsu EUT: Led desk lamp Trade Mark: RWOCCOLUX Model Number: TB-55SW Date of Receipt: Feb. 26, 2024 Test Date: Feb. 26, 2024 - Mar. 07, 2024 Date of Report: Mar. 07, 2024 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 Subpart C ANSI C63.10:2013 Test Result: Pass Report Number: DL-20240226055E Prepared (Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20240226055E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 16 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ................................................................................................................................... 3 2. TEST SUMMARY ..................................................................................................................... 3 3. GENERAL INFORMATION .................................................................................................... 4 4. TEST INSTRUMENT USED ................................................................................................... 5 5. CONDUCTED EMISSION TEST ........................................................................................... 6 6. RADIATION EMISSION TEST ............................................................................................ 10 7. BANDWIDTH TEST ............................................................................................................... 15 8. ANTENNA REQUIREMENT ................................................................................................ 16 9. SETUP PHOTOGRAPHS ..................................................................................................... 16 10. EUT PHOTOGRAPHS ....................................................................................................... 16 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20240226055E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 16 1. VERSION Version No. Date Description 00 Mar. 07, 2024 Original 2. TEST SUMMARY EMC Emission Test Item Section in CFR 47 Result Remark AC Power Line Conducted Emission 15.207 PASS Spurious Emission 15.209(a)(f) PASS 20Db Bandwidth 15.215 PASS Antenna requirement 15.203 PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test Lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20240226055E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 16 3. GENERAL INFORMATION 3.1 Description of Device (EUT) Product Name: Led desk lamp Trade Mark: RWOCCOLUX Model No.: TB-55SW Model Difference: N/A Serial No.: N/A Hardware version: H1.0 Software version: S1.0 Operation Frequency: 115kHz ~ 205KHz Modulation type: MSK Antenna Type: Inductive loop coil Antenna Antenna gain: 0dBi Power supply: Input: 12.0V/2000mA Wireless charging Output: 15W Adapter: Model No.: GA-1202000 Input: AC 100-240V~ 50/60Hz 0.6A Output: DC 12.0V/2000mA 3.2 Tested System Details None. 3.3 Block Diagram of Test Set-up 3.4 Test Mode Description Mode1. Wireless charging Output Mode(15W) Note: 1. We have evaluated 1%, 50% and 99% battery charging mode, and the worst mode (99%) is showed in this report. 3.5 Test Auxiliary Equipment Mobile phone (Provide by test lab): Manufacturer: SAMSUNG Model: Galaxy S21 5G 3.6 Test Uncertainty Conducted Emission Uncertainty(150KHz-30MHz) : ±2.56dB 20dB Bandwidth : ±0.5kHz Radiated Emission Uncertainty(9KHz-1GHz) : ±3.24dB AC Mains EUT Adapter Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20240226055E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 16 4. TEST INSTRUMENT USED For Conducted Emission Test (843 Shielded Room) Equipment Manufacturer Model Serial Last Cal. Next Cal. 843 Shielded Room ChengYu 843 Room 843 Sep. 20, 2022 Sep. 19, 2025 EMI Receiver R&S ESR 101421 Nov. 04, 2023 Nov. 03, 2024 LISN R&S ENV216 102417 Nov. 04, 2023 Nov. 03, 2024 Clamp COM-POWER CLA-050 431071 Nov. 04, 2023 Nov. 03, 2024 3-Loop Antenna DAZE ZN30401 13021 Nov. 04, 2023 Nov. 03, 2024 ISN T8 Schwarzbeck NTFM 8158 101135 Nov. 04, 2023 Nov. 03, 2024 ISN T5 Schwarzbeck NTFM 8158 101136 Nov. 04, 2023 Nov. 03, 2024 843 Cable 1# ChengYu CE Cable 001 Nov. 04, 2023 Nov. 03, 2024 843 Cable 1# ChengYu CE Cable 002 Nov. 04, 2023 Nov. 03, 2024 For Radiated Emission Test (966 chamber) Equipment Manufacturer Model Serial Last Cal. Next Cal. 966 Chamber ChengYu 966 Room 966 Sep. 20, 2022 Sep. 19, 2025 Spectrum Analyzer Agilent E4408B MY50140780 Nov. 04, 2023 Nov. 03, 2024 EMI Receiver R&S ESRP7 101393 Nov. 04, 2023 Nov. 03, 2024 Amplifier Schwarzbeck BBV9743B 00153 Nov. 04, 2023 Nov. 03, 2024 Amplifier EMEC EM01G8GA 00270 Nov. 04, 2023 Nov. 03, 2024 Broadband Trilog Antenna…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Emission Photos ※※※※※ END OF REPORT ※※※※※
