2BFIM-M26Dual screen outdoor sports camera

operation instruction Ｖ1.01 I. Schematic diagram of product structure 1. Front screen; 2. lens; 3. MIC ; 4. On/off switch key; 5. Front indicator light; 6. Reset hole; 7.TF card holder; 8.Typec interface 9. Rear indicator light; 10. Rear touch screen; 11. Video/menu key/up key; 12. Photo /wifi key/down key, 13. Speaker hole; 14. Copper screw hole II. Operation guide 1 Charging: This machine has a built-in rechargeable lithium battery. When using it for the first time, please charge it first as follows: 1. Use USB to connect with the charging head for charging (charging treasure and computer cannot be fully charged). 2. Use a 5V/1A-2A charger for charging; 3. When charging, the red light is always on, about 3 hours, and the indicator light is off. Operation guide 2 1.boot: Press and hold the power button for three seconds, the screen lights up and the blue indicator lights up. 2.Video recording operation of this machine After the machine is turned on, it enters the standby state, and there is a camera icon in the upper left corner of the screen. Indicates that it is a video recording mode. Press the video recording key for a short time, and the blue light flashes slowly to start video recording. Press it again for a short time to save the video recording, and the blue light is always on. In video recording mode, the recorded image size can be adjusted by the "+-"symbol on the touch screen 3.the machine operation photos: In standby mode, press the photo button briefly, and the blue light flashes once to take a photo. In the photo mode, you can also take a photo by pressing the power button once, and the size of the photo object can be adjusted by the+-symbol on the touch screen. 4.Front and rear screen switching： In standby mode, pressing the power-on key for two consecutive times is to switch the front and rear screens. 5.playback: In standby mode, click the play icon in the lower left corner of the touch screen or press the power buttonto to enter the selection page, "Video; Picture ",click to enter, select the content to be played back, click to play back or select a file by pressing the up and down keys, and press the power button to confirm the playback. When playing back, you can delete the file by clicking the delete icon in the lower right corner of the screen, and click the arrow icon on the touch screen to return to the previous layer. 6. WiFi on/off: In standby mode, press the camera button twice to turn on and off wifi； Or you can slide down the touch screen to bring up wifi, and click to open WiFi. 7. remote control pairing: In standby mode, slide down the touch screen to bring up the remote control function, click to enter the pairing interface, and press the A key and the B key of the remote control to pair at the same time. After the pairing is successful, the machine can be controlled by the remote control. 8. remote control operation: When the machine is in standby mode, short pressing the A button of the remote controller is "power off"; Press the B button short to turn on/off motion detection, press the C button short to take pictures, and press the D button short to start/save video. Operation guide 3 1. set up In standby mode, swipe up the touch screen to call up the working mode, which is "Video", "Slow recording", "Interval recording", "Taking photos", "Interval shooting", "Continuous shooting", "Recording+taking photos", "Car mode", "Vertical screen and vertical screen". Select the desired recording or shooting mode by briefly pressing the recording button twice or pressing the setting icon in the bottom right corner of the screen to enter the menu settings, The functions can be operated and set by using the up and down keys or swiping the touch screen. 2.Video recording function setting In the video mode, press the recording key twice continuously or click the setting icon in the lower right corner of the screen to enter the menu setting. You can set the resolution, loop recording, motion detection, pre- recording, extended recording, angle of view, gyro anti- shake, recording volume, video watermark, bit rate, ISO, image sharpness, saturation, white balance, color, exposure compensation, photometry and fisheye correction by sliding the up and down keys or the touch screen. When setting, 3.hoto function settings In the photo mode, press the video button twice continuously or click the setting icon in the lower right corner of the screen to enter the menu setting.By sliding the up and down keys or the touch screen, exposure time, delayed photography, image quality, image sharpness, contrast, image brightness, white balance, color, IOS, exposure compensation, high dynamic, date label, etc. When setting, press the power button for confirmation.Press the video button twice to exit the menu, or click the operation through the touch screen. 4.Basic machine function settings Press the video button twice continuously or click the setting icon in the lower right corner of the screen to enter the menu setting page.Click the settings icon in the lower right corner of the screen.Through the up and down keysOr slide the touch screen to set the language.Date/time, formatting, quick video recording, quick photo taking, status light, automatic shutdown, key sound, prompt sound, automatic screen time, rotation, WiFi, etc.When setting, press the power button for confirmation, press the video button twice to exit the menu, or click the operation through the touch screen. 5.Connect the computer Connect the computer with USB cable, you can read the memory card, a removable disk appears in my computer, and click the file "DCIM" to enter.The storage directory of camera files is: The saving directory of "MOVIE" photo file is; “PHOTO” note: 1.When the battery is low, it will automatically stop video recording and automatically save it and turn it off. 2.The boot has no card or no identification card, so it is not allowed to record or take pictures. 3.The machine will automatically shut do…

Text truncated - open the document above for the full version.

Shenzhen Shunchi Rongchuang Technology Co. , Ltd. A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-24 To whom it may concern: We, Shenzhen Shunchi Rongchuang Technology Co. , Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BFIM-M26) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature su jinchun Manager Shenzhen Shunchi Rongchuang Technology Co. , Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Shunchi Rongchuang Technology Co. , Ltd. A36, 4th Floor, Building 701, Pengji Industrial Zone, No. 2 Pengxing Road, Pengxing Community, Liantang Street, Luohu District, Shenzhen City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/03/22 U.S. Agent Designation Shenzhen Shunchi Rongchuang Technology Co. , Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFIM-M26): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Shenzhen Shunchi Rongchuang Technology Co. , Ltd. with the FRN [0035151786] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature su jinchun Manager Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Add: A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Date: 2024-3-24 FCC ID: 2BFIM-M26 Dear Sir/Madam, We, Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Dual screen outdoor sports camera Model no.: M26(T300), M31, M22, M32, M36 Sincerely, Name/Title： su jinchun/Manager Company: Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Address: A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Phone: 13632565801 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-3-24> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BFIM-M26 M26(T300) For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： su jinchun/Manager Company: Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Address: A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Phone: 13632565801 Fax: N/A E-Mail: [email protected]

Shenzhen Shunchi Rongchuang Technology Co. , Ltd. A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Date: 2024-3-24 FCC ID: 2BFIM-M26 Model Number: M26(T300) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Shunchi Rongchuang Technology Co. , Ltd., declare that this EUT (FCC ID: 2BFIM-M26) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： su jinchun/Manager Company: Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Address: A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Phone: 13632565801 Fax: N/A E-Mail: [email protected]

Shenzhen Shunchi Rongchuang Technology Co. , Ltd. A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-24 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BFIM-M26 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： su jinchun/Manager Company: Shenzhen Shunchi Rongchuang Technology Co. , Ltd. Address: A36,4th Floor,Building 701,Pengji Industrial Zone, No.2 Pengxing Road,Pengxing Community,Liantang Street,Luohu District,Shenzhen City,Guangdong China Phone: 13632565801 Fax: N/A E-Mail: [email protected]

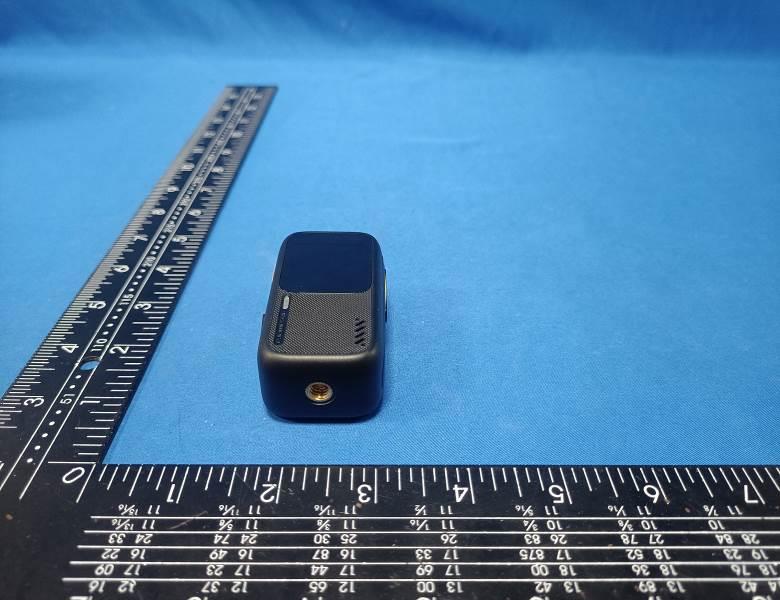

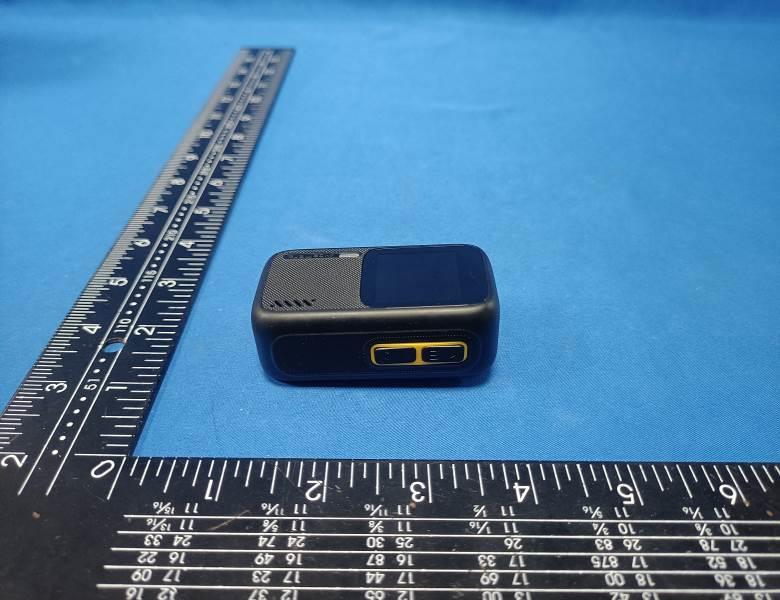

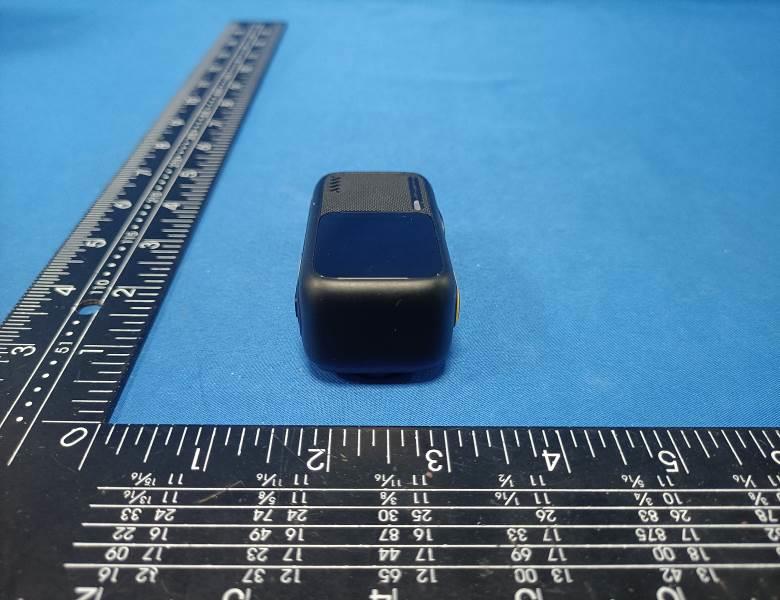

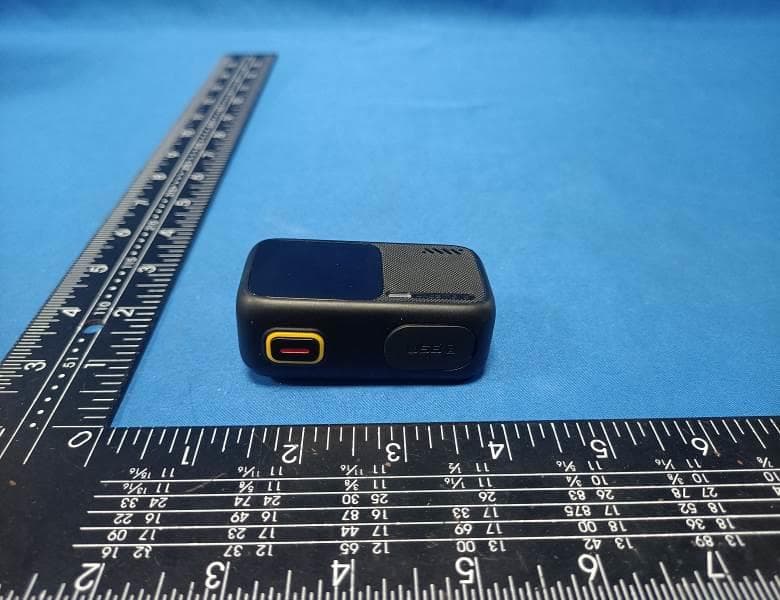

FCC ID: 2BFIM-M26 External Photos of the EUT FCC ID: 2BFIM-M26

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BFIM-M26

FCC ID: 2BFIM-M26 Internal Photos of the EUT FCC ID: 2BFIM-M26 2.4G WIFI PIFA Antenna FCC ID: 2BFIM-M26 FCC ID: 2BFIM-M26 2.4G PCB Antenna FCC ID: 2BFIM-M26 FCC ID: 2BFIM-M26

RF Exposure evaluation FCC ID: 2BFIM-M26 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 2402MHz 98.76 3.50 3.0±1 4.0 Note: EIRP=E-104.8+20logD, D=3 Page 2 of 2 802.11b (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 5.0 4.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11g (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 5.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11n20 (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 5.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWIFI 2.450 5 6.0 3.9811 1.2463<3.0 Yes 2.4G 2.450 5 4.0 2.5119 0.7863<3.0 Yes 2.1 Simultaneous Transmission for SAR Exclusion The sample support one 2.4GWIFI modular and SRD modular, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR 2.4GWIFI +SAR SRD )/1.6 = (0.1679+0.1059)/1.6 = 0.2 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model M26(T300)-WIFI Frequency range 2400-2500MHz Manufacturer Shenzhen Shunchi Rongchuang Technology Co. , Ltd. ANT Peak Gain 0.72 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
