2BFLG-I9Intelligent visual doorbell

SMART DOORBELL i9 User Manual Product Introduction Product Functions Visual call: When someone rings the doorbell, the mobile phone with the doorbell bound will receive a push notification from the APP, you can answer it by video call with visitors. Real time picture: the device is connected to WiFi for a long time with low power consumption, you can wake it up remotely at any time, anywhere, and views the real-time picture. it is both a doorbell and also a monitor. This function is enabled by default. Power saving mode: when the doorbell is in the power saving mode, if there is no operation within 30 seconds, the doorbell will automatically turned off to save power. Purpose: To prolong the service time of the device. In this mode, real-time screen viewing is not available, and APP push will be delayed accordingly. When the battery power is lower than 10% (including 10%), the power saving mode will be forced on. Please Charge the device quickly. You can also actively turn off the real-time screen mode in the APP and switch to power saving mode. Night vision function: when the light is insufficient, the doorbell can automatically conduct infrared light compensation imaging. infrared light compensation function is on by default. It can be turned on and off in APP settings. How to Use the Doorbell 1.scan the QR code below and select proper system(iOS/an- droid) to download app 5. Working logic of doorbell push: press the doorbell after binding, the app will receive the message push, select "reject" or hang up after answering, the doorbell will enter the shutdown state, which can trigger the doorbell to send messages to the mobile phone again. Warnings : •please turn on Bluetooth, Wi Fi and allow all permissions of the app. •please use this product in an environment with good Wi Fi signal and try not to stick it on the metal door. •this product does not support 5g Wifi. before installing the doorbell, please conduct normal function test at the position to be installed to ensure that the product works properly. Remove the lens protective film after installation. Pairing Doorbell&DingDong 1.Plug Dingdong in power souce. 2.Long press Dingdong match button for 2 seconds, indicator light on suggesting enters pairing mode. 3.Press doorbell button once, 2 devices will pair with each other, after paired successfully, indicator lights off. Warnings: 1.During pairing, 2 devices should be as close as possible. 2.Make sure the doorbell is fully charged. 3.After pairing, the indicator light will automatically turn off. 4.If you don't ring the doorbell within ten seconds, the dingdong indicator will go out automatically. If pairing fails or re pairing is required, please repeat the pairing process. Reset&Restore factory settings Reset butto 1. Cannot receive verification code when account registration Check if your cell phone number or email account is entered correctly. 2. Device networking failure or networking timeout 1）.This product does not support 5G Wi-Fi, only 2.4G Wi-Fi for networking (please do not choose 5G Wi-Fi name will be marked 5G). 2）.Please check if the Wi-Fi password is entered correctly. 3）.Please allow all permissions of the APP, including Bluetooth, Wi-Fi and location services, etc. 4）.Please restart the router and cell phone to try again. 3. Device binding failed If the APP binding failure screen shows the device ID and prompts: 'please unbind and try again', please take a screenshot and contact the merchant to deal with it. 4. The first step of adding APP can not connect to Bluetooth 1）.Please restart your phone Bluetooth or try after restarting your phone. 2）.APP uninstall and reinstall. 3）.The above methods are not possible, please contact the merchant. 5. APP is in the background or the message is not pushed 1).Check the push settings: Apple phone: In the phone system settings-notifica- tion-core mobile home, open all the allowed notifications inside, including screen unlock notification, notification center and banner. Huawei phone: In the phone system settings - notification and status bar - core mobile home, open all the allowed notifications, including screen unlock notifications and banners. Samsung cell phone: In the phone system settings - notifications - APP notifications - Core Mobile Home, open all the allowed notifications, including screen unlock notifications and banners 2).After pressing the doorbell, if the APP does not perform any operation, the doorbell will not push information to the phone within 30 seconds after pressing the doorbell to prevent someone from maliciously pressing the doorbell. 3).Check whether the doorbell is reset, if the bell prompts the network failure, the device may be reset, ask the administrator to re-bind (the first bound account is the administrator). 4).Check whether the push of APP device settings have opened "APP push" 5).if the above conditions are still not pushed, please restart the phone, if it still does not work after restart, please contact the merchant, 6. Severe delay in ringing and pushing This is caused by unstable Wi-Fi network, you can try to restart the router or phone to test again. 7. Prompt networking failure after doorbell binding 1).Check whether the doorbell is too far from the router or installed on metal doors and load-bearing walls, the above may lead to weak and unstable Wi-Fi signal, you can take the doorbell to the router around to test whether it can work properly 2).Please check whether the doorbell has been reset, it is recommended that the administrator rebind once (the first binding account is the administrator). 8. Connect the video without displaying the image, showing network connection failure Check the arrival record, if there are captured photos, try to restart the router or phone, the problem is caused by network instability. 9. Unable to connect to the video, showing that it was answered by another user or timeout 1). After ringing the bell, it takes 30 seconds to answer the video, otherwise it…

Text truncated - open the document above for the full version.

Shenzhen Gibbs Technology Co., Ltd 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-2 To whom it may concern: We, Shenzhen Gibbs Technology Co., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BFLG-I9) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Wei Tong Manager Shenzhen Gibbs Technology Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Gibbs Technology Co., Ltd 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/03/27 U.S. Agent Designation Shenzhen Gibbs Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFLG-I9): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Gibbs Technology Co., Ltd Shenzhen Gibbs Technology Co., Ltd with the FRN [0035185362] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Wei Tong Manager Shenzhen Gibbs Technology Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Gibbs Technology Co., Ltd Add: 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Date: 2024-4-2 FCC ID: 2BFLG-I9 Dear Sir/Madam, We, Shenzhen Gibbs Technology Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Intelligent visual doorbell Model no.: i9, A9, e9, c9, d9, f9, h9, p9, g9, x9, w9 Sincerely, Name/Title： Wei Tong/Manager Company: Shenzhen Gibbs Technology Co., Ltd Address: 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Phone: 18928486196 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-4-2> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BFLG-I9 i9 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wei Tong/Manager Company: Shenzhen Gibbs Technology Co., Ltd Address: 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Phone: 18928486196 Fax: N/A E-Mail: [email protected]

Shenzhen Gibbs Technology Co., Ltd 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Date: 2024-4-2 FCC ID: 2BFLG-I9 Model Number: i9 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Gibbs Technology Co., Ltd, declare that this EUT (FCC ID: 2BFLG-I9) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Wei Tong/Manager Company: Shenzhen Gibbs Technology Co., Ltd Address: 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Phone: 18928486196 Fax: N/A E-Mail: [email protected]

Shenzhen Gibbs Technology Co., Ltd 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-2 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BFLG-I9 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wei Tong/Manager Company: Shenzhen Gibbs Technology Co., Ltd Address: 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District,Shenzhen China Phone: 18928486196 Fax: N/A E-Mail: [email protected]

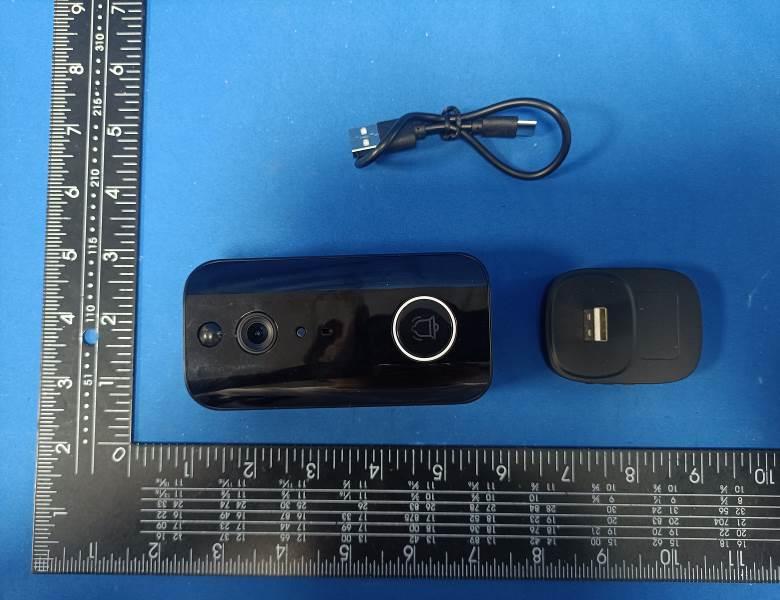

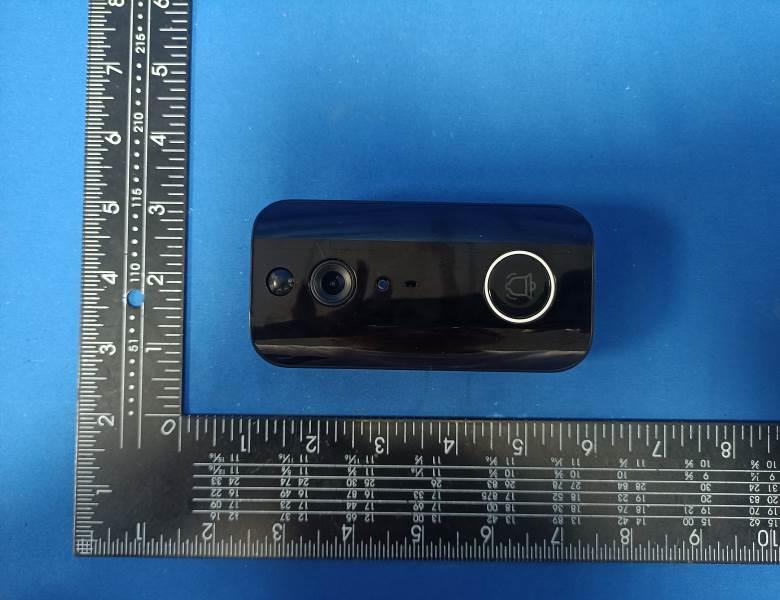

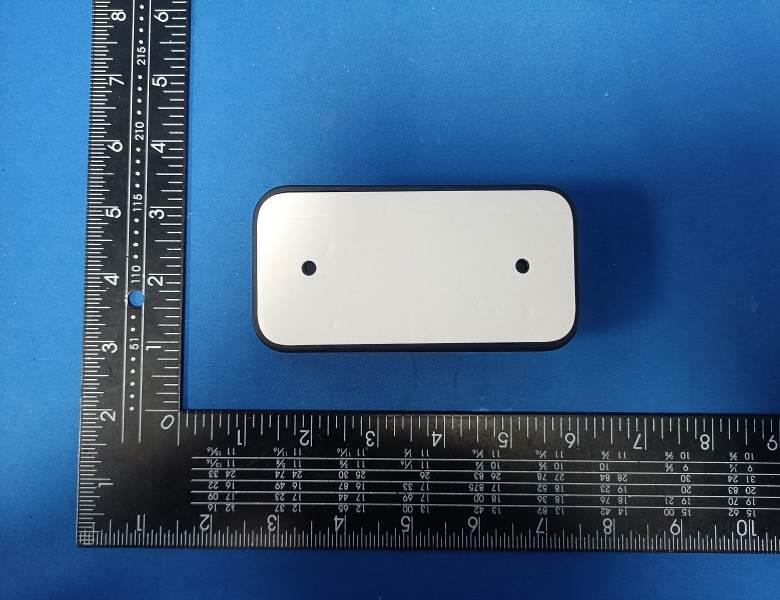

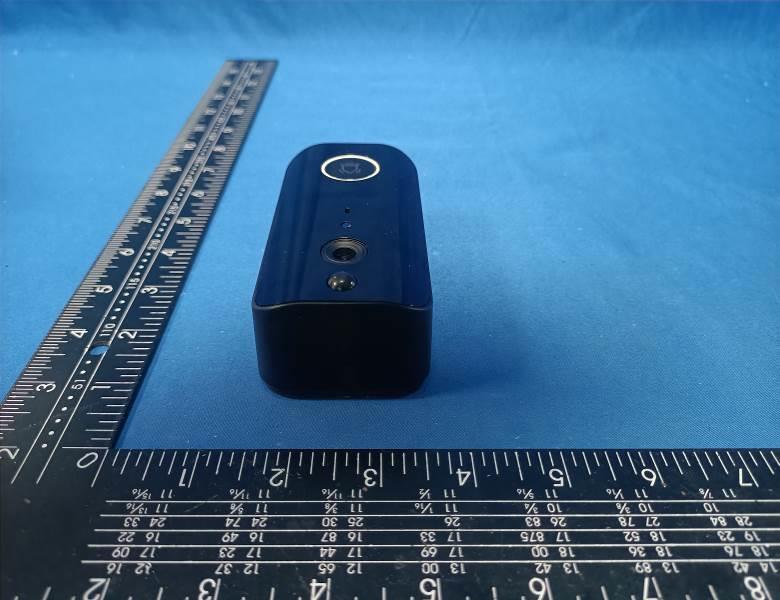

FCC ID: 2BFLG-I9 External Photos of the EUT FCC ID: 2BFLG-I9 FCC ID: 2BFLG-I9

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BFLG-I9

FCC ID: 2BFLG-I9 Internal Photos of the EUT FCC ID: 2BFLG-I9 433MHz Spring Antenna BT/2.4G WIFI PIFA Antenna FCC ID: 2BFLG-I9

RF Exposure evaluation FCC ID: 2BFLG-I9 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information X3 Pro can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB antenna 0.98dBi for 2400-2500MHz SRD / Spring antenna 0.0dBi for 400-500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) BLE(Peak) 2402 2440 2480 Target (dBm) 1.0 1.0 1.0 Tolerance ± (dB) 1.0 1.0 1.0 Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 433.92MHz 75.82 -19.44 -19.0±1 -18.0 Note: EIRP=E-104.8+20logD, D=3 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (Mw/cm 2 ) MPE Limits (Mw/cm 2 ) dBm Mw 2.4GWIFI 15.0 31.6228 0.98 1.2531 0.0079 1.0000 BLE 2.0 1.5849 0.98 1.2531 0.0004 1.0000 SRD -18.0 0.0158 0.0 1.2023 0.0000 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) SRD MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0079 0.00 0.0079 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model i9-1 Frequency range 2400-2500MHz Manufacturer Shenzhen Gibbs Technology Co., Ltd ANT Peak Gain 0.98 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24032001102 2BFLG-I9 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Mar. 26, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Gibbs Technology Co., Ltd Address ............................................ : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Intelligent visual doorbell Trade Mark ....................................... : 吉布斯jibusi Manufacturer .................................... : Shenzhen Gibbs Technology Co., Ltd Model/Type reference....................... : i9 Listed Models .................................. : A9, e9, c9, d9, f9, h9, p9, g9, x9, w9 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24032001102 Page 2 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent visual doorbell Model /Type : i9 Listed Models : A9, e9, c9, d9, f9, h9, p9, g9, x9, w9 Applicant : Shenzhen Gibbs Technology Co., Ltd Address : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Gibbs Technology Co., Ltd Address : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24032001102 Page 3 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA24032001102 Page 4 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24032001102 Page 5 of 32 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, B…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24032001103 2BFLG-I9 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 26, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Gibbs Technology Co., Ltd Address ............................................ : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Intelligent visual doorbell Trade Mark ....................................... : 吉布斯jibusi Manufacturer .................................... : Shenzhen Gibbs Technology Co., Ltd Model/Type reference ...................... : i9 Listed Models .................................. : A9, e9, c9, d9, f9, h9, p9, g9, x9, w9 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24032001103 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Intelligent visual doorbell Model /Type : i9 Listed Models : A9, e9, c9, d9, f9, h9, p9, g9, x9, w9 Applicant : Shenzhen Gibbs Technology Co., Ltd Address : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Gibbs Technology Co., Ltd Address : 502, Building 2, No. 48 Kangzheng Road, Danzhutou Community, Nanwan Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24032001103 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24032001103 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC r…

Text truncated - open the document above for the full version.
