2BFM8-S1Wireless IEMs LivePods

User Manual Mobile Studio S1 Wireless IEMs LivePods www.thriveaudiotech.com 01 Package List Host*1User Manual*1 Dual Type-C Charging Cable*1 livepods*2Silicone Ear Tips*2 Free Gift Type-C To Lightning Converter*1 Type-C To USB Converter*1 Product Introduction 1.Mode Switch Buon 2.Microphone (Built-in Component) 3.Host Volume Buon 4.Host Volume Buon 5.Host volume Indicator Light 6.Host volume Indicator Light 7.Type-C Charging Port Host 1. LivePods light indicator light 2.secondary microphone for LivePods 3. Main Microphone for the LivePods 4. Silicone Ear Tips 5. Charging Pin 6. Touch Control Area LivePods 03 "TWS MODE" Touch Control Instructions ThriveAudio S1 Bluetooth Bluetooth 02 Power On When you open the host case, the LivePods will power on automatically. Power O When you put the LivePods into the host and close the case, the LivePods will power o automatically. Bluetooth Connection Turn on your bluetooth in “seings” , search the available device, and click "ThriveAudio S1" to pair it. Bluetooth Connect Switch to "TWS Mode" If the host is in "Show Mode"(the indicator light of the host keeps green), press the main buon for 2 seconds. S1 will switch to "TWS Mode" ( the indicator light of the host turns o). Note: When using the left or right LivePods individually, volume adjustment via LivePods touch control is not supported. 05 Show Mode Control Instructions Note:there’s noise canceling algorithm inside the host, please increase the volume of the host if there’s a noise around you. The bigger the volume is, the stronger the noise canceling will be. Show Mode 04 How to Switch to "Show Mode" If in "TWS Mode", press the host main buon for 2 seconds. The host will switch to "Show Mode"(the host indicator light will stay green). Operation Note Feature Triple click or L R Long-press L Long-press R Double Click or L R One Click or L R Music: Play/Pause Call: Answer Music: Next track Call: Reject/End Music: volume down Music: Previous track Music: volume up 3s 3s Clear Bluetooth pairing information: In "TWS Mode", place both livepods back into the host, then long-press the host volume for 5 seconds while the cover is open. the host indicator light will flash alternately between orange and green. Once pairing is cleared, the indicator light will turn o. Note:If LivePods prompts ”Show Mode" after switching, but the host indicator light is flashing green, it means the connection between the LivePods and the host fails. Please put both LivePods back into the host and keep the host case is open, then long-press the host volume for 5 seconds. The host indicator light will flash between orange and green. Once pairing is successful, the green light will remain on. Operation Note Feature Single Click Long press for 2 seconds Mode switch The host wil automatically switch back to TWS Mode when the baery of the host is below 15%. Switch between four sound eects: Hall Reverb, Space Reverb, Room Reverb, and Original Sound in a loop Sound eect switch The maximum volume level is 10. When the volume reaches level 10, the LivePods will prompt a ‘beep’ sound. The minimum volume level is 0. When the volume reaches level 0, the LivePods will prompt a ‘beep’ sound. Microphone input volume decrease Press any buon when in-ear monitoring is o Two indicator lights keep green Two indicator lights keep orange In-ear monitoring o In-ear monitoring on Microphone input volume increase Single Click Single Click Long press both for 2 seconds 06 6.1 Singing/Practice Singing & Karaoke Scenario Sing for Fun: If you just enjoy singing, no need to save your songs after singing, you can just use them wirelessly. The host will play as a professional HD microphone+audio interface+in-ear monitoring system. How to Use S1 in Show Mode? Sing for Sharing (Recommended): If you want to save the song and playback and share after singing, please connect the host to your phone with the cable. This will make sure the accompanying music and your voice are together when you playback. HD Singing Input+ Lossless Accompanying Music Karaoke APP 08 1. We provide one-year warranty service from the date of product purchased. Free gift accessories provided with the product are not covered under warranty. During normal use of the product, if there is a performance failure not caused by human-made error, free maintenance service will be provided. 2. Please send the product for repair along with the packaging box, completed warranty card, and purchase receipt to the designated location of our company for maintenance. 3. If any of the following situations occur, consumers cannot enjoy the warranty rights: a.Non-genuine product b.Damage caused by man-made factors, including damage resulting from abnormal usage environments, failure to follow instructions for use and storage, etc. c.Damage caused by force majeure. Hearing Loss Prolonged exposure to high volume levels may aect hearing health. It is recommended not to use excessively high volume levels. Baery Note: Using the wrong type of baery pack may cause safety protection failure. - Do not place the baery pack in extremely high-temperature environments; if severe swelling occurs, do not continue to use it. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -…

Text truncated - open the document above for the full version.

Shenzhen BaJin Technology Co.,LTD Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-2 To whom it may concern: We, Shenzhen BaJin Technology Co.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BFM8-S1) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Yanguo Peng Manager Shenzhen BaJin Technology Co.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen BaJin Technology Co.,LTD Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City. PRC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/03/30 U.S. Agent Designation Shenzhen BaJin Technology Co.,LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BFM8-S1): Name and company of U.S. agent: THREE STONES MEDIA LLC Physical U.S. address of agent: 1200 Broadway St. APT 329 Los Angeles, CA 90015 United States FRN of U.S. agent: 0033401761 Email address of U.S. agent: [email protected] THREE STONES MEDIA LLC acknowledges their obligation to accept service of process on behalf of Shenzhen BaJin Technology Co.,LTD Shenzhen BaJin Technology Co.,LTD with the FRN [0035201789] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yanguo Peng Manager Shenzhen BaJin Technology Co.,LTD Signature Sijie Zhang CEO THREE STONES MEDIA LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen BaJin Technology Co.,LTD Add: Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Date: 2024-4-2 FCC ID: 2BFM8-S1 Dear Sir/Madam, We, Shenzhen BaJin Technology Co.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless IEMs LivePods Model no.: S1, K1, L1, X1, C1 Sincerely, Name/Title： Yanguo Peng/Manager Company: Shenzhen BaJin Technology Co.,LTD Address: Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Phone: 18165740901 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-4-2> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BFM8-S1 S1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yanguo Peng/Manager Company: Shenzhen BaJin Technology Co.,LTD Address: Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Phone: 18165740901 Fax: N/A E-Mail: [email protected]

Shenzhen BaJin Technology Co.,LTD Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-4-2 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BFM8-S1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yanguo Peng/Manager Company: Shenzhen BaJin Technology Co.,LTD Address: Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City China Phone: 18165740901 Fax: N/A E-Mail: [email protected]

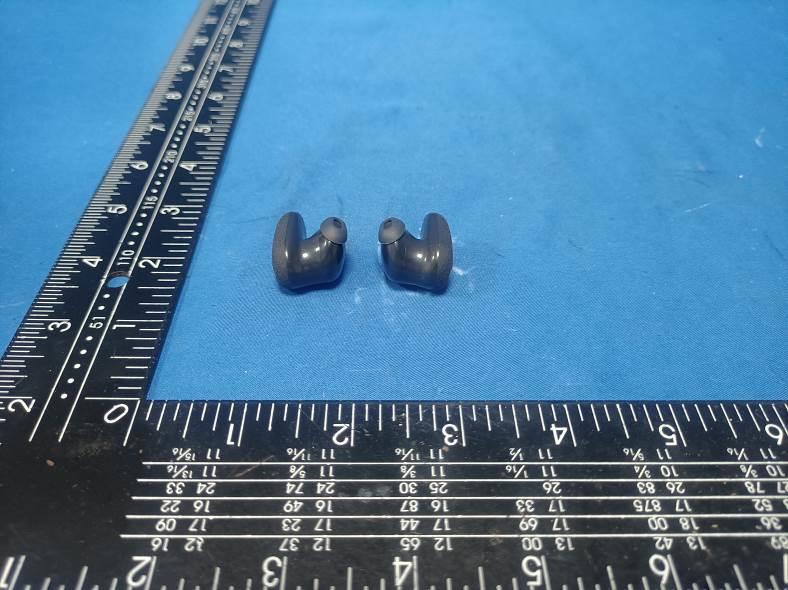

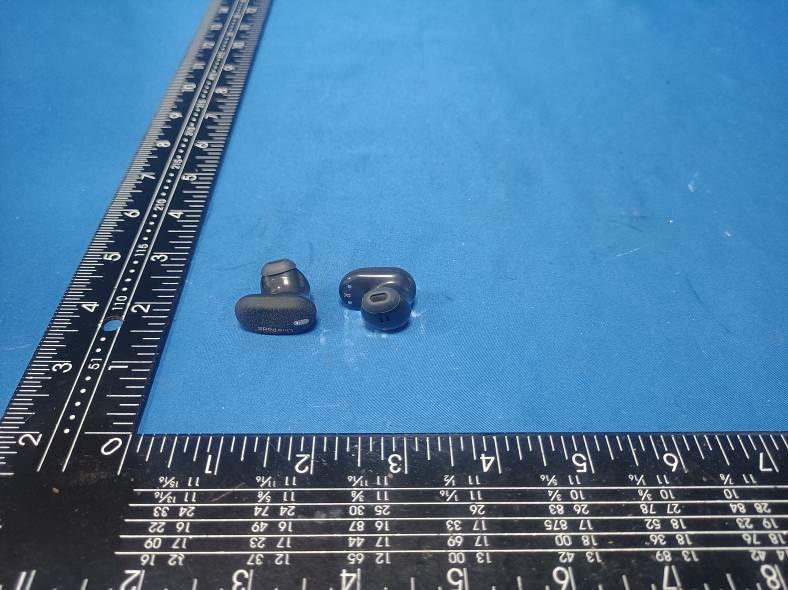

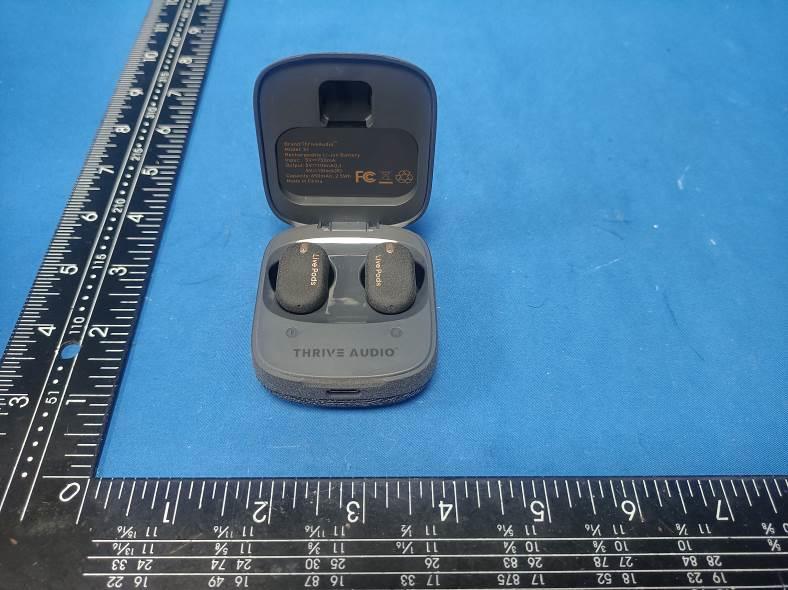

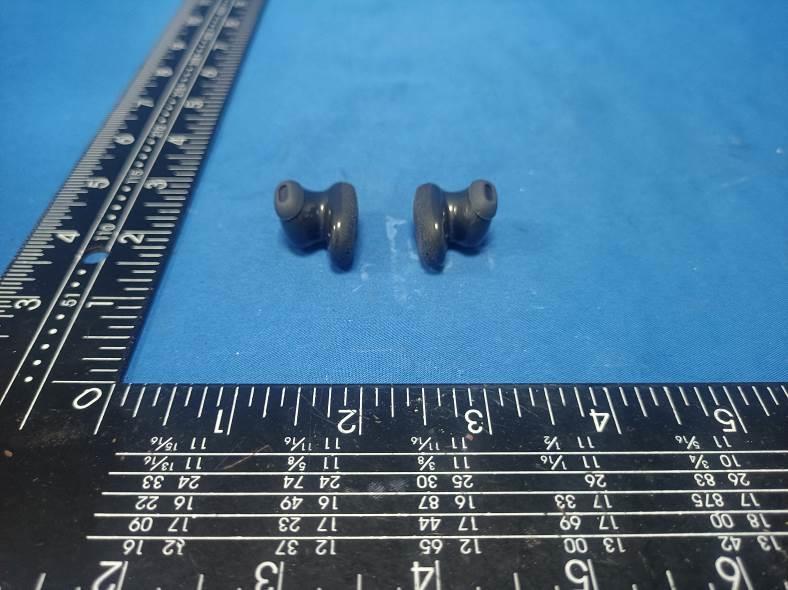

FCC ID: 2BFM8-S1 External Photos of the EUT FCC ID: 2BFM8-S1 FCC ID: 2BFM8-S1

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BFM8-S1

FCC ID: 2BFM8-S1 Internal Photos of the EUT Left side BT PIFA Antenna FCC ID: 2BFM8-S1 FCC ID: 2BFM8-S1 Right side BT PIFA Antenna FCC ID: 2BFM8-S1

RF Exposure evaluation FCC ID: 2BFM8-S1 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 1 OF 6 S 2 1 B B F B 7 0 7 B 4 ( 1 ) ( 2 ) ( 3 ) ( 4 ) (5) 6 1 0 7 0 7 BT FPC Antenna (D95-L/R) 1. Explanation of Product Number Product Description: (1) Product Categories: B:BT Antenna (2) Dimensions: B1:17.5*11.16 (mm) (3) Material: F: FPC (4) Working Frequencies: 1B: 2.4G-2.5G (5) Antenna Series: 01: Serial number Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 2 OF 6 2. Features *Stable and reliable in performances *RoHS compliance *Low cost 3. Applications *BT 4． Description * YINGFENMG FPC antenna series are specially designed for 2.4G-2.5G band application. Based on YINGFENG proprietary designs and processes, this FPC antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Antenna Electrical Specifications : Characteristics Specifications Unit Outline Dimensions 17.5*11.16 mm Frequency 2400~2500 MHz Impedance 50  Polarization Linear Polarization Return Loss Table Return Loss Freq.Band 2.4G Hz 2.45G Hz 2.5G Hz dB -16.98 -29.81 -17.34 VSWR Table VSWR Freq.Band 2.4G Hz 2.45G Hz 2.5G Hz 1.18 1.08 1.29 GAIN Table Total Gain = Xpol + Ppol Freq.Band 2400MHz 2450MHz 2485MHz 2500MHz Peak Gain(dBi) 1.51 1..72 1.69 1.23 Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 3 OF 6 6．Dimensions (unit: mm) blic errand：±0.2mm 正面加双面胶3.5mm 7. Measurement Characteristics: (1) Return Loss (2) VSWR Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 4 OF 6 8. Three D Radiation Pattern measurements 9.Radiation Pattern Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 5 OF 6 9-1.3D Gain Pattern (Radiation Pattern at 2450 MHz) 9-2.2D Gain complete machine (Radiation Pattern at 2450 MHz) -Y -Z X Tolerances (Unless otherwise specified) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD X : ± 1 X.X : ± 0.1 X.XX : ± 0.01 Angle : ± Hole Dia. : ± Scale : Unit：mm THIS SPECIFICATION IS THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED IN ALL CIRCUMSTANCES WITHOUT WRITTEN PERMISSION Drawn By : Shelley Checked By : Simon Designed By :Simon Approved By :Simon TITLE：BT FPC Antenna(D95-L/R) PART S2B4BB1F1B67000 REV. NO. A PAGE 6 OF 6 9-3.complete machine Efficiency Table 10-1产品包装 Product packaging 版本edition:: V2.0 页码Page: 1/1 1.产品排版: 21*6=126套 2.离型纸隔层摆放保护天线Barrier paper protection products 3.密封袋封装效果 Sealing bag packaging effect 4.纸箱封箱效果(贴出货标签和ROHS标签 Carton sealing effect 10-2.Revision Control: Revision Date Content Remark A 2024-2-21 New Issued. N/A Frequency(MHz) 2400 2420 2450 2460 2480 2500 Efficiency (dB) -2.22 -1.71 -2.09 -2.13 -2.24 -2.07 Efficiency (%) 30.9 32.3 36 35 29.18 26 Gain (dBi) 1.51 1.62 1.72 1.7 1.69 1.23

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24031501502 2BFM8-S1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 20, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen BaJin Technology Co.,LTD Address ............................................ : Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City. PRC. Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless IEMs LivePods Trade Mark ....................................... : N/A Manufacturer .................................... : Sichuan Chuansheng Technology Co., LTD Model/Type reference ...................... : S1 Listed Models .................................. : K1, L1, X1, C1 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24031501502 Page 2 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless IEMs LivePods Model /Type : S1 Listed Models : K1, L1, X1, C1 Applicant : Shenzhen BaJin Technology Co.,LTD Address : Room 2408, Changhong Science and Technology Building, 12th Science and Technology South Road, Yuehai Street, Nanshan District, Shenzhen City. PRC. Manufacturer : Sichuan Chuansheng Technology Co., LTD Address : No. 385 Fujin Road, Fucheng District, Mianyang City, Sichuan Province, PRC. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24031501502 Page 3 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 42 4.10 Antenna Requirement 43 5 T E S T S E T UP P H O T O S O F T H E E U T ......................................... 44 6 P H O T O S O F T H E E U T ........................................................... 45 Report No.: CTA24031501502 Page 4 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24031501502 Page 5 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China T…

Text truncated - open the document above for the full version.

Report No.: CTA24031501502 Page 35 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn GFSK(CH78) π/4DQPSK (CH00) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24031501502 Page 36 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24031501502 Page 37 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH00) 8DPSK (CH39) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24031501502 Page 38 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH78) reference 30MHz-1G 3G-25G Report No.: CTA24031501502 Page 39 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24031501502 Page 40 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web…
