2BFNU-C44P2DV2ALLYBOTC2

UserManual ALLYBOTC2CleaningRobot PleasereadthisUserManualcarefullybeforeusingthisproductandkeepthismanualproperly. Dearusers: ThankyouforpurchasingAllybot-C2commercialcleaningrobot(“robot”or“thisproduct”forshort). Tohelpyouusethisproductcorrectlyandquickly,pleasereadthisdocumentcarefullybeforeuse,andkeepthe manualproperlyforfuturereference.Duetocontinuousupdates,theremaybesomedifferencesbetweenthe actualproductandtheUserManual.Pleaserefertotheactualproduct.Ifyouhaveanydoubts,pleaseconsultour company. Ifyouencounteranyproblemsinuse,pleasecontacttheIntelligence.AllyTechnologyafter-salescustomerservice staffinthefollowingways: 1.Calltheservicehotline0755-86571078,andwewillarrangeprofessionalstoanswerforyou. 2.ScantheQRcodebelowtofollowourWeChatVideoChannel“Intelligence.AllyTechnology”,andwatchthe videotutorial. 3.ScantheQRcodebelowtofollowourWeChatAccount“Intelligence.AllyTechnology”,andconsultonline customerservicestaff. YoucanalsoscantheQRcodebelowtodownloadthe“ALLYBOT”appinadvancetounlockmorefunctions Wewishyouapleasantuse! OfficialWeChatAccountAppDownloadWeChatVideoChannel 1 CONTENTS 2 03/ Product Introduction Inthepackage Productdetails 08/ ProductUse Safety Instructions Instructionsfor Installation Instructionsfor Use 23 Specifications 25/ Troubleshooting FAQ FaultPrompts 30 Cleaning& Maintenance 37 Warranty Service 3 ALLYBOTC2 ProductIntroduction 4 Inthepackage MainBody Robot×1Chargingpilebody×1Chargingdock×1 Accessories Floorwashingchamber×1Dustmoppingchamber×1Dustmoppingpad×2 Hard-hairrollerbrush×1Filterbag×1HEPAfilter×1 Remotecontroller×1Remotecontrollerpowercable×1Chargingpilepowercable×1 5 Productdetails DetachableComponentsoftheRobot Sewagetank Cleanwater tank Battery Cleaning component 6 Robot RGBstructuredlight camera Structuredlightcamera Chargingcontactpoint Sewage tank Battery 2Dlaserradar Touchdisplay screen Speaker Handlingclasp Emergencystop button Ultrasonicwave radar Cleanwatertank 7 RemoteController ChargingPile Joystick(forward,backward,turnleft, turnright) Powerlight Powerswitch Auto/remotecontrol switch Charging indicatorlight MicroUSBport Indicatorlight Recognition zone Chargingcontact pin Powerport Chargingdock 8 ALLYBOTC2 ProductUse 9 ProductUse UseRestrictions PleaseusethisproductaccordingtotheUserManual.Non-professionalsareprohibitedtodetachandinstall non-detachableparts.Inparticular,itisprohibitedtodisassemble/collideallsensors.Theusershallbeliablefor anydamagecausedtherefrom. Pleasedonotusethisproductinareasabove2,000mabovesealevel. Donotuseorparkthisproductinapure-slopeplacewithaslopeanglegreaterthan10°. Donotusethisproductatanenvironmenthigherthan40°Candlowerthan0°C. Pleasefollowroutinesafetyprecautions,anddonotwashorspraytherobotwithwater. Pleasedonotplaceanyobjects(includingchildrenandpets)onthestaticormovingrobotbody. Pleaseavoidsuddenapproachorblockagebypeopleorpetswhentherobotisworking,whichmaycause collisionordamage.  Donotusethisproducttocleananyburningobjects(suchasburningcigarettebutts),hardobjectsorsharp objects(suchasdecorationwastes,glass,andnails).  Thisproductisnotapplicableforscenarioswithpoorgroundconditions,suchasunevengroundandground withlargepotholes.Pleasedonotuseitinthesescenariosandbypassthesedangerousareaswhenplanninga path. Donotusethisproductonsoilsurfaces,grasses,artificialturfsorcarpetedfloors.  Donotdeployandusethisproductindarkandhumidenvironments.Excessivehumidenvironmentmay causedamagetocircuitsorelectroniccomponentsinthisproduct. 10 SafetyInstructions Thisproductmustbeusedandkeptbyfull-timeandprofessionally-trainedpersonnel.Besuretobefamiliar withthisUserManualbeforeuse.  Thisproductshouldbetransportedandhandledinaccordancewiththeroadtransportrequirementsforsteel springdampingtrucksinGB/T4857.23-2012.  ThisisaClassAproduct,whichmaycauseradiointerferenceinlivingenvironments.Inthiscase,usermay needtotakepracticalmeasuresagainstinterference. Environmentssurroundedbyglasswallsorotherhighly-transparentmaterialsmayaffecttherobotsensor function.Therefore,itisnotrecommendedtousethisproductintheaboveenvironmentstoavoid unnecessaryrisks. Intheeventofemergenciessuchasanabnormalrunningstatusoranaccident,theusercanpressthe emergencystopbuttontostoptherobottoavoidpossibleharmtothesurroundingenvironment. Beforetransportingthisproduct,pleaseensurethattherobotispoweredoff,anditisrecommendedtopackit intheoriginalpackingbox. 11 Battery&Charging Pleaseuseaproperly-groundedpowersupplythatcomplieswithlocalregulationsandthisUserManual. Otherwise,itwillcauseelectricshockanddamagetotherobot.  Beforeuse,clipthechargingdockintothedockgroove,andlockthefivescrewsatthebottomofthe chargingdockwithscrews.  Beforeconnectingthisproducttothepowersupplyusingthechargingdock,pleasemakesurethatthe chargingdockisingoodcondition. Pleaseplacethechargingdockagainstthewallonahorizontalground,andensureaspacewithmorethan1 monbothsidesandmorethan1.5matthefrontofthechargingdock. Donotgetthechargingdockclosetoaheatsource(suchasaheatingradiator). Pleasechargetherobotwiththeoriginalchargingdockprovidedwiththerobot. Pleaseplacethechargingdockclosetothewalltoavoiddisplacement. Donotfallorhitthechargingdock.  Donottouchthepowercablewithwethands,orpulloutthechargingdockbypullingthepowercable. Protectthechargingdockagainstrain,liquid,anddamp.  Donotusethebatterywithotherdevices.  Donottrytotouchthechargingdockandtherobot’schargingportoutputtoavoidrisks.  Donotdisassemble,repairormodifythebatteryorchargingdockwithoutpermission. Ifthepowercableisstripedorbroken,pleaseimmediatelystopusingitandcontactcustomerservicestaff.  Ifthisproductistobeidleforalongtime,pleasepowerofftherobotandplaceitinacoolanddryplace afterfullychargingit.Chargetherobotatleastonceeverythreemonthstoavoidbatteryover-discharge. 12 Initialinstallation 1.Installthechargingdock Clipthechargingpileintothedockgrooveandlockthesixscrewsatthebottomofthechargingpile. 2.Fixthechargingpile Placethechargingpileagainstthewallonahorizontalground,andconnectthepowercabletothechargingpile. Whenthe…

Text truncated - open the document above for the full version.

FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated withminimum distan ce 20cm between the radiator & your body.

Shenzhen Intelligence.Ally Technology Co.,Ltd. (2024/04/02) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2BFNU-C44P2DV2) [Shenzhen Intelligence.Ally Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) guoqing song Shenzhen Intelligence.Ally Technology Co.,Ltd. (2024/04/02) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2BFNU-C44P2DV2) [Shenzhen Intelligence.Ally Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) guoqing song

Attestation Statements (2024/04/02) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2BFNU-C44P2DV2) (Shenzhen Intelligence.Ally Technology Co.,Ltd.), the undersigned, hereby authorize (GSS SERVICE INC) to act as our designated U.S. agent for service of process, (Shenzhen Intelligence.Ally Technology Co.,Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (GSS SERVICE INC) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Shenzhen Intelligence.Ally Technology Co.,Ltd. Contact Name: guoqing song Address: 3001-3004, Building 6, Shenzhen International Innovation Valley, Dashi 1st Road, Xi li Street, Nanshan District, Shenzhen, Guangdong, China Telephone No: 13192988436 Email: [email protected] Signature guoqing song U.S. Agent Information: Company Name: GSS SERVICE INC Address: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN: 0033402082 Contact Name: Michoux Logan Telephone No: 001-949-2990192 Email: [email protected] Signature Michoux Logan

Shenzhen Intelligence.Ally Technology Co.,Ltd. Model Difference Model: C44P2DV2, C44P2DV2-1, CC201, C44P2DV2-2, CC201-1, co-botic45 All the models are the same circuit and RF module, except the models names. Regards Sincerely, Client’s signature Client’s signature: Client’s name / title: guoqing song/ Engineer 3001-3004, Building 6, Shenzhen International Innovation Valley, Dashi 1st Road, Xi li Street, Nanshan District, Shenzhen, Guangdong, China

Shenzhen Intelligence.Ally Technology Co.,Ltd. 04/02/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (ALLYBOTC2/ # AND FCC ID: 2BFNU-C44P2DV2 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: guoqing song/ Engineer 3001-3004, Building 6, Shenzhen International Innovation Valley, Dashi 1st Road, Xi li Street, Nanshan District, Shenzhen, Guangdong, China

Shenzhen Intelligence.Ally Technology Co.,Ltd. 04/02/2024 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTA Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: guoqing song/ Engineer 3001-3004, Building 6, Shenzhen International Innovation Valley, Dashi 1st Road, Xi li Street, Nanshan District, Shenzhen, Guangdong, China

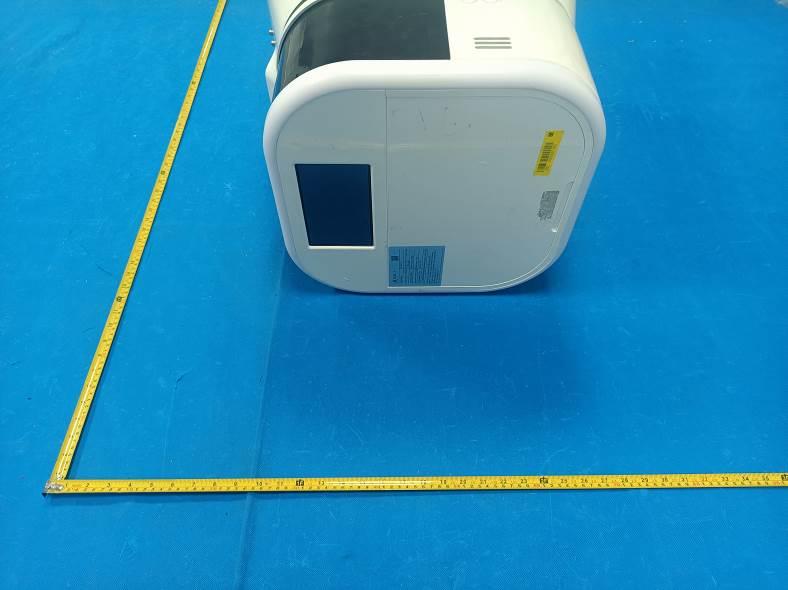

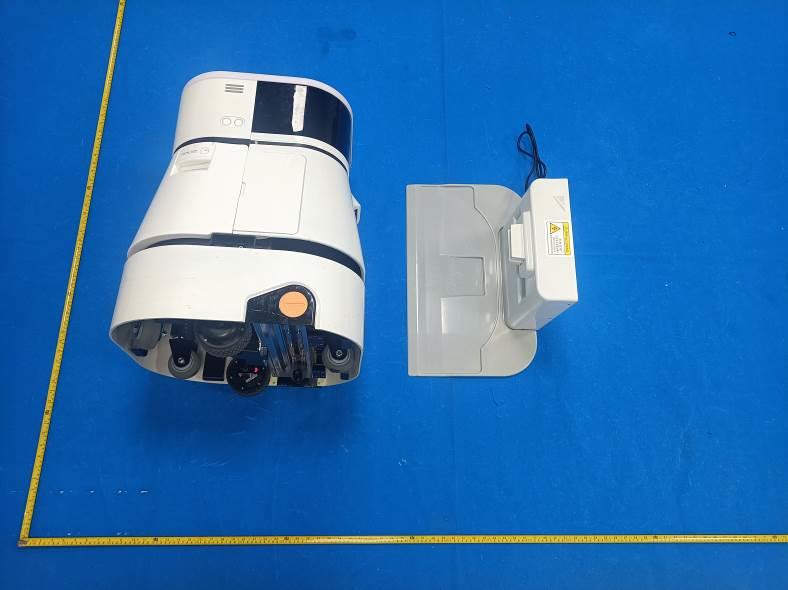

FCC ID: 2BFNU-C44P2DV2 External Photos of the EUT FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2

3.2*4.1cm

FCC ID: 2BFNU-C44P2DV2 Internal Photos of the EUT FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 2.4G WIFI Antenna FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2 FCC ID: 2BFNU-C44P2DV2

RF Exposure evaluation FCC ID: 2BFNU-C44P2DV2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Briller can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / Internal ANT 2.00dBi for 2400-2500MHz LTE： 5. Manufacturing Tolerance IEEE 802.11b (Average) Frequency (MHz) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11g (Average) Frequency (MHz) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) Frequency (MHz) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI ANT1 14.0 25.1189 2.0 1.58 0.0079 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4G WIFI ANT1 MPE (Ratio) LTE MPE (Ratio) simultaneous MPE (Ratio) MPE Limits 0.0079 0.13 0.1379 0.48 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------
