2BFPDYFBT30MBluetooth Module

Yofree Technology Co., Ltd.
Bluetooth Module - FCC ID 2BFPDYFBT30M - Yofree Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 02, 2024
Application Purpose
Original Equipment
Date of Application
Jul 02, 2024
Equipment Note
Bluetooth Module
Frequency Range
2402.00000000 - 2480.00000000
Company
Yofree Technology Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 Yofree YFBT30M is a Bluetooth Low Energy 5.3 module designed based on Nordic nRF52805 solution, which incorporates: GPIO, SPI, UART, I2C, PWM and ADC interfaces for connecting peripherals and sensors.YFBT30M module dimension is 15.7mm x 10mm x 2.3mm. It is designed for small form factor product. 1.1. Features ⚫ Support Bluetooth Low Energy(BLE) 5.3 ⚫ 32-bit ARM Cortex –M4 processor ⚫ 192KB flash programmed memory and 24KB RAM ⚫ Application development independent from protocol stack ⚫ On-air compatible with nRF51, nRF24AP and nRF24L series ⚫ RAM mapped FIFOs using EasyDMA ⚫ RSSI ⚫ Flexible and configurable 10 pin GPIO ⚫ Programmable peripheral interface –PPI ⚫ Software stacks available as downloads ⚫ Simple ON / OFF global power mode ⚫ Full set of digital interface all with Easy DMA including: ‧1 x Hardware SPI master ; 1 x Hardware SPI slave ‧1 x two-wire master ; 1x two-wire slave ‧1 x UART (CTS / RTS) ⚫ PDM for digital microphone ⚫ Quadrature demodulator ⚫ 12-bit / 200KSPS ADC ⚫ 128-bit AES ECB / CCM / AAR co-processor ⚫ 4-channel pulse width modulator (PWM) unit with Easy DMA ⚫ Low cost external crystal 32MHz ±40ppm for Bluetooth ⚫ Low power 32MHz crystal and RC oscillators ⚫ Wide supply voltage range 1.7V to 3.6V ⚫ On-chip DC/DC buck converter ⚫ Individual power management for all peripherals ⚫ Timer counter: ‧3x32-bit ‧2x 24-bit RTC 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.2. Application ⚫ IoT ‧Home automation ‧Sensor networks ‧Building automation ⚫ Personal Area Networks ‧Health / fitness sensor and monitor device ‧Medical devices ‧Key-fobs and wrist watches ⚫ Interactive entertainment devices ‧Remote control ‧Gaming controller ⚫ Computer peripherals and I/O devices ‧Mobile HID ⚫ Beacons 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.3. Pin Assignment Pin No. Name Pin function Description 1 GND Ground The pad must be connected to a solid ground plane 2 SWDIO Digital I/O Serial Wire debug I/O for debug and programming 3 SWDCLK Digital input Serial Wire debug clock input for debug and programming 4 P0.21 Digital I/O General-purpose digital I/O Configurable as system RESET pin RESET Configurable as system RESET pin 5 P0.18 Digital I/O General-purpose digital I/O 6 P0.20 Digital I/O General-purpose digital I/O 7 P0.16 Digital I/O General-purpose digital I/O 8 P0.12 Digital I/O General-purpose digital I/O 9 P0.05 Digital I/O General-purpose digital I/O AIN3 Analog input SAADC/COMP input 10 P0.04 Digital I/O General-purpose digital I/O AIN2 Analog input SAADC/COMP input 11 P0.00 Digital I/O General-purpose digital I/O XL1 Analog input Connection to 32.768khz crystal (LFXO) 12 P0.01 Digital I/O General-purpose digital I/O XL2 Analog input Connection to 32.768khz crystal (LFXO) 13 GND Ground The pad must be connected to a solid ground plane 14 VDD Power Power-supply pin 15 DCC Power DC/DC converter output pin 16 DEC4_2 Power 1V3 regulator supply decoupling. Input from DC/DC converter. Output from 1V3 LDO . 17 P0.14 Digital I/O General-purpose digital I/O 18 GND Ground The pad must be connected to a solid ground plane 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.4. Module Pin Description: 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.5. Module Outline And Dimension 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.6. Recommended Host PCB Antenna Keep Out Area and Foot Print 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.7. Thickness 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 1.8 Antenna Radiation Pattern 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 2.0 Package Information 2.0.1 Tape and Reel 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 友發科技股份有限公司 Yofree Technology Co., Ltd. YFBT30M Specification V1.47 3.0 CERTIFICATION NOTICES YFBT30M is certified for a global market. This facilitates the user end-product market entry. Please note that the end-product would need to apply for the end-product certification, however the module certification listed below will facilitate that procedure. When the end user sends the end-product to those markets, the end-product may need to follow additional requirements according to the specific market regulation. 3.1 FCC (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3.1.1 RF exposure considerations This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This module is approved for installation into mobile or/and portable host platforms. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures. 3.1.2 Antennas This radio transmitter FCC ID : 2BFPDYFBT30M and has been approved by Federal Communications Commission to operate with the antenna types listed below. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Manu…

Text truncated - open the document above for the full version.

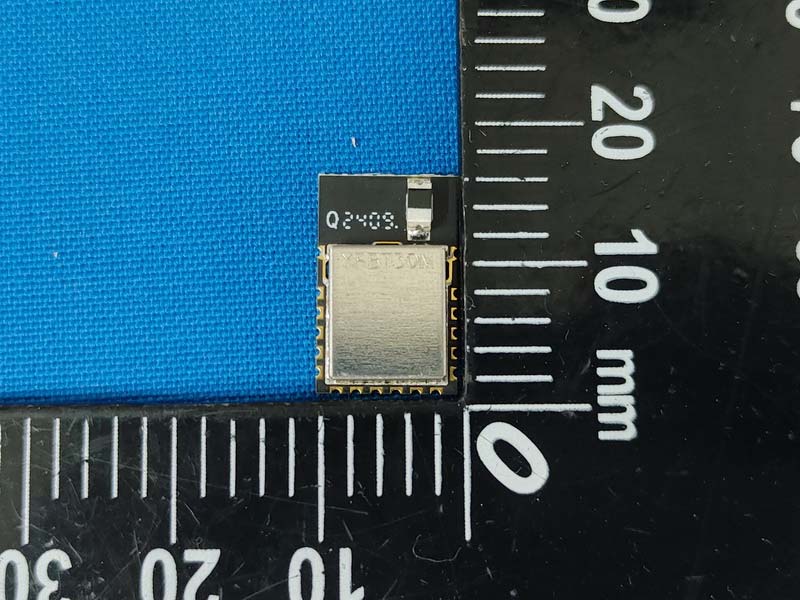

External Photos

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 1 of 1 External Photographs ***** END *****

Internal Photos

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 1 of 3 Internal Photographs Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 2 of 3 Antenna Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 3 of 3 Module ***** END *****

RF Exposure Info

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ240403016RF03 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 14 of 55 5 FCC §15.247(i), §1.1307(b)(3) - RF Exposure 5.1 Applicable Standard According to subpart 15.247(i) and subpart §1.1307(b)(3), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: 6 (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free- space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ240403016RF03 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 15 of 55 5.2 RF Exposure Evaluation Result Project info § 1.1307(b)(3)(i)(A) method is not applicable. The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates. ERP (watts) is no more than the calculated value prescribed for that frequency R must be at least λ/2π λ is the free-space operating wavelength in meters Result: The device compliant the exemption at 20cm distances. Band Freq (MHz) Tune-up Power (dBm) Ant Gain (dBi) Distances (mm) Tune-up Power (mW) ERP (dBm) ERP (mW) BLE 2402 1.5 -0.209 200 1.41 -0.859 0.82 Band Freq (MHz) λ/2π (mm) Distances applies ERP Limit (mW) Result Option C BLE 2402 19.88 apply 768.00 exempt

Test Report

Antenna Specification • Details of Antenna • Antenna Radiation Pattern Manufacture ONEWAVE Antenna Type Chip Antenna Part Number WAN3216F245W36 Description Chip Antenna 3216 M-Ant 2.45G Type 36  Antenna Placement • Data

Test Report

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 55 FCC Part 15.247 RSS-247, ISSUE 3, August 2023 RSS-GEN, ISSUE 5, February 2021 Amendment 2 TEST REPORT For YOFREE TECHNOLOGY CO., LTD. 5 F., No. 753, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23552, Taiwan (R.O.C.) FCC ID: 2BFPDYFBT30M IC: 32421-YFBT30M Report Type: Original Report Product Type: Bluetooth Module Report Producer : Coco Lin Report Number : RXZ240403016RF03 Report Date : 2024-06-05 Reviewed By: Andy Shih Prepared By: Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Tel: +886 (2) 2647 6898 Fax: +886 (2) 2647 6895 www.bacl.com.tw Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ240403016RF03 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 55 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ240403016 RXZ240403016RF03 2024-06-05 Original Report Coco Lin Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ240403016RF03 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 55 TABLE OF CONTENTS 1 General Information ....................................................................................................... 5 1.1 Product Description for Equipment under Test (EUT) ......................................................... 5 1.2 Objective ............................................................................................................................... 6 1.3 Test Methodology .................................................................................................................. 6 1.4 Statement ............................................................................................................................... 6 1.5 Measurement Uncertainty ..................................................................................................... 7 1.6 Environmental Conditions ..................................................................................................... 7 1.7 Test Facility ........................................................................................................................... 7 2 System Test Configuration ............................................................................................. 8 2.1 Description of Test Configuration ......................................................................................... 8 2.2 Equipment Modifications ...................................................................................................... 8 2.3 EUT Exercise Software ......................................................................................................... 8 2.4 Support Equipment List and Details ...................................................................................... 8 2.5 External Cable List and Details ............................................................................................. 8 2.6 Block Diagram of Test Setup ................................................................................................ 9 2.7 Duty Cycle ........................................................................................................................... 10 3 Summary of Test Results .............................................................................................. 12 4 Test Equipment List and Details ................................................................................. 13 5 FCC §15.247(i), §1.1307(b)(3) - RF Exposure ............................................................ 14 5.1 Applicable Standard .................................................................................................................. 14 5.2 RF Exposure Evaluation Result ................................................................................................ 15 6 RSS-102 §2.5.2 - EXEMPTION FROM ROUTINE EVALUATION LIMITS – RF EXPOSURE EVALUATION .............................................................................................. 16 6.1 Applicable Standard ............................................................................................................... 16 6.2 RF Exposure Evaluation Result ............................................................................................. 16 7 FCC §15.203 & RSS-GEN §6.8– Antenna Requirements ......................................... 17 7.1 Applicable Standard ............................................................................................................ 17 7.2 Antenna Information ........................................................................................................... 17 8 FCC §15.207(a) & RSS-GEN §8.8– AC Line Conducted Emissions ........................ 18 8.1 Applicable Standard .......................................................................................................... 18 8.2 EUT Setup .......................................................................................................................... 19 8.3 EMI Test Receiver Setup .................................................................................................. 19 8.4 Test Procedure ................................................................................................................... 19 8.5 Corrected Factor & Over Limit Calculation .................................................................. 19 8.6 Test Results ........................................................................................................................ 20 9 FCC §15.209, §15.205, §15.247(d) & RSS-247 §5.5, RSS-GEN §8.9…

Text truncated - open the document above for the full version.

Test Setup Photos

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 1 of 5 EUT Setup Photographs Conduction: Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 2 of 5 Radiated Emission (Below 1GHz): Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 3 of 5 Radiated Emission (1GHz~18GHz): Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 4 of 5 Radiated Emission (above 18GHz): Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ240403016 Page 5 of 5 LOOP: ***** END *****

Contact Information

Applicant

Joe Lee
[email protected]+886-2-22217301Fax: +886-2-22217185

Test Firm

BAY AREA COMPLIANCE LABORATORIES CORP.Gimmy Tsai
[email protected]+886-2-2647-6898Fax: +886-2-2647-6895

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Single Modular Approval. This module is approved for use only in the mobile configurations associated with this filing. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions. Installation of this device into portable RF Exposure category host devices requires the submission of a Class II permissive change or new application. Compliance of this device in all final host configurations is the responsibility of the Grantee.
