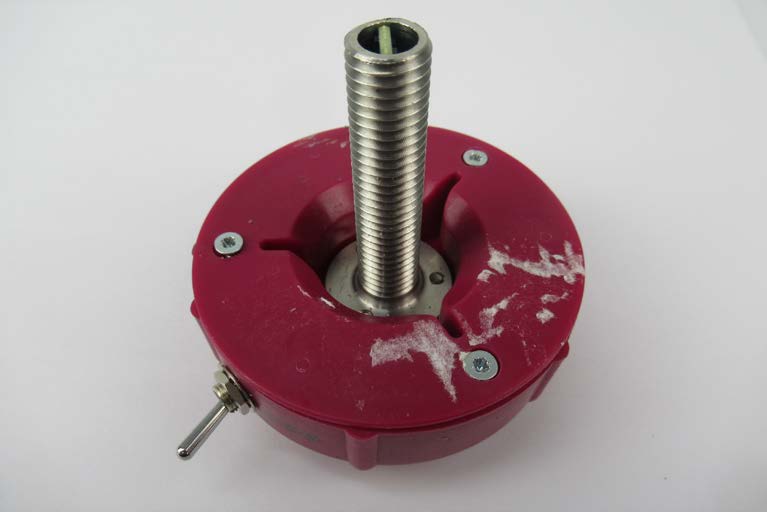

2BFPRMM1774190The WearSense Hugger sensor is a wireless wear monitoring device that monitors wear in real time and informs when to change liners through the use of a companion cloud-based portal

UNRESTRICTED 1/5 June 25, 2024 © Metso 2024 WearSense Hugger Sensor R5.x User Manual 1. Introduction Thank you for choosing the WearSense Hugger Sensor. This user manual provides instructions on how to effectively use and maintain the sensor. The sensor is designed to be used in conjunction with the WearSense portal, where the data can be viewed and interacted with. 2. Getting Started 2.1. Sensor Attachment Attach the sensor to the chute liner by either securing it to a fastener or directly screwing it into the asset. Ensure a secure attachment for accurate measurements, as vibrations may cause it to loosen over time. Do not over tighten the fastening to prevent damage to the sensor. 2.2. Commissioning After installing the sensor into an asset part, record the serial number and location on the corresponding arrangement drawing. Contact the WearSense support team with this information to reflect the commissioning into the WearSense portal. 3. Operation 3.1. Normal Operation Normal operation for the sensor involves waking up periodically, take one or more measurements (depending on settings), attempt to send this data back to a nearby gateway, and finally return to sleep. Measurement Default period Wear depth Every 6 hours Vibration (3-axis) Every 6 hours Orientation Every 6 hours These defaults can be changed by contacting the WearSense support team. These measurement intervals are individually tracked, meaning the sensor may wake up faster than expected since the last time it woke up. UNRESTRICTED 2/5 June 25, 2024 © Metso 2024 3.2. Forced Wake Up The sensor includes a magnetic switch that can be activated by swiping a magnet briefly over the body. Activating this switch will cause the sensor to wake up immediately and perform a measurement instantly (for each configured). Be careful not to hold it over the switch for longer than a few seconds, as doing so will switch this functionality off and the WearSense support team will need to reset it. This automatic magnetic switch disabling is provided for use in magnetic environments in order to prevent erratic measurement periods and reduction of battery life. 3.3. Status Indications The sensor includes a transparent window in which a colored status indicator can be seen. Upon wakeup, a short green pulse will always be shown. Upon going back to sleep, a final status indication will be shown, summarized in the following table. Status Indication Pattern Meaning Short green pulse Measurement(s) were taken successfully, and communicated with gateway successfully. Short red pulse No gateway could not be communicated with. History storage will be used if available and measurement(s) were taken successfully. 2 short red pulses Communications successful with gateway, however there was a problem performing the wear depth measurement. 3 short red pulses Communications successful with gateway, however there was a problem performing a measurement other than the wear depth, for example, vibration measurement. 3.4. History Storage The sensor includes a small history storage area, which can be used to store wear depth measurements. Approximately 100 measurements can be stored. The history storage is used when the following conditions are met: 1. The gateway could not be communicated with. 2. The history storage interval has passed. 3. Optionally, only stored whenever the wear depth measurement has changed since the last one. 4. The history storage is not full, or optionally, an overwriting strategy is set (such as overwrite oldest). Other measurement types are not currently supported. Contact the WearSense support team for help with this feature. UNRESTRICTED 3/5 June 25, 2024 © Metso 2024 4. Troubleshooting Please contact the WearSense support team for help with issues listed below. 4.1. Communication failure with gateway - While the gateway is communicating with another sensor, a temporary failure is expected. Try again later. - Ensure the gateway is operating normally. - Ensure there is sufficient wireless range. Try moving the sensor closer to the receiver antenna. Objects obstructing the line of sight, especially metalic ones, will reduce the effective range. - The internal battery may be going flat. 4.2. Data for one or more measurements is not working or incorrect - The sensor settings may be incorrect. - The sensor may be faulty and needs replacing. 4.3. History storage not working - The sensor settings may be incorrectly set. - The history storage may be full and cannot store anymore data. 4.4. Magnetic switch not working - The magnetic switch functionality has been disabled and needs to be switched back on. 5. Decomissioning & Disposal When the asset part the sensor resides in is replaced, the sensor should be removed and decomissioned from the WearSense portal at the date of removal. Contact the WearSense support team for assistance with this. As the sensor contains a lithium battery, please follow the appropriate regulations and guidelines set out by your local authorities or waste management facilities. Do not dispose of the device or battery in regular household waste. 6. Safety This product is only intended for use in restricted access areas and installed by trained personnel. This product is only for use in locations where children are not likely to be present. 7. Technical Specifications Specification Value Model number MM1774190 Wake-up interval 5 mins to 24 hrs (programmable) Wear depth measurement resolution 1mm Operating temperature -20oC to +60oC UNRESTRICTED 4/5 June 25, 2024 © Metso 2024 Battery ER14250H Lithium Battery chemistry Li-SOCl 2 Battery life >5 years (with default settings) Battery replaceable No Wireless range <50m (non-obstructed; air) Wireless protocol 802.15.4 Wireless frequency band 2.4GHz (ISM band) Wireless transmit power +2dBm 8. Regulatory Information 8.1. FCC FCC ID: 2BFPRMM1774190 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not caus…

Text truncated - open the document above for the full version.

RESTRICTED 1/1 June 11, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: 2BFPRMM1774190 – Attestation Statements Part 2.911(d)(5)(ii) Filing To Whom It May Concern: Piero Velletri of Metso Australia Pty Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as a specifically named entity or any of its subsidiaries or affiliates as an entity producing “covered” equipment. Regards, Piero Velletri Product Head, MINDGT Wear Sensing Solutions Mob: +61 419 913 832 Email: [email protected] Metso Australia Pty Ltd Level 2, 1110 Hay Street West Perth, WA 6005 Australia

RESTRICTED 1/1 June 11, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: 2BFPRMM1774190 – Attestation Statements Part 2.911(d)(5)(i) Filing To Whom It May Concern: Piero Velletri of Metso Australia Pty Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Regards, Piero Velletri Product Head, MINDGT Wear Sensing Solutions Mob: +61 419 913 832 Email: [email protected] Metso Australia Pty Ltd Level 2, 1110 Hay Street West Perth, WA 6005 Australia

RESTRICTED 1/1 May 28, 2024 Metso Australia Pty Ltd, Level 2, 1110 Hay Street, West Perth WA 6050, AUSTRALIA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 29th, 2024 Ref: Attestation Statements Part 2.911(d)(7) Filing, FCC ID: 2BFPRMM1774190 Piero Velletri of Metso Australia Pty Ltd certifies that, as of the date of the filing of the application, Metso USA Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Metso USA Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Metso USA Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Metso USA Inc. does not have an FRN as it does no business with the FCC other than being designated as a U.S agent for service of process. Designated U.S. Agent Information: Name:Metso USA Inc. Address:275 North Corporate Drive, Brookfield, WI 53045, USA Contact Person:Ann C. Fellows Email:[email protected] Sincerely, Metso Australia Pty LtdMetso USA Inc. Piero VelletriAnn C. Fellows President Applicant FCC FRN: 0035235886US Agent FCC FRN: N/A

EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au EMC Technologies Pty Ltd, 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au To FCC Attention: Certification Officer EMCT Ref: M2310030 Date: June 17, 2024 Subject: Metso Australia Pty Ltd – FCC original certification application FCC ID: 2BFPRMM1774190 Product Name: Wireless Wear Sensor Model: WearSense Hugger Sensor FCC ID: FCC ID: 2BFPRMM1774190 Radio: ST Microelectronics STM32WB Type: 2.4 GHz transceiver Operating frequency: 2405 – 2480 MHz Antenna: 2.4 GHz mini antenna SMT (P/N: 2450AT18A100) Please Note: Permanent Confidentiality: Application includes request for permanent confidentiality – Operational Description, Block Diagram, Schematics Short-Term Confidentiality: Application includes request for short-term confidentiality – 180 days Internal Photos FCC 15.19 label exclusion request: Application includes request to omit the FCC 15.19 statement from the device label. Please refer to FCC 15.19 label exclusion statement letter_signed.pdf. Agent: EMC Technologies is acting as agent for Metso Australia Pty Ltd. Regards _____________ Shabbir Ahmed CEO EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, VIC 3042 Australia Ph: +61 3 9365 1000 www.emctech.com.au

RESTRICTED 1/1 June 11, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: 2BFPRMM1774190 – PoA To Whom It May Concern: We, the undersigned, hereby authorize Shabbir Ahmed at EMC Technologies Pty Ltd to act on our behalf, to apply to the Federal Communications Commission for FCC approval of our equipment. Any and all acts carried out by Shabbir Ahmed at EMC Technologies on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Piero Velletri Product Head, MINDGT Wear Sensing Solutions Mob: +61 419 913 832 Email: [email protected] Metso Australia Pty Ltd Level 2, 1110 Hay Street West Perth, WA 6005 Australia

UNRESTRICTED 1/1 July 9, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: 2BFPRMM1774190 - Confidentiality Request To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Operational Description CONF_MM1774190 Block Diagram.pdf CONF_Hugger R5.10 Schematic.pdf CONF_MM1774190 Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180 days: Exhibit Type File Name Internal Photos CONF_(TSample Photos-Internal).pdf Regards, Piero Velletri Product Head, MINDGT Wear Sensing Solutions Mob: +61 419 913 832 Email: [email protected] Metso Australia Pty Ltd Level 2, 1110 Hay Street West Perth, WA 6005 Australia

RESTRICTED 1/1 June 11, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: 2BFPRMM1774190 – Statement Exclusion Request To Whom It May Concern: As per KDB 784748, Appendix A section A.2, we, the undersigned, hereby request permission to exclude the FCC 15.19 compliance statement from our device. The device is extremely small (main body Ø75mm x 28mm) and does not utilize electronic labeling. There are ribs preventing a flat continuous surface to include a long label on. The FCC 15.19 compliance statement shall be placed in the user manual. Regards, Piero Velletri Product Head, MINDGT Wear Sensing Solutions Mob: +61 419 913 832 Email: [email protected] Metso Australia Pty Ltd Level 2, 1110 Hay Street West Perth, WA 6005 Australia

FCC ID: 2BFPRMM1774190 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL FCC ID: 2BFPRMM1774190 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL FCC ID: 2BFPRMM1774190 EMC Technologies Pty Ltd 176 Harrick Road, Keilor Park, Victoria 3042, Australia Ph: + 61 (0)3 9365 1000, Email: [email protected], Web: www.emctech.com.au TEST SAMPLE PHOTOS – EXTERNAL

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD LOCATION: THIS INFORMATION IS CONFIDENTIAL AND PROPRIETARY TO METSO CORPORATION OR ITS SUBSIDIARIES AND IS PROTECTED BY TRADE SECRET, COPYRIGHT AND/OR OTHER LAWS. IT MAY NOT BE ACCESSED, USED, COPIED OR DISCLOSED WITHOUT THE WRITTEN CONSENT OF METSO. ALL RIGHTS RESERVED. DATE: WEIGHT (Kg) DATE: MATERIAL NUMBER DATE: DRAWING NUMBER EQUIPMENT No. PROJECT No. DRAWING DESCRIPTION CUSTOMER:DRAWN BY:CHECKED BY:APPROVED BY: skesinghja 14-Sep-2023 MM1774190 MM1774190 REV 3 DOCUMENT CLASSIFICATIONDWG SIZE PAGE RESTRICTEDA3 2 0.1 kg WEARSENSE HUGGER SENSOR M12 x 40 3RD ANGLE PROJECTION 1:1 SCALE ISSUED FOR CONSTRUCTION 2 8 4 1 75Ø n34 NOTE: LABEL AFFIXED TO THE SPACE IN-BETWEEN THE RIBS 6 9 n72 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD LOCATION: THIS INFORMATION IS CONFIDENTIAL AND PROPRIETARY TO METSO CORPORATION OR ITS SUBSIDIARIES AND IS PROTECTED BY TRADE SECRET, COPYRIGHT AND/OR OTHER LAWS. IT MAY NOT BE ACCESSED, USED, COPIED OR DISCLOSED WITHOUT THE WRITTEN CONSENT OF METSO. ALL RIGHTS RESERVED. DATE: WEIGHT (Kg) DATE: MATERIAL NUMBER DATE: DRAWING NUMBER EQUIPMENT No. PROJECT No. DRAWING DESCRIPTION CUSTOMER:DRAWN BY:CHECKED BY:APPROVED BY: DEVLPF3REWE3$ 27-Feb-2024 MM2051817 MM2051817 REV 1 DOCUMENT CLASSIFICATIONDWG SIZE PAGE RESTRICTED A41 1 / 0.0 kg LABEL HUGGER 3RD ANGLE PROJECTION 3:1 SCALE 25 1 2 . 7 NOTES: 1.MATERIAL TYPE: WHITE POLYESTER 2.THICKNESS: 0.0762mm (APPROX.) 3.FINISH: GLOSSY WHITE 4.ADHESIVE: PERMANENT ACRYLIC 5.PRINT TECHNOLOGY: THERMAL TRANSFER ISSUED FOR CONSTRUCTION REVDESCRIPTION OF REVISIONBYDATE 1ISSUED FOR CONSTRUCTION skesinghja 23-May-2024 skesinghja 23-May-2024 skesinghja 23-May-2024

EMC Technologies Pty. Ltd. ABN 82 057 105 549 Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Sydney Unit 3/87 Station Road Seven Hills, NSW 2147 Tel: +61 2 9624 2777 Email: [email protected] Web: www.emctech.com.au This report shall not be reproduced except in full. Page 1 of 10 RF Exposure Compliance Report Report No.: M2310030-3v2 TESTED FOR: Metso Australia Pty Ltd Level 2, 1110 Hay Street Perth Australia 6005 ISSUED BY: EMC Technologies Pty. Ltd. 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Contact: Piero Velletri Email: [email protected] Web: www.emctech.com.au Tel: +61 8 9420 5555 Tel: +61 3 9365 1000 Product Name: Wireless Wear Sensor Model: WearSense Hugger Sensor (MM1774190) FCC ID: 2BFPRMM1774190 Assessment Date: 1 February 2024 Issue Date: 28 June 2024 Specification(s): • 447498 D01 General RF Exposure Guidance v06 RF exposure procedures and equipment authorization policies for mobile and portable devices. • 47 CFR § 2.1091 Radiofrequency radiation exposure evaluation: mobile devices (Transmitter is more than 20 cm from human body). Based on an assessment of the documentation provided and the declared separation distance from the human body under normal use, the Wireless Wear Sensor, model: WearSense Hugger Sensor (MM1774190) is exempted from SAR evaluation. Test Engineers: Razin Ahmed Authorized Signatory: Shabbir Ahmed NATA Accreditation No. 5292 Accredited for compliance with ISO/IEC 17025. NATA is a signatory to the ILAC Mutual Recognition Arrangement for the mutual recognition of the equivalence of testing, medical testing, calibration, inspection and proficiency testing scheme providers reports. EMR Test Report M2310030-3v2 This report shall not be reproduced except in full. Page 2 of 10 Revision History Version Issue Date Reason / Comments 1 26 March 2024 Initial issue 2 28 June 2024 Updated antenna details General Remarks EMC Technologies Pty Ltd hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the customer or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMR Test Report M2310030-3v2 This report shall not be reproduced except in full. Page 3 of 10 Content 1 Project Overview ........................................................................................................................................ 4 1.1 Introduction ............................................................................................................................................. 4 1.2 Test Facility ............................................................................................................................................. 4 1.3 Standards Applied .................................................................................................................................. 5 1.4 Device Details ......................................................................................................................................... 6 1.5 Transmitters Details ................................................................................................................................ 6 2 SAR TEST EXCLUSION THRESHOLD FOR 100 MHz to 6 GHz.............................................................. 7 2.1 Test Separation Distance Test Separation Distance ≤50mm ................................................................ 7 2.2 Test Separation Distance >50mm .......................................................................................................... 8 3 Uncertainty ................................................................................................................................................. 8 4 Assumptions in the Assessment ............................................................................................................. 9 5 Evaluation Result ....................................................................................................................................... 9 Appendix A ....................................................................................................................................................... 10 EMR Test Report M2310030-3v2 This report shall not be reproduced except in full. Page 4 of 10 1 Project Overview 1.1 Introduction The transmitter was assessed against FCC KDB 447498 D01 General RF Exposure Guidance v6. This report shows the SAR exclusion in accordance with FCC KDB 447498 D01 clause 4.3.1, The product sample and device information were provided by the customer 1.2 Test Facility Measurements were performed at the following location: ☒ Melbourne Laboratory 176 Harrick Road, Keilor Park, Vic 3042 ☐ Sydney Laboratory Unit 3/87 Station Road, Seven Hills, NSW 2147 EMC Technologies Pty. Ltd. is an independently owned Australian company that is NATA accredited to ISO 17025 for both testing and calibration and ISO 17020 for Inspection. – Accreditation Number 5292. Country Assessment Body Lab Code / Member No. Australia NATA Accreditation Number: 5292 Europe European Union Notified Body Number: 0819 USA FCC Designation Number: AU0001/AU0002 Canada ISED Canada CAB Identifier Number: AU0001/AU0002 Japan VCCI Company Number: 785 Taiwan BSMI Lab Code SL2-IN-E-5001R EMR Test Report M2310030-3v2 This report shall not be reproduced except in full. Page 5 of 10 1.3 Standards Applied Unless otherwise noted, only the cited edition applies. 44749…
