2BFQD-JUEYINGX30Quadruped Robot

User Manual V2.0.5-1(2025.12.27) • This manual is the information asset owned by Hangzhou Yunshenchu Technology Co.,Ltd. (hereafter referred to as “DEEP Robotics”) and any reprinting of part or all of this manual is strictly prohibited without the permission of DEEP Robotics. • This manual explains the basic components, transport and storage, specific operations, exception handling, and technical specifications of the quadruped robot “Jueying X30”. Be sure to read and fully understand this manual before operating the robot. • Basic information on safe use is described in detail in the "Reading Tips", so be sure to read this part thoroughly to ensure proper use. • The diagrams and photographs in this manual are representative examples and may differ in detail from the product purchased. • This manual may be modified as appropriate for product improvements, specification changes, etc. • The contents of this manual do not rule out the possibility of error or omission. If this manual is damaged or lost or if you have questions about the contents of this manual, please contact us promptly. • Failure caused by unauthorized disassembly or modification of the product by the customer is not covered by our warranty. See "Service and Warranty" for details. Reading Tips Description of Symbols Before use (installation, transportation, maintenance, inspection), please be sure to read and master this manual, and familiarize yourself with the equipment and safety matters before you start using it. The safety matters in this manual are divided into "Caution", "Mandatory" and "Prohibition". Even the contents of "Caution" may cause serious consequences depending on the situation, so any of these safety matters are extremely important and should be strictly observed. Help Acquiring For more resources to assist you in using Jueying X30 proficiently, you can also visit DEEP Robotics’ corporate website: http://www.deeprobotics.cn/. Prohibition Matters prohibited. Misoperation is dangerous and may cause injury to operators or damage to the robot. MandatoryMatters that must be observed. Caution Usage tips or operational recommendations. Improper using or operating the robot may cause damage to it. Statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. For Quadruped Robot: This robot complies with FCC radiation exposure limits set forth for an uncontrolled environment. This robot should be installed and operated with minimum distance 20cm between the radiator of the robot & your body. FCC Statement EU Conformity Statement Hereby, [Hangzhou Yunshenchu Technology Co.,Ltd.] declares that the radio equipment is in compliance with Directive 2014/53/EU. EU Declaration of Conformity: https://deep-website.oss-cn-hangzhou. aliyuncs.com/app/EU%20declaration-X30-20251227.pdf RF Exposure Information • This Quadruped Robot has been tested and meets applicable limits for Radio Frequency (RF) exposure. • This Quadruped Robot must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. RFTYPEOperation Frequency 2.4G SRDReceiver2411-2466MHz 5.8G SRDReceiver5750-5820MHz Power: • 2.4GHz:2412MHz to 2472MHz:16.93dBm • 5.8GHz:5745MHz to 5825MHz:13.31dBm Content Statement II Reading Tips II FCC Statement III EU Conformity Statement III RF Exposure Information III 1 Introduction 1 1.1 Overview 1 1.2 Product List 1 1.3 Main Specifications 2 1.4 Power and STOP 4 1.5 Mode and Gait 5 2 Operation 8 2.1 Preparation 8 2.1.1 Environment 8 2.1.2 Checking 8 2.2 Charging 8 2.2.1 Charging the Robot 8 2.2.2 Changing Battery 9 2.3 Start 10 2.3.1 Preparation 10 2.3.2 Power on 10 2.3.3 Connection 10 2.4 Motion Control 11 2.4.1 Controller Operation 11 2.4.2 Settings 14 2.4.3 Jueying Lab 15 2.5 Emergency Operation 16 2.5.1 Soft Emergency Stop 16 2.5.2 Hard Emergency Stop 16 2.5.3 Overtemperature 16 2.5.4 Falling Down 17 2.5.5 Low Battery 17 2.5.6 Other Circumstances 17 2.6 Power Off 17 2.7 Payload and Development 18 3 Precautions 19 3.1 Work Environment 19 3.2 Other Precautions 19 4 FAQs 20 5 Transport and Storage 21 5.1 Transportation 21 5.2 Storage 21 5.3 Carrying 21 6 Service and Warranty 22 6.1 After-Sales Service 22 6.2 Warranty Policy 22 6.3 Warranty Coverage 22 6.4 Repair Instructions 23 7 Disposal 25 1 +VFZJOH
930
6TFS
.BOVBM 1 Introduction Jueying X30 is an intelligent quadruped robot designed to meet core industry needs, with a total of 12 degrees of freedom (DOF), capable of walking, going up and down the stairs. The robot is equipped with a wide-angle camera, four laser radars, and two internal hosts respectively for motion control and environmental perception calculation. 1.1 Overview 1.2 Product List Controller ×1 User Manual ×1 Aviation Plug ×3Repalceable Battery ×1 Certificate ×1Warranty Card ×1 Robot ×1 (without battery) Intelligent Controller ×1 (optional) Charger ×1 Antistatic Cloth ×1 470mm 470mm 1130mm 1000mm 265mm 695mm 2 9 Controller's Antenna 10 Cooling Fan 11 Debugging Ethernet Port 12 WiFi Antenna 13 Soft Emergency STOP 14 Hard Emergency STOP 15 Laser Radar 1 Wide Angle Camera 2 Solid-State Laser Radar 3 Mounting Rails 4 Upper Leg 5 Power Button 6 Charging Port Cover 7 Lower Leg 8 Antislip Foot 1.3 Main Specifications 1 2 3 5 6 7 8 4 9 10 11 13 14 15 12 3 +VFZJOH
930
6TFS
.BOVBM Robot Dimensions Sitting Size (Length × Width × Height)1130mm×470mm×265mm Standing Size (Length × Width × Height)1000mm×470mm×695…

Text truncated - open the document above for the full version.

Hangzhou Yunshenchu Technology Co., Ltd. U.S.Agent Designation for Service of Process (Applicant and U.S.Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S.Agent Company Name: United Consulting Technology Services Co., Ltd. FRN: 0033495714 Contact Name: David Wu StreetAddress: 17800 CASTLETON ST STE 665 CITYOF INDUSTRY City/Province/Zip: CA91748 Telephone No: (626) 217-4022 Email: [email protected] This letter is to confirm that we (“the Designated U.S.Agent) have accepted the responsibility to act as the Designated U.S.Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicantnoted below. U.S.Agent Signature: Date: 2025-12-26 Signed by (Printed Name/Title): DavidWu/ CEO TheApplicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S.Agent information above changes. Applicant Company name: Hangzhou Yunshenchu Technology Co., Ltd. Grantee Code: 2BFQD FRN: 0035247642 FCC ID: 2BFQD-JUEYINGX30 Contact Name: Dongxin Zheng StreetAddress: Building 3, Zijin Dream Plaza, No.36 Xinran Street Sandun Town, Xihu District City/Province/Zip: Hangzhou, Zhejiang China 310023 Telephone No: +86 400-0559-095 Email: [email protected] Applicant Signature: Date: 2025-12-26 Signed by (Printed Name/Title): Dongxin Zheng, Product Manager

FCC COVERED LIST DECLARATION LETTER Page 1 of 1Revision 1.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Yunshenchu Technology Co., Ltd. Address Building 3, Zijin Dream Plaza, No.36 Xinran Street Sandun Town, Xihu District, Hangzhou, Zhejiang 310023, China FRN0035247642 Grantee Code2BFQDFCC ID:2BFQD-JUEYINGX30 Authorized Contact NameDongxin Zheng Contact Phone+86 400-0559-095Contact Email [email protected] Hangzhou Yunshenchu Technology Co., Ltd. (“the applicant”) certifies: - the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. - as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. -the software to be loaded prior to marketing of the equipment identified above is not “covered” software manufactured by any entity including predecessors, successors, parents, subsidiaries, affiliates or any entity which has rebranded or relabeled the software produced by the entity(ies) identified on the “Covered List”. -the device is not capable of storing or running software listed on the covered list and therefore is inherently compliant. NOTE: Justification/evidence explaining how compliance is met must accompany this letter Link to the Covered List:Covered List Applicant Signature:Date:2025-12-26 Print Name: DongxinZheng Title: Product Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

ApplicantDeclaration QSF27-14-04 Rev 1.4 April 25, 2025Page 1 of 1Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Yunshenchu Technology Co., Ltd. Address Building 3, Zijin Dream Plaza, No.36 Xinran Street Sandun Town, Xihu District, Hangzhou, Zhejiang 310023, China FRN 0035247642 Grantee Code 2BFQD FCC ID: 2BFQD-JUEYINGX30 Authorized Contact Name Dongxin Zheng Contact Phone +86 400-0559-095 Contact Email [email protected] I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicantshallmake provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicantshall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc. terms and conditions as specified in the TCB Application Form 731 (QSF27-14-01). Link to CFRs:https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs:https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100:https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List:Covered List Applicant Signature: Date: 2025-12-26 Print Name: DongxinZheng Title: Product Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Yunshenchu Technology Co., Ltd. Current Date 2025-11-20 To : SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE Hangzhou Yunshenchu Technology Co., Ltd.HEREBY DECLARED THAT Product Description: Quadruped Robot Model No.: Jueying X30 Manufacturer’s Name: Hangzhou Yunshenchu Technology Co., Ltd. Manufacturer’s Address: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town,Xihu District, Hangzhou, Zhejiang, China *Except that the appearance and Jueying X30 without intelligent controller deviation, are identical with the original product as follows: Note: 1. The differences in the intelligent controller do not affect the radio frequency performance, The specific differences are as follows. Hangzhou Yunshenchu Technology Co., Ltd. 2.T he definition of identical should be “electrically identical”. A device will be considered to be el ectrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical with the model which has been tested by SGS. Model No.: Jueying X30 Pro Manufacturer’s Name: Hangzhou Yunshenchu Technology Co., Ltd. Manufacturer’s Address: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town,Xihu District, Hangzhou, Zhejiang, China S incerely, Hangzhou Yunshenchu Technology Co., Ltd. Signature: Printed Name : Dongxin Zheng Position/Title : Product Manager Contact Number: 400-0559-095

Hangzhou Yunshenchu Technology Co., Ltd. Date:2025-12-26 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding:2BFQD-JUEYINGX30 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Yunshenchu Technology Co., Ltd.. This authorization is valid until further written notice from the applicant. Name (Printed) :Dongxin ZhengTitle:Product Manager Signature: On behalf of Company: Hangzhou Yunshenchu Technology Co., Ltd. Telephone:+86 400-0559-095

Hangzhou Yunshenchu Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Yunshenchu Technology Co., Ltd. Building 3, Zijin Dream Plaza, No.36 Xinran Street Sandun Town, Xihu District, Hangzhou, Zhejiang 310023, China Regarding: Confidentiality Request regarding application for FCC ID2BFQD-JUEYINGX30 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions NII Software Security Info The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Dongxin Zheng Title: Product Manager Company Name: Hangzhou Yunshenchu Technology Co., Ltd.

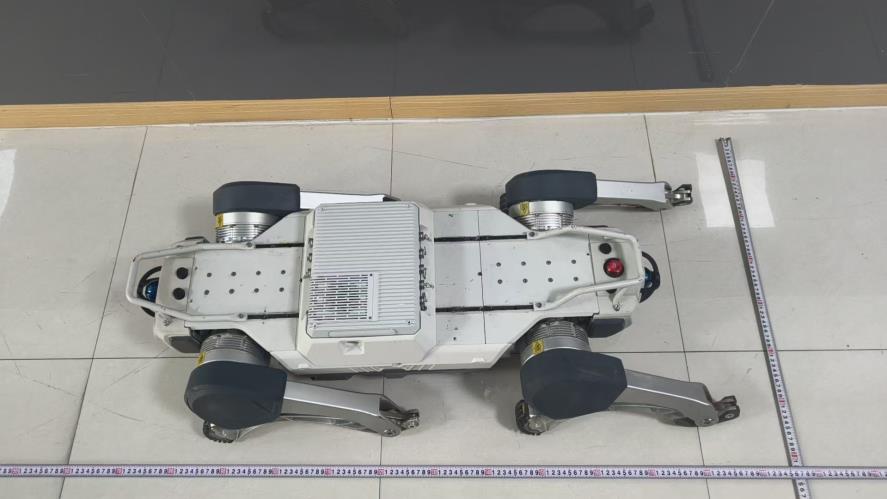

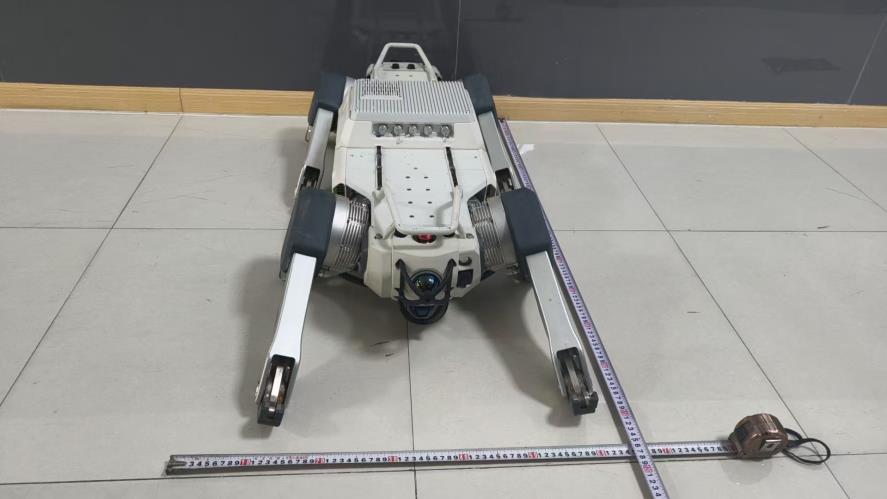

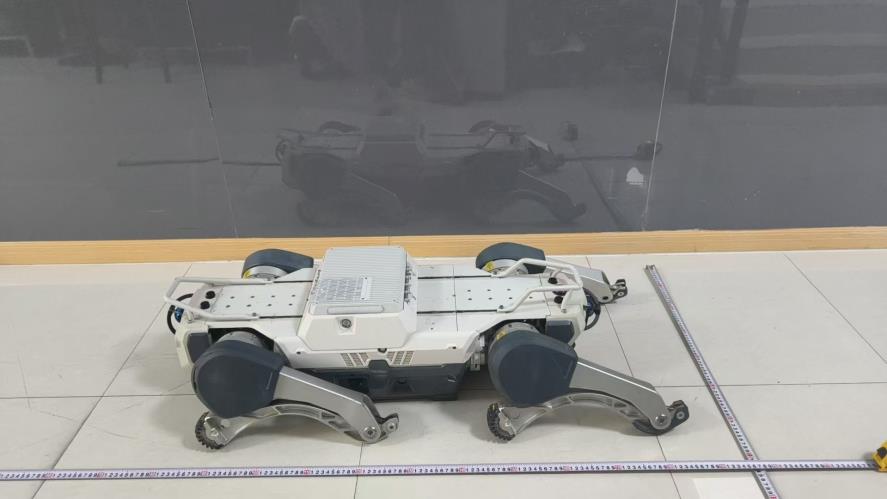

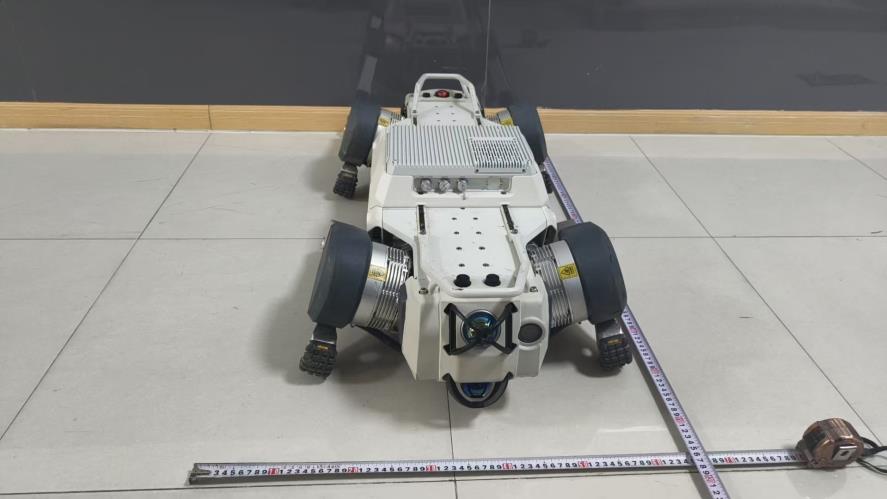

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2510002271AT Test Model No.: Jueying X30 Pro Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Page 1 of 1

Compliance Certification Services (Kunshan) Inc. Page: 1 of 31 Internal Photos for KSCR2510002271AT Test Model No.: Jueying X30 Pro Compliance Certification Services (Kunshan) Inc. Page: 2 of 31 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 31 Compliance Certification Services (Kunshan) Inc. Page: 4 of 31 Compliance Certification Services (Kunshan) Inc. Page: 5 of 31 Compliance Certification Services (Kunshan) Inc. Page: 6 of 31 Compliance Certification Services (Kunshan) Inc. Page: 7 of 31 Compliance Certification Services (Kunshan) Inc. Page: 8 of 31 Compliance Certification Services (Kunshan) Inc. Page: 9 of 31 Compliance Certification Services (Kunshan) Inc. Page: 10 of 31 Compliance Certification Services (Kunshan) Inc. Page: 11 of 31 Compliance Certification Services (Kunshan) Inc. Page: 12 of 31 Compliance Certification Services (Kunshan) Inc. Page: 13 of 31 Compliance Certification Services (Kunshan) Inc. Page: 14 of 31 Compliance Certification Services (Kunshan) Inc. Page: 15 of 31 Compliance Certification Services (Kunshan) Inc. Page: 16 of 31 Compliance Certification Services (Kunshan) Inc. Page: 17 of 31 Compliance Certification Services (Kunshan) Inc. Page: 18 of 31 Compliance Certification Services (Kunshan) Inc. Page: 19 of 31 Compliance Certification Services (Kunshan) Inc. Page: 20 of 31 Compliance Certification Services (Kunshan) Inc. Page: 21 of 31 Compliance Certification Services (Kunshan) Inc. Page: 22 of 31 Compliance Certification Services (Kunshan) Inc. Page: 23 of 31 Compliance Certification Services (Kunshan) Inc. Page: 24 of 31 Compliance Certification Services (Kunshan) Inc. Page: 25 of 31 Compliance Certification Services (Kunshan) Inc. Page: 26 of 31 Compliance Certification Services (Kunshan) Inc. Page: 27 of 31 Compliance Certification Services (Kunshan) Inc. Page: 28 of 31 Compliance Certification Services (Kunshan) Inc. Page: 29 of 31 Compliance Certification Services (Kunshan) Inc. Page: 30 of 31 Compliance Certification Services (Kunshan) Inc. Page: 31 of 31

Report No.: KSCR251000227103 Page: 1 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2510002271AT FCC ID: 2BFQD-JUEYINGX30 Applicant: Hangzhou Yunshenchu Technology Co., Ltd. Address of Applicant: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town,Xihu District, Hangzhou, Zhejiang, China Manufacturer: Hangzhou Yunshenchu Technology Co., Ltd. Address of Manufacturer: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town,Xihu District, Hangzhou, Zhejiang, China Factory: Huzhou Yunshenchu Robotics Co., Ltd. Address of Factory: 1-3/F, Building 17, District C, Geographical Information Town, Wuyang Street, Deqing, Huzhou, Zhejiang, China Equipment Under Test (EUT): EUT Name: Quadruped Robot Model No.: Jueying X30 Pro,Jueying X30 Trade Mark: Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2025-10-15 Date of Test: 2025-11-28 to 2025-12-09 Date of Issue: 2025-12-09 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251000227103 Page: 2 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2025-12-09 / Authorized for issue by: Tested By Damon_Zhou/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251000227103 Page: 3 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Contents Page 1 Cover Page ........................................................................................................................................ 1 2 Contents ............................................................................................................................................ 3 3 General Information .......................................................................................................................... 4 3.1 General Description of E.U.T. .................................................................................................... 4 3.2 Technical Specifications ............................................................................................................. 4 3.3 Separation Distance ................................................................................................................... 5 3.4 Test Location .............................................................................................................................. 6 3.5 Test Facility ................................................................................................................................ 6 4 RF Exposure Test Exemptions ........................................................................................................ 7 4.1 FCC RF Exposure Test Exemptions for single RF sources ....................................................... 7 4.2 RF Exposure Test Exemptions for Simultaneous Transmission ................................................ 9 5 asurement and Calculation ............................................................................................................ 11 5.1 Maximum transmit power ......................................................................................................... 11 5.2 RF Exposure Calculation ......................................................................................................... 12 Report No.: KSCR251000227103 Page: 4 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 General Information 3.1 General Description of E.U.T. Power supply: Adapter model: XT80V840A080 INPUT: AC 100-240V,50/60Hz, 10.0A OUTPUT: DC 84V,8A Battery model: RD006-04-C Nominal Voltage: DC 72V Rated Capacity: 22.4Ah Nominal Energy: 1612.8Wh Limit Charge: DC 84V 3.2 Technical Specifications 2.4GHz WiFi Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: External omnidirectional antenna Antenna Gain: 0.78dBi (Provided by the manufacturer) 5GHz WiFi Operation Frequency/Number of channels (20MHz): U-NII-3: 5745-5825MHz (5 Channels) Operation Frequency/Number of channels/(40MHz): U-NII-3: 5755-5795MHz (2 Channels) Operation Frequency/Number of channels (80MHz): U-NII-3: 5775MHz (1 Channel) Modulation Type: 802.11a: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Channel Spacing: 802.11a/n/ac20: 20MHz; 802.11n/ac40: 40MHz; 802.11ac 80: 80MHz DFS Function: Without DFS function TPC Function: Without TPC function Antenna Type: External omnidirectional antenna Antenna Gain: -2.14dBi (Provided by the manufacturer) Report No.: KSCR251000227103 Page: 5 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. Report No.: KSCR251000227103 Page: 6 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.4 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3…

Text truncated - open the document above for the full version.

地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 4 / 13 4、产品性能参数 电性能指标ElectricalSpecifications 频率范围FrequencyRange(MHz) 2400-2500MHz/5150-5850MHZ 输入阻抗InputImpendence(Ω) 50 电压驻波比V.S.W.R（MAX） ≤3.0(未匹配设备供参考) 参考增益Gain(dbi)（MAX） 3dbi(未匹配设备供参考) 极化形式PolarizationType垂直 辐射方向RadiationDirection全向 Omni-Directional 通断测试ContinuityTest通路 机械指标MechanicalSpecifications 天线尺寸Antennasize(mm)Φ18*14mm 连接器型号ConnectType RP-SMA-J 外壳颜色黑色 工作温度 OperatingTemp-30~+75 ̊C 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 5 / 13 5、产品图纸 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 6 / 13 6、电气性能测试报告：VSWR 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 7 / 13 增益与效率 FreqEffiGain (MHz)(%)(dBi) 240019.43-0.38 245020.580.78 250022.631.27 515010.75-4.45 550015.14-1.96 585040.80-2.14 3D&2D方向图 地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-28700870FAX：0755-28483275 Website:www.kxwxjs.com 8 / 13

Report No.: KSCR251000227102 Page: 1 of 93 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 TEST REPORT Application No.: KSCR2510002271AT FCC ID: 2BFQD-JUEYINGX30 Applicant: Hangzhou Yunshenchu Technology Co., Ltd. Address of Applicant: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town, Xihu District, Hangzhou, Zhejiang, China Manufacturer: Hangzhou Yunshenchu Technology Co., Ltd. Address of Manufacturer: Building 3, Zijin Dream Plaza, No.36 Xinran Street, Sandun Town, Factory: Huzhou Yunshenchu Robotics Co., Ltd. Address of Factory: 1-3/F, Building 17, District C, Geographical Information Town, Wuyang Street, Deqing, Huzhou, Zhejiang, China Equipment Under Test (EUT): EUT Name: Quadruped Robot Model No.: Jueying X30 Pro,Jueying X30   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2025-10-15 Date of Test: 2025-11-28 to 2025-12-09 Date of Issue: 2025-12-09 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251000227102 Page: 2 of 93 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2025-12-09 / Authorized for issue by: Tested By Damon_Zhou/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251000227102 Page: 3 of 93 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data N/A 47 CFR Part 15, Subpart E 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 & Subpart E 15.407 b(9) Pass Radiated Emissions (Below 1GHz) ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions (Above 1GHz) ANSI C63.10 (2020) Section 6.6 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & Subpart E 15.407(b) Pass Duty Cycle ANSI C63.10 (2020) Section 12.2 ANSI C63.10 (2020) Section 12.2 Pass 99% Bandwidth ANSI C63.10 (2020) Section 12.5.3 ANSI C63.10 (2020) Section 12.4.2 Pass 26dB Emission bandwidth ANSI C63.10 (2020) Section 12.5.2 47 CFR Part 15, Subpart E 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band ) ANSI C63.10 (2020) Section 12.5.1 47 CFR Part 15, Subpart E 15.407 (e) Pass Maximum Conducted output power ANSI C63.10 (2020) Section 12.4 47 CFR Part 15, Subpart E 15.407 (a) Pass Peak Power spectrum density ANSI C63.10 (2020) Section 12.6 47 CFR Part 15, Subpart E 15.407 (a) Pass Frequency Stability ANSI C63.10 (2020) Section 6.8 47 CFR Part 15, Subpart E 15.407 (g) Pass Note: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model Jueying X30 Pro was tested since their differences are appearance and Jueying X30 without intelligent controller. The differences in the intelligent controller do not affect the radio frequency performance. The specific differences are as follows. Report No.: KSCR251000227102 Page: 4 of 93 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Report No.: KSCR251000227102 Page: 5 of 93 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 Contents Page 1 COVER PAGE ..............................................................................…

Text truncated - open the document above for the full version.
