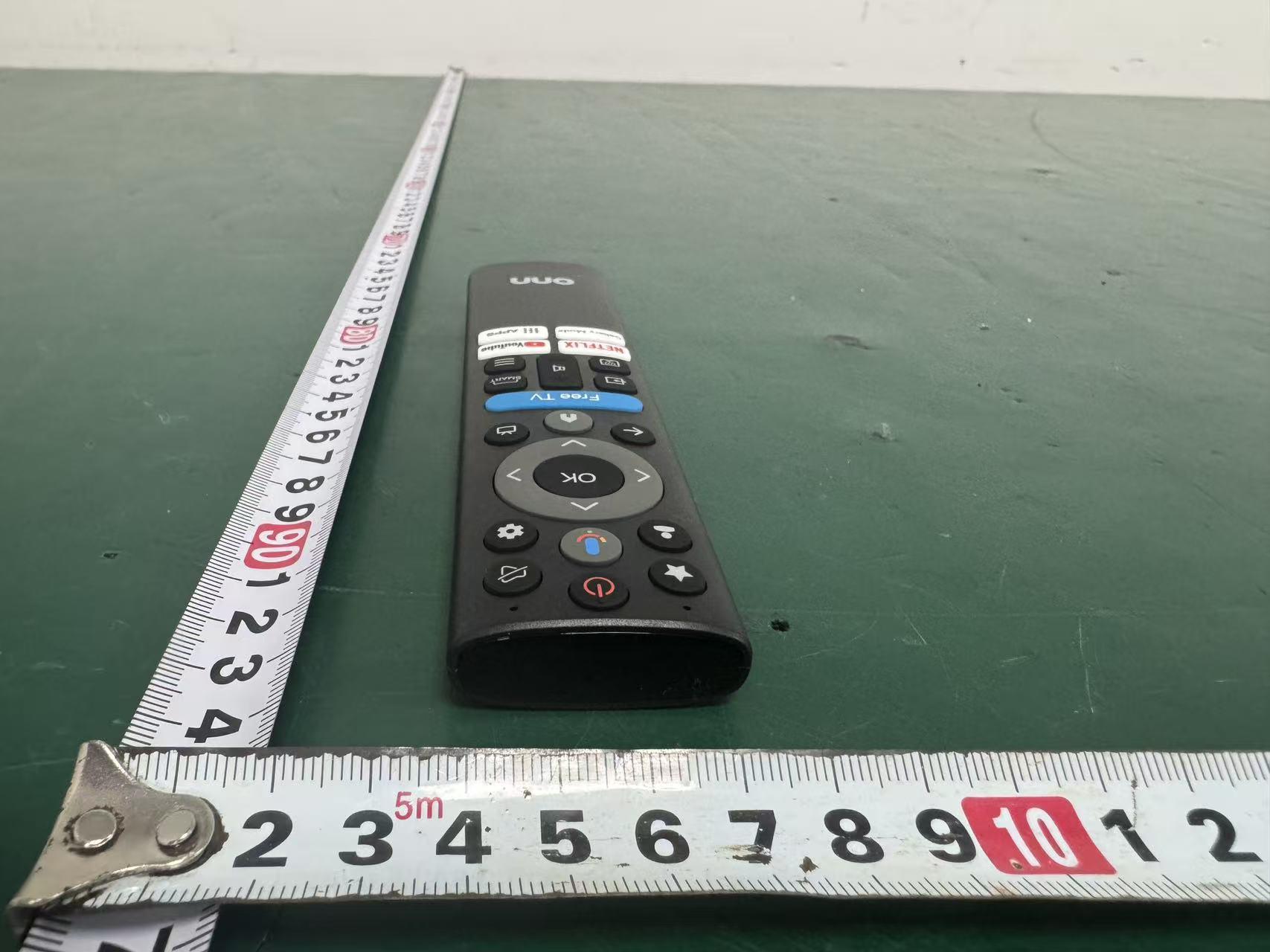

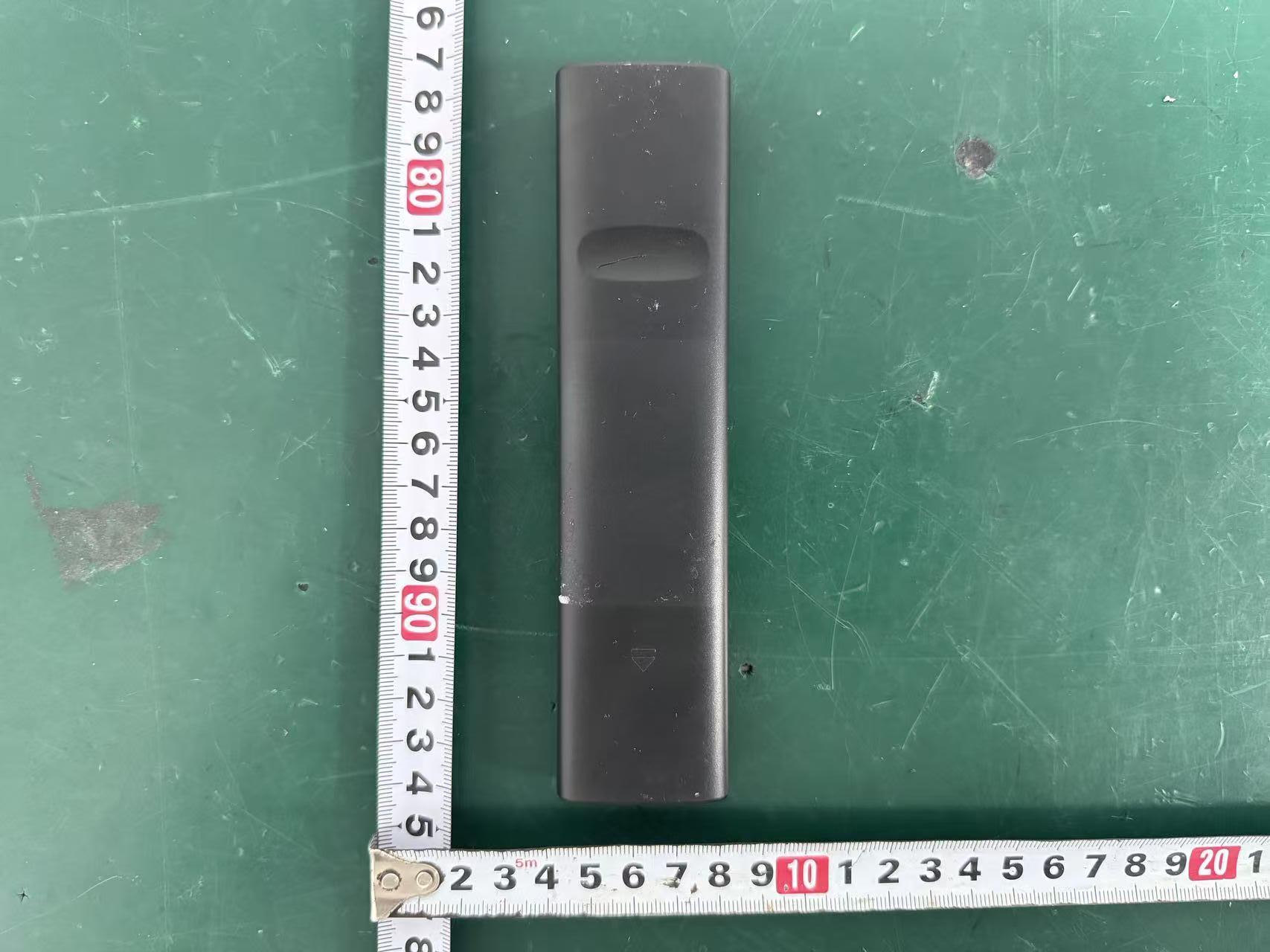

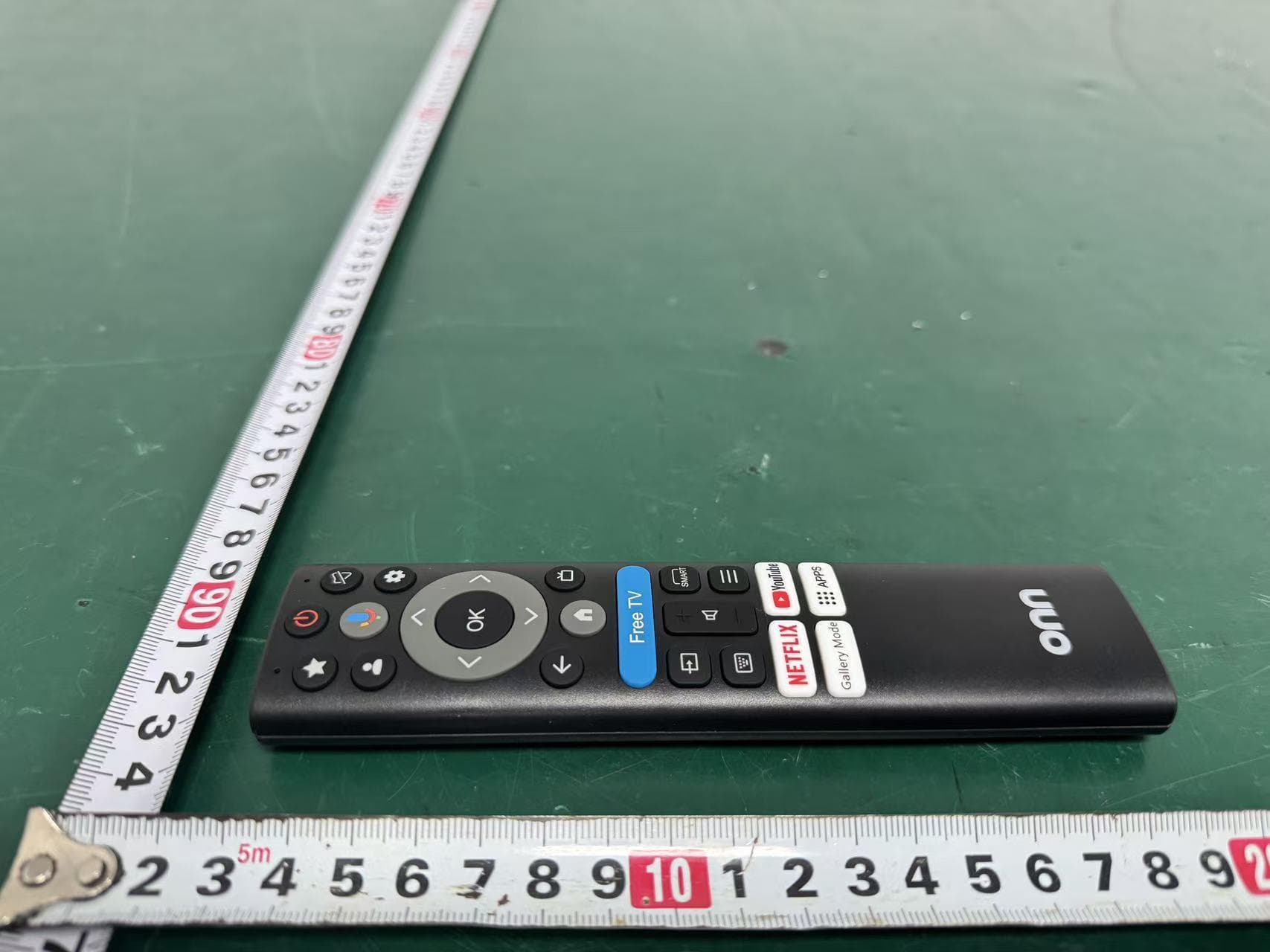

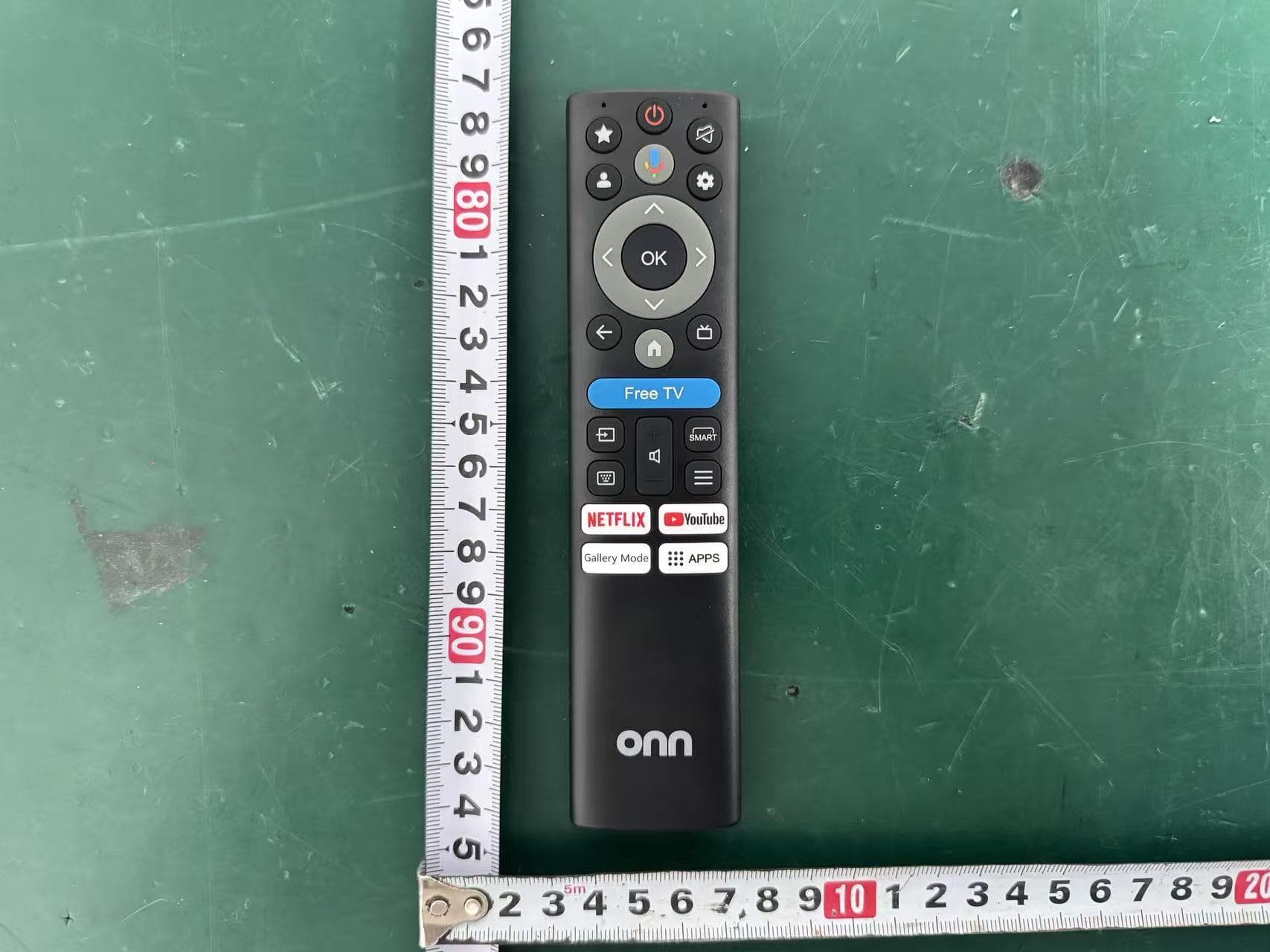

ExternalPhotos M/N:RC860UW ExternalPhotos M/N:RC860UW ExternalPhotos M/N:RC860UW

T ec hn ical R e q u i r e m ents: 1. White background with black text, f o n t s i z e a n d c o l o r a s sho wn in F i g u r e 2 . Ma terial: 5 0 # P ET with anti-UV coa t i n g , b a c k a d h e s i v e tap e. 2 . S ize: 25 X8mm; T olerance: ± 0 . 2 m m . 3. C o mplie s w i t h ROHS requirements. 4 . E nviron m e n t a l p rotection requireme n t s 5.C om plies w i t h R E ACH and POPS regul a t i o n s . ， 二 丁 OOCXJ 二 丿 Model: RC860UW FCC ID: 2BFQX-RC860UW 勹 The location for pasting

InternalPhotos M/N:RC860UW InternalPhotos M/N:RC860UW InternalPhotos M/N:RC860UW

Page 1 of 3 Report No. ESTE-R2511148 FCC RF EXPOSURE REPORT Moka Technology (Guangdong) Co., Ltd Bluetooth remote control Model Number: RC860UW Additional Model: RC860****(* can be A-Z, 0-9 or “-“ or blank) FCC ID: 2BFQX-RC860UW Applicant: Moka Technology (Guangdong) Co., Ltd Address: No.1, Qiaoguang Road, Chenjiang Street, Zhongkai New and High- tech Industries Development Zone, 516029 Huizhou Guangdong, P. R. China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2511148 Date of Test: Nov. 10, 2025 ~ Nov. 17, 2025 Date of Report: Nov. 21, 2025 Page 2 of 3 Report No. ESTE-R2511148 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2511148 3. Evaluation Results Mode CH Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) BLE 1M 2402 4.62 0.72 3.19 3±1 2.512 2.72 2440 4.63 0.72 3.2 3±1 2.512 2.72 2480 4.81 0.72 3.38 3±1 2.512 2.72 BLE 2M 2402 4.65 0.72 3.22 3±1 2.512 2.72 2440 4.69 0.72 3.26 3±1 2.512 2.72 2480 4.83 0.72 3.4 3±1 2.512 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Page 1 of 25 Report No.ESTE-R2511147 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.732 2401.637 2402.369 0.5 PASS BLE_1M Ant1 2440 0.690 2439.655 2440.345 0.5 PASS BLE_1M Ant1 2480 0.657 2479.664 2480.321 0.5 PASS BLE_2M Ant1 2402 1.080 2401.466 2402.546 0.5 PASS BLE_2M Ant1 2440 1.110 2439.460 2440.570 0.5 PASS BLE_2M Ant1 2480 1.062 2479.460 2480.522 0.5 PASS Page 2 of 25 Report No.ESTE-R2511147 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 3 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 4 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2480-PASS Page 5 of 25 Report No.ESTE-R2511147 Appendix B: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 4.62 ≤30 PASS BLE_1M Ant1 2440 4.63 ≤30 PASS BLE_1M Ant1 2480 4.81 ≤30 PASS BLE_2M Ant1 2402 4.65 ≤30 PASS BLE_2M Ant1 2440 4.69 ≤30 PASS BLE_2M Ant1 2480 4.83 ≤30 PASS Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Page 6 of 25 Report No.ESTE-R2511147 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 7 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Page 8 of 25 Report No.ESTE-R2511147 Page 9 of 25 Report No.ESTE-R2511147 Appendix C: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -9.85 ≤8.00 PASS BLE_1M Ant1 2440 -7.72 ≤8.00 PASS BLE_1M Ant1 2480 -9.32 ≤8.00 PASS BLE_2M Ant1 2402 -9.63 ≤8.00 PASS BLE_2M Ant1 2440 -11.76 ≤8.00 PASS BLE_2M Ant1 2480 -10.38 ≤8.00 PASS Page 10 of 25 Report No.ESTE-R2511147 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 11 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 12 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2480-PASS Page 13 of 25 Report No.ESTE-R2511147 Appendix D: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] BLE_1M Ant1 2402 2402.01 4.36 BLE_1M Ant1 2440 2440.01 4.40 BLE_1M Ant1 2480 2480.01 4.57 BLE_2M Ant1 2402 2402.01 4.37 BLE_2M Ant1 2440 2440.02 4.34 BLE_2M Ant1 2480 2480.01 4.56 Page 14 of 25 Report No.ESTE-R2511147 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS Page 15 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS Page 16 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2480-PASS Page 17 of 25 Report No.ESTE-R2511147 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 4.36 -39.5 ≤-15.64 PASS BLE_1M Ant1 High 2480 4.57 -38.33 ≤-15.43 PASS BLE_2M Ant1 Low 2402 4.37 -29.73 ≤-15.63 PASS BLE_2M Ant1 High 2480 4.56 -39.69 ≤-15.44 PASS Page 18 of 25 Report No.ESTE-R2511147 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Page 19 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2480-PASS Page 20 of 25 Report No.ESTE-R2511147 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~26500 4.36 -41.67 ≤-15.64 PASS BLE_1M Ant1 2440 30~26500 4.40 -41.31 ≤-15.6 PASS BLE_1M Ant1 2480 30~26500 4.57 -41.59 ≤-15.43 PASS BLE_2M Ant1 2402 30~26500 4.37 -41.7 ≤-15.63 PASS BLE_2M Ant1 2440 30~26500 4.34 -41.3 ≤-15.66 PASS BLE_2M Ant1 2480 30~26500 4.56 -41.03 ≤-15.44 PASS Page 21 of 25 Report No.ESTE-R2511147 Test Graphs BLE_1M-Ant1-2402-30~26500-PASS BLE_1M-Ant1-2440-30~26500-PASS BLE_1M-Ant1-2480-30~26500-PASS Page 22 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2402-30~26500-PASS BLE_2M-Ant1-2440-30~26500-PASS Page 23 of 25 Report No.ESTE-R2511147 BLE_2M-Ant1-2480-30~26500-PASS Page 24 of 25 Report No.ESTE-R2511147 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] BLE_1M Ant1 2440 0.80 1.25 64.00 1.94 BLE_2M Ant1 2440 0.43 1.25 34.40 4.63 Page 25 of 25 Report No.ESTE-R2511147 Test Graphs NTNV-BLE_1M-Ant1-2440 NTNV-BLE_2M-Ant1-2440

Page 1 of 42 Report No.ESTE-R2511147 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Moka Technology (Guangdong) Co., Ltd Bluetooth remote control Model Number: RC860UW Additional Model: RC860****(* can be A-Z, 0-9 or “-“ or blank) FCC ID: 2BFQX-RC860UW Applicant: Moka Technology (Guangdong) Co., Ltd Address: No.1, Qiaoguang Road, Chenjiang Street, Zhongkai New and High- tech Industries Development Zone, 516029 Huizhou Guangdong, P. R. China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2511147 Date of Test: Nov. 10, 2025 ~ Nov. 17, 2025 Date of Report: Nov. 21, 2025 Page 2 of 42 Report No.ESTE-R2511147 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test Mode .......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 9 2.8. Duty Cycle .......................................................................................................................................... 9 2.9. Channel List ..................................................................................................................................... 10 2.10. Test Equipment List ...................................................................................................................... 11 3. 6DB BANDWIDTH ............................................................................................................................ 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER .................................................................................................. 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. CONDUCTED BAND EDGE .............................................................................................................. 16 6.1. Limit ..............…

Text truncated - open the document above for the full version.

Shenzhen ZTX Communication Technology Co., Ltd 模块实物图 Module physical diagram Shenzhen ZTX Communication Technology Co., Ltd Passive data (with enclosure - standing wave ratio) Shenzhen ZTX Communication Technology Co., Ltd Passive data (with enclosure - efficiency/gain) FrequencyEfficiencyPeak Gain Mhz%dBdB 240028.50 -5.450.72 241027.03 -5.680.40 242026.11 -5.830.31 243025.66 -5.910.37 244024.58 -6.090.36 245023.53 -6.280.41 246021.93 -6.59-0.03 247021.85 -6.61-0.07 248020.29 -6.93-0.46 249019.32 -7.14-0.76 250018.69 -7.28-0.64 Shenzhen ZTX Communication Technology Co., Ltd Passive data (with enclosure - 2.4G directional pattern) XOY面XOZ面 YOZ面 Z XY 2450MHz 3D方向图

ConductedTest RadiatedTest(Below1GHz) RadiatedTest(Above1GHz)
