2BFTD460022OMNI AUTO SCORING SYSTEM

USER MANUAL IMPORTANT PRODUCT INFORMATION WARNING: Read the safety information before using your device. Failure to follow the safety instructions before operation may result in fire, electric shock, other injury or damage to the OMNI and accessories. CHILD SAFETY The OMNI has small parts including plastic and glass and may present a choking hazard. Electronic cables can present a strangulation hazard to children. Keep your device and its accessories out of reach of small children. SAFETY INFORMATION Your OMNI is not water resistant and only suitable for indoor use. To avoid electric shock, do not expose the device or any accessories to water or other liquids. Do not use oils, lotions or other abrasive substances to clean or polish your device or accessories. If your device or accessories get wet, switch off the power source and carefully unplug the device and cables while keeping your hands dry. Do not attempt to dry using an external heat source such as microwave or hair dryer. Do not disassemble, modify or open the housing of the device as this could cause injury, or damage to the device, or void the limited warranty. Do not use third-party accessories with the device, as this may limit performance or void the limited warranty. Using third-party accessories could also cause damage to the device or the accessories. Keep your device out of direct sunlight, and handle with care. Do not drop the device, as this can cause damage. SAFETY INFORMATION ASSEMBLING YOUR OMNI SCORING SYSTEM PARTS LIST A B C D E F G H 1x OMNI ring light 1x OMNI processing box 4x OMNI magnetic legs 1x OMNI power supply (3.0m) 1x Country adapter UK/EU/AU/JP&US 1x OMNI power cable for MOD Hub (0.4m) 10x OMNI legs and processing box Screw (M4x8mm) 1x Allen key (2.5mm) Before mounting your system: Before mounting the OMNI to your dartboard, ensure that your dartboard is firmly fixed to the wall. Vibrations of the dartboard lead to inaccurate scoring. To fix your dartboard to the wall, it is recommended using stabilising feet on the back of your dartboard. If you are using the Target TOR and Aspar dartboards these are provided. Additionally turn in the screw on the back of your dartboard as deep as possible. If you have a MOD Hub installed, we recommend you use this with the OMNI. Powering the OMNI Powering the OMNI with the included power supply Attach the correct country adapter (E) to the OMNI power supply (D). Plug the OMNI power supply (D) into the outlet and the other end into the back of the processing box. Only use the included power supply to power the OMNI. Powering the OMNI with the MOD Hub (sold separately) Plug the OMNI power cable for MOD Hub (F) with the straight end into the DC1 outlet of the MOD Hub and the angled end into the OMNI processing box (B). Do not plug in any other device in DC2. ASSEMBLY & MOUNTING 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Place the ring light (A) front side down on a flat surface. Remove camera protection stickers from all 4 cameras. Screw the OMNI magnetic legs (C) with the provided allen key (H) to the OMNI ring light using the OMNI screws (G). Remove the warning sticker from the OMNI processing box (B). Hold the OMNI processing box (B) at a slight angle from the connector pins and then rotate it in towards the leg until the box makes contact with the leg. The arrow on the side of the OMNI processing box (B) should align with arrow on the leg, This indicates successful connection. Keep the OMNI processing box (B) pressed against the leg and keep it tight until you have finished the next step. Otherwise, the processing box may fall. Screw the processing box to the master leg with the provided allen key (H) using the OMNI screws (G). Plug in the LED power cable to the side of the processing box. Optional: If you want to use a surround, mount it now. Mount the OMNI to your dartboard. The OMNI magnetic legs (C) will keep the OMNI ring light (A) in place. The 4 OMNI magnetic legs (C) need to be aligned with the blade lines between the numbers 9/12, 18/4, 15/2 and 7/16. Please refer to the visual step-by-step guide. Connect the OMNI power supply (3.0m) (D) to OMNI processing box (B) and then connect to power outlet. If using MOD Hub then use OMNI power cable for MOD Hub (0.4m) (F) VISUAL STEP-BY-STEP Using your OMNI Connecting your OMNI to your device: Ensure that your Mobile/Tablet is connected to a WiFi network (30mbps or higher) in your device settings. Install the DartCounter app from the Play Store or App Store, create an account and log in. In the app, go to the menu and click Smart Devices, followed by the + button. Select OMNI and click CONTINUE. Follow the instructions on screen and turn the OMNI on, press the button and wait until a white light shows. Once you have followed the steps on screen, the DartCounter app will notify that your OMNI has been successfully connected and linked to your account. Your OMNI SCORING SYSTEM should now be visible in your list of Smart Devices on the DartCounter app. It is now linked to your account and ready for auto scoring! Before using the OMNI for the first time you will need to calibrate your system using the below Calibration Steps. Calibrating your OMNI To ensure the best accuracy, your dartboard needs to be calibrated. The OMNI has an automatic calibration function. This process usually takes 40 – 60 seconds. When to calibrate your dartboard: - Calibrate your dartboard each time you re-mount the OMNI. - Consider calibrating your dartboard whenever your dart hits the OMNI or the ring light is altered by accident. - You don’t need to calibrate your dartboard every day but consider calibrating your dartboard again if you experience an increase in miscounts. How to Calibrate your dartboard: Ensure that the legs align with the corresponding blade lines (refer to visual step by step guide). Remove all darts from the dartboard. The dartboard must be empty during the whole calibration process. Automatic calibration: 1. Select ‘’Smart Devices’…

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BFTD460022 460022 We, Applicant Company Name: Target Sports Ltd Address: Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Phone: 18924675176 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of it’s successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date: 2026-2-3 Printed Name of Signee: Emily Heasman/Manager Company: Target Sports Ltd Address: Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Phone: 18924675176 Fax: Email: [email protected]

Target Sports Ltd Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Date: 2026-2-3 FCC ID: 2BFTD460022 Model Number: 460022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Target Sports Ltd , declare that this EUT (FCC ID: 2BFTD460022) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title: Emily Heasman/Manager Company: Target Sports Ltd Address: Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Phone: 18924675176 Fax: E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BFTD460022 460022 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are:  the Operational Description  the Block Diagram  the Schematics  the Parts Lists  the Tune Up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date: 2026-2-3 Printed Name of Signee: Emily Heasman/Manager Company: Target Sports Ltd Address: Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Phone: 18924675176 Fax: Email: [email protected]

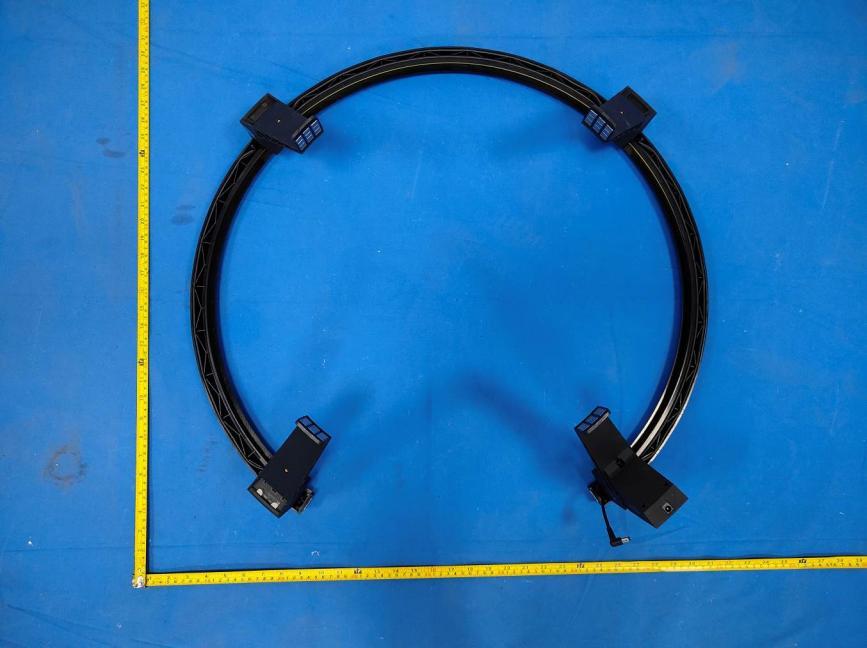

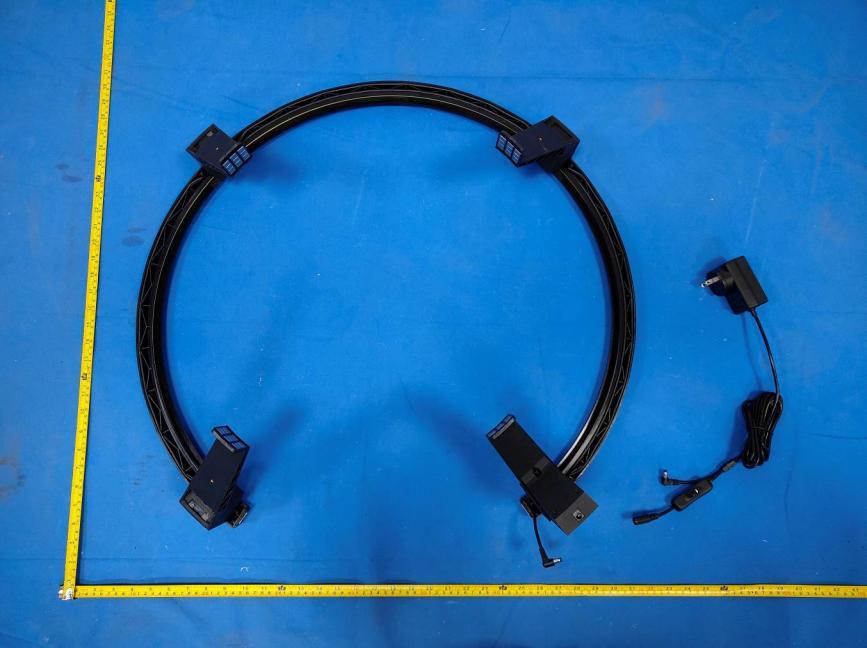

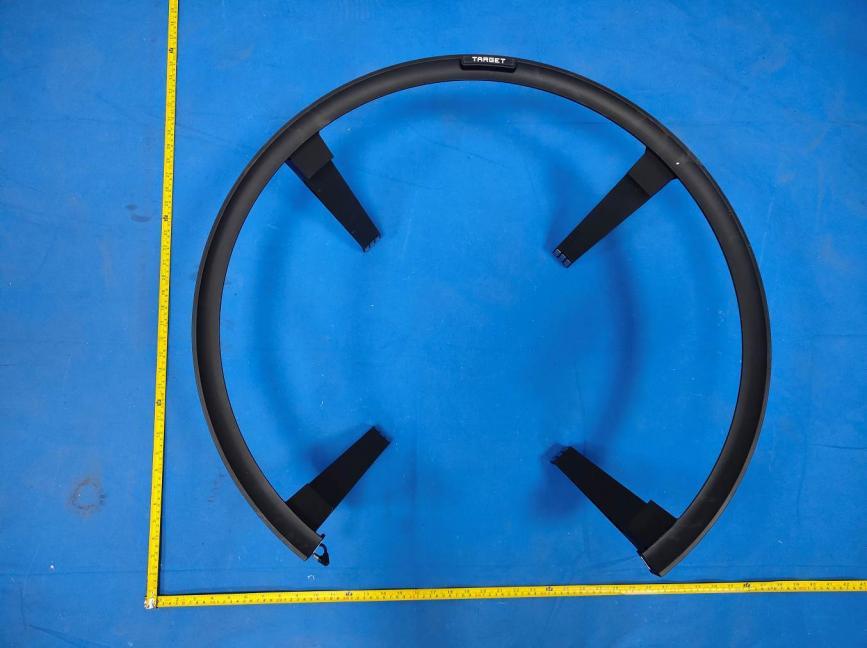

FCC ID: 2BFTD460022 External Photos of the EUT FCC ID: 2BFTD460022 FCC ID: 2BFTD460022

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BFTD460022

FCC ID:2BFTD460022 Internal Photos of the EUT FCC ID:2BFTD460022 ANT FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022 FCC ID:2BFTD460022

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .....................: FCC ID. ........................................... : CTA26010601703 2BFTD460022 Compiled by ( position+printed name+signature) ..: File administrators Zoey Cao Supervised by ( position+printed name+signature) ..: Project Engineer Ace Chai Approved by ( position+printed name+signature) ..: RF Manager Eric Wang Date of issue .....................................: Jan. 14, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Target Sports Ltd Address ............................................: Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Standard ...........................................: 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : OMNI AUTO SCORING SYSTEM Trade Mark ....................................... : Target Manufacturer ..................................... : Target Sports Ltd Model/Type reference ....................... : 460022 Listed Models .................................... : N/A Rating ............................................... : Input: 12V 3.0A Result ................................................ : PASS Report No.: CTA26010601703 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OMNI AUTO SCORING SYSTEM Model /Type : 460022 Listed Models : N/A Applicant : Target Sports Ltd Address : Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Manufacturer : Target Sports Ltd Address : Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010601703 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ........................................................................................... 9 4.6 Simultaneous Transmission for MPE Result ........................................................... 9 5 Conclusion ......................................................................................................................... 10 Report No.: CTA26010601703 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE S…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA antenna Model 460022 Frequency range 2400-2500MHz Manufacturer Target Sports Ltd Address Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom ANT Peak Gain 1.68 dBi 2. Antenna Photo: Length :34.61mm Width:8.74mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26010601702 2BFTD460022 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 14, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Target Sports Ltd Address ............................................ : Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : OMNI AUTO SCORING SYSTEM Trade Mark ....................................... : Target Manufacturer .................................... : Target Sports Ltd Model/Type reference ...................... : 460022 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12V 3.0A Result ............................................... : PASS Report No.: CTA26010601702 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OMNI AUTO SCORING SYSTEM Model /Type : 460022 Listed Models : N/A Applicant : Target Sports Ltd Address : Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Manufacturer : Target Sports Ltd Address : Kao Two Kao, Park Hockham Way, Harlow Essex, CM17 9SR United Kingdom Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010601702 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description ...............................................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BFTD460022 Company : Target Sports Ltd EUT : OMNI AUTO SCORING SYSTEM Model Number : 460022 Report No. : CTA26010601702 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 16.000 2404.040 2420.040 0.5 PASS 2437 15.840 2429.160 2445.000 0.5 PASS 2462 15.480 2454.440 2469.920 0.5 PASS 11N20SISO Ant1 2412 16.360 2404.000 2420.360 0.5 PASS 2437 17.200 2428.440 2445.640 0.5 PASS 2462 16.640 2453.440 2470.080 0.5 PASS 11N40SISO Ant1 2422 35.920 2403.920 2439.840 0.5 PASS 2437 33.120 2420.280 2453.400 0.5 PASS 2452 34.400 2435.440 2469.840 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.416 2405.3480 2418.7640 --- --- 2437 13.399 2430.3415 2443.7405 --- --- 2462 13.423 2455.3118 2468.7348 --- --- 11G Ant1 2412 16.876 2403.6469 2420.5229 --- --- 2437 16.820 2428.6509 2445.4709 --- --- 2462 16.894 2453.5819 2470.4759 --- --- 11N20SISO Ant1 2412 17.835 2403.1257 2420.9607 --- --- 2437 17.900 2428.0879 2445.9879 --- --- 2462 17.872 2453.0712 2470.9432 --- --- 11N40SISO Ant1 2422 36.091 2404.0258 2440.1168 --- --- 2437 36.044 2419.0459 2455.0899 --- --- 2452 36.024 2434.0390 2470.0630 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.94 ≤30.00 PASS 2437 14.25 ≤30.00 PASS 2462 14.45 ≤30.00 PASS 11G Ant1 2412 13.34 ≤30.00 PASS 2437 13.57 ≤30.00 PASS 2462 13.65 ≤30.00 PASS 11N20SISO Ant1 2412 13.08 ≤30.00 PASS 2437 13.45 ≤30.00 PASS 2462 13.58 ≤30.00 PASS 11N40SISO Ant1 2422 13.72 ≤30.00 PASS 2437 13.70 ≤30.00 PASS 2452 13.77 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.18 ≤8.00 PASS 2437 -11.89 ≤8.00 PASS 2462 -10.73 ≤8.00 PASS 11G Ant1 2412 -18.79 ≤8.00 PASS 2437 -18.22 ≤8.00 PASS 2462 -17.80 ≤8.00 PASS 11N20SISO Ant1 2412 -18.58 ≤8.00 PASS 2437 -18.45 ≤8.00 PASS 2462 -17.93 ≤8.00 PASS 11N40SISO Ant1 2422 -21.03 ≤8.00 PASS 2437 -20.73 ≤8.00 PASS 2452 -21.20 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.73 -47.88 ≤-18.27 PASS High 2462 2.44 -54.67 ≤-17.57 PASS 11G Ant1 Low 2412 -3.02 -34.62 ≤-23.02 PASS High 2462 -2.70 -57.98 ≤-22.7 PASS 11N20SIS O Ant1 Low 2412 -3.35 -34.67 ≤-23.35 PASS High 2462 -2.75 -57.53 ≤-22.75 PASS 11N40SIS O Ant1 Low 2422 -6.41 -34.34 ≤-26.41 PASS High 2452 -6.07 -57.13 ≤-26.07 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.03 1.03 --- PASS 30~1000 1.03 -68.1 ≤-18.97 PASS 1000~26500 1.03 -54.86 ≤-18.97 PASS 2437 Reference 1.85 1.85 --- PASS 30~1000 1.85 -67.61 ≤-18.15 PASS 1000~26500 1.85 -55.39 ≤-18.15 PASS 2462 Reference 1.89 1.89 --- PASS 30~1000 1.89 -67.92 ≤-18.11 PASS 1000~26500 1.89 -55.27 ≤-18.11 PASS 11G Ant1 2412 Reference -3.71 -3.71 --- PASS 30~1000 -3.71 -67.6 ≤-23.71 PASS 1000~26500 -3.71 -55.53 ≤-23.71 PASS 2437 Reference -3.82 -3.82 --- PASS 30~1000 -3.82 -68.15 ≤-23.82 PASS 1000~26500 -3.82 -55.31 ≤-23.82 PASS 2462 Reference -3.30 -3.30 --- PASS 30~1000 -3.30 -67.29 ≤-23.3 PASS 1000~26500 -3.30 -55.15 ≤-23.3 PASS 11N20SISO Ant1 2412 Reference -3.49 -3.49 --- PASS 30~1000 -3.49 -68.44 ≤-23.49 PASS 1000~26500 -3.49 -54.46 ≤-23.49 PASS 2437 Reference -4.53 -4.53 --- PASS 30~1000 -4.53 -67.98 ≤-24.53 PASS 1000~26500 -4.53 -55.9 ≤-24.53 PASS 2462 Reference -3.06 -3.06 --- PASS 30~1000 -3.06 -57.3 ≤-23.06 PASS 1000~26500 -3.06 -55.3 ≤-23.06 PASS 11N40SISO Ant1 2422 Reference -6.75 -6.75 --- PASS 30~1000 -6.75 -68.07 ≤-26.75 PASS 1000~26500 -6.75 -54.84 ≤-26.75 PASS 2437 Reference -6.26 -6.26 --- PASS 30~1000 -6.26 -67.81 ≤-26.26 PASS 1000~26500 -6.26 -55.29 ≤-26.26 PASS 2452 Reference -6.70 -6.70 --- PASS 30~1000 -6.70 -66.76 ≤-26.7 PASS 1000~26500 -6.70 -55.06 ≤-26.7 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.14 0.19 73.68 1.33 7.14 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detecto r Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.79 2.00 0.03 37.44 ≤54 PASS AV 2386.320 -54.04 2.00 0.03 43.19 ≤54 PASS AV 2390.000 -57.03 2.00 0.03 40.20 ≤54 PASS Peak 2310.000 -51.82 2.00 0.00 45.38 ≤74 PASS Peak 2386.580 -46.63 2.00 0.00 50.57 ≤74 PASS Peak 2390.000 -48.42 2.00 0.00 48.78 ≤74 PASS High 2462 AV 2483.500 -5…

Text truncated - open the document above for the full version.
