2BG2O-HY300MINIprojector

Turn on the projector,please check your Use of remote control Important safety precautions Important safety precautions USER'S MANUAL Announcements projector UI Edition(UI 1) This UI is the Basic function model UI,It can support play Video,Music,Photo.You also can connect it with your smart phone via the USB original cable. Turn on the projector,please check your Check before useCheck before useCheck before use ldentification of electronic information product pollution control labeling requirements. Power button Function button Return Volume Down projector UI Edition(UI 2) This UI support wireless screen mirroring function, It can support play Video,Music,Photo.You also can connect it with your smart phone via the USB original cable. Wired Screen Function 1.Connect your iPhone to the projector via the original iPhonecharging cable. (Cable has a USB port and Lighting Port) 2.Please click "Trust" when the iPhone shows a pop-up window. 3.Enter device password. Android cable is on the same screen WARNING ANOTICE 1.Connect your Android phone to the projector via the originalAndroid phone cable. (The data cable must have a USB port and be connected to a computer to read the contents of the phone) 2.Install the APK required for the same screen according to theprompt, or scan the two-dimensional code on the projectorscreen interface to download and install. 4.Note that when Android phones are on the same screen,thesound is coming from the phone, not from the projector. 3.After the APK is installed successfully, the same screen functioncan be realized. Press Source button or press Wired screen function under UI two, Then choose Wired Screen function,Then the below UI will show UP. IOS connect by Cables Setting WIFI 1.Press setting button on remote control or enter setting function on first page of the second UI. 2.After enter the wi fisetting interface,open th e “wireless and internet” button. 3.choose a WiFi and input the password, then connect it. 1.Turn on WiFi of the mobile phone. 2.Turn on the "wireless display"/"screen mirroring" function in the phone settings and choose the device name.Then connect it. This page can play video, music, photos and e-books as well. Media under the second UI Wireless screen WirelessscreensupportforAppleandAndroiddevices You can use remote control to choose and play after connect to a USB driver or hard disk. Setting Users need to select the correct signal input source before accessing the computer, TV, set-top box, game box, dvd etc. Users need to select the correct signal input source before accessing the computer, TV, set-top box, game box, dvd etc. This manual is general instructions, The pictures and functionsin this manual should subject to the actual product. Ourcompany is devoting to improve product performance, wereserve the right to modify product functions and interfacedescribed in this manual without notice You can setting language,image,color or keystone etc. here. Please make sure your smart phone and projector connect to the same WiFi. Mute Direction key Menu source Volume Up Direction key (1) Contains the name of 6 kinds of harmful substances, contains the amount, contains part. This product is contained in the name of the 6 kinds of harmful substances, contain quantity, containing the part shown in the table below: Name and content of toxic and harmful substances or elements in the product. Part name Actual substrate Framework Light source Note (meaning of o or x) (2)Pollution control label of electronic information products. (3)Packaging recycling mark (GB18455-2001) o indicates that the content of the toxic and harmful substance in all homogeneous materials of thecomponent is below the limit requirements specified in SJ/T11363-2006 standard.x means that the content of the toxic and harmful substance in at least one homogeneous material of thecomponent exceeds the limit requirements specified in SJ/T11363-2006 standard. 1."Frame" of part name, including external frame and internal component. The environmental protection service life of this product is marked according to the nationapollution Control And Management Measures for Electronic information Products publishedon 2/28,2006. According to the packaging recycling mark (GB18455-2001), each packaging material of the product is identified. When discarding packaging materials, please comply with local laws and regulations onrecycling and reuse of packaging materials. Suitable for altitude less than 2000 m andnon-hot climate To prevent fire or electric shock, do not expose the unit to rain or moisture. Do not openthe case. This sign reminds the user that great care must be taken in operation and repair.therefore, it must be read carefully to prevent any failures. To prevent electric shock, do not open the chassis. There are no parts in the machine thatthe customer can repair. Please entrust qualified professional maintenance personnel tocarry out maintenance. Thank you for purchasing this digital projector series. Please read through this manual for proper use of this product.After reading, please put this manual together with the warranty card in a safe place forreference. Please read this instruction manual if you need to know something or have any problems. This sign warns the user that uninsulated voltages in the unit may cause electricshock from the surface magnetic field, and therefore it is dangerous to contactany part of the unit. Warning: Do not look directly at or stare at the light beam from thelens. Strong light may cause eye discomfort or damage. Parentsshould supervise and educate children to use it properly. As long as the product can comply with the safety and use ofmatters needing attention, from the production date within the number of years, will not have a profound impact onenvironmental pollution, human body, property. When the product is discarded after normal use, the recycling and reuse of electronicinformation products should comply with the requirements óf local laws a…

Text truncated - open the document above for the full version.

Shenzhen Junyi Electronic Commerce Co.,Ltd. 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-27 To whom it may concern: We, Shenzhen Junyi Electronic Commerce Co.,Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BG2O-HY300MINI) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Wen Zhang Manager Shenzhen Junyi Electronic Commerce Co.,Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Junyi Electronic Commerce Co.,Ltd. 301, No. 4 Huihao Industrial Park, 5th Industrial Zone, Heshuikou Community, Matian Street, Guangming District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/06/25 U.S. Agent Designation Shenzhen Junyi Electronic Commerce Co.,Ltd..acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BG2O-HY300MINI): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Junyi Electronic Commerce Co.,Ltd. Shenzhen Junyi Electronic Commerce Co.,Ltd. with the FRN [0035568153] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Wen Zhang General Manager Shenzhen Junyi Electronic Commerce Co.,Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Junyi Electronic Commerce Co.,Ltd. Add: 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Date: 2024-6-27 FCC ID: 2BG2O-HY300MINI Dear Sir/Madam, We, Shenzhen Junyi Electronic Commerce Co.,Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: projector Model no.: HY300Mini, HY300AMini, HY300BMini, HY300MAXmini, HY300Lmini, HY300Pmini, HY320, HY320M, HY320P, MX320 Sincerely, Name/Title： Wen Zhang/Manager Company: Shenzhen Junyi Electronic Commerce Co.,Ltd. Address: 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Phone: 18124165560 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-6-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BG2O-HY300MINI HY300Mini For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wen Zhang/Manager Company: Shenzhen Junyi Electronic Commerce Co.,Ltd. Address: 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Phone: 18124165560 Fax: N/A E-Mail: [email protected]

Shenzhen Junyi Electronic Commerce Co.,Ltd. 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Date: 2024-6-27 FCC ID: 2BG2O-HY300MINI Model Number: HY300Mini To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Junyi Electronic Commerce Co.,Ltd., declare that this EUT (FCC ID: 2BG2O-HY300MINI) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Wen Zhang/Manager Company: Shenzhen Junyi Electronic Commerce Co.,Ltd. Address: 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Phone: 18124165560 Fax: N/A E-Mail: [email protected]

Shenzhen Junyi Electronic Commerce Co.,Ltd. 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-27 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BG2O-HY300MINI including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wen Zhang/Manager Company: Shenzhen Junyi Electronic Commerce Co.,Ltd. Address: 301, No. 4 Huihao Industrial Park, 5th Industrial Zone,Heshuikou Community,Matian Street,Guangming District,Shenzhen China Phone: 18124165560 Fax: N/A E-Mail: [email protected]

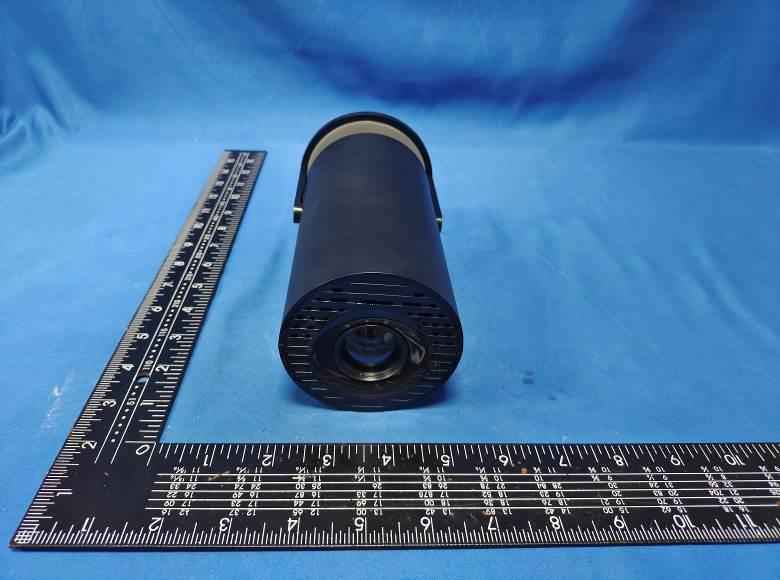

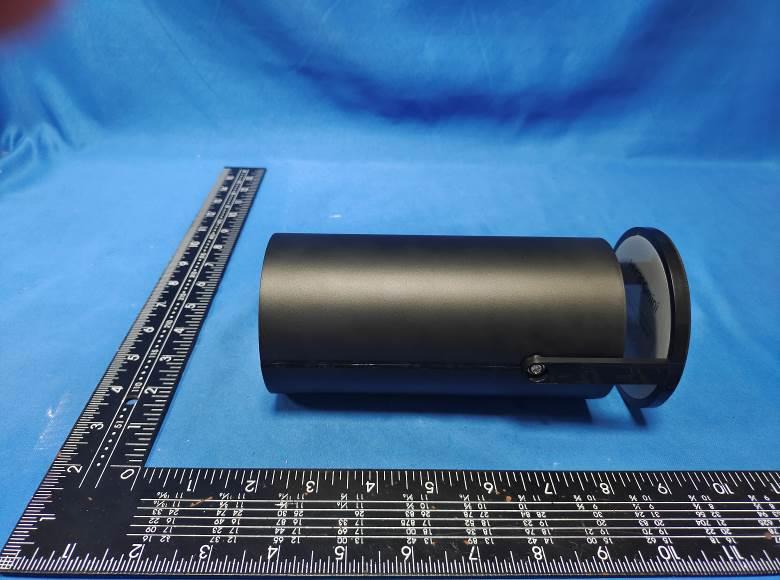

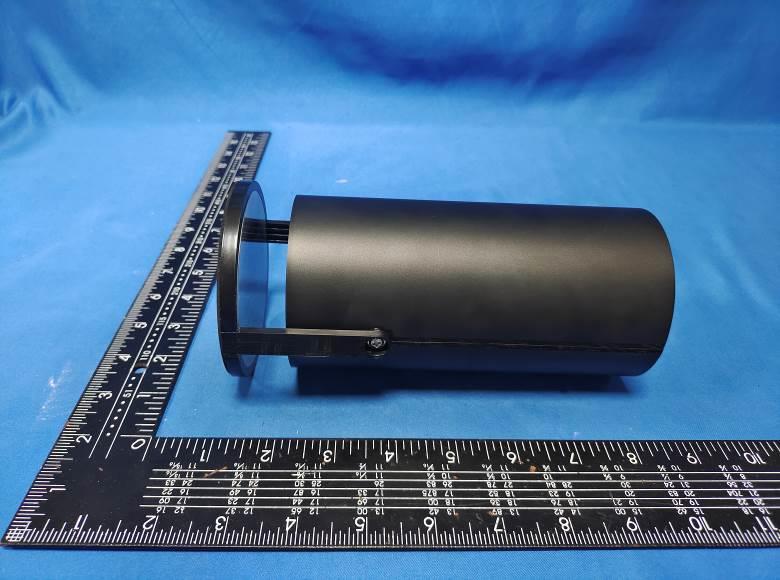

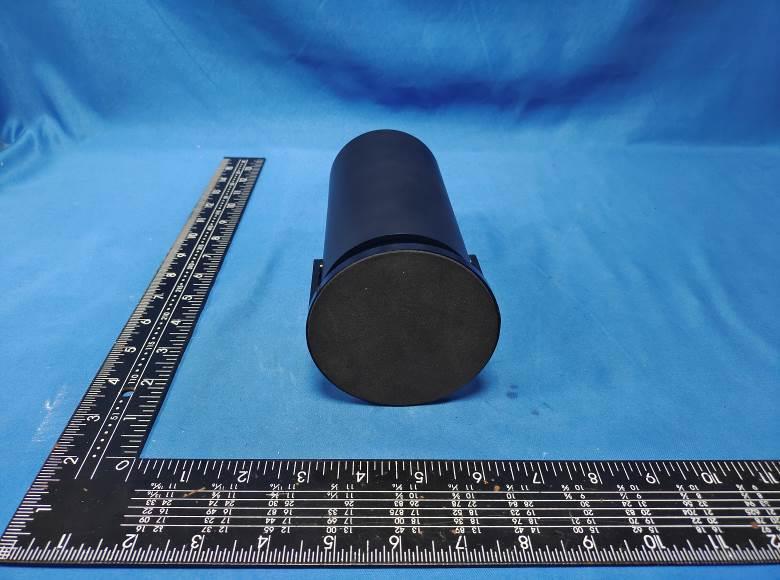

FCC ID: 2BG2O-HY300MINI External Photos of the EUT FCC ID: 2BG2O-HY300MINI FCC ID: 2BG2O-HY300MINI

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BG2O-HY300MINI

FCC ID: 2BG2O-HY300MINI Internal Photos of the EUT FCC ID: 2BG2O-HY300MINI PIFA antenna FCC ID: 2BG2O-HY300MINI

RF Exposure evaluation FCC ID: 2BG2O-HY300MINI Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information HY300Mini can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PIFA antenna 1.00dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 14.0 14.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT40) 2422 2437 2452 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 16.0 39.8107 1.000 1.2589 0.01 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA antenna Model HY300Mini Frequency range 2400-2500MHz Manufacturer Shenzhen LSP technology Co., Ltd. ANT Peak Gain 1.00 dBi 2. Antenna Photo: Length :22.09mm Width:12.39mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA24053000501 2BG2O-HY300MINI Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Lushan Kong Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jun. 05, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Junyi Electronic Commerce Co.,Ltd. Address ............................................ : 301, No. 4 Huihao Industrial Park, 5th Industrial Zone, Heshuikou Community, Matian Street, Guangming District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : projector Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen LSP technology Co., Ltd. Model/Type reference ...................... : HY300Mini Listed Models .................................. : HY300AMini, HY300BMini, HY300MAXmini, HY300Lmini, HY300Pmini, HY320, HY320M, HY320P, MX320 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24053000501 Page 2 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : projector Model /Type : HY300Mini Series Model No. HY300AMini, HY300BMini, HY300MAXmini, HY300Lmini, HY300Pmini, HY320, HY320M, HY320P, MX320 Applicant : Shenzhen Junyi Electronic Commerce Co.,Ltd. Address : 301, No. 4 Huihao Industrial Park, 5th Industrial Zone, Heshuikou Community, Matian Street, Guangming District, Shenzhen, China Manufacturer : Shenzhen LSP technology Co., Ltd. Address : 1016C3, Jinjixiang Plaza, No. 31 Qinglin Middle Road, Ziwei Community, Longcheng Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24053000501 Page 3 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 6 2.4 Short description of the Equipment under Test (EUT) 6 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I RO N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 36 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 37 6 P H O T O S O F T H E E U T ............................................................. 38 Report No.: CTA24053000501 Page 4 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DT…

Text truncated - open the document above for the full version.

Report No.: CTA24053000501 Page 30 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24053000501 Page 31 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24053000501 Page 32 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 802.11n40 Reference Reference CH11 CH03 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24053000501 Page 33 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n40 Reference Reference CH06 CH09 30MHz-1GHz 30MHz-1GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24053000501 Page 34 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge Report No.: CTA24053000501 Page 35 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) Left bandedge Right bandedge 802.11n(HT40) Left bandedge Right bandedge Report No.: CTA24053000501 Page 36 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.00 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24053000501 Page 37 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24053000501 Page 38 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA24053000501 Page 39 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24053000501 Page 40 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24053000501 Page 41 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24053000501 Page 42 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24053000501 Page 43 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

FCC ID: 2BG2O-HY300MINI Test Setup Photos of the EUT
