2BG2U-G3MINILed Wireless charging speaker

LED无线充蓝牙音箱使用说明书 G3MINI 一．无线充使用：插入充电器自动开启无线充 1．短按下一曲长按音量减小 2．短按暂停／开始长按开／关机 3．短按上一曲长按音量增大 4．短按控制灯光长按进入时钟设置（短按暂停键切换光标）再长按设置闹钟（短按暂 停键切换光标） 技术参数 电池类型：锂电池（容量见外盒） 主要功能：BT.TF.USB.AUX.无线充.彩灯 产品尺寸：155＊55＊160mm 喇叭尺寸：36mm 喇叭电阻：4Ω 喇叭输出功率：3W 无线充功率：5W／10W 电源输入：DC5V／2A 按键功能操作说明 开机：长按开机键两秒开机，开机默认暖灯 二、蓝牙功能使用： 1．本音响支持具有A2DP功能的蓝牙设备使用，首先开机，长按M键进入蓝牙模式， 蓝牙指示灯的蓝灯闪亮，并伴有语音提示，此时音响.处于等待配对连接状态，只有在 这个状态下，才能与蓝牙音响进行配对并连接。 2.手机连接。 第一步：在手机设置中打开手机蓝牙设置开关，点击搜索设备 第二步：当可用设备显示G3MINI字样说明手机找到配对的蓝牙音箱，点击G3MINI进 入配对，手机与音箱连接成功后会有提示音并显示已连接。 三．灯光使用。 1.G3MINI蓝牙音箱配置多种幻彩灯光效果 2.设备开机默认暖灯效果，单击M键调节灯光效果 TF卡功能使用 将TF卡插入卡槽位，会出现对应的语音提示，产品将自动读取卡内音频文件并播放，用 户可以使用音箱＋/－按键控制音量大小声音。 安全说明： 1.不要将产品暴露在水或者潮湿区域，如浴室等。 2.请不要用力撞击或者跌落产品，以免手动损坏。 3.长时间不使用时，请关闭电源。 4.保修和售后服务：如果您在使用过程中有任何问题，请随时与我们联系，我们 将用心服务每一位用户。 LED wireless charging speaker user manual G3MINI（English） 1、 Wireless charging usage: Insert the charger to automatically turn on wireless charging 1.Shortpressandlongpresstoreducevolume 2.Shortpresstopause/start,longpresstoturnon/off 3.Shortpresstheprevioussongandlongpresstoincreasethevolume 4.Shortpresstocontrolthelight,longpresstoenterclocksetting(shortpress pausekeytoswitchcursor),thenlongpresstosetalarmclock(shortpress pausekeytoswitchcursor) Technical parameters. Battery type: Lithium battery (capacity can be found in the outer box) Main functions: BT TF.USB AUX. Wireless charging. Color lights Product size: 155 * 55 * 160mm Horn size: 36mm Horn resistance: 4 Ω Horn output power: 3W Wireless charging power: 5W/10W Power input: DC5V/2A Key function operation instructions Power on: Press and hold the power button for two seconds to turn on the device, and the default light will be warm when turned on 2、 wireless function usage: 1.This audio system supports wireless devices with A2DP function. First, turn on the device, press and hold the M key to enter wireless mode. The blue light of the wireless indicator light flashes, accompanied by voice prompts. At this time, the audio system is in a waiting state for pairing and connection. Only in this state can it pair and connect with the wireless audio system. 2.Mobile phone connection. Step 1: Turn on the wireless settings switch in the phone settings and click on the search device Step 2: When the available device displays the word G3MINI, it indicates that the phone has found a paired wireless speaker. Click G3MINI to enter pairing. After the phone successfully connects to the speaker, a prompt sound will appear and it will show that it is connected. 3、 Lighting usage. 1.G3MINI wireless speaker is equipped with multiple illusory lighting effects 2.The default warm up effect when the device is turned on, click the M key to adjust the lighting effect TFcardfunctionusage InserttheTFcardintothecardslot,andacorrespondingvoicepromptwill appear.Theproductwillautomaticallyreadtheaudiofilesinsidethecardand playthem.Userscanusethespeaker+/-buttonstocontrolthevolumeand sound. Safetyinstructions: 1.Donotexposetheproducttowaterordampareas,suchasbathrooms. 2.Pleasedonotforcefullyimpactordroptheproducttoavoidmanualdamage. 3.Whennotinuseforalongtime,pleaseturnoffthepower. 4.Warrantyandafter-salesservice:Ifyouhaveanyproblemsduringuse,please feelfreetocontactus,andwewillserveeveryuserwithcare. Bedienungsanleitung für LED wireless charging wireless speaker G3MINI（德语） 1,5Drahtlose Ladenutzung: Setzen Sie das Ladegerät ein, um das drahtlose Laden automatisch einzuschalten 1.KurzePresseundlangePresse,umVolumenzureduzieren 2.KurzesDrückenzumAnhalten/Starten,langesDrückenzumEin-/Ausschalten 3.DrückenSiekurzaufdenvorherigenSongundlangedrückenSie,umdie Lautstärkezuerhöhen 4. Kurze Drücken, um das Licht zu steuern, lange drücken, um die Uhreneinstellung einzugeben (kurze Pausentaste drücken, um den Cursor zu wechseln), dann lange drücken, um den Wecker einzustellen (kurze Pausentaste drücken, um den Cursor zu wechseln) technische Parameter Batterietyp: Lithiumbatterie (Kapazität befindet sich im äußeren Kasten) Hauptfunktionen: BT TF.USB AUX. Drahtloses Aufladen. Farbleuchten Produktgröße: 155,55 und 160mm Horngröße: 36mm Hornwiderstand: 4 Ω Horn Ausgangsleistung: 3W Drahtlose Ladeleistung: 5W/10W Leistungseingang: DC5V/2A Bedienungsanleitung der wichtigsten Funktionen Einschalten: Halten Sie die Ein-/Aus-Taste zwei Sekunden gedrückt, um das Gerät einzuschalten. Die Standardleuchte leuchtet beim Einschalten warm. Verwendung der wireless-Funktion: 1.Dieses Audiosystem unterstützt wireless-Geräte mit A2DP-Funktion. Schalten Sie zuerst das Gerät ein, drücken und halten Sie die M-Taste gedrückt, um in den wireless-Modus zu gelangen. Das blaue Licht der wireless-Kontrollleuchte blinkt zusammen mit Sprachaufforderungen. Zu diesem Zeitpunkt befindet sich das Audiosystem in einem Wartezustand auf Kopplung und Verbindung. Nur in diesem Zustand kann es sich mit dem wireless-Audiosystem koppeln und verbinden. 2.Mobilfunkverbindung. Schritt 1: Schalten Sie den wireless-Einstellungsschalter in den Telefoneinstellungen ein und klicken Sie auf das Suchgerät Schritt 2: Wenn das verfügbare Gerät das Wort G3MINI anzeigt, zeigt es an, dass das Telefon einen gekoppelten wireless-Lautsprecher gefunden hat. Klicken Sie auf G3MINI, um die Kopplung einzugeben. Nachdem das Telefon erfolgreich mit dem Lautsprecher verbunden ist, wird ein Aufforderungsston angezeigtundangezeigt,dassesverbundenist. 3,BeleuchtungNutzung. 1.G3MINI wireless Lautsprecher ist mit mehreren illusionären Lichteffekten ausgestattet 2.Der standardmäßige Aufwärmeffekt, wenn das Gerät eingeschaltet ist, klicken Sie auf die M-Taste, um den Lichteffekt anzupassen VerwendungderTF-Kartenfunktion LegenSiedieTF-KarteindenKartensteckplatzein,undeserscheinteine entsprechendeSprachaufforderung.DasProduktliestautomatischdie AudiodateieninderKarteundspieltsieab.BenutzerkönnendieLautstärke unddenTonüberdieLautsprecher+/-Tastensteuern. Sicherheitshinweise: 1.SetzenSiedasProduktnichtWasseroderfeuchtenBereichenwie Badezimmernaus. 2.BitteschlagenSiedasProduktnichtgewaltsamaufoderlassenSieesfallen, ummanu…

Text truncated - open the document above for the full version.

HuizhouYixinhomefurnishingCo.,LTD ···· CoveredEquipmentCertificationAttestationLetter 6/18/2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2BG2U-G3MINI HuizhouYixinhomefurnishingCo.,LTD(“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. HuizhouYixinhomefurnishingCo.,LTD(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Signed: Printedname::JiantaoLi Title:Manager CompanyName:HuizhouYixinhomefurnishingCo.,LTD Date:6/18/2024

HuizhouYixinhomefurnishingCo.,LTD Address：Secondfloor,No.41,leftside,TamaoRoad,ZhuwuVillage,WestDayaBay,Huizhou, Guangdong,China Date:2024-06-21 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BG2U-G3MINI FRN:0035568237 (“HuizhouYixinhomefurnishingCo.,LTD”)certifiesthat,asofthedateofthefilingofthe application,SELLERHELPERINCisourdesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID.(“HuizhouYixinhomefurnishingCo.,LTD”)acceptstomaintainan agentfornolessthanoneyearafterthegranteehasterminatedallmarketingandimportation ortheconclusionofanyCommission-relatedproceedinginvolvingtheequipment. SELLERHELPERINCaccepts,asofthedateofthefilingoftheapplication,theobligationof thedesignatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:SELLERHELPERINC. Address:131217thStreet1298DenverCO80202UnitedStates FRN：0033406737 ContactPerson:MrsFairyLee Tel.:(303)731-9873 Email:[email protected] Sincerely, Signedonbehalfof（HuizhouYixinhome furnishingCo.,LTD） SignedonbehalfofSELLERHELPERINC Name:JiantaoLiName:MrsFairyLee Title:ManagerTitle:Manager Date:2024-06-21Date:2024-06-21

HuizhouYixinhomefurnishingCo.,LTD 6/18/2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Can K1V1H2 AUTHORITYTOACTASAGENT-FCC Onourbehalf,IappointHuizhouYixinhomefurnishingCo.,LTD,toactasouragentinthe preparationofthisapplicationforequipmentcertification.Icertifythatsubmitteddocumentsproperly describethedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateachunit manufactured,importedormarketed,asdefinedinFCCregulationswillhaveaffixedtoitalabel identicaltothatsubmittedforapprovalwiththisapplication. Insigningthisletter,Applicantcertifiesthatneithertheapplicantnoranypartytotheapplicationis notsubjecttoadenialofFederalbenefits,thatincludeFCCbenefits,pursuanttoSection5301ofthe Anti-DrugAbuseActof1988,21U.S.C.§862becauseofaconvictionforpossessionordistribution ofacontrolledsubstance.See47CFR1.2002(b)forthedefinitionofa"party"forthesepurposes. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,as specifiedbyNemkoNorthAmericaInc.,stillresidesstillresideswithus. Sincerely, Printedname:JiantaoLi

FamilyCertificationAttestationLetter 6/26/2024 NemkoCanadaInc 303RiverRoad Ottawa K1V1H2 Canada CompanyName:HuizhouYixinhomefurnishingCo.,LTD FCCID:2BG2U-G3MINI Models:G3mini, G63,K12,Y1,BT3401,BT2301,3401mini,L4,L5,L6,SS1,SS2,SS3,G3,K52,Y2,Y6 WeherebyrequestFamilyCertificationfortheabovementionedModelsbasedonthembeing electricallyidentical. G3miniistestedmodel,othermodelsarederivativemodels.Thesemodelsarethesamein termsofcircuitprincipleandRFchipandPCBlayout,onlydifferentonthemodelnamesand shape.SothetestdataofG3mincanrepresenttheremainingmodels. Signed: Printedname:JiantaoLi Title:Manager Date:6/26/2024

HuizhouYixinhomefurnishingCo.,LTD. June18,2024 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2BG2U-G3MINI PursuanttoSections0.457(d)and0.459oftheCommission’sRulesandFCCGuidancedocument 726920,weherebyrequestpermanentconfidentialtreatmentofexhibitsidentifiedassuchinthe tablebelowandrequesttheyarepermanentlywithheldfrompublicreviewbasedonthedocuments containingtradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthisinformationmightbeharmfultotheapplicantandprovideunjustifiedbenefits toitscompetitors. ExhibitTypeofConfidentialityRequested BlockDiagrams☒Permanent☐ShortTerm ExternalPhotos------------------☐ShortTerm InternalPhotos ☐Permanent* ☐ShortTerm OperationDescription☒Permanent☐ShortTerm PartsList&Placement/BOM ☐ Permanent ☐ShortTerm Tune-UpProcedure ☐Permanent ☐ShortTerm SchematicDiagrams☒Permanent☐ShortTerm TestSetupPhotos------------------☐ShortTerm User’sManual ☐Permanent* ☐ShortTerm Theasteriskeditems(*)requirefurtherinformationtobeprovidedinthisjustificationletterbeforepermanentconfidentiality willbeextendedtotheseexhibits.PleaserefertoFCCKDB726920D01foundat: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731andreviewsectionII,3)regarding specificinformationthatmustaccompanytheserequests. Note:anydocumentsheldundertheShort-Termconfidentialitywillautomaticallybecomepublic aftertherequestedtimeifanappropriateextensionrequesthasnotbeenreceived.Anyexhibits (i.e.,schematicdiagrams)thatmayhavealreadybeenrequestedtohave“Permanent” confidentialityasshownaboveneednotberepeatedunderShort-Termconfidentialityrequest. Sincerely, Signed: Printedname:JiantaoLi Title:Manager CompanyName:HuizhouYixinhomefurnishingCo.,LTD.

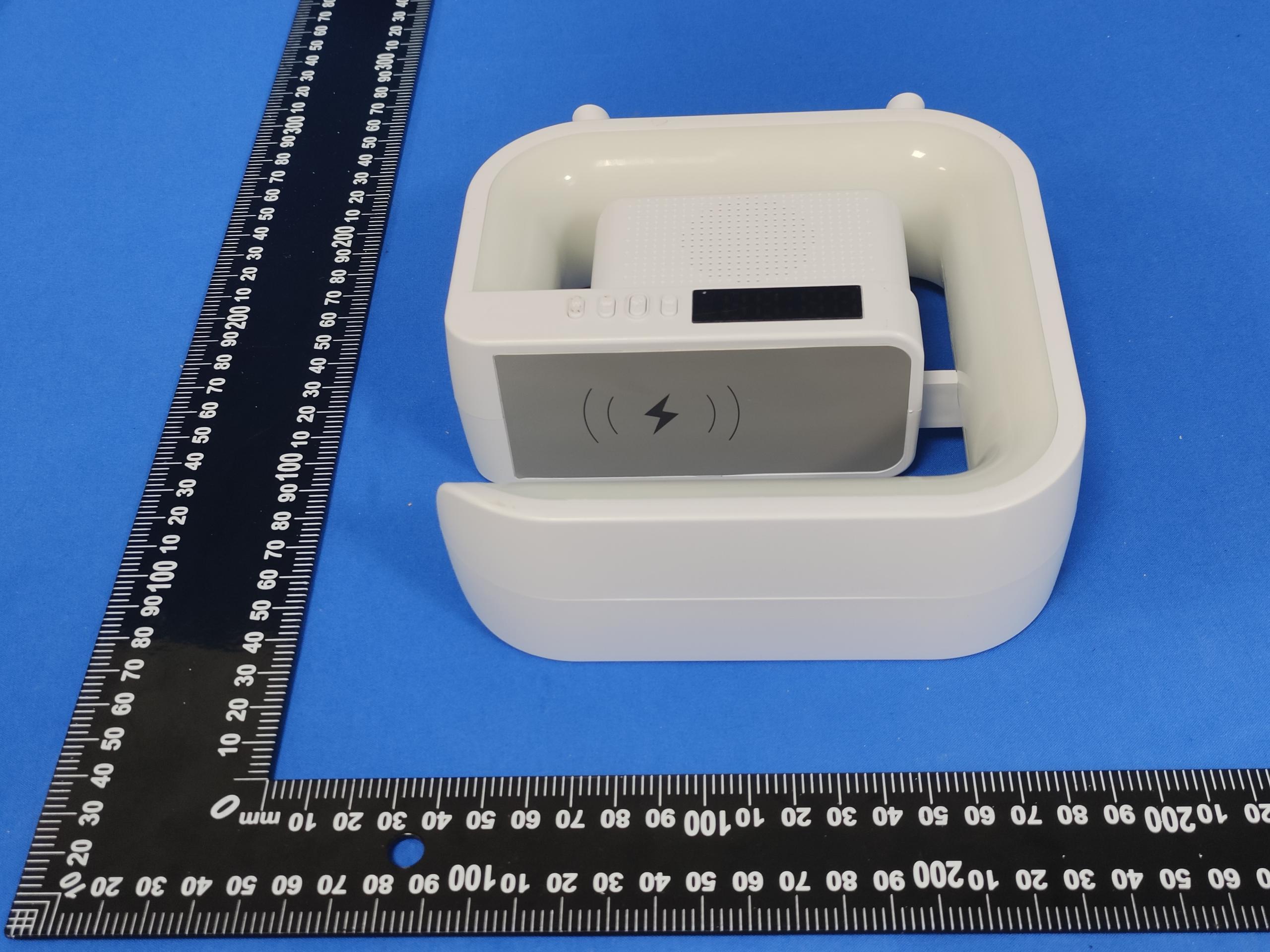

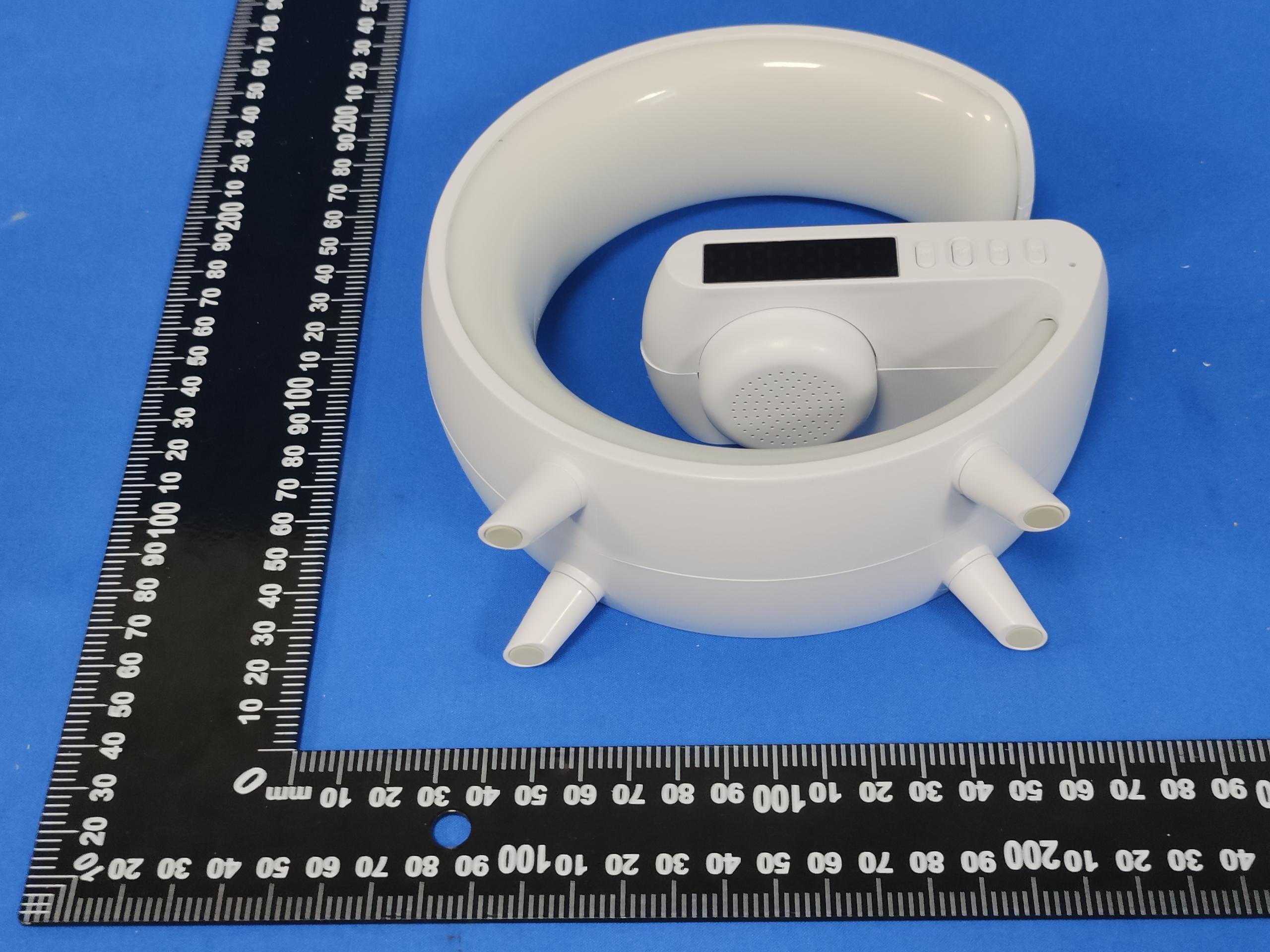

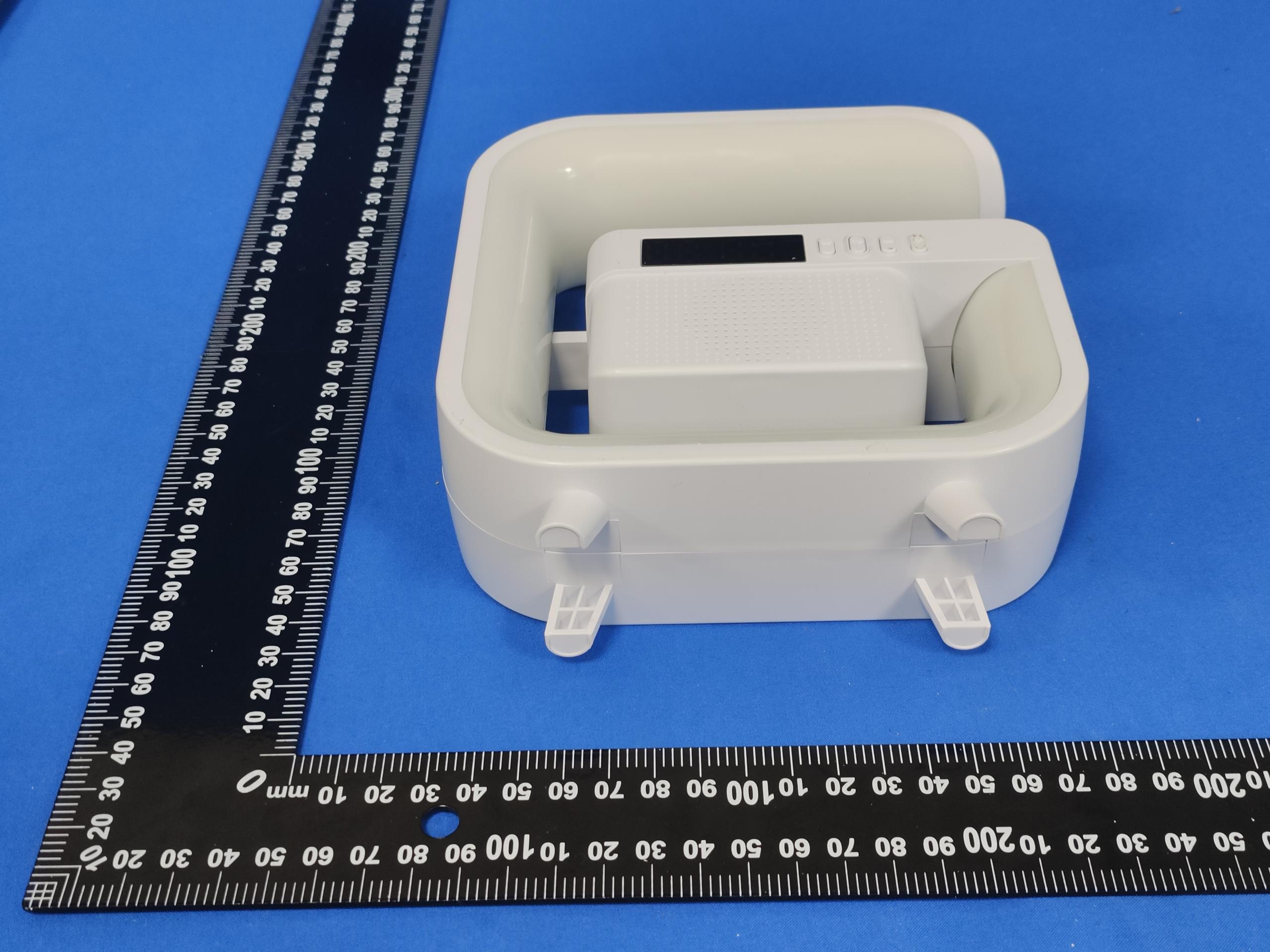

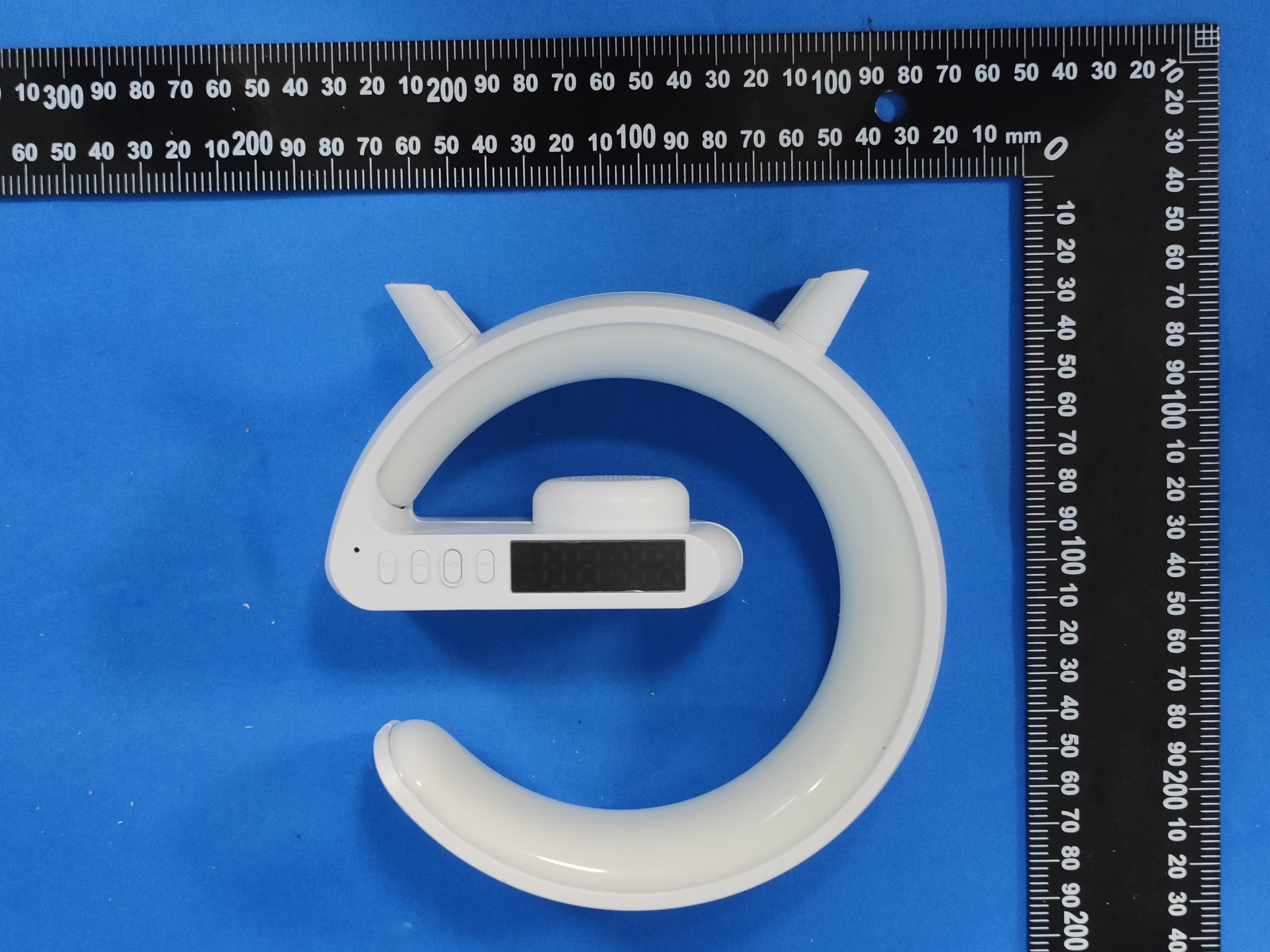

FCCID:2BG2U-G3MINI EUTPHOTOS(ExternalPhotos) FCCID:2BG2U-G3MINI FCCID:2BG2U-G3MINI FCCID:2BG2U-G3MINI FCCID:2BG2U-G3MINI FCCID:2BG2U-G3MINI FCCID:2BG2U-G3MINI ※※※※※ENDOFREPORT※※※※※

FCCID:2BG2U-G3MINI

FCC ID: 2BG2U-G3MINI EUT PHOTO(Internal Photos) FCC ID: 2BG2U-G3MINI BT- ANT FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI Coil Antennal FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI BT- ANT FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI Coil Antennal FCC ID: 2BG2U-G3MINI FCC ID: 2BG2U-G3MINI ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BG2U-G3MINI *RF Exposure 1. Regulation According to the KDB 447498 D04 V01, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 2. RF Exposure Compliance Issue Overview Mode Frequency (MHz) Conducted power (dBm) MAX power (MW) Limit (MW) GFSK 2480 -2.91 0.51 1.00 π/4DQPSK 2480 -2.03 0.63 1.00 8DPSK 2480 -2 0.63 1.00 Maximum antenna gain = -0.58 dBi Conclusion: The output power of EUT is no more than 1mW, regardless of separation distance. Therefore, this EUT is exempt from SAR test. Product Name: Bluetooth speaker Product Model No.: Input: 5 V2 A Wireless charging output: 5 W/ 10 W Model Difference: G3mini is tested model, other models are derivative models. The models are identical in circuit, only different on the model names.So the test data of G3min can represent the remaining models. Test Auxiliary: Smartphone and Power adapter Transmitting mode: Keep the EUT in continuously wireless charging mode Power supply: Input: 5 V2 A Wireless charging output: 5 W/ 10 W Test Modes: Mode 1 Wireless charging mode(10W) Mode 2 Wireless charging mode(5W) Note: All modes were tested, only the worst-case was recorded in the report. Mode 1 is the worst mode. RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 Wireless Power Transfer v04 2 Requirements According to the item 3 of KDB 680106 D01 v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations Yes, Mobile Device (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz Yes, The device operate in the frequency range110.01kHz-205kHz (3) RF Exposure compliance may be ensured only for a minimum separation distance that is greater than 20 cm, while use conditions at smaller distances can still be considered unlikely. Yes, The EUT is used when larger than 20cm. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v04. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 May 10, 2024 May 09, 2025 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 May 10, 2024 May 09, 2025 Isotropic Electric field probe Narda EP-601 611WX70332 May 10, 2024 May 09, 2025 6 Test Result We have evaluated 1%, 50% and 99% battery charging mode, and the worst mode (1%) is showed in this report. E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.11001-0.205 0.50 0.54 0.55 0.53 614 E-Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.11001-0.205 0.52 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.11001-0.205 0.11 0.11 0.10 0.11 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.11001-0.205 0.14 1.63 7 Test Photo

ProjectNo.:ZHT-240530012E Page 1 of 23 FCCTESTREPORT FCCID:2BG2U-G3MINI ReportNumber. .................................. :ZHT-240530012E DateofTest ....................................................... : May30,2024toJune06,2024 Dateofissue.........................................: June06,2024 TestResult..........................................: PASS TestingLaboratory............................: GuangdongZhonghanTestingTechnologyCo.,Ltd. Address...............................................: Room104,Building1,YibaolaiIndustrialPark,QiaotouCommunity, FuhaiStreet,Bao'anDistrict,Shenzhen,Guangdong,China Applicant'sname.............................: HuizhouYixinhomefurnishingCo.,LTD Address...............................................: Secondfloor,No.41,leftside,TamaoRoad,ZhuwuVillage,West DayaBay,Huizhou,Guangdong,China Manufacturer'sname ...................... : HuizhouYixinhomefurnishingCo.,LTD Address ............................................... : Secondfloor,No.41,leftside,TamaoRoad,ZhuwuVillage,West DayaBay,Huizhou,Guangdong,China Testspecification: Standard................................................:FCCCFRTitle47Part15SubpartC Testprocedure.....................................: / Non-standardtestmethod................:N/A ThisdevicedescribedabovehasbeentestedbyZHT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZHT,thisdocumentmaybe alteredorrevisedbyZHT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... : LedWirelesschargingspeaker Trademark ........................................... : / Model/Typereference ......................... : G3mini, G63,K12,Y1,BT3401,BT2301,3401mini,L4,L5,L6,SS1,SS2, SS3,G3,K52,Y2,Y6 ModelDifference ............................ :G3miniistestedmodel,othermodelsarederivativemodels.These modelsarethesameintermsofcircuitprincipleandRFchipandPCB layout,onlydifferentonthemodelnamesandshape.Sothetest dataofG3mincanrepresenttheremainingmodels. Ratings .................................................. :Input:5V2A Wirelesschargingoutput:5W/10W ProjectNo.:ZHT-240530012E Page 2 of 23 Testingprocedureandtestinglocation: TestingLaboratory..........................................:GuangdongZhonghanTestingTechnologyCo.,Ltd. Address............................................................:Room104,Building1,YibaolaiIndustrialPark,Qiaotou Community,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China LeonLi Testedby(name+signature).......................: BaretWu Reviewer(name+signature) ....................... : LeviLeeApproved(name+signature).......................: ProjectNo.:ZHT-240530012E Page 3 of 23 TABLEOFCONTENTS 1.VERSION....................................................................................................................4 2.TESTSUMMARY.......................................................................................................5 2.1TESTFACILITY....................................................................................................................6 2.2MEASUREMENTUNCERTAINTY.......................................................................................6 3.GENERALINFORMATION........................................................................................7 3.1GENERALDESCRIPTIONOFEUT....................................................................................7 3.2Testmode.............................................................................................................................7 3.3BlockDiagramofEUTConfiguration...................................................................................7 3.4TestConditions.....................................................................................................................7 3.5DescriptionOfSupportUnits(ConductedMode).................................................................8 3.6EQUIPMENTSLISTFORALLTESTITEMS.......................................................................9 4.CONDUCTEDEMISSIONTEST..............................................................................11 4.1CONDUCTEDEMISSIONMEASUREMENT.....................................................................11 4.1.1POWERLINECONDUCTEDEMISSIONLimits............................................................11 4.1.2TESTPROCEDURE........................................................................................................11 4.1.3DEVIATIONFROMTESTSTANDARD..........................................................................11 4.1.4TESTSETUP...................................................................................................................12 4.1.5EUTOPERATINGCONDITIONS...................................................................................12 4.1.6TestResult.......................................................................................................................13 5.RADIATEDEMISSIONMEASUREMENT...............................................................15 5.1RadiatedEmissionLimits...................................................................................................15 5.2AnechoicChamberTestSetupDiagram............................................................................16 5.3TestProcedure...................................................................................................................16 5.4DEVIATIONFROMTESTSTANDARD.............................................................................16 5.5TestResult..........................................................................................................................17 6.BANDWIDTHTEST.................................................................................................20 7.ANTENNAREQUIREMENT.................................................................................…

Text truncated - open the document above for the full version.

Page1 of 3 SPECIFICATION Manufacturer:HuizhouYixinhomefurnishingCo.,LTD Address: Secondfloor,No.41,leftside,TamaoRoad, ZhuwuVillage,WestDayaBay,Huizhou, Guangdong,China Productname:CoilAntenna Modelname:CoilAntenna Version:V1.0 AntennaGain:Onlyradiatedmeasurementsareusedtoshowcompliance withFCClimitsforfundamentalandspuriousemissions. Page2 of SPECIFICATION 一、DIMENSION:(mm) 二、SCHEMATICDIAGRAM: A 43±0.25 B 38±1 C 20.5±0.5 D 5.5±0.3 E 34±1 S 34±2 Note: 1.Crossoutgoingline; 2.Wrap7mm(ref)widehigh- temperatureadhesivetape1- 2Tsaroundtheoutletposition; 3.Thecoilisattachedtoa circularhardmagneticdisk withslots,withamagneticdisk sizeof43±0.25mm,an innerholeof5.5mm,anda thicknessof0.65±0.1mm. Thetotalthicknessis1.85± 0.2mm D C B A E S 3 Page3 of 三、WindingSpecification: NO.TERMINALWIRETurnsWindingDirection 1SFHotairline 0.1*24PX2 10Ts 四、ELECTRICALCHARACTERISTICS: TEMPERATURE:25±10°C,RELATIVEHUMIDITY:65±20% NO.ITEMTERMINALSPECIFICATIONTESTFREQUENCYTESTEQUIPMENTS 1IND.S-F 3.8uH±20%Individualcoil 100KHz/1.0VLCZMETER1062B 2IND.S-F6.5uH±10%Addingmagnetic disks 100KHz/1.0VLCZMETER1062B 3DCRS-F≤90mΩ100KHz/1.0VLCZMETER502B 4QS-F≥39100KHz/1.0VLCZMETER502B 3

FCCID:2BG2U-G3MINI EUTTESTPHOTOS Wirelesschargingtestphoto FCCID:2BG2U-G3MINI BTmodetestphoto FCCID:2BG2U-G3MINI ※※※※※ENDOFREPORT※※※※※
