2BG32-TTMP1Wireless Meat Thermometer

TABLE 1 TABLE 2 PUI ITEM # SPEC A SPEC B NOTES REVISION ECO NUMBER REV BY DATE DESCRIPTION TT-MP-23092601 N/A N/A ALL X1 24061001 DMO 06/10/24 INITIAL PRINT USER MANUAL FOR TT-WIRELESS MEAT PROBE PAGE 1 PRINT #: TT-MP-USER-MANUAL REV: X1 This document is the intellectual property of Probes Unlimited, Inc. It is not to be reproduced without the express written consent of Probes Unlimited, disclosure of this information is expressly prohibited. © Copyright 2002 by Probes Unlimited, Inc. All International Rights reserved. TABLE OF CONTENTS SECTION CONTENT 1 OVERVIEW 2 FEATURES 3 SAFETY INSTRUCTIONS 4 FCC STATEMENTS 5 BEFORE FIRST USE 6 TIPS 7 CLEANING AND MAINTENANCE 1 OVERVIEW This document is a guide for proper use of and care for the TT-Wireless Meat Probe including features, safety information, instructions for getting started, cleaning and maintenance. Refer to TT-127 for additional information and technical specifications. READ ALL INSTRUCTIONS BEFORE USE Please read this entire manual before attempting to use the TT-Wireless Meat Probe. Retain this document for future use. Failure to follow the instructions in this manual could result in property damage, injury and/or voided warranty. If you are integrating this product into another equipment, include these instructions in the manual for the end-user to read and save. TABLE 1 TABLE 2 PUI ITEM # SPEC A SPEC B NOTES REVISION ECO NUMBER REV BY DATE DESCRIPTION TT-MP-23092601 N/A N/A ALL X1 24061001 DMO 06/10/24 INITIAL PRINT USER MANUAL FOR TT-WIRELESS MEAT PROBE PAGE 2 PRINT #: TT-MP-USER-MANUAL REV: X1 This document is the intellectual property of Probes Unlimited, Inc. It is not to be reproduced without the express written consent of Probes Unlimited, disclosure of this information is expressly prohibited. © Copyright 2002 by Probes Unlimited, Inc. All International Rights reserved. 2 FEATURES The TT-Wireless Meat Probe, Model TT-MP-23092601 is a wireless meat thermometer used to monitor meat cooking process. Typically used with grills, smokers and ovens, the stainless-steel portion is inserted into meat to monitor the internal temperature while cooking and to provide an alert when cooking is done. It does this by transmitting temperature readings from two internal sensors. 1. Probe tip. Sensor 1 location 2. Stainless steel sheath. Sensor 2 location 3. Minimum insertion marker – end of serial ID 4. T-handle The probe exterior is made of high temperature PEEK plastic and stainless steel sheeth. The probe is rechargeable and offers 48 hours run-time on a full charge, which is 30-45 minutes. It can communicate wirelessly with several types of receivers such as mobile devices equipped with compatible apps, equipment controls programmed to read probe, and TT-Wireless Adapter which relays the probe temperature readings to conventional sensor ports in equipment controls that cannot read the probe directly. TABLE 1 TABLE 2 PUI ITEM # SPEC A SPEC B NOTES REVISION ECO NUMBER REV BY DATE DESCRIPTION TT-MP-23092601 N/A N/A ALL X1 24061001 DMO 06/10/24 INITIAL PRINT USER MANUAL FOR TT-WIRELESS MEAT PROBE PAGE 3 PRINT #: TT-MP-USER-MANUAL REV: X1 This document is the intellectual property of Probes Unlimited, Inc. It is not to be reproduced without the express written consent of Probes Unlimited, disclosure of this information is expressly prohibited. © Copyright 2002 by Probes Unlimited, Inc. All International Rights reserved. 3 SAFETY INSTRUCTIONS Read and follow all these safety instructions and other basic safety practices 3.1 Use TT-Wireless Meat Probe only for the intended purpose as a meat probe. Store in a cool, dry place when not in use 3.2 DO NOT expose the front section from tip to end of stainless steel above 220°F. Internal components are at high risk of damage beyond this. DO NOT expose the T-handle portion to temperatures higher than 475°F 3.3 CAUTION! The probe tip is sharp. Handle with care to avoid injury. Keep out of reach of children 3.4 Avoid submerging in water or other liquids, to reduce risk of electric shock or damage to the probe 3.5 CAUTION! The probe gets hot during and after use. Handle with care. Hold only by the T-handle when inserting or withdrawing from meat, use heat-resistant gloves, oven mitts, pot-holders or other appropriate hand protection when handling a hot probe 3.6 DO NOT place the probe directly on grill grates, heat coils, hot charcoal, open flame or other heat source. 3.7 If the probe accidentally becomes exposed to direct heat, such as falling into pit: turn off the heat source, let cool, and remove the probe using appropriate protective wear such as heat resistant gloves and eye goggles 3.8 DO NOT subject the probe to drastic temperature changes such as from cold meat to grill or from grill to cold water. 3.9 DO NOT use in microwaves or pressure cookers 3.10 Avoid sharp drops or drops on hard surfaces 3.11 Do not brush with abrasive fabric or chemicals to avoid scratches and other damages 3.12 Consumption of raw or undercooked meats, poultry, or seafood increases the risk of foodborne illness. To reduce your risk, always cook food to the safe temperatures recommended by USDA 3.13 Follow local regulations when recycling this product TABLE 1 TABLE 2 PUI ITEM # SPEC A SPEC B NOTES REVISION ECO NUMBER REV BY DATE DESCRIPTION TT-MP-23092601 N/A N/A ALL X1 24061001 DMO 06/10/24 INITIAL PRINT USER MANUAL FOR TT-WIRELESS MEAT PROBE PAGE 4 PRINT #: TT-MP-USER-MANUAL REV: X1 This document is the intellectual property of Probes Unlimited, Inc. It is not to be reproduced without the express written consent of Probes Unlimited, disclosure of this information is expressly prohibited. © Copyright 2002 by Probes Unlimited, Inc. All International Rights reserved. 4 FCC STATEMENTS INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfe…

Text truncated - open the document above for the full version.

Manufacturers of OEM Sensing Devices 836 W. 8 th Street, Lansdale, PA 19446 4/18/2024 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID: 2BG32-TTMP1 Dear Sir or Madam, Probes Unlimited, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please contact us. Sincerely, Name: Address: Probes Unlimited, Inc. 836 W. 8th Street Lansdale, PA 19446 Contact Person: Ernest W DeLany E-mail: [email protected] Tel: (267) 263-0400 Sincerely, Ernest W DeLany

Manufacturers of OEM Sensing Devices 836 W. 8 th Street, Lansdale, PA 19446 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BG32-TTMP1 Probes Unlimited, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, they will be acting as their designated U.S. agent for service of process for the above referenced FCC ID. Probes Unlimited, Inc. accepts to maintain acting as their own agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Probes Unlimited, Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Address: Probes Unlimited, Inc. 836 W. 8th Street Lansdale, PA 19446 FRN: 0035254044 Contact Person: Ernest W DeLany E-mail: [email protected] Tel: (267) 263-0400 Sincerely, Ernest W DeLany

Manufacturers of OEM Sensing Devices 836 W. 8 th Street, Lansdale, PA 19446 4/18/2024 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2BG32-TTMP1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagrams Operational Description Internal Photos The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. The circuit board for this device is enclosed in a temperature resistant epoxy and not user accessible. Sincerely, Ernest W DeLany

Manufacturers of OEM Sensing Devices 836 W. 8 th Street, Lansdale, PA 19446 4/18/2024 TUV SUD America Inc. 401 Edgewater Place, Suite #500 Wakefield, MA 01880, USA AUTHORITY TO ACT AS AGENT - FCC We, Probes Unlimited, Inc. of 836 W. 8th Street, Lansdale, PA 19446, hereby authorize Jeff Woods of TUV SUD America, 401 Edgewater Place, Suite #500, Wakefield, MA 01880 and Larry Stillings of Compliance Worldwide, Inc. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Sincerely, Ernest W DeLany

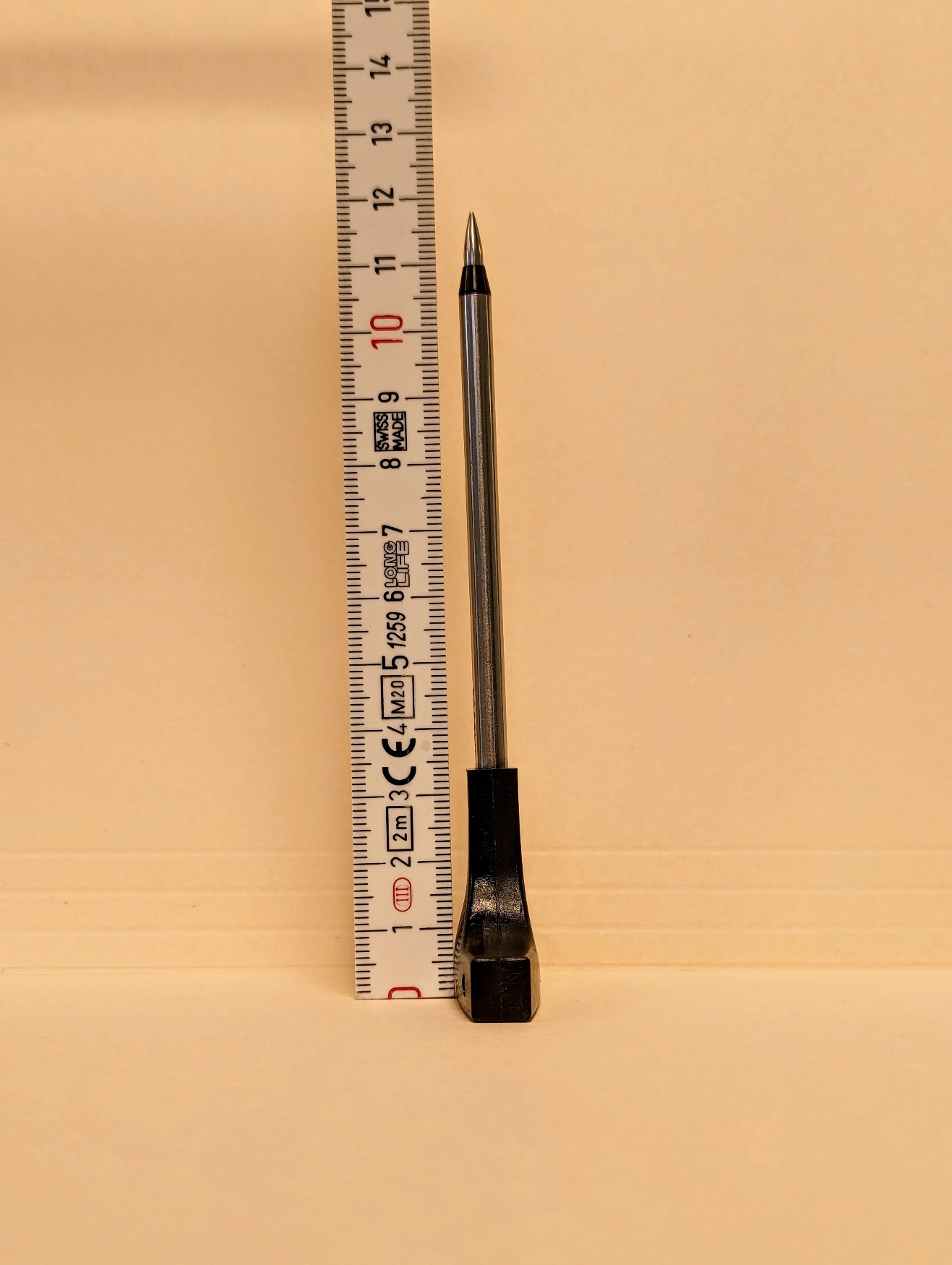

External Photos – FCC ID: 2BG32-TTMP1 Side View Side View To p View Installed in recharging base

FCC ID is not conducive to placing on device, ID is on device packaiging.
