2BG5M-3871126Rose double-ring lock vibrator

FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhenshihaoshikejiyouxiangongsi U.S.AgentDesignationforServiceofProcess (ApplicantandU.S.AgentareSeparateParties) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA ATTENTION:FCCCertification-Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:AOCECorporationInc. FRN:0033401381 ContactName:Johnson.wang Address:6547NAcademyBivd#2266,ColoradoSprings,CO,80918UnitedStates TelephoneNo:+1-346-582-5234 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S.AgentSignature: Date: Signedby(PrintedName/Title): TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:Shenzhenshihaoshikejiyouxiangongsi GranteeCode:2BG5M FCCID:2BG5M-3871126 FRN:0035581883 ContactName:JackJin Address:9H-A7,qiaofudasha,xinwenlu57hao,meilingshequ,lianhuajiedao,futianqu,Shenzhenshi,China TelephoneNo:400-788-9558 Email:[email protected] ApplicantSignature: Date:2024.09.19 Signedby(PrintedName/Title):JackJin/Manager

Shenzhenshihaoshikejiyouxiangongsi 2024.09.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BG5M-3871126 [Shenzhenshihaoshikejiyouxiangongsi] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Jack Jin Shenzhenshihaoshikejiyouxiangongsi 2024.09.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BG5M-3871126 [Shenzhenshihaoshikejiyouxiangongsi] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jack Jin

Shenzhenshihaoshikejiyouxiangongsi 2024.09.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Rose double-ring lock vibrator Trademark: UTIMI MODEL : 3871126 3871128, 3871129, 3871132, 3871135, 3871137 FCC ID : 2BG5M-3871126 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Jack Jin /Manager Contact information / address: 9H-A7, qiaofudasha, xinwenlu57hao, meilingshequ, lianhuajiedao, futianqu, Shenzhenshi, China

Shenzhenshihaoshikejiyouxiangongsi 2024.09.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Jack Jin /Manager Contact information / address: 9H-A7, qiaofudasha, xinwenlu57hao, meilingshequ, lianhuajiedao, futianqu, Shenzhenshi, China

Shenzhenshihaoshikejiyouxiangongsi Model Difference 2024.09.23 EUT NAME: Rose double-ring lock vibrator Trademark: UTIMI MODEL : 3871126 3871128, 3871129, 3871132, 3871135, 3871137 FCC ID : 2BG5M-3871126 All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : Jack Jin /Manager Contact information / address: 9H-A7, qiaofudasha, xinwenlu57hao, meilingshequ, lianhuajiedao, futianqu, Shenzhenshi, China

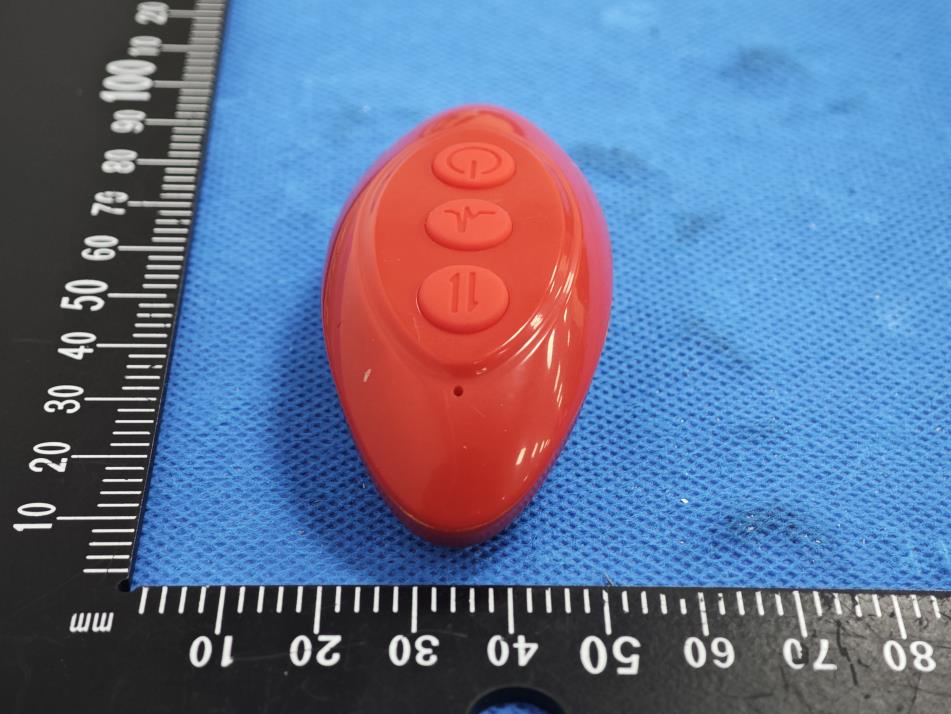

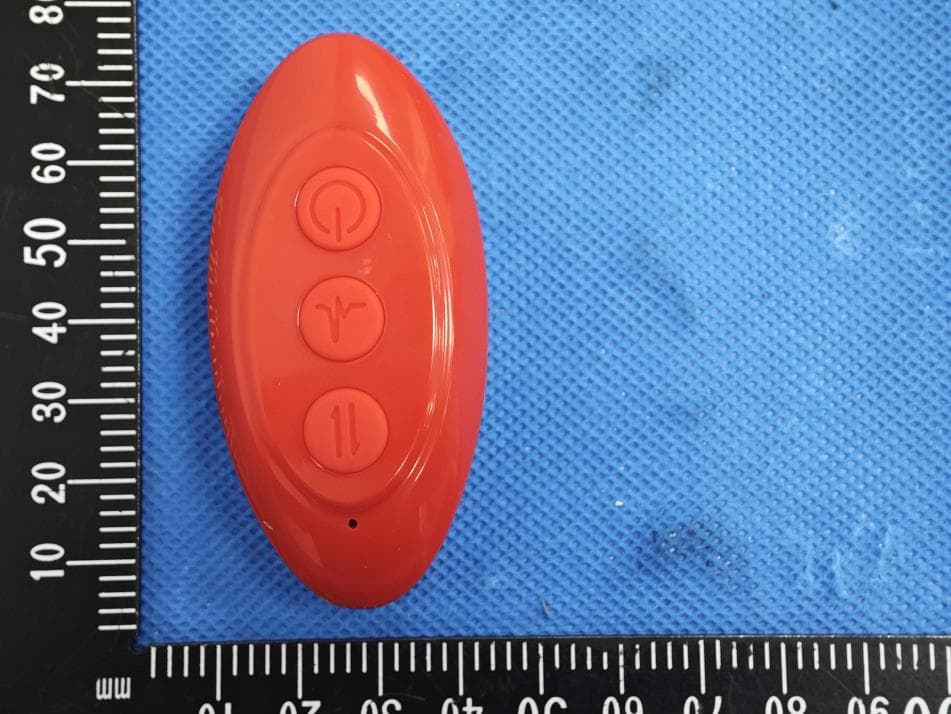

External Photos

Label & label location 10mm*5mm FCC ID:2BG5M-3871126

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2BG5M-3871126 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Test Channel Output Power (dBuV/m) Output Power (dBm) ASK 433.92 73.36 -26.54 Below 1GHz: dBm=dBuV/m-95.2-4.7 max possible output power (PK,ERP)：-26dBm±1dBm 0dBi logarithmic terms convert to numeric result is nearly 1 -25dBm=0.00316mW 433.92MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.00316/5*√0.43392=0.000416≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

七、天线规格 ANT：PCB center frequency：433.92MHz product：Wireless rear court - remote control board PCB antenna project specification parameter Model Name PCB-Antenna Center Frequency 433.92MHz 0dbi MAX.GAIN 0 dbi Polarization Linear,Vertical Azimuth Beam Pattern Omni-directional Impedance 50Ω Antenna Length 30mm PCB天线：谐振电感，宽度0.8mm，总长度=30mm；

No.：BCTC/RF-EMC-005 Page: 1 of 30 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405900151E Applicant: Shenzhenshihaoshikejiyouxiangongsi Product Name: Rose double-ring lock vibrator Test Model: 3871126 Tested Date: 2024-05-20 to 2024-09-19 Issued Date: 2024-09-19 Report No.: BCTC2405900151E No.：BCTC/RF-EMC-005 Page: 2 of 30 Edition：B.2 FCC ID:2BG5M-3871126 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Rose double-ring lock vibrator Trademark: UTIMI Model/Type reference: 3871126 3871128, 3871129, 3871132, 3871135, 3871137 Prepared For: Shenzhenshihaoshikejiyouxiangongsi Address: 9H-A7, qiaofudasha, xinwenlu57hao, meilingshequ, lianhuajiedao, futianqu, Shenzhenshi, China Manufacturer: Shenzhenshihaoshikejiyouxiangongsi Address: 9H-A7, qiaofudasha, xinwenlu57hao, meilingshequ, lianhuajiedao, futianqu, Shenzhenshi, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-20 Sample tested Date: 2024-05-20 to 2024-09-19 Issue Date: 2024-09-19 Report No.: BCTC2405900151E Test Standards: FCC Part15.231 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2405900151E No.：BCTC/RF-EMC-005 Page: 3 of 30 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test Procedure ................................................................................................... 11 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 12 7. Radiated Emissions ............................................................................................. 13 7.1 Block Diagram Of Test Setup .............................................................................. 13 7.2 Limit .................................................................................................................... 14 7.3 Test Procedure ................................................................................................... 15 7.4 EUT Operating Conditions .................................................................................. 17 7.5 Test Result .......................................................................................................... 17 8. Bandwidth Test .................................................................................................... 21 8.1 Block Diagram Of Test Setup .............................................................................. 21 8.2 Limit .................................................................................................................... 21 8.3 Test Procedure ................................................................................................... 21 8.4 EUT Operating Conditions .................................................................................. 21 8.5 Test Result .......................................................................................................... 22 9. Calculation Of Average Factor ............................................................................ 23 10. Dwell Time........................................................................................................... 25 10.1 Block Diagram Of Test Setup ............................................................................ 25 10.2 Limit .................................................................................................................. 25 10.3 Test Procedure ................................................................................................. 25 10.4 Test Result .............…

Text truncated - open the document above for the full version.

13. EUT Test Setup Photographs Radiated Measurement Photos 1G
