2BG6D-DGSD201Automotive AI

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception , which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement.To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s). Automotive AI DGSD201

( DongguanYigaoxinElectronicTechnologyCo.,Ltd. ) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:July8,2024 FCCID:2BG6D-DGSD201 Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing (“DongguanYigaoxinElectronicTechnologyCo.,Ltd.”)certifie sthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing (“DongguanYigaoxinElectronicTechnologyCo.,Ltd.”)certifiesthat,asofthedate ofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Applicant:DongguanYigaoxinElectronicTechnologyCo.,Ltd. Address:Room908,Building2,No.8ShixiaRoad,DalangTown,DongguanCity ContactPerson:QuanshuiLi Tel.:18018707868 Email:[email protected] Sincerely, Signature:

DongguanYigaoxinElectronicTechnologyCo.,Ltd. Address：Room908,Building2,No.8ShixiaRoad,DalangTown,DongguanCity Date:2024-07-08 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BG6D-DGSD201 FRN:0035586684 (“DongguanYigaoxinElectronicTechnologyCo.,Ltd.”)certifiesthat,asofthedateofthefiling oftheapplication,GSSSERVICEINCisourdesignatedU.S.agentforserviceofprocessfor theabovereferencedFCCID.(“DongguanYigaoxinElectronicTechnologyCo.,Ltd.”)accepts tomaintainanagentfornolessthanoneyearafterthegranteehasterminatedallmarketing andimportationortheconclusionofanyCommission-relatedproceedinginvolvingthe equipment. GSSSERVICEINCaccepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GSSSERVICEINC Address:6547NAcademyBlvd#2266ColoradoSpringsCOLORADO80918UnitedStates FRN：0033402082 ContactPerson:MichouxLogan Tel.:001-949-2990192 Email:[email protected] Sincerely, Signedonbehalfof（DongguanYigaoxin ElectronicTechnologyCo.,Ltd.） SignedonbehalfofGSSSERVICEINC Name:QuanshuiLiName:MichouxLogan Title:bossTitle:Manager Date:2024-07-08Date:2024-07-08

DongguanYigaoxinElectronicTechnologyCo.,Ltd. Date：2024-07-08 Product/ModelNumber:AutomotiveAI/DGSD201,DGSD211 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatORGANIZATION.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyORGANIZATION.onourbehalf shallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:boss Email:[email protected] Telephone:18018707868 Onbehalfof:DongguanYigaoxinElectronicTechnologyCo.,Ltd.

DongguanYigaoxinElectronicTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:July8,2024 Subject;RequestforConfidentiality FCCID:2BG6D-DGSD201 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:QuanshuiLi Title:boss

DongguanYigaoxinElectronicTechnologyCo.,Ltd. ModelDifference Productdescription:AutomotiveAI Modelname:DGSD201,DGSD211 FCCID:2BG6D-DGSD201 DGSD201istestedmodel,othermodelsarederivativemodels.Themodelsare identicalincircuit,onlydifferentonthemodelnames.SothetestdataofDGSD201 canrepresenttheremainingmodels. Regards Sincerely Client’ssignature: Client’sname/title:QuanshuiLi/boss Contactinformation/address:Room908,Building2,No.8ShixiaRoad,Dalang Town,DongguanCity

PCB Antenna Specification Summary ITEMANT SPEC Model Name 5G ANT MAX. Gain -1.72dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Manufacture Dongguan Yigaoxin Electronic Technology Co., Ltd. Antenna Photo & Length (mm) Address Room 908, Building 2, No. 8 Shixia Road, Dalang Town, Dongguan City Passive Test For 5G FreqEffiEffiGainGainUHISDHISMaxMinAttenutAttenut (MHz)(%)(dB)(dBi)(dBd)(%)(%)(dB)(dB)HorVer 50007.6-11.19-5.72-7.874.0983.499-5.72-20.9261.7860.89 50509.66-10.15-5.5-7.655.0924.572-5.5-25.5462.2661.36 510010.57-9.76-5.61-7.765.3595.215-5.61-22.261.8361 515010.7-9.71-4.29-6.445.1125.588-4.29-20.3162.2861.26 520012.19-9.14-3.68-5.835.5896.606-3.68-21.5962.861.9 525014.6-8.36-3.46-5.616.6167.987-3.46-24.7962.9662.39 530016.26-7.89-1.72-3.877.1089.154-1.72-21.5562.862.04 535015.52-8.09-3.52-5.677.0878.43-3.52-24.2263.3562.04 540016.6-7.8-3.05-5.27.2739.328-3.05-19.6963.2162.18 545015.43-8.12-3.59-5.746.7828.647-3.59-25.8264.0663.28 550015.97-7.97-3.43-5.586.519.46-3.43-22.6764.3263.01 555014.81-8.3-3.94-6.095.6669.14-3.94-20.8365.0663.95 560015.8-8.01-3.7-5.856.4539.349-3.7-21.8965.9165.06 565014.72-8.32-2.8-4.955.6299.095-2.8-18.8365.5965.05 570014.63-8.35-3.84-5.995.4519.174-3.84-17.7465.364.92 575011.82-9.28-4.68-6.834.5447.272-4.68-25.7265.1964.75 580012.41-9.06-4.63-6.784.9237.488-4.63-22.1965.7965.14 Test result

DongguanYigaoxinElectronicTechnologyCo.,Ltd. FCCSoftwareConfigurationControlDeclaration Date:July9,2024 FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Attn:OETDept. Product/ModelNumber:AutomotiveAI/DGSD201,DGSD211 RegardingFCCCountryCodeSelectionguidelinesidentifiedinKDB594280. “Allapplicationsforequipmentauthorizationfortransmittersthatcanhave radioparameters,orothertechnicalparameters,reportedtotheCommission setbysoftwaremusthaveanattestationindicatingthatnothirdpartywillhave software,orconfigurationcontrol,toprogramthedeviceoutofcomplianceof thetechnicalrulesunderwhichithasbeencertified.” Wedeclarethatnothirdpartywillhavesoftware,orconfigurationcontrol,toprogram thedeviceoutofcomplianceofthetechnicalrulesunderwhichithasbeencertified. Name:QuanshuiLiDate:July9,2024 Title:boss Signatureofapplicant ：

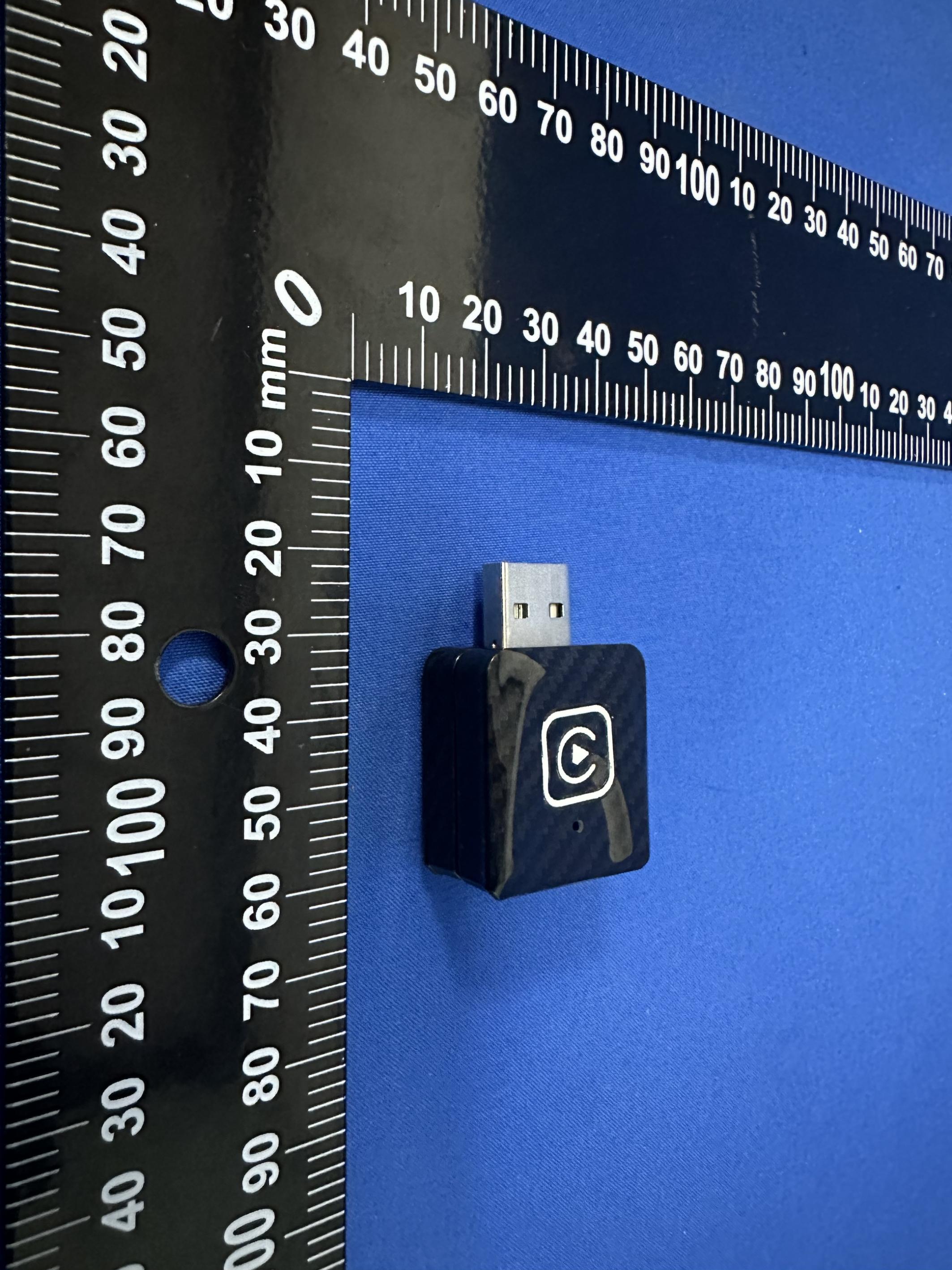

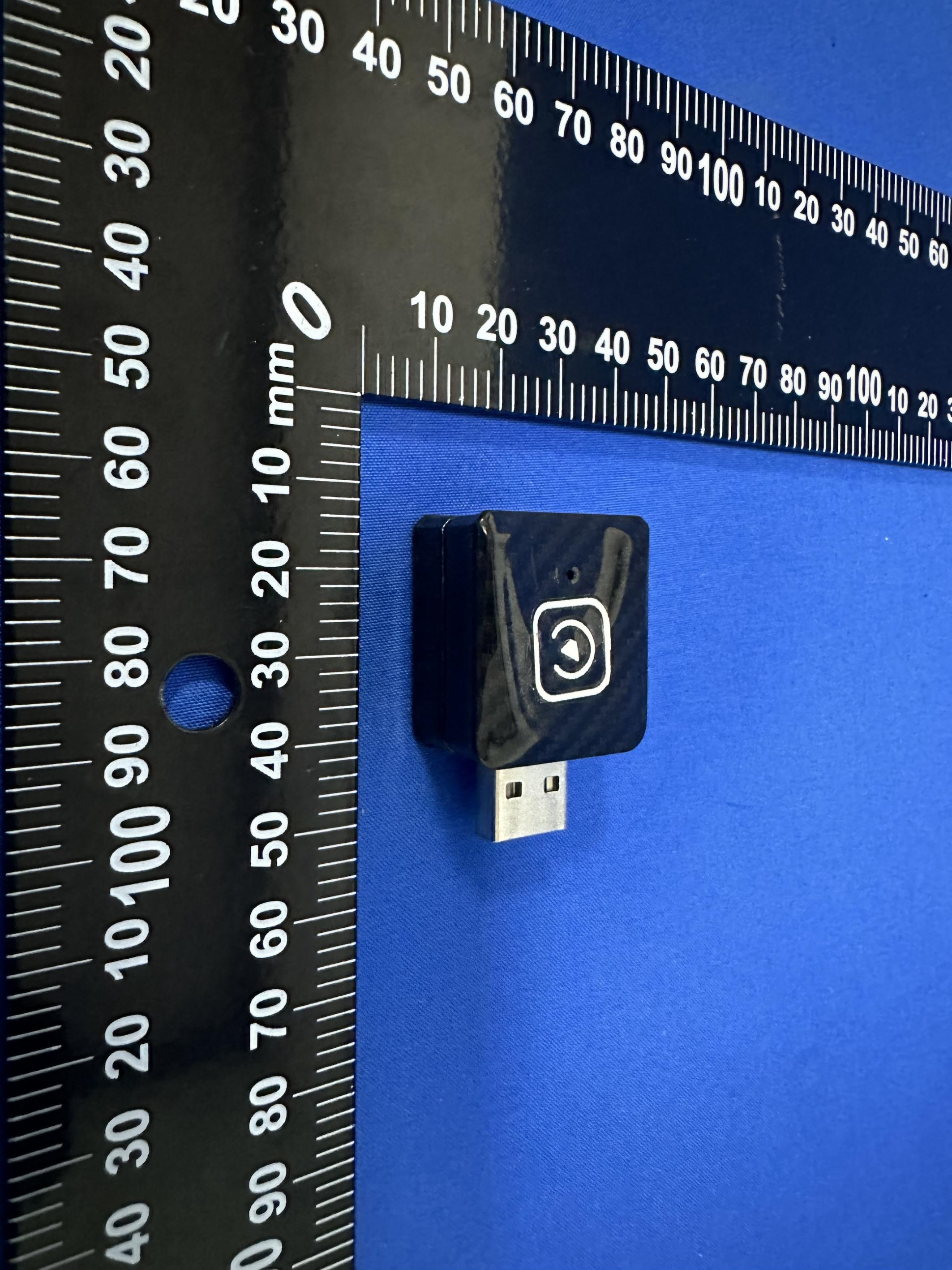

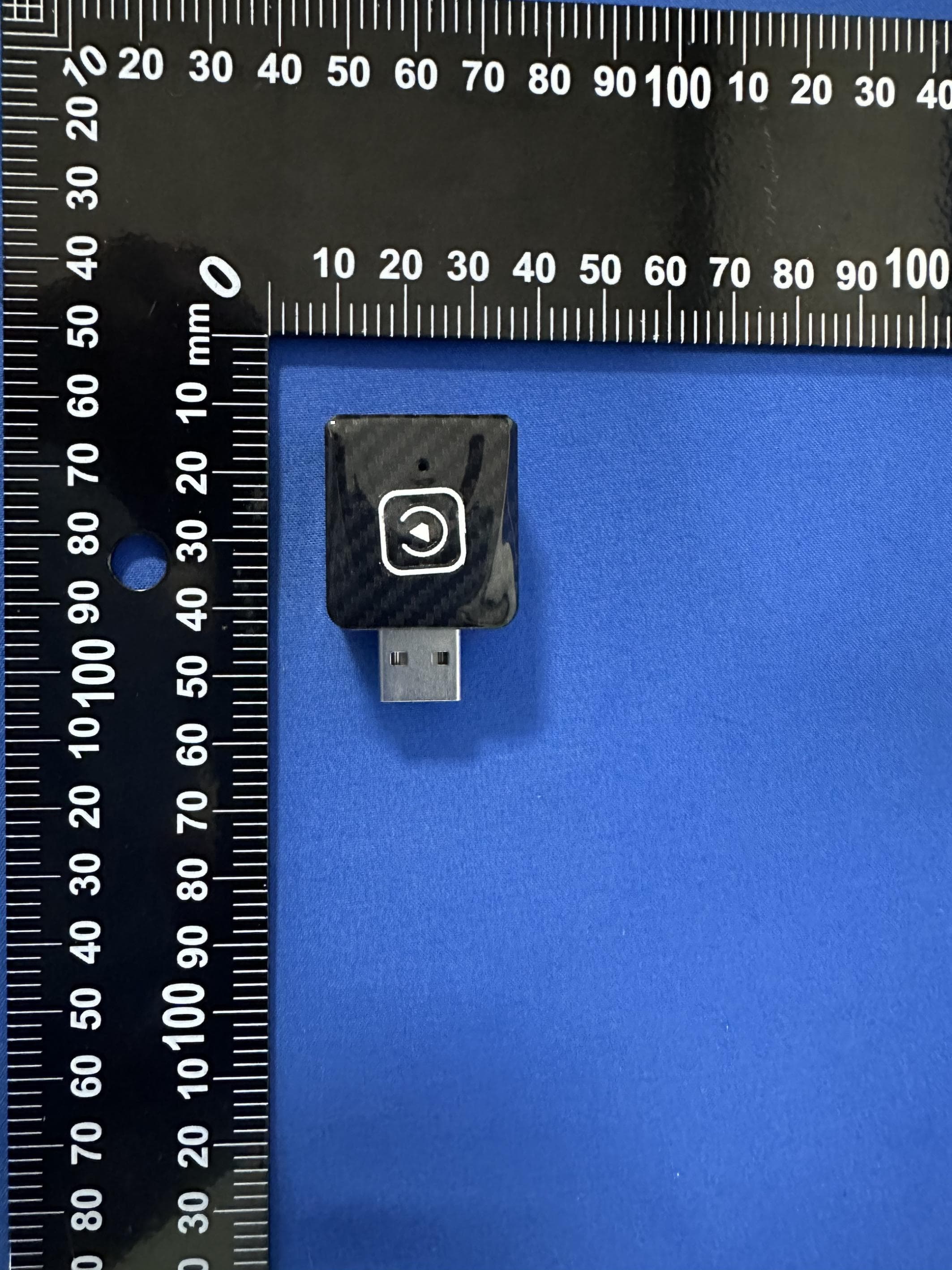

FCCID:2BG6D-DGSD201 EUTPHOTOS(ExternalPhotos) FCCID:2BG6D-DGSD201 FCCID:2BG6D-DGSD201 ※※※※※ENDOFREPORT※※※※※

Size:10mmX25mm FCCID:2BG6D-DGSD201

FCC ID:2BG6D-DGSD201 EUT PHOTO(InternalPhotos) FCC ID:2BG6D-DGSD201 FCC ID:2BG6D-DGSD201 FCC ID:2BG6D-DGSD201 ANT 3: 5GWIFIANT 2: 2.4 GWIFI ANT 1: BT FCC ID:2BG6D-DGSD201 ※※※※※END OF REPORT※※※※※

FCCID:2BG6D-DGSD201 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1091， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactof humanexposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency range (MHz) Electricfield strength (V/m) Magneticfield strength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthe totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistancerwhere theMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middle andhighestchannelindividually. TestResultofRFExposureEvaluation mode Output powerto antenna (dBm) Outputpower toantenna (mW) PowerDensity atR=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BT 7.315.380.0011 1.0PASS 2.4GWIFI 20.54113.240.0225 1.0PASS 5.2GWIFI 9.669.250.0018 1.0PASS 5.8GWIFI 12.8619.320.0038 1.0PASS Remark:BTantennagain=-0.27dBi,2.4GWIFIantennagain=-0.48dBi,5GWIFIantenna gain=5.2GANT:-3.68dBi,5.8GANT:-4.63dBi.BT,2.4GWIFIand5GWIFINotsupported forsimultaneoussending.

FCC ID: 2BG6D-DGSD201Page 1 of 79 APPENDIX5.2 G WIFI RF Test Data ProductName:AutomotiveAI Test Model:DGSD201 EnvironmentalConditions Temperature: 23.8°C RelativeHumidity:52 % ATM Pressure:10 1.0 kPa Test Engineer:Leon Li Supervisedby:Baret Wu FCC ID: 2BG6D-DGSD201Page 2 of 79 Duty Cycle ConditionModeFrequency(MHz)AntennaDuty Cycle(%)CorrectionFactor(dB)1/T (kHz) NVNTa5180Ant178.051.083.13 NVNTa5200Ant166.671.763.13 NVNTa5240Ant1000 NVNTn205180Ant194.030.270.53 NVNTn205200Ant192.650.330.53 NVNTn205240Ant190.050.460.53 NVNTn405190Ant190.290.441.08 NVNTn405230Ant193.940.271.08 NVNTac205180Ant190.480.430.53 NVNTac205200Ant191.790.370.53 NVNTac205240Ant193.60.290.53 NVNTac405190Ant193.070.311.06 NVNTac405230Ant188.570.531.08 NVNTax205180Ant191.820.370.68 NVNTax205200Ant196.690.150.68 NVNTax205240Ant190.120.450.68 NVNTax405190Ant188.240.541.33 NVNTax405230Ant181.320.91.35 FCC ID: 2BG6D-DGSD201Page 3 of 79 Test Graphs Duty Cycle NVNTa 5180MHzAnt1 Duty Cycle NVNTa 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 4 of 79 Duty Cycle NVNTa 5240MHzAnt1 Duty Cycle NVNTn20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 5 of 79 Duty Cycle NVNTn20 5200MHzAnt1 Duty Cycle NVNTn20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 6 of 79 Duty Cycle NVNTn40 5190MHzAnt1 Duty Cycle NVNTn40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 7 of 79 Duty Cycle NVNTac20 5180MHzAnt1 Duty Cycle NVNTac20 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 8 of 79 Duty Cycle NVNTac20 5240MHzAnt1 Duty Cycle NVNTac40 5190MHzAnt1 FCC ID: 2BG6D-DGSD201Page 9 of 79 Duty Cycle NVNTac40 5230MHzAnt1 Duty Cycle NVNTax20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 10 of 79 Duty Cycle NVNTax20 5200MHzAnt1 Duty Cycle NVNTax20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 11 of 79 Duty Cycle NVNTax40 5190MHzAnt1 Duty Cycle NVNTax40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 12 of 79 MaximumConductedOutputPower ConditionModeFrequency (MHz) AntennaConducted Power(dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNTa5180Ant18.111.089.1924Pass NVNTa5200Ant17.431.769.1924Pass NVNTa5240Ant17.3507.3524Pass NVNTn205180Ant19.390.279.6624Pass NVNTn205200Ant18.780.339.1124Pass NVNTn205240Ant18.750.469.2124Pass NVNTn405190Ant18.180.448.6224Pass NVNTn405230Ant18.60.278.8724Pass NVNTac205180Ant18.690.439.1224Pass NVNTac205200Ant18.560.378.9324Pass NVNTac205240Ant18.510.298.824Pass NVNTac405190Ant18.340.318.6524Pass NVNTac405230Ant18.420.538.9524Pass NVNTax205180Ant16.480.376.8524Pass NVNTax205200Ant15.730.155.8824Pass NVNTax205240Ant15.770.456.2224Pass NVNTax405190Ant15.620.546.1624Pass NVNTax405230Ant15.720.96.6224Pass FCC ID: 2BG6D-DGSD201Page 13 of 79 Test Graphs PowerNVNTa 5180MHzAnt1 PowerNVNTa 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 14 of 79 PowerNVNTa 5240MHzAnt1 PowerNVNTn20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 15 of 79 PowerNVNTn20 5200MHzAnt1 PowerNVNTn20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 16 of 79 PowerNVNTn40 5190MHzAnt1 PowerNVNTn40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 17 of 79 PowerNVNTac20 5180MHzAnt1 PowerNVNTac20 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 18 of 79 PowerNVNTac20 5240MHzAnt1 PowerNVNTac40 5190MHzAnt1 FCC ID: 2BG6D-DGSD201Page 19 of 79 PowerNVNTac40 5230MHzAnt1 PowerNVNTax20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 20 of 79 PowerNVNTax20 5200MHzAnt1 PowerNVNTax20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 21 of 79 PowerNVNTax40 5190MHzAnt1 PowerNVNTax40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 22 of 79 -26dBBandwidth ConditionModeFrequency(MHz)Antenna-26 dB Bandwidth(MHz)Verdict NVNTa5180Ant123.833Pass NVNTa5200Ant123.783Pass NVNTa5240Ant123.832Pass NVNTn205180Ant127.056Pass NVNTn205200Ant126.465Pass NVNTn205240Ant128.137Pass NVNTn405190Ant146.775Pass NVNTn405230Ant147.286Pass NVNTac205180Ant125.837Pass NVNTac205200Ant126.853Pass NVNTac205240Ant127.145Pass NVNTac405190Ant147.151Pass NVNTac405230Ant147.141Pass NVNTax205180Ant125.534Pass NVNTax205200Ant126.017Pass NVNTax205240Ant125.699Pass NVNTax405190Ant143.736Pass NVNTax405230Ant144.152Pass FCC ID: 2BG6D-DGSD201Page 23 of 79 Test Graphs -26dBBandwidthNVNTa 5180MHzAnt1 -26dBBandwidthNVNTa 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 24 of 79 -26dBBandwidthNVNTa 5240MHzAnt1 -26dBBandwidthNVNTn20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 25 of 79 -26dBBandwidthNVNTn20 5200MHzAnt1 -26dBBandwidthNVNTn20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 26 of 79 -26dBBandwidthNVNTn40 5190MHzAnt1 -26dBBandwidthNVNTn40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 27 of 79 -26dBBandwidthNVNTac20 5180MHzAnt1 -26dBBandwidthNVNTac20 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 28 of 79 -26dBBandwidthNVNTac20 5240MHzAnt1 -26dBBandwidthNVNTac40 5190MHzAnt1 FCC ID: 2BG6D-DGSD201Page 29 of 79 -26dBBandwidthNVNTac40 5230MHzAnt1 -26dBBandwidthNVNTax20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 30 of 79 -26dBBandwidthNVNTax20 5200MHzAnt1 -26dBBandwidthNVNTax20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 31 of 79 -26dBBandwidthNVNTax40 5190MHzAnt1 -26dBBandwidthNVNTax40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 32 of 79 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99% OBW (MHz) NVNTa5180Ant116.582 NVNTa5200Ant116.554 NVNTa5240Ant116.561 NVNTn205180Ant117.953 NVNTn205200Ant117.98 NVNTn205240Ant117.972 NVNTn405190Ant136.565 NVNTn405230Ant136.556 NVNTac205180Ant117.948 NVNTac205200Ant117.992 NVNTac205240Ant117.983 NVNTac405190Ant136.509 NVNTac405230Ant136.476 NVNTax205180Ant119.138 NVNTax205200Ant119.155 NVNTax205240Ant119.19 NVNTax405190Ant137.964 NVNTax405230Ant137.968 FCC ID: 2BG6D-DGSD201Page 33 of 79 Test Graphs OBW NVNTa 5180MHzAnt1 OBW NVNTa 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 34 of 79 OBW NVNTa 5240MHzAnt1 OBW NVNTn20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 35 of 79 OBW NVNTn20 5200MHzAnt1 OBW NVNTn20 5240MHzAnt1 FCC ID: 2BG6D-DGSD201Page 36 of 79 OBW NVNTn40 5190MHzAnt1 OBW NVNTn40 5230MHzAnt1 FCC ID: 2BG6D-DGSD201Page 37 of 79 OBW NVNTac20 5180MHzAnt1 OBW NVNTac20 5200MHzAnt1 FCC ID: 2BG6D-DGSD201Page 38 of 79 OBW NVNTac20 5240MHzAnt1 OBW NVNTac40 5190MHzAnt1 FCC ID: 2BG6D-DGSD201Page 39 of 79 OBW NVNTac40 5230MHzAnt1 OBW NVNTax20 5180MHzAnt1 FCC ID: 2BG6D-DGSD201Page 40 of 79 OBW NVNTax…
