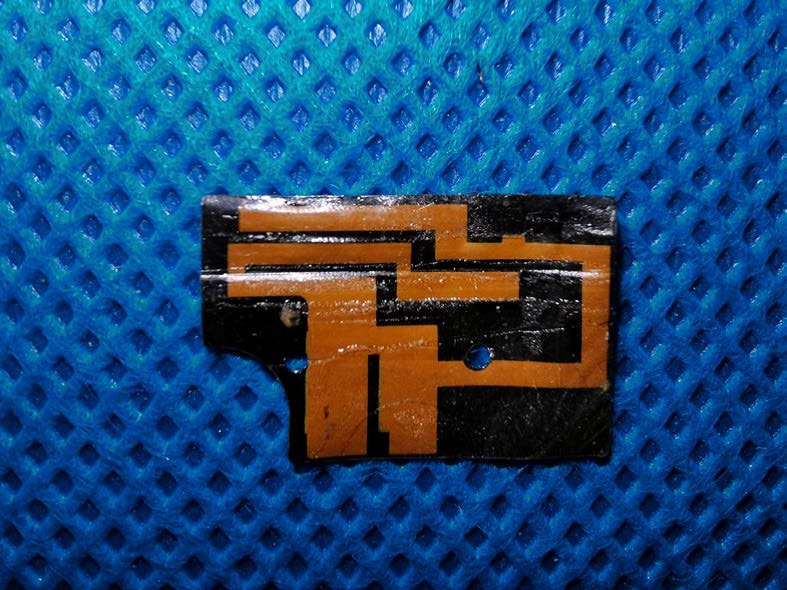

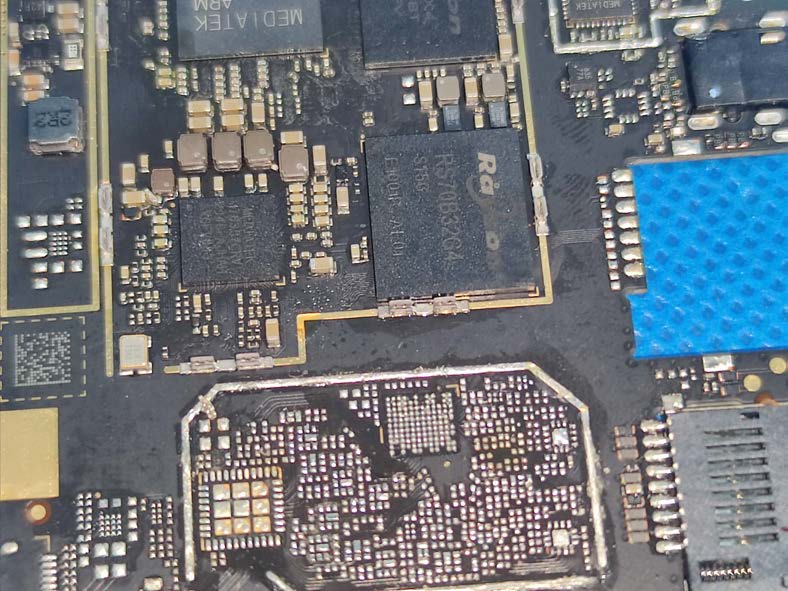

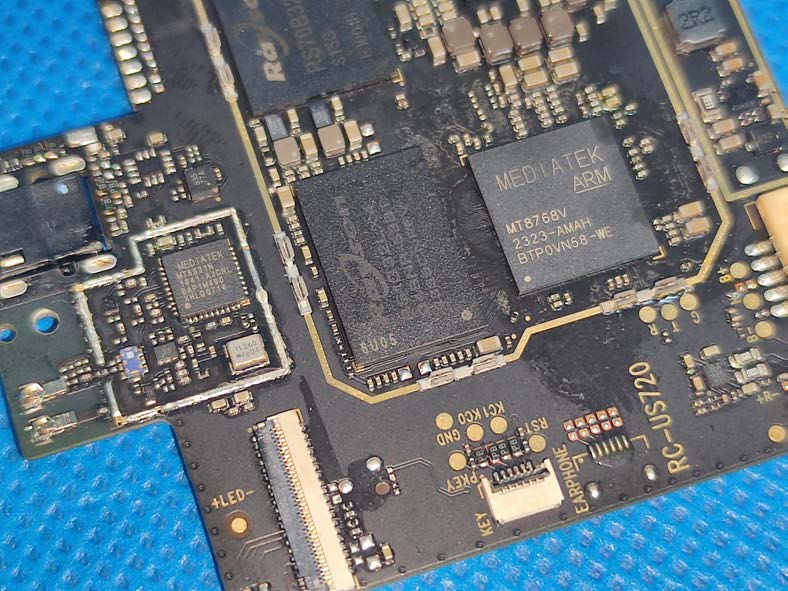

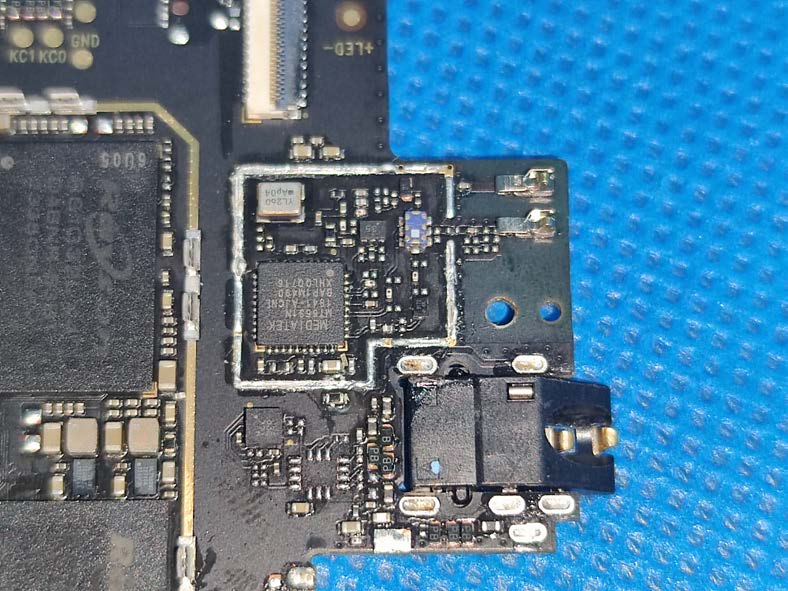

ATTACHMENT PHOTOGRAPHS OF INT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

Page 1 of 86 Report No.: S24080704703001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name： Tablet PC Trademark： N/A Model Name： ISTN8 Family Model： M86QF6-MTK78768 Report No.： S24080704703001 FCC ID： 2BG6R-ISTN8 Prepared for Insight Touch Technology 2094 Walsh Ave., Ste B2, Santa Clara, CA, US Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 86 Report No.: S24080704703001 TEST RESULT CERTIFICATION Applicant’s name ................. : Insight Touch Technology Address .................................. : 2094 Walsh Ave., Ste B2, Santa Clara, CA, US Manufacturer's Name ..................................... : Hena Digital Technology (Shenzhen) Co., Ltd. Address .................................. : 13F, Block B, Tairan Building Tairan 8th Road, FutianDistrict, Shenzhen, China Product description Product name ......................... : Tablet PC Trademark ............................ : N/A Model Name ......................... : ISTN8 Family Model .......................... : M86QF6-MTK78768 Standards .............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ S240807047003 Date of Test Date (s) of performance of tests ............. : Aug. 13, 2024 ~ Aug. 26, 2024 Date of Issue .......................................... : Sep. 03, 2024 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Joe Yan (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 86 Report No.: S24080704703001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Sep. 03, 2024 Joe Yan Page 4 of 86 Report No.: S24080704703001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results .............................................................. 25 5. SAR Measurement variability and uncertainty .................................................. 26 5.1. SAR measurement variability ................................................................. 26 5.2. SAR measurement uncertainty .............................................................. 26 6. RF Exposure Positions ........................................................................................ 27 6.1. …

Text truncated - open the document above for the full version.

Page 74 of 86 Report No.: S24080704703001 Page 75 of 86 Report No.: S24080704703001 Page 76 of 86 Report No.: S24080704703001 Page 77 of 86 Report No.: S24080704703001 Page 78 of 86 Report No.: S24080704703001 Page 79 of 86 Report No.: S24080704703001 Page 80 of 86 Report No.: S24080704703001 Page 81 of 86 Report No.: S24080704703001 Page 82 of 86 Report No.: S24080704703001 Page 83 of 86 Report No.: S24080704703001 Page 84 of 86 Report No.: S24080704703001 Page 85 of 86 Report No.: S24080704703001 Page 86 of 86 Report No.: S24080704703001 _____________________________________ END_______________________________________

ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 1Page1Version:1.0IssueDate:2024-08-13 SHENZHENTLTCOMMUNICATIONCO.,LTD Building1,Rooms108-109,ShanhaiScienceandInnovationPark,ZhongyuGuanAvenue,LonghuaNewDistrict,ShenzhenCity M86QF6antenna TheProductRecognitionLetter TheCustomer yanghua Bandrange 2.4/5.8 Model M86QF6 VersionLatestversion ProjectcodenameTLT4920AntennatypePIFA RFDesigner Mao Hangzhou RDDesignerTangChunzheng Dateofthis2024-8-13Dateofthis2024-8-13 CustomerInformation: ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 2Page1Version:1.0IssueDate:2024-08-13 Metric 1.Antennaparameters 1.1Electricalparameters 1.1.1ElectricalPerformanceAssessment 1.1.2distributioncircuitdiagram 1.2Structuralparameters 1.2.1antennaassembly 1.2.2Performancetestrequirements 2.Thetest 2.1TheVSWRtest 2.1.1testconnection 2.1.2voltagestandingtowaveratio 2.2GAIN&EFFCIENCY 2.2.1testenvironment 2.2.2TestEquipment 3.Summary 4.Attachmentdiagram 4.1Parameterdiagramofreturnlossandvoltagestandingwaveratio 5.WIFIgraphicsandtestdata 5.1.1WIFIfieldtest 5.1.2WIFIthroughputtest 5.2Gainandefficiencytests 6.Antennaassemblyandprocessingdrawingfile 7.Antenna2Dprofile ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 3Page1Version:1.0IssueDate:2024-08-13 1.Antennaparameters Thisreportmainlyprovidestestconditionsandresultsforvariouselectricalandstructural propertiesindevicetests,TheantennadesignedbyTLT. Electricalparameters 1.1.1ElectricalPerformanceAssessment Thebandrangeoftheantennais2400MHz-2500MHzand5000MHz~5800MHz.belowarethe basicparametersoftheelectricalperformanceoftheantenna.Thisisdesignedantennaand producedbyTianLuTong. 1.1.2distributioncircuitdiagram UsetheoriginalmatchingcircuitdiagramonthePCBboard 1.2Structuralparameters 1.2.1antennaassembly Antennasgenerallyconsistedofplasticsupportsandhardwarepieces. 1.2.2cantesttherequirements TestitemdescriptionAcceptancecriteries 1.crytemperaturetest temperature:-20 °C Time:24hours The1.hadnoobviousdamage The2.electricalperformance meetsthestandard The2.high-temperaturetest temperature.:80°C Time:24hours The1.hadnoobviousdamage The2.electricalperformance meetsthestandard 3.saltfogtest 5±0.1%saltmist PH-value:6.5-7.2 temperature:35±1 °C Time:e:24hours 1.Nocolorwaschanged 2.Therearenoobviouscracksin theappearance 4.environmentaladaptabilitytest TotalvalueofPb,Hg,Cr+6,Cd inpackingmaterialsis smallerthall50PPM Pb,Hg,Cr+6,PBBs,PBDEsin componentsaresmallerthan 500PPM,Cdissmallerthan 50PPM ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 4Page1Version:1.0IssueDate:2024-08-13 2.Thetest Antennaareinstalledinacustomerprovidedphonefortesting.describestheantennainmobile) fortheequipment(electricalperformancetest). 2.1TheVSWRtest 2.1.1Testtheconnection TestVSWRorderofdeviceconnections:AgilentE8753networkanalyzer→testcable→ customer-providedmachine 2.1.2voltagestandingtowaveratio Thetablebelowdescribesthevaluesofthevoltageresidentwaveratiooftheantennaatthe twoendpointsofthefrequencyband,involvingdrawingsaboutthereturnimpairmentandresident waveratio,pleaserefer. 2.2GAIN&EFFCIENCY 2.2.1testenvironment Skywaymicrowavedarkchamber:Thetestfrequencyrangefrom800MHzto6GHz,ina50cm diametersphericalarea,andthedarkchamberisreflectedlessthan-50dB.from800MHz—6GHz 2.2.2Testtheequipment Agilent8960(8753C)WirelessCommunicationTestDevice,Dipoleantenna,FrenchSatimo AntennaTestSystem,Printer,etc. 3.summary Theantennaisdesignedaccordingtothemachinesamplesprovidedbythecustomer,andthe electricalparametersandresultperformanceoftheantennameetthestandard,andwearesureto makeyousatisfied. WIFI-2.4GWIFI-5.0G Frequency(MHz)2.4G2.48G5.15G5.80G VSWR1.641.631.902.22 ReturnLoss-12.3-12.4-10.1-8.4 2.40G2.48G5.20G5.8G Gain(dBi)2.370.413.273.49 Efficiency(%)37.029.837.137.8 ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 5Page1Version:1.0IssueDate:2024-08-13 4.Attachmentdiagram 4.1Parameterdiagramofreturnlossandvoltagestandingwaveratio 5.WIFIgraphicsandtestdata 5.1.1WIFIfieldtest:Testenvironment:openenvironment,15metersawayfromourrouter.Thetest isasfollows: 2.4G-WIFIdispiay-34DBM ， fullsignal 5G-WIFIdispiay-47DBM ， full signal ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 6Page1Version:1.0IssueDate:2024-08-13 5.1.2WIFIthroughputtest: 2.4GRX：32.3M(20M)2.4GTX：58.2M(20M) ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 7Page1Version:1.0IssueDate:2024-08-13 5.2WIFIgainandefficiencytest: 6.Antennaassemblyandprocessingdrawingfile ProductNumber: TLT4920-M86QF6 ProductName:MobilePhoneAntenna 8Page1Version:1.0IssueDate:2024-08-13 7.Antenna2Dprofile

Report No.: S24080704702002 1 / 211 5.2G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 97.58 0.11 0.72 NVNT a 5200 Ant1 97.58 0.11 0.71 NVNT a 5240 Ant1 97.63 0.1 0.72 NVNT n20 5180 Ant1 97.39 0.11 0.77 NVNT n20 5200 Ant1 97.43 0.11 0.77 NVNT n20 5240 Ant1 97.41 0.11 0.77 NVNT n40 5190 Ant1 95.05 0.22 1.54 NVNT n40 5230 Ant1 95.05 0.22 1.54 NVNT ac20 5180 Ant1 97.43 0.11 0.76 NVNT ac20 5200 Ant1 97.44 0.11 0.76 NVNT ac20 5240 Ant1 97.43 0.11 0.76 NVNT ac40 5190 Ant1 95.07 0.22 1.54 NVNT ac40 5230 Ant1 95.11 0.22 1.54 NVNT ac80 5210 Ant1 90.58 0.43 3.12 Report No.: S24080704702002 2 / 211 Test Graphs Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No.: S24080704702002 3 / 211 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.: S24080704702002 4 / 211 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No.: S24080704702002 5 / 211 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.: S24080704702002 6 / 211 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Report No.: S24080704702002 7 / 211 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac40 5190MHz Ant1 Report No.: S24080704702002 8 / 211 Duty Cycle NVNT ac40 5230MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant1 Report No.: S24080704702002 9 / 211 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 6.8 0 6.8 24 Pass NVNT a 5200 Ant1 6.74 0 6.74 24 Pass NVNT a 5240 Ant1 7.08 0 7.08 24 Pass NVNT n20 5180 Ant1 6.55 0 6.55 24 Pass NVNT n20 5200 Ant1 6.66 0 6.66 24 Pass NVNT n20 5240 Ant1 6.96 0 6.96 24 Pass NVNT n40 5190 Ant1 7.83 0 7.83 24 Pass NVNT n40 5230 Ant1 8.13 0 8.13 24 Pass NVNT ac20 5180 Ant1 7.11 0 7.11 24 Pass NVNT ac20 5200 Ant1 6.99 0 6.99 24 Pass NVNT ac20 5240 Ant1 7.44 0 7.44 24 Pass NVNT ac40 5190 Ant1 8.08 0 8.08 24 Pass NVNT ac40 5230 Ant1 8.3 0 8.3 24 Pass NVNT ac80 5210 Ant1 7.22 0 7.22 24 Pass Report No.: S24080704702002 10 / 211 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 29.214 Pass NVNT a 5200 Ant1 24.756 Pass NVNT a 5240 Ant1 29.229 Pass NVNT n20 5180 Ant1 29.94 Pass NVNT n20 5200 Ant1 28.392 Pass NVNT n20 5240 Ant1 26.367 Pass NVNT n40 5190 Ant1 59.952 Pass NVNT n40 5230 Ant1 59.952 Pass NVNT ac20 5180 Ant1 30 Pass NVNT ac20 5200 Ant1 28.965 Pass NVNT ac20 5240 Ant1 29.226 Pass NVNT ac40 5190 Ant1 59.994 Pass NVNT ac40 5230 Ant1 59.988 Pass NVNT ac80 5210 Ant1 119.796 Pass Report No.: S24080704702002 11 / 211 Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: S24080704702002 12 / 211 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.: S24080704702002 13 / 211 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: S24080704702002 14 / 211 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.: S24080704702002 15 / 211 -26dB Bandwidth NVNT ac20 5180MHz Ant1 -26dB Bandwidth NVNT ac20 5200MHz Ant1 Report No.: S24080704702002 16 / 211 -26dB Bandwidth NVNT ac20 5240MHz Ant1 -26dB Bandwidth NVNT ac40 5190MHz Ant1 Report No.: S24080704702002 17 / 211 -26dB Bandwidth NVNT ac40 5230MHz Ant1 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Report No.: S24080704702002 18 / 211 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.591 NVNT a 5200 Ant1 16.576 NVNT a 5240 Ant1 16.57 NVNT n20 5180 Ant1 17.677 NVNT n20 5200 Ant1 17.803 NVNT n20 5240 Ant1 17.713 NVNT n40 5190 Ant1 36.734 NVNT n40 5230 Ant1 36.71 NVNT ac20 5180 Ant1 17.854 NVNT ac20 5200 Ant1 17.809 NVNT ac20 5240 Ant1 17.836 NVNT ac40 5190 Ant1 37.238 NVNT ac40 5230 Ant1 36.776 NVNT ac80 5210 Ant1 75.592 Report No.: S24080704702002 19 / 211 Test Graphs OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No.: S24080704702002 20 / 211 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Report No.: S24080704702002 21 / 211 OBW NVNT n20 5200MHz Ant1 OBW NVNT n20 5240MHz Ant1 Report No.: S24080704702002 22 / 211 OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report No.: S24080704702002 23 / 211 OBW NVNT ac20 5180MHz Ant1 OBW NVNT ac20 5200MHz Ant1 Report No.: S24080704702002 24 / 211 OBW NVNT ac20 5240MHz Ant1 OBW NVNT ac40 5190MHz Ant1 Report No.: S24080704702002 25 / 211 OBW NVNT ac40 5230MHz Ant1 OBW NVNT ac80 5210MHz Ant1 Report No.: S24080704702002 26 / 211 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -8.02 0.11 -7.91 11 Pass NVNT a 5200 Ant1 -6.41 0.11 -6.3 11 Pass NVNT a 5240 Ant1 -5.57 0.1 -5.47 11 Pass NVNT n20 5180 Ant1 -8.41 0.11 -8.3 11 Pass NVNT n20 5200 Ant1 -6.57 0.11 -6.46 11 Pass NVNT n20 5240 Ant1 -5.66 0.11 -5.55 11 Pass NVNT n40 5190 Ant1 -10.84 0.22 -10.62 11 Pass NVNT n40 5230 Ant1 -9 0.22 -8.78 11 Pass NVNT ac20 5180 Ant1 -6.58 0.11 -6.47 11 Pass NVNT ac20 5200 Ant1 -4.92 0.11 -4.81 11 Pass NVNT ac20 5240 Ant1 -4.01 0.11 -3.9 11 Pass NVNT ac40 5190 Ant1 -10.47 0.22 -10.25 11 Pass NVNT ac40 5230 Ant1 -8.86 0.22 -8.64 11 Pass NVNT ac80 5210 Ant1 -15.23 0.43 -14.8 11 Pass Report No.: S24080704702002 27 / 211 Test Graphs PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No.: S24080704702002 28 / 211 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Report No.: S24080704702002 29 / 211 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Report No.: S24080704702002 30 / 211 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report No.: S24080704702002 31 / 211 PSD NVNT ac20 5180MHz Ant1 PSD NVNT ac20 5200MHz Ant1 Report No.: S24080704702002 32 / 211 PSD NVNT ac20 5240MHz Ant1 PSD NVNT ac40 5190MHz Ant1 Report No.: S24080704702002 33 / 211 PSD NVNT ac40 5230MHz Ant1 PSD NVNT ac80 5210MHz Ant1 Report No.: S240…

Text truncated - open the document above for the full version.

Report No.: S24080704702002 42 / 211 Test Graphs Tx. Spurious NVNT a 5180MHz Ant1 Emission Tx. Spurious NVNT a 5200MHz Ant1 Emission Report No.: S24080704702002 43 / 211 Tx. Spurious NVNT a 5240MHz Ant1 Emission Tx. Spurious NVNT n20 5180MHz Ant1 Emission Report No.: S24080704702002 44 / 211 Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant1 Emission Report No.: S24080704702002 45 / 211 Tx. Spurious NVNT n40 5190MHz Ant1 Emission Tx. Spurious NVNT n40 5230MHz Ant1 Emission Report No.: S24080704702002 46 / 211 Tx. Spurious NVNT ac20 5180MHz Ant1 Emission Tx. Spurious NVNT ac20 5200MHz Ant1 Emission Report No.: S24080704702002 47 / 211 Tx. Spurious NVNT ac20 5240MHz Ant1 Emission Tx. Spurious NVNT ac40 5190MHz Ant1 Emission Report No.: S24080704702002 48 / 211 Tx. Spurious NVNT ac40 5230MHz Ant1 Emission Tx. Spurious NVNT ac80 5210MHz Ant1 Emission Report No.: S24080704702002 49 / 211 5.3G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5260 Ant1 97.62 0.1 0.72 NVNT a 5280 Ant1 97.58 0.11 0.72 NVNT a 5320 Ant1 97.6 0.11 0.72 NVNT n20 5260 Ant1 97.43 0.11 0.77 NVNT n20 5280 Ant1 97.42 0.11 0.77 NVNT n20 5320 Ant1 97.45 0.11 0.77 NVNT n40 5270 Ant1 95.08 0.22 1.54 NVNT n40 5310 Ant1 95.05 0.22 1.54 NVNT ac20 5260 Ant1 97.47 0.11 0.76 NVNT ac20 5280 Ant1 97.45 0.11 0.76 NVNT ac20 5320 Ant1 97.41 0.11 0.76 NVNT ac40 5270 Ant1 95.11 0.22 1.52 NVNT ac40 5310 Ant1 95.12 0.22 1.54 NVNT ac80 5290 Ant1 90.42 0.44 3.03 Report No.: S24080704702002 50 / 211 Test Graphs Duty Cycle NVNT a 5260MHz Ant1 Duty Cycle NVNT a 5280MHz Ant1 Report No.: S24080704702002 51 / 211 Duty Cycle NVNT a 5320MHz Ant1 Duty Cycle NVNT n20 5260MHz Ant1 Report No.: S24080704702002 52 / 211 Duty Cycle NVNT n20 5280MHz Ant1 Duty Cycle NVNT n20 5320MHz Ant1 Report No.: S24080704702002 53 / 211 Duty Cycle NVNT n40 5270MHz Ant1 Duty Cycle NVNT n40 5310MHz Ant1 Report No.: S24080704702002 54 / 211 Duty Cycle NVNT ac20 5260MHz Ant1 Duty Cycle NVNT ac20 5280MHz Ant1 Report No.: S24080704702002 55 / 211 Duty Cycle NVNT ac20 5320MHz Ant1 Duty Cycle NVNT ac40 5270MHz Ant1 Report No.: S24080704702002 56 / 211 Duty Cycle NVNT ac40 5310MHz Ant1 Duty Cycle NVNT ac80 5290MHz Ant1 Report No.: S24080704702002 57 / 211 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5260 Ant1 7.24 0 7.24 24 Pass NVNT a 5280 Ant1 8.05 0 8.05 24 Pass NVNT a 5320 Ant1 9.08 0 9.08 24 Pass NVNT n20 5260 Ant1 7.31 0 7.31 24 Pass NVNT n20 5280 Ant1 8.1 0 8.1 24 Pass NVNT n20 5320 Ant1 9.11 0 9.11 24 Pass NVNT n40 5270 Ant1 8.06 0 8.06 24 Pass NVNT n40 5310 Ant1 8.2 0 8.2 24 Pass NVNT ac20 5260 Ant1 7.5 0 7.5 24 Pass NVNT ac20 5280 Ant1 8.09 0 8.09 24 Pass NVNT ac20 5320 Ant1 9.07 0 9.07 24 Pass NVNT ac40 5270 Ant1 8 0 8 24 Pass NVNT ac40 5310 Ant1 7.72 0 7.72 24 Pass NVNT ac80 5290 Ant1 6.71 0 6.71 24 Pass Report No.: S24080704702002 58 / 211 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5260 Ant1 28.617 Pass NVNT a 5280 Ant1 28.815 Pass NVNT a 5320 Ant1 28.872 Pass NVNT n20 5260 Ant1 29.865 Pass NVNT n20 5280 Ant1 30 Pass NVNT n20 5320 Ant1 29.139 Pass NVNT n40 5270 Ant1 59.976 Pass NVNT n40 5310 Ant1 59.934 Pass NVNT ac20 5260 Ant1 30 Pass NVNT ac20 5280 Ant1 29.781 Pass NVNT ac20 5320 Ant1 29.316 Pass NVNT ac40 5270 Ant1 59.988 Pass NVNT ac40 5310 Ant1 59.958 Pass NVNT ac80 5290 Ant1 119.364 Pass Report No.: S24080704702002 59 / 211 Test Graphs -26dB Bandwidth NVNT a 5260MHz Ant1 -26dB Bandwidth NVNT a 5280MHz Ant1 Report No.: S24080704702002 60 / 211 -26dB Bandwidth NVNT a 5320MHz Ant1 -26dB Bandwidth NVNT n20 5260MHz Ant1 Report No.: S24080704702002 61 / 211 -26dB Bandwidth NVNT n20 5280MHz Ant1 -26dB Bandwidth NVNT n20 5320MHz Ant1 Report No.: S24080704702002 62 / 211 -26dB Bandwidth NVNT n40 5270MHz Ant1 -26dB Bandwidth NVNT n40 5310MHz Ant1 Report No.: S24080704702002 63 / 211 -26dB Bandwidth NVNT ac20 5260MHz Ant1 -26dB Bandwidth NVNT ac20 5280MHz Ant1 Report No.: S24080704702002 64 / 211 -26dB Bandwidth NVNT ac20 5320MHz Ant1 -26dB Bandwidth NVNT ac40 5270MHz Ant1 Report No.: S24080704702002 65 / 211 -26dB Bandwidth NVNT ac40 5310MHz Ant1 -26dB Bandwidth NVNT ac80 5290MHz Ant1 Report No.: S24080704702002 66 / 211 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5260 Ant1 16.726 NVNT a 5280 Ant1 16.753 NVNT a 5320 Ant1 16.975 NVNT n20 5260 Ant1 17.755 NVNT n20 5280 Ant1 17.866 NVNT n20 5320 Ant1 17.665 NVNT n40 5270 Ant1 36.614 NVNT n40 5310 Ant1 36.698 NVNT ac20 5260 Ant1 17.848 NVNT ac20 5280 Ant1 17.98 NVNT ac20 5320 Ant1 17.779 NVNT ac40 5270 Ant1 36.578 NVNT ac40 5310 Ant1 36.59 NVNT ac80 5290 Ant1 75.58 Report No.: S24080704702002 67 / 211 Test Graphs OBW NVNT a 5260MHz Ant1 OBW NVNT a 5280MHz Ant1 Report No.: S24080704702002 68 / 211 OBW NVNT a 5320MHz Ant1 OBW NVNT n20 5260MHz Ant1 Report No.: S24080704702002 69 / 211 OBW NVNT n20 5280MHz Ant1 OBW NVNT n20 5320MHz Ant1 Report No.: S24080704702002 70 / 211 OBW NVNT n40 5270MHz Ant1 OBW NVNT n40 5310MHz Ant1 Report No.: S24080704702002 71 / 211 OBW NVNT ac20 5260MHz Ant1 OBW NVNT ac20 5280MHz Ant1 Report No.: S24080704702002 72 / 211 OBW NVNT ac20 5320MHz Ant1 OBW NVNT ac40 5270MHz Ant1 Report No.: S24080704702002 73 / 211 OBW NVNT ac40 5310MHz Ant1 OBW NVNT ac80 5290MHz Ant1 Report No.: S24080704702002 74 / 211 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5260 Ant1 -4.75 0.1 -4.65 11 Pass NVNT a 5280 Ant1 -3.68 0.11 -3.57 11 Pass NVNT a 5320 Ant1 -3.21 0.11 -3.1 11 Pass NVNT n20 5260 Ant1 -5.25 0.11 -5.14 11 Pass NVNT n20 5280 Ant1 -4.52 0.11 -4.41 11 Pass NVNT n20 5320 Ant1 -3.32 0.11 -3.21 11 Pass NVNT n40 5270 Ant1 -7.12 0.22 -6.9 11 Pass NVNT n40 5310 Ant1 -8.14 0.22 -7.92 11 Pass NVNT ac20 5260 Ant1 -4.75 0.11 -4.64 11…

Text truncated - open the document above for the full version.

Report No.: S24080704702002 81 / 211 PSD NVNT ac40 5310MHz Ant1 PSD NVNT ac80 5290MHz Ant1 Report No.: S24080704702002 82 / 211 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5260 Ant1 -36.69 -27 Pass NVNT a 5320 Ant1 -29.53 -27 Pass NVNT n20 5260 Ant1 -42.59 -27 Pass NVNT n20 5320 Ant1 -30.3 -27 Pass NVNT n40 5270 Ant1 -43.58 -27 Pass NVNT n40 5310 Ant1 -28.26 -27 Pass NVNT ac20 5260 Ant1 -43 -27 Pass NVNT ac20 5320 Ant1 -30.29 -27 Pass NVNT ac40 5270 Ant1 -42.09 -27 Pass NVNT ac40 5310 Ant1 -30.36 -27 Pass NVNT ac80 5290 Ant1 -28.32 -27 Pass Report No.: S24080704702002 83 / 211 Test Graphs Band Edge NVNT a 5260MHz Low Ant1 Band Edge NVNT a 5320MHz High Ant1 Report No.: S24080704702002 84 / 211 Band Edge NVNT n20 5260MHz Low Ant1 Band Edge NVNT n20 5320MHz High Ant1 Report No.: S24080704702002 85 / 211 Band Edge NVNT n40 5270MHz Low Ant1 Band Edge NVNT n40 5310MHz High Ant1 Report No.: S24080704702002 86 / 211 Band Edge NVNT ac20 5260MHz Low Ant1 Band Edge NVNT ac20 5320MHz High Ant1 Report No.: S24080704702002 87 / 211 Band Edge NVNT ac40 5270MHz Low Ant1 Band Edge NVNT ac40 5310MHz High Ant1 Report No.: S24080704702002 88 / 211 Band Edge NVNT ac80 5290MHz High Ant1 Report No.: S24080704702002 89 / 211 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5260 Ant1 -33.47 -27 Pass NVNT a 5280 Ant1 -33.2 -27 Pass NVNT a 5320 Ant1 -34.32 -27 Pass NVNT n20 5260 Ant1 -33.01 -27 Pass NVNT n20 5280 Ant1 -33.05 -27 Pass NVNT n20 5320 Ant1 -33.89 -27 Pass NVNT n40 5270 Ant1 -34.34 -27 Pass NVNT n40 5310 Ant1 -33.99 -27 Pass NVNT ac20 5260 Ant1 -34.84 -27 Pass NVNT ac20 5280 Ant1 -31.47 -27 Pass NVNT ac20 5320 Ant1 -33.37 -27 Pass NVNT ac40 5270 Ant1 -34.53 -27 Pass NVNT ac40 5310 Ant1 -34.44 -27 Pass NVNT ac80 5290 Ant1 -33.48 -27 Pass Report No.: S24080704702002 90 / 211 Test Graphs Tx. Spurious NVNT a 5260MHz Ant1 Emission Tx. Spurious NVNT a 5280MHz Ant1 Emission Report No.: S24080704702002 91 / 211 Tx. Spurious NVNT a 5320MHz Ant1 Emission Tx. Spurious NVNT n20 5260MHz Ant1 Emission Report No.: S24080704702002 92 / 211 Tx. Spurious NVNT n20 5280MHz Ant1 Emission Tx. Spurious NVNT n20 5320MHz Ant1 Emission Report No.: S24080704702002 93 / 211 Tx. Spurious NVNT n40 5270MHz Ant1 Emission Tx. Spurious NVNT n40 5310MHz Ant1 Emission Report No.: S24080704702002 94 / 211 Tx. Spurious NVNT ac20 5260MHz Ant1 Emission Tx. Spurious NVNT ac20 5280MHz Ant1 Emission Report No.: S24080704702002 95 / 211 Tx. Spurious NVNT ac20 5320MHz Ant1 Emission Tx. Spurious NVNT ac40 5270MHz Ant1 Emission Report No.: S24080704702002 96 / 211 Tx. Spurious NVNT ac40 5310MHz Ant1 Emission Tx. Spurious NVNT ac80 5290MHz Ant1 Emission Report No.: S24080704702002 97 / 211 5.6G Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5500 Ant1 97.58 0.11 0.72 NVNT a 5600 Ant1 97.63 0.1 0.72 NVNT a 5700 Ant1 97.56 0.11 0.72 NVNT n20 5500 Ant1 97.43 0.11 0.77 NVNT n20 5600 Ant1 97.44 0.11 0.77 NVNT n20 5700 Ant1 97.41 0.11 0.77 NVNT n40 5510 Ant1 95.04 0.22 1.54 NVNT n40 5590 Ant1 95.02 0.22 1.54 NVNT n40 5670 Ant1 95.07 0.22 1.54 NVNT ac20 5500 Ant1 97.41 0.11 0.76 NVNT ac20 5600 Ant1 97.49 0.11 0.76 NVNT ac20 5700 Ant1 97.46 0.11 0.76 NVNT ac40 5510 Ant1 95.1 0.22 1.54 NVNT ac40 5590 Ant1 95.07 0.22 1.54 NVNT ac40 5670 Ant1 95.05 0.22 1.54 NVNT ac80 5530 Ant1 88.31 0.54 3.13 NVNT ac80 5610 Ant1 90.22 0.45 3.13 Report No.: S24080704702002 98 / 211 Test Graphs Duty Cycle NVNT a 5500MHz Ant1 Duty Cycle NVNT a 5600MHz Ant1 Report No.: S24080704702002 99 / 211 Duty Cycle NVNT a 5700MHz Ant1 Duty Cycle NVNT n20 5500MHz Ant1 Report No.: S24080704702002 100 / 211 Duty Cycle NVNT n20 5600MHz Ant1 Duty Cycle NVNT n20 5700MHz Ant1 Report No.: S24080704702002 101 / 211 Duty Cycle NVNT n40 5510MHz Ant1 Duty Cycle NVNT n40 5590MHz Ant1 Report No.: S24080704702002 102 / 211 Duty Cycle NVNT n40 5670MHz Ant1 Duty Cycle NVNT ac20 5500MHz Ant1 Report No.: S24080704702002 103 / 211 Duty Cycle NVNT ac20 5600MHz Ant1 Duty Cycle NVNT ac20 5700MHz Ant1 Report No.: S24080704702002 104 / 211 Duty Cycle NVNT ac40 5510MHz Ant1 Duty Cycle NVNT ac40 5590MHz Ant1 Report No.: S24080704702002 105 / 211 Duty Cycle NVNT ac40 5670MHz Ant1 Duty Cycle NVNT ac80 5530MHz Ant1 Report No.: S24080704702002 106 / 211 Duty Cycle NVNT ac80 5610MHz Ant1 Report No.: S24080704702002 107 / 211 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 8.31 0 8.31 24 Pass NVNT a 5600 Ant1 6.96 0 6.96 24 Pass NVNT a 5700 Ant1 8.69 0 8.69 24 Pass NVNT n20 5500 Ant1 7.93 0 7.93 24 Pass NVNT n20 5600 Ant1 6.9 0 6.9 24 Pass NVNT n20 5700 Ant1 7.66 0 7.66 24 Pass NVNT n40 5510 Ant1 7.13 0 7.13 24 Pass NVNT n40 5590 Ant1 6.51 0 6.51 24 Pass NVNT n40 5670 Ant1 6.9 0 6.9 24 Pass NVNT ac20 5500 Ant1 8.12 0 8.12 24 Pass NVNT ac20 5600 Ant1 6.95 0 6.95 24 Pass NVNT ac20 5700 Ant1 8.59 0 8.59 24 Pass NVNT ac40 5510 Ant1 7.2 0 7.2 24 Pass NVNT ac40 5590 Ant1 6.29 0 6.29 24 Pass NVNT ac40 5670 Ant1 6.76 0 6.76 24 Pass NVNT ac80 5530 Ant1 6.08 0 6.08 24 Pass NVNT ac80 5610 Ant1 5.43 0 5.43 24 Pass Report No.: S24080704702002 108 / 211 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5500 Ant1 28.254 Pass NVNT a 5600 Ant1 28.296 Pass NVNT a 5700 Ant1 24.837 Pass NVNT n20 5500 Ant1 27.039 Pass NVNT n20 5600 Ant1 30 Pass NVNT n20 5700 Ant1 23.772 Pass NVNT n40 5510 Ant1 59.844 Pass NVNT n40 5590 Ant1 60 Pass NVNT n40 5670 Ant1 59.064 Pass NVNT ac20 5500 Ant1 29.7 Pass NVNT ac20 5600 Ant1 30 Pass NVNT ac20 5700 Ant1 30 Pass NVNT ac40 5510 Ant1 59.694 Pass NVNT ac40 5590 Ant1 59.934 Pass NVNT ac40 5670 Ant1 57.684 Pass NVNT ac80 5530 Ant1 113.352 Pass NVNT ac80 5610 Ant1 119.016 Pass Report No.: S24080704702002 109 / 211 Test Graphs -26dB Bandwidth NVNT a 5500MHz Ant1 -26dB Bandwidth NVNT a 5600MHz A…

Text truncated - open the document above for the full version.

Report No.: S24080704702002 121 / 211 OBW NVNT n20 5600MHz Ant1 OBW NVNT n20 5700MHz Ant1 Report No.: S24080704702002 122 / 211 OBW NVNT n40 5510MHz Ant1 OBW NVNT n40 5590MHz Ant1 Report No.: S24080704702002 123 / 211 OBW NVNT n40 5670MHz Ant1 OBW NVNT ac20 5500MHz Ant1 Report No.: S24080704702002 124 / 211 OBW NVNT ac20 5600MHz Ant1 OBW NVNT ac20 5700MHz Ant1 Report No.: S24080704702002 125 / 211 OBW NVNT ac40 5510MHz Ant1 OBW NVNT ac40 5590MHz Ant1 Report No.: S24080704702002 126 / 211 OBW NVNT ac40 5670MHz Ant1 OBW NVNT ac80 5530MHz Ant1 Report No.: S24080704702002 127 / 211 OBW NVNT ac80 5610MHz Ant1 Report No.: S24080704702002 128 / 211 Maximum Power Spectral D…
